arxiv: 2604.09383 · v1 · submitted 2026-04-10 · 🌌 astro-ph.EP · astro-ph.IM

Nii-body: Bayesian Inference of Multiplanet Dynamics via N-body Simulations

Hong-Fei Jia , Sheng Jin , Dong-Hong Wu , Shang-Fei Liu This is my paper

Pith reviewed 2026-05-10 17:29 UTC · model grok-4.3

classification 🌌 astro-ph.EP astro-ph.IM
keywords exoplanetsmultiplanet systemsN-body simulationsBayesian inferenceMCMCorbital fittingastrometryexoplanet dynamics
0
0 comments X

The pith

A Bayesian framework couples N-body simulations with MCMC to fit parameters of multiplanet exoplanetary systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Many exoplanetary systems consist of multiple planets whose motions are governed by mutual gravitational interactions rather than independent Keplerian orbits. The paper develops Nii-body, a tool that embeds full N-body integration inside a Bayesian MCMC sampler to retrieve system parameters from observational data. The framework uses an adaptive Runge-Kutta-Fehlberg 7(8) integrator and parallel tempering to explore parameter space efficiently. Testing on synthetic astrometric observations of an idealized two-planet system demonstrates the method's robustness. A reader cares because this allows more accurate interpretation of radial velocity, astrometry, and transit timing data for real multiplanet systems where approximations break down.

Core claim

The authors present Nii-body, a code that integrates an adaptive Runge-Kutta-Fehlberg 7(8) solver with an automated parallel tempering MCMC algorithm, enabling Bayesian retrieval of multiplanet system parameters directly from N-body dynamics rather than Keplerian approximations.

What carries the argument

Nii-body code, which couples adaptive N-body integration via the RKF78 solver with parallel tempering MCMC to perform orbit retrieval from observations such as astrometry.

If this is right

  • The N-body fitting workflow extends directly to radial velocity, transit timing variations, or combined datasets.
  • The approach provides a versatile engine for high-precision orbital inference in multiplanet systems.
  • Demonstrated efficiency on idealized two-planet models with synthetic astrometry supports scalability to more complex configurations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This method could reduce systematic biases in mass and orbit estimates for planets in strong gravitational interactions compared to Keplerian models.
  • Application to real data archives would enable joint constraints on system stability and architecture that current tools handle only approximately.

Load-bearing premise

The adaptive Runge-Kutta-Fehlberg 7(8) integrator remains accurate and stable over the relevant timescales, and the simplified synthetic astrometric observations adequately represent the noise and sampling of real data.

What would settle it

Applying Nii-body to a known multiplanet system with real astrometric or radial velocity data and obtaining parameter values that differ substantially from those derived by independent established methods would falsify the framework's reliability for practical use.

Figures

Figures reproduced from arXiv: 2604.09383 by Dong-Hong Wu, Hong-Fei Jia, Shang-Fei Liu, Sheng Jin.

Figure 1

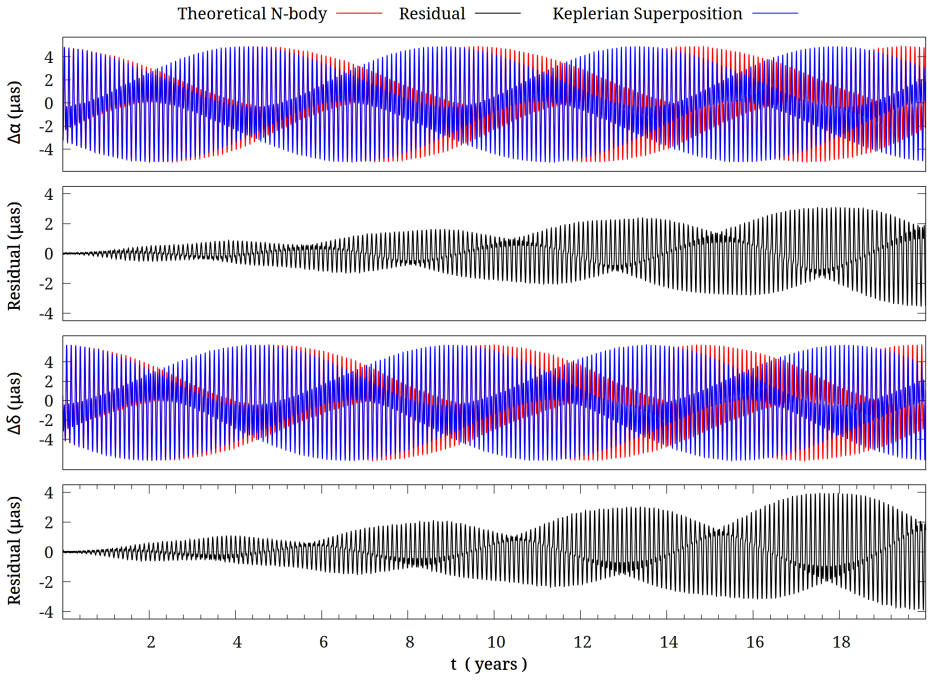

Figure 1. Figure 1: Synthetic astrometric signals of the host star in the Kepler-9 system, influenced by gravitational perturbations [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Schematic illustration of the coordinate system [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The differences in the x, y, and z coordinates (∆x, ∆y and ∆z) between the trajectories computed by Nii-body/RKF78 and REBOUND/IAS15 for the SEJ benchmark. The residuals remain small over the full 10,000-year integration, confirming the close numerical agreement between the two codes [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The black lines show the theoretical astrometric wobbles of the simulated Kepler-9 star over the five-year period, [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Corner plot displaying the marginal posterior distributions of all 15 parameters obtained from a N-body MCMC [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
read the original abstract

Many exoplanetary systems are multiplanet configurations whose long-term dynamics are governed by N-body gravitational interactions. Consequently, their detection signatures cannot be adequately described by Keplerian orbits. Accurately interpreting the observational data of these systems -- including radial velocity (RV), astrometry, and transit timing variations (TTVs) -- requires N-body integration. Motivated by this need, we developed a Bayesian fitting framework that couples N-body integration with Markov chain Monte Carlo (MCMC) to retrieve the system parameters of multiplanet systems. The code, named \texttt{Nii-body}, integrates an adaptive Runge--Kutta--Fehlberg 7(8) (RKF78) solver with an automated parallel tempering MCMC algorithm. Using simplified synthetic astrometric observations, we evaluated the efficiency and robustness of \texttt{Nii-body}'s N-body orbit retrieval on an idealized two-planet model, demonstrating its potential for future application to real observational data. The N-body fitting workflow can be readily extended to RV, TTVs, or combined datasets, providing a versatile engine for high-precision orbital inference in multiplanet systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces Nii-body, a Bayesian framework that couples an adaptive Runge-Kutta-Fehlberg 7(8) N-body integrator with parallel-tempering MCMC to infer orbital parameters of multiplanet systems from astrometric, RV, or TTV observations. The central demonstration consists of a parameter-recovery test on simplified synthetic astrometric data for an idealized two-planet model, with the authors noting that the workflow can be extended to real datasets.

Significance. A reliable open-source N-body+MCMC engine would be useful for exoplanet dynamics where mutual perturbations invalidate independent Keplerian fits. The paper correctly identifies the need for such a tool and its extensibility to combined datasets. However, the current evaluation on highly idealized synthetic data provides only qualitative evidence of success, limiting the immediate significance of the contribution.

major comments (2)
  1. [Synthetic recovery experiment (abstract and results)] The synthetic-data recovery experiment (described in the abstract and the results section) reports successful parameter retrieval but supplies no quantitative metrics: no posterior means or credible intervals, no bias or coverage statistics relative to the known inputs, no MCMC convergence diagnostics (e.g., Gelman-Rubin statistic or effective sample size), and no comparison to a Keplerian baseline. Without these numbers the claim that the framework “successfully retrieves” the system parameters cannot be evaluated.
  2. [Methods / synthetic data generation] The description of the synthetic astrometric observations states only that they are “simplified” and “idealized.” No explicit noise model, cadence, number of epochs, or astrometric precision is provided, nor is any test shown with correlated noise, uneven sampling, or stellar jitter. This omission directly affects the weakest assumption identified in the stress-test note and prevents assessment of robustness under realistic conditions.
minor comments (2)
  1. [Abstract and §1] The abstract and introduction would benefit from a brief statement of the specific orbital elements being fitted (e.g., whether masses, periods, eccentricities, or inclinations are free parameters) to clarify the dimensionality of the inference problem.
  2. [Methods] Notation for the integrator tolerances and MCMC tempering schedule should be defined once and used consistently; a short table summarizing the adopted numerical settings would improve reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments, which highlight opportunities to strengthen the quantitative support for our claims and the transparency of our synthetic-data setup. We address each major point below and will incorporate the suggested improvements in the revised manuscript.

read point-by-point responses

  1. Referee: [Synthetic recovery experiment (abstract and results)] The synthetic-data recovery experiment (described in the abstract and the results section) reports successful parameter retrieval but supplies no quantitative metrics: no posterior means or credible intervals, no bias or coverage statistics relative to the known inputs, no MCMC convergence diagnostics (e.g., Gelman-Rubin statistic or effective sample size), and no comparison to a Keplerian baseline. Without these numbers the claim that the framework “successfully retrieves” the system parameters cannot be evaluated.

    Authors: We agree that the current presentation relies on qualitative demonstration and that explicit quantitative metrics are needed for readers to rigorously assess retrieval performance. In the revised manuscript we will add posterior means and 68%/95% credible intervals for all fitted parameters, Gelman-Rubin statistics and effective sample sizes for the MCMC chains, and a direct comparison of the N-body posterior to an independent Keplerian fit on the same synthetic data. These additions will allow quantitative evaluation of bias, coverage, and the necessity of the N-body treatment. revision: yes

  2. Referee: [Methods / synthetic data generation] The description of the synthetic astrometric observations states only that they are “simplified” and “idealized.” No explicit noise model, cadence, number of epochs, or astrometric precision is provided, nor is any test shown with correlated noise, uneven sampling, or stellar jitter. This omission directly affects the weakest assumption identified in the stress-test note and prevents assessment of robustness under realistic conditions.

    Authors: We acknowledge that the synthetic-data generation section is currently underspecified. We will expand the Methods section to provide the exact noise model (white Gaussian with specified standard deviation), observational cadence, total number of epochs, and astrometric precision adopted for the idealized two-planet test. We will also add a brief discussion of the assumptions and outline how the framework can be extended to correlated noise or jitter in future work, thereby clarifying the scope of the present demonstration. revision: yes

Circularity Check

0 steps flagged

No significant circularity; tool-development paper with independent synthetic validation

full rationale

The manuscript describes a software framework (Nii-body) that couples an adaptive RKF78 N-body integrator to parallel-tempering MCMC for orbital parameter retrieval. No theoretical derivation, uniqueness theorem, or predictive claim is advanced that reduces by construction to fitted quantities or self-citations. The only empirical demonstration uses freshly generated synthetic astrometric data whose noise model and sampling are stated to be simplified and independent of the fitting engine. All load-bearing steps (integrator choice, MCMC implementation, likelihood evaluation) are externally verifiable code-level operations rather than tautological redefinitions. This is a standard computational-methods contribution whose central claim does not collapse into its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No new free parameters, physical axioms, or invented entities are introduced; the framework relies on standard N-body gravitational dynamics and established MCMC sampling techniques.
