GeoMeld: Toward Semantically Grounded Foundation Models for Remote Sensing

Maram Hasan , Md Aminur Hossain , Savitra Roy , Souparna Bhowmik , Ayush V. Patel , Mainak Singha , Subhasis Chaudhuri , Muhammad Haris Khan
show 1 more author
Biplab Banerjee
This is my paper

Pith reviewed 2026-05-10 15:11 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords remote sensingmultimodal foundation modelssemantic groundingdatasetpretrainingcross-sensor robustnessagentic captioningmasked autoencoding
0
0 comments X

The pith

A 2.5-million-sample multimodal dataset with agentic semantic captions enables foundation models with improved transfer and cross-sensor performance in remote sensing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Foundation models for remote sensing need to handle aligned data from multiple sensors and resolutions while incorporating meaningful semantic understanding from text. The paper addresses the scarcity of such resources by releasing GeoMeld, a dataset of roughly 2.5 million spatially aligned samples that includes language supervision generated through an agentic captioning process drawing on spectral signals, terrain statistics, and geographic metadata. This supervision encodes measurable cross-modality relationships directly into the text descriptions. The associated GeoMeld-FM pretraining combines masked autoencoding across modalities, JEPA-style representation learning, and vision-caption contrastive alignment to build representations that respect physical consistency. Experiments show these models transfer better to new tasks and maintain performance across different sensors.

Core claim

GeoMeld is a large-scale multimodal dataset consisting of approximately 2.5 million spatially aligned samples across diverse modalities and resolutions, constructed under a unified alignment protocol. It incorporates semantically grounded language supervision generated by an agentic captioning framework that synthesizes and verifies annotations from spectral signals, terrain statistics, and structured geographic metadata, thereby encoding measurable cross-modality relationships. The GeoMeld-FM pretraining framework integrates multi-pretext masked autoencoding, JEPA representation learning, and caption-vision contrastive alignment to produce representations that capture both reliable cross-s

What carries the argument

The agentic captioning framework that generates verifiable textual descriptions encoding cross-modality relationships from spectral, terrain, and geographic data, combined with the joint pretraining objective of masked autoencoding, JEPA, and contrastive alignment.

If this is right

  • Pretrained models exhibit consistent improvements in performance on various downstream remote sensing tasks.
  • The learned representations demonstrate enhanced robustness when applied to data collected by different sensors.
  • The dataset and framework together provide a scalable reference for developing semantically grounded multimodal foundation models in remote sensing.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar approaches combining agentic annotation with multimodal pretraining could be extended to other fields involving heterogeneous sensor data, such as autonomous driving or medical imaging.
  • The emphasis on encoding measurable physical relationships in text may reduce hallucinations in generative models for geospatial applications.
  • Future work might test whether these representations support zero-shot inference on novel sensor combinations not seen during pretraining.

Load-bearing premise

The agentic captioning framework generates accurate, verifiable annotations that meaningfully encode measurable cross-modality relationships from the input signals.

What would settle it

Demonstrating that models trained without the agentic captions or without the full joint pretraining objective achieve equivalent gains in downstream transfer and cross-sensor robustness would challenge the paper's central claim.

Figures

Figures reproduced from arXiv: 2604.10591 by Ayush V. Patel, Biplab Banerjee, Mainak Singha, Maram Hasan, Md Aminur Hossain, Muhammad Haris Khan, Savitra Roy, Souparna Bhowmik, Subhasis Chaudhuri.

Figure 1
Figure 1. Figure 1: (a) Global spatial distribution of datapoints presented in 1°x1°cell, representing the number of tiles in 10.68 × 10.68 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

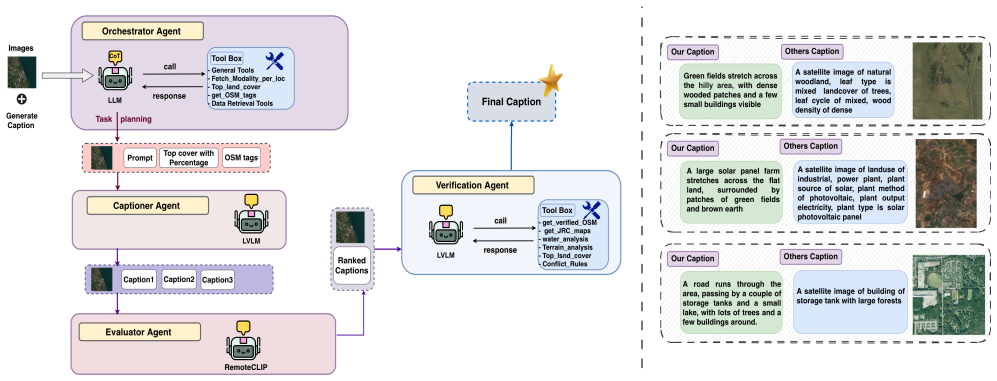

Figure 2. Figure 2: Agentic framework for generating semantically grounded captions. An Orchestrator aggregates modality-specific signals and [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4

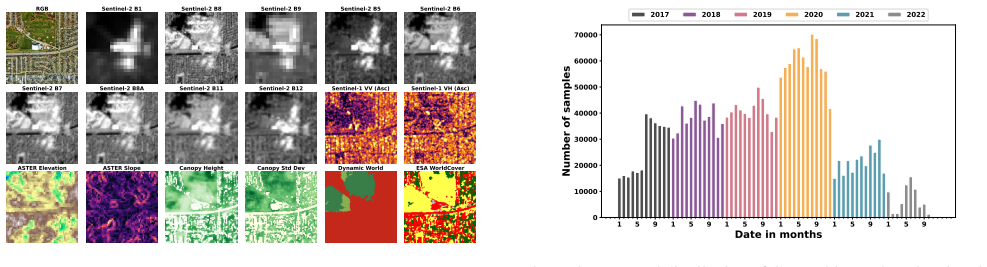

Figure 4. Figure 4: Temporal distribution of GeoMeld samples, showing the [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

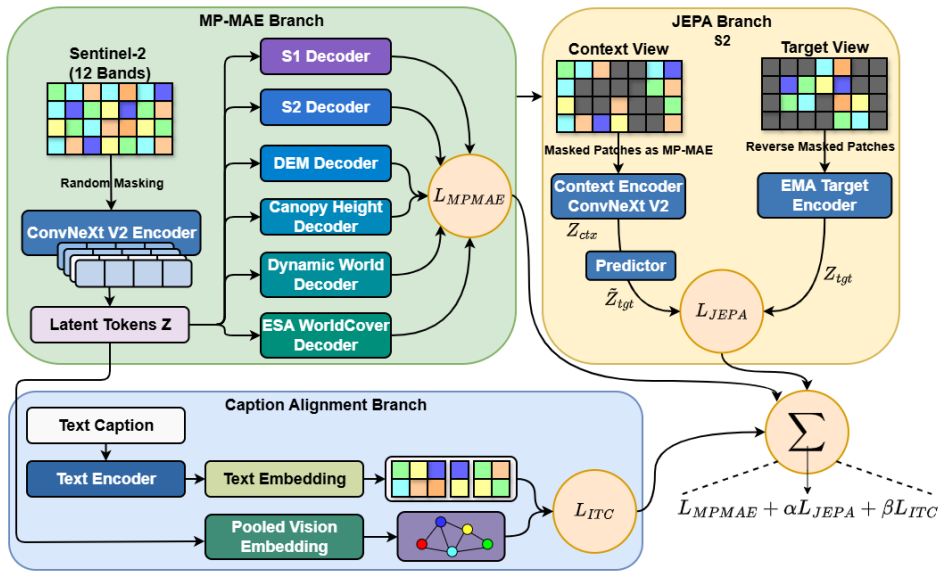

Figure 5. Figure 5: GeoMeld-FM pretraining architecture. Sentinel-2 (12-band) tiles are patchified and randomly masked, and visible patches are encoded by a ConvNeXtV2 MAE encoder to produce latent tokens. The same masking pattern is used for the JEPA context encoder, while a separate non-overlapping mask forms the JEPA target view. Lightweight modality-specific decoders (MP-MAE) reconstruct or predict aligned modalities, inc… view at source ↗
read the original abstract

Effective foundation modeling in remote sensing requires spatially aligned heterogeneous modalities coupled with semantically grounded supervision, yet such resources remain limited at scale. We present GeoMeld, a large-scale multimodal dataset with approximately 2.5 million spatially aligned samples. The dataset spans diverse modalities and resolutions and is constructed under a unified alignment protocol for modality-aware representation learning. GeoMeld provides semantically grounded language supervision through an agentic captioning framework that synthesizes and verifies annotations from spectral signals, terrain statistics, and structured geographic metadata, encoding measurable cross-modality relationships within textual descriptions. To leverage this dataset, we introduce GeoMeld-FM, a pretraining framework that combines multi-pretext masked autoencoding over aligned modalities, JEPA representation learning, and caption-vision contrastive alignment. This joint objective enables the learned representation space to capture both reliable cross-sensor physical consistency and grounded semantics. Experiments demonstrate consistent gains in downstream transfer and cross-sensor robustness. Together, GeoMeld and GeoMeld-FM establish a scalable reference framework for semantically grounded multi-modal foundation modeling in remote sensing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The manuscript introduces GeoMeld, a dataset of approximately 2.5 million spatially aligned multimodal remote sensing samples spanning diverse modalities and resolutions under a unified alignment protocol. It provides semantically grounded language supervision via an agentic captioning framework that synthesizes and verifies annotations from spectral signals, terrain statistics, and geographic metadata to encode cross-modality relationships. The authors also present GeoMeld-FM, a pretraining framework combining multi-pretext masked autoencoding, JEPA representation learning, and caption-vision contrastive alignment, claiming that this joint objective yields representations capturing both physical consistency and grounded semantics, with experiments demonstrating consistent gains in downstream transfer and cross-sensor robustness.

Significance. If the reported gains hold under rigorous validation and the agentic captions prove to be accurate encodings of measurable physical relationships, the work could establish a useful reference for scalable, semantically grounded multimodal pretraining in remote sensing. The integration of physical consistency objectives with language supervision addresses a recognized gap in current foundation models for the domain. The dataset scale and alignment protocol are potentially valuable contributions, though their impact hinges on the reliability of the supervision and the strength of the empirical evidence.

major comments (2)
  1. Abstract: The claim that 'experiments demonstrate consistent gains in downstream transfer and cross-sensor robustness' provides no information on baselines, evaluation metrics, statistical tests, data splits, or potential confounding factors. This absence prevents verification of the central empirical claim and is load-bearing for assessing whether the proposed pretraining framework delivers the stated improvements.
  2. Abstract: The agentic captioning framework is presented as synthesizing and verifying annotations that encode 'measurable cross-modality relationships' from spectral signals, terrain statistics, and geographic metadata, yet the manuscript supplies no quantitative validation metrics such as caption error rates, human agreement scores, or ablations on caption fidelity. Without these, it is unclear whether the language supervision is reliable or merely plausible, directly undermining the semantic grounding premise of both the dataset and the pretraining objectives.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive feedback on our manuscript. We provide point-by-point responses to the major comments and outline the revisions we will make to address the concerns about the abstract's description of experiments and the validation of the captioning framework.

read point-by-point responses

  1. Referee: Abstract: The claim that 'experiments demonstrate consistent gains in downstream transfer and cross-sensor robustness' provides no information on baselines, evaluation metrics, statistical tests, data splits, or potential confounding factors. This absence prevents verification of the central empirical claim and is load-bearing for assessing whether the proposed pretraining framework delivers the stated improvements.

    Authors: We agree that the abstract lacks sufficient detail on the experimental setup, which is necessary for independent verification of the claims. The complete manuscript details the baselines (standard masked autoencoding and contrastive learning approaches adapted to our multimodal setting), evaluation metrics (including accuracy, mIoU, and retrieval metrics), data splits (with geographic separation to ensure robustness), statistical tests, and analysis of confounding factors such as sensor variability in the dedicated Experiments section. To make this information more immediately accessible, we will revise the abstract to include a brief reference to the evaluation protocol and the nature of the gains observed. This change will be incorporated in the revised manuscript. revision: yes

  2. Referee: Abstract: The agentic captioning framework is presented as synthesizing and verifying annotations that encode 'measurable cross-modality relationships' from spectral signals, terrain statistics, and geographic metadata, yet the manuscript supplies no quantitative validation metrics such as caption error rates, human agreement scores, or ablations on caption fidelity. Without these, it is unclear whether the language supervision is reliable or merely plausible, directly undermining the semantic grounding premise of both the dataset and the pretraining objectives.

    Authors: We recognize that quantitative metrics on caption quality are important to substantiate the semantic grounding. The manuscript describes the agentic framework and its verification mechanisms based on cross-referencing with spectral signals and metadata, but does not provide aggregate quantitative metrics or ablations. In the revised manuscript, we will include a new analysis subsection reporting caption validation metrics, such as error rates from automated consistency checks, human agreement scores on a sampled set of captions, and ablations demonstrating the effect of caption quality on pretraining outcomes. These additions will directly address the concern and provide evidence for the reliability of the language supervision. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper introduces a new large-scale dataset (GeoMeld) constructed via a unified alignment protocol and an agentic captioning process, then defines a pretraining framework (GeoMeld-FM) that combines standard components: multi-pretext masked autoencoding, JEPA representation learning, and caption-vision contrastive alignment. No equations, derivations, or load-bearing steps are shown that reduce any claimed result (e.g., downstream gains or cross-sensor robustness) to a self-definition, a fitted parameter renamed as a prediction, or a self-citation chain. The central claims rest on the novelty of the collected data and the joint objective applied to it; these are independent of the reported outputs and do not exhibit any of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; the work is framed as empirical dataset curation and method combination rather than theoretical derivation.
