Seasonal Variability of Pluto's Haze Formation Revealed by Laboratory Simulations
Pith reviewed 2026-05-10 16:26 UTC · model grok-4.3
The pith
Lab simulations show higher methane boosts Pluto haze production and shifts nitrogen into amino groups instead of cyanides.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Increasing the CH4 mixing ratio from 0.1 percent to 5 percent in N2/CH4/CO mixtures significantly raises the yield of both gas-phase and solid-phase products; low-CH4 conditions incorporate nitrogen primarily as cyanide groups, whereas CH4-rich conditions promote amino groups and thereby increase overall nitrogen incorporation into the organic solids.
What carries the argument
Glow-discharge plasma reactor used to drive reactions in N2/CH4/CO gas mixtures of varying CH4 concentration, with in-situ residual gas analysis for gases and AFM, pycnometry, IR spectroscopy, and VHRMS for characterizing the resulting solid particles.
If this is right
- Pluto's haze production rate and particle composition should increase during seasons when methane abundance rises.
- Photochemical models can now incorporate measured yields and the cyanide-to-amino shift to predict haze layer thickness and optical properties.
- The amino-group preference at high methane may alter the hazes' density, settling velocity, and interaction with other atmospheric gases.
Where Pith is reading between the lines
- The same methane-dependent pathways could be checked by repeating the experiments with added trace species known to exist on Pluto.
- Similar laboratory runs on Triton or other N2-dominated icy-body atmospheres could test whether the seasonal haze response is common.
- The shift toward amino groups might influence the availability of nitrogen for further organic synthesis in the haze particles.
Load-bearing premise
The glow discharge plasma chemistry reproduces the actual solar-ultraviolet-driven photochemistry in Pluto's upper atmosphere and the tested methane percentages match the range of seasonal changes on Pluto.
What would settle it
If future observations of Pluto's haze during different seasons show production rates or nitrogen functional-group ratios that do not vary with methane abundance in the way the lab results predict, the claimed seasonal control mechanism would be ruled out.
Figures
read the original abstract

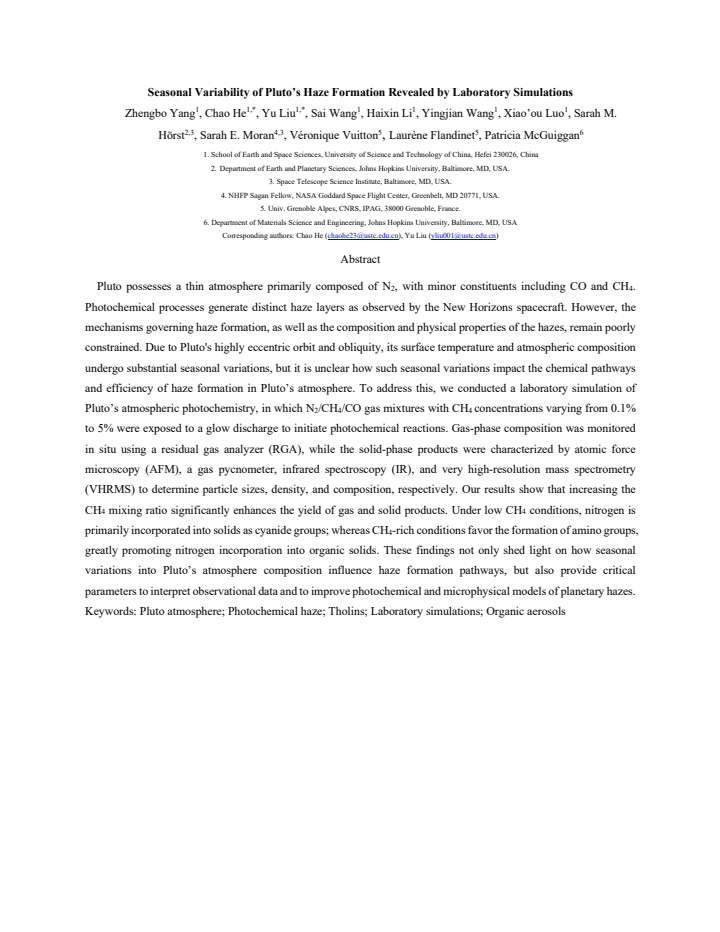

Pluto possesses a thin atmosphere primarily composed of N2, with minor constituents including CO and CH4. Photochemical processes generate distinct haze layers as observed by the New Horizons spacecraft. However, the mechanisms governing haze formation, as well as the composition and physical properties of the hazes, remain poorly constrained. Due to Pluto's highly eccentric orbit and obliquity, its surface temperature and atmospheric composition undergo substantial seasonal variations, but it is unclear how such seasonal variations impact the chemical pathways and efficiency of haze formation in Pluto's atmosphere. To address this, we conducted a laboratory simulation of Pluto's atmospheric photochemistry, in which N2/CH4/CO gas mixtures with CH4 concentrations varying from 0.1% to 5% were exposed to a glow discharge to initiate photochemical reactions. Gas-phase composition was monitored in situ using a residual gas analyzer (RGA), while the solid-phase products were characterized by atomic force microscopy (AFM), a gas pycnometer, infrared spectroscopy (IR), and very high-resolution mass spectrometry (VHRMS) to determine particle sizes, density, and composition, respectively. Our results show that increasing the CH4 mixing ratio significantly enhances the yield of gas and solid products. Under low CH4 conditions, nitrogen is primarily incorporated into solids as cyanide groups; whereas CH4-rich conditions favor the formation of amino groups, greatly promoting nitrogen incorporation into organic solids. These findings not only shed light on how seasonal variations into Pluto's atmosphere composition influence haze formation pathways, but also provide critical parameters to interpret observational data and to improve photochemical and microphysical models of planetary hazes.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper reports laboratory simulations of Pluto's N2/CH4/CO atmospheric photochemistry using glow discharge on mixtures with CH4 mixing ratios from 0.1% to 5%. It claims that increasing CH4 significantly enhances yields of gas and solid products, with low-CH4 conditions favoring cyanide-group incorporation of nitrogen into solids and CH4-rich conditions favoring amino groups that promote greater nitrogen incorporation; these trends are linked to seasonal atmospheric variations affecting haze formation.
Significance. If the experimental conditions accurately represent Pluto's photochemistry, the results supply useful empirical constraints on CH4-dependent haze yields and N-functional group chemistry that can be incorporated into photochemical and microphysical models of Pluto and similar bodies. A clear strength is the deployment of multiple complementary techniques (RGA for in-situ gas monitoring, AFM and pycnometry for particle size and density, IR and VHRMS for solid composition) to cross-validate the reported trends.
major comments (2)
- [Experimental Methods] The central claim that CH4 mixing ratio controls haze yield and N-functional groups (cyanide vs. amino) rests on the assumption that glow-discharge plasma chemistry reproduces solar-UV-driven neutral radical pathways in Pluto's atmosphere. The manuscript provides no side-by-side UV-lamp experiments, branching-ratio comparisons, or direct benchmarking against photochemical models to anchor this analogy (see Experimental Methods and Discussion sections).
- [Results] Quantitative yield enhancements (e.g., solid mass or gas-product factors as a function of CH4 fraction) and their uncertainties are not reported with sufficient detail to evaluate the magnitude of the seasonal effect or to allow direct use in models (see Results section).
minor comments (2)
- [Abstract] The abstract states that the tested CH4 range (0.1–5 %) corresponds to seasonal variations but does not cite the specific observational or modeling references that establish this correspondence.
- [Figures and Tables] Figure captions and table legends could more explicitly state the number of replicate runs and the criteria used to distinguish cyanide versus amino signatures in the IR and VHRMS data.
Simulated Author's Rebuttal
We thank the referee for their constructive review and positive assessment of the significance of our laboratory simulations. We address each major comment below and indicate planned revisions to the manuscript.
read point-by-point responses
-
Referee: [Experimental Methods] The central claim that CH4 mixing ratio controls haze yield and N-functional groups (cyanide vs. amino) rests on the assumption that glow-discharge plasma chemistry reproduces solar-UV-driven neutral radical pathways in Pluto's atmosphere. The manuscript provides no side-by-side UV-lamp experiments, branching-ratio comparisons, or direct benchmarking against photochemical models to anchor this analogy (see Experimental Methods and Discussion sections).
Authors: We acknowledge the referee's concern regarding validation of the glow-discharge proxy. Glow discharge is a standard technique in planetary atmosphere simulations (including prior Pluto and Titan haze studies) because it efficiently generates the key N2 and CH4 dissociation products that drive neutral radical chemistry. While we did not perform parallel UV-lamp runs, we will revise the Experimental Methods and Discussion sections to add explicit justification, including literature comparisons of branching ratios and direct references to photochemical model outputs for N2/CH4/CO mixtures. This strengthens the analogy without new experiments. revision: partial
-
Referee: [Results] Quantitative yield enhancements (e.g., solid mass or gas-product factors as a function of CH4 fraction) and their uncertainties are not reported with sufficient detail to evaluate the magnitude of the seasonal effect or to allow direct use in models (see Results section).
Authors: We agree that greater quantitative detail is needed for model use. In the revised manuscript we will expand the Results section with tables that report solid mass yields, gas-phase product factors, and associated uncertainties (from replicate runs) as explicit functions of CH4 mixing ratio. These additions will allow direct evaluation of the seasonal haze effect and facilitate incorporation into photochemical and microphysical models. revision: yes
Circularity Check
No circularity: direct experimental measurements with no derivations or self-referential reductions
full rationale
The paper reports laboratory experiments exposing N2/CH4/CO mixtures (CH4 0.1–5%) to glow discharge, then measuring gas yields via RGA and solid properties via AFM, pycnometry, IR, and VHRMS. No equations, fitted parameters, or mathematical derivations are presented; results are empirical observations of yield trends and functional-group changes (cyanide vs amino). The central claim follows directly from the controlled inputs and analytical outputs without reduction to prior fits or self-citations. The glow-discharge analogy to Pluto photochemistry is an interpretive assumption, not a circular step in any derivation chain. No self-citation load-bearing, ansatz smuggling, or renaming of known results occurs.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Glow discharge plasma produces photochemical products representative of those formed by UV irradiation in Pluto's atmosphere
Reference graph
Works this paper leans on
-
[1]
It hosts a tenuous nitrogen-dominated atmosphere with minor CH4 and CO, maintained in vapor-pressure equilibrium with surface ices
Introduction Pluto is a Kuiper Belt dwarf planet orbiting the Sun at 30-49 Au with a 248-year orbital period. It hosts a tenuous nitrogen-dominated atmosphere with minor CH4 and CO, maintained in vapor-pressure equilibrium with surface ices. With an average surface temperature of ~44 K and pressure of ~1 Pa (G. R. Gladstone et al. 2016), the atmosphere un...
2016
-
[2]
The UV flux is the main energy driver for photochemical processes in Pluto’s atmosphere, and it may vary with Pluto’s heliocentric distance due to its highly eccentric orbit
showed that photochemical reactions in Pluto’s atmosphere produce haze particles. The UV flux is the main energy driver for photochemical processes in Pluto’s atmosphere, and it may vary with Pluto’s heliocentric distance due to its highly eccentric orbit. Observations from the New Horizons mission revealed multiple haze layers extending from ~50 to 1000 ...
2016
-
[3]
Jovanović et al
and has been extended to Pluto (L. Jovanović et al. 2021; L. Jovanović et al. 2020), Triton (G. D. McDonald et al. 1994; S. E. Moran et al. 2022), and even exoplanets (L. Gavilan et al. 2018; C. He et al. 2018; C. He et al. 2020; S. M. Hörst et al. 2018). Laboratory-produced analogs of such atmospheric haze are termed 'tholins' (Sagan & Khare 1979). Altho...
2021
-
[4]
He, et al
Materials and Methods We conducted 3 sets of Pluto atmospheric photochemical simulation experiments using the PHAZER setup (C. He, et al. 2017). To reproduce seasonal changes of gas abundances, CO was fixed at 515 ppm and CH4 varied at 0.1%, 0.6%, and 5% in N2. The gases were cooled to 100 K and introduced into the chamber at 5 standard cubic centimeters ...
2017
-
[5]
This method has been validated in prior studies (J
calibrated with the NIST mass spectral database. This method has been validated in prior studies (J. Bourgalais et al. 2020; C. He et al. 2022; J. Serigano et al. 2020; J. Serigano et al. 2022; S. Wang et al. 2025). In this study, the selection of species for the deconvolution analysis is guided by the known composition of Pluto’s upper atmosphere, which ...
2020
-
[6]
Therefore, all 49 candidate species were included in the initial deconvolution procedure to ensure that all chemically plausible contributors were considered
According to the NIST mass spectral database, only 49 stable CHON-containing gas species can occur within this mass range. Therefore, all 49 candidate species were included in the initial deconvolution procedure to ensure that all chemically plausible contributors were considered. The results showed that only 22 species contributed signals significantly a...
2024
-
[7]
Gas-phase products The gas-phase mass spectrometry reveals the evolution of gaseous species under glow discharge
Results and Discussion 3.1. Gas-phase products The gas-phase mass spectrometry reveals the evolution of gaseous species under glow discharge. To identify peaks with significant intensity changes before and during the experiment, we normalized the mass spectra (MS of the original gas mixture without plasma and MS of the gas mixture when the plasma is on) r...
2017
-
[8]
The signal intensity of the RGA correlates with the partial pressure of the detected gases
The mass spectrum deconvolution results of the 5% CH4 experiment (a): the black outline represents the normalized RGA data, and the colored segments indicate the contribution of different species to the mass as calculated by the model. The signal intensity of the RGA correlates with the partial pressure of the detected gases. The lower panel (b) shows the...
2017
-
[9]
The yield of haze particles varies significantly with the methane concentration
AFM images of three film samples produced with different CH4 concentrations in the initial gases: (a) 0.1% CH4, (b) 0.6% CH4, (c) 5% CH4. The yield of haze particles varies significantly with the methane concentration. At lower CH4 ratios, the solid production is too small to collect directly, so yields were estimated from AFM-derived particle size and di...
2018
-
[10]
Yang, et al
(a) FTIR spectra of three tholins from 4000 to 500 cm-1, where the red, black, and blue lines represent the 0.1%, 0.6%, and 5% CH4 tholins, respectively; (b) Comparison of 5% CH4 tholin in this study with Titan tholins in previous work (90% N2/5% CH4/ 5% CO, Z. Yang, et al. 2025). The corresponding functional groups are marked near their absorption featur...
2025
-
[11]
The red, green, and yellow colors correspond to the CHO, CHN, and CHON subgroups, respectively
Very high-resolution mass spectra of tholins produced with different CH4 mixing ratios ((a) 0.1%, (b) 0.6%, and (c) 5%) in both positive and negative ion mode. The red, green, and yellow colors correspond to the CHO, CHN, and CHON subgroups, respectively. Additionally, gray represents data that could not match any molecular formula within the allowable ma...
1994
-
[12]
Similar patterns have been observed and thoroughly discussed in Wang et al

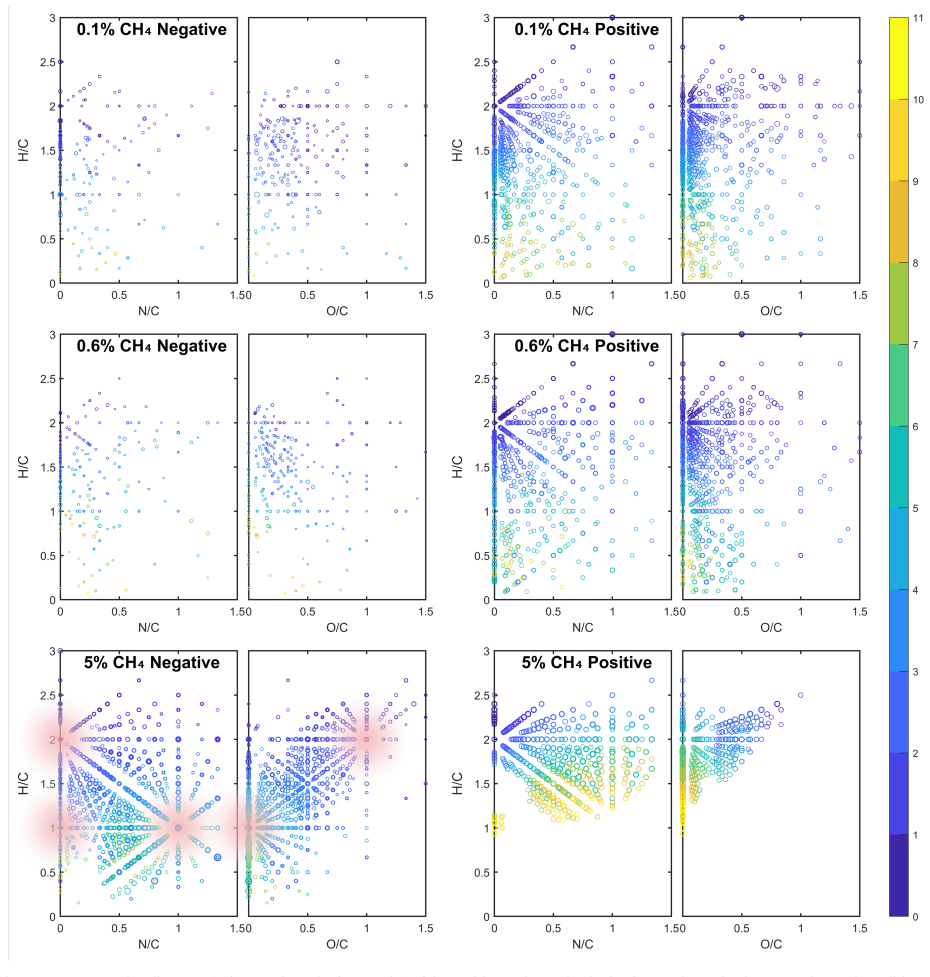

in the H/C vs O/C diagram. Similar patterns have been observed and thoroughly discussed in Wang et al. (2025), suggesting potential reaction precursors like C2H2, C2H4, HCN, and CH2O, during the atmospheric chemical processes. The radiation centers are defined based on the statistical distribution of assigned molecular formulas, rather than solely on peak...
2025
-
[13]
Conclusions In this work, we investigated the influence of seasonal CH4 variations on Pluto’s atmospheric photochemistry and haze formation through controlled laboratory simulations. Using gas mixtures with fixed CO (515 ppm) and CH4 ranging from 0.1% to 5%, we systematically examined gas-phase products and solid haze analogs in terms of yield, particle s...
