arxiv: 2604.11295 · v1 · submitted 2026-04-13 · 💻 cs.RO

Modeling, Analysis and Activation of Planar Viscoelastically-combined Rimless Wheels

Fumihiko Asano , Yuxuan Xiang , Yanqiu Zheng , Cong Yan This is my paper

Pith reviewed 2026-05-10 15:06 UTC · model grok-4.3

classification 💻 cs.RO
keywords passive dynamic walkingrimless wheelviscoelastic elementsgait analysiswalking support deviceplanar walkerstability analysiscollision dynamics
0
0 comments X

The pith

Viscoelastically-combined rimless wheels produce stable passive gaits and can be activated for level walking.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces novel passive-dynamic walkers formed by two cross-shaped frames joined by eight viscoelastic elements, terming them viscoelastically-combined rimless wheels. It defines two variants, one with fixed Greek-cross frames and one with freely rotating two-link frames, then derives their equations of motion and collision rules. Numerical analysis establishes that both variants achieve stable periodic gaits on slopes through passive dynamics alone. The work further demonstrates that controlled activation of the rotating-frame variant generates a stable gait on level surfaces. A sympathetic reader would care because passive mechanisms of this form could reduce the energy demands of legged locomotion in robots or assistive devices.

Core claim

The viscoelastically-combined rimless wheel, formed by two cross-shaped frames and eight viscoelastic elements, produces stable passive gaits in planar walking on slopes as confirmed by numerical simulation of the motion and collision equations, and the version with freely rotating two-link frames can be activated to generate a stable level gait.

What carries the argument

The viscoelastically-combined rimless wheel, in which two cross-shaped frames are linked by eight viscoelastic elements that store and release energy at each leg collision and stance phase to sustain a periodic gait without continuous actuation.

If this is right

  • Both proposed designs achieve stable passive dynamic walking on inclined surfaces without motors.
  • Activation of the rotating two-link frame variant produces a stable gait on flat ground.
  • The motion and collision models allow prediction and tuning of gait properties such as step period and stability margin.
  • The structures can function as the basis for energy-efficient walking support devices that rely primarily on passive dynamics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The compliance from the viscoelastic elements may lower peak impact forces relative to rigid rimless wheels, which could extend component life in repeated use.
  • The same linking approach could be applied to other passive legged mechanisms to improve stability margins without adding degrees of freedom or sensors.
  • Hardware validation on physical prototypes would be required to check whether the simulated stability persists when unmodeled effects such as joint friction and ground compliance are present.

Load-bearing premise

The derived equations of motion, collision rules, and numerical simulations accurately capture the physical dynamics of the viscoelastic elements and frame interactions.

What would settle it

A physical prototype of the rotating-frame variant built and tested on a level surface with the proposed activation method that fails to sustain a stable periodic gait under realistic friction and material conditions.

Figures

Figures reproduced from arXiv: 2604.11295 by Cong Yan, Fumihiko Asano, Yanqiu Zheng, Yuxuan Xiang.

Figure 1

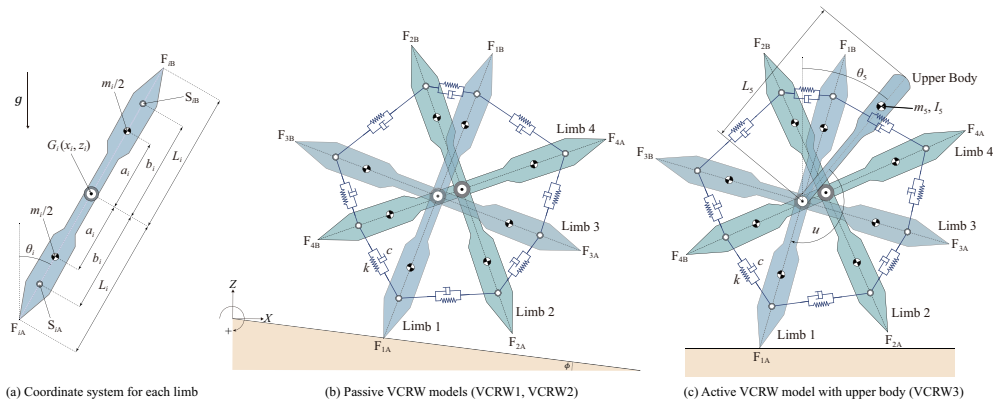

Figure 1. Figure 1: Passive-dynamic and limit-cycle walker models form [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

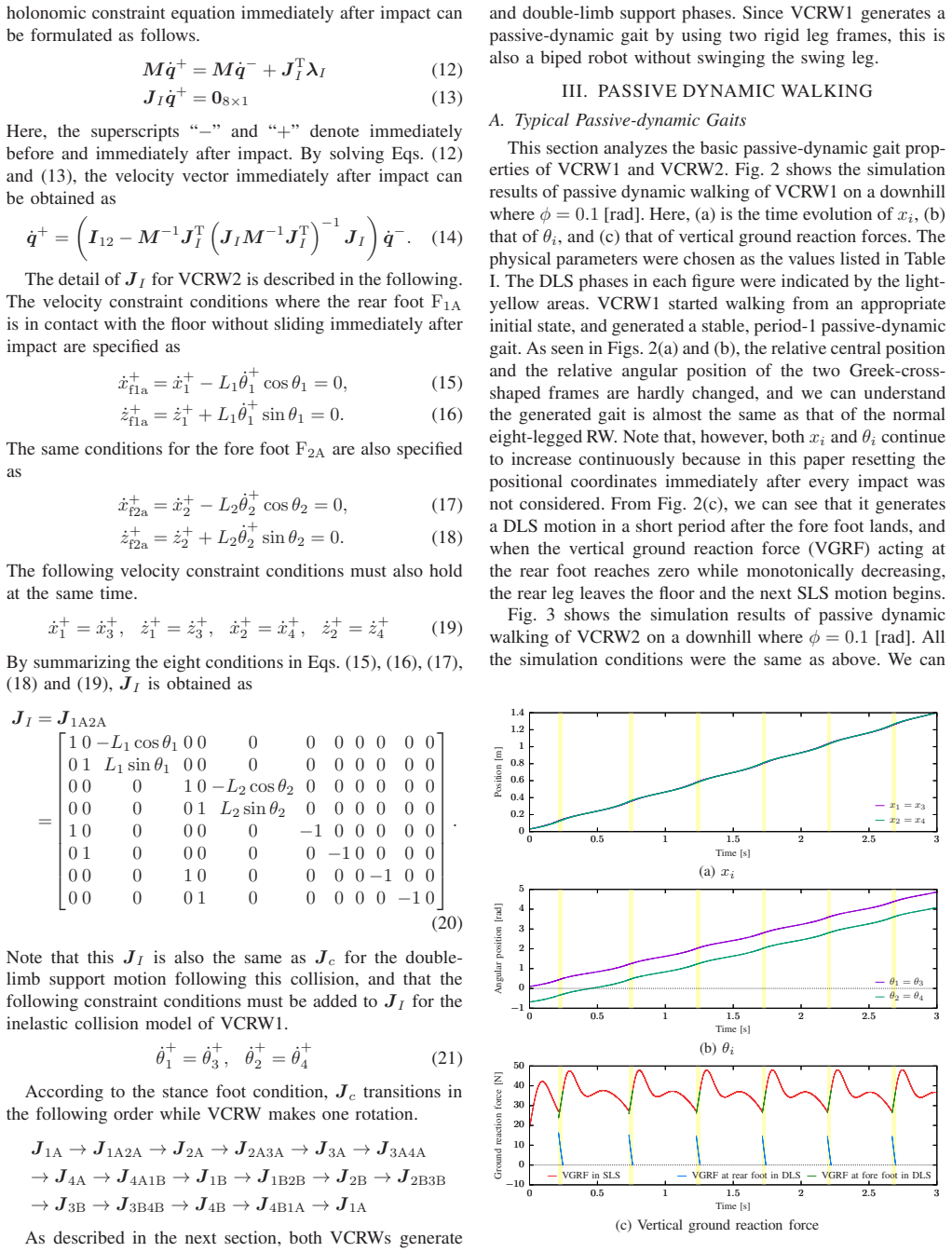

Figure 2
Figure 2. Figure 2: Simulation results of passive dynamic walking of VCRW [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

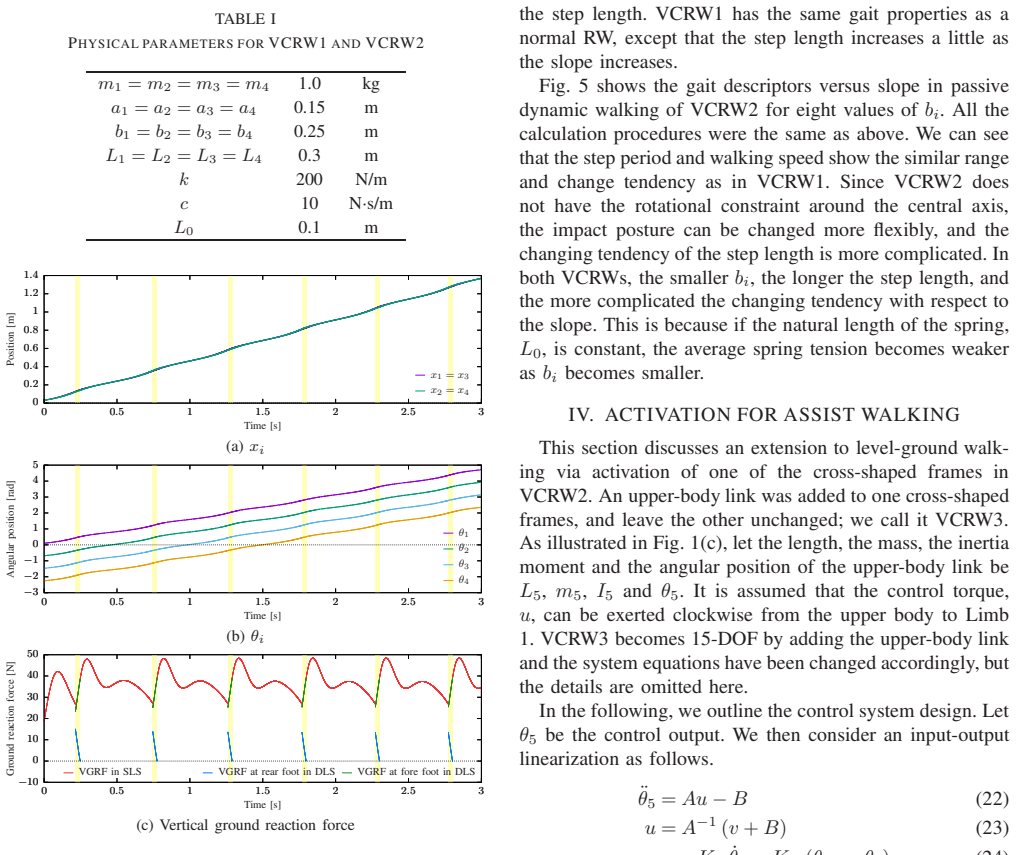

Figure 3
Figure 3. Figure 3: Simulation results of passive dynamic walking of VCRW [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

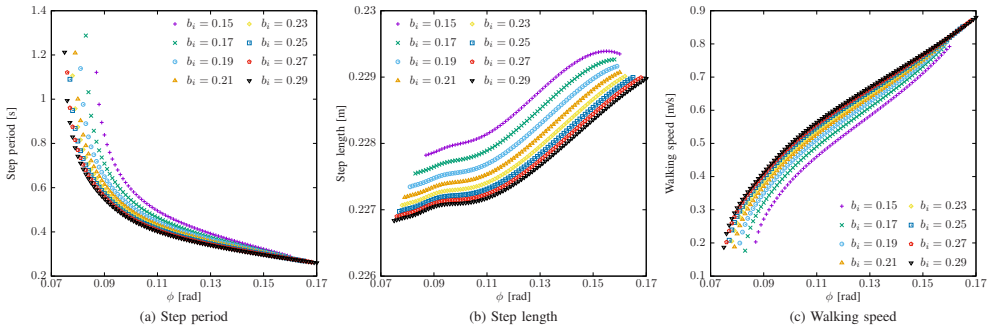

Figure 4
Figure 4. Figure 4: Gait descriptors versus slope for eight values of [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

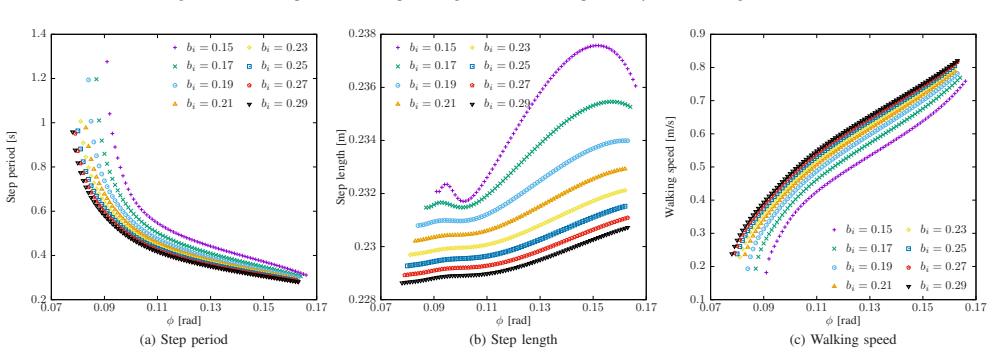

Figure 5
Figure 5. Figure 5: Gait descriptors versus slope for eight values of [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

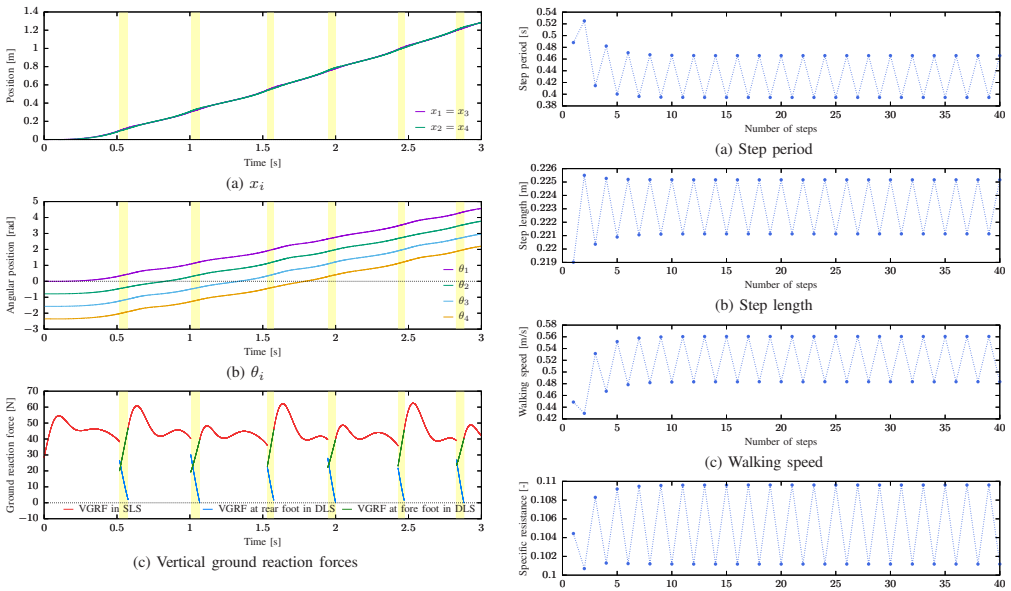

Figure 6
Figure 6. Figure 6: Simulation results of limit cycle walking on level gr [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

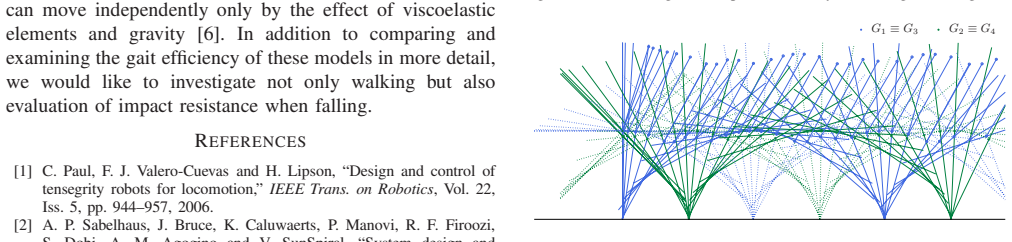

Figure 8
Figure 8. Figure 8: Stick diagram for generated level gait in Fig. 2 [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
read the original abstract

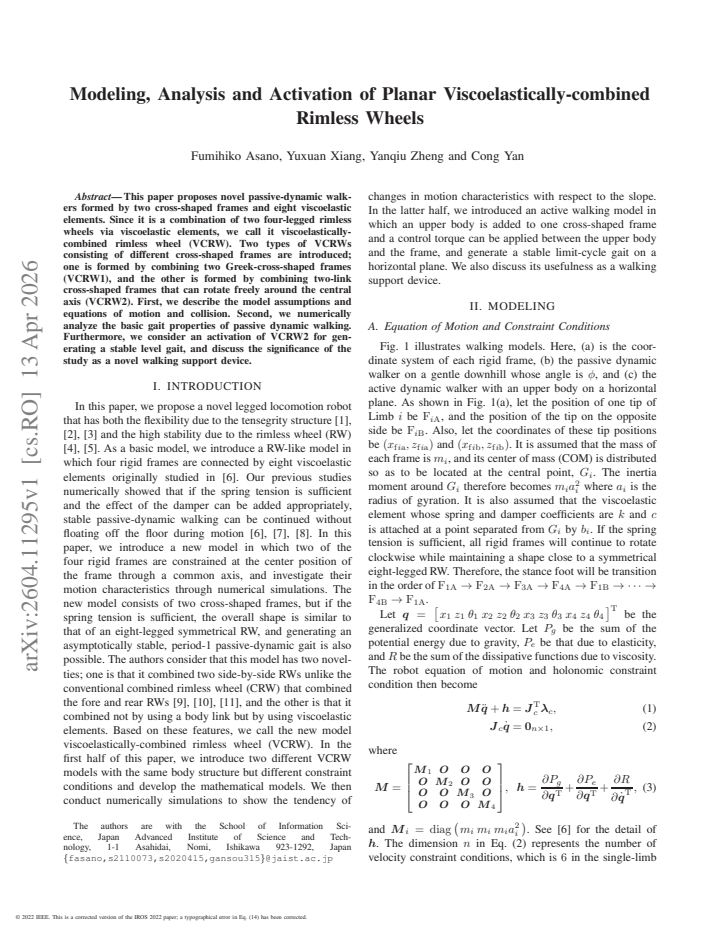

This paper proposes novel passive-dynamic walkers formed by two cross-shaped frames and eight viscoelastic elements. Since it is a combination of two four-legged rimless wheels via viscoelastic elements, we call it viscoelastically-combined rimless wheel (VCRW). Two types of VCRWs consisting of different cross-shaped frames are introduced; one is formed by combining two Greek-cross-shaped frames (VCRW1), and the other is formed by combining two-link cross-shaped frames that can rotate freely around the central axis (VCRW2). First, we describe the model assumptions and equations of motion and collision. Second, we numerically analyze the basic gait properties of passive dynamic walking. Furthermore, we consider an activation of VCRW2 for generating a stable level gait, and discuss the significance of the study as a novel walking support device.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper proposes two novel passive-dynamic walkers called viscoelastically-combined rimless wheels (VCRW1 and VCRW2), formed by combining cross-shaped frames with viscoelastic elements. It derives the equations of motion and collision for these systems under rigid body and linear viscoelastic assumptions, numerically identifies periodic gaits for passive dynamic walking, assesses their stability using the eigenvalues of the Poincaré return map, and explores an activation strategy for VCRW2 to achieve stable walking on level ground, suggesting applications as walking support devices.

Significance. If the numerical results hold, this study introduces an innovative design for passive walkers that leverages viscoelastic coupling to achieve stable gaits, extending traditional rimless wheel models. The analysis of both passive and activated behaviors provides a foundation for energy-efficient locomotion mechanisms. A strength is the direct connection from modeling assumptions to stability conclusions via standard numerical methods (return-map eigenvalues), which supports reproducibility of the simulations in legged robotics.

minor comments (3)
  1. Abstract: The abstract outlines the contributions but omits quantitative results from the numerical analysis, such as gait stability metrics or periods; adding a brief mention of key findings would enhance its informativeness.
  2. Model section: The description of the viscoelastic elements could specify the exact form of the force law (e.g., F = -k*x - c*v) with the parameter values used in simulations for better reproducibility.
  3. Numerical analysis section: Figures illustrating the gait trajectories or return maps would benefit from higher resolution or additional annotations to clearly show the periodic orbits and eigenvalue locations.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the detailed summary of our manuscript on viscoelastically-combined rimless wheels and for the positive assessment of its significance in extending passive dynamic walking models. The recommendation for minor revision is noted; we will incorporate any editorial improvements in the revised version.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper defines VCRW models from rigid frames and linear viscoelastic elements, derives equations of motion and collision directly from Newtonian mechanics and impact assumptions, then uses numerical integration to locate periodic gaits and computes return-map eigenvalues for stability. These steps are forward computations from stated assumptions with no parameter fitting to data, no self-referential definitions, and no load-bearing reliance on prior self-citations that would reduce the central claims to inputs. The reported stable passive gaits and activated level gait follow as numerical outcomes without circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no free parameters, axioms, or invented entities are specified in the given information.
