arxiv: 2604.12510 · v1 · submitted 2026-04-14 · ❄️ cond-mat.mes-hall · cond-mat.mtrl-sci

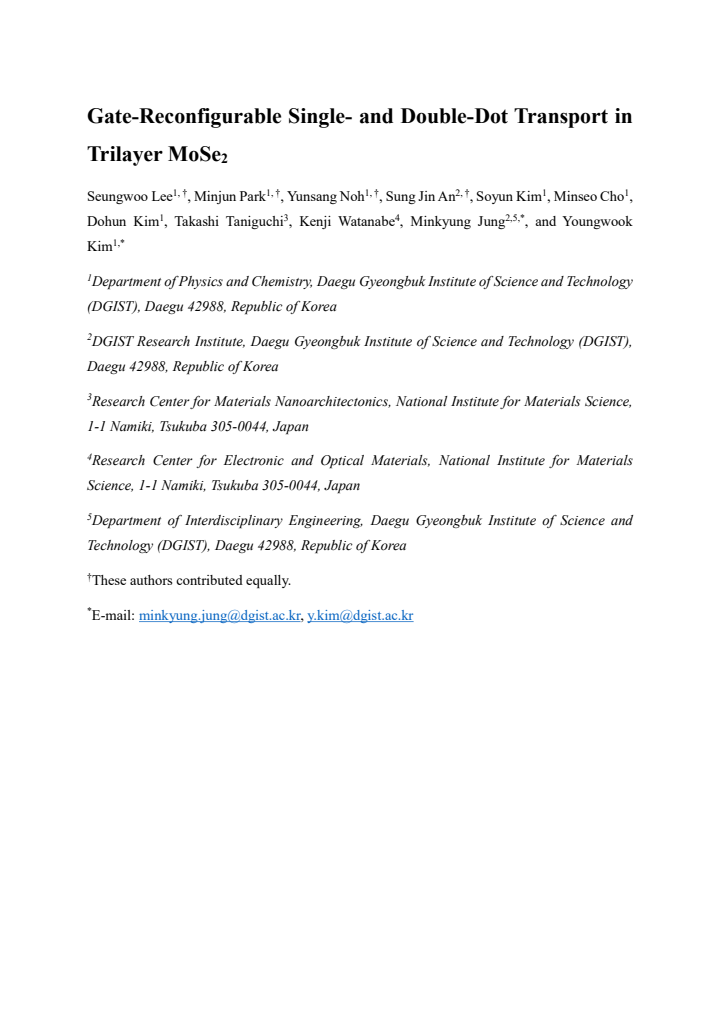

Gate-Reconfigurable Single- and Double-Dot Transport in Trilayer MoSe2

Seungwoo Lee , Minjun Park , Yunsang Noh , Sung Jin An , Soyun Kim , Minseo Cho , Dohun Kim , Takashi Taniguchi
show 3 more authors
Kenji Watanabe Minkyung Jung Youngwook Kim
This is my paper

Pith reviewed 2026-05-10 15:34 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.mtrl-sci
keywords trilayer MoSe2quantum dot transportCoulomb blockadedouble quantum dotsgate reconfiguration2D materialsmesoscopic electronics
0
0 comments X

The pith

Trilayer MoSe2 enables gate-controlled switching between single- and double-quantum-dot transport.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that a trilayer MoSe2 flake with a graphite back gate, global access gate, and local top finger gates supports two distinct transport regimes. At low backgate voltage, bias spectroscopy reveals regular Coulomb-blockade diamonds from single-dot behavior. Raising the backgate voltage introduces extra low-bias features; plunger-gate and two-gate maps confirm these arise from a second, non-equivalent dot whose alignment and coupling to the first dot change with gate settings. The architecture therefore allows electrical reconfiguration of the number and coupling of dots in the same device.

Core claim

In the low-backgate regime, bias spectroscopy shows regular Coulomb-blockade diamonds characteristic of single-dot transport. As backgate is increased, additional low-bias structure develops beyond a simple single-dot pattern, indicating that the electrostatic landscape is reshaped and that a second dot becomes active in transport. In the higher-backgate regime, plunger-gate tuning and two-gate measurements establish a gate-reconfigurable double-dot configuration with two non-equivalent dots whose relative alignment and interdot coupling evolve with gate voltage.

What carries the argument

Multi-gate stack (graphite back gate under the active region, separate global gate for access regions, and local top finger gates) that reshapes the electrostatic potential to activate one or two dots in series.

If this is right

  • Transport switches from single-dot Coulomb blockade to double-dot behavior solely by increasing backgate voltage.
  • The two dots remain non-equivalent and their relative energy alignment and tunnel coupling can be tuned electrically.
  • The same trilayer flake and gate layout supports both regimes without changing the physical device.
  • Bias spectroscopy and plunger maps provide direct signatures distinguishing the single-dot and double-dot regimes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The demonstrated gate reconfigurability offers a route to adjust dot number and coupling in situ for experiments that require variable interdot interaction.
  • Similar multi-gate patterning on other multilayer transition-metal dichalcogenides could yield comparable single-to-double-dot control.
  • The architecture separates access-region conductance control from dot-region confinement, which may simplify scaling to few-dot circuits.

Load-bearing premise

The additional low-bias conductance features and their plunger-gate dependence must arise from a second quantum dot entering the transport path rather than from impurity states or altered single-dot confinement.

What would settle it

If two-gate stability diagrams in the high-backgate regime lack the characteristic avoided crossings or show no systematic evolution of interdot coupling with plunger voltage, the double-dot interpretation would not hold.

read the original abstract

We report gate-controlled quantum-dot transport in a trilayer MoSe2 device that combines a graphite back gate beneath the active region, a separate global gate for conductive access regions, and local top finger gates. In the low-backgate regime, bias spectroscopy shows regular Coulomb-blockade diamonds characteristic of single-dot transport. As backgate is increased, additional low-bias structure develops beyond a simple single-dot pattern, indicating that the electrostatic landscape is reshaped and that a second dot becomes active in transport. In the higher-backgate regime, plunger-gate tuning and two-gate measurements establish a gate-reconfigurable double-dot configuration with two non-equivalent dots whose relative alignment and interdot coupling evolve with gate voltage. These results indicate that trilayer MoSe2 supports electrically reconfigurable single- and double-dot transport in the present device architecture.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports experimental gate-controlled transport in a trilayer MoSe2 device incorporating a graphite back gate, a global gate for access regions, and local top finger gates. Bias spectroscopy at low backgate voltage shows regular Coulomb diamonds consistent with single-dot transport. At higher backgate voltages, additional low-bias features appear and are interpreted as activation of a second dot; plunger-gate tuning and two-gate data are presented as establishing a reconfigurable double-dot regime with non-equivalent dots whose alignment and interdot coupling vary with gate voltage. The central claim is that trilayer MoSe2 supports electrically reconfigurable single- and double-dot transport.

Significance. If the double-dot assignment is confirmed with unambiguous signatures, the work would demonstrate a practical route to gate-tunable quantum dots in few-layer TMDs using a multi-gate architecture. This could be relevant for mesoscopic physics and quantum-device platforms in 2D materials, where reconfigurability between single- and double-dot regimes is not routinely achieved. The combination of back-gate reshaping of the potential landscape with local plunger gates is a methodological strength.

major comments (2)
  1. [Abstract] Abstract: The assertion that two-gate measurements 'establish' the double-dot regime rests on the appearance of extra low-bias structure without reported observation of standard double-dot fingerprints (honeycomb charge-stability diagrams, bias triangles with finite interdot coupling, or avoided crossings). This leaves the interpretation under-constrained relative to alternatives such as orbital levels within one dot or disorder-induced states.
  2. [Results] Results section (plunger-gate and two-gate data): The claim that the dots are non-equivalent and that their alignment/coupling evolve with gate voltage is load-bearing for the reconfigurability conclusion, yet no quantitative extraction of lever arms, charging energies, or interdot capacitance is provided to distinguish this scenario from single-dot behavior with multiple resonances.
minor comments (2)
  1. [Methods] Device parameters (gate capacitances, lever arms, or estimated dot sizes) are not tabulated or extracted from the data, which would allow readers to assess the physical scale of the dots and the strength of the coupling.
  2. [Figures] Bias-spectroscopy figures would benefit from explicit indication of the single-dot diamond boundaries and any additional lines attributed to the second dot to facilitate direct comparison.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments, which help clarify the strength of our claims. We address each major point below and have revised the manuscript accordingly to improve the presentation and interpretation of the data.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The assertion that two-gate measurements 'establish' the double-dot regime rests on the appearance of extra low-bias structure without reported observation of standard double-dot fingerprints (honeycomb charge-stability diagrams, bias triangles with finite interdot coupling, or avoided crossings). This leaves the interpretation under-constrained relative to alternatives such as orbital levels within one dot or disorder-induced states.

    Authors: We agree that the original wording 'establish' is too definitive given the available data. The two-gate measurements show the emergence of additional low-bias conductance features whose positions shift with plunger-gate voltage in a manner inconsistent with a single set of resonances, but we do not present full honeycomb diagrams or bias triangles. We have revised the abstract to state that the data 'support' a reconfigurable double-dot regime and have added a paragraph in the discussion section explicitly addressing possible alternative interpretations (orbital levels or disorder states) and why the observed gate-voltage evolution favors the double-dot assignment. revision: yes

  2. Referee: [Results] Results section (plunger-gate and two-gate data): The claim that the dots are non-equivalent and that their alignment/coupling evolve with gate voltage is load-bearing for the reconfigurability conclusion, yet no quantitative extraction of lever arms, charging energies, or interdot capacitance is provided to distinguish this scenario from single-dot behavior with multiple resonances.

    Authors: We acknowledge that the current manuscript lacks explicit quantitative extractions. The plunger-gate traces exhibit irregular peak spacings, and the two-gate maps display crossing lines whose slopes differ, indicating distinct gate couplings. To strengthen the distinction from multiple resonances in one dot, we have added quantitative analysis in the revised results section: lever arms extracted from the slopes of the conductance features in the two-gate data, charging energies estimated from the extent of the low-bias diamonds, and a qualitative estimate of interdot coupling from the avoided-crossing-like behavior at higher back-gate voltages. These additions are now included as new panels and accompanying text. revision: partial

Circularity Check

0 steps flagged

No circularity; purely experimental claims with no derivation or self-referential reduction

full rationale

The manuscript presents direct experimental transport measurements (Coulomb diamonds, plunger-gate tuning, two-gate data) in a trilayer MoSe2 device without any mathematical model, equations, fitted parameters, or derivation chain. The central claim that additional low-bias structure indicates a second dot is an interpretive assignment based on observed gate dependence, not a prediction derived from or reduced to prior inputs by construction. No self-citations are load-bearing for the result, and no ansatz, uniqueness theorem, or renaming of known results occurs. The paper is self-contained against external benchmarks as raw device characterization.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim relies on standard mesoscopic physics assumptions about quantum dot transport signatures rather than new postulates.

axioms (2)
  • domain assumption Coulomb blockade diamonds indicate single quantum dot transport with charging energy dominating
    Standard interpretation in quantum transport experiments
  • domain assumption Additional low-bias features indicate formation of a second dot
    Common in double dot systems
