arxiv: 2604.13435 · v1 · submitted 2026-04-15 · 🪐 quant-ph

SiGe/Si(111)/SiGe heterostructure for Si spin qubits with electrons confined in L valley of conduction band

Takafumi Tokunaga , Hiromichi Nakazato This is my paper

Pith reviewed 2026-05-10 13:39 UTC · model grok-4.3

classification 🪐 quant-ph
keywords Si spin qubitsL valley confinementbiaxial tensile strainSiGe/Si(111)/SiGe heterostructuredeformation potential theoryvalley splittingquantum confinementconduction band shift
0
0 comments X p. Extension

The pith

Biaxial tensile strain in SiGe/Si(111)/SiGe structures shifts the silicon conduction band minimum to the L valley, isolating a single ground state for spin qubits.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper calculates the biaxial tensile strain and corresponding germanium concentration needed in a SiGe/Si(111)/SiGe heterostructure to move the lowest conduction band energy from the usual Delta valleys to the L valleys. Quantum confinement in the silicon layer then splits the L-valley states into an undegenerate low-energy ground state (L1) and a higher-energy triplet (L3), with L1 lying well below both the L3 and remaining Delta states. This setup creates a clean two-level system for electron spin qubits. The authors apply deformation potential theory that includes confinement effects, and they also compute the critical thickness to assess whether the required strain can be maintained coherently without relaxation.

Core claim

Using deformation potential theory and incorporating quantum effects from electron confinement in the SiGe/Si(111)/SiGe structure, we determine the value of the biaxial tensile strain causing the shift of the conduction band energy minimum from the Δ valley to the L valley, along with the corresponding Ge concentration. Electrons confined in this L valley experience a splitting of their quadruply degenerate energy levels into an undegenerate single-level ground state (L1) and a triply degenerate excited state (L3). The energy of the single-level ground state is sufficiently low relative to the energies of the L3 valley and the Δ valley, making it optimal as a two-level system for a qubit.

What carries the argument

Deformation potential theory applied to the strained SiGe/Si(111)/SiGe heterostructure, which tracks the strain-induced movement of conduction band valleys while including quantum confinement shifts in the silicon well.

If this is right

  • The L1 ground state forms an isolated two-level system suitable for spin qubit operation.
  • The calculated strain and Ge concentration produce a sufficiently large energy gap to L3 and Delta states.
  • The critical thickness calculation indicates the Si quantum well can remain coherent under the required tensile strain.
  • Electrons in the L valley avoid the six-fold degeneracy typical of unstrained Delta valleys.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • L-valley confinement could alter spin-orbit and valley-orbit interactions compared with standard Delta-valley qubits, potentially changing coherence times.
  • The (111) orientation and L-valley ground state might enable new gate layouts or integration paths with silicon-based quantum hardware.
  • Adjusting the silicon well width within the critical thickness limit offers a tunable knob for increasing the L1-to-L3 separation.

Load-bearing premise

The required biaxial tensile strain can be realized in a coherent SiGe/Si(111)/SiGe heterostructure without plastic relaxation exceeding the critical thickness.

What would settle it

Spectroscopic measurement of conduction band edge positions or valley splittings in a fabricated SiGe/Si(111)/SiGe sample grown at the predicted Ge concentration and strain, showing whether L1 is the true ground state below both L3 and Delta.

Figures

Figures reproduced from arXiv: 2604.13435 by Hiromichi Nakazato, Takafumi Tokunaga.

Figure 2
Figure 2. Figure 2: FIG. 2. The energy in each valley [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 1
Figure 1. Figure 1: FIG. 1. Quantum effects [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗

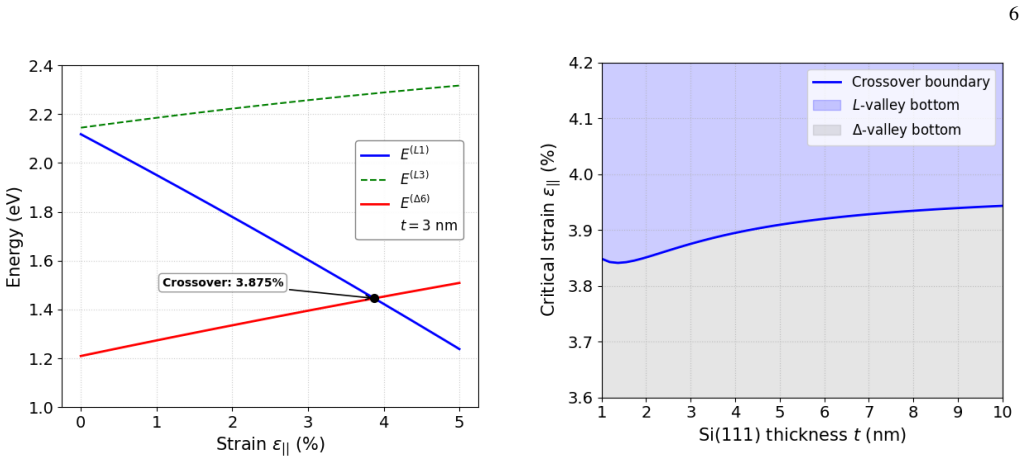

Figure 4
Figure 4. Figure 4: FIG. 4. Critical biaxial tensile strain [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. The Ge concentration [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Fig.6. This band structure is called Type II (staggered), al [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. The band of the Ge / Si(111) / Ge structure when the film [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. The Ge concentration [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. The Ge concentration [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
read the original abstract

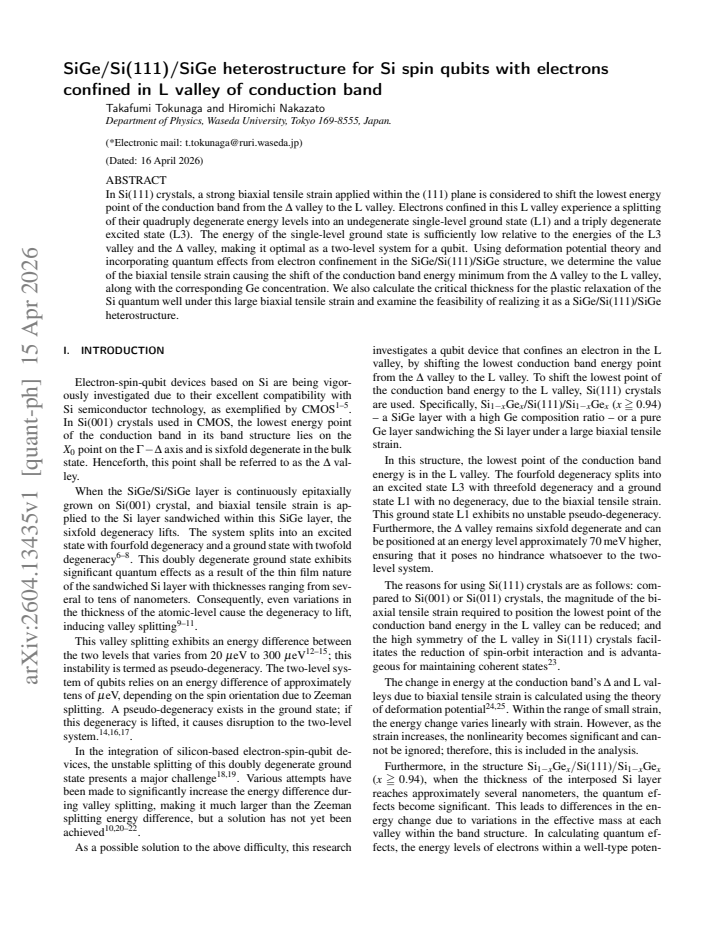

In Si(111) crystals, a strong biaxial tensile strain applied within the (111) plane is considered to shift the lowest energy point of the conduction band from the $\Delta$ valley to the L valley. Electrons confined in this L valley experience a splitting of their quadruply degenerate energy levels into an undegenerate single-level ground state (L1) and a triply degenerate excited state (L3). The energy of the single-level ground state is sufficiently low relative to the energies of the L3 valley and the $\Delta$ valley, making it optimal as a two-level system for a qubit. Using deformation potential theory and incorporating quantum effects from electron confinement in the SiGe/Si(111)/SiGe structure, we determine the value of the biaxial tensile strain causing the shift of the conduction band energy minimum from the $\Delta$ valley to the L valley, along with the corresponding Ge concentration. We also calculate the critical thickness for the plastic relaxation of the Si quantum well under this large biaxial tensile strain and examine the feasibility of realizing it as a SiGe/Si(111)/SiGe heterostructure.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript proposes a SiGe/Si(111)/SiGe heterostructure in which biaxial tensile strain shifts the Si conduction-band minimum from the Δ to the L valley. Using deformation-potential theory plus quantum-well confinement corrections, the authors calculate the specific strain value and corresponding Ge concentration at which the L valley becomes the ground state, yielding an isolated non-degenerate L1 level suitable for a two-level qubit system; they also compute the critical thickness for coherent growth.

Significance. If the predicted strain is experimentally accessible and the L1 state remains isolated, the design would constitute a concrete new platform for Si spin qubits that avoids the valley degeneracy of conventional Δ-valley devices. The work supplies falsifiable numerical predictions (strain, Ge fraction, critical thickness) derived from established deformation-potential constants and standard confinement models, which is a strength for guiding future growth experiments.

major comments (1)
  1. The central claim—the biaxial tensile strain (and Ge concentration) at which the L-valley minimum drops below the Δ minimum—is obtained from linear deformation-potential shifts plus confinement energies. At the several-percent tensile strains required for crossover, higher-order strain terms, strain-dependent masses, and intervalley mixing are expected to become appreciable, yet the manuscript provides no cross-check against k·p or DFT band structures evaluated at the predicted strain. This approximation is load-bearing for all downstream assertions about L1 isolation from L3 and Δ states and for qubit suitability.
minor comments (2)
  1. The abstract states the method but omits the numerical values of the crossover strain and Ge concentration; including them would allow immediate assessment of the result's magnitude.
  2. Notation for the L1 and L3 states and the precise definition of the confinement correction should be introduced with an equation or diagram in the main text to improve clarity for readers unfamiliar with L-valley splitting on (111).

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback and positive assessment of the work's potential significance. We address the major comment below and will revise the manuscript to incorporate additional discussion on the approximation's validity.

read point-by-point responses

  1. Referee: The central claim—the biaxial tensile strain (and Ge concentration) at which the L-valley minimum drops below the Δ minimum—is obtained from linear deformation-potential shifts plus confinement energies. At the several-percent tensile strains required for crossover, higher-order strain terms, strain-dependent masses, and intervalley mixing are expected to become appreciable, yet the manuscript provides no cross-check against k·p or DFT band structures evaluated at the predicted strain. This approximation is load-bearing for all downstream assertions about L1 isolation from L3 and Δ states and for qubit suitability.

    Authors: We agree that the linear deformation-potential approach is an approximation whose accuracy at the several-percent tensile strains needed for the Δ-to-L crossover merits explicit discussion. The linear model is the standard framework used in the SiGe heterostructure literature for predicting valley shifts and has been validated against experiment and more advanced calculations for strains up to ~2–3 % in comparable systems. Our predicted crossover strain lies within this range. In the revised manuscript we will add a dedicated paragraph in the discussion section that (i) cites existing k·p and DFT studies on strained Si and SiGe that quantify the magnitude of higher-order corrections and intervalley mixing at these strains, (ii) notes the expected size of strain-dependent mass renormalizations, and (iii) states that the L1 isolation conclusions should be viewed as a first-order prediction to be confirmed by future atomistic calculations or experiment. This addition directly addresses the referee’s concern while leaving the core deformation-potential plus confinement calculation unchanged. revision: yes

Circularity Check

0 steps flagged

No circularity: forward calculation from deformation-potential theory and confinement energies

full rationale

The manuscript computes the critical biaxial strain (and corresponding Ge fraction) at which the L-valley minimum drops below the Δ minimum by applying standard linear deformation-potential shifts plus explicit quantum-confinement corrections to the SiGe/Si(111)/SiGe well. These steps are direct evaluations of established constants and Schrödinger-equation solutions; they do not fit parameters to the target crossover, rename an input as a prediction, or rely on self-citations for the uniqueness of the result. Subsequent claims about L1 isolation and critical thickness are likewise computed from the same forward model. The derivation is therefore self-contained against external benchmarks and receives the lowest circularity score.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The work relies on deformation potential theory, a standard tool in semiconductor band-structure calculations, without introducing new free parameters, ad-hoc axioms, or postulated entities in the abstract.

axioms (2)
  • domain assumption Deformation potential theory accurately describes strain-induced shifts between Delta and L conduction-band minima in silicon
    Invoked to calculate the strain value that moves the band minimum to the L valley
  • domain assumption Quantum confinement effects in the Si well can be added perturbatively to the bulk band-edge shifts
    Used to refine the energy of the L1 ground state relative to L3 and Delta

pith-pipeline@v0.9.0 · 5510 in / 1558 out tokens · 28866 ms · 2026-05-10T13:39:51.710591+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

6 extracted references · 6 canonical work pages

  1. [1]

    Spin-valley lifetimes in a silicon quantum dot with tunable valley splitting,

    16C. Yang, A. Rossi, R. Ruskov, N. Lai, F. Mohiyaddin, S. Lee, C. Tahan, G. Klimeck, A. Morello, and A. Dzurak, “Spin-valley lifetimes in a silicon quantum dot with tunable valley splitting,”Nature Communications, vol. 4, no. 1, p. 2069,

    work page 2069

  2. [2]

    David, A

    19A. David, A. M. Pazhedath, L. R. Schreiber, T. Calarco, H. Bluhm, and F. Motzoi, “Long distance spin shuttling enabled by few-parameter velocity optimization,”arXiv preprint arXiv:2409.07600,

    work page arXiv

  3. [3]

    (111) Si spin qubits constructed on L point of band structure,

    23T. Tokunaga and H. Nakazato, “(111) Si spin qubits constructed on L point of band structure,”arXiv preprint arXiv:2501.13546,

    work page arXiv

  4. [4]

    Improved Calculation of Acoustic Deformation Potentials from First Principles,

    40P. Williams and A. Dyson, “Improved Calculation of Acoustic Deformation Potentials from First Principles,”arXiv preprint arXiv:2502.08538,

    work page arXiv

  5. [5]

    Group IV Elements, IV- IV and III-V Compounds. Part a - Lattice Properties

    45“Silicon (Si) elastic moduli of Si-I: Datasheet from Landolt-Börnstein - Group III Condensed Matter · V olume 41A1α: “Group IV Elements, IV- IV and III-V Compounds. Part a - Lattice Properties” in SpringerMateri- als (https://doi.org/10.1007/10551045_212)".” Copyright 2001 Springer- Verlag Berlin Heidelberg. 46L. Kleinman, “Deformation potentials in sil...

    work page doi:10.1007/10551045_212 2001

  6. [6]

    Monte Carlo analysis of electron transport in small semiconductor devices including band-structure and space-charge effects,

    76M. V . Fischetti and S. E. Laux, “Monte Carlo analysis of electron transport in small semiconductor devices including band-structure and space-charge effects,”Physical Review B, vol. 38, no. 14, p. 9721, 1988

    work page 1988
