GeoAgentBench: A Dynamic Execution Benchmark for Tool-Augmented Agents in Spatial Analysis
Pith reviewed 2026-05-10 13:02 UTC · model grok-4.3
The pith
The Plan-and-React architecture outperforms traditional frameworks for LLM-based agents on dynamic geospatial analysis tasks.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The paper claims that decoupling global orchestration from step-wise reactive execution in the Plan-and-React architecture delivers the best trade-off between logical rigor and execution robustness for tool-augmented GIS agents, as measured by improved multi-step reasoning and error recovery on the 53-task benchmark.
What carries the argument

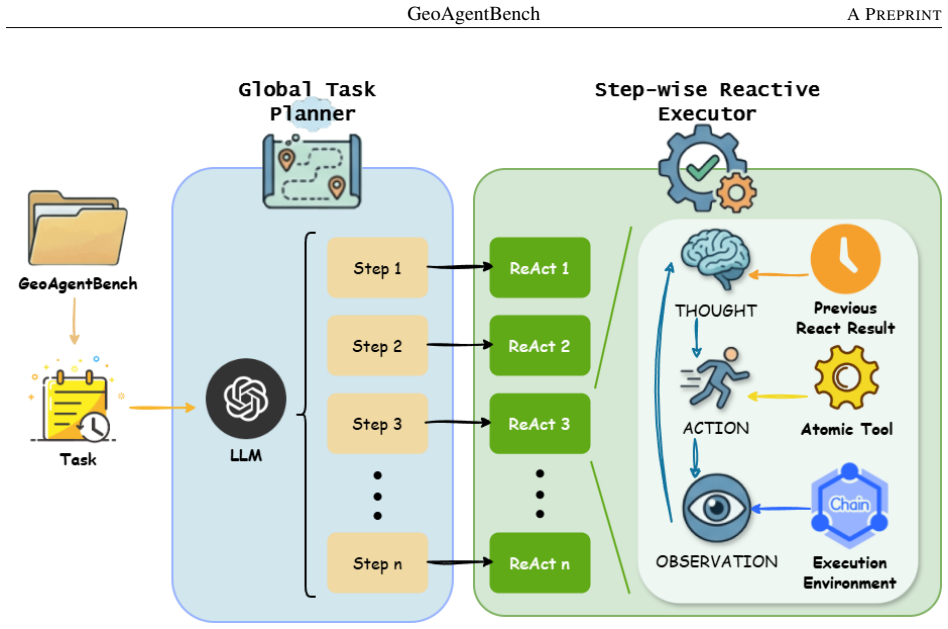

The Plan-and-React agent architecture, which separates high-level planning from immediate reactive tool calls to correct parameter errors and recover from runtime anomalies during spatial workflows.
If this is right
- LLM agents can achieve higher success rates on multi-step spatial tasks when planning and execution are explicitly decoupled.
- Parameter-level accuracy becomes the dominant failure mode in dynamic GIS environments and can be quantified separately from final output correctness.
- VLM verification provides an additional signal for assessing spatial fidelity and cartographic quality that text matching alone misses.
- Current LLMs still exhibit clear capability boundaries on tasks requiring repeated parameter adjustment and runtime adaptation.
- A standardized dynamic benchmark with atomic tools can serve as a repeatable testbed for measuring progress in autonomous GeoAI.
Where Pith is reading between the lines
- The same decoupling principle could be tested in other tool-heavy domains such as scientific simulation or laboratory automation where intermediate outputs must be inspected.
- VLM verification might transfer to visual reasoning benchmarks in fields like remote sensing or medical image analysis that also produce map-like outputs.
- Expanding the benchmark to include larger-scale or user-generated workflows would test whether the reported performance gap persists beyond the curated 53 tasks.
- Hybrid agents that switch between Plan-and-React and other frameworks depending on task length could combine the strengths observed here.
Load-bearing premise
The 53 chosen tasks and 117 atomic tools, together with the Parameter Execution Accuracy metric and VLM verification, are sufficient to represent the full complexity of real-world geospatial workflows.
What would settle it
A follow-up study that applies the same seven LLMs to a fresh set of 100 real-world GIS projects outside the benchmark and finds that Plan-and-React no longer shows a statistically significant advantage in completion rate or error recovery.
Figures
read the original abstract
The integration of Large Language Models (LLMs) into Geographic Information Systems (GIS) marks a paradigm shift toward autonomous spatial analysis. However, evaluating these LLM-based agents remains challenging due to the complex, multi-step nature of geospatial workflows. Existing benchmarks primarily rely on static text or code matching, neglecting dynamic runtime feedback and the multimodal nature of spatial outputs. To address this gap, we introduce GeoAgentBench (GABench), a dynamic and interactive evaluation benchmark tailored for tool-augmented GIS agents. GABench provides a realistic execution sandbox integrating 117 atomic GIS tools, encompassing 53 typical spatial analysis tasks across 6 core GIS domains. Recognizing that precise parameter configuration is the primary determinant of execution success in dynamic GIS environments, we designed the Parameter Execution Accuracy (PEA) metric, which utilizes a "Last-Attempt Alignment" strategy to quantify the fidelity of implicit parameter inference. Complementing this, a Vision-Language Model (VLM) based verification is proposed to assess data-spatial accuracy and cartographic style adherence. Furthermore, to address the frequent task failures caused by parameter misalignments and runtime anomalies, we developed a novel agent architecture, Plan-and-React, that mimics expert cognitive workflows by decoupling global orchestration from step-wise reactive execution. Extensive experiments with seven representative LLMs demonstrate that the Plan-and-React paradigm significantly outperforms traditional frameworks, achieving the optimal balance between logical rigor and execution robustness, particularly in multi-step reasoning and error recovery. Our findings highlight current capability boundaries and establish a robust standard for assessing and advancing the next generation of autonomous GeoAI.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report

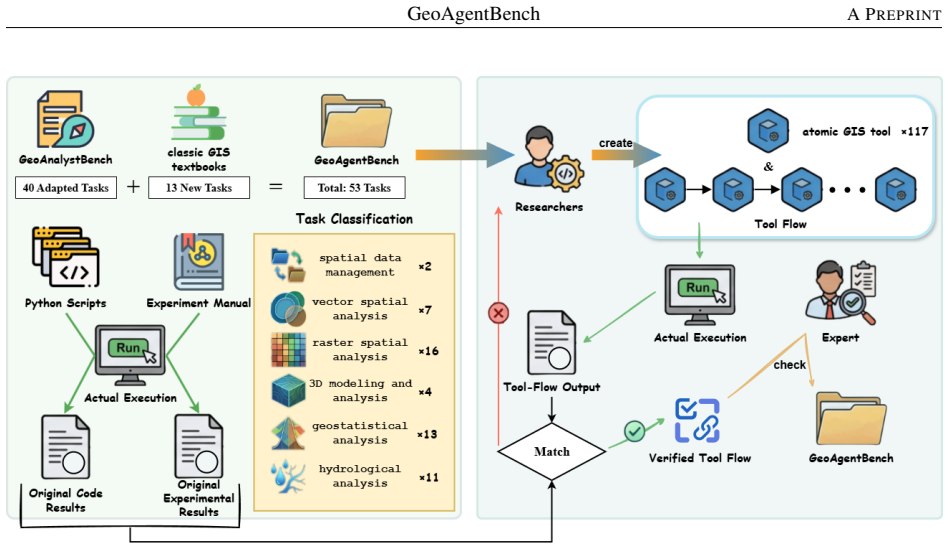

Summary. The paper introduces GeoAgentBench (GABench), a dynamic execution benchmark for tool-augmented GIS agents. It integrates 117 atomic GIS tools across 53 tasks in 6 core domains, proposes the Parameter Execution Accuracy (PEA) metric using a Last-Attempt Alignment strategy to evaluate implicit parameter inference, and introduces VLM-based verification for spatial and cartographic accuracy. The work also presents a Plan-and-React agent architecture that separates global planning from step-wise reactive execution and reports that this paradigm outperforms traditional frameworks (e.g., ReAct-style) across experiments with seven LLMs, particularly in multi-step reasoning and error recovery.
Significance. If the empirical results hold, this benchmark fills an important gap by enabling dynamic, runtime-aware evaluation of GeoAI agents rather than relying on static text or code matching. The PEA metric and VLM verification offer more realistic proxies for execution success in spatial workflows. The Plan-and-React architecture, if shown to be robust, provides a concrete design pattern for balancing planning rigor with runtime adaptability, with potential to guide development of autonomous spatial analysis systems. The sandbox artifact itself is a reusable contribution for the community.
major comments (3)
- [Benchmark Construction] Benchmark construction (53 tasks, 117 tools): the central claim that the benchmark captures realistic multi-step geospatial workflows rests on task and tool selection, yet the manuscript provides limited justification for coverage of variability, edge cases, or domain representativeness; this directly affects whether the reported outperformance generalizes beyond the sandbox.
- [Evaluation Metrics] PEA metric definition: the Last-Attempt Alignment strategy is described as quantifying parameter inference fidelity, but without a formal equation, pseudocode, or handling rules for multiple attempts and partial matches, it is unclear whether the metric avoids bias or circularity in success measurement; this is load-bearing for all quantitative claims.
- [Experiments] Experiments section: the claim that Plan-and-React 'significantly outperforms' traditional frameworks across seven LLMs lacks reported statistical tests, run-to-run variance, or explicit baseline implementations (e.g., exact ReAct or Plan-and-Execute variants), making it difficult to assess the magnitude and reliability of the gains.
minor comments (3)
- [Abstract] Abstract: the acronym GABench is introduced without immediate expansion on first use; consistent parenthetical definition would improve readability.
- [Benchmark Construction] The description of the six core GIS domains would benefit from an accompanying table listing representative tasks per domain to aid quick assessment of coverage.
- [Verification Methods] Notation for the VLM verification step is introduced but not contrasted explicitly with PEA; a short comparison paragraph would clarify their complementary roles.
Simulated Author's Rebuttal
We are grateful to the referee for the constructive feedback and positive evaluation of our work. The comments highlight important areas for improvement in clarity and rigor, which we will address in the revised manuscript. We respond to each major comment below.
read point-by-point responses
-
Referee: [Benchmark Construction] Benchmark construction (53 tasks, 117 tools): the central claim that the benchmark captures realistic multi-step geospatial workflows rests on task and tool selection, yet the manuscript provides limited justification for coverage of variability, edge cases, or domain representativeness; this directly affects whether the reported outperformance generalizes beyond the sandbox.
Authors: We appreciate this observation. While the task and tool selection was guided by standard references in GIS literature and common workflows in spatial analysis (as briefly noted in Section 3), we agree that more detailed justification is warranted to strengthen claims of representativeness. In the revised manuscript, we will expand the benchmark construction section to include explicit criteria for task selection, coverage of variability across domains, discussion of included edge cases, and references to domain standards. This will better substantiate the generalizability of our findings. revision: yes
-
Referee: [Evaluation Metrics] PEA metric definition: the Last-Attempt Alignment strategy is described as quantifying parameter inference fidelity, but without a formal equation, pseudocode, or handling rules for multiple attempts and partial matches, it is unclear whether the metric avoids bias or circularity in success measurement; this is load-bearing for all quantitative claims.
Authors: The referee correctly identifies a gap in the presentation of the PEA metric. To address this, we will include a formal mathematical definition of the Parameter Execution Accuracy metric in the revised version, along with pseudocode for the Last-Attempt Alignment strategy. We will also specify rules for handling multiple attempts (e.g., using the final attempt for alignment) and partial matches (with a defined similarity threshold). This addition will clarify the metric's computation and mitigate concerns about bias or circularity. revision: yes
-
Referee: [Experiments] Experiments section: the claim that Plan-and-React 'significantly outperforms' traditional frameworks across seven LLMs lacks reported statistical tests, run-to-run variance, or explicit baseline implementations (e.g., exact ReAct or Plan-and-Execute variants), making it difficult to assess the magnitude and reliability of the gains.
Authors: We acknowledge the need for greater statistical rigor in the experimental results. In the revision, we will report standard deviations from multiple independent runs (e.g., 5 runs per configuration), include statistical significance tests such as paired t-tests or Wilcoxon signed-rank tests to support the 'significantly outperforms' claims, and provide more explicit descriptions of the baseline implementations, including code-level details for ReAct and Plan-and-Execute variants. These changes will enhance the reliability and interpretability of the performance comparisons. revision: yes
Circularity Check
No significant circularity in benchmark construction or empirical claims
full rationale
The paper introduces new artifacts—a sandbox with 53 tasks and 117 atomic GIS tools, the Parameter Execution Accuracy (PEA) metric using Last-Attempt Alignment, VLM-based verification, and the Plan-and-React agent architecture—then evaluates them empirically across seven LLMs. No equations, fitted parameters, or derivations appear in the manuscript that reduce any claimed prediction or result to the inputs by construction. The central performance claims rest on direct experimental comparisons within the explicitly scoped sandbox rather than on self-citations, uniqueness theorems, or ansatzes imported from prior author work. This structure is self-contained and follows standard practice for benchmark papers, with independent content in task design, metric definition, and architecture description.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption The 53 selected tasks and 117 atomic tools adequately represent typical spatial analysis workflows across six GIS domains.
