arxiv: 2604.14866 · v1 · submitted 2026-04-16 · 💻 cs.CV · cs.AI

MetaDent: Labeling Clinical Images for Vision-Language Models in Dentistry

Meng-Xun Li , Wen-Hui Deng , Zhi-Xing Wu , Chun-Xiao Jin , Jia-Min Wu , Yue Han , James Kit Hon Tsoi , Gui-Song Xia
show 1 more author
Cui Huang
This is my paper

Pith reviewed 2026-05-10 11:51 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords dentistryvision-language modelsclinical image annotationintraoral photographyvisual question answeringimage captioningmulti-label classification
0
0 comments X

The pith

A new annotated dataset of dental images reveals that state-of-the-art vision-language models struggle with fine-grained understanding of intraoral scenes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a large-scale dataset of dental images with a semi-structured annotation scheme to support vision-language models in clinical dentistry. It shows that even advanced models only reach moderate accuracy on tasks like visual question answering and produce inconsistent descriptions in image captioning. By curating 60,669 images and annotating 2,588 of them, the work creates benchmarks that highlight the need for better fine-grained analysis in oral health imaging. This resource is released publicly to enable further development of such models.

Core claim

MetaDent supplies a dentistry image dataset, a semi-structured annotation framework capturing hierarchical clinical details through high-level summaries and point-by-point abnormality descriptions, and LLM-derived benchmarks including 15K VQA pairs and an 18-class multi-label classification set. Evaluations confirm that state-of-the-art VLMs achieve only moderate accuracy and generate incomplete captions for intraoral photographs.

What carries the argument

The semi-structured annotation framework that combines high-level image summaries with free-text point-by-point descriptions of abnormalities, enabling scalable and task-agnostic representations for clinical evaluation.

Load-bearing premise

The semi-structured annotation framework and subsequent LLM-driven benchmark creation reliably preserve clinically nuanced dental details without semantic drift or selection bias.

What would settle it

Human experts re-labeling a subset of the images and finding substantial differences from the provided annotations, or new VLMs achieving high accuracy and complete captions on the derived tasks.

Figures

Figures reproduced from arXiv: 2604.14866 by Chun-Xiao Jin, Cui Huang, Gui-Song Xia, James Kit Hon Tsoi, Jia-Min Wu, Meng-Xun Li, Wen-Hui Deng, Yue Han, Zhi-Xing Wu.

Figure 1
Figure 1. Figure 1: Data processing pipeline. (A) Composition and distribution of the dataset across 3 sources, with the Internet-scraped subset (Data Source 3) being the largest. Image features were extracted using DINOv3 (Siméoni et al 2025) and projected into 2D using principal component analysis; darker, larger dots represent labeled samples, while lighter and smaller dots indicate the remaining images in the collection. … view at source ↗

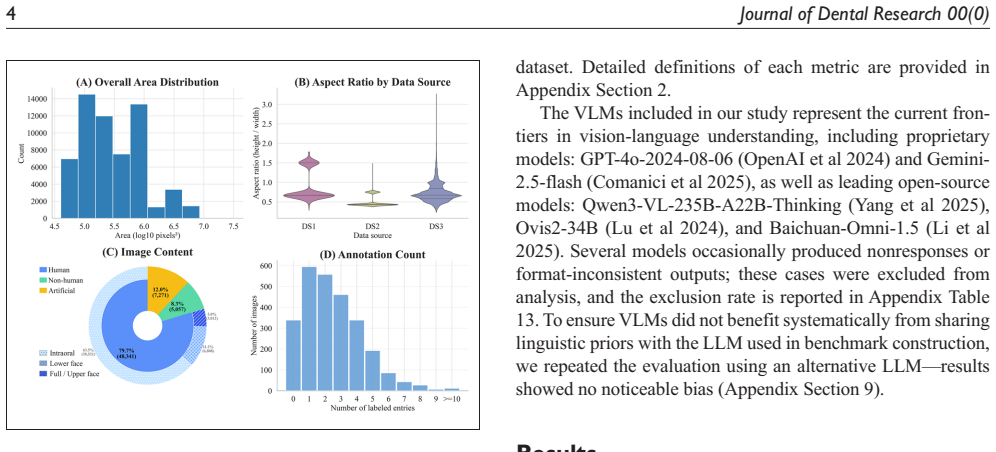

Figure 2
Figure 2. Figure 2: Dataset statistics. (A) Overall image area distribution: Image size (in log10 pixels²) shows that most images fall within the 5.0 to 6.0 range. (B) Aspect ratio by data source: DS3 exhibits the widest distribution of aspect ratios, followed by DS1, whereas DS2 displays a more uniform aspect ratio profile. (C) Image content composition: Approximately 80% of images contain human subjects. Of the entire datas… view at source ↗

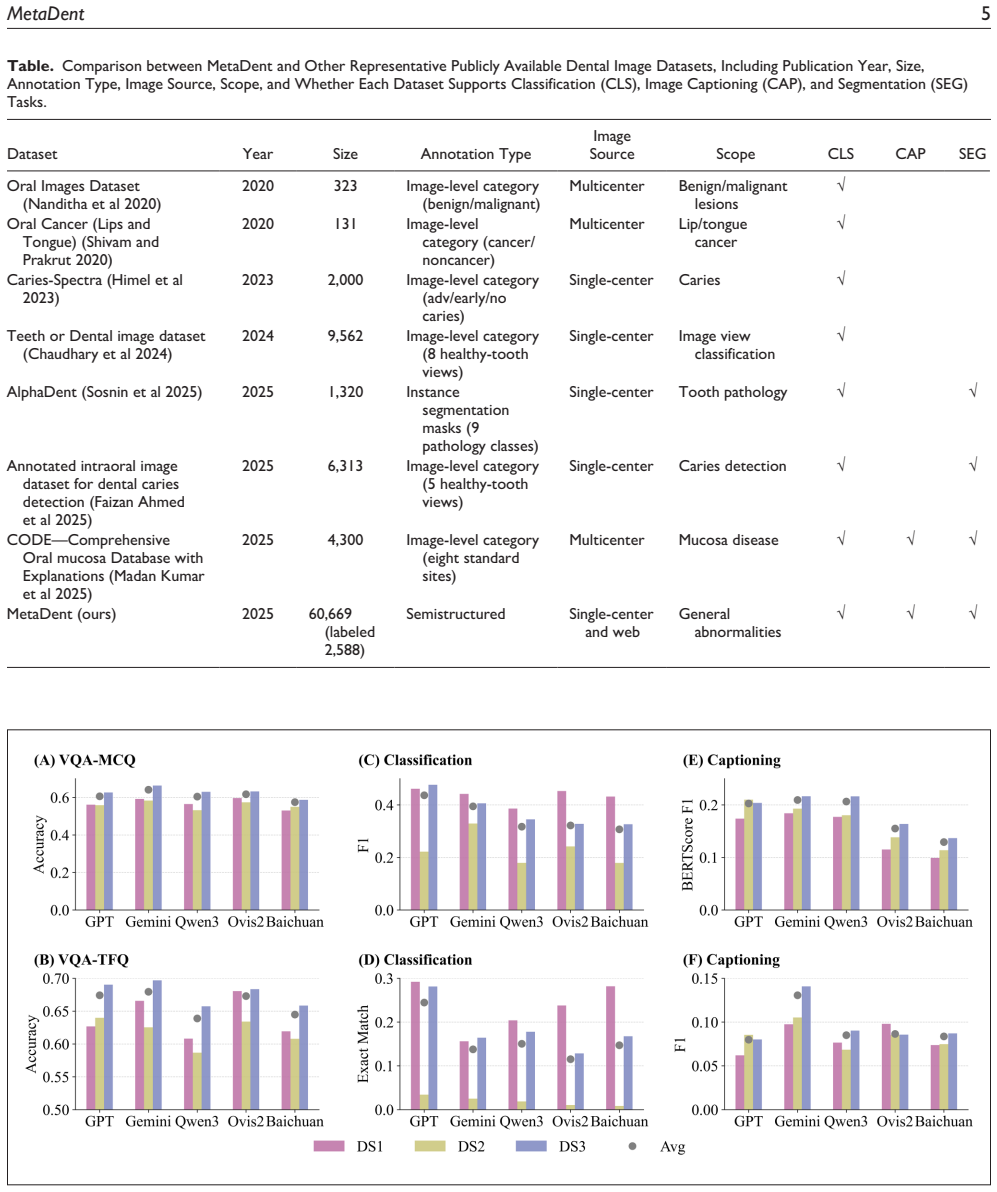

Figure 3
Figure 3. Figure 3: Performance of 5 vision-language models on MetaDent across 3 tasks. (A) Visual question answering (VQA) accuracy on multiple-choice questions (MCQ). (B) VQA accuracy on true/false questions (TFQ). (C) F1 for the 18-class multilabel classification task. (D) Exact Match accuracy for multilabel predictions. (E) Image captioning semantic similarity reported as BERTScore-F1 against reference captions. (F) Conte… view at source ↗

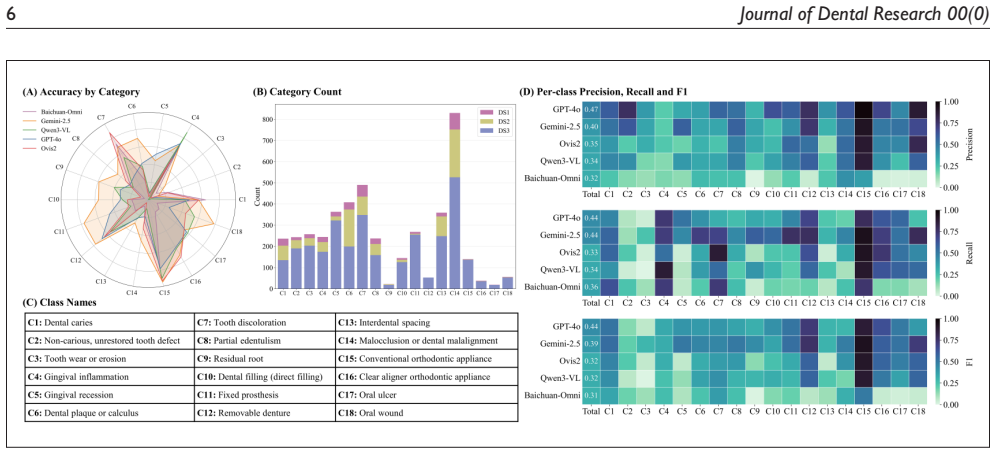

Figure 4
Figure 4. Figure 4: Category-level performance for the multilabel classification task. (A) Exact Match accuracy across 18 categories for 5 models. (B) Distribution of samples per category for the classification task. (C) Names of the 18 categories (see Appendix [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
read the original abstract

Vision-Language Models (VLMs) have demonstrated significant potential in medical image analysis, yet their application in intraoral photography remains largely underexplored due to the lack of fine-grained, annotated datasets and comprehensive benchmarks. To address this, we present MetaDent, a comprehensive resource that includes (1) a novel and large-scale dentistry image dataset collected from clinical, public, and web sources; (2) a semi-structured annotation framework designed to capture the hierarchical and clinically nuanced nature of dental photography; and (3) comprehensive benchmark suites for evaluating state-of-the-art VLMs on clinical image understanding. Our labeling approach combines a high-level image summary with point-by-point, free-text descriptions of abnormalities. This method enables rich, scalable, and task-agnostic representations. We curated 60,669 dental images from diverse sources and annotated a representative subset of 2,588 images using this meta-labeling scheme. Leveraging Large Language Models (LLMs), we derive standardized benchmarks: approximately 15K Visual Question Answering (VQA) pairs and an 18-class multi-label classification dataset, which we validated with human review and error analysis to justify that the LLM-driven transition reliably preserves fidelity and semantic accuracy. We then evaluate state-of-the-art VLMs across VQA, classification, and image captioning tasks. Quantitative results reveal that even the most advanced models struggle with a fine-grained understanding of intraoral scenes, achieving moderate accuracy and producing inconsistent or incomplete descriptions in image captioning. We publicly release our dataset, annotations, and tools to foster reproducible research and accelerate the development of vision-language systems for dental applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces MetaDent, a dataset of 60,669 dental images (with 2,588 meta-annotated via high-level summaries plus free-text abnormality points) from clinical, public, and web sources. LLMs are used to derive ~15K VQA pairs and an 18-class multi-label classification benchmark from these annotations, with human review and error analysis claimed to confirm fidelity. State-of-the-art VLMs are then benchmarked on VQA, classification, and captioning tasks, with the central finding that even advanced models achieve only moderate accuracy and generate inconsistent or incomplete descriptions of intraoral scenes.

Significance. If the LLM-converted benchmarks are shown to be faithful clinical proxies, MetaDent would provide a valuable, publicly released resource for advancing VLMs in the underexplored domain of intraoral photography. The semi-structured annotation approach and empirical demonstration of current model limitations on fine-grained dental understanding offer a useful baseline and could accelerate development of clinically relevant vision-language systems. The release of the dataset, annotations, and tools supports reproducibility.

major comments (2)
  1. [Abstract] Abstract: The assertion that 'human review and error analysis' justifies that the LLM-driven conversion 'reliably preserves fidelity and semantic accuracy' is unsupported by any quantitative metrics (e.g., exact-match rate, Cohen's kappa, or per-task error breakdown on a held-out validation subset). This is load-bearing for the headline claim that moderate VLM accuracy reflects model limitations rather than label noise or selection bias in the 2,588-image annotated subset.
  2. [Annotation and benchmark generation] Section describing the annotation and benchmark generation process: No details are provided on the exact annotation protocols for the 2,588 images, inter-rater agreement statistics, data splits, or the specific human validation procedure and error analysis results. Without these, it is impossible to quantify potential semantic drift or selection effects in the derived 15K VQA pairs and 18-class labels.
minor comments (2)
  1. The abstract and methods would benefit from explicit listing of the VQA question templates and classification label definitions to aid reproducibility.
  2. Consider including additional baselines (e.g., non-VLM classifiers or simpler vision-only models) in the classification and captioning evaluations to better contextualize the reported moderate accuracies.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed review, which highlights important areas for improving the clarity and rigor of our presentation of the MetaDent dataset and benchmarks. We agree that the current manuscript would benefit from expanded details on the annotation and validation processes to better support our claims. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The assertion that 'human review and error analysis' justifies that the LLM-driven conversion 'reliably preserves fidelity and semantic accuracy' is unsupported by any quantitative metrics (e.g., exact-match rate, Cohen's kappa, or per-task error breakdown on a held-out validation subset). This is load-bearing for the headline claim that moderate VLM accuracy reflects model limitations rather than label noise or selection bias in the 2,588-image annotated subset.

    Authors: We agree that the abstract's reference to human review and error analysis would be more convincing with explicit quantitative support. In the revised manuscript, we will update the abstract to reference specific validation metrics and add a new subsection detailing the human review process. This will include exact-match rates between LLM-generated VQA pairs/labels and human corrections, a per-task error breakdown, and any applicable agreement statistics from the 2,588-image subset. These additions will strengthen the argument that observed VLM limitations reflect genuine model shortcomings rather than annotation issues. revision: yes

  2. Referee: [Annotation and benchmark generation] Section describing the annotation and benchmark generation process: No details are provided on the exact annotation protocols for the 2,588 images, inter-rater agreement statistics, data splits, or the specific human validation procedure and error analysis results. Without these, it is impossible to quantify potential semantic drift or selection effects in the derived 15K VQA pairs and 18-class labels.

    Authors: We acknowledge that the current manuscript omits these methodological specifics, which are necessary for full reproducibility and assessment of potential biases. We will substantially expand the annotation and benchmark generation section to include: (1) the exact protocols and guidelines used for meta-annotation of the 2,588 images (high-level summaries plus free-text abnormality points); (2) data split details for the annotated subset; (3) the full human validation procedure, including how reviewers interacted with LLM outputs; and (4) results from the error analysis, with quantitative metrics where available (e.g., agreement rates and error categorizations). If inter-rater statistics are limited due to the single-reviewer design for efficiency, we will explicitly note this and justify the approach. revision: yes

Circularity Check

0 steps flagged

No significant circularity: purely empirical dataset construction and benchmarking

full rationale

The paper presents an empirical workflow of image collection (60,669 dental images), semi-structured meta-annotation on a 2,588-image subset, LLM-assisted conversion to ~15K VQA pairs and 18-class labels, human validation, and VLM evaluation on captioning/VQA/classification tasks. No equations, derivations, fitted parameters, or predictions appear anywhere in the described chain. No self-citations are invoked as load-bearing uniqueness theorems or ansatzes. The central claim (VLMs achieve only moderate accuracy on intraoral scenes) is supported by direct benchmarking results rather than reducing to any input by construction. This matches the default expectation for non-circular empirical dataset papers.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No mathematical modeling; the annotation scheme and LLM use are methodological choices rather than axioms or free parameters. No invented entities.

pith-pipeline@v0.9.0 · 5624 in / 1039 out tokens · 35733 ms · 2026-05-10T11:51:50.247154+00:00 · methodology
