The multi-planet system TOI-5624: Four transiting sub-Neptunes with an outer companion revealed by transit-timing variations
Pith reviewed 2026-05-10 09:57 UTC · model grok-4.3
The pith
Four transiting sub-Neptunes orbit TOI-5624 while their timing variations reveal a fifth non-transiting companion.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We present the discovery of four transiting sub-Neptunes with radii of R_b=2.314±0.035 R_⊕, R_c=2.474±0.042 R_⊕, R_d=3.584_{-0.050}^{+0.051} R_⊕, and R_e=3.247_{-0.043}^{+0.042} R_⊕ and masses of M_b=9.4±1.4 M_⊕, M_c=4.8±1.9 M_⊕, M_d=4.9±2.2 M_⊕, and M_e=8.9_{-3.0}^{+2.9} M_⊕. Photometric analysis shows significant TTVs on the outermost transiting planet TOI-5624 e. A robust Keplerian signal appears in the RV data close to the 2:1 commensurability with planet e; N-body integration of the equations of motion simultaneously fitted to transit times and detrended RVs identifies this signal as a non-transiting companion TOI-5624 f whose minimum mass is M_f sin i_f=13.0±3.7 M_⊕ and which accounts
What carries the argument
The N-body dynamical integration that simultaneously solves the equations of motion while fitting observed transit times and detrended radial velocities, thereby linking the TTV pattern of planet e to the outer companion at the 2:1 period ratio.
If this is right
- Additional photometry will sample the full TTV modulation cycle and yield tighter dynamical mass constraints for all planets.
- The system joins the small set of multi-planet systems in which radii are known to <1.7 percent and at least three masses exceed 3-sigma significance.
- The 2:1 period ratio between planets e and f provides a concrete test case for resonant or near-resonant dynamics in compact sub-Neptune systems.
Where Pith is reading between the lines
- Systems already known to host multiple transiting planets can be re-examined with combined TTV and RV data to uncover additional non-transiting members.
- The sub-Neptune radii and measured masses supply concrete targets for transmission spectroscopy that could reveal atmospheric scale heights or compositions.
- Long-term stability simulations of the five-planet configuration could test whether the observed periods remain stable over Gyr timescales without additional damping.
Load-bearing premise
The radial-velocity signal near twice the orbital period of planet e is produced by a real planetary companion rather than by stellar activity, an instrumental artifact, or an alias.
What would settle it
A longer radial-velocity baseline in which the ~43-day signal disappears, weakens below 3 sigma, or correlates tightly with stellar activity indicators such as the bisector span or log R'_HK would falsify the planetary interpretation of TOI-5624 f.
Figures

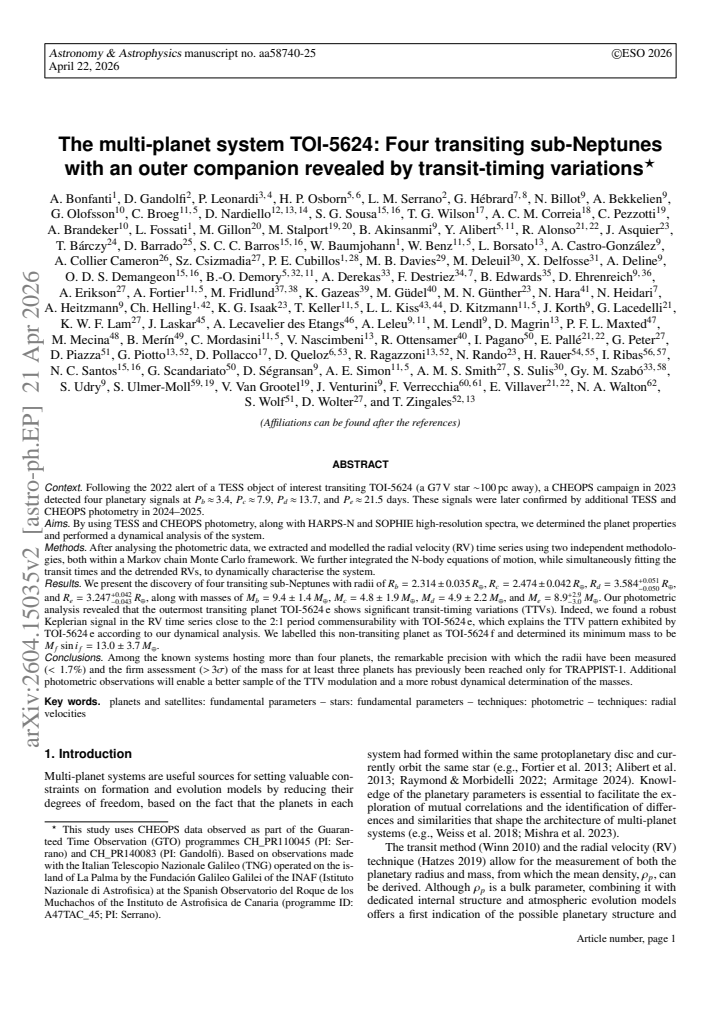

read the original abstract
Following the 2022 alert of a TESS object of interest transiting TOI-5624 (a G7 V star $\sim$100 pc away), a CHEOPS campaign in 2023 detected four planetary signals at $P_b\approx3.4$, $P_c\approx7.9$, $P_d\approx13.7$, and $P_e\approx21.5$ days, later confirmed by additional TESS and CHEOPS photometry in 2024-2025. After analysing the TESS & CHEOPS photometric data, we extracted and modelled the HARPS-N & SOPHIE RV time series using two independent methodologies both within an MCMC framework. We further integrated the N-body equations of motion, while simultaneously fitting the transit times and the detrended RVs, to dynamically characterise the system. We present the discovery of four transiting sub-Neptunes with radii of $R_b=2.314\pm0.035 R_{\oplus}$, $R_c=2.474\pm0.042 R_{\oplus}$, $R_d=3.584_{-0.050}^{+0.051} R_{\oplus}$, and $R_e=3.247_{-0.043}^{+0.042} R_{\oplus}$ and masses of $M_b=9.4\pm1.4 M_{\oplus}$, $M_c=4.8\pm1.9 M_{\oplus}$, $M_d=4.9\pm2.2 M_{\oplus}$, and $M_e=8.9_{-3.0}^{+2.9} M_{\oplus}$. Our photometric analysis reveals that the outermost transiting planet TOI-5624 e shows significant TTVs. We find a robust Keplerian signal in the RV time series close to the 2:1 period commensurability with TOI-5624 e, which explains the TTV pattern exhibited by TOI-5624 e according to our dynamical analysis. We label this non-transiting planet as TOI-5624 f and find its minimum mass to be $M_f\sin{i_f}=13.0\pm3.7 M_{\oplus}$. Among the known systems hosting more than four planets, the remarkable precision with which the radii have been measured (<1.7%) and the firm assessment (>3$\sigma$) of the mass for at least three planets has been previously reached only for TRAPPIST-1. Additional photometric observations will enable a better sample of the TTV modulation and a more robust dynamical determination of the masses.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports the discovery of a five-planet system around the G7 V star TOI-5624 (~100 pc). Four transiting sub-Neptunes (b, c, d, e) with periods ~3.4, 7.9, 13.7, and 21.5 days are characterized using TESS and CHEOPS photometry, yielding radii R_b=2.314±0.035 R_⊕, R_c=2.474±0.042 R_⊕, R_d=3.584_{-0.050}^{+0.051} R_⊕, R_e=3.247_{-0.043}^{+0.042} R_⊕. Masses are derived from joint MCMC modeling of HARPS-N and SOPHIE RVs (two independent pipelines) combined with N-body integrations that simultaneously fit observed transit times and detrended RVs. A non-transiting outer companion f is identified from a ~43-day Keplerian RV signal near 2:1 commensurability with e; this signal is used in the dynamical model to explain the significant TTVs observed on planet e, with M_f sin i_f = 13.0±3.7 M_⊕. The work emphasizes the high radius precision (<1.7%) and >3σ masses for at least three planets, comparable to TRAPPIST-1.
Significance. If the reported architecture holds, the system provides a high-precision benchmark for compact multi-planet systems, with radii measured to better than 1.7% and dynamical masses enabling composition and formation studies. Strengths include the use of two independent RV pipelines, multiple instruments and epochs for consistency checks, and the simultaneous N-body fit to TTVs and RVs rather than sequential post-hoc modeling. This approach reduces circularity in the TTV explanation. The result would add to the small sample of systems with >4 planets having both precise radii and masses, supporting statistical studies of sub-Neptune populations.
major comments (2)
- [RV analysis section] RV analysis section: The ~43-day signal is stated to be 'robust' and to explain the TTVs on planet e via the N-body model, but no explicit false-alarm probability, window-function alias test against the combined HARPS-N+SOPHIE sampling, or correlation analysis with activity indicators (e.g., bisector span or log R'_HK) is reported. This is load-bearing for the central claim because the five-planet architecture and the dynamical masses (particularly the marginal values for c and d) rest on interpreting this signal as planetary f rather than an alias, activity, or artifact; if the signal is non-planetary, the TTV pattern on e remains unexplained by the model.
- [Dynamical modeling and mass results] Dynamical modeling and mass results: Planets c and d have masses M_c=4.8±1.9 M_⊕ (~2.5σ) and M_d=4.9±2.2 M_⊕ (~2.2σ). While the abstract notes firm >3σ assessment for at least three planets, the N-body integration simultaneously fitting TTVs and RVs may be sensitive to these low-significance values; the manuscript should clarify whether these are treated as detections or upper limits and test the stability of the reported architecture when c and d masses are set to zero or their 1σ upper bounds.
minor comments (2)
- [Abstract] The abstract gives approximate periods; cross-reference to the exact fitted values and uncertainties in Table 1 or §3 would improve clarity.
- [Figures] Figure showing the RV periodogram or TTV residuals could include explicit marking of the 43-day peak, its aliases, and the window function for easier reader assessment.
Simulated Author's Rebuttal
We thank the referee for their careful and constructive review of our manuscript. We appreciate the positive assessment of the system's significance as a high-precision benchmark and the strengths noted in our multi-instrument RV analysis and simultaneous N-body modeling. We address each major comment below and outline the revisions we will incorporate to strengthen the presentation.
read point-by-point responses
-
Referee: [RV analysis section] The ~43-day signal is stated to be 'robust' and to explain the TTVs on planet e via the N-body model, but no explicit false-alarm probability, window-function alias test against the combined HARPS-N+SOPHIE sampling, or correlation analysis with activity indicators (e.g., bisector span or log R'_HK) is reported. This is load-bearing for the central claim because the five-planet architecture and the dynamical masses (particularly the marginal values for c and d) rest on interpreting this signal as planetary f rather than an alias, activity, or artifact; if the signal is non-planetary, the TTV pattern on e remains unexplained by the model.
Authors: We agree that explicit statistical validation of the ~43-day RV signal would strengthen the manuscript. In the revised version, we will add the false-alarm probability derived from bootstrap resampling of the combined HARPS-N and SOPHIE data, window-function alias tests to exclude sampling-induced artifacts, and correlation analyses with activity indicators including the bisector span and log R'_HK. These tests will be presented in the RV analysis section. The simultaneous N-body fit already provides independent dynamical support by reproducing the observed TTVs on planet e, reducing reliance on the RV signal in isolation. revision: yes
-
Referee: [Dynamical modeling and mass results] Planets c and d have masses M_c=4.8±1.9 M_⊕ (~2.5σ) and M_d=4.9±2.2 M_⊕ (~2.2σ). While the abstract notes firm >3σ assessment for at least three planets, the N-body integration simultaneously fitting TTVs and RVs may be sensitive to these low-significance values; the manuscript should clarify whether these are treated as detections or upper limits and test the stability of the reported architecture when c and d masses are set to zero or their 1σ upper bounds.
Authors: We note that the abstract already specifies a firm >3σ mass assessment for at least three planets (b, e, and f), with the reported values for c and d reflecting their lower significance (~2.5σ and ~2.2σ). In the revision, we will explicitly clarify in the text, tables, and abstract that M_c and M_d are measured values with uncertainties but are not claimed as >3σ detections. We will also add N-body stability tests setting M_c and M_d to zero and to their 1σ upper bounds, confirming that the overall architecture remains stable under these conditions. The joint TTV-RV modeling provides dynamical constraints on all planets through interactions, even at marginal significance. revision: yes
Circularity Check
No significant circularity; central results are independent fits to photometric and RV datasets with dynamical consistency check
full rationale
The paper derives planetary radii and periods directly from TESS/CHEOPS transit photometry, extracts TTVs from the same photometry, and fits masses via MCMC on independent HARPS-N/SOPHIE RV time series. The N-body integration simultaneously fits observed transit times (photometric) and detrended RVs to confirm that the detected ~43-day Keplerian RV signal near 2:1 with planet e accounts for the TTV pattern on e. This is a cross-validation between independent observables rather than a self-definitional loop or a fitted parameter renamed as a prediction. No self-citations, ansatzes, or uniqueness theorems are invoked in the provided derivation chain to force the architecture. The minimum mass for f and the dynamical masses are outputs of the joint model constrained by the data, not inputs.
Axiom & Free-Parameter Ledger
free parameters (2)
- planetary masses and orbital elements
- system inclination and eccentricity parameters
axioms (2)
- standard math Planets follow Newtonian N-body dynamics with no additional forces
- domain assumption RV signal near 2:1 with planet e originates from a planetary companion
Reference graph
Works this paper leans on
-
[1]
& Deck, K
Agol, E. & Deck, K. 2016, The Astrophysical Journal, 818, 177
2016
-
[2]
L., et al
Agol , E., Dorn , C., Grimm , S. L., et al. 2021, , 2, 1
2021
-
[3]
& Fabrycky , D
Agol , E. & Fabrycky , D. C. 2018, in Handbook of Exoplanets, ed. H. J. Deeg & J. A. Belmonte (Cambridge University Press), 7
2018
-
[4]
2005, , 359, 567
Agol , E., Steffen , J., Sari , R., & Clarkson , W. 2005, , 359, 567
2005
-
[5]
2013, , 558, A109
Alibert , Y., Carron , F., Fortier , A., et al. 2013, , 558, A109
2013
-
[6]
R., Smith , A
Anderson , D. R., Smith , A. M. S., Lanotte , A. A., et al. 2011, , 416, 2108
2011
-
[7]
& Butler , R
Anglada-Escud \'e , G. & Butler , R. P. 2012, , 200, 15
2012
- [8]
-
[9]
1996, , 119, 373
Baranne , A., Queloz , D., Mayor , M., et al. 1996, , 119, 373
1996
-
[10]
M., & Zicher , N
Barrag \'a n , O., Aigrain , S., Rajpaul , V. M., & Zicher , N. 2022, , 509, 866
2022
-
[11]
2019, , 482, 1017
Barrag \'a n , O., Gandolfi , D., & Antoniciello , G. 2019, , 482, 1017
2019
-
[12]
2021, Experimental Astronomy, 51, 109
Benz , W., Broeg , C., Fortier , A., et al. 2021, Experimental Astronomy, 51, 109
2021
-
[13]
Blackwell , D. E. & Shallis , M. J. 1977, , 180, 177
1977
-
[14]
C., et al
Boisse , I., Eggenberger , A., Santos , N. C., et al. 2010, , 523, A88
2010
-
[15]
2025, , 693, A90
Bonfanti , A., Amateis , I., Gandolfi , D., et al. 2025, , 693, A90
2025
-
[16]
J., et al
Bonfanti , A., Delrez , L., Hooton , M. J., et al. 2021, , 646, A157
2021
-
[17]
A., et al
Bonfanti , A., Gandolfi , D., Egger , J. A., et al. 2023, , 671, L8
2023
-
[18]
& Gillon , M
Bonfanti , A. & Gillon , M. 2020, , 635, A6
2020
-
[19]
2016, , 585, A5
Bonfanti , A., Ortolani , S., & Nascimbeni , V. 2016, , 585, A5
2016
-
[20]
2015, , 575, A18
Bonfanti , A., Ortolani , S., Piotto , G., & Nascimbeni , V. 2015, , 575, A18
2015
-
[21]
2024, , 689, A52
Borsato , L., Degen , D., Leleu , A., et al. 2024, , 689, A52
2024
-
[22]
2019, , 484, 3233
Borsato , L., Malavolta , L., Piotto , G., et al. 2019, , 484, 3233
2019
-
[23]
2014, , 571, A38
Borsato , L., Marzari , F., Nascimbeni , V., et al. 2014, , 571, A38
2014
-
[24]
2021, , 506, 3810
Borsato , L., Piotto , G., Gandolfi , D., et al. 2021, , 506, 3810
2021
-
[25]
J., Koch , D., Basri , G., et al
Borucki , W. J., Koch , D., Basri , G., et al. 2010, Science, 327, 977
2010
-
[26]
F., H \'e brard , G., et al
Bouchy , F., D \' az , R. F., H \'e brard , G., et al. 2013, , 549, A49
2013
-
[27]
2009, , 505, 853
Bouchy , F., H \'e brard , G., Udry , S., et al. 2009, , 505, 853
2009
-
[28]
& Kurucz , R
Castelli , F. & Kurucz , R. L. 2003, in IAU Symposium, Vol. 210, Modelling of Stellar Atmospheres, ed. N. Piskunov , W. W. Weiss , & D. F. Gray , A20
2003
-
[29]
Correia , A. C. M., Couetdic , J., Laskar , J., et al. 2010, , 511, A21
2010
-
[30]
Correia , A. C. M., Delisle , J.-B., & Laskar , J. 2018, in Handbook of Exoplanets, ed. H. J. Deeg & J. A. Belmonte ( Springer International Publishing AG, part of Springer Nature ), 12
2018
-
[31]
Correia , A. C. M., Udry , S., Mayor , M., et al. 2005, , 440, 751
2005
-
[32]
2012, in Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, Vol
Cosentino , R., Lovis , C., Pepe , F., et al. 2012, in Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, Vol. 8446, Ground-based and Airborne Instrumentation for Astronomy IV, ed. I. S. McLean , S. K. Ramsay , & H. Takami , 84461V
2012
-
[33]
Deck , K. M. & Agol , E. 2015, , 802, 116
2015
-
[34]
A., Osborn , H
Egger , J. A., Osborn , H. P., Kubyshkina , D., et al. 2024, , 688, A223
2024
-
[35]
& Jord \'a n , A
Espinoza , N. & Jord \'a n , A. 2015, , 450, 1879
2015
-
[36]
2018, in American Astronomical Society Meeting Abstracts, Vol
Fausnaugh , M., Huang , X., Glidden , A., Guerrero , N., & TESS Science Office . 2018, in American Astronomical Society Meeting Abstracts, Vol. 231, American Astronomical Society Meeting Abstracts \#231, 439.09
2018
-
[37]
2017, , 154, 220
Foreman-Mackey , D., Agol , E., Ambikasaran , S., & Angus , R. 2017, , 154, 220
2017
-
[38]
W., Lang , D., & Goodman , J
Foreman-Mackey , D., Hogg , D. W., Lang , D., & Goodman , J. 2013, , 125, 306
2013
-
[39]
Fortier , A., Alibert , Y., Carron , F., Benz , W., & Dittkrist , K. M. 2013, , 549, A44
2013
-
[40]
E., Broeg , C., et al
Fortier , A., Simon , A. E., Broeg , C., et al. 2024, , 687, A302
2024
-
[41]
Gaia Collaboration , Vallenari , A., Brown , A. G. A., et al. 2023, , 674, A1
2023
-
[42]
& Rubin , D
Gelman , A. & Rubin , D. B. 1992, Statistical Science, 7, 457
1992
-
[43]
Geweke, J. F. 1991, Evaluating the accuracy of sampling-based approaches to the calculation of posterior moments , Staff Report 148, Federal Reserve Bank of Minneapolis
1991
-
[44]
& Tremaine , S
Goldreich , P. & Tremaine , S. 1980, , 241, 425
1980
-
[45]
& Weare, J
Goodman, J. & Weare, J. 2010, Communications in Applied Mathematics and Computational Science, 5, 65
2010
-
[46]
& Lithwick , Y
Hadden , S. & Lithwick , Y. 2017, , 154, 5
2017
-
[47]
2024, , 681, A96
Haldemann , J., Dorn , C., Venturini , J., Alibert , Y., & Benz , W. 2024, , 681, A96
2024
-
[48]
Hatzes , A. P. 2019, The Doppler Method for the Detection of Exoplanets , 2514-3433 (IOP Publishing)
2019
-
[49]
C., et al
Heidari , N., Boisse , I., Hara , N. C., et al. 2024, , 681, A55
2024
-
[50]
2025, , 694, A36
Heidari , N., H \'e brard , G., Martioli , E., et al. 2025, , 694, A36
2025
-
[51]
J., Soderblom , D
Henry , T. J., Soderblom , D. R., Donahue , R. A., & Baliunas , S. L. 1996, , 111, 439
1996
-
[52]
& Heller , R
Hippke , M. & Heller , R. 2019, , 623, A39
2019
-
[53]
2020, , 639, A35
Hojjatpanah , S., Oshagh , M., Figueira , P., et al. 2020, , 639, A35
2020
-
[54]
W., Sinukoff , E., Blunt , S., et al
Howard , A. W., Sinukoff , E., Blunt , S., et al. 2025, , 278, 52
2025
-
[55]
2020, , 635, A24
Hoyer , S., Guterman , P., Demangeon , O., et al. 2020, , 635, A24
2020
-
[56]
M., Twicken , J
Jenkins , J. M., Twicken , J. D., McCauliff , S., et al. 2016, in Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, Vol. 9913, Software and Cyberinfrastructure for Astronomy IV, ed. G. Chiozzi & J. C. Guzman , 99133E
2016
-
[57]
2019, , 622, A202
Johansen , A., Ida , S., & Brasser , R. 2019, , 622, A202
2019
-
[58]
Kass , R. E. & Raftery , A. E. 1995, Journal of the American Statistical Association, 90, 773
1995
-
[59]
M., Woitke , P., & Dominik , C
Khorshid , N., Min , M., D \'e sert , J. M., Woitke , P., & Dominik , C. 2022, , 667, A147
2022
-
[60]
Kipping , D. M. 2008, , 389, 1383
2008
-
[61]
Kurucz , R. L. 1993 a , SYNTHE spectrum synthesis programs and line data (Astrophysics Source Code Library)
1993
-
[62]
Kurucz , R. L. 1993 b , SYNTHE spectrum synthesis programs and line data (Astrophysics Source Code Library)
1993
-
[63]
1990, , 88, 266
Laskar , J. 1990, , 88, 266
1990
-
[64]
1993, Physica D Nonlinear Phenomena, 67, 257
Laskar , J. 1993, Physica D Nonlinear Phenomena, 67, 257
1993
-
[65]
Lee , M. H. & Peale , S. J. 2002, arXiv e-prints [ [arXiv] 0209176 ]
2002
-
[66]
C., et al
Leleu , A., Alibert , Y., Hara , N. C., et al. 2021, , 649, A26
2021
-
[67]
2024, , 688, A211
Leleu , A., Delisle , J.-B., Delrez , L., et al. 2024, , 688, A211
2024
-
[68]
B., Udry , S., et al
Leleu , A., Delisle , J. B., Udry , S., et al. 2023, , 669, A117
2023
-
[69]
2025, , 702, A211
Leonardi , P., Borsato , L., Pagliaro , L., et al. 2025, , 702, A211
2025
-
[70]
2021, , 649, A4
Lindegren , L., Bastian , U., Biermann , M., et al. 2021, , 649, A4
2021
-
[71]
2012, , 761, 122
Lithwick , Y., Xie , J., & Wu , Y. 2012, , 761, 122
2012
-
[72]
& Pepe , F
Lovis , C. & Pepe , F. 2007, , 468, 1115
2007
-
[73]
P., Leleu , A., et al
Luque , R., Osborn , H. P., Leleu , A., et al. 2023, , 623, 932
2023
-
[74]
1995, , 110, 420
Malhotra , R. 1995, , 110, 420
1995
-
[75]
Mandell , A. M. 2011, Planetary Migration (Berlin, Heidelberg: Springer Berlin Heidelberg), 1275--1278
2011
-
[76]
2017, , 835, 77
Marigo , P., Girardi , L., Bressan , A., et al. 2017, , 835, 77
2017
-
[77]
C., He , M
Millholland , S. C., He , M. Y., Ford , E. B., et al. 2021, , 162, 166
2021
-
[78]
2023, , 670, A68
Mishra , L., Alibert , Y., Udry , S., & Mordasini , C. 2023, , 670, A68
2023
-
[79]
Munavar Hussain , M. J. & Kunimoto , M. 2025, , 169, 91
2025
-
[80]
Murray , C. D. & Dermott , S. F. 1999, Solar System Dynamics ( Publisher: Cambridge University Press )
1999
