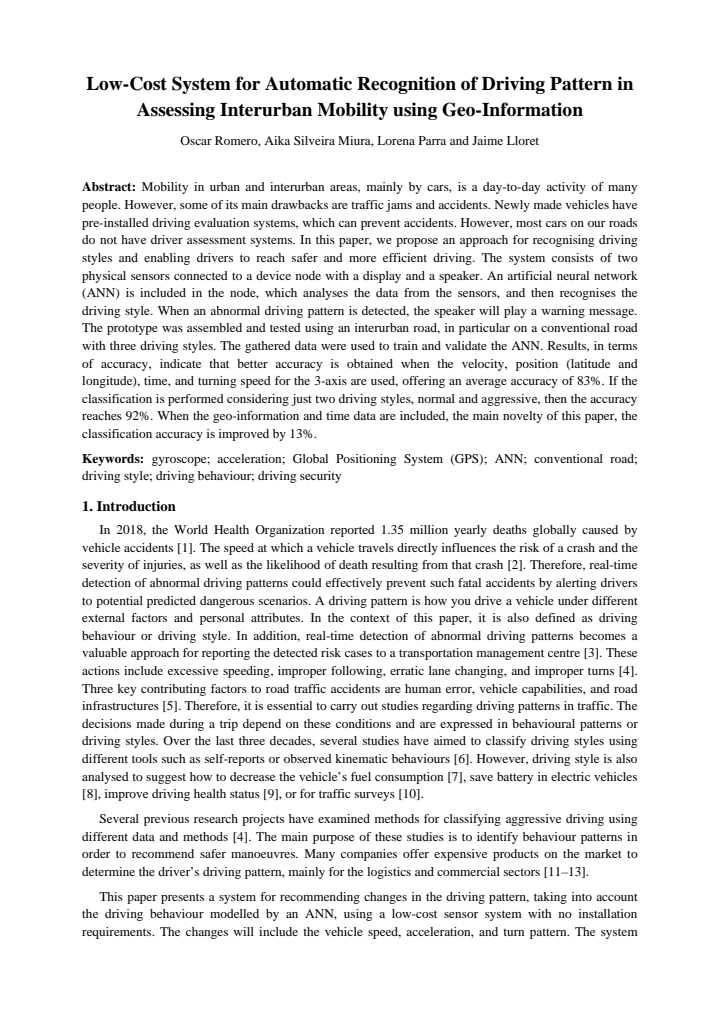

Low-Cost System for Automatic Recognition of Driving Pattern in Assessing Interurban Mobility using Geo-Information
Pith reviewed 2026-05-10 10:09 UTC · model grok-4.3
The pith
Adding location and time data to sensor inputs raises driving style classification accuracy by 13 percent.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that an artificial neural network trained on velocity, latitude, longitude, time, and three-axis turning speed collected from a conventional interurban road achieves 83 percent average accuracy classifying three driving styles, with the addition of geo-information and time data contributing a 13 percent accuracy gain over versions that omit those inputs.
What carries the argument

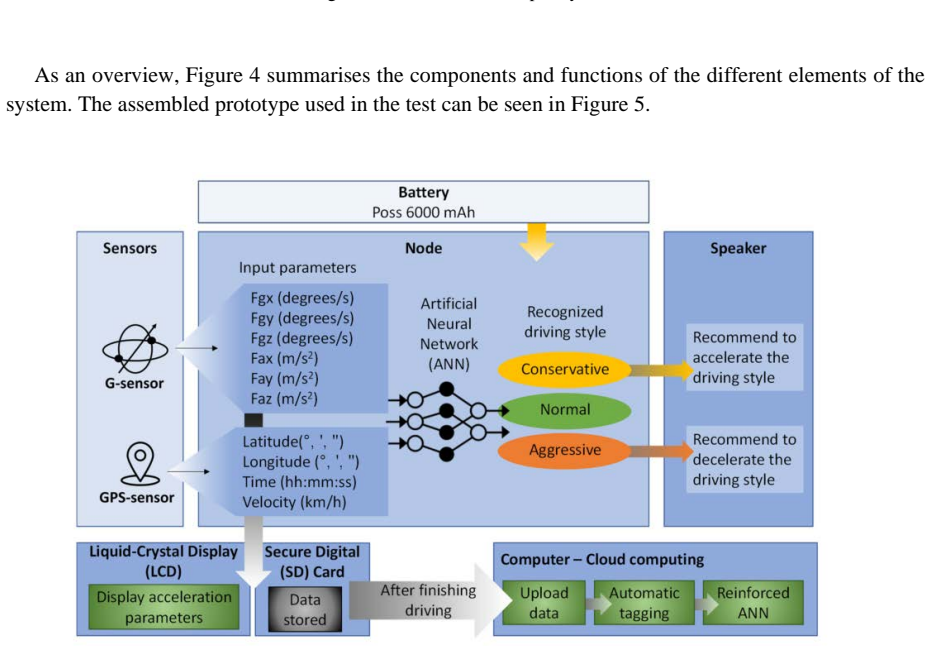

An artificial neural network inside a low-cost node that ingests velocity, position, time, and three-axis turning speed from connected sensors to classify driving style in real time.
If this is right
- The system can issue immediate spoken warnings when it detects aggressive or distracted patterns.
- Accuracy improves to 92 percent when the task is simplified to only normal versus aggressive styles.

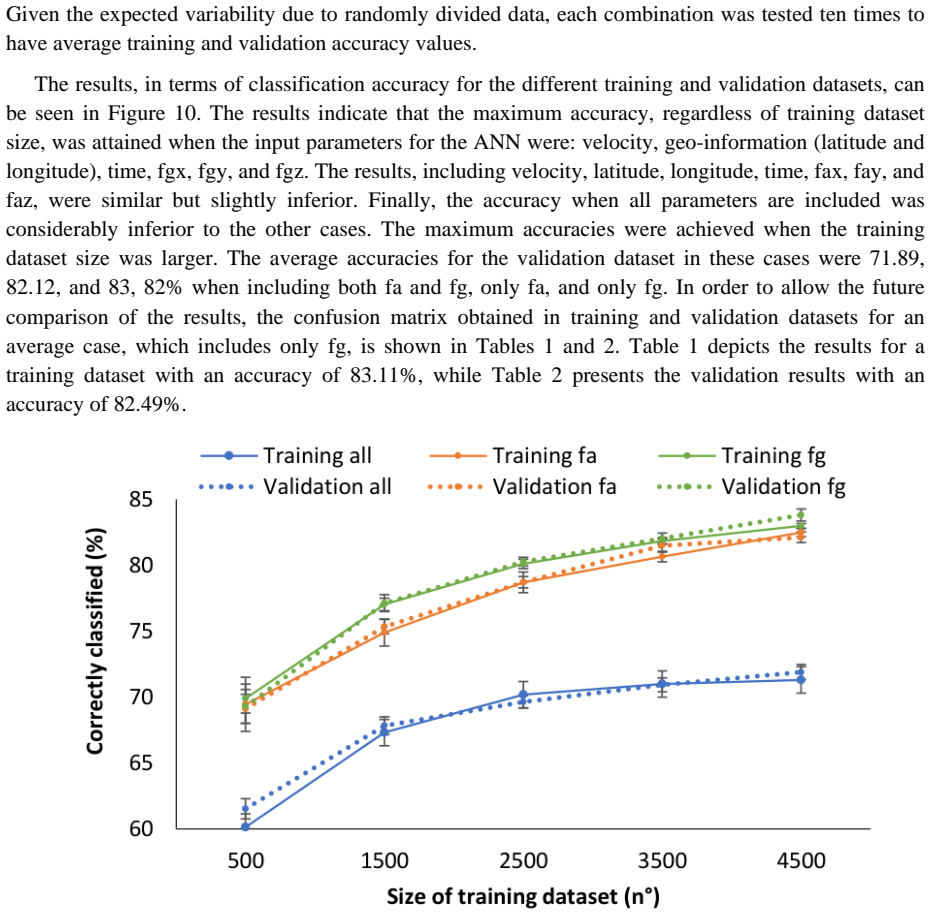

- The approach works with inexpensive sensors and can be added to vehicles that lack factory driver-monitoring systems.
- Combining position, time, and motion data yields measurably better classification than motion data alone.
Where Pith is reading between the lines
- Retraining the same network on data from urban roads or different vehicle types could extend the same accuracy gains to city driving.
- The 13 percent lift from geo-information suggests that location context helps the model separate styles that produce similar speed profiles.
- Logging classified driving events across many users could generate aggregate maps of risky road segments without needing additional infrastructure.
Load-bearing premise
The neural network trained on data from one conventional interurban road and three specific driving styles will continue to perform well when deployed on other roads, with other drivers, and under varied real-world conditions.
What would settle it
Deploying the trained system on a different interurban road or with a new group of drivers and observing whether accuracy drops below 70 percent would directly test whether the reported performance holds.

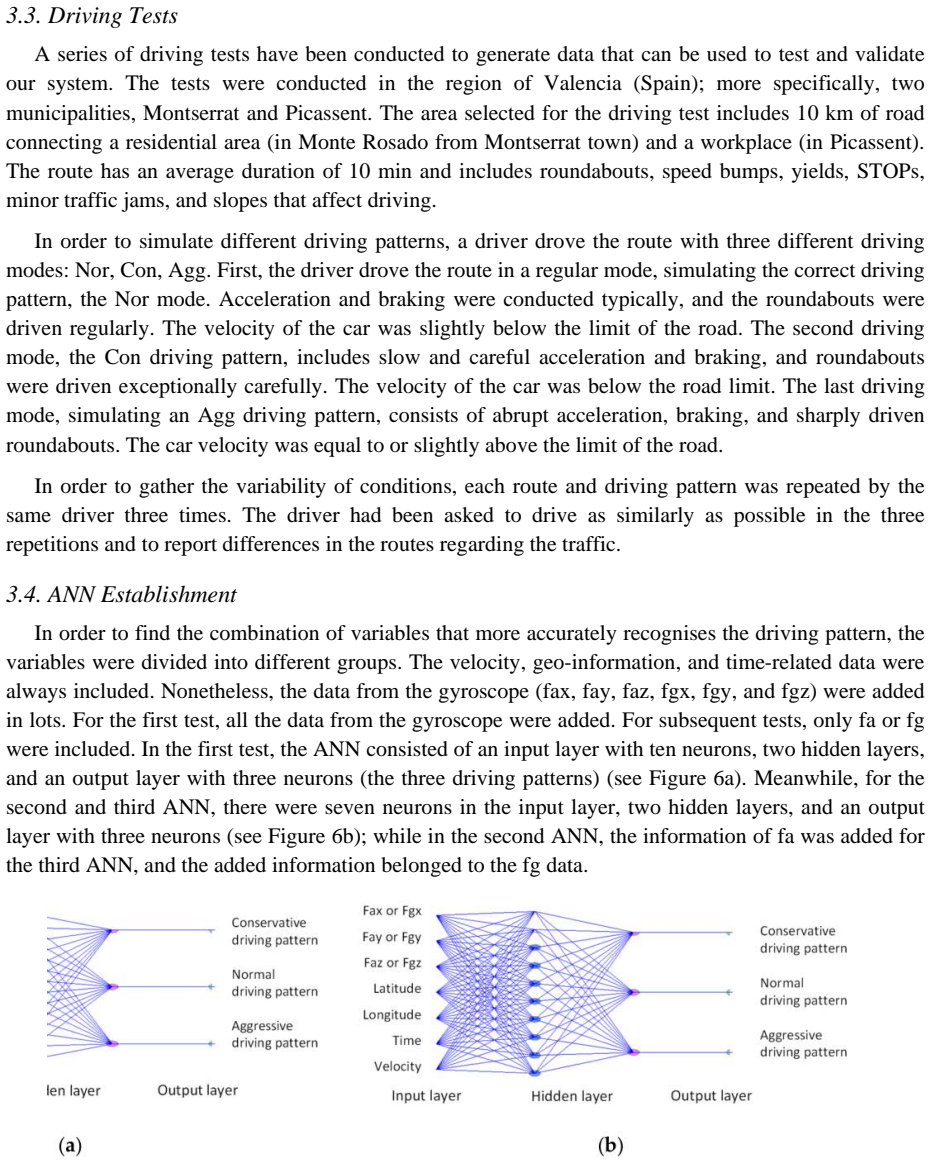

Figures
read the original abstract
Mobility in urban and interurban areas, mainly by cars, is a day-to-day activity of many people. However, some of its main drawbacks are traffic jams and accidents. Newly made vehicles have pre-installed driving evaluation systems, which can prevent accidents. However, most cars on our roads do not have driver assessment systems. In this paper, we propose an approach for recognising driving styles and enabling drivers to reach safer and more efficient driving. The system consists of two physical sensors connected to a device node with a display and a speaker. An artificial neural network (ANN) is included in the node, which analyses the data from the sensors, and then recognises the driving style. When an abnormal driving pattern is detected, the speaker will play a warning message. The prototype was assembled and tested using an interurban road, in particular on a conventional road with three driving styles. The gathered data were used to train and validate the ANN. Results, in terms of accuracy, indicate that better accuracy is obtained when the velocity, position (latitude and longitude), time, and turning speed for the 3-axis are used, offering an average accuracy of 83%. If the classification is performed considering just two driving styles, normal and aggressive, then the accuracy reaches 92%. When the geo-information and time data are included, the main novelty of this paper, the classification accuracy is improved by 13%.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents a low-cost prototype system with two physical sensors feeding an embedded ANN on a device node to classify driving styles during interurban travel. It reports that inputs combining velocity, latitude/longitude position, time, and 3-axis turning speed yield 83% average accuracy on data collected from one conventional interurban road using three driving styles, with a claimed 13% improvement from the addition of geo-information and time; binary normal-vs-aggressive classification reaches 92%. The system issues real-time audio warnings for abnormal patterns.
Significance. If the accuracy figures and 13% geo/time improvement hold under broader testing, the work has moderate significance for accessible driver-monitoring technology in legacy vehicles, potentially supporting safer interurban mobility through low-cost hardware and real-time feedback. The physical prototype assembly and on-road data collection are strengths that demonstrate implementation feasibility. The explicit benchmarking of feature sets (with and without geo/time) is a positive aspect of the empirical evaluation.
major comments (2)
- [Abstract] Abstract: the central performance claims (83% average accuracy, 92% binary accuracy, and 13% improvement from geo-information and time) are stated without any mention of dataset size, number of samples or trials per style, train/test split, cross-validation procedure, or error analysis. This is load-bearing for the main claim because the statistical reliability of the reported improvement cannot be assessed or reproduced from the given information.
- [Prototype testing description] Prototype testing description: evaluation is confined to data gathered from a single conventional interurban road with three specific driving styles. No cross-road, cross-driver, or cross-condition results are provided, so the claimed benefit of including geo-information and time cannot be separated from possible overfitting to that road's geometry, traffic patterns, and driver cohort.
minor comments (1)
- [Abstract] The phrase 'turning speed for the 3-axis' is ambiguous; clarify whether this denotes gyroscope angular velocity, accelerometer-derived values, or another quantity, and specify the sensor model.
Simulated Author's Rebuttal
We thank the referee for the detailed and constructive review of our manuscript. We have addressed each of the major comments in the point-by-point responses below. We will update the manuscript to enhance the transparency of our experimental methodology and to better contextualize the scope of our prototype evaluation.
read point-by-point responses
-
Referee: [Abstract] Abstract: the central performance claims (83% average accuracy, 92% binary accuracy, and 13% improvement from geo-information and time) are stated without any mention of dataset size, number of samples or trials per style, train/test split, cross-validation procedure, or error analysis. This is load-bearing for the main claim because the statistical reliability of the reported improvement cannot be assessed or reproduced from the given information.
Authors: We agree with the referee that the abstract would benefit from additional details regarding the experimental setup to allow for better assessment of the results' reliability. In the revised version of the manuscript, we will modify the abstract to include the dataset size, the number of samples per driving style, the train/test split ratio, the cross-validation method used (e.g., k-fold), and a brief note on the error analysis. This revision will be made without changing the reported accuracy figures. revision: yes
-
Referee: [Prototype testing description] Prototype testing description: evaluation is confined to data gathered from a single conventional interurban road with three specific driving styles. No cross-road, cross-driver, or cross-condition results are provided, so the claimed benefit of including geo-information and time cannot be separated from possible overfitting to that road's geometry, traffic patterns, and driver cohort.
Authors: The referee correctly identifies a limitation in our current evaluation, which was performed on data from a single interurban road. This is typical for an initial prototype demonstration focused on hardware feasibility and the impact of specific features like geo-information and time. We will revise the manuscript to include an explicit discussion of this limitation in a new 'Limitations and Future Work' section. There, we will note the potential for the observed improvements to be influenced by the specific road characteristics and outline our plans for future studies involving multiple roads, drivers, and conditions to further validate the generalizability. We do not currently have data from additional roads to perform such cross-validation. revision: partial
Circularity Check
No circularity: standard empirical ML evaluation on held-out sensor data
full rationale
The paper collects raw sensor data (velocity, position, time, 3-axis turning speed) from one interurban road under three driving styles, feeds the features into an ANN, trains the network, and reports accuracy on validation data (83% average, 92% for binary normal/aggressive, +13% when geo/time features are added). No equations, parameters, or claims reduce to their own inputs by construction. The accuracy figures are obtained from standard train/validate splits on external measurements rather than any self-definitional loop, fitted-input-as-prediction, or self-citation chain. The central claim therefore rests on observable data and conventional ML practice, not on renaming or re-deriving the inputs.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Artificial neural networks can learn to classify driving patterns from sensor data when trained on representative examples
