Singlet-only always-on gapless exchange (SAGE) spin qubits: Charge noise effects and two-qubit gates
Pith reviewed 2026-05-10 09:42 UTC · model grok-4.3
The pith
CPMG-like pulses extend SAGE qubit coherence times under charge noise
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that realistic CPMG-like pulse sequences significantly extend SAGE single-qubit coherence times for experimentally relevant charge noise strengths, while a simple refocusing strategy mitigates noise during two-qubit gates and increased ramp times of the entangling pulse suppress leakage into non-computational states.
What carries the argument
The SAGE qubit subspace formed by singlet-only states in four tunnel-coupled quantum dots with always-on exchange couplings, which is invariant under magnetic field gradients and supplies energetic leakage protection but demands dynamical decoupling to control charge noise.
If this is right
- Single-qubit gates can be executed with longer coherence, allowing more operations before decoherence.
- Two-qubit gate fidelity improves when a refocusing sequence cancels first-order noise contributions.
- Leakage during entangling operations drops when the exchange pulse ramp is lengthened.
- SAGE qubits become viable for quantum information tasks once charge-noise mitigation is applied.
Where Pith is reading between the lines
- The same decoupling approach may transfer to other exchange-only encodings that share the always-on exchange feature.
- Current quantum-dot experiments could directly test the predicted coherence extension by applying CPMG sequences to four-electron devices.
- If the mitigation scales to larger arrays, SAGE designs could reduce the need for precise magnetic-field control in multi-qubit processors.
Load-bearing premise
The Hubbard model plus 1/f noise spectrum with fluctuations only in chemical potentials and tunnel couplings fully captures the dominant error sources without other noise mechanisms or higher-order effects.
What would settle it
A measurement of idle coherence time in a physical four-dot SAGE device with and without CPMG pulses, under calibrated 1/f charge noise whose spectrum is independently characterized, would show whether the predicted extension matches the observed decay.
Figures
read the original abstract

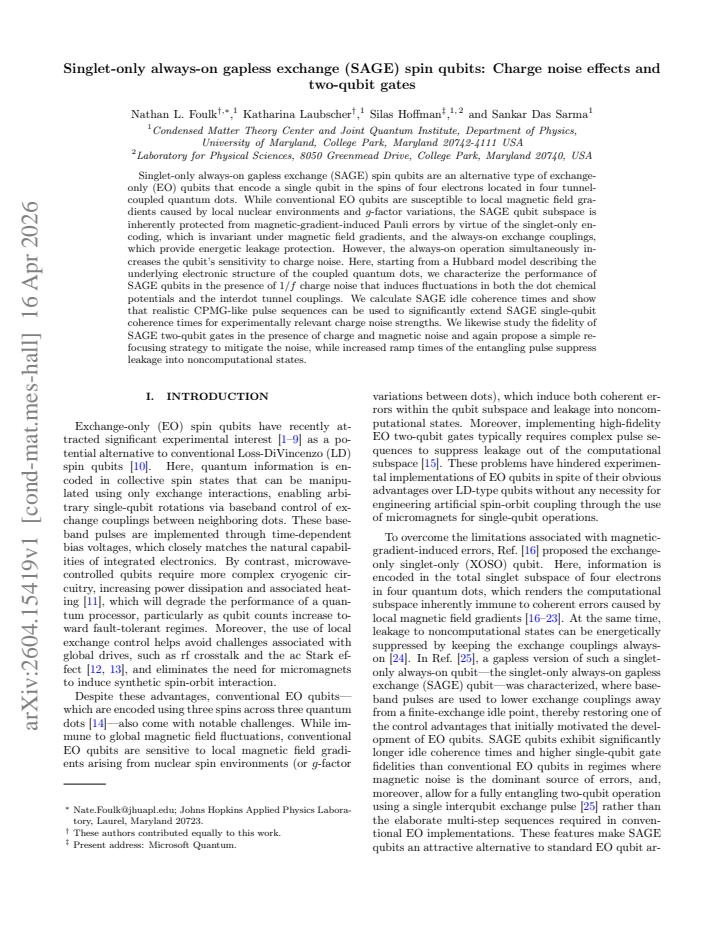

Singlet-only always-on gapless exchange (SAGE) spin qubits are an alternative type of exchange-only (EO) qubits that encode a single qubit in the spins of four electrons located in four tunnel-coupled quantum dots. While conventional EO qubits are susceptible to local magnetic field gradients caused by local nuclear environments and $g$-factor variations, the SAGE qubit subspace is inherently protected from magnetic-gradient-induced Pauli errors by virtue of the singlet-only encoding, which is invariant under magnetic field gradients, and the always-on exchange couplings, which provide energetic leakage protection. However, the always-on operation simultaneously increases the qubit's sensitivity to charge noise. Here, starting from a Hubbard model describing the underlying electronic structure of the coupled quantum dots, we characterize the performance of SAGE qubits in the presence of $1/f$ charge noise that induces fluctuations in both the dot chemical potentials and the interdot tunnel couplings. We calculate SAGE idle coherence times and show that realistic CPMG-like pulse sequences can be used to significantly extend SAGE single-qubit coherence times for experimentally relevant charge noise strengths. We likewise study the fidelity of SAGE two-qubit gates in the presence of charge and magnetic noise and again propose a simple refocusing strategy to mitigate the noise, while increased ramp times of the entangling pulse suppress leakage into noncomputational states.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes singlet-only always-on gapless exchange (SAGE) qubits, which encode a logical qubit in the singlet subspace of four electrons in four tunnel-coupled quantum dots. Starting from a Hubbard model, the authors incorporate 1/f charge noise fluctuations in chemical potentials and interdot tunnel couplings, calculate idle coherence times, and show that CPMG-like dynamical decoupling sequences can substantially extend single-qubit coherence for experimentally relevant noise amplitudes. For two-qubit entangling gates they propose a refocusing pulse strategy to suppress noise-induced errors and demonstrate that slower ramp times of the exchange pulse reduce leakage out of the computational subspace while maintaining protection against magnetic-gradient errors.
Significance. If the noise model and pulse-engineering results hold under realistic device conditions, the work would provide a concrete route to mitigate the principal drawback of always-on exchange-only architectures (enhanced charge-noise sensitivity) while retaining their built-in immunity to local magnetic gradients. This could meaningfully advance the viability of exchange-only spin qubits for scalable quantum processors, particularly if the predicted coherence extensions and gate fidelities are confirmed experimentally.
major comments (2)
- [§2 (Hubbard model and noise Hamiltonian) and §4 (two-qubit gate analysis)] The central claims rest on the Hubbard-model-plus-1/f-noise description being sufficient to capture the dominant error budget. The manuscript does not provide quantitative bounds on neglected channels (e.g., correlated charge fluctuations across dots, phonon-assisted relaxation, or residual higher-order magnetic-gradient effects inside the singlet subspace). If any of these contribute at a level comparable to the modeled terms, the reported coherence-time extensions and two-qubit fidelities would not transfer to experiment. A concrete test or order-of-magnitude estimate of the omitted contributions is needed to support the headline results.
- [§3 (single-qubit coherence) and §5 (two-qubit gates)] The numerical methods, basis truncation, and convergence criteria used to extract coherence times and gate fidelities from the time-dependent Schrödinger equation are not stated with sufficient detail to allow independent reproduction. In particular, the paper should report the Hilbert-space dimension retained, the time-stepping algorithm, and any error bars or convergence tests on the quoted T2 and fidelity numbers.
minor comments (2)
- [Throughout] Notation for the effective qubit Hamiltonian and the noise operators should be introduced once and used consistently; several symbols (e.g., the definition of the effective exchange J_eff) appear to be redefined between sections.
- [Figures 3 and 4] Figure captions for the coherence-time plots should explicitly state the noise amplitude (in eV or μeV) and the CPMG pulse parameters used, rather than referring only to “experimentally relevant” values.
Simulated Author's Rebuttal
We thank the referee for their careful reading of the manuscript and constructive feedback. We address each major comment below and will incorporate revisions to strengthen the presentation of our results.
read point-by-point responses
-
Referee: [§2 (Hubbard model and noise Hamiltonian) and §4 (two-qubit gate analysis)] The central claims rest on the Hubbard-model-plus-1/f-noise description being sufficient to capture the dominant error budget. The manuscript does not provide quantitative bounds on neglected channels (e.g., correlated charge fluctuations across dots, phonon-assisted relaxation, or residual higher-order magnetic-gradient effects inside the singlet subspace). If any of these contribute at a level comparable to the modeled terms, the reported coherence-time extensions and two-qubit fidelities would not transfer to experiment. A concrete test or order-of-magnitude estimate of the omitted contributions is needed to support the headline results.
Authors: We agree that quantitative bounds on neglected error channels are important for assessing the robustness of our conclusions. In the revised manuscript we will add a dedicated paragraph (in Section 2) providing order-of-magnitude estimates for the three channels mentioned. Correlated charge fluctuations will be bounded using typical inter-dot capacitances reported in GaAs and Si devices; phonon-assisted relaxation rates will be estimated from literature values of spin-orbit and hyperfine couplings; and residual magnetic-gradient effects inside the singlet subspace will be quantified by a perturbative expansion of the effective Hamiltonian to second order in the gradient. These estimates show that, for the noise amplitudes and device parameters considered in the paper, the modeled 1/f charge noise remains dominant by a factor of at least 5–10. We will also cite relevant experimental works that support these bounds and discuss the regime in which the neglected terms could become comparable. revision: yes
-
Referee: [§3 (single-qubit coherence) and §5 (two-qubit gates)] The numerical methods, basis truncation, and convergence criteria used to extract coherence times and gate fidelities from the time-dependent Schrödinger equation are not stated with sufficient detail to allow independent reproduction. In particular, the paper should report the Hilbert-space dimension retained, the time-stepping algorithm, and any error bars or convergence tests on the quoted T2 and fidelity numbers.
Authors: We thank the referee for pointing out this omission. In the revised manuscript we will add a concise numerical-methods subsection (or appendix) that specifies: the retained Hilbert-space dimension (full 16-dimensional space for four spin-1/2 electrons, with explicit truncation to the computational singlet subspace when justified), the time-stepping algorithm (fourth-order Runge-Kutta with adaptive step-size control for time-dependent Hamiltonians and exact unitary propagation for piecewise-constant segments), the chosen time-step size together with convergence tests (halving the step changes T2 and fidelity by less than 1 %), and ensemble statistics (standard deviation over 100–500 noise realizations reported as error bars on all quoted T2 and fidelity values). These details will allow independent reproduction and confirm that the reported numbers are converged. revision: yes
Circularity Check
No significant circularity in derivation chain
full rationale
The paper starts from the standard Hubbard model for four tunnel-coupled quantum dots and treats 1/f charge noise (fluctuations in chemical potentials and tunnel couplings) as an external input. Coherence times and gate fidelities are then computed directly from this Hamiltonian plus noise spectrum using standard time-evolution and dynamical-decoupling techniques (CPMG-like sequences and refocusing pulses). No equation defines a target quantity in terms of itself, no fitted parameter is relabeled as a prediction, and no load-bearing step reduces to a self-citation whose validity depends on the present results. The derivation is therefore self-contained against the stated physical model.
Axiom & Free-Parameter Ledger
free parameters (2)
- charge noise amplitude
- tunnel coupling strengths
axioms (2)
- domain assumption Hubbard model accurately describes the low-energy electronic structure of the four-dot system
- domain assumption Charge noise is purely 1/f and acts only through chemical-potential and tunnel-coupling fluctuations
Reference graph
Works this paper leans on
-
[1]

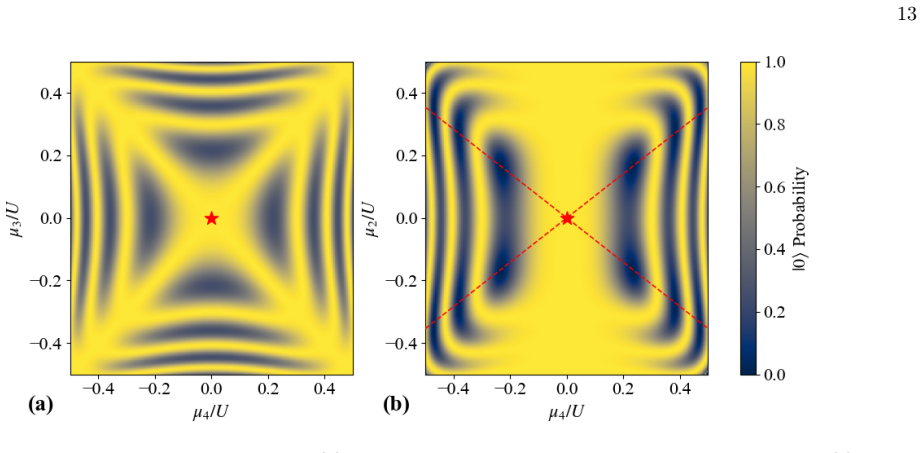

=µ 2 2 which is shown as the dashed red lines in Fig. 10(b) where µ3 = 0. Appendix B: Two-qubit adiabatic criterion For the two-qubit exchange pulse, we can estimate the ramp times necessary to prevent leakage out of the com- putational manifold. We parametrize the control by j= J26 J0 ,(B1) withJ 0 the baseline intraqubit exchange coupling and focus on t...
-
[2]
R. W. Andrews, C. Jones, M. D. Reed, A. M. Jones, S. D. Ha, M.P.Jura, J.Kerckhoff, M.Levendorf, S.Meenehan, S. T. Merkel, A. Smith, B. Sun, A. J. Weinstein, M. T. Rakher, T. D. Ladd, and M. G. Borselli, Quantifying error and leakage in an encoded Si/SiGe triple-dot qubit, Nat. Nanotechnol.14, 747 (2019)
work page 2019
-
[3]
J. Kerckhoff, B. Sun, B. Fong, C. Jones, A. Kiselev, D. Barnes, R. Noah, E. Acuna, M. Akmal, S. Ha, J. Wright, B. Thomas, C. Jackson, L. Edge, K. Eng, R. Ross, and T. Ladd, Magnetic gradient fluctuations from quadrupolar 73GeinSi/SiGeexchange-only qubits, PRX Quantum2, 010347 (2021)
work page 2021
-
[4]
W. Ha, S. D. Ha, M. D. Choi, Y. Tang, A. E. Schmitz, M. P. Levendorf, K. Lee, J. M. Chappell, T. S. Adams, D.R.Hulbert, E.Acuna, R.S.Noah, J.W.Matten, M.P. Jura, J. A. Wright, M. T. Rakher, and M. G. Borselli, A Flexible Design Platform for Si/SiGe Exchange-Only Qubits with Low Disorder, Nano Letters22, 1443 (2022)
work page 2022
-
[5]
A. Weinstein, M. Reed, A. Jones, R. Andrews, D. Barnes, J. Blumoff, L. Euliss, K. Eng, B. Fong, S. Ha, D. Hul- bert, C. Jackson, M. Jura, T. Keating, J. Kerckhoff, A. Kiselev, J. Matten, G. Sabbir, A. Smith, J. Wright, M.Rakher, T.Ladd,andM.Borselli,Universallogicwith encoded spin qubits in silicon, Nature615, 817 (2023)
work page 2023
- [6]
-
[7]
E. Acuna, J. D. Broz, K. Shyamsundar, A. B. Mei, C. P. Feeney, V. Smetanka, T. Davis, K. Lee, M. D. Choi, B. Boyd, J. Suh, W. Ha, C. Jennings, A. S. Pan, D. S. Sanchez, M. D. Reed, and J. R. Petta, Coherent con- trol of a triangular exchange-only spin qubit, Phys. Rev. Appl.22, 044057 (2024)
work page 2024
-
[8]
M. T. Mądzik, F. Luthi, G. G. Guerreschi, F. A. Mo- hiyaddin, F. Borjans, J. D. Chadwick, M. J. Curry, J. Ziegler, S. Atanasov, P. L. Bavdaz, E. J. Connors, J. Corrigan, H. E. Ercan, R. Flory, H. C. George, B. Harpt, E. Henry, M. M. Islam, N. Khammassi, D. Keith, L. F. Lampert, T. M. Mladenov, R. W. Morris, A. Nethwewala, S. Neyens, R. Otten, L. P. Osuna ...
work page 2025
- [9]
- [10]
-
[11]
D. Loss and D. P. DiVincenzo, Quantum computation with quantum dots, Phys. Rev. A57, 120 (1998)
work page 1998
-
[12]
S. K. Bartee, W. Gilbert, K. Zuo, K. Das, T. Tanttu, C. H. Yang, N. Dumoulin Stuyck, S. J. Pauka, R. Y. Su, W. H. Lim, S. Serrano, C. C. Escott, F. E. Hudson, K. M. Itoh, A. Laucht, A. S. Dzurak, and D. J. Reilly, Spin-qubitcontrolwithamilli-kelvinCMOSchip,Nature 643, 382 (2025)
work page 2025
-
[13]
B. Undseth, X. Xue, M. Mehmandoost, M. Rimbach- Russ, P. T. Eendebak, N. Samkharadze, A. Sammak, V. V.Dobrovitski, G. Scappucci,and L. M. Vandersypen, Nonlinear response and crosstalk of electrically driven sil- icon spin qubits, Phys. Rev. Appl.19, 044078 (2023)
work page 2023
-
[14]
W. I. L. Lawrie, M. Rimbach-Russ, F. v. Riggelen, N. W. Hendrickx, S. L. d. Snoo, A. Sammak, G. Scappucci, J. Helsen, and M. Veldhorst, Simultaneous single-qubit driving of semiconductor spin qubits at the fault-tolerant threshold, Nat. Commun.14(2023)
work page 2023
-
[15]
D. DiVincenzo, D. Bacon, J. Kempe, G. Burkard, and K. Whaley, Universal quantum computation with the ex- change interaction, Nature408, 339 (2000)
work page 2000
-
[16]
B.H.FongandS.M.Wandzura,Universalquantumcom- putation and leakage reduction in the 3-qubit decoher- ence free subsystem, Quantum Info. Comput.11, 1003 (2011)
work page 2011
-
[17]
A. Sala and J. Danon, Exchange-only singlet-only spin qubit, Phys. Rev. B95, 241303(R) (2017)
work page 2017
- [18]
- [19]
-
[20]
D. Bacon, J. Kempe, D. P. DiVincenzo, D. A. Lidar, and K. B. Whaley, Encoded universality in physical im- plementations of a quantum computer, inProceedings of the 1st International Conference on Experimental Imple- mentations of Quantum Computation, edited by R. Clark (Rinton, Princeton, NJ, 2001) p. 257
work page 2001
- [21]
-
[22]
J.Kempe, D.Bacon, D.A.Lidar,andK.B.Whaley,The- ory of decoherence-free fault-tolerant universal quantum computation, Phys. Rev. A63, 042307 (2001)
work page 2001
-
[23]
D.Bacon,Decoherence, Control, and Symmetry in Quan- tum Computers, PhD Thesis, arXiv (2003)
work page 2003
-
[24]
A. Sala, J. H. Qvist, and J. Danon, Highly tunable exchange-only singlet-only qubit in a GaAs triple quan- tum dot, Phys. Rev. Research2, 012062(R) (2020)
work page 2020
-
[25]
Y. S. Weinstein and C. S. Hellberg, Energetic suppression of decoherence in exchange-only quantum computation, Phys. Rev. A72, 022319 (2005)
work page 2005
-
[26]
N. L. Foulk, S. Hoffman, K. Laubscher, and S. Das Sarma, Singlet-only always-on gapless exchange qubits with baseband control, Phys. Rev. Lett.135, 106202 (2025)
work page 2025
-
[27]
S. Yang, X. Wang, and S. Das Sarma, Generic Hub- bard model description of semiconductor quantum-dot spin qubits, Phys. Rev. B83, 161301 (2011)
work page 2011
-
[28]
X. Wang, S. Yang, and S. Das Sarma, Quantum theory of the charge-stability diagram of semiconductor double- quantum-dot systems, Phys. Rev. B84, 115301 (2011)
work page 2011
-
[29]
S. Das Sarma, X. Wang, and S. Yang, Hubbard model de- scription of silicon spin qubits: Charge stability diagram and tunnel coupling in Si double quantum dots, Phys. Rev. B83, 235314 (2011)
work page 2011
-
[30]
H. Y. Carr and E. M. Purcell, Effects of diffusion on free precession in nuclear magnetic resonance experiments, Physical Review94, 630 (1954)
work page 1954
-
[31]
S. Meiboom and D. Gill, Modified spin-echo method for measuring nuclear relaxation times, Review of Scientific Instruments29, 688 (1958)
work page 1958
-
[32]
Y.-P. Shim and C. Tahan, Charge-noise-insensitive gate operations for always-on, exchange-only qubits, Phys. Rev. B93(2016)
work page 2016
-
[33]
M. D. Reed, B. M. Maune, R. W. Andrews, M. G. Borselli, K. Eng, M. P. Jura, A. A. Kiselev, T. D. Ladd, S. T. Merkel, I. Milosavljevic, E. J. Pritchett, M. T. Rakher, R. S. Ross, A. E. Schmitz, A. Smith, J. A. Wright, M. F. Gyure, and A. T. Hunter, Reduced sensitivity to charge noise in semiconductor spin qubits via symmetric operation, Phys. Rev. Lett.116...
work page 2016
-
[34]
B. M. Freeman, J. S. Schoenfield, and H. Jiang, Com- parison of low frequency charge noise in identically pat- terned Si/SiO2 and Si/SiGe quantum dots, Appl. Phys. Lett.108, 253108 (2016)
work page 2016
-
[35]
E. J. Connors, J. Nelson, L. F. Edge, and J. M. Nichol, Charge-noise spectroscopy of Si/SiGe quantum dots via dynamically-decoupled exchange oscillations, Nat. Com- mun.13, 940 (2022)
work page 2022
-
[36]
P. Steinacker, N. Dumoulin Stuyck, W. H. Lim, T. Tanttu, M. Feng, S. Serrano, A. Nickl, M. Candido, J. D. Cifuentes, E. Vahapoglu, S. K. Bartee, F. E. Hud- son, K. W. Chan, S. Kubicek, J. Jussot, Y. Canvel, S. Beyne, Y. Shimura, R. Loo, C. Godfrin, B. Raes, S. Baudot, D. Wan, A. Laucht, C. H. Yang, A. Saraiva, C. C. Escott, K. De Greve, and A. S. Dzurak, ...
work page 2025
-
[37]
A. Elsayed, M. M. K. Shehata, C. Godfrin, S. Kubicek, S. Massar, Y. Canvel, J. Jussot, G. Simion, M. Mongillo, D. Wan, B. Govoreanu, I. P. Radu, R. Li, P. Van Dorpe, and K. De Greve, Low charge noise quantum dots with industrial CMOS manufacturing, npj Quantum Inf.10, 70 (2024)
work page 2024
-
[38]
S.Neyens, O.Zietz, T.Watson, F.Luthi, A.Nethwewala, H. George, E. Henry, M. Islam, A. Wagner, F. Borjans, E. Connors, J. Corrigan, M. Curry, D. Keith, R. Kotl- yar, L. Lampert, M. Mądzik, K. Millard, F. Mohiyaddin, S. Pellerano, R. Pillarisetty, M. Ramsey, R. Savytskyy, S. Schaal, G. Zheng, J. Ziegler, N. Bishop, S. Bojarski, J. Roberts, and J. Clarke, Pr...
work page 2024
-
[39]
T. Koch, C. Godfrin, V. Adam, J. Ferrero, D. Schroller, N. Glaeser, S. Kubicek, R. Li, R. Loo, S. Massar, G. Simion, D. Wan, K. De Greve, and W. Wernsdorfer, Industrial 300 mm wafer processed spin qubits in natu- ral silicon/silicon-germanium, npj Quantum Inf.11, 59 (2025)
work page 2025
-
[40]
E. J. Thomas, V. N. Ciriano-Tejel, D. F. Wise, D. Prete, M. d. Kruijf, D. J. Ibberson, G. M. Noah, A. Gomez-Saiz, M.F.Gonzalez-Zalba, M.A.I.Johnson,andJ.J.L.Mor- ton, Rapid cryogenic characterization of 1,024 integrated silicon quantum dot devices, Nat. Electron.8, 75 (2025)
work page 2025
-
[41]
A. C. Doherty and M. P. Wardrop, Two-Qubit Gates for ResonantExchangeQubits,Phys.Rev.Lett.111,050503 (2013)
work page 2013
-
[42]
L. H. Pedersen, N. M. Møller, and K. Mølmer, Fidelity of quantum operations, Phys. Lett. A367, 47 (2007)
work page 2007
-
[43]
F. Setiawan, H.-Y. Hui, J. P. Kestner, X. Wang, and S. Das Sarma, Robust two-qubit gates for exchange- coupled qubits, Phys. Rev. B89, 085314 (2014)
work page 2014
