arxiv: 2604.16554 · v1 · submitted 2026-04-17 · 💻 cs.CV · cs.AI

PA-TCNet: Pathology-Aware Temporal Calibration with Physiology-Guided Target Refinement for Cross-Subject Motor Imagery EEG Decoding in Stroke Patients

Pith reviewed 2026-05-10 08:22 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords stroketemporalmotorpa-tcnetcalibrationcross-subjectdecodingdynamics
0
0 comments X

The pith

PA-TCNet improves cross-subject motor imagery EEG decoding accuracy in stroke patients to 66.56% and 72.75% on two datasets by pathology-aware rhythmic state modeling and physiology-constrained pseudo-label refinement.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Stroke damages brain areas used for movement, creating slow abnormal waves and large differences between patients that break standard EEG decoding methods. PA-TCNet tackles this with two parts. The first part uses a Mamba state model to split EEG data into slow rhythmic background tied to the disease and quick changing signals, then feeds the combined context into the network to track the unusual timing patterns better. The second part builds templates from sensorimotor brain regions using source data and applies rules based on expected physiological responses to adjust guessed labels for target patients on the fly, making the adaptation more stable. On leave-one-subject-out tests from two stroke EEG collections, the approach reached average accuracies of 66.56 percent and 72.75 percent while beating prior methods. The work shows that explicitly handling disease-related timing changes and adding body-based constraints can make cross-patient BCI systems more practical for post-stroke motor recovery training.

Core claim

Leave-one-subject-out experiments on two independent stroke EEG datasets, XW-Stroke and 2019-Stroke, yielded mean accuracies of 66.56% and 72.75%, respectively, outperforming state-of-the-art baselines.

Load-bearing premise

That the PRSM module's decomposition of EEG into slowly varying rhythmic context and fast perturbations accurately captures lesion-related abnormal dynamics without introducing new artifacts, and that the PGTC module's physiological consistency constraints reliably refine pseudo-labels across highly heterogeneous stroke patients.

Figures

Figures reproduced from arXiv: 2604.16554 by Bin Jiang, Dongyi He, Gen Li, Ningxiao Peng, Nizhuan Wang, Qingling Xia, Xiangkai Wang, Yun Zhao.

Figure 1

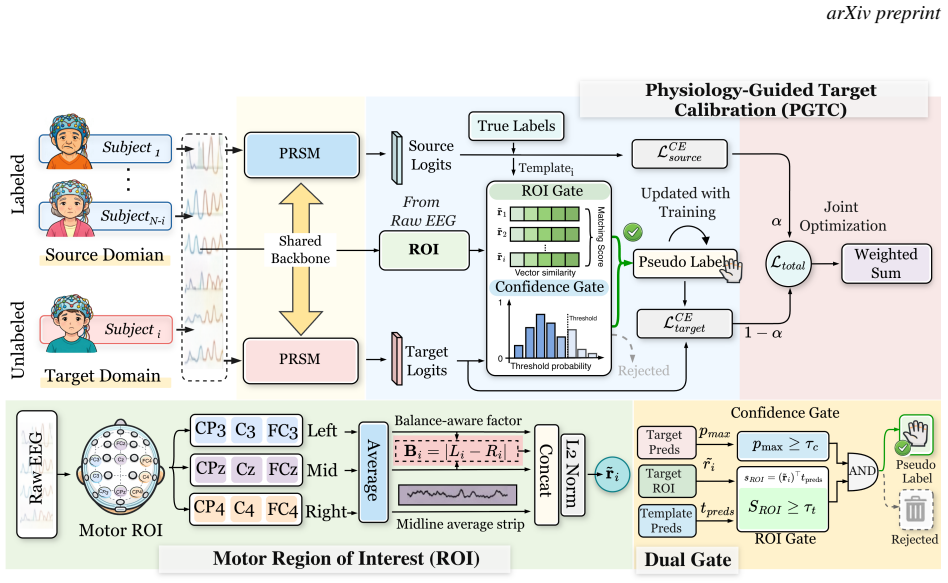

Figure 1. Figure 1: Overall framework of PA-TCNet. The network first extracts local sensorimotor spatiotemporal patterns, then [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Architecture of the Pathology-aware Rhythmic State Mamba (PRSM) module. The module decomposes [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: t-SNE visualizations of feature distributions on the XW-Stroke (top) and 2019-Stroke (bottom) datasets at [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Hyperparameter sensitivity analysis of PA-TCNet on XW-Stroke and 2019-Stroke. [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Noise robustness of PA-TCNet under drift and spike perturbations. [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
read the original abstract

Stroke patient cross-subject electroencephalography (EEG) decoding of motor imagery (MI) brain-computer interface (BCI) is essential for motor rehabilitation, yet lesion-related abnormal temporal dynamics and pronounced inter-patient heterogeneity often undermine generalization. Existing adaptation methods are easily misled by pathological slow-wave activity and unstable target-domain pseudo-labels. To address this challenge, we propose PA-TCNet, a pathology-aware temporal calibration framework with physiology-guided target refinement for stroke motor imagery decoding. PA-TCNet integrates two coordinated components. The Pathology-aware Rhythmic State Mamba (PRSM) module decomposes EEG spatiotemporal features into slowly varying rhythmic context and fast transient perturbations, injecting the fused pathological context into selective state propagation to more effectively capture abnormal temporal dynamics. The Physiology-Guided Target Calibration (PGTC) module constructs source-domain sensorimotor region-of-interest templates, imposing physiological consistency constraints and dynamically refining target-domain pseudo-labels, thereby improving adaptation reliability. Leave-one-subject-out experiments on two independent stroke EEG datasets, XW-Stroke and 2019-Stroke, yielded mean accuracies of 66.56\% and 72.75\%, respectively, outperforming state-of-the-art baselines. These results indicate that jointly modeling pathological temporal dynamics and physiology-constrained pseudo-supervision can provide more robust cross-subject initialization for personalized post-stroke MI-BCI rehabilitation. The implemented code is available at https://github.com/wxk1224/PA-TCNet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes PA-TCNet, a pathology-aware temporal calibration framework for cross-subject motor imagery EEG decoding in stroke patients. It introduces the Pathology-aware Rhythmic State Mamba (PRSM) module, which decomposes EEG spatiotemporal features into slowly varying rhythmic context and fast transient perturbations for better capture of lesion-related abnormal dynamics, and the Physiology-Guided Target Calibration (PGTC) module, which builds source-domain sensorimotor ROI templates to impose physiological consistency constraints and refine target-domain pseudo-labels. Leave-one-subject-out experiments on the XW-Stroke and 2019-Stroke datasets report mean accuracies of 66.56% and 72.75%, respectively, outperforming state-of-the-art baselines. The code is made available at a GitHub repository.

Significance. If the reported gains hold under rigorous verification, the work could meaningfully advance BCI-based motor rehabilitation for stroke by explicitly addressing pathological slow-wave activity and inter-patient heterogeneity. The open release of implementation code is a clear strength that enables direct reproduction and extension.

major comments (3)
  1. [Abstract] Abstract: The headline LOSO accuracies (66.56% and 72.75%) are presented without any accompanying information on baseline re-implementations, statistical significance testing, error bars, exact data splits, or handling of label noise, which directly undermines evaluation of the central claim that the two modules jointly improve generalization.
  2. [Abstract / §3 (PGTC)] PGTC module description: The claim that source sensorimotor ROI templates and physiological consistency constraints reliably refine pseudo-labels across stroke patients rests on an untested assumption given pronounced lesion heterogeneity; no ablation isolating PGTC, no pseudo-label accuracy versus ground truth, and no per-subject variance are reported, leaving open the possibility that the constraints propagate rather than correct errors.
  3. [Abstract / §3 (PRSM)] PRSM module: The decomposition of EEG into rhythmic context and fast perturbations is asserted to inject pathological context into selective state propagation, yet no quantitative analysis (e.g., state-transition statistics or ablation on the fusion step) demonstrates that this avoids introducing new artifacts in the presence of variable slow-wave abnormalities.
minor comments (2)
  1. [Abstract] The abstract would benefit from stating the number of subjects and trials per dataset to allow immediate assessment of statistical power.
  2. [Abstract] Ensure all acronyms (e.g., MI, BCI, ROI) are defined at first use and that the GitHub link is accompanied by a brief note on what is released (code, pretrained weights, or both).

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We address each of the major comments point-by-point below and will make the necessary revisions to improve the clarity, rigor, and completeness of the evaluation.

read point-by-point responses
  1. Referee: [Abstract] Abstract: The headline LOSO accuracies (66.56% and 72.75%) are presented without any accompanying information on baseline re-implementations, statistical significance testing, error bars, exact data splits, or handling of label noise, which directly undermines evaluation of the central claim that the two modules jointly improve generalization.

    Authors: We appreciate this observation. The detailed experimental protocol, including re-implementation of all baselines following their original publications under the same leave-one-subject-out (LOSO) setting, statistical significance testing via paired t-tests (with p-values reported in the results tables), standard deviations as error bars, and exact data splits (LOSO across stroke patients) are described in Section 4 of the manuscript. Label noise in the target domain is mitigated through the physiological consistency constraints in the PGTC module, as explained in Section 3.2. However, we agree that the abstract would benefit from a brief summary of these aspects. In the revised version, we will add a concise statement to the abstract noting the statistical significance of improvements and the use of identical evaluation protocols for baselines. revision: yes

  2. Referee: [Abstract / §3 (PGTC)] PGTC module description: The claim that source sensorimotor ROI templates and physiological consistency constraints reliably refine pseudo-labels across stroke patients rests on an untested assumption given pronounced lesion heterogeneity; no ablation isolating PGTC, no pseudo-label accuracy versus ground truth, and no per-subject variance are reported, leaving open the possibility that the constraints propagate rather than correct errors.

    Authors: We acknowledge the importance of validating the PGTC module's effectiveness given the heterogeneity of lesions in stroke patients. The current manuscript reports overall performance improvements when PGTC is integrated, but we agree that an isolated ablation study would provide stronger evidence. We will add such an ablation in the revised manuscript, comparing the full model against a variant without PGTC. Additionally, we will report per-subject accuracy variances and standard deviations in the main results table and supplementary material. Regarding pseudo-label accuracy versus ground truth, as this is an unsupervised domain adaptation setting, target labels are not available; however, we will include an analysis of pseudo-label consistency with source-domain predictions and discuss potential error propagation as a limitation. These additions will help demonstrate that the constraints primarily correct rather than propagate errors. revision: yes

  3. Referee: [Abstract / §3 (PRSM)] PRSM module: The decomposition of EEG into rhythmic context and fast perturbations is asserted to inject pathological context into selective state propagation, yet no quantitative analysis (e.g., state-transition statistics or ablation on the fusion step) demonstrates that this avoids introducing new artifacts in the presence of variable slow-wave abnormalities.

    Authors: We recognize that additional quantitative analysis would better support the design choices in the PRSM module. The decomposition is motivated by the need to separately model slow pathological rhythms and fast transients, with fusion into the Mamba state propagation. In the revision, we will include an ablation study on the fusion step (comparing decomposed vs. non-decomposed inputs) and provide supplementary visualizations or statistics on state transitions under varying slow-wave conditions from the datasets. This will illustrate that the approach captures lesion-related dynamics effectively, as supported by the superior performance over baselines that do not account for pathology. We will also discuss potential artifacts and how the physiology-guided constraints in PGTC help mitigate them. revision: yes

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 2 invented entities

The claim rests on the effectiveness of two newly introduced modules whose internal mechanisms are not derived from first principles but postulated to handle stroke-specific EEG issues; the neural architecture contains numerous fitted parameters whose values are not reported.

free parameters (1)
  • Neural network weights and hyperparameters (state dimension, learning rate, etc.)
    Standard in deep learning models; optimized during training on source and target EEG data to achieve reported accuracies.
axioms (2)
  • domain assumption EEG spatiotemporal features can be meaningfully decomposed into slowly varying rhythmic pathological context and fast transient perturbations
    Central to the PRSM module description in the abstract.
  • domain assumption Source-domain sensorimotor ROI templates provide valid physiological consistency constraints for refining target pseudo-labels
    Invoked by the PGTC module to improve adaptation reliability.
invented entities (2)
  • Pathology-aware Rhythmic State Mamba (PRSM) module no independent evidence
    purpose: Decompose EEG features and inject fused pathological context into selective state propagation
    Newly proposed component to capture abnormal temporal dynamics in stroke patients.
  • Physiology-Guided Target Calibration (PGTC) module no independent evidence
    purpose: Construct ROI templates and dynamically refine target-domain pseudo-labels
    Newly proposed component to address unstable pseudo-labels in adaptation.
