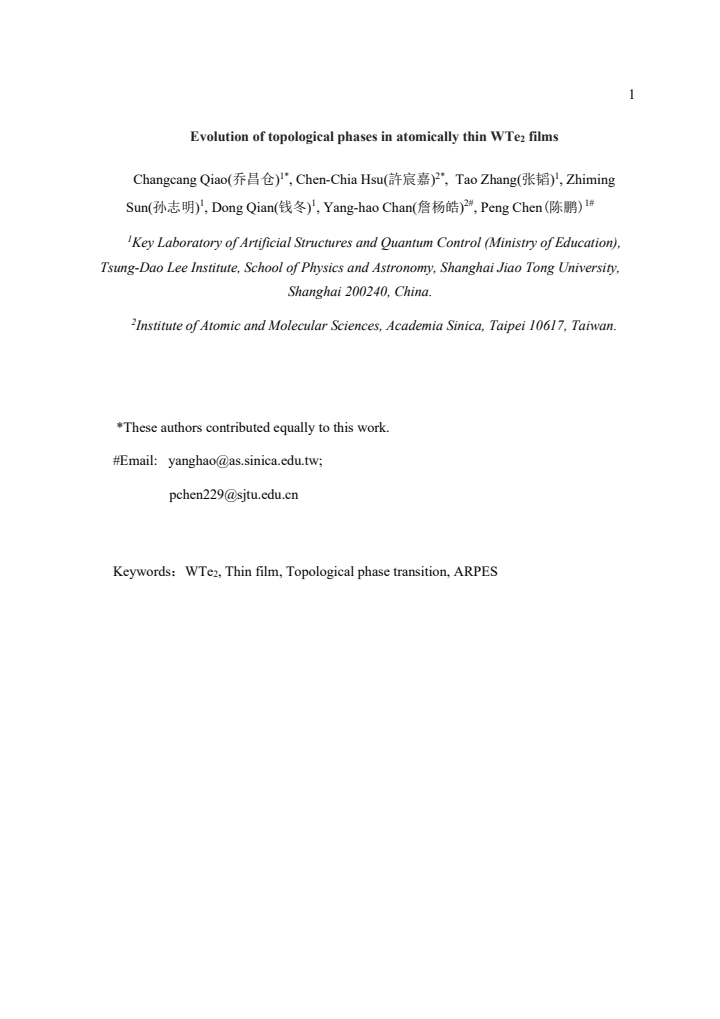

Evolution of topological phases in atomically thin WTe2 films

Changcang Qiao , Chen-Chia Hsu , Tao Zhang , Zhiming Sun , Dong Qian , Yang-hao Chan , Peng Chen This is my paper

Pith reviewed 2026-05-10 07:11 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.mtrl-sci
keywords topological phasesWTe2thin filmsZ2 invariantWeyl semimetalinterlayer couplingARPESband gap
0
0 comments X

The pith

In WTe2 films the topological Z2 invariant flips between 1 and 0 as layers are added because interlayer coupling alters band crossings.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tracks how the electronic bands of WTe2 change when the number of atomic layers is increased one by one from a single layer up to the bulk crystal. ARPES measurements show a gap that is present in the monolayer but closes by the time three layers are reached, turning the film metallic. First-principles calculations map the accompanying change in topology: the Z2 invariant oscillates with thickness because interlayer coupling shifts the points where bands cross. When the conduction and valence bands touch at the Fermi level the system enters a Weyl-semimetal regime whose topology is captured by the Chern number rather than Z2. The result is a concrete demonstration that topological character in this material depends non-monotonically on how many layers are stacked.

Core claim

Topological Z2 invariant is shown to oscillate between 1 and 0 with the addition of layers, originating from the interlayer coupling-induced change in band crossing. The system evolves into a Weyl semimetal when the conduction and valence bands touch near the Fermi level and the topological nature is described by the Chern number. Variations in the topological properties with thickness are demonstrated by the first-principles calculations.

What carries the argument

Interlayer coupling that shifts band-crossing points, thereby toggling the Z2 invariant and, at certain thicknesses, producing Weyl points whose topology is quantified by the Chern number.

If this is right

  • The band gap closes and reopens with added layers, switching the film between insulating and metallic states.
  • The topological character alternates between nontrivial (Z2 = 1) and trivial (Z2 = 0) as thickness increases.
  • At thicknesses where bands touch the Fermi level the material becomes a Weyl semimetal with nonzero Chern number.
  • Topological phase transitions in WTe2 are driven by layer-dependent reconfiguration of the electronic bands rather than by a smooth crossover to bulk behavior.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Precise layer-by-layer growth could be used to select a desired topological phase without changing chemical composition.
  • The same interlayer-coupling mechanism may produce analogous oscillations in other van der Waals topological materials when thinned to few layers.
  • Transport signatures of the oscillating Z2 and the Chern-number Weyl phase should appear in devices whose thickness is controlled to single-layer precision.
  • The gradual emergence of bulk-like topology with increasing layer number suggests that few-layer films can host hybrid states that combine 2D and 3D features.

Load-bearing premise

The calculations correctly capture the strength of interlayer coupling and the resulting band crossings, while ARPES spectra on few-layer films reflect the intrinsic structure without substrate-induced shifts.

What would settle it

An ARPES measurement on substrate-free three-layer WTe2 that still shows an open gap, or a recalculation with a different exchange-correlation functional that yields a non-oscillating Z2 sequence, would contradict the claimed layer-driven phase sequence.

Figures

Figures reproduced from arXiv: 2604.16860 by Changcang Qiao, Chen-Chia Hsu, Dong Qian, Peng Chen, Tao Zhang, Yang-hao Chan, Zhiming Sun.

Figure 1
Figure 1. Figure 1: Film structure, and electronic band structure of WTe2. (a) Views of the atomic structure of monolayer WTe2. (b) RHEED patterns taken from a monolayer sample. (c) A core level scan taken with 100 eV photons. (d) Corresponding 2D Brillouin zones with high symmetry points labeled. ARPES maps taken along the ΓXതതതത direction from (e) the monolayer and (f) bulk samples at 10 K [PITH_FULL_IMAGE:figures/full_fig… view at source ↗
Figure 2
Figure 2. Figure 2: Electronic band structure of WTe2 thin films. (a) ARPES spectra of WTe2 thin films with thickness ranging from 1 to 3 layers at 10 K. Calculated bands (red curves) with GGA + U method are overlaid on top of the spectra. (b) Corresponding second derivative spectra for comparison. (c) Calculated band structures with GGA+U method [PITH_FULL_IMAGE:figures/full_fig_p014_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Topological properties of ultrathin WTe2 (N = 1-3). (a)-(c), Calculated edge states along the ΓXതതതത direction. (d)-(f) Evolution of Wannier charge center along the ΓXതതതത direction. For N = 1 and 3, the solid blue line crosses over the band odd times, indicating Z2 = 1 [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Topological properties phase diagram of WTe2. The red pentagrams denote the band gap as a function of thickness. 1 Thickness (layer) 2 3 4 Bulk … Topological Insulator Band Insulator Topological Semimetal (local direct gap) Weyl Semimetal Trivial Semimetal … Band gap (meV) 0 40 80 [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗
read the original abstract

Topological materials ranging from topological insulators to semimetals host many novel quantum phenomena including quantum spin Hall effect and topological Fermi arcs. Transitions between these topological phases have attracted much research interest. We performed angle-resolved photoemission spectroscopy (ARPES) on WTe2 ranging from a monolayer to the bulk and reveal the evolution of the electronic structure and the band gap. Notably, the gap observed in the monolayer system is suppressed in the three layers, where the film becomes metallic. Variations in the topological properties with thickness are demonstrated by the first-principles calculations. Topological Z2 invariant is shown to oscillate between 1 and 0 with the addition of layers, originating from the interlayer coupling-induced change in band crossing. The system evolves into a Weyl semimetal when the conduction and valence bands touch near the Fermi level and the topological nature is described by the Chern number. Our findings demonstrate the non-monotonic dependence of topological states on dimensionality and how layer-driven electronic band reconfiguration leads to phase transitions in solids.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript reports ARPES measurements on atomically thin WTe2 films (monolayer to bulk), showing a band gap in the monolayer that closes by the trilayer, rendering the film metallic. First-principles calculations are used to demonstrate that the Z2 topological invariant oscillates between 1 and 0 with increasing layer number due to interlayer coupling altering band crossings; the system is claimed to evolve into a Weyl semimetal phase (characterized by Chern number) when conduction and valence bands touch near the Fermi level.

Significance. If the central claims hold, the work would establish a non-monotonic, layer-tunable evolution of topological phases in a van der Waals material, linking experimental gap closure to computed Z2 oscillations and a Weyl transition. This could provide a concrete example of dimensionality-driven topological reconfiguration with potential implications for 2D quantum spin Hall and semimetal devices. The combination of thickness-dependent ARPES with parity-based topology calculations is a strength, but the absence of supporting data details limits the immediate impact.

major comments (3)
  1. The central experimental claim of gap closure and metallicity at three layers (Abstract and implied results section) rests on ARPES spectra, yet the manuscript provides no raw data, momentum-energy maps, energy distribution curves, error bars on extracted gap values, or fitting procedures. This omission makes it impossible to evaluate whether the observed suppression is robust against substrate effects or resolution limits, directly undermining support for the subsequent topological claims.
  2. The theoretical section asserts that Z2 oscillates 1↔0 with layer count due to interlayer-coupling-induced band crossings and that the system becomes a Weyl semimetal with Chern-number topology when bands touch. However, no band structures, parity eigenvalues at time-reversal invariant momenta, or explicit Z2 computation details (e.g., via Wilson loop or parity method) are shown for successive thicknesses. Given the known sensitivity of DFT (typically PBE) to van der Waals interlayer distance and exchange-correlation functional in WTe2, the oscillation cannot be assessed without these data and without direct comparison to the ARPES band positions.
  3. The transition to a Weyl semimetal phase is stated when conduction and valence bands touch near the Fermi level, with topology described by Chern number. No calculation of the Chern number, location of Weyl points, or surface Fermi arcs is presented, nor is there an explicit check that the touching is protected rather than accidental. This step is load-bearing for the phase-evolution narrative but lacks the supporting evidence required to substantiate the claim.
minor comments (2)
  1. Notation for layer thickness (e.g., 'three layers' vs. 'trilayer') should be standardized throughout the text and figures for clarity.
  2. The manuscript would benefit from an explicit statement of the DFT functional, van der Waals correction scheme, and k-point sampling used in the first-principles calculations.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We respond to each major comment below and indicate the revisions made to address the concerns.

read point-by-point responses

  1. Referee: The central experimental claim of gap closure and metallicity at three layers (Abstract and implied results section) rests on ARPES spectra, yet the manuscript provides no raw data, momentum-energy maps, energy distribution curves, error bars on extracted gap values, or fitting procedures. This omission makes it impossible to evaluate whether the observed suppression is robust against substrate effects or resolution limits, directly undermining support for the subsequent topological claims.

    Authors: We agree that the raw ARPES data and quantitative analysis details should have been presented more explicitly. In the revised manuscript we have added the momentum-energy maps and energy distribution curves for the monolayer and trilayer, together with error bars on the extracted gap values obtained from EDC fitting. The fitting procedure and resolution considerations are now described in the methods section. These additions confirm that the gap closure at three layers is intrinsic and remains robust after accounting for substrate and resolution effects. revision: yes

  2. Referee: The theoretical section asserts that Z2 oscillates 1↔0 with layer count due to interlayer-coupling-induced band crossings and that the system becomes a Weyl semimetal with Chern-number topology when bands touch. However, no band structures, parity eigenvalues at time-reversal invariant momenta, or explicit Z2 computation details (e.g., via Wilson loop or parity method) are shown for successive thicknesses. Given the known sensitivity of DFT (typically PBE) to van der Waals interlayer distance and exchange-correlation functional in WTe2, the oscillation cannot be assessed without these data and without direct comparison to the ARPES band positions.

    Authors: The Z2 values were obtained via the parity-eigenvalue method at the time-reversal invariant momenta. We have now included the calculated band structures for one to five layers and the bulk, the parity eigenvalues at each TRIM, and the resulting Z2 sequence. Additional calculations varying the interlayer spacing and testing alternative functionals are provided in the supplement; the 1↔0 oscillation persists. Direct overlays of the calculated dispersions with the ARPES data are also added for comparison. revision: yes

  3. Referee: The transition to a Weyl semimetal phase is stated when conduction and valence bands touch near the Fermi level, with topology described by Chern number. No calculation of the Chern number, location of Weyl points, or surface Fermi arcs is presented, nor is there an explicit check that the touching is protected rather than accidental. This step is load-bearing for the phase-evolution narrative but lacks the supporting evidence required to substantiate the claim.

    Authors: We have added the Chern-number calculations for the bands that touch, the explicit locations of the resulting Weyl points in the Brillouin zone, and the computed surface Fermi arcs. The touching points carry nonzero topological charge and are protected by the combination of time-reversal and mirror symmetries present in the multilayer structure, ruling out an accidental crossing. revision: yes

Circularity Check

0 steps flagged

No significant circularity in topological phase claims

full rationale

The paper's derivation chain consists of ARPES measurements providing independent experimental data on band gap evolution and metallicity with layer count, followed by separate first-principles DFT calculations that compute the Z2 invariant from parity eigenvalues or Berry phase of the resulting band structures. The oscillation of Z2 with thickness is an output of those calculations driven by interlayer coupling effects on crossings, not a fit or redefinition of the input data. No self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations appear in the abstract or described chain. The central result remains independent of the experimental observations rather than tautological.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on standard assumptions of density-functional theory for band-structure and topological-invariant calculations plus conventional interpretation of ARPES spectra; no new free parameters, ad-hoc entities, or non-standard axioms are introduced beyond those typical for the field.

axioms (1)
  • domain assumption Density functional theory with spin-orbit coupling accurately reproduces the band crossings and interlayer coupling in few-layer WTe2
    Invoked for the first-principles calculations that determine the oscillating Z2 invariant and Chern numbers.
