Electrically steered conduction topologies and period-doubling phase dynamics in VO2

Siyuan Huang , Shuaishuai Sun , Yin Shi , Wentao Wang , Chunhui Zhu , Huanfang Tian , Huaixin Yang , Jun Li
show 1 more author
Jianqi Li
Authors on Pith no claims yet

Pith reviewed 2026-05-10 02:36 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords vanadium dioxideinsulator-to-metal transitionPoole-Frenkel emissionMott transitionoxygen vacanciesultrafast transmission electron microscopyphase dynamics
0
0 comments X

The pith

Electric-field-induced Poole-Frenkel emission from patterned oxygen vacancies redistributes the internal field to trigger a deterministic Mott transition in VO2.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that in suspended VO2 devices, electric fields cause Poole-Frenkel emission localized at oxygen vacancies, which then shifts the field distribution enough to drive a precise insulator-to-metal transition. This non-linear process creates reconfigurable conduction paths that do not require bulk heating. A new electrical-pulse-pump ultrafast transmission electron microscope captures the multi-scale dynamics, and phase-field simulations link thermal-elastic coupling to step-wise and period-doubling domain changes while forecasting sub-100-ps kinetics. These mechanisms matter for building adaptive electronics that operate faster and at lower energy than thermal approaches allow.

Core claim

Electric-field-induced Poole-Frenkel emission, localized by patterned oxygen vacancies, plays a decisive role in redistributing the internal electric field to trigger a deterministic Mott transition. The extreme non-linearity of this PF effect enables the formation of dynamically reconfigurable connectivity topologies that bypass conventional thermal limits. The coupling of thermal and elastic energies governs a discrete domain evolution characterized by step-wise and period-doubling configurational resets.

What carries the argument

Poole-Frenkel emission localized at patterned oxygen vacancies, which non-linearly redistributes the electric field to initiate the Mott transition; visualized directly with E-UTEM and modeled via phase-field simulations.

Load-bearing premise

The E-UTEM images and phase-field simulations have isolated electric-field effects from Joule heating at the nanoscale so that the observed topologies and period-doubling can be attributed specifically to Poole-Frenkel emission.

What would settle it

Direct nanoscale temperature mapping during the voltage pulse that shows heating alone is sufficient to drive the transition regardless of vacancy pattern, or imaging that reproduces the same topologies when vacancies are absent or uniform.

Figures

Figures reproduced from arXiv: 2604.19329 by Chunhui Zhu, Huaixin Yang, Huanfang Tian, Jianqi Li, Jun Li, Shuaishuai Sun, Siyuan Huang, Wentao Wang, Yin Shi.

Figure 1

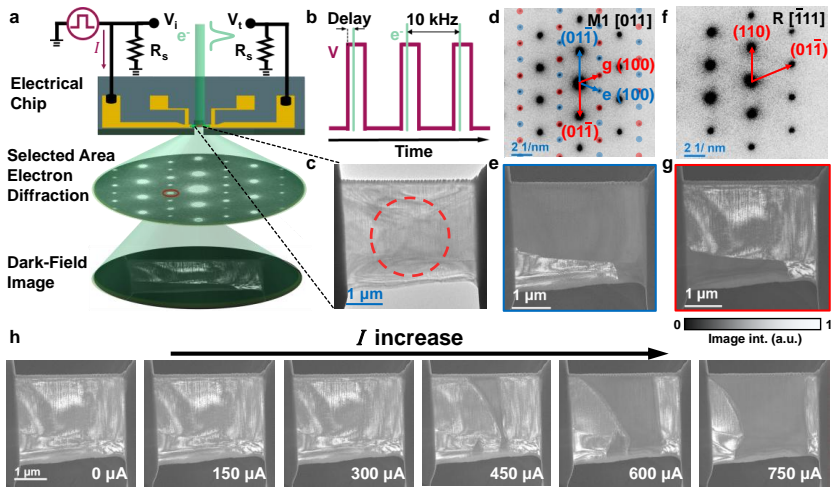

Figure 1. Figure 1: Experimental configuration and phase transition dynamics. a, Schematic of experimental setup, integrating electrical pulse excitation with selected area electron diffraction (SAED) and dark-field (DF) imaging. The VO2 specimen is suspended across the slit of an in-situ electrical chip. Incident (Vi) and transmitted (Vt) voltages are monitored via an oscilloscope with a terminal impedance (Rs) of 50 Ω. b, S… view at source ↗
Figure 2

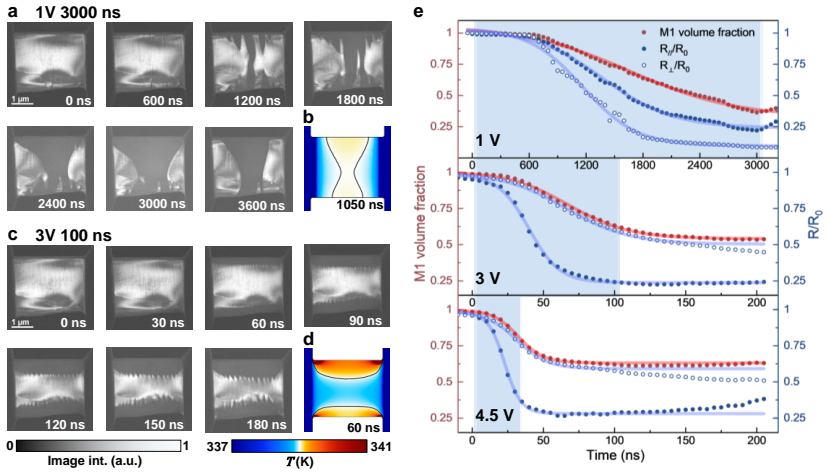

Figure 2. Figure 2: Spatiotemporal SPT dynamics and electro-thermal simulations under varying voltage pulses. a, Time-resolved DF images capturing the SPT evolution in VO2 under a microsecond electrical pulse (1 V, 3000 ns). b, Simulated spatial temperature profile at t = 1050 ns for the 1 V pulse. The black curve denotes the 339 K isotherm. c, Ultrafast DF images of the transient domain dynamics under a nanosecond electrical… view at source ↗
Figure 3

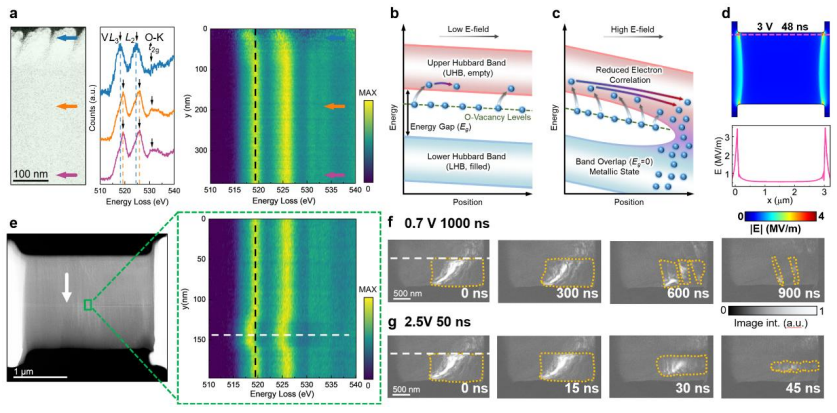

Figure 3. Figure 3: EELS characterization of oxygen vacancy-assisted IMT and deterministic control of conduction pathways. a, EELS analysis at the top device boundary. Left: STEM-HAADF image of the EELS mapping region. Middle: Core-loss spectra (V L3,2 and the O K-edges) extracted from positions indicated by color-coded arrows. Right: Horizontally projected EELS mapping showing the spectral evolution as a function of distance… view at source ↗
Figure 4

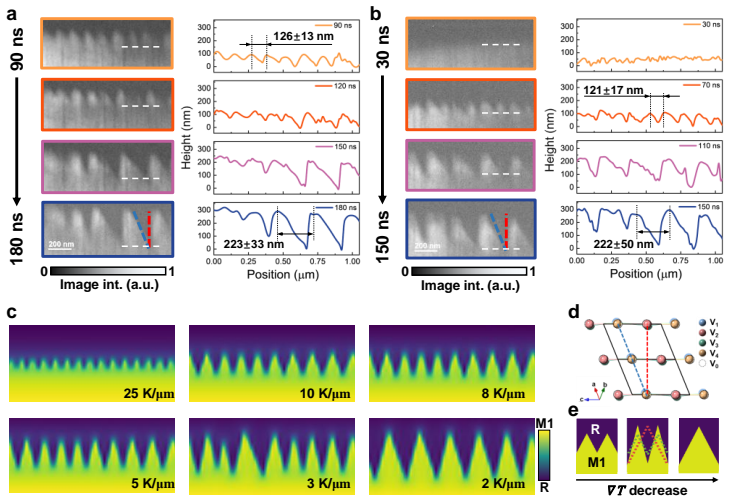

Figure 4. Figure 4: Dynamics of strain-mediated triangular domains and phase-field simulations. a, Spatiotemporal evolution of triangular domain architectures triggered by a 3 V, 100 ns pulse. Left: Sequential UDF snapshots capturing the domain morphology at 90, 120, 150, and 180 ns. Right: Corresponding triangular domain profiles demonstrating the continues increase in domain height and progressive increase in domain periodi… view at source ↗
read the original abstract

The insulator-to-metal transition (IMT) in strongly correlated materials, such as vanadium dioxide (VO2), offers a transformative platform for next-generation adaptive electronics and neuromorphic computing. However, harnessing this non-equilibrium phase transition for deterministic device operation is fundamentally hindered by the inability to disentangle electric-field effects from Joule heating, owing to a lack of operando techniques capable of resolving phase dynamics at nanoscale spatial and sub-nanosecond temporal scales. Here, using a newly developed electrical-pulse-pump ultrafast transmission electron microscope (E-UTEM), we directly visualize the multi-scale electro-thermo-mechanical dynamics of the IMT in suspended VO2 devices. Our results reveal that electric-field-induced Poole-Frenkel (PF) emission, localized by patterned oxygen vacancies, plays a decisive role in redistributing the internal electric field to trigger a deterministic Mott transition. The extreme non-linearity of this PF effect enables the formation of dynamically reconfigurable connectivity topologies that bypass conventional thermal limits. Furthermore, we observe that the coupling of thermal and elastic energies governs a discrete domain evolution, characterized by step-wise and period-doubling configurational resets, which is a hallmark of non-equilibrium phase dynamics in constrained geometries. By integrating experimental imaging with phase-field simulations, we establish a comprehensive framework for the electrically-driven IMT and predict sub-100-ps switching kinetics. These findings provide a fundamental basis for the rational design of ultrafast, low-energy functional devices through nanoscale defect and strain engineering in correlated systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript reports the development and application of electrical-pulse-pump ultrafast transmission electron microscopy (E-UTEM) to directly image multi-scale electro-thermo-mechanical dynamics during the insulator-to-metal transition (IMT) in suspended VO2 devices. It claims that electric-field-induced Poole-Frenkel (PF) emission, localized by patterned oxygen vacancies, redistributes the internal electric field to trigger a deterministic Mott transition; the extreme nonlinearity of this process enables dynamically reconfigurable conduction topologies that bypass conventional thermal limits. The work further reports that thermal-elastic coupling produces discrete, step-wise domain evolution with period-doubling configurational resets, and integrates the E-UTEM data with phase-field simulations to predict sub-100 ps switching kinetics.

Significance. If the attribution of the observed topologies and period-doubling specifically to Poole-Frenkel emission (rather than thermal or strain artifacts) can be robustly established, the work would be significant for the field of non-equilibrium phase transitions in correlated oxides. It offers a concrete experimental framework for electrically steered phase dynamics and a predictive modeling approach that could guide defect- and strain-engineered ultrafast devices. The integration of operando nanoscale imaging with phase-field simulations is a clear strength when the simulations are shown to be non-circular.

major comments (3)
  1. [Abstract] Abstract: the central claim that PF emission 'plays a decisive role' and 'bypasses conventional thermal limits' is load-bearing for the entire narrative, yet the provided text supplies no quantitative local probes (e.g., emission-current density or field-strength maps independent of temperature rise) that would allow the reader to verify separation of field-driven carrier emission from Joule heating.
  2. [Simulation-experiment integration] Simulation-experiment integration section: without explicit controls showing that the observed step-wise and period-doubling domain evolution cannot be reproduced by the thermal-elastic terms alone (i.e., with the PF term switched off), the necessity of the Poole-Frenkel mechanism remains unproven and the risk of post-hoc interpretation is high.
  3. [Methods] Methods or parameter tables: if vacancy densities, elastic moduli, or other simulation inputs were adjusted to match the same E-UTEM datasets used to claim agreement, the simulations lose predictive value; the manuscript must report how these quantities were obtained independently.
minor comments (2)
  1. [Figures] Figure captions and axis labels should explicitly state the temporal and spatial resolution achieved in the E-UTEM experiments and whether error bars represent standard deviation across multiple devices or single-shot variability.
  2. [Results] The abstract states 'sub-100-ps switching kinetics' are predicted; the corresponding simulation output (time traces or extracted time constants) should be shown with direct comparison to any available experimental rise times.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed review. The comments highlight important points for strengthening the attribution of the observed dynamics to the Poole-Frenkel mechanism and for ensuring the simulations are non-circular. We address each major comment below and have incorporated revisions to improve the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that PF emission 'plays a decisive role' and 'bypasses conventional thermal limits' is load-bearing for the entire narrative, yet the provided text supplies no quantitative local probes (e.g., emission-current density or field-strength maps independent of temperature rise) that would allow the reader to verify separation of field-driven carrier emission from Joule heating.

    Authors: We agree that quantitative, temperature-independent local probes would strengthen the central claim. The full manuscript already uses the spatial correlation between nucleation sites and pre-patterned oxygen vacancies together with sub-100 ps onset times (incompatible with thermal diffusion lengths) to separate field-driven PF emission from Joule heating. To make this separation explicit, we have added reconstructed local electric-field maps and estimated PF emission current densities (derived from the observed nucleation statistics and independently measured vacancy densities) as a new supplementary figure. These data show local fields above the PF threshold while the temperature rise remains below the thermal IMT threshold during the triggering phase. revision: yes

  2. Referee: [Simulation-experiment integration] Simulation-experiment integration section: without explicit controls showing that the observed step-wise and period-doubling domain evolution cannot be reproduced by the thermal-elastic terms alone (i.e., with the PF term switched off), the necessity of the Poole-Frenkel mechanism remains unproven and the risk of post-hoc interpretation is high.

    Authors: This is a fair and important criticism. We have performed the requested control simulations with the PF emission term disabled while retaining the full thermal-elastic coupling. These runs produce only continuous, thermally driven domain propagation and do not reproduce the discrete step-wise evolution or period-doubling resets seen in the E-UTEM data. The control results are now included in the revised supplementary information, confirming that the PF term is required for the deterministic, reconfigurable topologies. revision: yes

  3. Referee: [Methods] Methods or parameter tables: if vacancy densities, elastic moduli, or other simulation inputs were adjusted to match the same E-UTEM datasets used to claim agreement, the simulations lose predictive value; the manuscript must report how these quantities were obtained independently.

    Authors: We confirm that all simulation inputs were obtained independently of the E-UTEM datasets used for validation. Vacancy densities were measured by TEM and EELS on the as-grown films before device fabrication and electrical testing. Elastic moduli were taken from established literature values for VO2 and cross-checked against separate nanoindentation measurements on control samples. These independent sources and values are now explicitly documented in the revised Methods section with references to the original characterization data. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected; derivation remains self-contained.

full rationale

The paper's central chain—E-UTEM imaging of electro-thermo-mechanical dynamics, attribution of reconfigurable topologies to nonlinear Poole-Frenkel emission localized by oxygen vacancies, and integration with phase-field simulations to predict sub-100-ps kinetics—does not reduce by construction to its inputs. No self-definitional equations, fitted parameters renamed as predictions, or load-bearing self-citations appear in the abstract or described framework. The claim of disentangling field effects from heating rests on direct nanoscale visualization rather than tautological fitting or imported uniqueness theorems. This is the expected honest outcome for an experiment-plus-simulation study whose key observables are externally falsifiable.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, so the ledger is necessarily incomplete. The central claim rests on the assumption that the new microscope successfully separates field-driven from thermally-driven dynamics and that phase-field simulations capture the dominant physics without undisclosed fitting.
