Toward Cooperative Driving in Mixed Traffic: An Adaptive Potential Game-Based Approach with Field Test Verification
Pith reviewed 2026-05-10 00:52 UTC · model grok-4.3
The pith
An adaptive potential game framework lets autonomous vehicles cooperate with human drivers by aligning individual goals with system safety and efficiency while refining preference estimates from observed behavior.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The adaptive potential game (APG) establishes a system utility function from the general form of individual utilities and their monotonic relationship to system objectives. It applies the Shapley value to compute each vehicle's marginal utility and refines HDV preference estimates in real time by comparing observed behavior to APG-predicted actions, yielding measurable improvements in mixed-traffic safety and efficiency.
What carries the argument

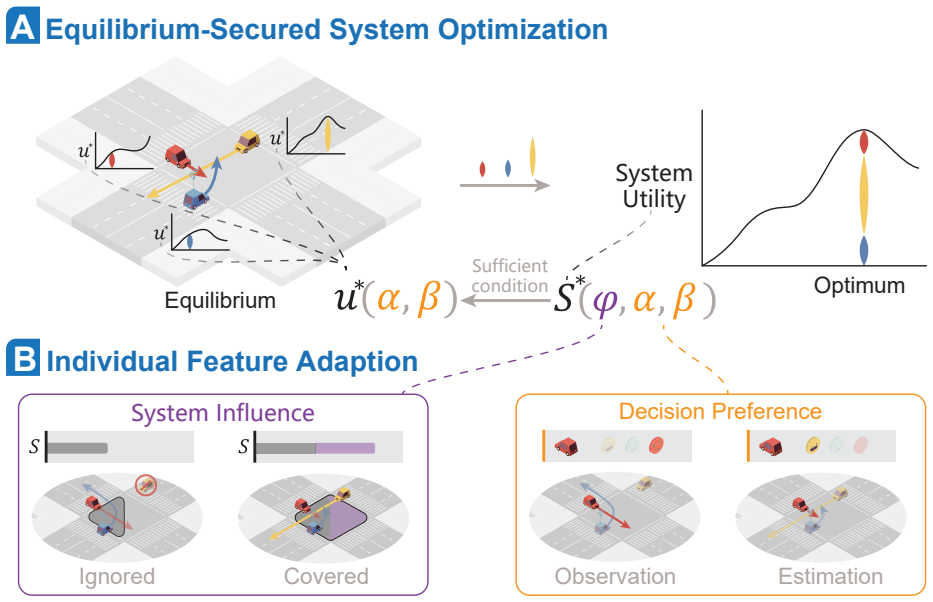

Adaptive potential game (APG) that uses monotonic individual-to-system utility mapping, Shapley-value marginal contribution calculation, and online comparison of observed HDV actions to estimated actions for preference refinement.
If this is right
- Individual vehicle objectives and global traffic safety and efficiency can be optimized at the same time.
- Shapley-value weighting lets each vehicle's contribution to cooperation be quantified and used in decision-making.
- Continuous preference refinement raises the rate at which cooperative maneuvers succeed in mixed fleets.

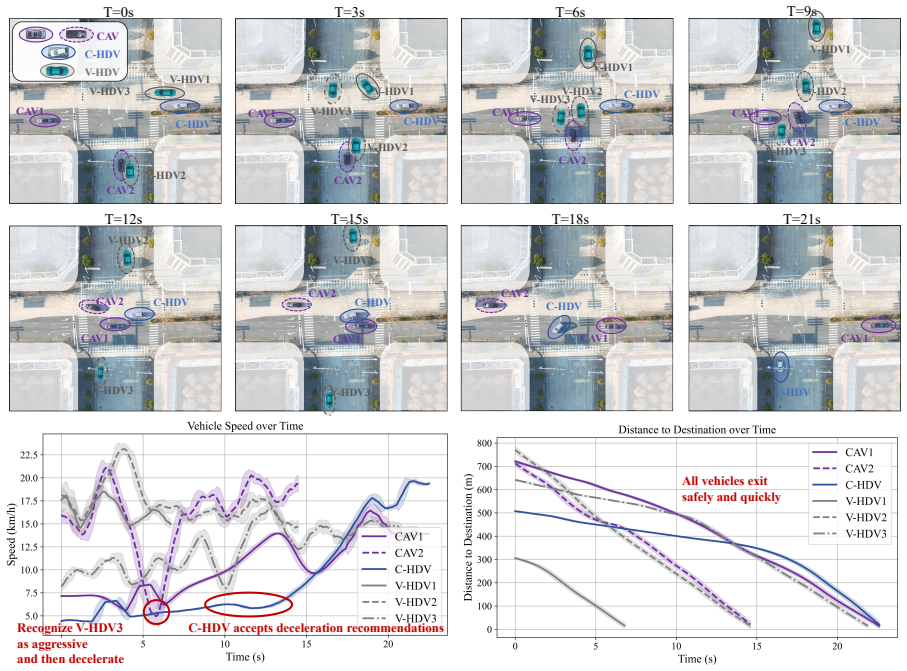

- The same structure supports real-time deployment, as shown by successful field tests on public roads.
Where Pith is reading between the lines
- The framework could be tested in denser urban intersections or on highways with frequent lane changes to check whether the monotonicity assumption still holds under higher interaction density.
- Integration with existing perception modules would allow the preference estimator to run on raw sensor data rather than requiring perfect state information.
- If the preference update rule proves stable across different driver populations, the method could be transferred to regions with distinct driving cultures without full retraining.
Load-bearing premise
A monotonic relationship holds between each vehicle's individual utility and overall system objectives, and observed human driver behavior can be compared reliably to the model's estimated actions to refine preferences.
What would settle it
A controlled field test in which the APG method produces no measurable gain in collision-avoidance rates or average travel time compared with a non-adaptive game baseline when human preferences are updated from observed actions.
Figures

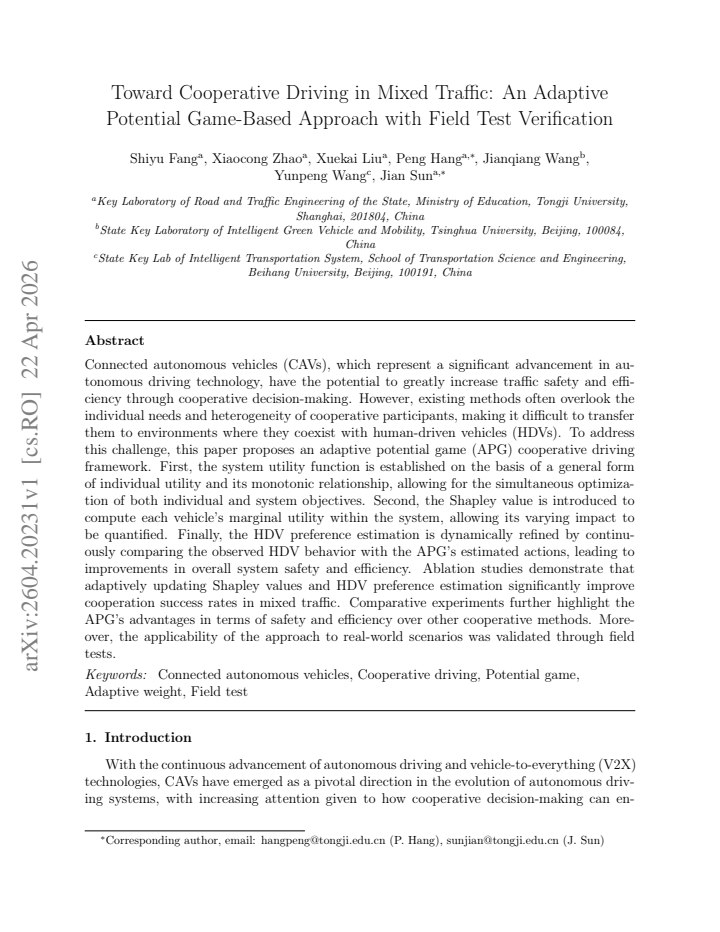

read the original abstract
Connected autonomous vehicles (CAVs), which represent a significant advancement in autonomous driving technology, have the potential to greatly increase traffic safety and efficiency through cooperative decision-making. However, existing methods often overlook the individual needs and heterogeneity of cooperative participants, making it difficult to transfer them to environments where they coexist with human-driven vehicles (HDVs).To address this challenge, this paper proposes an adaptive potential game (APG) cooperative driving framework. First, the system utility function is established on the basis of a general form of individual utility and its monotonic relationship, allowing for the simultaneous optimization of both individual and system objectives. Second, the Shapley value is introduced to compute each vehicle's marginal utility within the system, allowing its varying impact to be quantified. Finally, the HDV preference estimation is dynamically refined by continuously comparing the observed HDV behavior with the APG's estimated actions, leading to improvements in overall system safety and efficiency. Ablation studies demonstrate that adaptively updating Shapley values and HDV preference estimation significantly improve cooperation success rates in mixed traffic. Comparative experiments further highlight the APG's advantages in terms of safety and efficiency over other cooperative methods. Moreover, the applicability of the approach to real-world scenarios was validated through field tests.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes an adaptive potential game (APG) framework for cooperative decision-making among connected autonomous vehicles (CAVs) and human-driven vehicles (HDVs) in mixed traffic. It defines a system utility function from individual utilities via a claimed monotonic relationship to enable joint optimization, incorporates Shapley values to quantify each vehicle's marginal contribution, and dynamically refines HDV preference estimates online by comparing observed trajectories against actions computed by the current APG model. Ablation studies, comparative simulations, and field tests are presented to claim improvements in safety and efficiency metrics over baselines.
Significance. If the central claims hold, the work offers a practical extension of potential games to heterogeneous mixed-traffic settings, with explicit handling of HDV variability through online adaptation. The inclusion of field-test verification and ablation results demonstrating benefits from adaptive Shapley-value and preference updates are concrete strengths that distinguish it from purely simulation-based game-theoretic approaches. Successful validation could inform deployable CAV coordination algorithms that respect individual vehicle objectives while improving system-level outcomes.
major comments (2)
- [§4.2] §4.2 (HDV Preference Refinement): The online update compares observed HDV trajectories to actions selected by the current APG model and treats the latter as reference for preference correction. This step is load-bearing for the adaptivity claim, yet no convergence proof, Lyapunov-style stability argument, or sensitivity analysis under realistic sensor noise or initial preference mismatch is supplied; the risk of error reinforcement noted in the skeptic's analysis therefore remains unaddressed.
- [§3.1] §3.1 (System Utility Construction): The assertion that a monotonic mapping between individual utilities and system utility permits simultaneous optimization is central to the joint-optimization guarantee, but the manuscript provides neither an explicit functional form for the monotonicity nor a proof that the Shapley-value allocation preserves the claimed monotonicity under the heterogeneous utility functions used for HDVs.
minor comments (2)

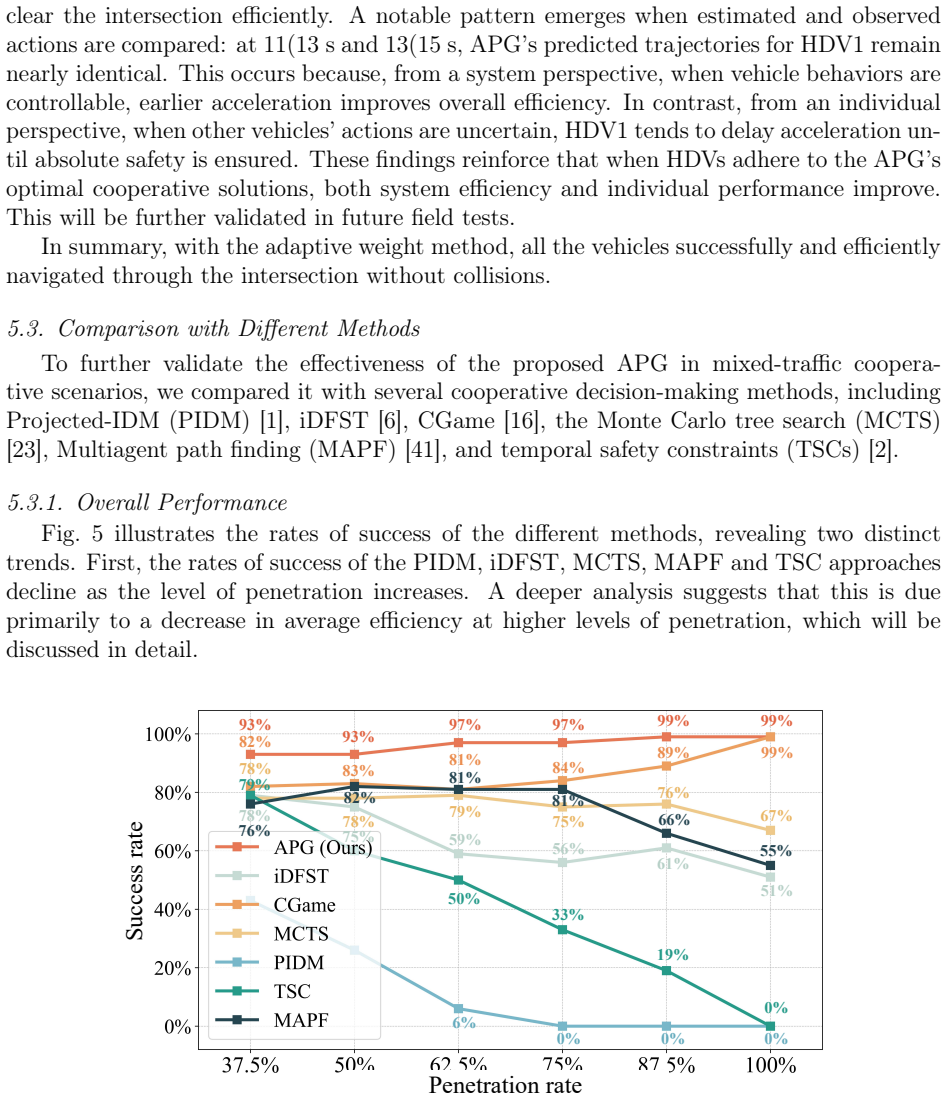

- [Table 2, Figure 5] Table 2 and Figure 5: error bars or standard deviations are omitted from the reported safety and efficiency metrics, making it difficult to assess statistical significance of the claimed improvements over baselines.
- [§3.3] Notation: the symbol for the adaptive preference vector is introduced without an explicit update equation; readers must infer the precise recursion from surrounding prose.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed comments, which help clarify the theoretical and practical aspects of our adaptive potential game framework. We address each major comment below and outline the revisions planned for the next version of the manuscript.
read point-by-point responses
-
Referee: [§4.2] §4.2 (HDV Preference Refinement): The online update compares observed HDV trajectories to actions selected by the current APG model and treats the latter as reference for preference correction. This step is load-bearing for the adaptivity claim, yet no convergence proof, Lyapunov-style stability argument, or sensitivity analysis under realistic sensor noise or initial preference mismatch is supplied; the risk of error reinforcement noted in the skeptic's analysis therefore remains unaddressed.
Authors: We acknowledge that the manuscript lacks a formal convergence proof or Lyapunov-style stability analysis for the HDV preference refinement. The update rule is presented as a practical online mechanism whose benefits are shown empirically via ablation studies, comparative simulations, and field tests. To directly address robustness concerns, including sensor noise and potential error reinforcement, we will add a dedicated sensitivity analysis section with new simulation results under noisy observations and varying initial preference mismatches. This empirical strengthening will be included in the revision, while noting that a complete theoretical guarantee remains an open direction for future work. revision: partial
-
Referee: [§3.1] §3.1 (System Utility Construction): The assertion that a monotonic mapping between individual utilities and system utility permits simultaneous optimization is central to the joint-optimization guarantee, but the manuscript provides neither an explicit functional form for the monotonicity nor a proof that the Shapley-value allocation preserves the claimed monotonicity under the heterogeneous utility functions used for HDVs.
Authors: Section 3.1 defines the system utility via a general monotonic relationship to the aggregate of individual utilities, enabling the claimed joint optimization. We agree that an explicit functional form and a demonstration that Shapley-value marginal contributions preserve monotonicity for heterogeneous HDV utilities would improve rigor. In the revised manuscript we will specify the exact transformation employed (a scaled sum that maintains monotonicity) and include a short proof sketch showing that the Shapley allocation inherits the monotonic property under the utility heterogeneity considered. revision: yes
Circularity Check
No significant circularity in the APG derivation chain
full rationale
The paper constructs the system utility from a general individual utility via an explicit monotonic relationship, which is the standard definition enabling potential-game equivalence rather than a self-referential loop. Shapley values are invoked as an external cooperative-game tool to quantify marginal contributions. The HDV preference update compares observed trajectories against current APG actions in an online refinement loop; this is an iterative estimator, not a definitional reduction where the 'prediction' is forced to equal the fitted input by construction. Ablation studies, comparative experiments, and field-test validation supply independent empirical checks outside the derivation. No quoted equation or step reduces the claimed output to the input tautologically.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption A monotonic relationship exists between individual utility and system utility that allows simultaneous optimization of both.
invented entities (1)
-
Adaptive Potential Game (APG) framework
no independent evidence
