Broad-band High-Energy Resolution Hard X-ray Spectroscopy using Transition Edge Sensors at SPring-8

Shinya Yamada , Yuto Ichinohe , Hideyuki Tatsuno , Ryota Hayakawa , Hirotaka Suda , Takaya Ohashi , Yoshitaka Ishisaki , Tomoya Uruga
show 34 more authors
Oki Sekizawa Kiyofumi Nitta Yoshio Takahashi Takaaki Itai Hiroki Suga Makoto Nagasawa Masato Tanaka Minako Kurisu Tadashi Hashimoto Douglas Bennett Ed Denison William (Randy) Doriese Malcolm Durkin Joseph Fowler Galen O'Neil Kelsey Morgan Dan Schmidt Daniel Swetz Joel Ullom Leila Vale Shinji Okada Takuma Okumura Toshiyuki Azuma Toru Tamagawa Tadaaki Isobe Satoshi Kohjiro Hirofumi Noda Keigo Tanaka Akimichi Taguchi Yuki Imai Kosuke Sato Tasuku Hayashi Teruhiko Kashiwabara Kohei Sakata
Authors on Pith no claims yet

Pith reviewed 2026-05-08 13:53 UTC · model grok-4.3

classification 🌌 astro-ph.IM hep-exphysics.acc-phphysics.chem-phphysics.ins-det
keywords transition edge sensorhard X-ray spectroscopySPring-8XANESfluorescenceenergy resolutiontrace elements
0
0 comments X

The pith

A transition-edge sensor spectrometer operated at SPring-8 achieves 4 eV energy resolution at 6 keV and resolves overlapping fluorescence lines in dilute samples.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports the successful operation of a 240-pixel NIST transition-edge sensor array at the SPring-8 hard X-ray beamline, with 220 pixels running simultaneously. At low rates it delivers 4 eV resolution at 6 keV; at an aggregate rate of about 2000 counts per second the resolution remains near 5 eV while preserving usable live time. This broadband capability is used to perform simultaneous multi-element analysis and fluorescence-mode XANES measurements. The high resolution separates closely spaced lines such as As K-alpha and Pb L-alpha2 that conventional detectors cannot resolve, and it isolates weak Fe fluorescence from aerosol samples against a blank target. These results constitute the first demonstration of TES-based high-resolution hard X-ray spectroscopy at a synchrotron facility.

Core claim

A 240-pixel TES spectrometer operated at SPring-8 with 220 pixels active achieves 4 eV FWHM resolution at 6 keV at low count rates and maintains 5 eV resolution at a total rate of roughly 2 times 10^3 counts per second; this performance enables simultaneous multi-element fluorescence analysis and XANES measurements that clearly separate neighboring lines such as As K alpha and Pb L alpha2 while distinguishing trace Fe signals in aerosols from blank spectra.

What carries the argument

The transition-edge sensor (TES) array, which converts absorbed X-ray photon energy into a measurable temperature rise for high-resolution spectroscopy across a broad energy band.

Load-bearing premise

The reported energy resolution and count-rate tolerance will remain usable for actual scientific measurements on real samples without major degradation from beam conditions, pile-up, or background effects at the synchrotron.

What would settle it

A measurement on a real dilute sample showing energy resolution worse than 10 eV or live-time fraction below 50 percent at the expected synchrotron flux would falsify the claim that the demonstrated TES performance supports scientific use.

Figures

Figures reproduced from arXiv: 2604.21846 by Akimichi Taguchi, Daniel Swetz, Dan Schmidt, Douglas Bennett, Ed Denison, Galen O'Neil, Hideyuki Tatsuno, Hirofumi Noda, Hiroki Suga, Hirotaka Suda, Joel Ullom, Joseph Fowler, Keigo Tanaka, Kelsey Morgan, Kiyofumi Nitta, Kohei Sakata, Kosuke Sato, Leila Vale, Makoto Nagasawa, Malcolm Durkin, Masato Tanaka, Minako Kurisu, Oki Sekizawa, Ryota Hayakawa, Satoshi Kohjiro, Shinji Okada, Shinya Yamada, Tadaaki Isobe, Tadashi Hashimoto, Takaaki Itai, Takaya Ohashi, Takuma Okumura, Tasuku Hayashi, Teruhiko Kashiwabara, Tomoya Uruga, Toru Tamagawa, Toshiyuki Azuma, William (Randy) Doriese, Yoshio Takahashi, Yoshitaka Ishisaki, Yuki Imai, Yuto Ichinohe.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) Overview of the experimental setup at BL37XU at SPring-8. The TES is set at the front side of the sample at an view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. The theoretical quantum efficiency of the TES is view at source ↗
Figure 4

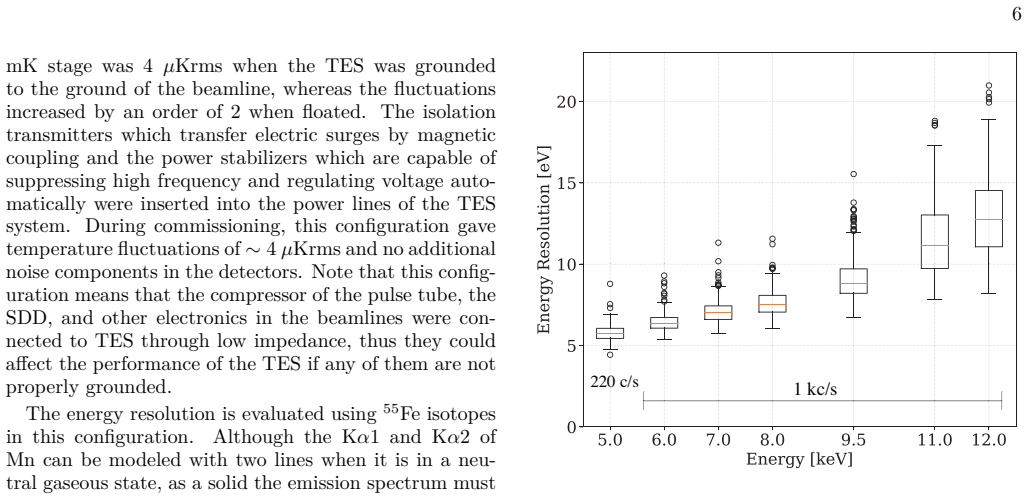

Figure 4. Figure 4: FIG. 4. The energy resolution at different energies obtained view at source ↗
Figure 5

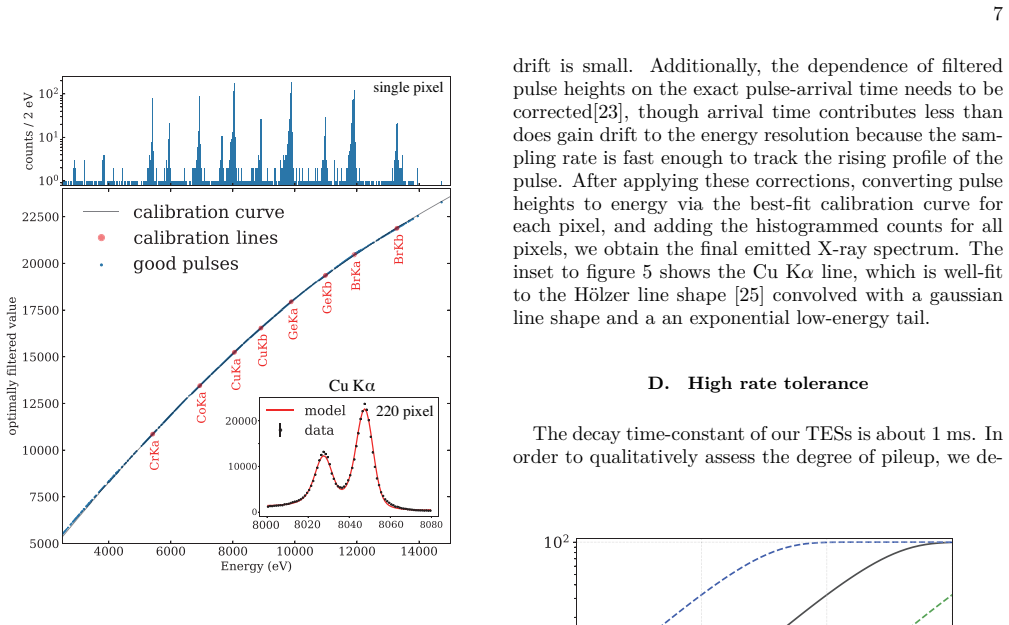

Figure 5. Figure 5: FIG. 5. (top) The energy spectrum of calibration sources view at source ↗
Figure 6

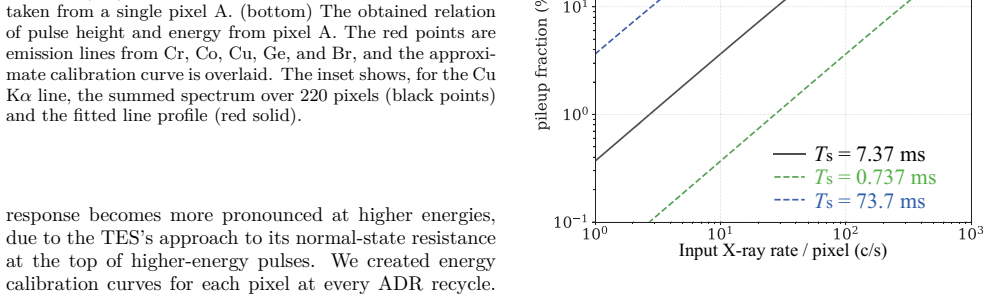

Figure 6. Figure 6: FIG. 6. The theoretical pileup fraction (%) vs. incoming X view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. (top) The array rate of data records of various types view at source ↗
Figure 8

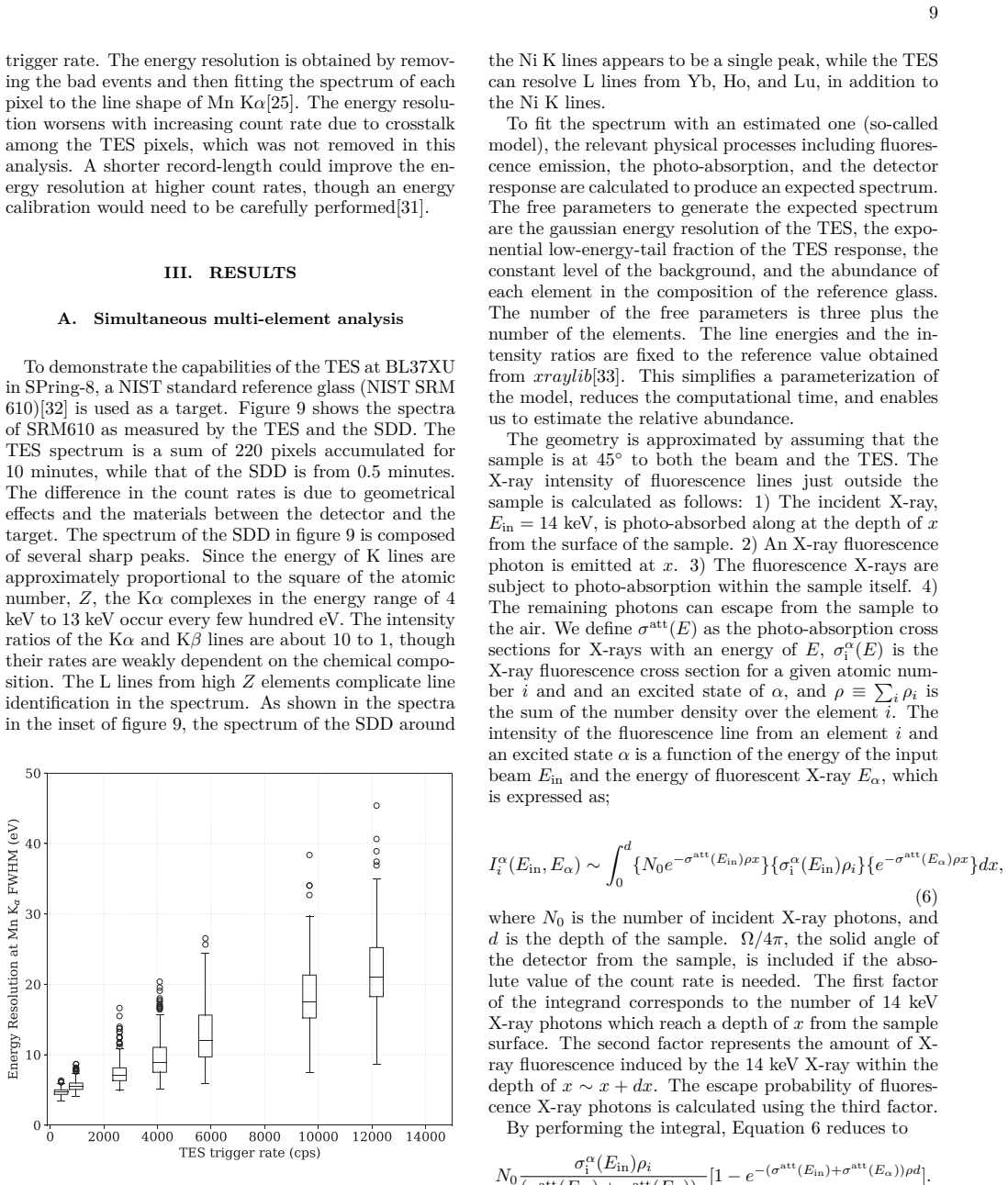

Figure 8. Figure 8: FIG. 8. Energy resolution at the energy of Mn K view at source ↗
Figure 9

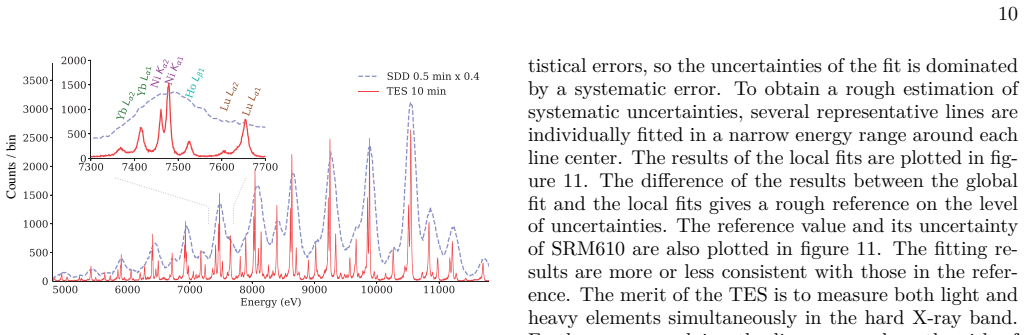

Figure 9. Figure 9: FIG. 9. The wide-band spectra of SRM610 taken with TES view at source ↗
Figure 11
Figure 11. Figure 11: figure 11. The large number of photons creates small sta view at source ↗
Figure 10

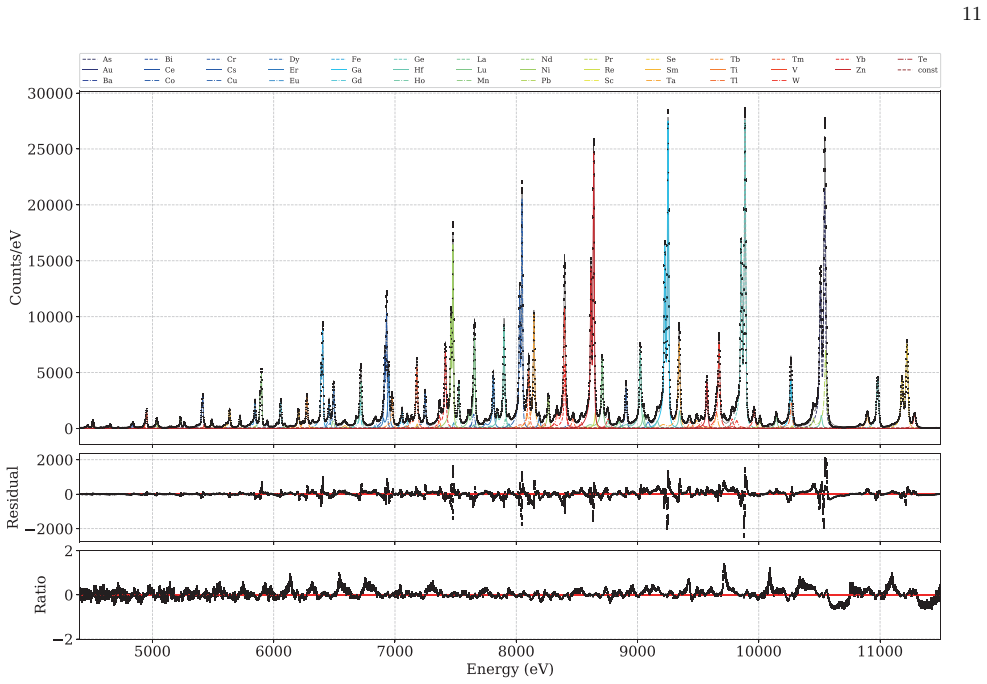

Figure 10. Figure 10: FIG. 10. (top) The example of simultaneous multicomponent fits for the XES of TES. The XES of TES and the best-fit model view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11. The abundance ratios to Fe obtained by fitting the view at source ↗
Figure 13
Figure 13. Figure 13: FIG. 13. The XANES of Pb L view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12. X-ray Emission spectra of the TES spectrometer view at source ↗
Figure 14
Figure 14. Figure 14: FIG. 14. The XES of TES taken from the aerosol sample (red) and the blank target (black). The data are accumulated view at source ↗
Figure 16
Figure 16. Figure 16: FIG. 16. (top) XANES spectra of the aerosol sample, the view at source ↗
Figure 17
Figure 17. Figure 17: FIG. 17. Fe K-edge XANES spectra of reference compounds view at source ↗
read the original abstract

We have succeeded in operating a transition-edge sensor (TES) spectrometer and evaluating its performance at the SPring-8 synchrotron X-ray light source. The TES spectrometer consists of a 240 pixel National Institute of Standards and Technology (NIST) TES system, and 220 pixels are operated simultaneously with an energy resolution of $4$~eV at 6~keV at a rate of about 1~c/s/pixel. The tolerance for high count rates is evaluated in terms of energy resolution and live time fraction, leading to an empirical compromise of about 2 x 10^3 c/s/all pixels with an energy resolution of 5 eV at 6 keV. By utilizing the TES's wide-band spectroscopic capability, simultaneous multi-element analysis is demonstrated for a standard sample. We conducted X-ray absorption near-edge structure (XANES) analysis in fluorescence mode using the TES spectrometer. The excellent energy resolution of the TES enabled us to detect weak fluorescence lines from dilute samples and trace elements that have previously been difficult to resolve due to the nearly overlapping emission lines of other dominant elements. The neighboring lines of As K alpha and Pb L alpha2 of the standard sample were clearly resolved and the XANES of Pb L alpha2 was obtained. Moreover, the X-ray spectrum from the small amount of Fe in aerosols was distinguished from the spectrum of a blank target, which helps us to understand the targets and the environment. These results are the first important step for the application of high resolution TES-based spectroscopy at hard X-ray synchrotron facilities.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports the successful operation of a 240-pixel NIST TES spectrometer at the SPring-8 synchrotron, with 220 pixels achieving 4 eV FWHM energy resolution at 6 keV at ~1 c/s/pixel. It evaluates count-rate tolerance, finding an empirical limit of ~2×10³ c/s total with 5 eV resolution, and demonstrates broadband multi-element fluorescence analysis, XANES measurements resolving As Kα from Pb Lα2 on a standard sample, and detection of trace Fe fluorescence from aerosol samples against a blank.

Significance. If the reported resolution and live-time performance are shown to apply under the actual beam conditions of the XANES and aerosol runs, the work provides a concrete demonstration that TES arrays can resolve overlapping hard X-ray emission lines in dilute samples at synchrotron facilities, opening new capabilities for trace-element and speciation studies that are limited by conventional Si or Ge detectors.

major comments (2)
  1. [XANES and aerosol sections (post-abstract)] The performance evaluation (4 eV at low rate, 5 eV at 2×10³ c/s) is presented separately from the XANES and aerosol results. No quantitative verification—such as measured line widths in the Pb Lα2 or Fe spectra, or live-time fractions recorded during those runs—is provided to confirm that the quoted resolution was maintained under synchrotron beam conditions (scattering background, instantaneous rate variations, or pile-up). This directly affects the central claim that the TES resolution 'enabled us to detect weak fluorescence lines' that were previously unresolvable.
  2. [Count-rate evaluation and application results] The high-count-rate tolerance is described as an 'empirical compromise,' but the manuscript does not report the instantaneous per-pixel rates or pile-up rejection efficiency during the fluorescence measurements on the standard sample and aerosols. Without these data, it is unclear whether the 5 eV resolution and usable live time were actually realized in the presented spectra.
minor comments (2)
  1. [Abstract and §2] The abstract states '220 pixels are operated simultaneously' while the title and introduction refer to a '240 pixel' system; clarify the exact number of active pixels and any disabled channels in the main text.
  2. [Figures and captions] Figure captions and text should explicitly state the energy resolution and live-time fraction applicable to each displayed spectrum (e.g., the As/Pb and aerosol spectra) rather than referring only to the separate performance section.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The comments highlight the need to more explicitly link our performance characterization to the application results, which we address below. We believe the revisions will strengthen the manuscript without altering its core conclusions.

read point-by-point responses

  1. Referee: [XANES and aerosol sections (post-abstract)] The performance evaluation (4 eV at low rate, 5 eV at 2×10³ c/s) is presented separately from the XANES and aerosol results. No quantitative verification—such as measured line widths in the Pb Lα2 or Fe spectra, or live-time fractions recorded during those runs—is provided to confirm that the quoted resolution was maintained under synchrotron beam conditions (scattering background, instantaneous rate variations, or pile-up). This directly affects the central claim that the TES resolution 'enabled us to detect weak fluorescence lines' that were previously unresolvable.

    Authors: We agree that the separation between the dedicated performance section and the application results could be better bridged. The XANES and aerosol spectra were acquired with the beam intensity adjusted to maintain total rates near or below the 2×10³ c/s limit established in the count-rate tests, and the clear line separation visible in the figures (e.g., As Kα from Pb Lα2) is only possible with resolution close to the quoted values. However, we did not extract fitted line widths or live-time fractions from those specific runs in the original manuscript. In revision we will add direct measurements of observed FWHM from Gaussian fits to the Pb Lα2 and Fe Kα lines in the presented spectra, together with live-time estimates derived from the total integrated counts and acquisition times. This will provide the requested quantitative verification under actual beam conditions. revision: yes

  2. Referee: [Count-rate evaluation and application results] The high-count-rate tolerance is described as an 'empirical compromise,' but the manuscript does not report the instantaneous per-pixel rates or pile-up rejection efficiency during the fluorescence measurements on the standard sample and aerosols. Without these data, it is unclear whether the 5 eV resolution and usable live time were actually realized in the presented spectra.

    Authors: The count-rate tests were performed with a controlled source to establish the empirical limit, and during the synchrotron runs the incident flux was tuned so that the total observed count rate remained within that limit. Pile-up rejection was applied using the standard TES pulse-processing pipeline described in the methods. We did not tabulate instantaneous per-pixel rates for every application run, as real-time monitoring focused on the aggregate rate across the array. In the revised manuscript we will add a brief description of the typical per-pixel rates inferred from the total counts and the number of active pixels, along with the pile-up rejection fraction observed in the application data sets. This will clarify that the 5 eV regime was maintained. revision: partial

Circularity Check

0 steps flagged

No circularity: pure experimental performance report

full rationale

The manuscript is an experimental report of measured TES spectrometer performance at SPring-8, including energy resolution, count-rate tolerance, and fluorescence/XANES demonstrations on real samples. All central claims rest on direct data acquisition and standard spectral analysis; no equations, models, fitted parameters, or derivations are invoked to obtain the reported resolutions or detection capabilities. No self-citations form load-bearing chains for the results, and no ansatzes or uniqueness theorems are smuggled in. The derivation chain is empty by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on direct experimental measurements using established TES hardware; no new free parameters, ad-hoc axioms, or invented entities are introduced beyond standard X-ray physics.

axioms (1)
  • domain assumption Characteristic X-ray emission lines from different elements have fixed energies that can be distinguished given sufficient detector resolution.
    Invoked when stating that As K alpha and Pb L alpha2 lines were clearly resolved.
