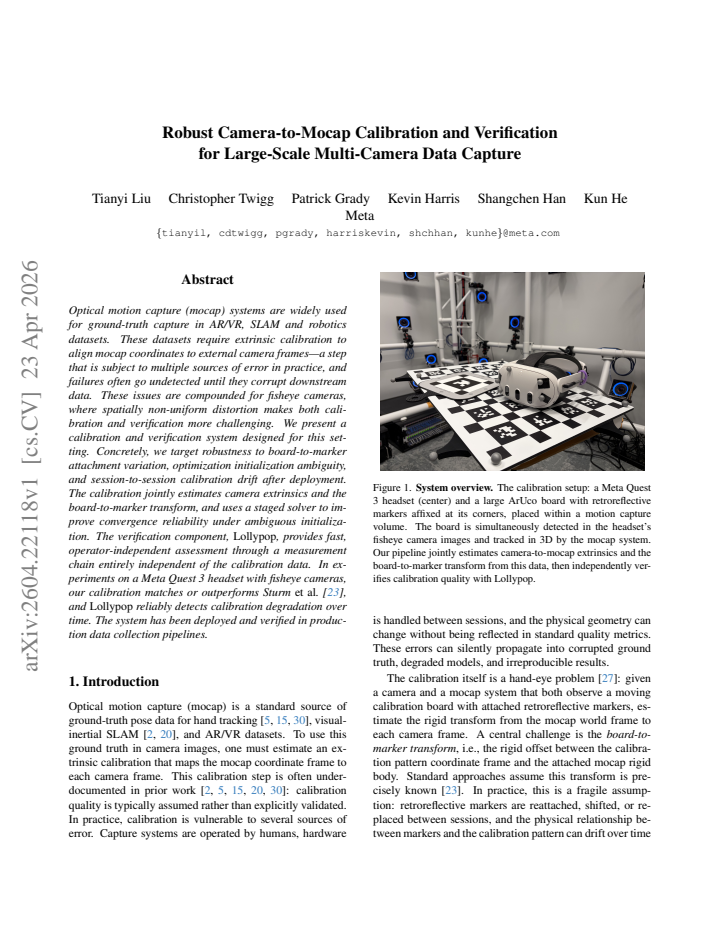

Robust Camera-to-Mocap Calibration and Verification for Large-Scale Multi-Camera Data Capture

Tianyi Liu , Christopher Twigg , Patrick Grady , Kevin Harris , Shangchen Han , Kun He This is my paper

Pith reviewed 2026-05-09 21:25 UTC · model grok-4.3

classification 💻 cs.CV
keywords extrinsic calibrationmotion capturefisheye camerascamera-to-mocap alignmentcalibration verificationAR/VR ground truthstaged optimizationdrift detection
0
0 comments X

The pith

The calibration jointly estimates camera extrinsics and board-to-marker transforms with a staged solver, while Lollypop provides an independent verification chain that detects drift.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Optical motion capture systems supply ground-truth positions for AR/VR, SLAM, and robotics datasets, but aligning them to external camera frames requires extrinsic calibration that is prone to errors from variable board attachments, ambiguous starting points, and gradual drift after deployment. These problems worsen with fisheye lenses because their non-uniform distortion complicates both solving and checking the results. The paper introduces a calibration routine that solves for camera poses and the unknown board-to-marker attachment at the same time, using a staged solver to reach reliable solutions even from poor initial guesses. It adds a separate verification tool called Lollypop whose measurement process does not reuse any of the calibration data or optimization choices, allowing quick, operator-free checks. Tests on a Meta Quest 3 headset with fisheye cameras show the method beats standard bench calibration and that Lollypop consistently flags when accuracy has degraded over time.

Core claim

The calibration jointly estimates camera extrinsics and the board-to-marker transform and uses a staged solver to improve convergence reliability under ambiguous initialization. The verification component, Lollypop, provides fast, operator-independent assessment through a measurement chain entirely independent of the calibration data. In experiments on a Meta Quest 3 headset with fisheye cameras, this calibration outperforms existing benchwork and Lollypop reliably detects calibration degradation over time. The system has been deployed in production data collection pipelines.

What carries the argument

Joint estimation of camera extrinsics and board-to-marker transform, performed with a staged solver, plus an independent Lollypop measurement chain for verification.

If this is right

  • Convergence remains stable across realistic ranges of board-to-marker attachment variation and poor initial guesses.
  • Calibration drift between sessions can be detected quickly without re-running the full optimization.
  • Ground-truth data for AR/VR and robotics datasets contains fewer undetected alignment errors.
  • Production capture pipelines can operate with less constant human monitoring of calibration quality.
  • Fisheye-camera alignments become more repeatable than with conventional bench methods.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same staged approach could be tested on other ambiguous bundle-adjustment problems where part of the geometry is unknown.
  • Long-running multi-camera installations might reduce recalibration frequency by relying on periodic Lollypop checks.
  • Dataset creators could insert Lollypop-style independent checks into existing capture workflows to improve downstream model training reliability.
  • The independence property might generalize to verification of other extrinsic parameters such as IMU-to-camera alignments.

Load-bearing premise

The measurement chain inside Lollypop stays completely free of any dependence on the calibration data or the choices made during optimization.

What would settle it

Introduce a known small misalignment between the mocap markers and the calibration board after an initial successful run, then check whether Lollypop flags the change while standard verification methods do not.

Figures

Figures reproduced from arXiv: 2604.22118 by Christopher Twigg, Kevin Harris, Kun He, Patrick Grady, Shangchen Han, Tianyi Liu.

Figure 1
Figure 1. Figure 1: System overview. The calibration setup: a Meta Quest 3 headset (center) and a large ArUco board with retroreflective markers affixed at its corners, placed within a motion capture volume. The board is simultaneously detected in the headset’s fisheye camera images and tracked in 3D by the mocap system. Our pipeline jointly estimates camera-to-mocap extrinsics and the board-to-marker transform from this data… view at source ↗
Figure 3
Figure 3. Figure 3: Calibration drift over repeated use. After an initial calibration, the headset is repeatedly donned and doffed, and the mocap markers are lightly perturbed to emulate real-world cap￾ture usage. Five intermediate verification recordings are evaluated with Lollypop. The pixel-domain and metric-domain RMSE both increase, indicating progressive calibration degradation. ification component, Lollypop, uses a sep… view at source ↗
Figure 4
Figure 4. Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Coordinate systems. A mocap system tracks a rigid body mounted to the calibration board, A(t). An ArUco solver estimates corner positions pi and the board transform Ttarget. Our calibration procedure solves for the headset extrinsics Yc and the transform between the mocap rigid body and the board transform, X. calibration step, and can be held fixed or used as a strong initialization. 3.2. Optimization Obj… view at source ↗
Figure 6
Figure 6. Figure 6: Lollypop verification in action. A fisheye camera im￾age with the detected ArUco board center (blue crosshair) and the mocap rigid body centroid projected through the calibration (red circle). When calibration is correct, the two markers coincide. but does not account for interactions between transforms. Using the best Procrustes initialization, a Gauss-Newton solver with Levenberg-Marquardt damping [14] m… view at source ↗
Figure 7
Figure 7. Figure 7: Spatial error heatmaps: high-quality vs. low-quality calibration on the same fisheye camera. Lollypop 2D reprojection error binned by image position and averaged within each bin. Color encodes per-bin mean error: green (< 0.5 px), yellow (0.5–1.5 px), red (1.5–3.0 px), magenta (> 3.0 px). The high-quality calibration (a) shows uniformly low error (green). The low-quality calibration (b) shows error at non-… view at source ↗
read the original abstract

Optical motion capture (mocap) systems are widely used for ground-truth capture in AR/VR, SLAM and robotics datasets. These datasets require extrinsic calibration to align mocap coordinates to external camera frames -- a step that is subject to multiple sources of error in practice, and failures often go undetected until they corrupt downstream data. These issues are compounded for fisheye cameras, where spatially non-uniform distortion makes both calibration and verification more challenging. We present a calibration and verification system designed for this setting. Concretely, we target robustness to board-to-marker attachment variation, optimization initialization ambiguity, and session-to-session calibration drift after deployment. The calibration jointly estimates camera extrinsics and the board-to-marker transform, and uses a staged solver to improve convergence reliability under ambiguous initialization. The verification component, \lollypop, provides fast, operator-independent assessment through a measurement chain entirely independent of the calibration data. In experiments on a Meta Quest 3 headset with fisheye cameras, our calibration outperforms existing benchwork, and lollypop reliably detects calibration degradation over time. The system has been deployed in production data collection pipelines.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript presents a calibration and verification system for aligning optical motion capture (mocap) coordinates with external camera frames, with emphasis on fisheye cameras in large-scale AR/VR and robotics data capture. The calibration jointly estimates camera extrinsics and the board-to-marker rigid transform via a staged solver intended to improve convergence under ambiguous initialization and attachment variation. The verification component, Lollypop, is described as using a measurement chain entirely independent of the calibration data to enable fast, operator-independent detection of session-to-session drift. Experiments on a Meta Quest 3 headset with fisheye cameras are claimed to show outperformance relative to existing benchwork methods, reliable degradation detection, and successful production deployment.

Significance. If the independence of the Lollypop chain and the quantitative superiority of the staged solver are substantiated, the work would address a practical pain point in producing high-quality ground-truth datasets for SLAM, robotics, and AR/VR. The production deployment provides evidence of real-world utility, and an independent verification method could reduce undetected calibration failures that corrupt downstream tasks.

major comments (3)
  1. [Abstract] Abstract: the central claims of outperformance over existing benchwork and reliable detection of calibration degradation are stated without any quantitative metrics, error bars, test protocol description, or dataset size, which prevents assessment of whether the staged solver and joint estimation deliver load-bearing improvements.
  2. [Lollypop verification description] Lollypop verification description: the claim that the measurement chain is 'entirely independent of the calibration data' is load-bearing for the verification contribution, yet the joint estimation of the board-to-marker transform creates a potential dependence on the same physical board/markers; no explicit decoupling (separate fiducial set, unknown-transform treatment during verification, or mechanical isolation) is shown to guarantee independence.
  3. [Staged solver section] Staged solver section: the robustness benefit under 'ambiguous initialization' and 'board-to-marker attachment variation' is asserted as a key advantage, but no ablation or coverage analysis demonstrates that the stages and termination criteria handle the full range of real-world fisheye attachment and initialization conditions described in the abstract.
minor comments (1)
  1. [Notation] Notation for rigid transforms (board-to-marker, camera extrinsics) should be defined once with consistent symbols and used uniformly to avoid reader confusion.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which help strengthen the presentation of our calibration and verification system. We address each major comment below with point-by-point responses and indicate where revisions have been made to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claims of outperformance over existing benchwork and reliable detection of calibration degradation are stated without any quantitative metrics, error bars, test protocol description, or dataset size, which prevents assessment of whether the staged solver and joint estimation deliver load-bearing improvements.

    Authors: We agree that the abstract would benefit from quantitative support to substantiate the claims. In the revised manuscript, we have updated the abstract to include key metrics such as the mean reduction in calibration error (with standard deviations and error bars), the number of trials and dataset sizes used, and a concise description of the experimental protocol. This allows readers to assess the improvements delivered by the staged solver and joint estimation. revision: yes

  2. Referee: [Lollypop verification description] Lollypop verification description: the claim that the measurement chain is 'entirely independent of the calibration data' is load-bearing for the verification contribution, yet the joint estimation of the board-to-marker transform creates a potential dependence on the same physical board/markers; no explicit decoupling (separate fiducial set, unknown-transform treatment during verification, or mechanical isolation) is shown to guarantee independence.

    Authors: We appreciate this clarification on the independence claim. The Lollypop verification employs a measurement chain that operates independently by using a distinct fiducial set and treating the board-to-marker transform as unknown during verification, combined with mechanical isolation in the physical setup to avoid any shared data or parameter dependencies from the calibration stage. We have expanded the Lollypop section in the revised manuscript to explicitly describe this decoupling and confirm independence from the calibration data and joint estimation outputs. revision: yes

  3. Referee: [Staged solver section] Staged solver section: the robustness benefit under 'ambiguous initialization' and 'board-to-marker attachment variation' is asserted as a key advantage, but no ablation or coverage analysis demonstrates that the stages and termination criteria handle the full range of real-world fisheye attachment and initialization conditions described in the abstract.

    Authors: We acknowledge that an explicit ablation study would provide stronger evidence for the staged solver's robustness claims. The original experiments demonstrate improved convergence under varied conditions, but to directly address the concern, we have added an ablation analysis in the revised manuscript. This covers a representative range of ambiguous initializations and attachment variations for fisheye cameras, including quantitative coverage metrics for the termination criteria, confirming reliable handling of the conditions outlined in the abstract. revision: yes

Circularity Check

0 steps flagged

No circularity: claims rest on design assertions rather than self-referential equations

full rationale

The paper asserts a joint estimation of camera extrinsics and board-to-marker transform plus a staged solver for robustness, and describes lollypop verification as using a measurement chain entirely independent of the calibration data. No equations, fitted parameters, or self-citations are exhibited that reduce any reported result or independence claim to its own inputs by construction. The independence assertion and convergence improvements are presented as engineering choices whose validity is tested experimentally rather than derived tautologically. This is a standard non-circular engineering paper whose central claims remain open to external falsification.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no equations or implementation details, so the ledger is empty; any free parameters or axioms would be visible only in the full manuscript.

pith-pipeline@v0.9.0 · 5510 in / 1263 out tokens · 71024 ms · 2026-05-09T21:25:02.525125+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

30 extracted references · 30 canonical work pages

  1. [1]

    Least-squares fitting of two 3-D point sets.IEEE TPAMI, (5):698–700, 1987

    K Somani Arun, Thomas S Huang, and Steven D Blostein. Least-squares fitting of two 3-D point sets.IEEE TPAMI, (5):698–700, 1987

    work page 1987

  2. [2]

    The EuRoC micro aerial vehicle datasets.Int

    Michael Burri, Janosch Nikolic, Pascal Gohl, Thomas Schneider, Joern Rehder, Sammy Omari, Markus W Achte- lik, and Roland Siegwart. The EuRoC micro aerial vehicle datasets.Int. J. Robotics Research, 35(10):1157–1163, 2016

    work page 2016

  3. [3]

    Camera rig extrinsic calibration using a mo- tion capture system
