pith. sign in

arxiv: 2604.22687 · v1 · submitted 2026-04-24 · ❄️ cond-mat.soft · cond-mat.mtrl-sci

Alterations in Conformations of Poly(3-hexylthiophene) on Au(111) Induced by Annealing

Anmol Arya , Fran\c{c}ois Vonau , Solomon L. Joseph , Thomas Pfohl , Silvia Siegenf\"uhr , Laurent Simon , G\"unter Reiter This is my paper

Pith reviewed 2026-05-08 09:21 UTC · model grok-4.3

classification ❄️ cond-mat.soft cond-mat.mtrl-sci
keywords poly(3-hexylthiophene)P3HTAu(111)polymer conformationsannealingscanning tunneling microscopysurface reconstructionherringbone pattern
0
0 comments X

The pith

Annealing lets P3HT chains on Au(111) either follow the surface herringbone pattern or cluster, depending on reconstruction regularity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that poly(3-hexylthiophene) chains deposited on reconstructed gold surfaces change their shapes when heated because thermal energy lets chain segments move across the energy barriers created by the surface corrugation. On regularly reconstructed areas the chains settle into the periodic low-energy valleys and copy the herringbone arrangement. On irregular areas the same heating instead causes many chains to bunch into clusters. This establishes temperature and the detailed topography of the substrate as two independent ways to steer single-molecule polymer arrangements.

Core claim

The conformations adopted by individual P3HT chains result from the interplay between the depth and regularity of the modulated potential on the reconstructed Au(111) surface and the thermal energy supplied by annealing. On a regularly reconstructed surface, annealing supplies enough energy for chain segments to reach the low-energy valleys, so the polymers replicate the herringbone pattern. On an irregularly reconstructed surface the disordered potential produces a mixture of coiled random-walk chains and collapsed chains; further annealing drives the formation of multi-chain clusters instead.

What carries the argument

The periodically or irregularly corrugated surface potential landscape of the reconstructed Au(111) surface, which sets the energy barriers that thermal energy must overcome for chain segments to reach low-energy positions.

If this is right

  • Annealing at sufficient temperature on regular reconstructions produces polymer chains whose shape directly copies the substrate herringbone pattern.
  • On irregular reconstructions the same annealing temperature instead induces clustering of many chains.
  • Without annealing, irregular surfaces produce a statistical mixture of coiled two-dimensional random walks and collapsed chains in troughs.
  • Substrate topography regularity and annealing temperature together function as independent control parameters for polymer conformation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same temperature-and-topography logic could be tested on other periodically corrugated surfaces to see whether the resulting chain statistics remain predictable.
  • Mapping how conformation changes with small increments in annealing temperature would give a direct experimental measure of the height of the surface energy barriers.
  • Because the paper treats the substrate potential as the dominant directing field, one could check whether deliberately engineered surface reconstructions produce still more complex or user-specified chain patterns.

Load-bearing premise

The observed changes in polymer shape are produced only by thermal energy acting on the substrate's potential landscape and are not dominated by artifacts from how the chains were deposited.

What would settle it

If annealing on a regularly reconstructed Au(111) surface leaves the polymers in random or collapsed shapes instead of ones that follow the herringbone pattern, the claim that thermal energy enables directed occupation of the surface valleys would be false.

Figures

Figures reproduced from arXiv: 2604.22687 by Anmol Arya, Fran\c{c}ois Vonau, G\"unter Reiter, Laurent Simon, Silvia Siegenf\"uhr, Solomon L. Joseph, Thomas Pfohl.

Figure 1
Figure 1. Figure 1: Schematic representation of a polymer chain confined on a corrugated surface. (a) As a reference, a polymer chain on a flat equipotential surface with a sequence of adsorption blobs of size 𝜉 and monomer size 𝑏. (b) 1D representation of the surface potential 𝑈(𝑥) (the red curve denotes a corrugated surface potential, while the gray line represents an equipotential surface). D is the corrugation width along… view at source ↗
Figure 2
Figure 2. Figure 2: Influence of Au (111) corrugation on polymer aggregation. view at source ↗
Figure 3

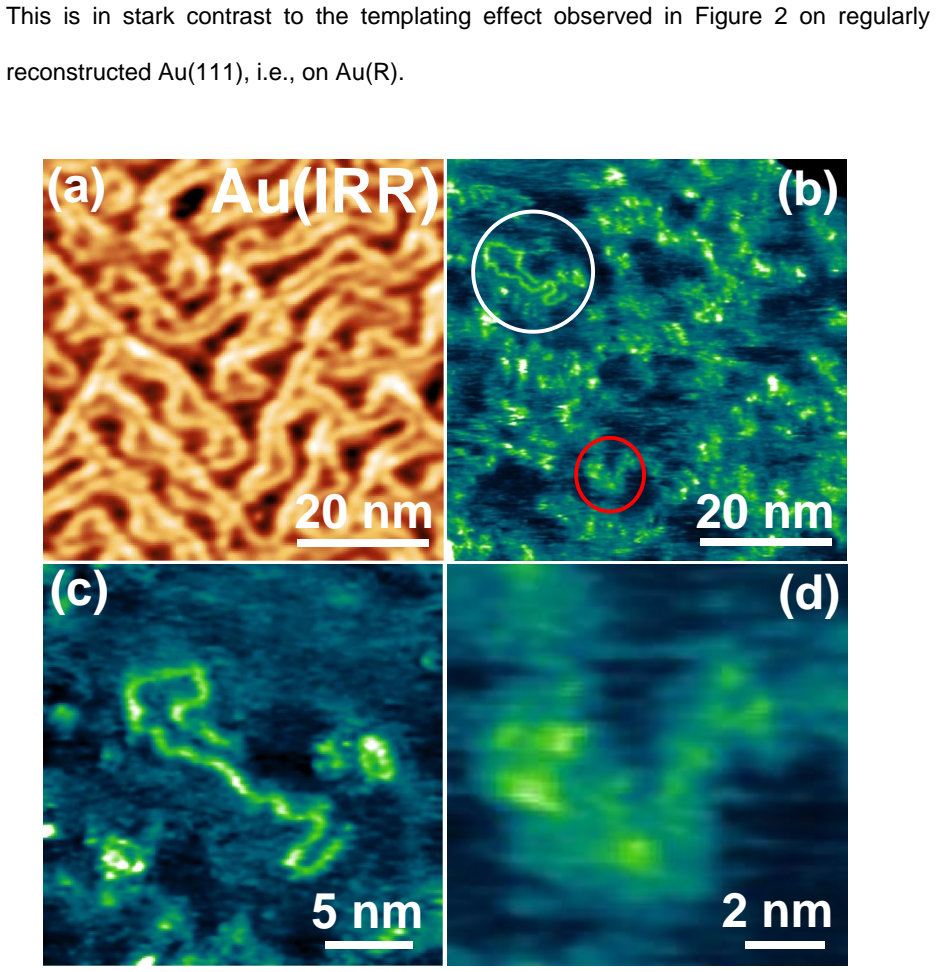

Figure 3. Figure 3: Influence of irregular corrugations on an Au(111) surface (Au(IRR)) on polymer conformations. (a) STM topography image of Au (111) with an irregular surface reconstruction before electrospray deposition. (b) Large-scale STM topography image on Au(IRR) after P3HT deposition, showing polymer chains in a 2D random conformations (white circle, see also (c)) and a collapsed state (red circle, see also (d)). The… view at source ↗
Figure 4
Figure 4. Figure 4: Thermal annealing resulted in aggregation of multiple P3HT chains. (a) STM topography image showing clusters consisting of multiple P3HT chains deposited on Au(R) after P3HT and annealed at 200 °C. The scale bar of 50 nm applies also to the inset, which reproduces view at source ↗
read the original abstract

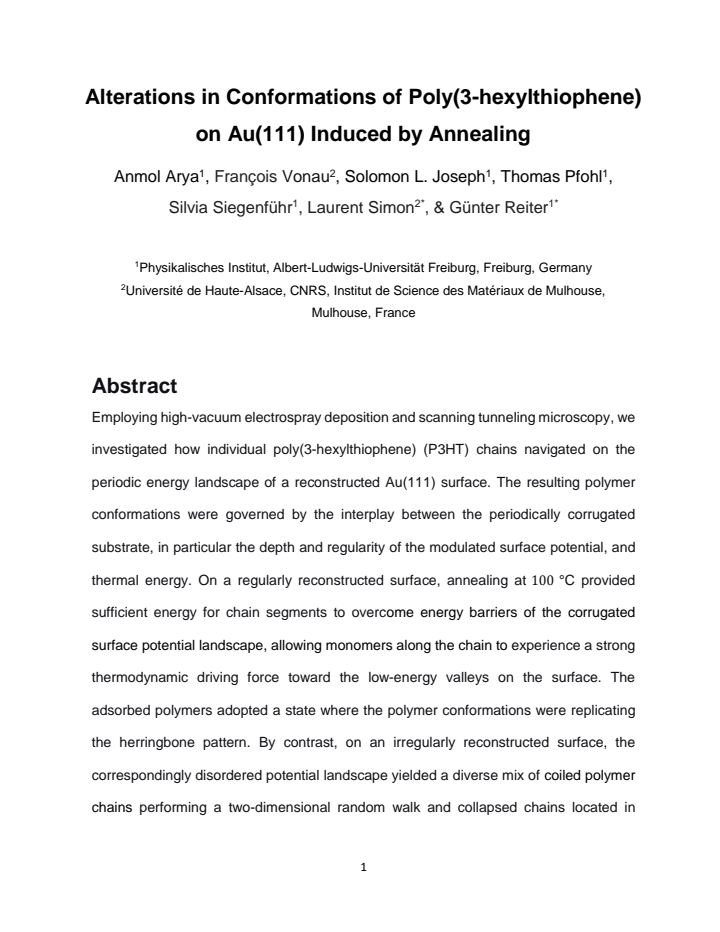

Employing high-vacuum electrospray deposition and scanning tunneling microscopy, we investigated how individual poly(3-hexylthiophene) (P3HT) chains navigated on the periodic energy landscape of a reconstructed Au(111) surface. The resulting polymer conformations were governed by the interplay between the periodically corrugated substrate, in particular the depth and regularity of the modulated surface potential, and thermal energy. On a regularly reconstructed surface, annealing at {\deg}C provided sufficient energy for chain segments to overcome energy barriers of the corrugated surface potential landscape, allowing monomers along the chain to experience a strong thermodynamic driving force toward the low-energy valleys on the surface. The adsorbed polymers adopted a state where the polymer conformations were replicating the herringbone pattern. By contrast, on an irregularly reconstructed surface, the correspondingly disordered potential landscape yielded a diverse mix of coiled polymer chains performing a two-dimensional random walk and collapsed chains located in troughs of the energy landscape. Intriguingly, annealing at {\deg}C forced polymers to form clusters of many chains. Our results establish that thermal energy and substrate topography represent control parameters for altering polymer conformations, providing a mechanistic framework for rationally designing polymer nanostructures at the molecular level.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript investigates the conformations of poly(3-hexylthiophene) (P3HT) chains on reconstructed Au(111) surfaces using high-vacuum electrospray deposition and scanning tunneling microscopy (STM). It reports that annealing allows chains to adopt conformations replicating the herringbone pattern on regularly reconstructed surfaces due to the periodic potential, while on irregularly reconstructed surfaces, chains exhibit random walks, collapse in troughs, or form clusters. The authors propose that thermal energy and substrate topography serve as control parameters for polymer conformations, offering a framework for designing molecular-level nanostructures.

Significance. If substantiated, these findings highlight how surface reconstructions and annealing can direct polymer chain arrangements at the nanoscale. This has potential significance for controlling morphology in organic thin films and devices, where chain conformation affects charge transport and assembly. The direct STM visualization provides compelling qualitative support for the role of surface potential landscapes in polymer adsorption and dynamics.

major comments (2)
  1. Abstract: The mechanistic interpretation that annealing provides sufficient thermal energy for chains to overcome energy barriers of the corrugated surface potential is central but unsupported by quantitative estimates. No values for energy barriers, thermal energy (kT), or chain statistics (e.g., persistence length or end-to-end distances from STM images) are given to demonstrate the effect size or statistical significance of the observed changes.
  2. Results (comparison of regular vs. irregular surfaces): The claim distinguishing behaviors on regular (herringbone replication) and irregular (random walk/clustering) surfaces relies on qualitative image descriptions. Without reported criteria for classifying surfaces as regular/irregular or metrics quantifying conformation differences across multiple chains, the generality and reproducibility of the findings are difficult to evaluate.
minor comments (2)
  1. Abstract: The annealing temperatures are denoted as '{%deg}C', which appears to be a placeholder or LaTeX error and should be replaced with numerical values (e.g., 150°C) for clarity and to allow assessment of the relevant energy scales.
  2. Abstract and Methods: Ensure that all experimental parameters, such as deposition conditions and STM imaging settings, are consistently detailed in the main text to support reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed comments, which have prompted us to strengthen the quantitative aspects and clarity of our manuscript. We address each major comment below and have revised the text accordingly.

read point-by-point responses

  1. Referee: Abstract: The mechanistic interpretation that annealing provides sufficient thermal energy for chains to overcome energy barriers of the corrugated surface potential is central but unsupported by quantitative estimates. No values for energy barriers, thermal energy (kT), or chain statistics (e.g., persistence length or end-to-end distances from STM images) are given to demonstrate the effect size or statistical significance of the observed changes.

    Authors: We agree that the mechanistic claim benefits from quantitative context. In the revised manuscript we have added an explicit comparison of thermal energy kT at the annealing temperatures used with estimated barriers for segmental motion on Au(111), drawing on the temperature threshold at which conformational changes are observed. We have also included statistical measures of chain conformation (persistence length and end-to-end distance) obtained by direct measurement from the STM images of multiple chains, thereby providing an indication of the magnitude of the observed changes. revision: yes

  2. Referee: Results (comparison of regular vs. irregular surfaces): The claim distinguishing behaviors on regular (herringbone replication) and irregular (random walk/clustering) surfaces relies on qualitative image descriptions. Without reported criteria for classifying surfaces as regular/irregular or metrics quantifying conformation differences across multiple chains, the generality and reproducibility of the findings are difficult to evaluate.

    Authors: We accept that clearer classification criteria and quantitative metrics improve reproducibility. The revised Results section now defines the criteria used to label a surface as regularly versus irregularly reconstructed (based on the spatial uniformity and periodicity of the herringbone corrugation in large-scale STM scans). We additionally report averaged conformational metrics (e.g., fraction of chains exhibiting herringbone replication versus random-walk or clustered states) compiled across multiple independent depositions and chains, allowing a more objective comparison between the two surface types. revision: yes

Circularity Check

0 steps flagged

No significant circularity in observational experimental study

full rationale

This paper is a purely observational experimental study relying on high-vacuum electrospray deposition and STM imaging to document P3HT chain conformations on Au(111) before and after annealing. No mathematical derivations, equations, fitted parameters, or predictions appear in the abstract or described content. The central claim—that thermal energy and substrate topography control conformations via the surface potential landscape—is presented as a direct interpretation of the pre/post-anneal images (herringbone replication on regular surfaces vs. random walks/clustering on irregular ones), without any reduction to self-defined inputs, self-citations, or ansatzes. The experimental design is standard and the outcomes are reported as empirical observations rather than derived results.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work relies on standard domain assumptions in surface science such as the existence of a modulated potential on reconstructed Au(111) and the role of thermal activation over energy barriers; no free parameters are introduced and no new entities are postulated.

pith-pipeline@v0.9.0 · 5548 in / 1102 out tokens · 59218 ms · 2026-05-08T09:21:02.006928+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

45 extracted references · 45 canonical work pages

  1. [1]

    S., Yimer, Y

    Bhatta, R. S., Yimer, Y. Y., Tsige, M. & Perry, D. S. Conformations and torsional potentials of poly(3- hexylthiophene) oligomers: Density functional calculations up to the dodecamer. Computational and Theoretical Chemistry 995, 36–42 (2012)

    work page 2012

  2. [2]

    & Alimi, K

    Khlaifia, D., Chemek, M. & Alimi, K. DFT/TDDFT approach: an incredible success story in prediction of organic materials properties for photovoltaic application. (2020)

    work page 2020

  3. [3]

    Thorley, K. J. & Nielsen, C. B. Conformational Analysis of Conjugated Organic Materials: What Are My Heteroatoms Really Doing? ChemPlusChem 89, e202300773 (2024)

    work page 2024

  4. [4]

    & Tretiak, S

    Zhugayevych, A., Mazaleva, O., Naumov, A. & Tretiak, S. Lowest-Energy Crystalline Polymorphs of P3HT. J. Phys. Chem. C 122, 9141–9151 (2018)

    work page 2018

  5. [5]

    & Meille, S

    Casalegno, M., Famulari, A. & Meille, S. V. Modeling of Poly(3-hexylthiophene) and Its Oligomer’s Structure and Thermal Behavior with Different Force Fields: Insights into the Phase Transitions of Semiconducting Polymers. Macromolecules 55, 2398–2412 (2022)

    work page 2022

  6. [6]

    Raithel, D., Simine, L., Pickel, S., Schötz, K., Panzer, F., Baderschneider, S., Schiefer, D., Lohwasser, R., Köhler, J., Thelakkat, M., Sommer, M., Köhler, A., Rossky, P. J. & Hildner, R. Direct observation of backbone planarization via side-chain alignment in single bulky-substituted polythiophenes. Proc. Natl. Acad. Sci. U.S.A. 115, 2699–2704 (2018)

    work page 2018

  7. [7]

    K., Zhu, J

    Yan, X., Xiong, M., Deng, X.-Y., Liu, K.-K., Li, J.-T., Wang, X.-Q., Zhang, S., Prine, N., Zhang, Z., Huang, W., Wang, Y., Wang, J.-Y., Gu, X., So, S. K., Zhu, J. & Lei, T. Approaching disorder-tolerant semiconducting polymers. Nat Commun 12, 5723 (2021)

    work page 2021

  8. [8]

    L., Schopp, N., Nanayakkara, S., Chaney, T

    Sabury, S., Jones, A. L., Schopp, N., Nanayakkara, S., Chaney, T. P., Coropceanu, V., Marder, S. R., Toney, M. F., Brédas, J.-L., Nguyen, T.-Q. & Reynolds, J. R. Manipulating Backbone Planarity of Ester Functionalized Conjugated Polymer Constitutional Isomer Derivatives Blended with Molecular Acceptors for Controlling Photovoltaic Properties. Chem. Mater....

    work page 2024

  9. [9]

    T., Brunsfeld, M., Parrish, R

    Sutton, C., Körzdörfer, T., Gray, M. T., Brunsfeld, M., Parrish, R. M., Sherrill, C. D., Sears, J. S. & Brédas, J.-L. Accurate description of torsion potentials in conjugated polymers using density functionals with reduced self-interaction error. The Journal of Chemical Physics 140, 054310 (2014)

    work page 2014

  10. [10]

    & Famulari, A

    Baggioli, A. & Famulari, A. On the inter-ring torsion potential of regioregular P3HT: a first principles reexamination with explicit side chains. Phys. Chem. Chem. Phys. 16, 3983 (2014)

    work page 2014

  11. [11]

    Building a Torsional Potential between Thiophene Rings to Illustrate the Basics of Molecular Modeling

    Torras, J. Building a Torsional Potential between Thiophene Rings to Illustrate the Basics of Molecular Modeling. J. Chem. Educ. 100, 395–401 (2023). S-28

    work page 2023

  12. [12]

    A., Cline, L

    Perkins, M. A., Cline, L. M. & Tschumper, G. S. Torsional Profiles of Thiophene and Furan Oligomers: Probing the Effects of Heterogeneity and Chain Length. J. Phys. Chem. A 125, 6228–6237 (2021)

    work page 2021

  13. [13]

    & Gekle, S

    Pantawane, S. & Gekle, S. Temperature-Dependent Conformation Behavior of Isolated Poly(3- hexylthiopene) Chains. Polymers 14, 550 (2022)

    work page 2022

  14. [14]

    D., McClure, S

    Mackie, I. D., McClure, S. A. & DiLabio, G. A. Binding in Thiophene and Benzothiophene Dimers Investigated By Density Functional Theory with Dispersion-Correcting Potentials. J. Phys. Chem. A 113, 5476–5484 (2009)

    work page 2009

  15. [15]

    & Azumi, R

    Tsuzuki, S., Honda, K. & Azumi, R. Model Chemistry Calculations of Thiophene Dimer Interactions: Origin of π-Stacking. J. Am. Chem. Soc. 124, 12200–12209 (2002)

    work page 2002

  16. [16]

    Gupta, S., Chatterjee, S., Zolnierczuk, P., Nesterov, E. E. & Schneider, G. J. Impact of Local Stiffness on Entropy Driven Microscopic Dynamics of Polythiophene. Sci Rep 10, 9966 (2020)

    work page 2020

  17. [17]

    & Cao, Y

    Liang, J., Ouyang, X. & Cao, Y. Interfacial and confined molecular-assembly of poly(3- hexylthiophene) and its application in organic electronic devices. Science and Technology of Advanced Materials 23, 619–632 (2022)

    work page 2022

  18. [18]

    & Janke, W

    Förster, S., Kohl, E., Ivanov, M., Gross, J., Widdra, W. & Janke, W. Polymer adsorption on reconstructed Au(001): A statistical description of P3HT by scanning tunneling microscopy and coarse-grained Monte Carlo simulations. The Journal of Chemical Physics 141, 164701 (2014)

    work page 2014

  19. [19]

    & Daoulas, K

    Greco, C., Melnyk, A., Kremer, K., Andrienko, D. & Daoulas, K. Ch. Generic Model for Lamellar Self- Assembly in Conjugated Polymers: Linking Mesoscopic Morphology and Charge Transport in P3HT. Macromolecules 52, 968–981 (2019)

    work page 2019

  20. [20]

    M., Toennies, J

    Harten, U., Lahee, A. M., Toennies, J. P. & Wöll, Ch. Observation of a Soliton Reconstruction of Au(111) by High-Resolution Helium-Atom Diffraction. Phys. Rev. Lett. 54, 2619–2622 (1985)

    work page 1985

  21. [21]

    V., Brune, H., Ertl, G

    Barth, J. V., Brune, H., Ertl, G. & Behm, R. J. Scanning tunneling microscopy observations on the reconstructed Au(111) surface: Atomic structure, long-range superstructure, rotational domains, and surface defects. Phys. Rev. B 42, 9307–9318 (1990)

    work page 1990

  22. [22]

    Carter, C. B. & Hwang, R. Q. Dislocations and the reconstruction of (111) fcc metal surfaces. Phys. Rev. B 51, 4730–4733 (1995)

    work page 1995

  23. [23]

    Bartelt, N. C. & Thürmer, K. Structure and energetics of the elbows in the Au(111) herringbone reconstruction. Phys. Rev. B 104, (2021)

    work page 2021

  24. [24]

    & Meyer, E

    Hinaut, A., Scherb, S., Yao, X., Liu, Z., Song, Y., Moser, L., Marot, L., Müllen, K., Glatzel, T., Narita, A. & Meyer, E. Stable Au(111) Hexagonal Reconstruction Induced by Perchlorinated Nanographene Molecules. J. Phys. Chem. C 128, 18894–18900 (2024). S-29

    work page 2024

  25. [25]

    & Massobrio, C

    Bulou, H. & Massobrio, C. New Atomic Mechanism of Preferential Nucleation on the Herringbone Reconstruction of Au(111). J. Phys. Chem. C 112, 8743–8746 (2008)

    work page 2008

  26. [26]

    & Palleschi, A

    Ripani, G., Flachmüller, A., Peter, C. & Palleschi, A. Coarse-Grained Simulation of the Adsorption of Water on Au(111) Surfaces Using a Modified Stillinger–Weber Potential. ACS Omega 5, 31055– 31059 (2020)

    work page 2020

  27. [27]

    S., Foglio, S., Siviero, F., Li Bassi, A., Passoni, M

    Casari, C. S., Foglio, S., Siviero, F., Li Bassi, A., Passoni, M. & Bottani, C. E. Direct observation of the basic mechanisms of Pd island nucleation on Au(111). Phys. Rev. B 79, (2009)

    work page 2009

  28. [28]

    & Car, R

    Böhringer, M., Morgenstern, K., Schneider, W.-D., Berndt, R., Mauri, F., De Vita, A. & Car, R. Two- Dimensional Self-Assembly of Supramolecular Clusters and Chains. Phys. Rev. Lett. 83, 324–327 (1999)

    work page 1999

  29. [29]

    & Barth, J

    Clair, S., Pons, S., Brune, H., Kern, K. & Barth, J. V. Mesoscopic Metallosupramolecular Texturing by Hierarchic Assembly. Angew Chem Int Ed 44, 7294–7297 (2005)

    work page 2005

  30. [30]

    M., Lai, K

    Spurgeon, P. M., Lai, K. C., Han, Y., Evans, J. W. & Thiel, P. A. Fundamentals of Au(111) Surface Dynamics: Coarsening of Two-Dimensional Au Islands. J. Phys. Chem. C 124, 7492–7499 (2020)

    work page 2020

  31. [31]

    & Ding, F

    Li, P. & Ding, F. Origin of the herringbone reconstruction of Au(111) surface at the atomic scale. Sci. Adv. 8, eabq2900 (2022)

    work page 2022

  32. [32]

    M., Rousset, S

    Repain, V., Berroir, J. M., Rousset, S. & Lecoeur, J. Reconstruction, step edges and self-organization on the Auž111/ surface. (2000)

    work page 2000

  33. [33]

    & Datta, P

    Kowalczyk, P., Kozlowski, W., Klusek, Z., Olejniczak, W. & Datta, P. K. STM studies of the reconstructed Au(111) thin-film at elevated temperatures. Applied Surface Science 253, 4715–4720 (2007)

    work page 2007

  34. [34]

    & Hara, M

    Noh, J., Ito, E., Nakajima, K., Kim, J., Lee, H. & Hara, M. High-Resolution STM and XPS Studies of Thiophene Self-Assembled Monolayers on Au(111). J. Phys. Chem. B 106, 7139–7141 (2002)

    work page 2002

  35. [35]

    & Hoffmann, R

    Tachibana, M., Yoshizawa, K., Ogawa, A., Fujimoto, H. & Hoffmann, R. Sulfur−Gold Orbital Interactions which Determine the Structure of Alkanethiolate/Au(111) Self-Assembled Monolayer Systems. J. Phys. Chem. B 106, 12727–12736 (2002)

    work page 2002

  36. [36]

    & Lee, Y.-L

    Liu, Y.-F., Krug, K. & Lee, Y.-L. Self-organization of two-dimensional poly(3-hexylthiophene) crystals on Au(111) surfaces. Nanoscale 5, 7936 (2013)

    work page 2013

  37. [37]

    & Grévin, B

    Scifo, L., Dubois, M., Brun, M., Rannou, P., Latil, S., Rubio, A. & Grévin, B. Probing the Electronic Properties of Self-Organized Poly(3-dodecylthiophene) Monolayers by Two-Dimensional Scanning Tunneling Spectroscopy Imaging at the Single Chain Scale. Nano Lett. 6, 1711–1718 (2006). S-30

    work page 2006

  38. [38]

    A., Dvorak, J., Jirsak, T., Liu, G., Hrbek, J., Aray, Y

    Rodriguez, J. A., Dvorak, J., Jirsak, T., Liu, G., Hrbek, J., Aray, Y. & González, C. Coverage Effects and the Nature of the Metal−Sulfur Bond in S/Au(111): High-Resolution Photoemission and Density- Functional Studies. J. Am. Chem. Soc. 125, 276–285 (2003)

    work page 2003

  39. [39]

    & Groß, A

    Tonigold, K. & Groß, A. Adsorption of small aromatic molecules on the (111) surfaces of noble metals: A density functional theory study with semiempirical corrections for dispersion effects. The Journal of Chemical Physics 132, 224701 (2010)

    work page 2010

  40. [40]

    & Mizutani, T

    Yamamoto, K., Ochiai, S., Wang, X., Uchida, Y., Kojima, K., Ohashi, A. & Mizutani, T. Evaluation of molecular orientation and alignment of poly(3-hexylthiophene) on Au (111) and on poly(4- vinylphenol) surfaces. Thin Solid Films 516, 2695–2699 (2008)

    work page 2008

  41. [41]

    & Csonka, G

    Adhikari, S., Tang, H., Neupane, B., Ruzsinszky, A. & Csonka, G. I. Molecule-surface interaction from van der Waals-corrected semilocal density functionals: The example of thiophene on transition- metal surfaces. Phys. Rev. Materials 4, 025005 (2020)

    work page 2020

  42. [42]

    & Colby, R

    Rubinstein, M. & Colby, R. H. Polymer Physics. (Oxford University Press, Oxford, 2023)

    work page 2023

  43. [43]

    Takeuchi, N., Chan, C. T. & Ho, K. M. Au(111): A theoretical study of the surface reconstruction and the surface electronic structure. Phys. Rev. B 43, 13899–13906 (1991)

    work page 1991

  44. [44]

    & Seki, K

    Kanai, K., Miyazaki, T., Suzuki, H., Inaba, M., Ouchi, Y. & Seki, K. Effect of annealing on the electronic structure of poly(3-hexylthiophene) thin film. Physical Chemistry Chemical Physics 12, 273–282 (2010)

    work page 2010

  45. [45]

    E., Jensen, S

    Baber, A. E., Jensen, S. C., Iski, E. V. & Sykes, E. C. H. Extraordinary Atomic Mobility of Au{111} at 80 Kelvin: Effect of Styrene Adsorption. J. Am. Chem. Soc. 128, 15384–15385 (2006)

    work page 2006
