arxiv: 2604.23658 · v1 · submitted 2026-04-26 · 💻 cs.AR · cs.AI· cs.LG

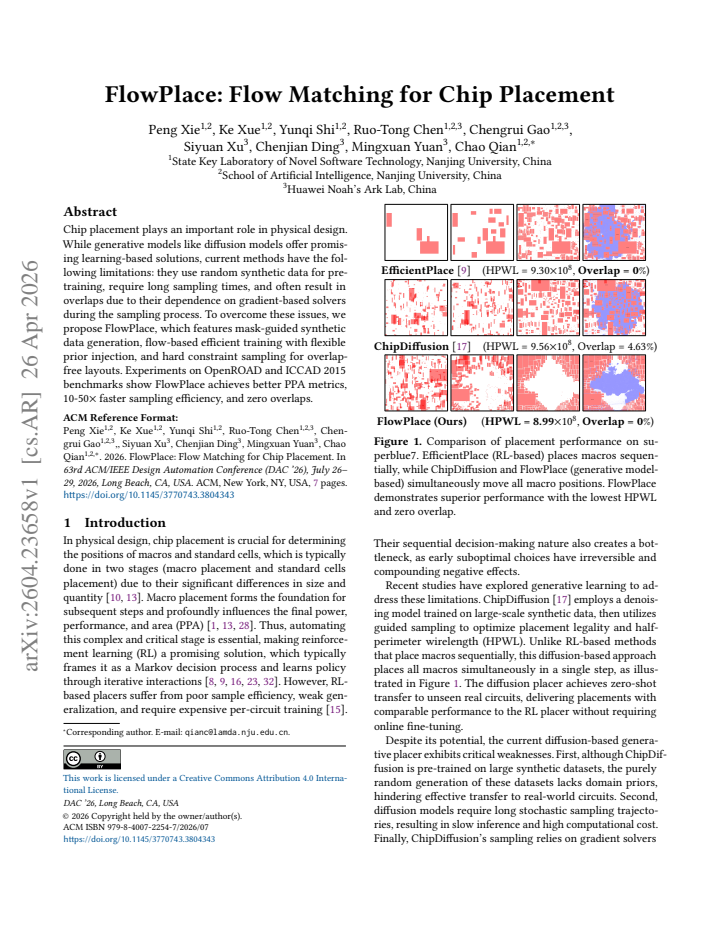

FlowPlace: Flow Matching for Chip Placement

Peng Xie , Ke Xue , Yunqi Shi , Ruo-Tong Chen , Chengrui Gao , Siyuan Xu , Chenjian Ding , Mingxuan Yuan
show 1 more author
Chao Qian
This is my paper

Pith reviewed 2026-05-08 05:03 UTC · model grok-4.3

classification 💻 cs.AR cs.AIcs.LG
keywords chip placementflow matchinggenerative modelsphysical designEDAPPA optimizationoverlap-free layoutsmask-guided synthesis
0
0 comments X

The pith

FlowPlace applies flow matching to chip placement to deliver overlap-free layouts with superior PPA metrics and 10-50 times faster sampling than diffusion models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents FlowPlace as a generative approach that replaces diffusion models for the chip placement task in physical design. It generates training data through mask guidance rather than random synthesis, trains via flow matching that accepts flexible priors, and applies hard constraints during sampling to enforce validity. On standard OpenROAD and ICCAD 2015 benchmarks this produces placements with improved power-performance-area scores, eliminates overlaps, and reduces sampling time by one to two orders of magnitude.

Core claim

FlowPlace shows that flow matching, when paired with mask-guided synthetic data generation and hard-constraint sampling, can directly produce valid chip placements that improve PPA metrics while running 10-50 times faster than prior generative baselines and guaranteeing zero cell overlaps.

What carries the argument

Flow matching, which learns a continuous vector field that transports samples from a flexible prior distribution to the target distribution of legal placements.

If this is right

  • Placements satisfy hard legality constraints without post-processing or gradient-based repair steps.
  • Sampling time drops by 10-50x compared with diffusion-model baselines, enabling more placement candidates to be evaluated inside a fixed time budget.
  • PPA metrics improve on both OpenROAD and ICCAD 2015 suites relative to prior generative methods.
  • The same trained model can accept different prior distributions at inference time without retraining.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The hard-constraint sampling mechanism could be adapted to other geometric layout problems that require strict non-overlap rules.
  • Because flow matching supports flexible priors, the method might allow designers to inject domain-specific starting points such as partial manual floorplans.
  • Faster sampling opens the possibility of coupling the placer inside an inner optimization loop that jointly tunes cell sizing and routing congestion.

Load-bearing premise

That the combination of mask-guided data and hard-constraint sampling during inference will continue to yield high-quality, overlap-free placements when the method is applied to industrial-scale designs beyond the tested benchmarks.

What would settle it

Running FlowPlace on a new large-scale netlist and observing either cell overlaps greater than zero or PPA metrics worse than the best diffusion-based or traditional placers on that netlist.

Figures

Figures reproduced from arXiv: 2604.23658 by Chao Qian, Chengrui Gao, Chenjian Ding, Ke Xue, Mingxuan Yuan, Peng Xie, Ruo-Tong Chen, Siyuan Xu, Yunqi Shi.

Figure 1

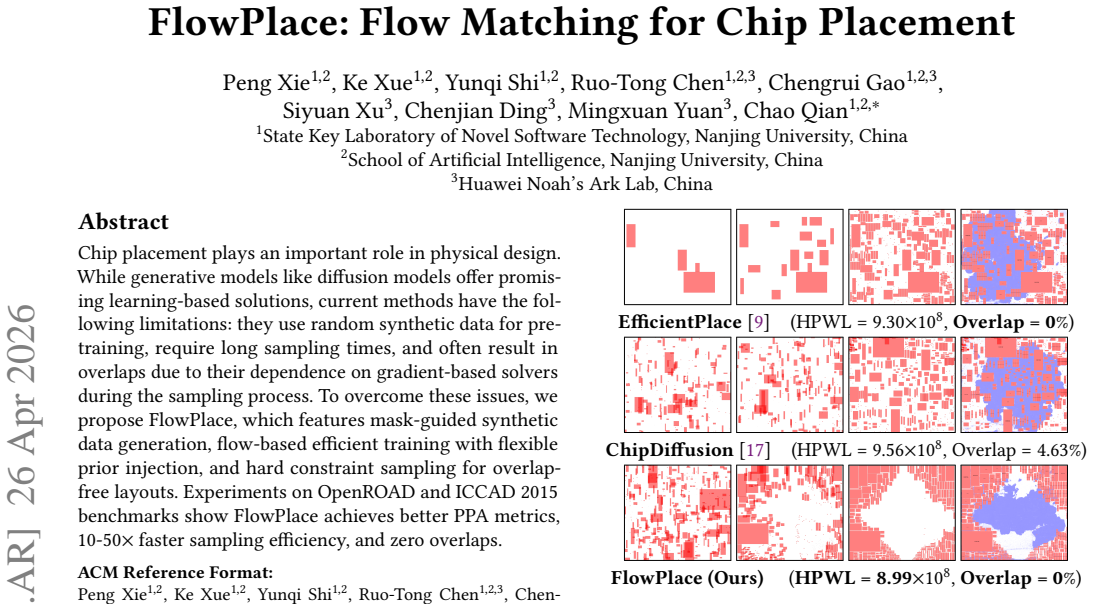

Figure 1. Figure 1: Comparison of placement performance on su￾perblue7. EfficientPlace (RL-based) places macros sequen￾tially, while ChipDiffusion and FlowPlace (generative model￾based) simultaneously move all macro positions. FlowPlace demonstrates superior performance with the lowest HPWL and zero overlap. Their sequential decision-making nature also creates a bot￾tleneck, as early suboptimal choices have irreversible and c… view at source ↗
Figure 2
Figure 2. Figure 2: Progressive constraint enforcement process of hard constraint guided sampling. For clarity, we only show one movable macro 𝐴. 20-50 steps, compared to the requirement of 1000 steps in ChipDiffusion [17]. 3.3 Hard Constraint Guided Sampling While the learned flow model generates placements effi￾ciently, it does not inherently guarantee hard constraints such as non-overlap. ChipDiffusion [17] addresses this … view at source ↗
Figure 3
Figure 3. Figure 3: Placement layouts and congestion visualization on superblue1. Red points are the congestion critical regions. These results underscore FlowPlace’s generalization capabil￾ity and practical value in realistic design settings. 4.2 Additional Results Visualization Analysis view at source ↗
read the original abstract

Chip placement plays an important role in physical design. While generative models like diffusion models offer promising learning-based solutions, current methods have the following limitations: they use random synthetic data for pre-training, require long sampling times, and often result in overlaps due to their dependence on gradient-based solvers during the sampling process. To overcome these issues, we propose FlowPlace, which features mask-guided synthetic data generation, flow-based efficient training with flexible prior injection, and hard constraint sampling for overlap-free layouts. Experiments on OpenROAD and ICCAD 2015 benchmarks show FlowPlace achieves better PPA metrics, 10-50$\times$ faster sampling efficiency, and zero overlaps.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes FlowPlace, a flow-matching generative model for chip placement. It addresses limitations of diffusion models by introducing mask-guided synthetic data generation for pre-training, flow-based training with flexible prior injection, and hard-constraint sampling during inference to enforce overlap-free layouts. Experiments on OpenROAD and ICCAD 2015 benchmarks are reported to yield improved PPA metrics, 10-50× faster sampling, and zero overlaps relative to prior generative approaches.

Significance. If the empirical claims hold under scrutiny, the work could advance learning-based physical design by improving sampling efficiency and hard-constraint satisfaction in generative placement models. Flow matching combined with explicit constraint handling offers a promising direction for EDA automation, though its practical significance hinges on whether the method scales beyond the small academic benchmarks tested and preserves quality under industrial netlist complexity.

major comments (3)
  1. [§4 (Experiments)] §4 (Experiments): the central PPA, speed, and zero-overlap claims rest on benchmark results that lack error bars, ablation studies isolating the mask-guided data generation and hard-constraint components, and any description of how hard constraints are enforced inside the flow ODE without degrading the reported metrics or introducing instability.
  2. [§3 (Method)] §3 (Method): no equations, pseudocode, or derivation details are supplied for the hard-constraint sampling procedure or the mask-guided data generation process; without these it is impossible to verify that the claimed 10-50× sampling speedup is preserved once constraints are applied or that the approach is free of hidden fitting parameters.
  3. [§5 (Discussion/Conclusion)] §5 (Discussion/Conclusion): the generalization argument from OpenROAD/ICCAD 2015 benchmarks to industrial designs is unsupported; no evidence is given that the flow ODE remains stable or that constraint enforcement preserves quality when routing, timing, and heterogeneous constraints absent from the tested netlists are introduced.
minor comments (2)
  1. [Abstract and §2] Abstract and §2: the term 'flexible prior injection' is used without a concise definition or reference to the relevant flow-matching literature, which may hinder readers outside the immediate subfield.
  2. [Figures/Tables] Figure captions and tables: several result tables lack units or baseline method versions, making direct comparison of the 10-50× speedup claim difficult.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment below with specific plans for revision where the manuscript can be strengthened, while providing honest clarification on points that require additional context from our work.

read point-by-point responses

  1. Referee: [§4 (Experiments)] the central PPA, speed, and zero-overlap claims rest on benchmark results that lack error bars, ablation studies isolating the mask-guided data generation and hard-constraint components, and any description of how hard constraints are enforced inside the flow ODE without degrading the reported metrics or introducing instability.

    Authors: We agree that the experimental section would benefit from greater statistical rigor and isolation of components. In the revised manuscript we will add error bars computed across multiple random seeds for all PPA, runtime, and overlap metrics. We will also include new ablation tables that separately disable mask-guided data generation and hard-constraint sampling to quantify their individual contributions. For the hard-constraint enforcement inside the flow ODE, we will add a dedicated paragraph in §4 explaining the post-integration projection step, together with empirical timing and stability measurements confirming that the 10-50× speedup is retained and no additional instability is introduced. revision: yes

  2. Referee: [§3 (Method)] no equations, pseudocode, or derivation details are supplied for the hard-constraint sampling procedure or the mask-guided data generation process; without these it is impossible to verify that the claimed 10-50× sampling speedup is preserved once constraints are applied or that the approach is free of hidden fitting parameters.

    Authors: We acknowledge the omission of formal details in the method section. The revised §3 will contain the complete mathematical formulation of the mask-guided data generation process (including the mask construction equations and the resulting training objective) as well as the derivation of flexible prior injection in the flow-matching framework. For hard-constraint sampling we will insert the full algorithm in pseudocode and a short derivation showing that the constraint is realized by a single non-iterative projection after each ODE step; this projection adds negligible overhead, thereby preserving the reported speedup and introducing no additional tunable parameters beyond those already stated. revision: yes

  3. Referee: [§5 (Discussion/Conclusion)] the generalization argument from OpenROAD/ICCAD 2015 benchmarks to industrial designs is unsupported; no evidence is given that the flow ODE remains stable or that constraint enforcement preserves quality when routing, timing, and heterogeneous constraints absent from the tested netlists are introduced.

    Authors: We agree that the current evaluation is limited to academic benchmarks and does not constitute direct evidence of industrial-scale generalization. In the revised Discussion we will explicitly delineate these limitations, discuss the potential impact of additional routing, timing, and heterogeneous constraints on ODE stability, and report any observed stability metrics from our existing experiments. Full validation on proprietary industrial netlists lies outside the scope of this work; we will therefore frame the generalization claim more cautiously while highlighting the method’s design choices that aim to support future scaling. revision: partial

Circularity Check

0 steps flagged

No circularity; empirical results on external benchmarks with no derivation chain

full rationale

The paper proposes FlowPlace as a flow-matching approach with mask-guided synthetic data, flexible prior injection, and hard-constraint sampling. All performance claims (better PPA, 10-50x faster sampling, zero overlaps) are presented as direct experimental outcomes on the OpenROAD and ICCAD 2015 benchmarks. No equations, first-principles derivations, fitted-parameter predictions, or self-citation chains are described that would reduce any result to its own inputs by construction. The method is therefore self-contained against external benchmarks rather than internally tautological.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the assumption that flow matching can be adapted to discrete placement constraints and that synthetic data generated with masks is sufficiently representative; no free parameters or invented entities are explicitly named in the abstract.

axioms (2)
  • domain assumption Flow matching can be trained on mask-guided synthetic placement data to produce valid layouts
    Invoked implicitly when claiming efficient training and overlap-free sampling
  • domain assumption Hard constraint sampling during inference enforces zero overlaps without harming PPA metrics
    Central to the zero-overlap claim but not derived or proven in the abstract
