Symmetry-Guided Design of Quantum Couplers in Dirac materials: AA-Bilayer Graphene Coupler

Petr \v{C}ervenka , V\'it Jakubsk\'y This is my paper

Pith reviewed 2026-05-08 05:16 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall quant-ph
keywords quantum couplerAA-bilayer grapheneKlein tunnelingpolarization controlarmchair nanoribbonsDirac materialsexternal field tuninginterlayer interaction
0
0 comments X

The pith

AA-stacked bilayer graphene nanoribbons enable quantum couplers that achieve perfect transmission of polarized states via Klein tunneling while external fields finely tune the polarization.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a theoretical framework for quantum couplers in Dirac materials that modulate quasiparticle polarization without strongly disrupting their propagation paths. It examines the symmetry conditions needed for perfect transmission through Klein tunneling together with controlled polarization transformation. An explicit model uses AA-stacked bilayer graphene nanoribbons with armchair edges and a localized interlayer interaction. The work demonstrates that transmission through desired polarization channels remains perfect for both narrow and wide couplers and can be adjusted by external fields.

Core claim

We develop a theoretical framework for designing quantum couplers based on Dirac materials that can modulate the polarization of transmitted quasiparticles without significantly perturbing their propagation. We analyze in detail the conditions required for perfect transmission (Klein tunneling) together with controlled polarization transformation of the incoming states. We then discuss an explicit model of a quantum coupler composed of AA-stacked bilayer graphene nanoribbons with armchair edges and a localized interlayer interaction. Perfect transmission through the desired polarization channels is examined for both narrow and wide couplers. We show that the transmission of polarized states

What carries the argument

Localized interlayer interaction in AA-stacked armchair graphene nanoribbons that maintains the symmetry conditions for Klein tunneling while permitting external-field control over polarization channels.

If this is right

  • Perfect transmission holds through chosen polarization channels in both narrow and wide coupler geometries.
  • Controlled polarization transformation accompanies the perfect transmission.
  • External fields provide continuous fine tuning of transmission for specific polarized states.
  • The symmetry-based design extends in principle to other Dirac materials for similar coupler applications.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Integration of these couplers into larger graphene circuits could allow manipulation of pseudospin or valley degrees of freedom in quantum information devices.
  • The requirement for perfect armchair edges implies that fabrication methods preserving edge termination will determine practical performance.
  • Adding weak disorder to the model would test how robust the polarization tuning remains against realistic imperfections.

Load-bearing premise

The analysis assumes an idealized localized interlayer interaction and perfect armchair nanoribbon edges that enable the required symmetry conditions for Klein tunneling without disorder or edge scattering effects.

What would settle it

Fabrication and measurement of AA-bilayer graphene nanoribbon devices showing either loss of perfect transmission or inability of external fields to finely tune polarized-state transmission would falsify the central claims.

Figures

Figures reproduced from arXiv: 2604.23759 by Petr \v{C}ervenka, V\'it Jakubsk\'y.

Figure 1
Figure 1. Figure 1: Our goal is to analyze the situations where the coupler provides lossless to either upper or view at source ↗
Figure 2

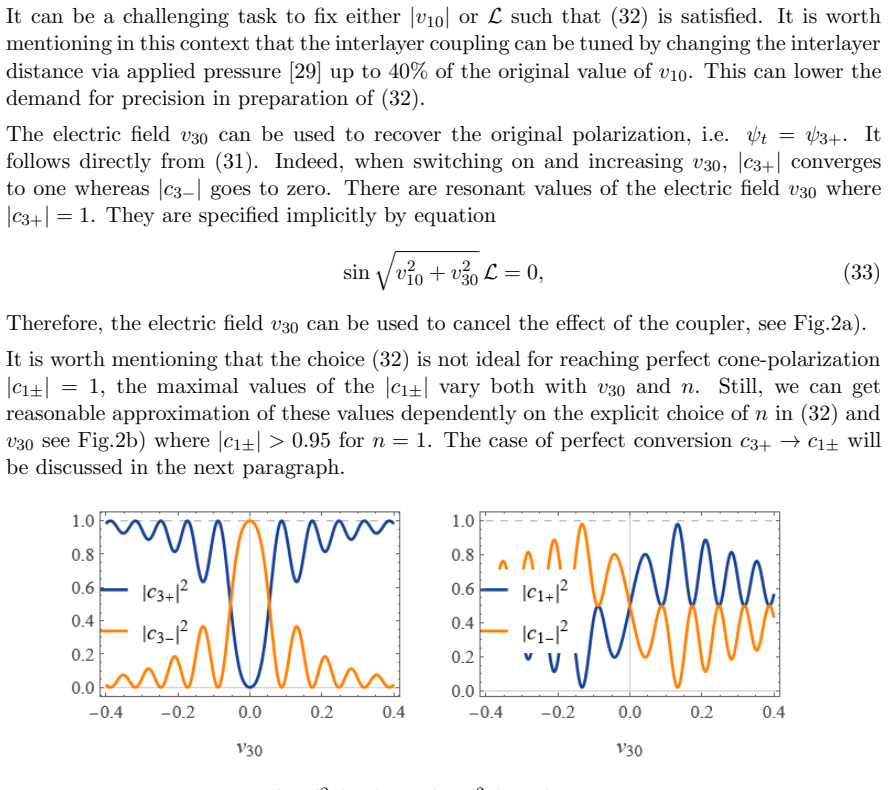

Figure 2. Figure 2: Polarization coefficients |c3±| 2 (left) and |c1±| 2 (right) in dependence on the electric field v30. We fixed |v10| = 0.1, n = 1 that corresponds to L ∼ 47.12. • Layer-cone-polarization converter: The coupler can be set such that it converts layer polarized states into cone-polarized ones. Let us have layer polarized state ψin = 1 √ 2 (1, 0) ⊗ (1, 1) e ikx (34) We fix t = (2n + 1)π cos γ 2L , v30 = (2n + … view at source ↗

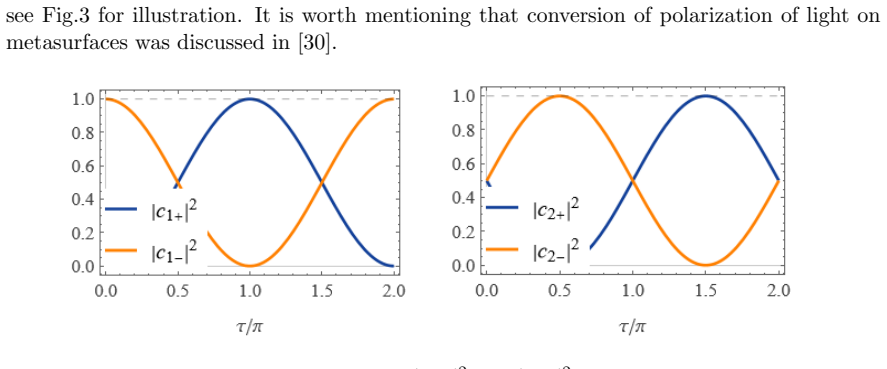

Figure 3
Figure 3. Figure 3: Oscillation of polarization coefficients view at source ↗
Figure 4

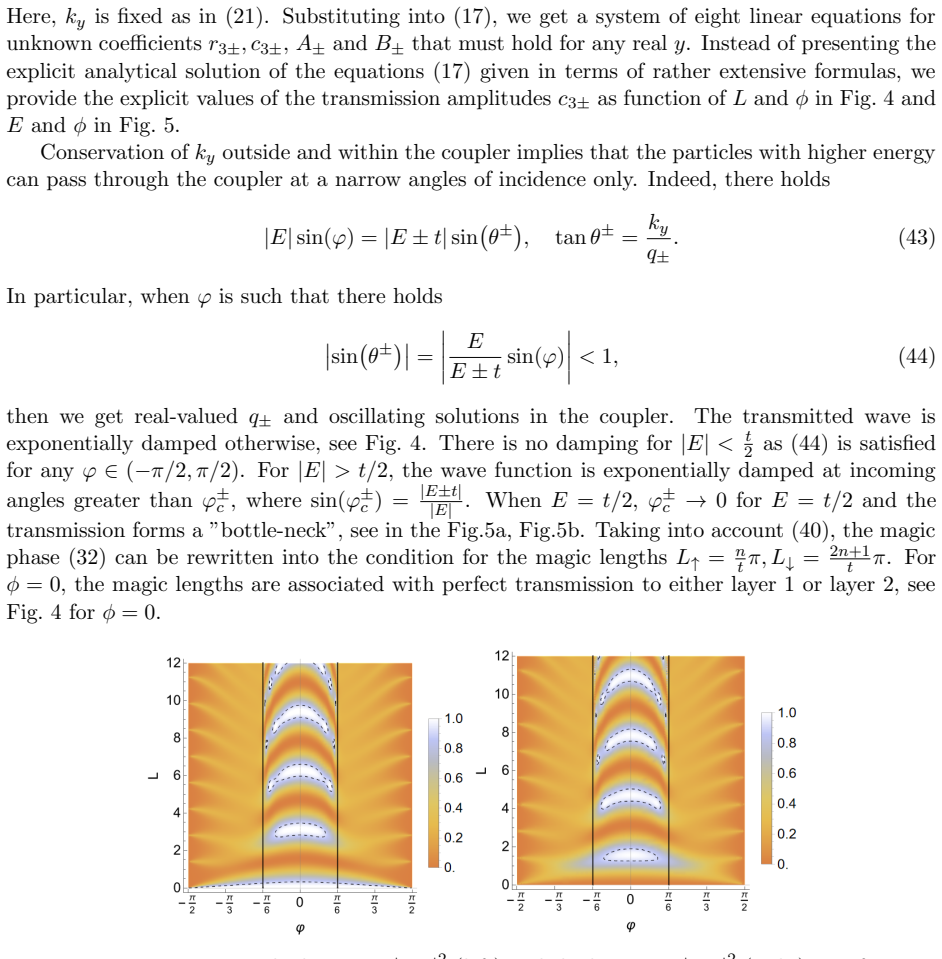

Figure 4. Figure 4: Transmission on the layer one view at source ↗
Figure 5

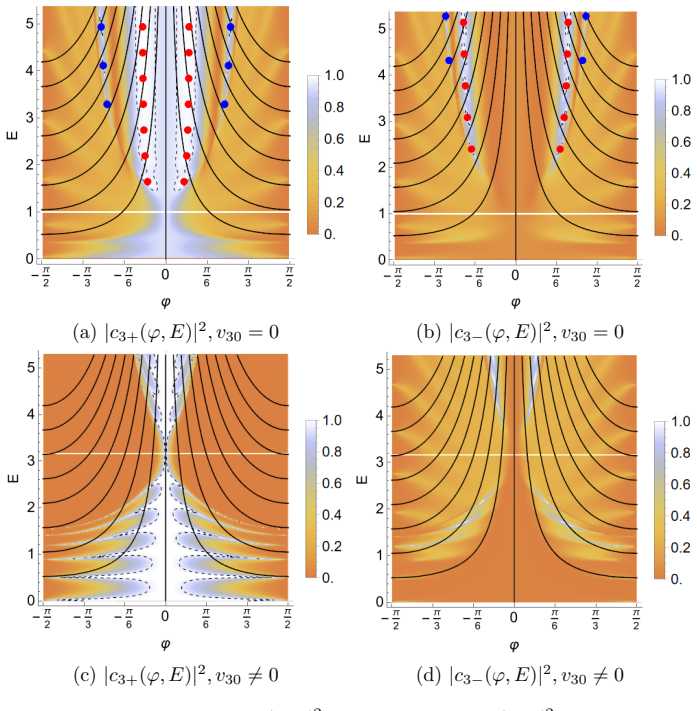

Figure 5. Figure 5: Transmission on the layer one |c3+| 2 and the layer two |c3−| 2 as a function of the energy E with v30 = 0 (upper line) and with v30 ̸= 0 (lower line). We set W = L = 6, t = 1, v30 = 3. The white line indicates E = p v 2 30 + t 2. The white area between dashed curves has transmission greater than 95%. Red points have l = 2, blue points have l = 3, see (46) and (47). The solid black lines are incidence angl… view at source ↗
Figure 6
Figure 6. Figure 6: The conductance of AA bilayer coupler with semiconducting AC edges . The parameter view at source ↗
read the original abstract

We develop a theoretical framework for designing quantum couplers based on Dirac materials that can modulate the polarization of transmitted quasiparticles without significantly perturbing their propagation. We analyze in detail the conditions required for perfect transmission (Klein tunneling) together with controlled polarization transformation of the incoming states. We then discuss an explicit model of a quantum coupler composed of AA-stacked bilayer graphene nanoribbons with armchair edges and a localized interlayer interaction. Perfect transmission through the desired polarization channels is examined for both narrow and wide couplers. We show that the transmission of polarized states can be finely tuned by external fields.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript develops a theoretical framework for designing quantum couplers in Dirac materials, with an explicit model of an AA-stacked bilayer graphene nanoribbon coupler featuring armchair edges and a localized interlayer interaction. It derives conditions for perfect Klein tunneling combined with controlled polarization transformation of incoming quasiparticles and demonstrates that external fields can finely tune transmission through desired polarization channels for both narrow and wide couplers.

Significance. If the results hold, the work offers a symmetry-based route to tunable polarization control in graphene and related Dirac systems while preserving perfect transmission, which could inform designs for valleytronic or quantum information devices. The explicit treatment of narrow versus wide couplers and the use of established Dirac properties without ad-hoc fitting parameters are strengths. The idealized assumptions, however, constrain the practical significance until robustness is addressed.

major comments (1)
  1. [explicit model of the quantum coupler] The central claim that external fields finely tune polarized-state transmission while maintaining perfect Klein tunneling rests on the preservation of valley and sublattice symmetries. This requires perfect armchair nanoribbon edges and strictly localized (delta-function) interlayer coupling. The manuscript provides no quantitative estimates or perturbation analysis showing how small edge roughness or finite-range coupling would lift degeneracies or open backscattering channels that mix polarization components and eliminate continuous tunability. This assumption is load-bearing for the tunability result.
minor comments (1)
  1. [Abstract] The abstract states that perfect transmission is examined for narrow and wide couplers but does not define the width thresholds or report the corresponding transmission probabilities or polarization rotation angles.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive comments. We address the major comment below and indicate the revisions we will make.

read point-by-point responses

  1. Referee: The central claim that external fields finely tune polarized-state transmission while maintaining perfect Klein tunneling rests on the preservation of valley and sublattice symmetries. This requires perfect armchair nanoribbon edges and strictly localized (delta-function) interlayer coupling. The manuscript provides no quantitative estimates or perturbation analysis showing how small edge roughness or finite-range coupling would lift degeneracies or open backscattering channels that mix polarization components and eliminate continuous tunability. This assumption is load-bearing for the tunability result.

    Authors: We agree that the tunability and perfect transmission results rely on the idealized symmetries of perfect armchair edges and delta-function interlayer coupling. The manuscript presents an explicit model to demonstrate the symmetry-guided design principle in the ideal case. We acknowledge the absence of quantitative perturbation analysis for edge roughness or finite-range coupling. In the revised manuscript we will add a dedicated paragraph in the discussion section providing a qualitative symmetry-based analysis. This will explain that weak perturbations preserving approximate valley and sublattice symmetries open only higher-order backscattering channels, so that continuous tunability via external fields remains approximately intact. A full quantitative treatment with specific disorder models lies beyond the scope of the present theoretical framework. revision: partial

Circularity Check

0 steps flagged

Symmetry-based derivation of polarization-tunable Klein tunneling in AA-bilayer graphene couplers is self-contained.

full rationale

The paper constructs its central claims from the Dirac-Weyl Hamiltonian applied to armchair nanoribbons with localized interlayer coupling, using standard symmetry arguments for valley and sublattice preservation that enable perfect transmission. No equation or result reduces by construction to a fitted parameter, self-citation chain, or renamed input; external-field tuning follows directly from the model without statistical forcing. The analysis is independent of the authors' prior outputs and rests on externally verifiable properties of graphene Dirac cones.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard properties of Dirac fermions and graphene symmetry plus a small number of model-specific parameters for interlayer coupling and external fields; no new entities are postulated.

free parameters (2)
  • localized interlayer interaction strength
    Parameter controlling the coupling between layers in the nanoribbon model, required to define the coupler Hamiltonian.
  • external field amplitudes
    Tunable parameters used to adjust transmission probabilities for different polarization channels.
axioms (2)
  • domain assumption Klein tunneling enables perfect transmission at normal incidence in Dirac materials.
    Invoked to establish the perfect transmission condition alongside polarization transformation.
  • domain assumption AA-stacking and armchair edges preserve the symmetries needed for controlled polarization channels.
    Basis for the symmetry-guided design of the coupler.
