arxiv: 2604.23884 · v1 · submitted 2026-04-26 · ❄️ cond-mat.mtrl-sci

Optical Properties of Indium-Gallium-Oxide Microcrystalline Alloy Films: From the Visible to the Deep-UV

HM Borhanul Alam , Dipak Oli , You Qiang , Bisheswor Acharya , Jesse Huso , Matthew D. McCluskey , Leah Bergman This is my paper

Pith reviewed 2026-05-08 05:45 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords (In_xGa_{1-x})_2O_3optical gapUrbach energyphase separationself-trapped holephotoluminescencealloy filmsdeep UV
0
0 comments X

The pith

Saturation of the optical gap and self-trapped hole emission in (In_xGa_{1-x})_2O_3 films indicates incipient phase separation at x ~ 0.3

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper measures how transmission, Urbach energies, and self-trapped hole photoluminescence evolve with indium fraction x in microcrystalline (In_xGa_{1-x})_2O_3 films. The optical gap redshifts by 1 eV up to x = 0.46, but both the gap and the STH emission saturate earlier, while Urbach energies rise sharply; these trends are interpreted as the start of phase separation at x ~ 0.3, before the two distinct gaps appear at x = 0.63. The same Urbach trend is compared to Mg_xZn_{1-x}O, where the indium-gallium system shows markedly larger values attributed to stronger hole-phonon coupling. A sympathetic reader would care because the result identifies a composition limit below which the alloy remains homogeneous enough for controlled UV optical tuning.

Core claim

Up to x = 0.46 the optical gap redshifts 1 eV and STH PL redshifts 0.5 eV; at x = 0.63 transmission spectra show two gaps from Ga-rich and In-rich domains. Saturation of both gap and STH PL, together with the Urbach-energy trend, places incipient phase separation at x ~ 0.3. This early segregation acts as a major defect source even before full separation. Urbach energies in (In_xGa_{1-x})_2O_3 exceed those of Mg_xZn_{1-x}O because of stronger hole-phonon coupling that adds a dynamic transition channel beyond defect scattering.

What carries the argument

Saturation behavior of the optical gap and STH PL emission, tracked together with Urbach-energy composition dependence, to locate the onset of phase separation.

If this is right

  • Phase segregation becomes a significant source of defects in these alloys already at indium fractions near 0.3.
  • The usable range for homogeneous optical tuning extends only to x = 0.46 before full two-gap behavior sets in.
  • Urbach tails grow markedly once composition exceeds the incipient-separation threshold.
  • Hole-phonon coupling is stronger in the indium-gallium oxide system than in MgZnO, producing larger absorption tails at every composition.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Processing routes that suppress early segregation could push the practical composition limit higher than x = 0.3.
  • The optical saturation method may serve as a quick diagnostic for incipient separation in other wide-gap oxide alloys.
  • Device modeling should include an additional Urbach-tail loss channel that activates at modest indium content.

Load-bearing premise

The saturation observed in optical gap and STH PL is produced by incipient phase separation rather than composition fluctuations, interface effects, or changes in defect populations.

What would settle it

Direct structural measurement (XRD or TEM) that finds separate Ga-rich and In-rich domains appearing at x approximately 0.3 would support the claim; their absence until x much closer to 0.63 would falsify the interpretation of the saturation as incipient separation.

Figures

Figures reproduced from arXiv: 2604.23884 by Bisheswor Acharya, Dipak Oli, HM Borhanul Alam, Jesse Huso, Leah Bergman, Matthew D. McCluskey, You Qiang.

Figure 1
Figure 1. Figure 1: The normalized transmission spectra for the two end members of the alloy: Ga2O3, and In2O3, as well as for the alloys of composition: x = 0.075, 0.19, 0.31, 0.39, and 0.46 view at source ↗
Figure 5
Figure 5. Figure 5: It can be seen in Figure 5 that view at source ↗

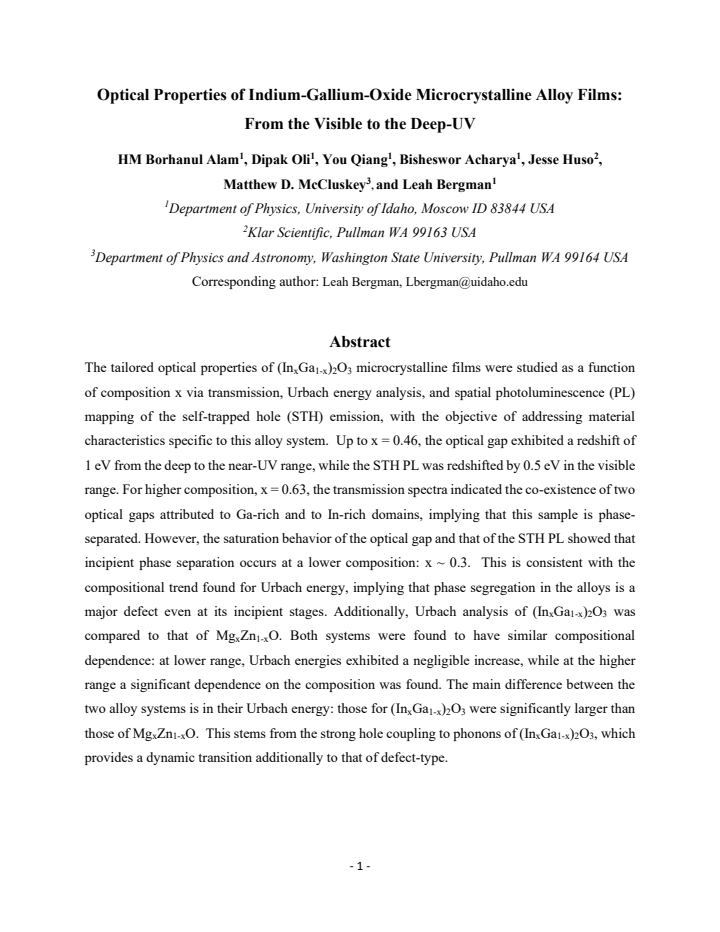

read the original abstract

The tailored optical properties of $(In_xGa_{1-x})_2O_3$ microcrystalline films were studied as a function of composition x via transmission, Urbach energy analysis, and spatial photoluminescence (PL) mapping of the self-trapped hole (STH) emission, with the objective of addressing material characteristics specific to this alloy system. Up to x = 0.46, the optical gap exhibited a redshift of 1 eV from the deep to the near-UV range, while the STH PL was redshifted by 0.5 eV in the visible range. For higher composition, x = 0.63, the transmission spectra indicated the co-existence of two optical gaps attributed to Ga-rich and to In-rich domains, implying that this sample is phase-separated. However, the saturation behavior of the optical gap and that of the STH PL showed that incipient phase separation occurs at a lower composition: x ~ 0.3. This is consistent with the compositional trend found for Urbach energy, implying that phase segregation in the alloys is a major defect even at its incipient stages. Additionally, Urbach analysis of $(In_xGa_{1-x})_2O_3$ was compared to that of $Mg_xZn_{1-x}O$. Both systems were found to have similar compositional dependence: at lower range, Urbach energies exhibited a negligible increase, while at the higher range a significant dependence on the composition was found. The main difference between the two alloy systems is in their Urbach energy: those for $(In_xGa_{1-x})_2O_3$ were significantly larger than those of $Mg_xZn_{1-x}O$. This stems from the strong hole coupling to phonons of $(In_xGa_{1-x})_2O_3$, which provides a dynamic transition additionally to that of defect-type.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports experimental optical characterization of (In_x Ga_{1-x})_2 O_3 microcrystalline films via transmission spectroscopy, Urbach energy extraction, and spatial mapping of self-trapped hole (STH) photoluminescence. It documents a ~1 eV redshift in the optical gap up to x=0.46 and a 0.5 eV redshift in STH PL, with transmission spectra at x=0.63 showing two distinct gaps attributed to Ga-rich and In-rich domains. The authors infer incipient phase separation at x~0.3 from saturation in both the optical gap and STH PL energies, noting consistency with the compositional trend in Urbach energy; they further compare Urbach energies to Mg_x Zn_{1-x} O and attribute the larger values in the InGaO system to enhanced hole-phonon coupling.

Significance. If the phase-separation interpretation is confirmed, the work provides valuable optical benchmarks for alloy design in wide-bandgap oxides relevant to deep-UV applications. The transmission and PL datasets directly support the reported redshifts, and the side-by-side Urbach comparison between alloy families is a useful addition. The absence of structural data, however, limits the robustness of the central inference about incipient phase separation.

major comments (2)
  1. [Abstract and Results/Discussion] Abstract and implied Results section: the inference that saturation of the optical gap and STH PL at x~0.3 signals incipient phase separation (rather than nonlinear band bowing, composition fluctuations, increased defect densities, or Urbach-tail pinning) is load-bearing for the claim that 'phase segregation ... is a major defect even at its incipient stages,' yet rests solely on optical trends without corroborating XRD, TEM, or local composition mapping at intermediate x.
  2. [Urbach energy analysis] Urbach energy comparison: the statement that Urbach energies in (In_x Ga_{1-x})_2 O_3 are 'significantly larger' than in Mg_x Zn_{1-x} O 'stems from the strong hole coupling to phonons' is presented without quantitative support (e.g., Fröhlich constants, calculated phonon spectra, or temperature-dependent linewidth data), weakening the mechanistic attribution and the cross-system comparison.
minor comments (2)
  1. [Figures] Include error bars, number of samples, and statistical measures in all plots of optical gap, PL peak energy, and Urbach energy versus x so that the claimed saturation at x~0.3 and the Urbach upturn can be quantitatively assessed.
  2. [Methods/Experimental] Clarify the precise definition and fitting range used for the optical gap (e.g., Tauc plot or absorption-edge threshold) and for the Urbach energy extraction to allow reproducibility.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the careful and constructive review of our manuscript. We address each major comment point by point below, providing the strongest honest defense of the work while acknowledging limitations. Revisions have been made where the comments identify areas needing clarification or qualification.

read point-by-point responses

  1. Referee: [Abstract and Results/Discussion] Abstract and implied Results section: the inference that saturation of the optical gap and STH PL at x~0.3 signals incipient phase separation (rather than nonlinear band bowing, composition fluctuations, increased defect densities, or Urbach-tail pinning) is load-bearing for the claim that 'phase segregation ... is a major defect even at its incipient stages,' yet rests solely on optical trends without corroborating XRD, TEM, or local composition mapping at intermediate x.

    Authors: We acknowledge that the central inference of incipient phase separation at x ~ 0.3 rests on optical data: saturation of both the optical gap and STH PL redshift, consistency with the Urbach energy increase, and the clear observation of two distinct gaps in transmission at x = 0.63. These trends are difficult to explain by simple band bowing or uniform defect increase alone, as the redshift plateaus rather than continuing linearly. However, we agree that without XRD, TEM, or local mapping at intermediate x, alternative mechanisms cannot be fully excluded and the claim is less robust. In revision we will rephrase the abstract and discussion to present the phase-separation interpretation as an inference supported by the optical signatures, while explicitly noting the lack of structural confirmation and identifying it as a limitation. This qualifies the language without removing the optical evidence. revision: partial

  2. Referee: [Urbach energy analysis] Urbach energy comparison: the statement that Urbach energies in (In_x Ga_{1-x})_2 O_3 are 'significantly larger' than in Mg_x Zn_{1-x} O 'stems from the strong hole coupling to phonons' is presented without quantitative support (e.g., Fröhlich constants, calculated phonon spectra, or temperature-dependent linewidth data), weakening the mechanistic attribution and the cross-system comparison.

    Authors: We agree that the mechanistic attribution to stronger hole-phonon coupling is stated without supporting quantitative data such as Fröhlich constants or temperature-dependent measurements. The manuscript reports an empirical observation that Urbach energies are larger in the (In,Ga)2O3 system than in MgZnO while showing similar compositional dependence. In the revised manuscript we will remove the unsubstantiated causal claim, retain the comparative Urbach data as an experimental result, and note that the difference may relate to phonon coupling or other disorder sources but requires further study (e.g., temperature-dependent linewidths) to confirm. This change avoids overinterpretation while preserving the cross-system comparison. revision: yes

standing simulated objections not resolved
  • Direct structural characterization (XRD, TEM, or local composition mapping) at intermediate compositions to confirm the onset of phase separation.

Circularity Check

0 steps flagged

No circularity: purely experimental observations and trends with no derivations or self-referential reductions.

full rationale

The manuscript reports direct experimental data from transmission spectra, Urbach analysis, and STH PL mapping on (In_xGa_{1-x})_2O_3 films. Saturation of the optical gap and PL redshift at x~0.3 is presented as an observational inference for incipient phase separation, cross-checked against the Urbach energy compositional trend; the larger Urbach values relative to MgZnO are attributed to hole-phonon coupling as an interpretive statement. No equations, fitted parameters renamed as predictions, self-citations of uniqueness theorems, or ansatzes appear. All claims rest on measured spectra and external literature comparisons rather than any chain that reduces to the paper's own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

No free parameters or invented entities are introduced; the claims rest on standard assumptions of optical spectroscopy.

axioms (2)
  • domain assumption Urbach tail is exponential and its energy quantifies disorder from defects or phonons
    Invoked when comparing Urbach energies between the two alloy systems.
  • domain assumption Observed PL band is correctly assigned to self-trapped hole emission
    Used to interpret the 0.5 eV redshift and its saturation behavior.

pith-pipeline@v0.9.0 · 5685 in / 1404 out tokens · 92411 ms · 2026-05-08T05:45:32.136456+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

30 extracted references · 30 canonical work pages

  1. [1]

    Peelaers, D

    H. Peelaers, D. Steiauf, J. B. Varley, A. Janotti, and C. G. Van De Walle, Phys. Rev. B 92, 085206 (2015)

    work page 2015

  2. [2]

    J. B. Varley, A. Janotti, C. Franchini, and C. G. Van De Walle, Phys. Rev. B 85, 081109 (2012)

    work page 2012

  3. [3]

    H. Deng, K. J. Leedle, Y . Miao, D. S. Black, K. E. Urbanek, J. McNeur, M. Kozák, A. Ceballos, P. Hommelhoff, O. Solgaard, R. L. Byer, and J. S. Harris, Advanced Optical Materials 8, 1901522 (2020)

    work page 2020

  4. [4]

    Domènech-Gil, S

    G. Domènech-Gil, S. Barth, J. Samà, P. Pellegrino, I. Gràcia, C. Cané, and A. Romano - Rodriguez, Sensors and Actuators B: Chemical 238, 447 (2017)

    work page 2017

  5. [5]

    Liang, Y

    Q. Liang, Y . Guo, H. Chen, M. Fan, N. Bai, X. Zou, and G. -D. Li, Sensors and Actuators B: Chemical 350, 130864 (2022)

    work page 2022

  6. [6]

    Schaefer, M

    S. Schaefer, M. Smeaton, K. Egbo, S. Hasan, W. Callahan, G. Teeter, A. Zakutayev, and M.-B. Tellekamp, Appl. Phys. Lett. 125, 172106 (2024)

    work page 2024

  7. [7]

    Chang, I.-P

    C-W. Chang, I.-P. Liu, P.-C. Yao, K.-W. Lin, W.-C. Hsu, and W.-C. Liu, Sensors and Actuators B: Chemical 393, 134240 (2023)

    work page 2023

  8. [8]

    D. D. Edwards, P. E. Folkins, and T. O. Mason, Journal of the American Ceramic Society 80, 253 (1997)

    work page 1997

  9. [9]

    Thapa, J

    D. Thapa, J. Lapp, I. Lukman, and L. Bergman, AIP Advances 11, 125022 (2021)

    work page 2021

  10. [10]

    Shirbeeny and W

    W. Shirbeeny and W. E. Mahmoud, Sensors and Actuators B: Chemical 191, 102 (2014)

    work page 2014

  11. [11]

    Alhalaili, R

    B. Alhalaili, R. J. Bunk, H. Mao, H. Cansizoglu, R. Vidu, J. Woodall, and M. S. Islam, Sci Rep 10, 21434 (2020)

    work page 2020

  12. [12]

    A. V . Almaev, E. V . Chernikov, N. A. Davletkildeev, and D. V . Sokolov, Superlattices and Microstructures 139, 106392 (2020). - 13 -

    work page 2020

  13. [13]

    Thapa, J

    D. Thapa, J. Huso, H. Che, M. Huso, J. L. Morrison, D. Gutierrez, M. Grant Norton, and L. Bergman, Applied Physics Letters 102, 191902 (2013)

    work page 2013

  14. [14]

    Zhang, K

    F. Zhang, K. Saito, T. Tanaka, M. Nishio, and Q. Guo, Solid State Communications 186, 28 (2014)

    work page 2014

  15. [15]

    Kokubun, T

    Y . Kokubun, T. Abe, and S. Nakagomi, Physica Status Solidi A 207, 1741 (2010)

    work page 2010

  16. [16]

    J. E. N. Swallow, R. G. Palgrave, P. A. E. Murgatroyd, M. Lorenz, A. Hassa, M. Grundmann, J. B. Varley, and T. D. Veal, Applied Materials & Interfaces 13, 2807 (2021)

    work page 2021

  17. [17]

    Oshima and S

    T. Oshima and S. Fujita, Phys. Status Solidi C 5, 3113 (2008)

    work page 2008

  18. [18]

    B. E. Chalker, Journal of Theoretical Biology 84, 205 (1980)

    work page 1980

  19. [19]

    Thapa, J

    D. Thapa, J. Huso, J. Lapp, N. Rajabi, J. L. Morrison, M. D. McCluskey, and L. Bergman, J Mater Sci: Mater Electron 29, 16782 (2018)

    work page 2018

  20. [20]

    Walsh, J

    A. Walsh, J. L. F. Da Silva, S -H. Wei, C. Körber, A. Klein, L. F. J. Piper, A. DeMasi, K. E. Smith, G. Panaccione, P. Torelli, D. J. Payne, A. Bourlange, and R. G. Egdell, Phys. Rev. Lett. 100, 167402 (2008)

    work page 2008

  21. [21]

    Irmscher, M

    K. Irmscher, M. Naumann, M. Pietsch, Z. Galazka, R. Uecker, T. Schulz, R. Schewski, M. Albrecht, and R. Fornari, Phys. Status Solidi A 211, 54 (2014)

    work page 2014

  22. [22]

    T. He, P. Ehrhart, and P. Meuffels, Journal of Applied Physics 79, 3219 (1996)

    work page 1996

  23. [23]

    J. Huso, H. Che, D. Thapa, A. Canul, M. D. McCluskey, and L. Bergman, Journal of Applied Physics 117, 125702 (2015)

    work page 2015

  24. [24]

    S. Hao, M. Hetzl, V . F. Kunzelmann, S. Matich, Q. Sai, C. Xia, I. D. Sharp, and M. Stutzmann, Applied Physics Letters 116, 092102 (2020)

    work page 2020

  25. [25]

    Sumi and Y

    H. Sumi and Y . Toyozawa, Journal of the Physical Society of Japan 31, 342 (1971)

    work page 1971

  26. [26]

    Lukman and L

    I. Lukman and L. Bergman, Physica Status Solidi B 261, 2300590 (2024). - 14 -

    work page 2024

  27. [27]

    Onuma, Y

    T. Onuma, Y . Nakata, K. Sasaki, T. Masui, T. Yamaguchi, T. Honda, A. Kuramata, S. Yamakoshi, and M. Higashiwaki, Journal of Applied Physics 124, 075103 (2018)

    work page 2018

  28. [28]

    Y . K. Frodason, K. M. Johansen, L. Vines, and J. B. Varley, Journal of Applied Physics 127, 075701 (2020)

    work page 2020

  29. [29]

    J. Huso, M. D. McCluskey, J. S. McCloy, A. Bhattacharyya, S. Krishnamoorthy, C. D. Frye, J. B. Varley, and L. F. V oss, MRS Communications 14, 427 (2024)

    work page 2024

  30. [30]

    M. D. McCluskey, Journal of Applied Physics 127, 101101 (2020)

    work page 2020
