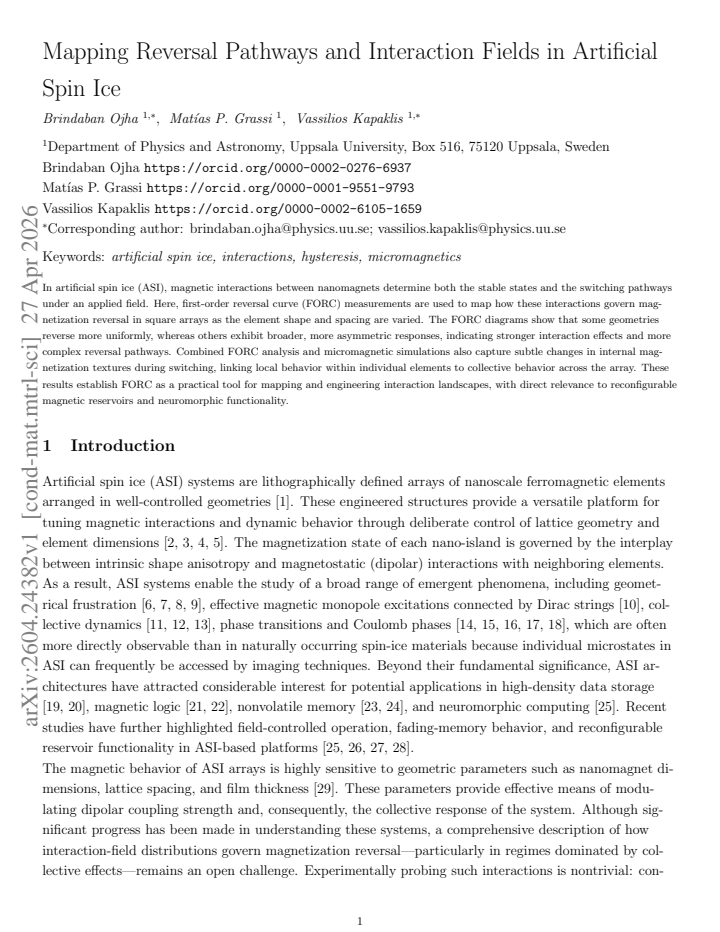

Mapping Reversal Pathways and Interaction Fields in Artificial Spin Ice

Brindaban Ojha , Mat\'ias P. Grassi , Vassilios Kapaklis This is my paper

Pith reviewed 2026-05-08 03:00 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.mes-hall
keywords artificial spin icefirst-order reversal curvesmagnetization reversalinteraction fieldsnanomagnetsFORC diagramsswitching pathwaysmicromagnetic simulations
0
0 comments X

The pith

First-order reversal curve measurements map interaction fields and reversal pathways in artificial spin ice by varying nanomagnet shape and spacing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper applies first-order reversal curve measurements to square artificial spin ice arrays and shows that different nanomagnet shapes and spacings produce distinct reversal behaviors. Some geometries yield uniform switching while others create broader and asymmetric responses tied to stronger magnetic interactions. Micromagnetic simulations connect these patterns to shifts in internal magnetization textures inside individual elements and across the full array. This establishes a method to read out and design the interaction landscape that controls stable states and switching in these systems.

Core claim

In square artificial spin ice, FORC diagrams distinguish uniform reversal from complex interaction-driven pathways as element shape and spacing change, with simulations confirming that local magnetization textures inside single nanomagnets determine the collective reversal observed across the array.

What carries the argument

First-order reversal curve (FORC) diagrams, which record the distribution of switching fields and interaction strengths during partial magnetization reversal.

If this is right

  • Certain nanomagnet shapes and spacings produce uniform reversal while others yield broader, asymmetric responses.
  • Stronger interactions correlate with more complex reversal pathways visible in the diagrams.
  • Subtle internal magnetization texture changes during switching can be linked to array-wide collective behavior.
  • FORC analysis offers a practical route to map and engineer interaction landscapes in artificial spin ice.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This mapping approach could support design of reconfigurable magnetic reservoirs for computing tasks.
  • Insights into geometry-controlled pathways may help tune neuromorphic magnetic devices.
  • FORC techniques could be tested on other artificial magnetic lattices to probe interaction effects.

Load-bearing premise

Observed differences in FORC diagrams arise mainly from interaction fields and reversal pathways rather than measurement artifacts, sample defects, or unaccounted material variations.

What would settle it

If FORC diagrams from arrays with added controlled defects or altered material properties match those from ideal geometry changes without producing the predicted asymmetry shifts.

Figures

Figures reproduced from arXiv: 2604.24382 by Brindaban Ojha, Mat\'ias P. Grassi, Vassilios Kapaklis.

Figure 1
Figure 1. Figure 1: Scanning electron microscopy images of square artificial spin ice arrays patterned by electron-beam lithography view at source ↗
Figure 2
Figure 2. Figure 2: (a) Processed family of FORCs acquired for S1. (b) Corresponding FORC diagram of S1. view at source ↗
Figure 3
Figure 3. Figure 3: (a) Representative FORCs of S2. (b) Corresponding FORC diagram in the Hu–Hc coordinate system. Inset: zoomed-in view of the central peak with a boomerang-shaped feature. in the FORC distribution. In contrast, at Ha2, the slope ∂M/∂Ha2 increases as Hr decreases, which is associated with the formation of the central peak. The central peak is centered at Hu = 0 and extends along the Hc axis, indicating single… view at source ↗
Figure 4

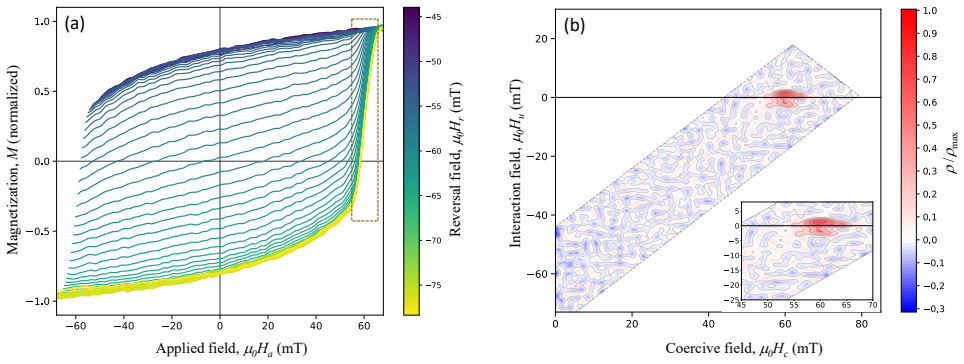

Figure 4. Figure 4: (a) A family of FORCs for S3 with the applied field along the [1,1] direction of the lattice. (b) Corresponding FORC diagram plot￾ted in the Hc–Hu coordinate system. Inset: zoomed-in view of the central peak highlighting its vertical spreading. To gain deeper insight into the influence of demagnetization energy on the FORC distributions and the resulting magnetization textures, micromagnetic simulations we… view at source ↗
Figure 5

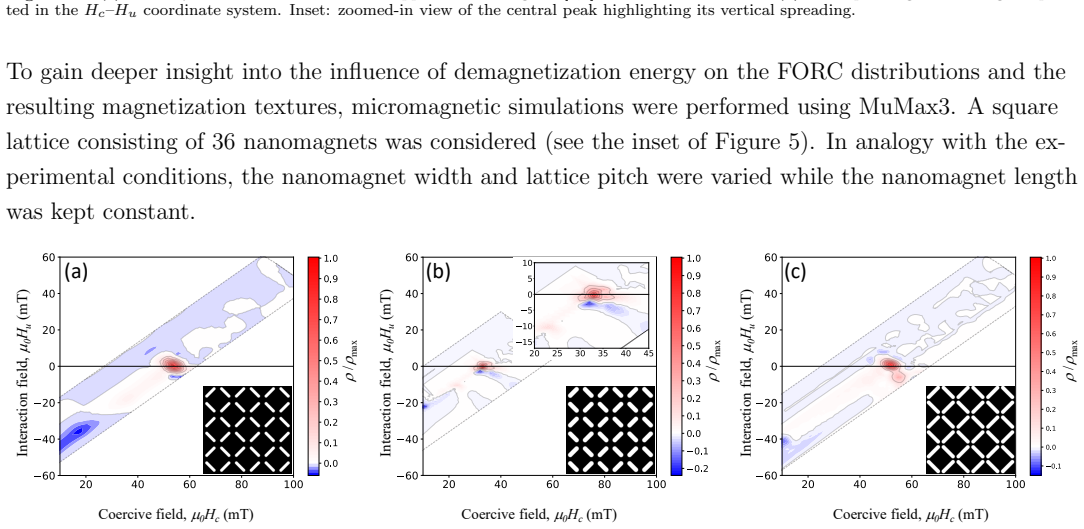

Figure 5. Figure 5: Simulated FORC distributions of Case I (S1) (a), Case II (S2) (b), and Case III (S3) (c). Inset: square array of 36 nanomagnets used in the simulations. Three different square-lattice configurations were examined, corresponding directly to the experimental samples: (i) Case I (S1): w = 100 nm, L = 450 nm, a = 700 nm, and aspect ratio AR = 4.5; (ii) Case II (S2): w = 150 nm, L = 450 nm, a = 700 nm, and AR =… view at source ↗
Figure 6
Figure 6. Figure 6: Evolution of magnetic texture in nanomagnets as a function of applied field for Case I (S1), Case II (S2), and Case III (S3). The top, middle, and bottom rows correspond to the simulated counterparts of S1, S2, and S3, respectively. The images show the field-driven reversal sequence from the negative reversal state toward positive saturation, highlighting the distinct intermediate configurations that emerg… view at source ↗
read the original abstract

In artificial spin ice (ASI), magnetic interactions between nanomagnets determine both the stable states and the switching pathways under an applied field. Here, first-order reversal curve (FORC) measurements are used to map how these interactions govern magnetization reversal in square arrays as the element shape and spacing are varied. The FORC diagrams show that some geometries reverse more uniformly, whereas others exhibit broader, more asymmetric responses, indicating stronger interaction effects and more complex reversal pathways. Combined FORC analysis and micromagnetic simulations also capture subtle changes in internal magnetization textures during switching, linking local behavior within individual elements to collective behavior across the array. These results establish FORC as a practical tool for mapping and engineering interaction landscapes, with direct relevance to reconfigurable magnetic reservoirs and neuromorphic functionality.
