arxiv: 2604.25633 · v1 · submitted 2026-04-28 · ❄️ cond-mat.mes-hall · cond-mat.mtrl-sci

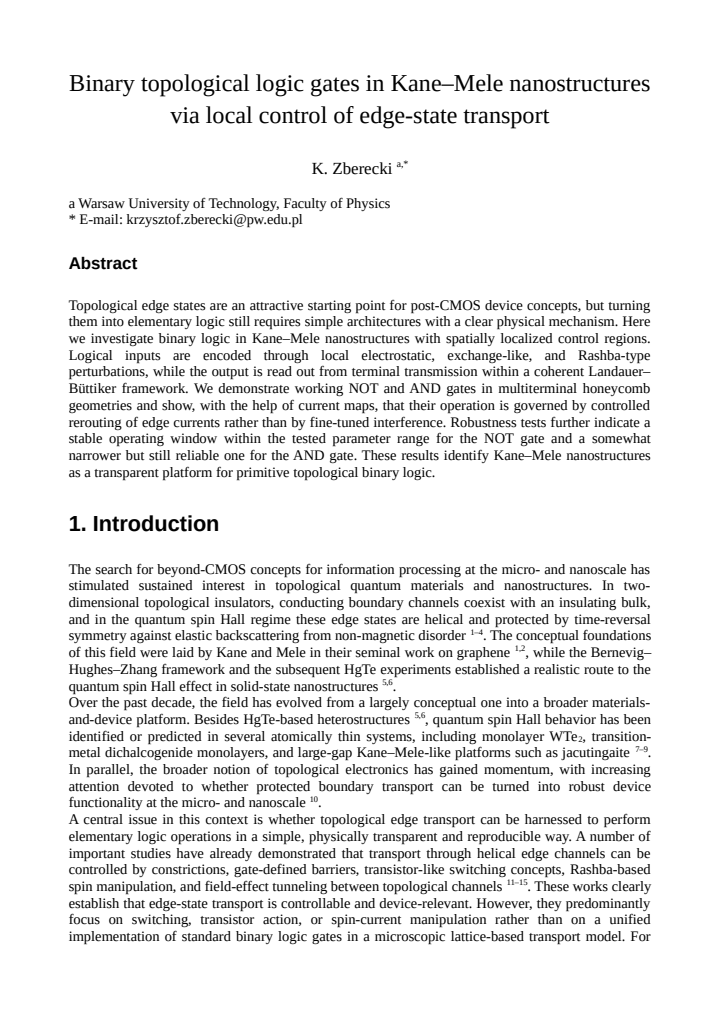

Binary topological logic gates in Kane-Mele nanostructures via local control of edge-state transport

K. Zberecki This is my paper

Pith reviewed 2026-05-07 15:30 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.mtrl-sci
keywords Kane-Mele modeltopological edge stateslogic gatesnanostructuresedge-state transportbinary logicmultiterminal devicesLandauer-Büttiker
0
0 comments X

The pith

Kane-Mele nanostructures implement NOT and AND logic gates by rerouting topological edge currents with local perturbations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper demonstrates that binary logic gates can be built directly from topological edge states in Kane-Mele nanostructures by applying localized perturbations at chosen sites. Logical inputs are encoded as electrostatic, exchange-like, or Rashba-type changes, while outputs are read from transmission between terminals in a multiterminal honeycomb geometry. The mechanism works through controlled redirection of the protected edge currents, which the authors map explicitly rather than depending on interference patterns. If valid, the approach supplies a concrete route to elementary topological logic that remains functional over a range of parameters. Robustness checks establish a wider stable window for the NOT gate than for the AND gate.

Core claim

In multiterminal honeycomb geometries of Kane-Mele nanostructures, binary NOT and AND gates are realized by encoding logical inputs through local electrostatic, exchange-like, and Rashba-type perturbations. The output is read from terminal transmission calculated within the coherent Landauer-Büttiker framework. Current maps show that gate operation occurs via controlled rerouting of topological edge currents, with robustness tests confirming a stable operating window for the NOT gate and a narrower but still reliable window for the AND gate.

What carries the argument

controlled rerouting of topological edge currents by spatially localized electrostatic, exchange-like, and Rashba-type perturbations

Load-bearing premise

The chosen local perturbations can be applied independently without destroying the topological protection or coherence of the edge states, and the Landauer-Büttiker coherent transport model remains valid across the tested parameter range.

What would settle it

Current maps or transmission values that fail to show the predicted rerouting paths for input combinations that should produce the logical NOT or AND output.

read the original abstract

Topological edge states are an attractive starting point for post-CMOS device concepts, but turning them into elementary logic still requires simple architectures with a clear physical mechanism. Here we investigate binary logic in Kane-Mele nanostructures with spatially localized control regions. Logical inputs are encoded through local electrostatic, exchange-like, and Rashba-type perturbations, while the output is read out from terminal transmission within a coherent Landauer-B\"uttiker framework. We demonstrate working NOT and AND gates in multiterminal honeycomb geometries and show, with the help of current maps, that their operation is governed by controlled rerouting of edge currents rather than by fine-tuned interference. Robustness tests further indicate a stable operating window within the tested parameter range for the NOT gate and a somewhat narrower but still reliable one for the AND gate. These results identify Kane-Mele nanostructures as a transparent platform for primitive topological binary logic.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript investigates binary logic operations in Kane-Mele topological insulator nanostructures by encoding inputs through spatially localized electrostatic, exchange-like, and Rashba perturbations in multiterminal honeycomb geometries. Outputs are extracted from terminal transmissions computed in the coherent Landauer-Büttiker formalism. The authors report working NOT and AND gates, with current-density maps used to argue that functionality arises from controlled rerouting of helical edge currents rather than fine-tuned interference. Robustness tests are presented indicating a stable operating window for the NOT gate and a narrower but usable one for the AND gate.

Significance. If the simulations remain within the regime where local perturbations preserve helical edge-state coherence and topological protection, the work supplies a concrete, mechanism-transparent platform for elementary topological logic. The use of current maps to distinguish rerouting from interference, together with the reliance on a standard tight-binding model without additional fitting parameters, strengthens the contribution. This could help bridge abstract topological concepts to device-oriented proposals in mesoscopic physics.

major comments (2)
  1. [Robustness tests section] Robustness tests section: the assertion of a stable operating window for the NOT gate (and narrower window for AND) is load-bearing for the central rerouting claim. The text does not report the ratio of local perturbation amplitudes (electrostatic V, exchange J, or Rashba λ_R) to the bulk spin-orbit gap Δ_SO of the Kane-Mele Hamiltonian, nor does it show that the local regions remain free of gap opening or mode mixing. Without these quantitative checks, the current maps could reflect scattering or partial localization rather than protected edge rerouting.
  2. [Numerical results for the AND gate] Numerical results for the AND gate: the narrower reliability window is stated but not accompanied by explicit transmission probabilities or current conservation checks across the full parameter sweep. If the chosen local perturbation strengths push any terminal into the regime where counter-propagating modes hybridize, the AND functionality would lose its topological character; the manuscript should add a table or plot of transmission versus perturbation strength with the topological criterion overlaid.
minor comments (3)
  1. [Abstract] The abstract states that results are 'governed by controlled rerouting' but does not mention the specific multiterminal geometry (e.g., number of terminals or honeycomb flake size) used for the demonstrations; adding one sentence would improve readability.
  2. [Figure captions] Figure captions for the current maps should include the normalization convention (e.g., whether currents are in units of e²/h per mode) and confirm that the integrated current through each terminal satisfies continuity to within numerical tolerance.
  3. [Methods section] The Hamiltonian terms for the local perturbations are described qualitatively; an explicit equation listing the added on-site or bond terms (with their spatial profiles) in the methods section would remove ambiguity about independence of the three perturbation types.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and constructive suggestions. The comments correctly identify areas where additional quantitative details would strengthen the evidence for protected edge-state rerouting. We address each major comment below and will revise the manuscript to incorporate the requested information.

read point-by-point responses

  1. Referee: [Robustness tests section] Robustness tests section: the assertion of a stable operating window for the NOT gate (and narrower window for AND) is load-bearing for the central rerouting claim. The text does not report the ratio of local perturbation amplitudes (electrostatic V, exchange J, or Rashba λ_R) to the bulk spin-orbit gap Δ_SO of the Kane-Mele Hamiltonian, nor does it show that the local regions remain free of gap opening or mode mixing. Without these quantitative checks, the current maps could reflect scattering or partial localization rather than protected edge rerouting.

    Authors: We agree that explicit ratios of the local perturbation amplitudes to Δ_SO are necessary to place the simulations firmly in the topologically protected regime. In the revised manuscript we will add a dedicated subsection (or table) reporting the specific values of V/Δ_SO, J/Δ_SO and λ_R/Δ_SO employed for both gates. We will also include supplementary local density-of-states or finite-size band-structure calculations for the perturbed regions, confirming the absence of gap opening or counter-propagating mode hybridization within the stated operating windows. These additions will directly support that the observed current rerouting arises from helical edge-state control rather than scattering. revision: yes

  2. Referee: [Numerical results for the AND gate] Numerical results for the AND gate: the narrower reliability window is stated but not accompanied by explicit transmission probabilities or current conservation checks across the full parameter sweep. If the chosen local perturbation strengths push any terminal into the regime where counter-propagating modes hybridize, the AND functionality would lose its topological character; the manuscript should add a table or plot of transmission versus perturbation strength with the topological criterion overlaid.

    Authors: We acknowledge that the AND-gate results would benefit from a more complete parameter scan. We will add a new figure (or supplementary panel) showing the transmission probabilities T_{ij} versus perturbation strength for the AND configuration, together with a verification that current is conserved to within numerical accuracy (∑T = 1). The plot will overlay the region satisfying the topological criterion (e.g., transmission values remaining quantized at 0 or 1 with no hybridization signatures). This will make the narrower but usable operating window explicit and demonstrate that the reported AND functionality remains within the protected regime. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper frames its results as numerical outcomes of standard Landauer-Büttiker coherent transport calculations applied to the Kane-Mele model with added local perturbations. No load-bearing steps reduce claimed gate functionality (NOT/AND via edge rerouting) to fitted parameters, self-definitions, or self-citation chains by construction. The abstract and described methodology present the current maps and robustness tests as direct simulation outputs rather than tautological renamings or predictions forced by prior fits. This is a normal non-circular finding for a simulation-based device proposal.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the validity of the coherent transport model and the assumption that local perturbations act as independent controls without additional scattering channels. No explicit free parameters or invented entities are named in the abstract.

axioms (2)
  • domain assumption The Landauer-Büttiker formalism accurately describes coherent electron transport through the nanostructure.
    Invoked when output is read from terminal transmission.
  • domain assumption Local electrostatic, exchange-like, and Rashba perturbations can be applied without destroying the topological character of the edge states.
    Required for the rerouting mechanism to produce stable logic operation.
