Achieving Large Uniaxial and Homogeneous Strain in Two-Dimensional Materials

Yangchen He , Jessica Kienbaum , Wuzhang Fang , Hongrui Ma , Ying Wang , Ping Yuan , Daniel A. Rhodes This is my paper

Pith reviewed 2026-05-07 15:29 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.mes-hall
keywords strain engineering2D materialsuniaxial strainCrSBrWTe2Raman spectroscopyflexoelectric effectstransition metal dichalcogenides
0
0 comments X

The pith

A new high-yield preparation and device platform enables reversible uniaxial strains up to 5.5% in 2D materials with uniform transfer and optional linear gradients.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a sample preparation technique and strain device that allows precise application of large uniaxial strains to two-dimensional materials while maintaining uniformity and reversibility. Earlier methods typically capped out below 1.5% strain with poor cycling stability and weak transfer upon cooling. Demonstrations on CrSBr reach 4% uniform strain with gradients as steep as 0.06% per micrometer and negligible slippage, while Td-WTe2 shows continuous Raman mode shifts reaching 5.5% strain. Readers would care because the approach makes accessible the high-strain regime where many electronic, magnetic, and topological transitions are predicted to occur.

Core claim

We report a high-yield sample preparation and device strain platform that overcomes these limitations, enabling precise, reversible strain tuning up to the intrinsic strain-to-failure of the materials tested herein. Using CrSBr as a model system, we demonstrate uniform uniaxial strain, up to ~4%, with negligible slippage and linear strain gradients of up to 0.06%/μm. We further show that our strain approach is applicable to a broad class of 2D materials, validating its performance for three different phases of transition metal dichalcogenides: 2H-MoTe2, 1T′-MoTe2 and Td-WTe2. In Td-WTe2, verified by theoretical calculations, we show a continuous redshift of the A1^3 mode, up to a record ~5.5

What carries the argument

High-yield sample preparation and device strain platform that transfers substrate strain uniformly to the 2D material flake without slippage.

If this is right

  • Strain can be applied continuously and reversibly up to each material's intrinsic failure limit.
  • Linear strain gradients spanning tens of micrometers can be engineered to study flexoelectric and flexomagnetic effects.
  • The platform works consistently across multiple structural phases of transition metal dichalcogenides.
  • Phonon modes can be tracked continuously to high strain values, revealing separations such as the A1^3 and A1^2 modes above 2% strain in WTe2.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The cryogenic compatibility could support strain-tuned studies of superconductivity or other quantum phases in 2D systems.
  • Gradient designs may enable spatially varying electronic properties for strain-based sensors or optoelectronic components.
  • The method could be extended to test theoretical predictions of magnetic or topological transitions in additional 2D materials under high uniaxial strain.

Load-bearing premise

The 2D material adheres to the substrate so that applied strain transfers uniformly and remains stable without slippage or relaxation up to the material's intrinsic failure point and through cryogenic temperature cycles.

What would settle it

Raman mapping or optical imaging that shows non-uniform strain distribution or visible slippage in the 2D flake at applied strains near 4% or higher would demonstrate that uniform transfer has failed.

Figures

Figures reproduced from arXiv: 2604.26164 by Daniel A. Rhodes, Hongrui Ma, Jessica Kienbaum, Ping Yuan, Wuzhang Fang, Yangchen He, Ying Wang.

Figure 1

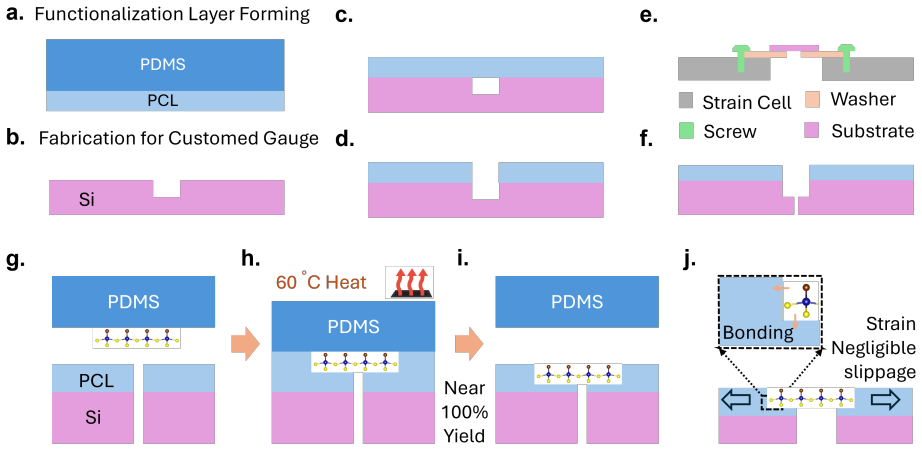

Figure 1. Figure 1: Schematic for the strain substrate setup (a-e) and sample transfer process (g-i). (j) view at source ↗
Figure 2

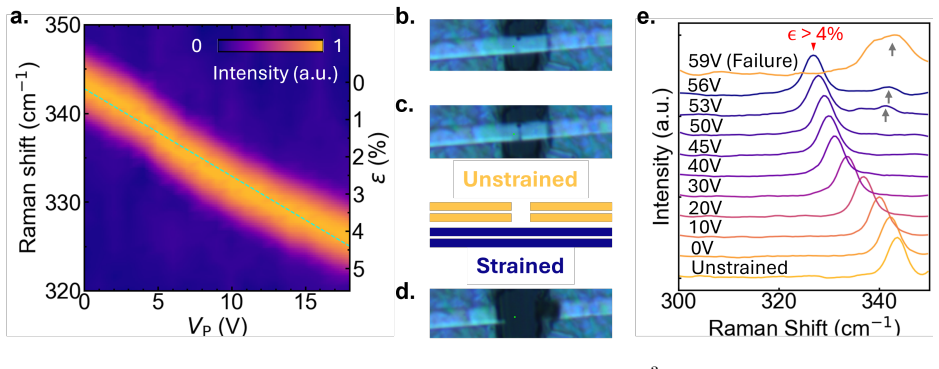

Figure 2. Figure 2: (a) Evolution of the Raman spectra centered near the A view at source ↗
Figure 3

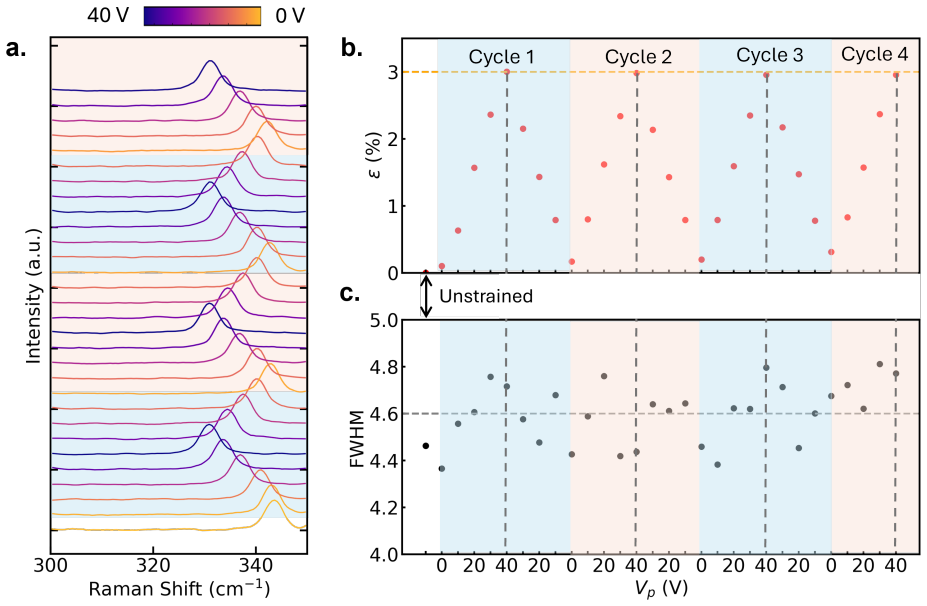

Figure 3. Figure 3: (a) Raman spectra plotted with multiple cycles of V view at source ↗
Figure 4

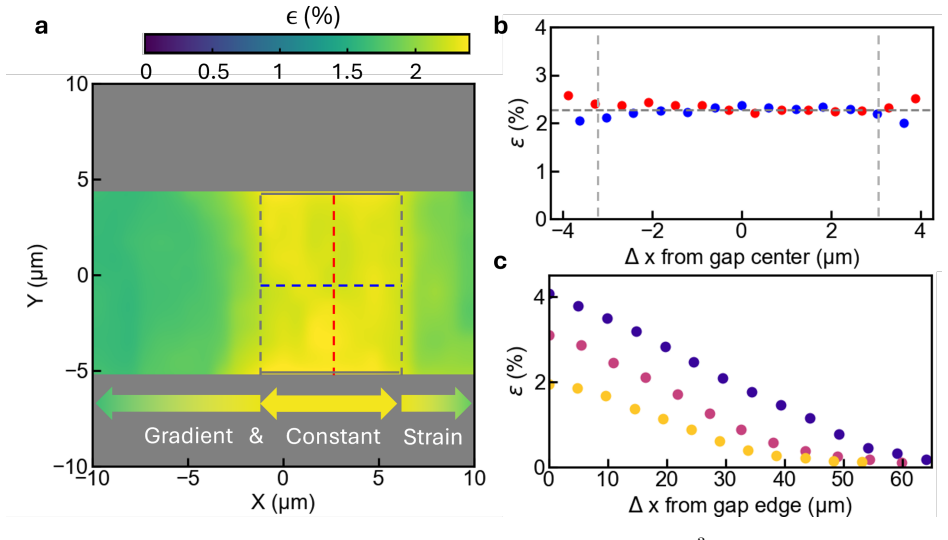

Figure 4. Figure 4: (a) Spatial map of tensile strain derived from the CrSBr A view at source ↗
Figure 5

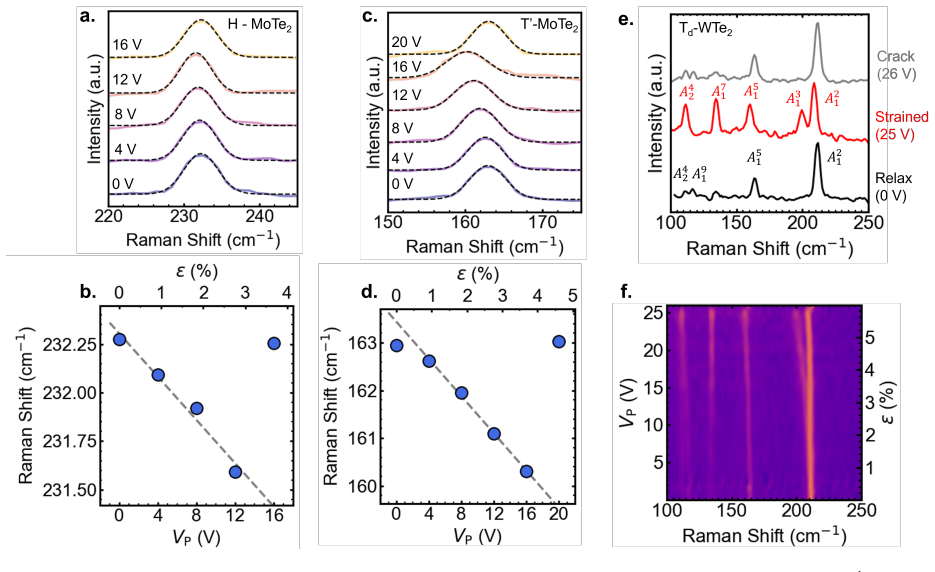

Figure 5. Figure 5: Evolution of Raman spectra for mechanically exfoliated (a) 2H-MoTe view at source ↗
read the original abstract

Strain engineering is a powerful tool for tuning the electronic, magnetic, and topological properties of two-dimensional (2D) materials and thin films - particularly at high values of strain (>3%) where many electronic, magnetic, and structural transitions have been predicted. However, most approaches to tuning strain in 2D materials are limited below 1.5%, with poor repeatability when cycling strain and low strain transfer when cooling to cryogenic temperatures. Here, we report a high-yield sample preparation and device strain platform that overcomes these limitations, enabling precise, reversible strain tuning up to the intrinsic strain-to-failure of the materials tested herein. In addition, we show that this platform can be used to controllably design uniform linear strain gradients across of 10's of $\mu$m, providing a novel route to systematically investigate flexoelectric and flexomagnetic phenomena. Using CrSBr as a model system, we demonstrate uniform uniaxial strain, up to ~4%, with negligible slippage and linear strain gradients of up to 0.06%/$\mu$m. We further show that our strain approach is applicable to a broad class of 2D materials, validating its performance for three different phases of transition metal dichalcogenides: 2H-MoTe$_2$, 1T$^\prime$-MoTe$_2$ and T$_\mathrm{d}$-WTe$_2$. In T$_\mathrm{d}$-WTe$_2$, verified by theoretical calculations, we show a continuous redshift of the A$_1^3$ mode, up to a record-breaking ~5.5% strain, with a clear separation of the A$_1^3$ and A$_1^2$ modes starting at 2% strain.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The manuscript presents a strain platform for 2D materials enabling high-yield preparation and reversible uniaxial strain application up to intrinsic failure limits. Using CrSBr, it reports uniform strains to ~4% with negligible slippage and controllable linear gradients to 0.06%/μm; the approach is validated on 2H-MoTe2, 1T'-MoTe2, and Td-WTe2, with a record ~5.5% strain in WTe2 inferred from continuous redshift of the A1^3 Raman mode (separated from A1^2 above 2%) calibrated against DFT calculations.

Significance. If the strain-transfer claims hold, the work would represent a meaningful advance in strain engineering of 2D materials by reaching >3% regimes where electronic and structural transitions are predicted, while adding gradient control for flexoelectric/flexomagnetic studies. The demonstration across multiple TMD phases and emphasis on cryogenic compatibility are practical strengths; the platform could serve as a reproducible tool for the community.

major comments (3)
  1. [Abstract and CrSBr results] Abstract and CrSBr results section: the central claim of uniform transfer to ~4% with 'negligible slippage' rests on linearity of Raman shifts versus applied substrate strain. No independent verification (e.g., optical markers on the flake, AFM buckling checks, or substrate strain mapping) is described, leaving open the possibility that interfacial decoupling occurs above ~2-3% and that the reported values overestimate true material strain.
  2. [WTe2 results] WTe2 demonstration: the record ~5.5% strain is obtained by mapping A1^3 redshift to strain via DFT. The manuscript does not report the explicit calibration relation, fitting uncertainties, or raw frequency-vs-strain data points, so the quantitative claim and the asserted mode separation onset at 2% cannot be assessed for robustness.
  3. [Platform performance and cryogenic tests] Thermal-cycling stability: the platform is asserted to maintain transfer efficiency upon cooling, overcoming prior limitations, yet no before/after Raman spectra, strain-retention metrics, or cycling data are referenced to support this load-bearing performance claim.
minor comments (3)
  1. [Methods] Methods section should include quantitative yield statistics, exact substrate preparation protocol, and flake-transfer details to allow reproduction of the 'high-yield' aspect.
  2. [Figures] All Raman figures would benefit from overlaid raw spectra, Lorentzian fits, and error bars on extracted peak positions.
  3. [Notation] Notation for WTe2 phase (T_d vs T$ _d $) is inconsistent between abstract and main text.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive comments and positive assessment of the significance of our platform. We address each major comment below and have revised the manuscript to include additional data and clarifications where needed.

read point-by-point responses

  1. Referee: [Abstract and CrSBr results] Abstract and CrSBr results section: the central claim of uniform transfer to ~4% with 'negligible slippage' rests on linearity of Raman shifts versus applied substrate strain. No independent verification (e.g., optical markers on the flake, AFM buckling checks, or substrate strain mapping) is described, leaving open the possibility that interfacial decoupling occurs above ~2-3% and that the reported values overestimate true material strain.

    Authors: We agree that independent verification strengthens the claim. The linearity of Raman shifts is the primary metric, but in the revised manuscript we now include AFM topography scans before and after straining (up to 4%) showing no buckling or delamination, plus optical images with fiducial markers confirming no interfacial slippage. These data are added to the supplementary information and referenced in the main text, supporting uniform transfer with negligible slippage. revision: yes

  2. Referee: [WTe2 results] WTe2 demonstration: the record ~5.5% strain is obtained by mapping A1^3 redshift to strain via DFT. The manuscript does not report the explicit calibration relation, fitting uncertainties, or raw frequency-vs-strain data points, so the quantitative claim and the asserted mode separation onset at 2% cannot be assessed for robustness.

    Authors: We have added the explicit DFT-derived calibration relation (frequency shift vs. strain), the raw data points, and fitting uncertainties to the supplementary information. The main text now references these details explicitly. The separation of A1^3 and A1^2 modes is visible in the Raman spectra above 2% strain, consistent with the calibration. revision: yes

  3. Referee: [Platform performance and cryogenic tests] Thermal-cycling stability: the platform is asserted to maintain transfer efficiency upon cooling, overcoming prior limitations, yet no before/after Raman spectra, strain-retention metrics, or cycling data are referenced to support this load-bearing performance claim.

    Authors: We have included before-and-after Raman spectra upon cooling to cryogenic temperatures, along with quantitative strain-retention metrics and multiple thermal-cycle data, in the revised main text and supplementary figures. These demonstrate maintained transfer efficiency and reversible performance. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental results rest on direct measurements

full rationale

The manuscript is an experimental report describing a strain platform for 2D materials. Strain values (up to ~4% in CrSBr, ~5.5% in WTe2) are obtained from observed Raman mode shifts (A1^3 redshift) that are compared to independent DFT calculations. Uniformity and negligible slippage are inferred from the linearity of the Raman response and spatial mapping, not from any self-referential definition or fitted parameter that is then relabeled as a prediction. No load-bearing derivation chain, self-citation of a uniqueness theorem, or ansatz smuggling is present; the central claims are falsifiable against external Raman/DFT benchmarks and do not reduce to the paper's own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard experimental assumptions in 2D material strain transfer rather than new free parameters or invented entities.

axioms (2)
  • domain assumption Strain applied via the device substrate transfers uniformly and without significant slippage or relaxation to the overlying 2D flake up to the material's intrinsic failure point.
    This is invoked to support claims of ~4% uniform strain in CrSBr and ~5.5% in WTe2 with negligible slippage.
  • domain assumption Raman mode shifts provide a reliable, linear proxy for local strain magnitude and uniformity.
    Used to verify strain values and gradients in the reported measurements.
