arxiv: 2604.26358 · v1 · submitted 2026-04-29 · ❄️ cond-mat.mes-hall · cond-mat.quant-gas

Voltage-Regulated Photoluminescence Modulation in a 0D-2D Mixed Dimensional Heterostructure

S. V. U. Vedhanth , Amit Bhunia , Mohit Kumar Singh , Yuvraj Chaudhry , Mohamed Henini , Shouvik Datta This is my paper

Pith reviewed 2026-05-07 12:59 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.quant-gas
keywords 0D-2D heterostructurephotoluminescence modulationnegative differential resistanceelectron tunnelingexcitonic populationsphoto capacitancecharge accumulationmixed dimensional
0
0 comments X

The pith

In a 0D-2D heterostructure, voltage bias produces photoluminescence oscillations by modulating an oscillatory photocurrent with periodic negative differential resistance from recurring charge accumulation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that applying a bias voltage to a mixed 0D-2D heterostructure causes the excitonic photoluminescence to show bias-dependent oscillations. These arise because the photoluminescence is modulated by an oscillatory DC photocurrent that exhibits periodic negative differential resistance, which the authors link to recurring charge accumulation inside the structure. The oscillations persist across a macroscopic area of roughly 200 microns, which the work interprets as evidence for periodically correlated quantum phenomena on large length scales. Bias-dependent oscillations also appear in the photo capacitance, which the authors tie to periodic ordering and disordering of excitonic populations. Collectively the observations are presented as indicating a direct competition between coherent and incoherent electron tunneling processes, with the coupled oscillatory behavior of photoluminescence, photocurrent, and photo capacitance opening routes to exciton-based quantum optoelectronic devices.

Core claim

Bias-dependent oscillations in excitonic photoluminescence are observed in a mixed dimensional 0D-2D heterostructure. These oscillations arise from modulation by oscillatory DC photocurrent, which exhibits periodic negative differential resistance, indicating recurring charge accumulation within the heterostructure. The persistence of these oscillations across a macroscopic area of diameter around 200 microns suggests the presence of periodically correlated quantum phenomena over large length scales. Furthermore, bias dependent oscillations in the photo capacitance are observed, reflecting a periodic ordering and disordering of excitonic populations. Together, these observations point to a 1

What carries the argument

The modulation of excitonic photoluminescence by an oscillatory DC photocurrent that shows periodic negative differential resistance due to recurring charge accumulation, interpreted as arising from competition between coherent and incoherent electron tunneling.

If this is right

  • Voltage can regulate photoluminescence output through control of the underlying photocurrent oscillations.
  • Periodic ordering and disordering of excitons can be read out electrically via photo-capacitance oscillations.
  • The competition between coherent and incoherent tunneling can be tuned by bias to produce coupled oscillatory responses in light emission, current, and capacitance.
  • The macroscopic persistence opens a path to scalable exciton-based optoelectronic elements that exploit the observed tunneling competition.
  • New device architectures become possible in which bias voltage directly programs oscillatory behavior in quantum optoelectronics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar voltage-regulated oscillatory photoluminescence might be engineered in other low-dimensional heterostructures that support charge accumulation and tunneling.
  • The large-scale correlation could be tested by fabricating devices with varying lateral sizes to determine the maximum distance over which the periodic behavior remains coherent.
  • If the tunneling competition is the root cause, applying microwave or optical probes tuned to the oscillation frequency might reveal additional signatures of coherent versus incoherent processes.
  • Device integration could explore whether the same bias control simultaneously modulates emission wavelength or coherence time in addition to intensity.

Load-bearing premise

The assumption that persistence of the oscillations over a 200-micron macroscopic area demonstrates periodically correlated quantum phenomena on large length scales and that the oscillations specifically result from modulation by the photocurrent's periodic negative differential resistance caused by charge accumulation.

What would settle it

Measuring no photoluminescence oscillations in regions where the DC photocurrent lacks periodic negative differential resistance, or finding that the oscillations appear only locally rather than uniformly across the full 200-micron area, would undermine the proposed mechanism and large-scale correlation.

Figures

Figures reproduced from arXiv: 2604.26358 by Amit Bhunia, Mohamed Henini, Mohit Kumar Singh, Shouvik Datta, S. V. U. Vedhanth, Yuvraj Chaudhry.

Figure 3

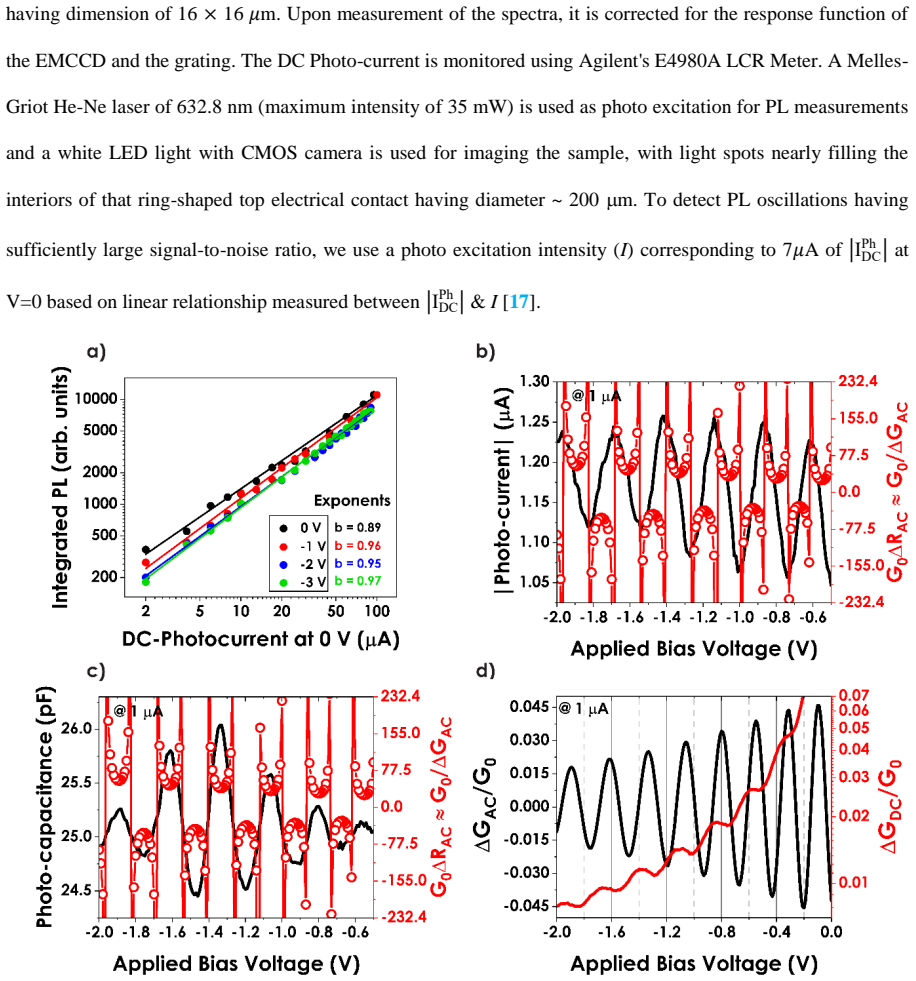

Figure 3. Figure 3: Plot (a) presents the power-law analyses of the integrated PL spectra under varying photo excitation intensity (I) by nearly two orders of magnitude. As mentioned in the text, we monitor I by measuring |IDC Ph | at V=0, such that I is ∝ |IDC Ph | . Observation of exponents close to unity across different bias voltages suggest that, despite the oscillations in PL with changing bias, the PL maintains its exc… view at source ↗
Figure 5

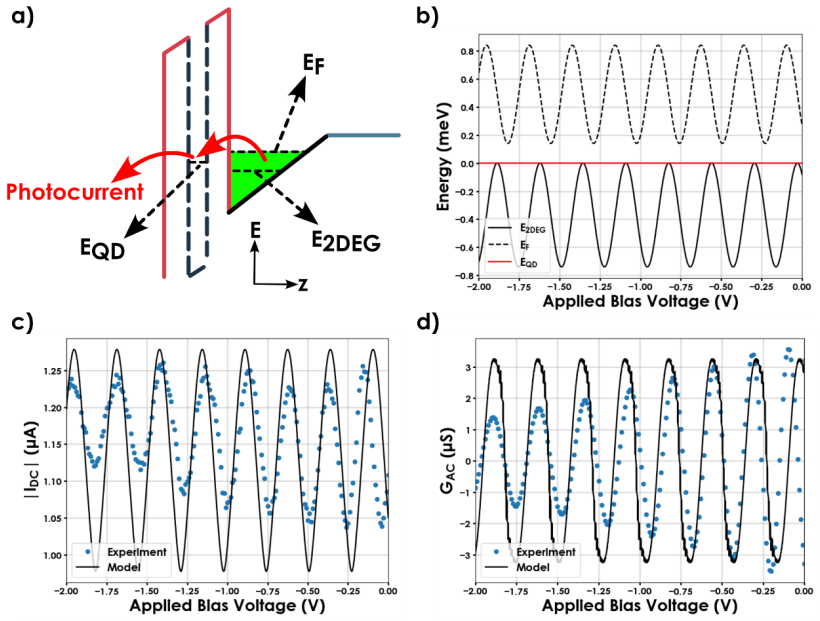

Figure 5. Figure 5: The figure (a) shows the illustration of the directionality of the photocurrent calculated in the simulation. The figure (b) shows the oscillating energy levels E2DEG (𝐸2𝐷𝐸𝐺 = (𝐴2𝐷𝐸𝐺 × 𝑠𝑖𝑛 ( 2𝜋𝑉 𝑝𝑒𝑟𝑖𝑜𝑑 + 𝜑)) − 𝐴2𝐷𝐸𝐺 ) and EF (𝐸𝐹 = (1.4 ∙ 𝐴𝐹)+ (𝐴𝐹 × 𝑐𝑜𝑠 ( 2𝜋𝑉 𝑝𝑒𝑟𝑖𝑜𝑑 + 𝜑)) ) with respect to EQD which is taken as 0. The figure (c) and (d) shows the calculated photocurrent and AC-conductance. The photocurrent … view at source ↗
read the original abstract

Bias dependent oscillations in excitonic photoluminescence are observed in a mixed dimensional 0D 2D heterostructure. These oscillations arise from modulation by oscillatory DC photocurrent, which exhibits periodic negative differential resistance, indicating recurring charge accumulation within the heterostructure. The persistence of these oscillations across a macroscopic area of diameter around 200 microns suggests the presence of periodically correlated quantum phenomena over large length scales. Furthermore, bias dependent oscillations in the photo capacitance are observed, reflecting a periodic ordering and disordering of excitonic populations. Together, these observations point to a direct competition between coherent and incoherent electron tunnelling processes. The coupled oscillatory behaviour of photoluminescence, photocurrent, and photo capacitance highlights new opportunities for exciton-based quantum optoelectronic devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript reports bias-dependent oscillations in excitonic photoluminescence in a 0D-2D mixed-dimensional heterostructure. These are attributed to modulation by an oscillatory DC photocurrent that exhibits periodic negative differential resistance arising from recurring charge accumulation. Oscillations are also reported in photo-capacitance, interpreted as periodic ordering and disordering of excitonic populations. The persistence of the oscillations over a macroscopic area of ~200 μm is taken to indicate periodically correlated quantum phenomena on large length scales, with the overall behavior pointing to a direct competition between coherent and incoherent electron tunneling processes.

Significance. If the central interpretations are substantiated, the work would identify a new voltage-tunable oscillatory regime in hybrid 0D-2D systems that couples photoluminescence, photocurrent, and capacitance. This could open pathways for exciton-based optoelectronic devices exploiting large-scale correlations. The experimental observation of coupled oscillations is potentially interesting for mesoscopic transport studies, but its significance cannot be fully assessed without quantitative modeling and controls that distinguish the proposed tunneling mechanism from classical alternatives.

major comments (3)
  1. [Abstract / Results] Abstract and main text: The strongest claim—that the data demonstrate 'a direct competition between coherent and incoherent electron tunnelling processes'—is not supported by distinguishing measurements. No magnetic-field dependence, temperature scaling, or rate-equation modeling is presented to separate phase-coherent tunneling from incoherent hopping or from classical RC relaxation and trap-filling dynamics that can also generate periodic NDR.
  2. [Discussion] Discussion of large-scale correlations: The interpretation that persistence of oscillations across a ~200 μm diameter indicates 'periodically correlated quantum phenomena over large length scales' rests on an untested assumption. The manuscript does not address or exclude classical mechanisms (e.g., long-range electrostatic coupling or circuit-induced relaxation) that could produce spatially extended oscillations without invoking macroscopic quantum coherence.
  3. [Results] Experimental evidence: The link between oscillatory photocurrent, recurring charge accumulation, and the observed PL modulation is presented as an interpretation but lacks quantitative support. No fits to a tunneling-rate model, error bars on the oscillation periods, or control experiments (e.g., varying illumination intensity or device geometry) are reported to confirm that the NDR originates specifically from tunneling-mediated charge buildup.
minor comments (2)
  1. [Abstract / Introduction] The abstract and introduction would benefit from a brief description of the 0D-2D device geometry, material system, and fabrication method to allow readers to assess the heterostructure quality.
  2. [Figures] Figure captions and axis labels should explicitly state the bias range, illumination conditions, and measurement bandwidth used for the PL, photocurrent, and capacitance traces.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their careful reading and constructive critique. We address each major comment below with point-by-point responses. Revisions will be made to clarify interpretations, add caveats, and include additional analysis where feasible without overstating the data.

read point-by-point responses

  1. Referee: [Abstract / Results] The strongest claim—that the data demonstrate 'a direct competition between coherent and incoherent electron tunnelling processes'—is not supported by distinguishing measurements. No magnetic-field dependence, temperature scaling, or rate-equation modeling is presented to separate phase-coherent tunneling from incoherent hopping or from classical RC relaxation and trap-filling dynamics that can also generate periodic NDR.

    Authors: We agree that the manuscript does not include magnetic-field or temperature-dependent measurements that would directly distinguish coherent tunneling from incoherent or classical processes. The claim is an interpretation drawn from the simultaneous bias-dependent oscillations in PL, photocurrent with periodic NDR, and photo-capacitance, which are consistent with recurring charge accumulation mediated by tunneling in the 0D-2D system. We will revise the abstract and discussion to present this as suggestive evidence rather than definitive proof, and add a brief discussion of alternative classical mechanisms while noting the observed timescales favor a tunneling interpretation. revision: partial

  2. Referee: [Discussion] Discussion of large-scale correlations: The interpretation that persistence of oscillations across a ~200 μm diameter indicates 'periodically correlated quantum phenomena over large length scales' rests on an untested assumption. The manuscript does not address or exclude classical mechanisms (e.g., long-range electrostatic coupling or circuit-induced relaxation) that could produce spatially extended oscillations without invoking macroscopic quantum coherence.

    Authors: The ~200 μm spatial extent is reported as an experimental observation of consistent oscillatory behavior. We acknowledge that classical long-range electrostatic or circuit effects are not explicitly ruled out. In revision we will expand the discussion to address these alternatives, explain why the tight coupling across PL, current, and capacitance makes purely classical RC relaxation less probable, and soften the language around 'periodically correlated quantum phenomena' to reflect the current evidence level. revision: yes

  3. Referee: [Results] Experimental evidence: The link between oscillatory photocurrent, recurring charge accumulation, and the observed PL modulation is presented as an interpretation but lacks quantitative support. No fits to a tunneling-rate model, error bars on the oscillation periods, or control experiments (e.g., varying illumination intensity or device geometry) are reported to confirm that the NDR originates specifically from tunneling-mediated charge buildup.

    Authors: The connection is interpretive, based on the correlated bias dependence of the three observables. We will add error bars to the reported oscillation periods in the revised figures and include a simple rate-equation model sketch in the supplement to illustrate charge accumulation dynamics. Intensity-dependent controls and geometry variations are not present in the current dataset; we will note this limitation explicitly and indicate it as a direction for future experiments. revision: partial

Circularity Check

0 steps flagged

No circularity: experimental observations with direct data interpretation

full rationale

The paper reports bias-dependent oscillations in photoluminescence, photocurrent, and photo-capacitance measured in a 0D-2D heterostructure device. All central claims (oscillations arising from periodic negative differential resistance, persistence over 200 microns, and inference of competing coherent/incoherent tunneling) are presented as direct interpretations of the measured data sets. No equations, rate models, or derivations appear that could reduce to fitted inputs or self-definitions. No self-citations are used to establish uniqueness theorems, ansatzes, or load-bearing premises. The work is therefore self-contained against external benchmarks and exhibits none of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on interpreting observed oscillations as evidence for charge accumulation and tunneling competition under standard semiconductor physics; no free parameters, invented entities, or non-standard axioms are evident from the abstract.

axioms (1)
  • domain assumption Negative differential resistance arises from recurring charge accumulation in the heterostructure
    Invoked to explain the oscillatory photocurrent without alternative mechanisms considered in the abstract.
