arxiv: 2604.27359 · v1 · submitted 2026-04-30 · 💻 cs.AI · cs.CL

TIO-SHACL: Comprehensive SHACL validation for TMF Intent Ontologies

Jean Martins , Leonid Mokrushin , Marin Orlic This is my paper

Pith reviewed 2026-05-07 10:37 UTC · model grok-4.3

classification 💻 cs.AI cs.CL
keywords SHACL validationTMF Intent Ontologyintent-based networkingontology validationSPARQL constraintsnetwork intent checkingtelecommunications management
0
0 comments X

The pith

tio-shacl supplies the first full set of SHACL shapes and constraints to validate every element of the TMF Intent Ontology.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper creates a validation system named tio-shacl that applies the Shapes Constraint Language to the TMF Intent Ontology used in intent-based networking. It builds 56 node shapes and 69 property shapes plus 25 reusable SPARQL constraint components to cover all 15 modules, 87 classes, 109 properties, and 72 functions in version 3.6.0, including new patterns for recursive logical operators and cross-expectation relationships. A sympathetic reader would care because this allows network operators to check intents for correctness automatically before they enter the management system. The authors tested the result for 100 percent vocabulary coverage and compatibility across three SHACL engines on 133 test cases.

Core claim

We present tio-shacl, the first comprehensive SHACL validation framework for the TMF Intent Ontology. Our contribution includes 56 node shapes and 69 property shapes across all 15 tio v3.6.0 ontology modules, a reusable constraint library with 25 parameterized SPARQL-based constraint components, and novel validation patterns for recursive logical operators, quantity-based constraints, and cross-expectation relationships. We pursued 100% vocabulary coverage (87 classes, 109 properties, 72 functions), cross-implementation compatibility across three major SHACL engines, and validation accuracy on a corpus of 133 test cases.

What carries the argument

The collection of 56 node shapes and 69 property shapes together with 25 parameterized SPARQL constraint components that enforce the ontology rules, including dedicated patterns for recursive operators and cross-expectation links.

If this is right

  • Operators can run automated syntactic and semantic checks on intents before admission to the network.
  • The reusable SPARQL constraint library supports customization for specific network policies.
  • Validation works across different SHACL engine implementations for broad deployment.
  • All 15 ontology modules receive uniform coverage so no vocabulary element escapes checking.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same SHACL pattern library could be adapted to validate intents in other standardized ontologies outside TMF.
  • Embedding tio-shacl into intent admission pipelines would catch errors earlier than manual review alone.
  • Running the validator against real-world intent corpora from production networks could surface additional constraint refinements.

Load-bearing premise

The defined shapes and constraints accurately and completely capture the intended meaning of the tio ontology without missing valid intents or incorrectly accepting invalid ones.

What would settle it

A collection of intents judged valid by domain experts that tio-shacl rejects, or a set of invalid intents that it accepts.

Figures

Figures reproduced from arXiv: 2604.27359 by Jean Martins, Leonid Mokrushin, Marin Orlic.

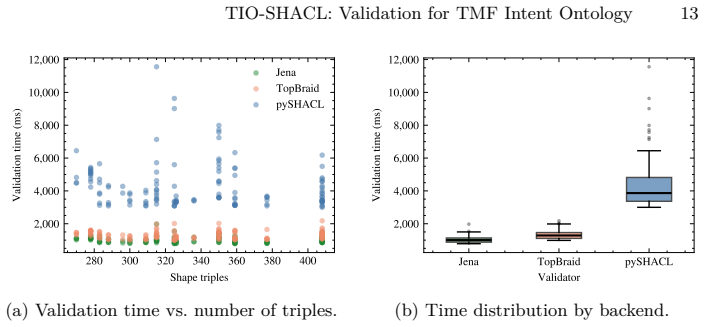

Figure 1
Figure 1. Figure 1: Performance characteristics across three view at source ↗
read the original abstract

Intent-based networking promises to revolutionize telecommunications network management by enabling operators to specify high-level goals rather than low-level configurations. The TM Forum Intent Ontology (tio) provides a standardized vocabulary for expressing network intents, yet lacks formal validation mechanisms to ensure intent correctness before its admission. We present tio-shacl, the first comprehensive SHACL (Shapes Constraint Language) validation framework for the TMF Intent Ontology. Our contribution includes 56 node shapes and 69 property shapes across all 15 tio v3.6.0 ontology modules, a reusable constraint library with 25 parameterized SPARQL-based constraint components, and novel validation patterns for recursive logical operators, quantity-based constraints, and cross-expectation relationships. We pursued 100% vocabulary coverage (87 classes, 109 properties, 72 functions), cross-implementation compatibility across three major SHACL engines, and validation accuracy on a corpus of 133 test cases. tio-shacl is publicly available under MIT license at https://github.com/EricssonResearch/tio-shacl and enables automated syntactic and semantic validation of network intents, addressing a critical gap in the field.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript presents tio-shacl as the first comprehensive SHACL validation framework for the TMF Intent Ontology (tio v3.6.0). It describes 56 node shapes and 69 property shapes providing 100% vocabulary coverage across all 15 modules (87 classes, 109 properties, 72 functions), a reusable library of 25 parameterized SPARQL constraint components, and novel patterns for recursive logical operators, quantity-based constraints, and cross-expectation relationships. The authors report cross-engine compatibility with three major SHACL implementations and 100% validation accuracy on a corpus of 133 test cases, with the full implementation released publicly under the MIT license.

Significance. If the hand-encoded shapes and constraints accurately reflect the intended semantics of tio v3.6.0, the work would provide a practical and much-needed tool for automated validation of network intents in telecommunications, directly addressing the absence of formal validation mechanisms noted in the abstract. The public release of the shapes, code, and constraint library, together with the reported cross-engine compatibility, are explicit strengths that support reproducibility and adoption.

major comments (3)
  1. Abstract and Evaluation: the reported 100% accuracy on the 133 test cases is stated without any description of test-case construction, coverage of edge cases (recursive operators, cross-module relationships, or quantity constraints), or the precise measurement protocol, leaving the central claim of correct and complete validation only partially verifiable.
  2. Shapes and Constraint Library: the 56 node shapes, 69 property shapes, and 25 SPARQL components are manually derived from the published tio v3.6.0 specification; the manuscript supplies neither a formal semantics of the ontology nor an independent oracle (e.g., OWL reasoner or reference implementation) against which omissions or over-constraints could be detected, so the 133-case corpus cannot rule out silent mismatches.
  3. Novel Patterns: the patterns claimed for recursive logical operators and cross-expectation relationships are presented as solutions to SHACL limitations, yet no formal argument or exhaustive test is given showing that these patterns preserve the ontology's intended semantics under recursion.
minor comments (1)
  1. The manuscript would benefit from an appendix listing the 25 SPARQL constraint components in full, together with their parameterizations, to allow direct inspection by readers.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the constructive comments on our manuscript. We address each of the major comments point by point below, indicating where revisions will be made to the next version of the paper.

read point-by-point responses

  1. Referee: Abstract and Evaluation: the reported 100% accuracy on the 133 test cases is stated without any description of test-case construction, coverage of edge cases (recursive operators, cross-module relationships, or quantity constraints), or the precise measurement protocol, leaving the central claim of correct and complete validation only partially verifiable.

    Authors: We agree with this observation. The revised manuscript will include an expanded Evaluation section that details the construction of the 133 test cases, explicitly covering edge cases involving recursive operators, cross-module relationships, and quantity constraints. We will also describe the protocol for measuring validation accuracy across the SHACL engines. revision: yes

  2. Referee: Shapes and Constraint Library: the 56 node shapes, 69 property shapes, and 25 SPARQL components are manually derived from the published tio v3.6.0 specification; the manuscript supplies neither a formal semantics of the ontology nor an independent oracle (e.g., OWL reasoner or reference implementation) against which omissions or over-constraints could be detected, so the 133-case corpus cannot rule out silent mismatches.

    Authors: The TMF Intent Ontology specification does not include a formal semantics or reference implementation. Our shapes were manually encoded to match the published vocabulary and constraints exactly, achieving full coverage. To address this, we will add a detailed account of the shape derivation methodology and map each test case to the specific shapes it validates. This will make the validation claims more transparent, though an independent oracle remains unavailable. revision: partial

  3. Referee: Novel Patterns: the patterns claimed for recursive logical operators and cross-expectation relationships are presented as solutions to SHACL limitations, yet no formal argument or exhaustive test is given showing that these patterns preserve the ontology's intended semantics under recursion.

    Authors: We will revise the manuscript to include additional exhaustive tests for the recursive patterns and cross-expectation relationships, demonstrating their behavior on a range of inputs that exercise recursion. While a formal semantic proof is not feasible without a formal ontology semantics, the empirical tests confirm alignment with the specification's intent. We will clarify this in the text. revision: partial

standing simulated objections not resolved
  • The provision of a formal semantics for the tio ontology or an independent oracle, as these are not part of the published tio v3.6.0 specification.

Circularity Check

0 steps flagged

No circularity: SHACL shapes are direct manual encodings of the external tio v3.6.0 ontology specification

full rationale

The paper derives its 56 node shapes, 69 property shapes, and 25 SPARQL constraint components by direct inspection and encoding of the published TMF Intent Ontology (tio v3.6.0) vocabulary and rules. No equations, fitted parameters, or predictions appear; the 100% coverage claim and 133-case accuracy are post-hoc empirical checks on the hand-written shapes rather than inputs that force the result. No self-citations are load-bearing for the central construction, and no uniqueness theorems or ansatzes are imported from prior author work. The derivation remains self-contained against the independent ontology document.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central contribution is an engineering artifact (shapes and constraint library) built on the published tio ontology and standard SHACL semantics; no free parameters are fitted, no new entities are postulated, and the only background assumptions are the suitability of SHACL for the ontology's features.

axioms (1)
  • domain assumption SHACL is an appropriate and sufficiently expressive language for capturing the syntactic and semantic constraints of the TMF Intent Ontology, including recursive logical operators.
    Invoked by the decision to implement all validation via SHACL node and property shapes plus SPARQL components rather than another constraint language.

pith-pipeline@v0.9.0 · 5499 in / 1395 out tokens · 62098 ms · 2026-05-07T10:37:21.622951+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

18 extracted references · 18 canonical work pages

  1. [1]

    Rfc, IETF (2022), https://www.rfc-editor

    Clemm, J., Ciavaglia, L., Granville, L., Tantsura, J.: RFC 9315: Intent-Based Networking - Concepts and Definitions. Rfc, IETF (2022), https://www.rfc-editor. org/rfc/rfc9315 TIO-SHACL: Validation for TMF Intent Ontology 15

    work page 2022

  2. [2]

    W3c recommendation, W3C (2017), https://www.w3.org/TR/shacl/

    Knublauch, H., Kontokostas, D.: Shapes Constraint Language (SHACL). W3c recommendation, W3C (2017), https://www.w3.org/TR/shacl/

    work page 2017

  3. [3]

    Introductory guide, TM Forum (2022), https://www.tmforum.org/resources/how-to-guide/ ig1253-intent-in-autonomous-networks-v1-3-0/

    TM Forum: IG1253: Intent in Autonomous Networks. Introductory guide, TM Forum (2022), https://www.tmforum.org/resources/how-to-guide/ ig1253-intent-in-autonomous-networks-v1-3-0/

    work page 2022

  4. [4]

    Introductory guide, TM Forum (2023), https://www.tmforum.org/resources/ introductory-guide/ig1252-autonomous-networks-levels/

    TM Forum: IG1252: Autonomous Networks - Levels and Characteristics. Introductory guide, TM Forum (2023), https://www.tmforum.org/resources/ introductory-guide/ig1252-autonomous-networks-levels/

    work page 2023

  5. [5]

    Introductory guide, TM Forum (2024), https://www.tmforum.org/resources/introductory-guide/ ig1358-intent-based-operation-user-guide-v1-0-0/

    TM Forum: IG1358: Intent-Based Operation User Guide. Introductory guide, TM Forum (2024), https://www.tmforum.org/resources/introductory-guide/ ig1358-intent-based-operation-user-guide-v1-0-0/

    work page 2024

  6. [6]

    Technical report, TM Forum (2024), https://www.tmforum.org/resources/technical-report/ tr290-intent-common-model-v3-6-0/

    TM Forum: TR290: Intent Common Model. Technical report, TM Forum (2024), https://www.tmforum.org/resources/technical-report/ tr290-intent-common-model-v3-6-0/

    work page 2024

  7. [7]

    Technical report, TM Fo- rum (2024), https://www.tmforum.org/resources/introductory-guide/ tr291a-intent-validity-intent-extension-model-v3-6-0/

    TM Forum: TR291A: Intent Validity. Technical report, TM Fo- rum (2024), https://www.tmforum.org/resources/introductory-guide/ tr291a-intent-validity-intent-extension-model-v3-6-0/

    work page 2024

  8. [8]

    Technical report, TM Forum (2024), https://www.tmforum.org/resources/standard/ tr291c-proposal-of-best-intent-intent-extension-model-v3-6-0/

    TM Forum: TR291C: Proposal of Best Intent. Technical report, TM Forum (2024), https://www.tmforum.org/resources/standard/ tr291c-proposal-of-best-intent-intent-extension-model-v3-6-0/

    work page 2024

  9. [9]

    Techni- cal report, TM Forum (2024), https://www.tmforum.org/resources/standard/ tr291g-preference-of-intent-handling-outcomes-intent-extension-model-v3-6-0/

    TM Forum: TR291G: Preference of Intent Handling Outcomes. Techni- cal report, TM Forum (2024), https://www.tmforum.org/resources/standard/ tr291g-preference-of-intent-handling-outcomes-intent-extension-model-v3-6-0/

    work page 2024

  10. [10]

    Technical report, TM Fo- rum (2024), https://www.tmforum.org/resources/introductory-guide/ tr291h-intent-guarantee-intent-extension-model-v3-6-0/

    TM Forum: TR291H: Intent Guarantee. Technical report, TM Fo- rum (2024), https://www.tmforum.org/resources/introductory-guide/ tr291h-intent-guarantee-intent-extension-model-v3-6-0/

    work page 2024

  11. [11]

    Technical report, TM Forum (2024), https://www

    TM Forum: TR291I: Utility. Technical report, TM Forum (2024), https://www. tmforum.org/resources/standard/tr291i-utility-intent-extension-model-v3-6-0/

    work page 2024

  12. [12]

    Technical report, TM Forum (2024), https://www.tmforum.org/resources/introductory-guide/ tr292-tm-forum-intent-ontology-tio-v3-6-0/

    TM Forum: TR292: TM Forum Intent Ontology (TIO). Technical report, TM Forum (2024), https://www.tmforum.org/resources/introductory-guide/ tr292-tm-forum-intent-ontology-tio-v3-6-0/

    work page 2024

  13. [13]

    Technical report, TM Forum (2024), https://www.tmforum.org/resources/introductory-guide/ tr292a-intent-management-elements-v3-6-0/

    TM Forum: TR292A: Intent Management Elements. Technical report, TM Forum (2024), https://www.tmforum.org/resources/introductory-guide/ tr292a-intent-management-elements-v3-6-0/

    work page 2024

  14. [14]

    Technical re- port, TM Forum (2024), https://www.tmforum.org/resources/introductory-guide/ tr292b-intent-management-state-machines-v3-6-0/

    TM Forum: TR292B: Intent Management State Machines. Technical re- port, TM Forum (2024), https://www.tmforum.org/resources/introductory-guide/ tr292b-intent-management-state-machines-v3-6-0/

    work page 2024

  15. [15]

    Technical report, TM Forum (2024), https://www.tmforum.org/resources/introductory-guide/ tr292c-function-definition-ontology-v3-6-0/

    TM Forum: TR292C: Function Definition Ontology. Technical report, TM Forum (2024), https://www.tmforum.org/resources/introductory-guide/ tr292c-function-definition-ontology-v3-6-0/

    work page 2024

  16. [16]

    Technical report, TM Fo- rum (2024), https://www.tmforum.org/resources/introductory-guide/ tr292d-quantity-ontology-v3-6-0/

    TM Forum: TR292D: Quantity Ontology. Technical report, TM Fo- rum (2024), https://www.tmforum.org/resources/introductory-guide/ tr292d-quantity-ontology-v3-6-0/

    work page 2024

  17. [17]

    Technical report, TM Forum (2024), https://www.tmforum.org/resources/introductory-guide/ tr292e-logical-operators-v3-6-0/

    TM Forum: TR292E: Conditions and Logical Operators. Technical report, TM Forum (2024), https://www.tmforum.org/resources/introductory-guide/ tr292e-logical-operators-v3-6-0/

    work page 2024

  18. [18]

    Technical report, TM Fo- rum (2024), https://www.tmforum.org/resources/introductory-guide/ tr299-intent-specification-v3-6-0/

    TM Forum: TR299: Intent Specification. Technical report, TM Fo- rum (2024), https://www.tmforum.org/resources/introductory-guide/ tr299-intent-specification-v3-6-0/

    work page 2024
