Decoding Scientific Experimental Images: The SPUR Benchmark for Perception, Understanding, and Reasoning

Junpeng Ding , Zichen Tang , Haihong E , Mengyuan Ji , Yang Liu , Haolin Tian , Haiyang Sun , Pengqi Sun

show 12 more authors

Yang Xu Yichen Liu Haocheng Gao Zijie Xi Ruomeng Jiang Peizhi Zhao Rongjin Li Yuanze Li Jiacheng Liu Zhongjun Yang Jintong Chen Siying Lin

Authors on Pith no claims yet

Pith reviewed 2026-05-07 06:49 UTC · model grok-4.3

classification 💻 cs.CV cs.CE

keywords SPUR benchmarkscientific experimental imagesmultimodal large language modelsAI for scienceimage perception and reasoningcross-panel understandingmultimodal chain-of-thought

0 comments

The pith

Current multimodal AI models fall significantly short of expert-level performance when interpreting scientific experimental images.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces SPUR, a benchmark of 4,264 question-answer pairs drawn from 1,084 expert-curated scientific images. It tests three capabilities: fine-grained visual perception across panel types, understanding of relations among an average of 14.3 panels per image, and qualitative plus quantitative reasoning that mirrors how experts draw conclusions from experimental evidence. Evaluation of 20 multimodal large language models and four chain-of-thought variants shows consistent underperformance relative to expert standards. This gap limits how much AI can currently contribute to analyzing visual data in laboratory research. The work therefore identifies a concrete obstacle for applying AI systems to scientific discovery.

Core claim

SPUR evaluates multimodal large language models on scientific experimental images through panel-level fine-grained perception on six panel types across numerical, morphological, and localization dimensions; cross-panel relation understanding on complex multi-panel figures; and expert-level reasoning across five experimental paradigms. Testing reveals that 20 MLLMs and four MCoT methods fall significantly short of the requirements for expert-level scientific image interpretation.

What carries the argument

The SPUR benchmark, which supplies expert-curated multi-panel scientific images and QA pairs to measure perception, cross-panel understanding, and reasoning in multimodal models.

If this is right

AI systems must advance substantially in visual perception and multi-panel reasoning before they can support scientific image analysis at expert levels.
Multimodal chain-of-thought techniques need targeted improvements to handle the cross-panel relations and inference steps typical of experimental data.
The AI-for-Science field encounters a clear bottleneck in processing visual experimental evidence.
Model development should prioritize the specific weaknesses exposed in numerical and morphological perception as well as complex relational reasoning.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

SPUR can serve as an ongoing yardstick to track whether new models close the performance gap over time.
The benchmark's emphasis on real experimental images suggests that training data for scientific AI should incorporate more authentic multi-panel figures.
Performance gains on SPUR may translate to improved assistance in other visual-heavy scientific domains such as materials characterization or biological microscopy.

Load-bearing premise

The expert-curated images, their panel classifications, and the generated QA pairs accurately and without bias represent the full range of expert-level perception, understanding, and reasoning required for scientific experimental images.

What would settle it

Demonstrating that leading MLLMs reach expert-comparable accuracy on the expert-level reasoning portion of SPUR would show the claimed shortfall has been closed.

Figures

Figures reproduced from arXiv: 2604.27604 by Haihong E, Haiyang Sun, Haocheng Gao, Haolin Tian, Jiacheng Liu, Jintong Chen, Junpeng Ding, Mengyuan Ji, Peizhi Zhao, Pengqi Sun, Rongjin Li, Ruomeng Jiang, Siying Lin, Yang Liu, Yang Xu, Yichen Liu, Yuanze Li, Zhongjun Yang, Zichen Tang, Zijie Xi.

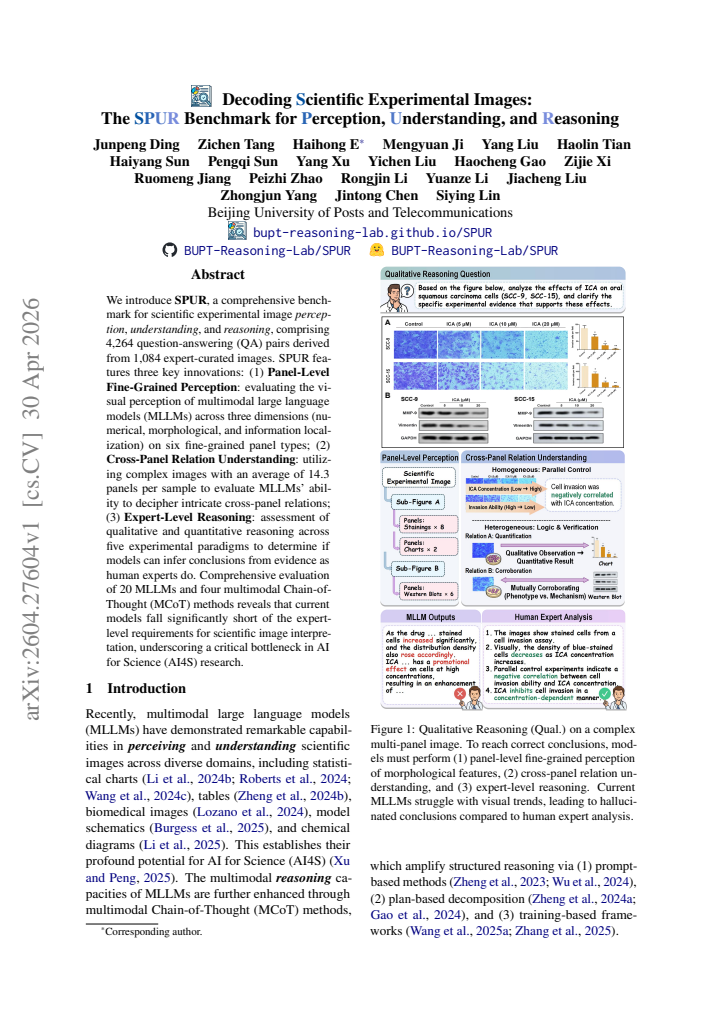

**Figure 1.** Figure 1: Qualitative Reasoning (Qual.) on a complex view at source ↗
