arxiv: 2605.00076 · v1 · submitted 2026-04-30 · 💻 cs.CR · cs.SE

zkSBOM: Privacy-Preserving SBOM Sharing with Zero-Knowledge Sets

Tom Sorger , Eric Cornelissen , Aman Sharma , Javier Ron , Musard Balliu , Martin Monperrus This is my paper

Pith reviewed 2026-05-09 20:48 UTC · model grok-4.3

classification 💻 cs.CR cs.SE
keywords software bill of materialszero-knowledge setsprivacy-preserving sharingcryptographic commitmentsvulnerability verificationsupply chain securityinclusion proofs
0
0 comments X

The pith

Zero-knowledge sets let consumers verify specific SBOM vulnerabilities through cryptographic proofs without revealing other components.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a mechanism for sharing Software Bills of Materials that avoids full disclosure or total opacity. It uses zero-knowledge sets to create a cryptographic commitment to the list of components in an SBOM. Consumers can then issue targeted queries about known vulnerabilities and receive proofs confirming inclusion or exclusion. This binding prevents suppliers from altering or misrepresenting the SBOM after commitment while limiting what consumers learn to only the queried facts. The work quantifies the information leakage from these proofs and evaluates performance on realistic SBOM sizes to show operational feasibility.

Core claim

The paper claims that zero-knowledge sets provide a cryptographic commitment to SBOM components such that inclusion and exclusion proofs for specific items can be generated and verified. Consumers thereby determine whether a particular vulnerable component is present without learning any other contents, and suppliers cannot change the committed list after the fact. The mechanism operates by having the supplier publish the commitment, after which consumers submit queries and obtain short proofs that reveal only the answer to the query.

What carries the argument

Zero-knowledge sets, cryptographic structures that commit to a collection of elements and allow proofs of membership or non-membership for individual elements without exposing the rest of the collection.

If this is right

  • Suppliers can publish a single commitment that supports multiple independent queries over time without additional disclosure.
  • Consumers obtain cryptographic assurance that a queried component is or is not present, reducing the chance of being misled by a modified SBOM.
  • The quantified leakage analysis provides a concrete bound that can be checked against regulatory or threat-model requirements.
  • The evaluation on realistic scenarios indicates that the computational cost stays within practical bounds for typical software supply-chain sizes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Adoption could lower barriers to mandatory SBOM sharing by addressing mutual distrust between suppliers and consumers.
  • The same commitment structure could support queries about other attributes such as license compliance without full exposure.
  • If proof sizes and verification times decrease with future zero-knowledge techniques, the approach would become viable for even larger SBOMs or real-time checks.
  • Integration with public vulnerability databases would allow automated, privacy-preserving scans without centralizing full SBOM data.

Load-bearing premise

The security and privacy rest on the premise that any information revealed by the structure of the inclusion and exclusion proofs remains too limited to enable practical attacks on the remaining SBOM contents.

What would settle it

An experiment showing that an adversary can extract additional component identities from a sequence of inclusion and exclusion proofs beyond the quantified leakage bound, or a measurement demonstrating that proof generation and verification times exceed acceptable limits for SBOMs containing several thousand entries, would falsify the practical claims.

Figures

Figures reproduced from arXiv: 2605.00076 by Aman Sharma, Eric Cornelissen, Javier Ron, Martin Monperrus, Musard Balliu, Tom Sorger.

Figure 1
Figure 1. Figure 1: Overview of the problem statement. Definition 1. Let 𝐻 be a cryptographic hash function that maps variable-length input to fixed-length output. We de￾note this operation as ℎ ← 𝐻(𝑚). The function 𝐻 must be cryptographically secure, namely collision-, preimage-, and second preimage-resistant. Definition 2. Let 𝐷𝑆 be a digital signature scheme that consists of algorithms 𝐷𝑆.KeyGen, 𝐷𝑆.Sign, and 𝐷𝑆.Verify: (𝑝… view at source ↗

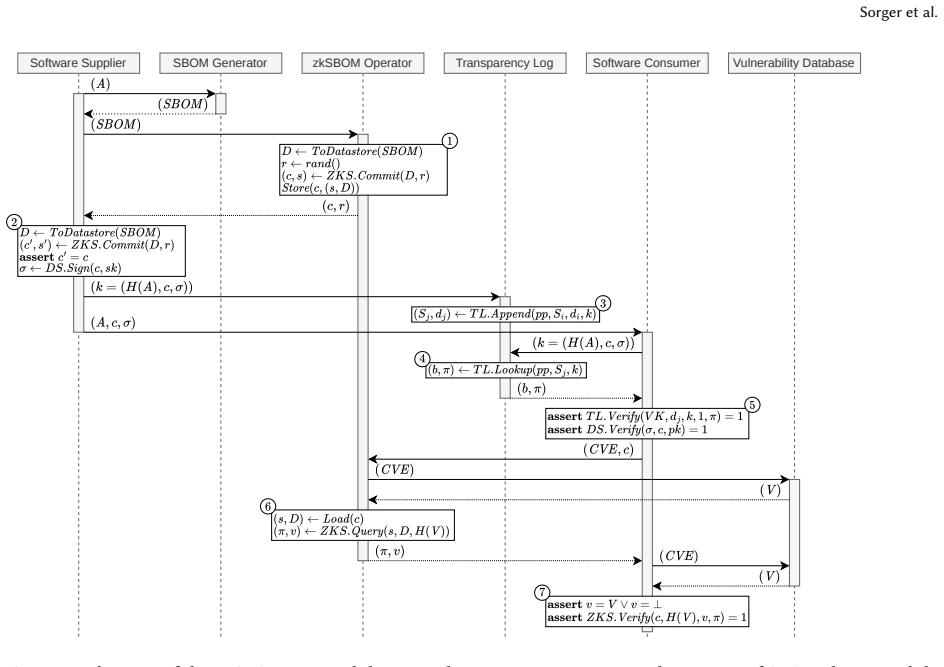

Figure 2
Figure 2. Figure 2 [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

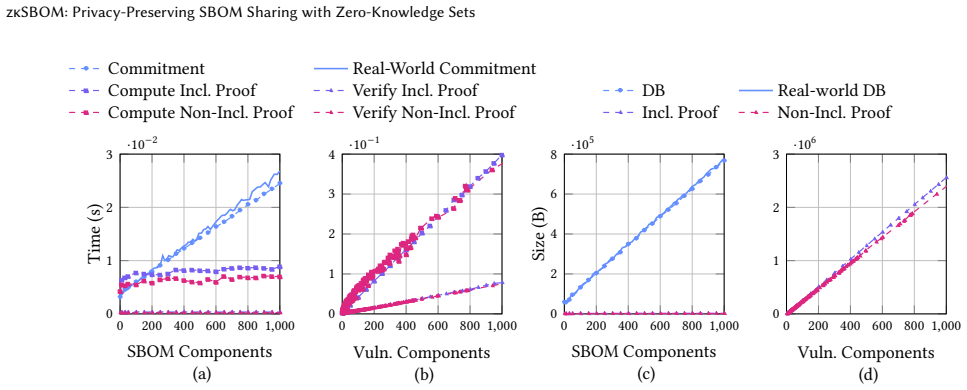

Figure 3
Figure 3. Figure 3: RQ2: Performance analysis of zkSBOM. All graphs show our measurements for both inclusion and non-inclusion proof. (a) Commitment creation time (box (1) in [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
read the original abstract

Software Bills of Materials (SBOMs) are increasingly mandated by regulators, yet existing sharing mechanisms impose a binary choice between full disclosure and full opacity. This exposes software suppliers to attacks that can be deduced from the SBOM only, such as the presence of a vulnerable dependency. Conversely, software consumers can be fooled by software suppliers who modify or misrepresent published SBOMs. We present zkSBOM, a privacy-preserving SBOM sharing mechanism designed to address these threats. zkSBOM uses zero-knowledge sets to cryptographically commit to the components within an SBOM. Software consumers can query for known vulnerabilities and receive a cryptographic proof confirming whether the artifact described by the SBOM is affected, without revealing any additional SBOM content. We conduct a security analysis of zkSBOM by quantifying expected leakage from inclusion and exclusion proofs. We demonstrate real-world feasibility by applying it to realistic scenarios and evaluating its operation requirements. Our evaluation demonstrates that zkSBOM is a strong, secure, and privacy-preserving mechanism for SBOM sharing, protecting software suppliers and software consumers from one another.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces zkSBOM, a privacy-preserving mechanism for sharing Software Bills of Materials (SBOMs) that uses zero-knowledge sets to cryptographically commit to SBOM components. Consumers can issue queries about known vulnerabilities and receive inclusion or exclusion proofs confirming whether the artifact is affected, without revealing any other SBOM content. The work includes a security analysis that quantifies expected leakage from these proofs and a feasibility evaluation on realistic SBOM scenarios, concluding that zkSBOM is a strong, secure, and privacy-preserving solution protecting both suppliers and consumers.

Significance. If the privacy and security claims can be substantiated, the result would address a practical tension in software supply-chain security between regulatory SBOM mandates and the need to limit exposure of proprietary dependency information. The application of zero-knowledge sets to this domain is a natural and timely idea, and the reported feasibility evaluation on realistic scenarios provides initial evidence of practicality that could support adoption in compliance contexts.

major comments (2)
  1. [Security Analysis] Security Analysis section: the quantification of expected leakage from inclusion and exclusion proofs is presented as heuristic expected-value calculations without a formal game-based privacy definition or reduction to a standard assumption (e.g., zero-knowledge property of the underlying set or collision resistance of the commitment). This is load-bearing for the central claim that zkSBOM is 'strong, secure, and privacy-preserving' against a malicious consumer issuing adaptive queries.
  2. [Feasibility Evaluation] Feasibility Evaluation section: the evaluation does not report concrete proof sizes, computation costs, or whether the zero-knowledge set construction requires a trusted setup, nor does it address potential side-channel leakage outside the quantified bounds; these details are necessary to assess whether the mechanism remains practical and private for typical SBOM sizes (hundreds of components).
minor comments (1)
  1. [Abstract] Abstract: the concluding sentence asserts that the evaluation 'demonstrates that zkSBOM is a strong, secure, and privacy-preserving mechanism' without qualification; this phrasing should be softened to reflect that the security analysis remains informal.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed review. We address each major comment below and indicate the revisions planned for the manuscript.

read point-by-point responses

  1. Referee: [Security Analysis] Security Analysis section: the quantification of expected leakage from inclusion and exclusion proofs is presented as heuristic expected-value calculations without a formal game-based privacy definition or reduction to a standard assumption (e.g., zero-knowledge property of the underlying set or collision resistance of the commitment). This is load-bearing for the central claim that zkSBOM is 'strong, secure, and privacy-preserving' against a malicious consumer issuing adaptive queries.

    Authors: We agree that the current heuristic expected-value analysis, while grounded in the collision resistance and zero-knowledge properties of the set construction, would benefit from a formal treatment to fully substantiate the privacy claims under adaptive queries. In the revised manuscript we will introduce an explicit privacy game capturing a malicious consumer's adaptive queries and show that the adversary's view is simulatable given only the quantified leakage, with a direct reduction to the zero-knowledge property of the underlying set and the collision resistance of the commitment. This addition will strengthen the central security argument without altering the existing leakage quantification. revision: yes

  2. Referee: [Feasibility Evaluation] Feasibility Evaluation section: the evaluation does not report concrete proof sizes, computation costs, or whether the zero-knowledge set construction requires a trusted setup, nor does it address potential side-channel leakage outside the quantified bounds; these details are necessary to assess whether the mechanism remains practical and private for typical SBOM sizes (hundreds of components).

    Authors: We acknowledge that the feasibility section currently presents high-level operation requirements on realistic SBOM scenarios. In the revision we will add concrete measurements of proof sizes and computation costs for SBOMs with hundreds of components. We will also state the trusted-setup requirements (or lack thereof) of the specific zero-knowledge set construction employed and discuss side-channel considerations, explaining that any such leakage is either outside the threat model or bounded by the same cryptographic assumptions used for the quantified leakage. These concrete details will allow readers to better evaluate practicality. revision: yes

Circularity Check

0 steps flagged

No circularity detected; derivation relies on standard cryptographic primitives

full rationale

The paper constructs zkSBOM by applying zero-knowledge sets (a standard primitive) to commit to SBOM components and enable inclusion/exclusion proofs for vulnerability queries. The security analysis quantifies expected leakage from proofs but introduces no self-definitional equations, fitted parameters renamed as predictions, or load-bearing self-citations that reduce the central claim to its own inputs. No uniqueness theorems, ansatzes smuggled via citation, or renamings of known results appear in the provided text. The evaluation on realistic scenarios is empirical and independent of the construction itself, making the derivation self-contained against external cryptographic assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Only abstract available; ledger therefore limited to standard cryptographic assumptions.

axioms (1)
  • domain assumption Zero-knowledge sets provide the stated privacy and soundness properties against the described leakage model.
    Invoked when the paper claims cryptographic proofs reveal only the queried answer.
