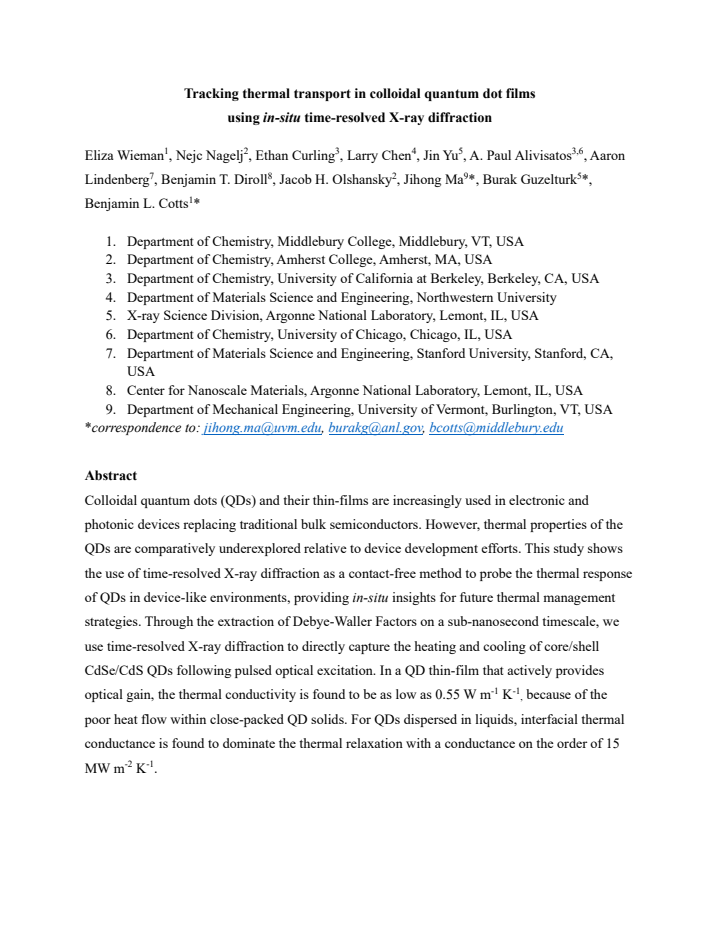

arxiv: 2605.01141 · v1 · submitted 2026-05-01 · ❄️ cond-mat.mes-hall · cond-mat.mtrl-sci

Tracking thermal transport in colloidal quantum dot films using in-situ time-resolved X-ray diffraction

Eliza Wieman , Nejc Nagelj , Ethan Curling , Larry Chen , Jin Yu , A. Paul Alivisatos , Aaron Lindenberg , Benjamin T. Diroll

show 4 more authors

Jacob H. Olshansky Jihong Ma Burak Guzelturk Benjamin L. Cotts

This is my paper

Pith reviewed 2026-05-09 18:19 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.mtrl-sci

keywords colloidal quantum dotsthermal transporttime-resolved X-ray diffractionthermal conductivityinterfacial thermal conductanceCdSe/CdS quantum dotsoptical gain

0 comments p. Extension

The pith

Time-resolved X-ray diffraction tracks sub-nanosecond heating and cooling to measure thermal transport in quantum dot films.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a contact-free technique that uses time-resolved X-ray diffraction to follow how colloidal quantum dots heat and cool after short light pulses. By tracking changes in scattered X-ray intensity over sub-nanosecond times, the method directly reveals temperature evolution inside the material. It finds that solid films of these dots conduct heat poorly at values as low as 0.55 W m^{-1} K^{-1} because heat moves inefficiently between particles that touch only at points. When the same dots sit in liquid, heat leaves mainly through the dot-liquid boundary at a conductance near 15 MW m^{-2} K^{-1}. A reader would care because quantum dots appear in lasers, displays, and solar cells where unmanaged heat reduces efficiency and lifetime.

Core claim

Through extraction of Debye-Waller factors on a sub-nanosecond timescale, time-resolved X-ray diffraction directly captures the heating and cooling of core/shell CdSe/CdS QDs following pulsed optical excitation. In a QD thin-film that actively provides optical gain, the thermal conductivity is found to be as low as 0.55 W m^{-1} K^{-1} because of the poor heat flow within close-packed QD solids. For QDs dispersed in liquids, interfacial thermal conductance dominates the thermal relaxation with a conductance on the order of 15 MW m^{-2} K^{-1}.

What carries the argument

Time-resolved X-ray diffraction that extracts a measure of atomic vibration strength from diffraction patterns to determine temperature changes in quantum dots after light pulses.

Load-bearing premise

The assumption that any changes in the X-ray scattering patterns come only from the dots getting hotter due to the light pulse, without contributions from other structural changes or non-thermal effects.

What would settle it

An experiment that independently measures the temperature of the same quantum dots using optical spectroscopy at the same instants as the X-ray data and checks whether the two temperature values match.

Figures

Figures reproduced from arXiv: 2605.01141 by Aaron Lindenberg, A. Paul Alivisatos, Benjamin L. Cotts, Benjamin T. Diroll, Burak Guzelturk, Eliza Wieman, Ethan Curling, Jacob H. Olshansky, Jihong Ma, Jin Yu, Larry Chen, Nejc Nagelj.

**Figure 1.** Figure 1: Time-resolved x-ray diffraction of CdSe/CdS QDs. view at source ↗

**Figure 2.** Figure 2: ASE in thin-film sample. (a) Log-linear plot of spectra from fluence-dependent optical emission experiments, showing emission above (yellow, orange) and below (blue) ASE threshold fluence. At higher fluences, an additional ASE mode is observed, indicated by an additional peak at ~575 nm. (b) Integrated emission intensity versus fluence for all recorded fluences. Data was fit to determine an ASE threshold o… view at source ↗

**Figure 3.** Figure 3: Debye–Waller analysis of transient diffraction intensity changes. (a) Representative diffraction image of the CdSe/CdS thin-film sample. (b) Radially integrated, background-subtracted diffraction intensity of a CdSe/CdS thin-film sample prior to excitation, I0(Q), scaled to 2% (black), and the transient change in diffraction intensity 50 ns after excitation, I(Q, t = 50 ns) (orange). (c, d) Debye-Waller F… view at source ↗

**Figure 4.** Figure 4: Temporal recovery of diffraction intensity view at source ↗

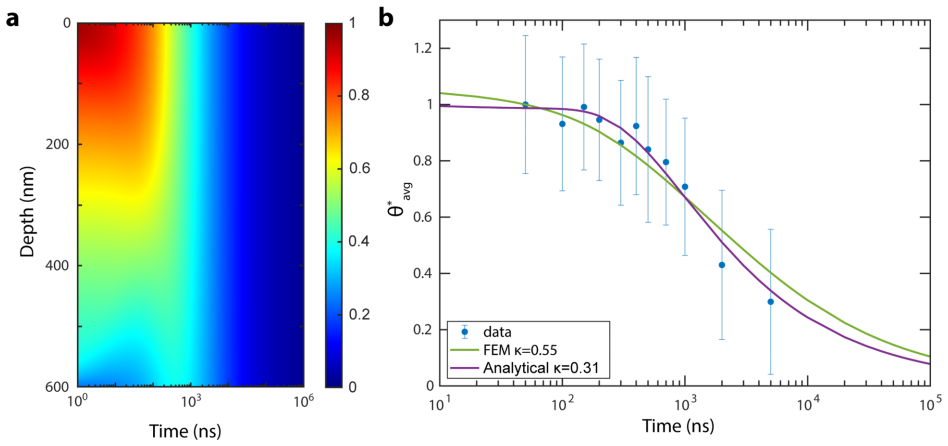

**Figure 5.** Figure 5: Thermal recovery dynamics. (a) Simulated film normalized temperature, 𝜃, as a function of film depth and time. The x-axis is in log scale. (b) Normalized experimentally measured averaged thin-film temperature (blue circles) fit to FEM (green) and analytical (purple) model, yielding fitted thermal conductivity values of 0.55 W m-1 K-1 and 0.31 W m-1 K-1, respectively. Based on the thermal model, we estimate… view at source ↗

read the original abstract

Colloidal quantum dots (QDs) and their thin-films are increasingly used in electronic and photonic devices replacing traditional bulk semiconductors. However, thermal properties of the QDs are comparatively underexplored relative to device development efforts. This study shows the use of time-resolved X-ray diffraction as a contact-free method to probe the thermal response of QDs in device-like environments, providing in-situ insights for future thermal management strategies. Through the extraction of Debye-Waller Factors on a sub-nanosecond timescale, we use time-resolved X-ray diffraction to directly capture the heating and cooling of core/shell CdSe/CdS QDs following pulsed optical excitation. In a QD thin-film that actively provides optical gain, the thermal conductivity is found to be as low as 0.55 $\mathrm{W\,m^{-1}\,K^{-1}}$, because of the poor heat flow within close-packed QD solids. For QDs dispersed in liquids, interfacial thermal conductance is found to dominate the thermal relaxation with a conductance on the order of 15 $\mathrm{MW\,m^{-2}\,K^{-1}}$.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper gives a contact-free TR-XRD route to thermal conductivity and interfacial conductance in QD films and dispersions, but the numbers rest on assuming all Debye-Waller changes are thermal.

read the letter

The punchline is that the work shows how to watch sub-nanosecond heating and cooling in CdSe/CdS quantum dot films and liquids by tracking Debye-Waller factors after pulsed excitation, then turning those into a thermal conductivity of 0.55 W m^{-1} K^{-1} for gain-active films and an interfacial conductance near 15 MW m^{-2} K^{-1} for dispersed dots. That is the concrete advance: a method that works in device-like environments without contacts or special sample prep. It fills a practical gap for people who need heat-flow numbers in close-packed QD solids or at QD-liquid interfaces. The data come from real time-resolved diffraction on films that are optically active, which is a step beyond most prior QD thermal studies that stayed on electronic or steady-state properties. The numbers are reported clearly and tied to the experimental conditions, so a reader can see what the method produces in two different geometries. The soft spot is the attribution step. The extraction treats Debye-Waller reductions as direct readouts of lattice temperature rise, but above-gap pulses create hot carriers whose relaxation can soften bonds or add transient disorder on the same sub-nanosecond window. The abstract gives no sign of controls or modeling that subtract those non-thermal channels, so the fitted transport values could shift if part of the signal is not thermal. Error bars and the full fitting pipeline are also missing from the summary, which makes it hard to judge how tightly the numbers are constrained. This is the kind of paper that belongs in a reading group for people working on QD optoelectronics or advanced X-ray characterization. A reader who needs thermal data for device modeling or who wants to adapt the technique to other nanomaterials will find usable ideas here. It is worth sending to peer review because the approach is new for this system and the claims are quantitative, even though the analysis details will need close scrutiny and probably some added validation runs. I would recommend review with a request for the exact data-reduction steps and any tests that separate thermal from photo-induced lattice effects.

Referee Report

1 major / 2 minor

Summary. The manuscript presents time-resolved X-ray diffraction (TR-XRD) as a contact-free probe of thermal transport in colloidal CdSe/CdS quantum dot (QD) films and dispersions. By extracting Debye-Waller factors (DWF) on sub-nanosecond timescales after pulsed optical excitation, the authors track lattice heating and cooling. They report a thermal conductivity of 0.55 W m^{-1} K^{-1} in optically gain-active QD thin films, attributed to poor inter-QD heat flow, and an interfacial thermal conductance of ~15 MW m^{-2} K^{-1} for QDs dispersed in liquids, where interface effects dominate relaxation.

Significance. If the DWF-to-temperature mapping is robust, the work supplies a useful in-situ method for characterizing thermal properties in device-relevant QD environments, where traditional contact-based techniques are impractical. The reported low conductivity value quantifies a known limitation of close-packed QD solids and could guide thermal management in QD lasers or photodetectors. The liquid-dispersion result similarly highlights interfacial resistance as the rate-limiting step.

major comments (1)

[Abstract / DWF extraction and fitting procedure] The central mapping of time-dependent DWF reductions to lattice temperature (Abstract and the associated data-analysis procedure) is load-bearing for both reported transport coefficients. The manuscript does not appear to quantify or subtract possible non-thermal contributions to diffracted intensity, such as photo-induced bond softening, hot-carrier-induced lattice disorder, or coherent acoustic phonons, all of which are documented in CdSe/CdS QDs on sub-nanosecond timescales and can modulate Bragg-peak intensity independently of equilibrium temperature. Without explicit controls (e.g., below-bandgap excitation, fluence-dependent checks, or simultaneous optical transient-absorption data), the extracted conductivity (0.55 W m^{-1} K^{-1}) and conductance (~15 MW m^{-2} K^{-1}) rest on an unverified attribution.

minor comments (2)

[Abstract] The abstract states numerical results but supplies no information on error bars, number of independent measurements, or validation of the DWF-to-temperature calibration (e.g., comparison with known bulk values or independent thermometry).
[Methods / Data analysis] Notation for the Debye-Waller factor and the precise functional form used to convert its time dependence into temperature should be defined explicitly, including any assumptions about the Debye temperature or phonon spectrum of the core/shell QDs.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful review and for identifying a key point regarding the robustness of our DWF-to-temperature mapping. We address this concern directly below and will revise the manuscript to strengthen the supporting analysis and discussion.

read point-by-point responses

Referee: [Abstract / DWF extraction and fitting procedure] The central mapping of time-dependent DWF reductions to lattice temperature (Abstract and the associated data-analysis procedure) is load-bearing for both reported transport coefficients. The manuscript does not appear to quantify or subtract possible non-thermal contributions to diffracted intensity, such as photo-induced bond softening, hot-carrier-induced lattice disorder, or coherent acoustic phonons, all of which are documented in CdSe/CdS QDs on sub-nanosecond timescales and can modulate Bragg-peak intensity independently of equilibrium temperature. Without explicit controls (e.g., below-bandgap excitation, fluence-dependent checks, or simultaneous optical transient-absorption data), the extracted conductivity (0.55 W m^{-1} K^{-1}) and conductance (~15 MW m^{-2} K^{-1}) rest on an unverified attribution.

Authors: We agree that the manuscript would benefit from an explicit discussion of possible non-thermal contributions to the observed DWF changes. Our attribution relies on the fact that measurements begin after ~100 ps (post-carrier thermalization) and that the subsequent intensity recovery follows the functional form expected for diffusive heat transport in the film and interfacial transfer in dispersions. Fluence-dependent data in the supplementary information show that the DWF reduction scales linearly with absorbed energy in the regime used, which is consistent with thermal heating rather than nonlinear disorder or softening effects. Coherent acoustic phonons primarily shift peak positions rather than reduce integrated intensity via the Debye-Waller mechanism. We will add a new subsection to the Methods and a paragraph to the Discussion that (i) cites the relevant literature on sub-ps carrier cooling and ps-scale phonon dynamics in CdSe/CdS QDs, (ii) presents the fluence linearity check, and (iii) notes that peak-position and width analysis (already performed but not highlighted) shows no evidence of persistent non-thermal lattice disorder on the timescales of interest. These revisions will make the temperature mapping more transparent without changing the reported transport coefficients. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental extraction from measured Debye-Waller factors with no self-referential derivation

full rationale

The paper reports direct experimental measurements: time-resolved XRD data are used to extract Debye-Waller factors, from which lattice temperature changes are inferred and then fitted to a thermal transport model yielding conductivity (0.55 W m^{-1} K^{-1}) and interfacial conductance (~15 MW m^{-2} K^{-1}). No equations, ansatz, or uniqueness theorem are shown that reduce the output quantities to the input data by construction. No self-citation chain is invoked to justify the central attribution of DWF changes to temperature. The reported values are data-driven fits, not predictions that loop back to the same fitted parameters. This is a standard experimental workflow; the derivation chain is self-contained against external benchmarks (measured intensities) and carries no load-bearing self-reference.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim relies on the assumption that Debye-Waller factors can be used to track temperature in QDs without other confounding factors.

axioms (1)

domain assumption Debye-Waller factor changes are directly proportional to temperature increase
Used to extract temperature from XRD data.

pith-pipeline@v0.9.0 · 5544 in / 1300 out tokens · 35671 ms · 2026-05-09T18:19:07.453802+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

3 extracted references · 3 canonical work pages

[1]

High Lattice Thermal Conductivity Solids

hƩps://doi.org/10.1007/0-387-25100-6_2. (8) Kagan, C. R.; Lifshitz, E.; Sargent, E. H.; Talapin, D. V. Building Devices from Colloidal Quantum Dots. Science 2016, 353 (6302), aac5523. hƩps://doi.org/10.1126/science.aac5523. (9) Cahill, D. G.; Ford, W. K.; Goodson, K. E.; Mahan, G. D.; Majumdar, A.; Maris, H. J.; Merlin, R.; Phillpot, S. R. Nanoscale Therm...

work page doi:10.1007/0-387-25100-6_2 2016
[2]

Nanoscale Thermal Transport,

hƩps://doi.org/10.1063/1.1524305. (10) Kovalenko, M. V.; Manna, L.; Cabot, A.; Hens, Z.; Talapin, D. V.; Kagan, C. R.; Klimov, V . I.; Rogach, A. L.; Reiss, P .; Milliron, D. J.; Guyot-Sionnnest, P .; Konstantatos, G.; Parak, W. J.; Hyeon, T.; Korgel, B. A.; Murray, C. B.; Heiss, W. Prospects of Nanoscience with Nanocrystals. ACS Nano 2015, 9 (2), 1012–10...

work page doi:10.1063/1.1524305 2015
[3]

(40) Ahn, N.; Park, Y .-S.; Livache, C.; Du, J.; Gungor, K.; Kim, J.; Klimov, V

hƩps://doi.org/10.1002/adma.201500418. (40) Ahn, N.; Park, Y .-S.; Livache, C.; Du, J.; Gungor, K.; Kim, J.; Klimov, V. I. Op Ɵcally Excited Lasing in a Cavity-Based, High-Current-Density Quantum Dot Electroluminescent Device. Advanced Materials 2023, 35 (9), 2206613. hƩps://doi.org/10.1002/adma.202206613. (41) Liu, C.; Kinigstein, E. D.; Zhang, X. Time-R...

work page doi:10.1002/adma.201500418 2023
