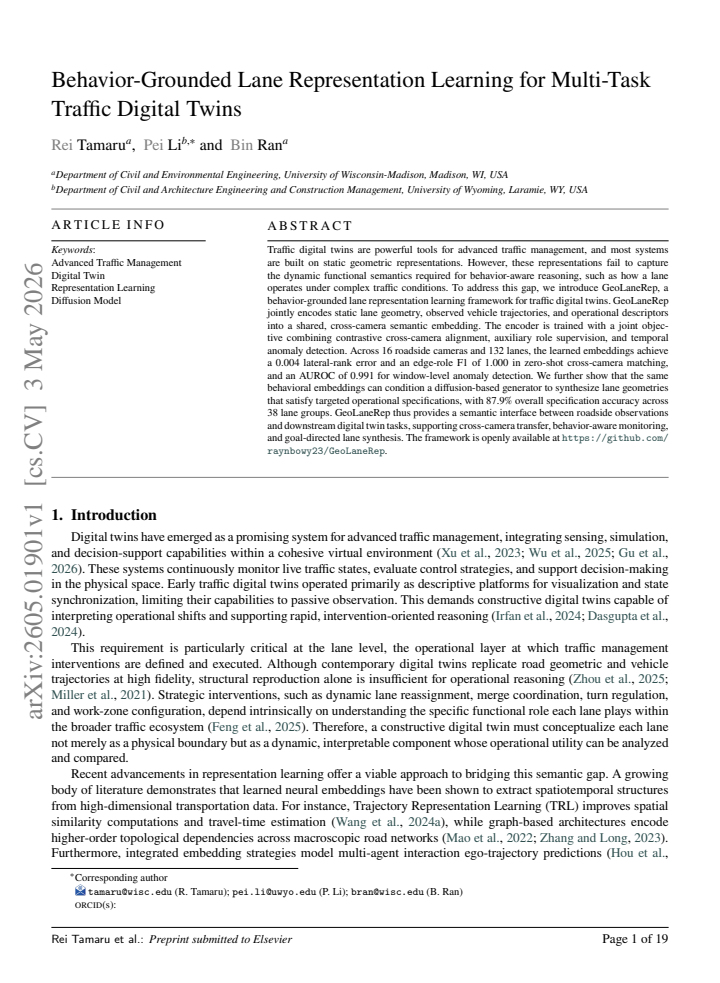

Behavior-Grounded Lane Representation Learning for Multi-Task Traffic Digital Twins

Rei Tamaru , Pei Li , Bin Ran

Authors on Pith no claims yet

Pith reviewed 2026-05-09 17:29 UTC · model grok-4.3

classification 💻 cs.CV cs.AI

keywords lanetrafficcross-cameradigitalgeolanereptwinsacrossanomaly

0 comments

The pith

GeoLaneRep learns behavior-grounded lane embeddings that support zero-shot cross-camera matching, anomaly detection, and conditioned synthesis of lane geometries in traffic digital twins.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a machine learning system that represents lanes not only by their physical shape but by how vehicles actually use them under real conditions. It takes three kinds of input: the lane's geometry, observed car paths, and other operational labels. These are fed into an encoder that produces a single embedding vector per lane. Training uses three signals at once: a contrastive loss that pulls embeddings of the same lane from different cameras closer together, a supervised task that predicts the lane's role, and a detector for unusual temporal patterns. The resulting embeddings are then tested on new cameras never seen during training and achieve near-perfect role prediction and very low matching error. The same vectors can also guide a diffusion model to generate new lane shapes that match desired operational rules, with high accuracy on held-out groups. The goal is to give traffic digital twins a semantic layer that connects raw camera data to higher-level tasks like monitoring and design.

Core claim

Across 16 roadside cameras and 132 lanes, the learned embeddings achieve a 0.004 lateral-rank error and an edge-role F1 of 1.000 in zero-shot cross-camera matching, and an AUROC of 0.991 for window-level anomaly detection. The same behavioral embeddings can condition a diffusion-based generator to synthesize lane geometries that satisfy targeted operational specifications, with 87.9% overall specification accuracy across 38 lane groups.

Load-bearing premise

That jointly encoding static geometry, trajectories, and operational descriptors into a shared embedding space, trained with the stated contrastive and auxiliary objectives, sufficiently captures the dynamic functional semantics needed for behavior-aware reasoning across unseen cameras and tasks.

read the original abstract

Traffic digital twins are powerful tools for advanced traffic management, and most systems are built on static geometric representations. However, these representations fail to capture the dynamic functional semantics required for behavior-aware reasoning, such as how a lane operates under complex traffic conditions. To address this gap, we introduce GeoLaneRep, a behavior-grounded lane representation learning framework for traffic digital twins. GeoLaneRep jointly encodes static lane geometry, observed vehicle trajectories, and operational descriptors into a shared, cross-camera semantic embedding. The encoder is trained with a joint objective combining contrastive cross-camera alignment, auxiliary role supervision, and temporal anomaly detection. Across 16 roadside cameras and 132 lanes, the learned embeddings achieve a $0.004$ lateral-rank error and an edge-role F1 of $1.000$ in zero-shot cross-camera matching, and an AUROC of $0.991$ for window-level anomaly detection. We further show that the same behavioral embeddings can condition a diffusion-based generator to synthesize lane geometries that satisfy targeted operational specifications, with $87.9\%$ overall specification accuracy across 38 lane groups. GeoLaneRep thus provides a semantic interface between roadside observations and downstream digital twin tasks, supporting cross-camera transfer, behavior-aware monitoring, and goal-directed lane synthesis. The framework is openly available at https://github.com/raynbowy23/GeoLaneRep.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

GeoLaneRep gives a practical shared embedding for lanes that folds in trajectories and roles, with strong reported numbers on cross-camera matching and conditioned synthesis, but the abstract leaves the experimental controls thin.

read the letter

The main thing to know is that this paper trains lane embeddings on geometry plus real vehicle trajectories and operational descriptors, using contrastive alignment across cameras, role supervision, and anomaly detection as joint objectives. The same embeddings then feed a diffusion generator to produce lane geometries that hit target specs. That combination and the downstream use case are the actual new pieces here, not just another lane detector. The reported results from 16 cameras and 132 lanes look solid on the surface: 0.004 lateral-rank error and perfect 1.0 F1 in zero-shot cross-camera matching, 0.991 AUROC for window-level anomaly detection, and 87.9% specification accuracy when synthesizing across 38 lane groups. The open GitHub link is a clear positive for anyone who wants to check the implementation. The soft spots are mostly around missing context. The abstract does not show baselines, ablations, or how the zero-shot split was constructed, so it is difficult to judge whether the behavior-grounding objectives are doing the heavy lifting or whether simpler multi-view contrastive training would get similar numbers. The perfect F1 score also invites a closer look at the matching task definition to rule out any unintended leakage. This work is aimed at the transportation-AI crowd building digital twins or multi-camera monitoring systems. It is coherent enough and has enough concrete numbers plus code to merit a full referee process rather than a desk reject, even if the experiments will probably need tightening in revision.

Referee Report

0 major / 4 minor

Summary. The paper introduces GeoLaneRep, a behavior-grounded lane representation learning framework for traffic digital twins. It jointly encodes static lane geometry, observed vehicle trajectories, and operational descriptors into a shared cross-camera semantic embedding space. The encoder is trained with a joint objective of contrastive cross-camera alignment, auxiliary role supervision, and temporal anomaly detection. Evaluations across 16 roadside cameras and 132 lanes report strong results on zero-shot cross-camera matching (0.004 lateral-rank error, edge-role F1 of 1.000), window-level anomaly detection (AUROC 0.991), and conditioning a diffusion-based generator for lane geometry synthesis satisfying operational specifications (87.9% accuracy across 38 lane groups). The framework is positioned as providing a semantic interface for cross-camera transfer, behavior-aware monitoring, and goal-directed synthesis, with code released openly.

Significance. If the results hold under full scrutiny of methods and baselines, this work meaningfully advances traffic digital twins beyond static geometry by incorporating dynamic functional semantics from trajectories and operations. The zero-shot cross-camera performance and multi-task applicability (matching, detection, conditioned synthesis) suggest practical utility for behavior-aware reasoning. The open code release aids reproducibility. The stress-test concern about whether the joint encoding sufficiently captures dynamic semantics does not appear to land as a load-bearing issue here, given the separate evaluation tasks and lack of detected circularity or internal inconsistency.

minor comments (4)

The abstract and evaluations reference specific metrics (e.g., lateral-rank error, edge-role F1) without defining them in the provided summary; please add precise definitions and computation details in the experimental setup section.
Clarify the train/test splits and camera groupings for the zero-shot cross-camera matching to confirm no leakage, particularly given the 16 cameras and 132 lanes.
The diffusion-based synthesis results would benefit from additional qualitative visualizations or analysis of failure modes across the 38 lane groups to support the 87.9% specification accuracy claim.
Consider adding a dedicated related work subsection comparing to prior lane embedding or trajectory-based representation methods in computer vision and ITS literature.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 1 invented entities

The central claim rests on the assumption that the multi-task training produces embeddings that generalize to zero-shot cross-camera use and downstream generation; this depends on standard deep-learning assumptions about data distribution and representation capacity rather than new axioms.

free parameters (1)

model hyperparameters (embedding dimension, loss weights, etc.)
Typical deep learning hyperparameters required to train the encoder and diffusion model; specific values not given in abstract.

axioms (1)

domain assumption Observed trajectories and operational descriptors provide sufficient signal to ground functional semantics in the embedding space
Invoked in the design of the joint objective and zero-shot evaluation.

invented entities (1)

shared cross-camera semantic embedding no independent evidence
purpose: To encode behavior-grounded lane information usable across tasks and cameras
Newly proposed representation space introduced by the framework.
