arxiv: 2605.02107 · v1 · submitted 2026-05-04 · 💻 cs.RO

AoI-Aware Multi-Robot Sensing and Transport on Connected Graphs

John Tadrous This is my paper

Pith reviewed 2026-05-08 18:32 UTC · model grok-4.3

classification 💻 cs.RO
keywords Age of InformationMulti-robot systemsGraph transportResource allocationConveyor architectureEuler walksShortest path trees
0
0 comments X

The pith

A shortest-path tree conveyor system with Euler-walk robot deployment attains the derived lower bound on Age of Information for multi-robot sensing and transport on graphs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives a network-wide lower bound on Age of Information that splits into a sensing delay term based on mean group sensing times at each node and a propagation term based on shortest-path distances to the base. It shows that the sensing term can be minimized independently through a discretely convex resource allocation problem solved by a greedy water-filling algorithm that assigns robots to nodes. The authors then construct a specific architecture using a shortest-path tree for transport routes and Euler walks for cycling robots along those routes, proving that this setup meets the full lower bound whenever enough robots are present to keep every conveyor segment busy. A sympathetic reader would care because the result supplies both a performance target and a concrete coordination method for teams of robots that must both observe distributed events and ferry the data back without excessive staleness.

Core claim

In the full-conveyor regime a shortest-path-tree conveyor architecture with Euler-walk deployment attains the AoI lower bound that decomposes into the sum of minimized mean group sensing times and shortest-path distances; the sensing allocation itself is solved optimally by the greedy water-filling algorithm on the separable discretely convex problem.

What carries the argument

The shortest-path-tree conveyor architecture with Euler-walk deployment, which routes all transport along minimal paths while cycling robots through every edge of the tree without idle time.

If this is right

  • Sensing robot allocation can be computed once via the greedy algorithm and then held fixed while the conveyor routes are deployed separately.
  • The propagation contribution to Age of Information equals the sum over nodes of the shortest-path distance times the rate at which samples are generated from that node.
  • When the number of robots is large enough to saturate every tree edge, no additional queuing or waiting delays arise beyond the derived bound.
  • The same lower-bound decomposition applies to any connected graph, so the architecture is not limited to trees but can be overlaid on any underlying topology.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The geometric sensing time model implies that adding one more robot at a node always yields a predictable reduction in mean delay, which could be checked directly in controlled experiments.
  • Because the transport component depends only on graph distances, the same tree-plus-Euler construction may transfer to other delivery problems such as data mules or drone recharging routes.
  • If sensing times deviate from the geometric assumption in real hardware, the water-filling step would need recalibration but the tree conveyor structure could remain intact.

Load-bearing premise

That multiple robots collaborating at a non-base node produce node-dependent geometric group sensing times whose means can be treated as independent of the transport schedule, and that the system can operate in a full-conveyor regime where the architecture meets the lower bound.

What would settle it

A concrete numerical instance or hardware deployment in which the measured average Age of Information exceeds the derived lower bound even after applying the water-filling allocation and running the shortest-path-tree Euler-walk deployment in a regime with sufficient robots.

Figures

Figures reproduced from arXiv: 2605.02107 by John Tadrous.

Figure 1
Figure 1. Figure 1: Network of |V | nodes and N robots. Sensing robots (filled circles) remain stationary at non-base nodes, while conveyor robots (arrows) physi￾cally transport samples along shortest-path tree edges toward the base (node 0). (AoI) is measured. We denote the set of non-base nodes by Vs := V \ {0}. Each edge (i, j) ∈ E represents a bidirectional link between nodes i and j. We assume that traversing any edge ta… view at source ↗
Figure 2

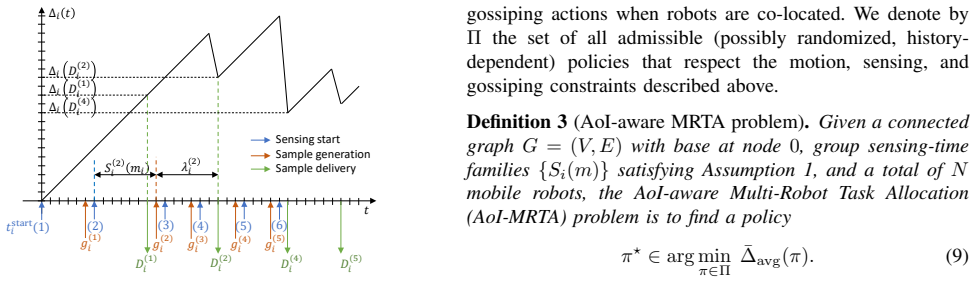

Figure 2. Figure 2: Example sample path of ∆i(t) at node i, illustrating the sawtooth growth between delivery instants D (n) i . In this example, sample n = 4, generated before sample n = 3 was picked up, is favored by the conveyor upon its next visit. The sensing-start-to-delivery delay of the n-th delivered sample decomposes as D (n) i − t start i (n) = S (n) i (mi) − 1 + λ (n) i , separating the group sensing duration from… view at source ↗
Figure 3

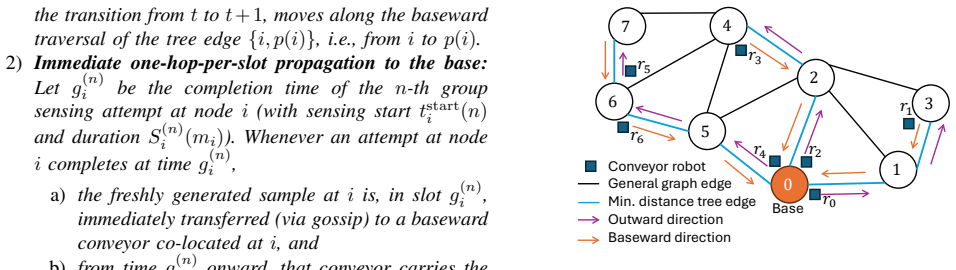

Figure 3. Figure 3: Example optimal allocation of Nc = 7 conveyor robot using the Euler-walk-based approach. C. Conveyor Deployment and Optimal Phase Allocation We now construct an explicit family of conveyor deploy￾ments based on an Euler walk of the shortest-path tree T = (V, ET ) and, for a given conveyor budget 1 ≤ Nc ≤ 2(|V | − 1), select an optimal subset of phase shifts along this walk. Within this Euler-walk family, t… view at source ↗
Figure 5

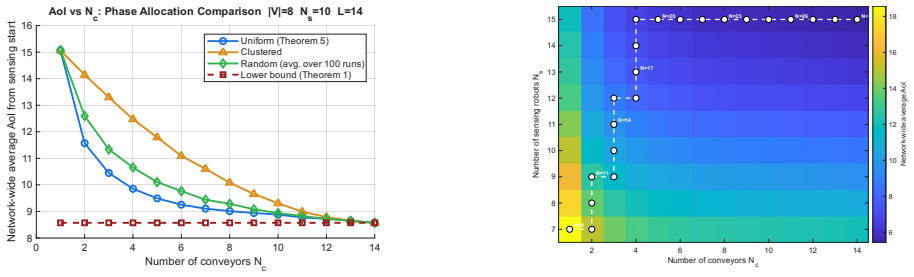

Figure 5. Figure 5: Heatmap of AoI under different combinations of sensing and conveyor view at source ↗
Figure 6
Figure 6. Figure 6: Uniform allocation of sensing robots yields worse AoI as the view at source ↗
Figure 7

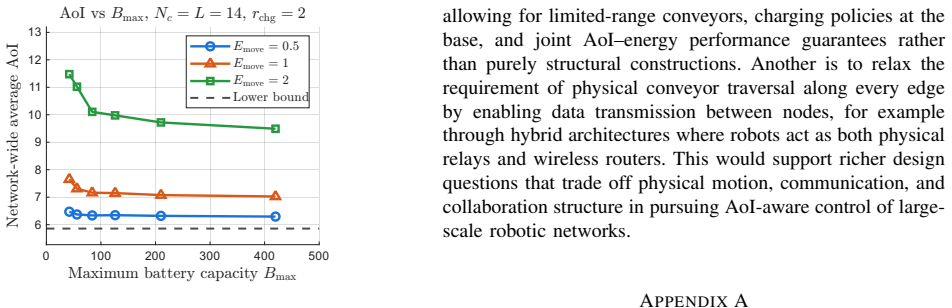

Figure 7. Figure 7: AoI vs. battery capacity for different consumption rates. view at source ↗
Figure 8

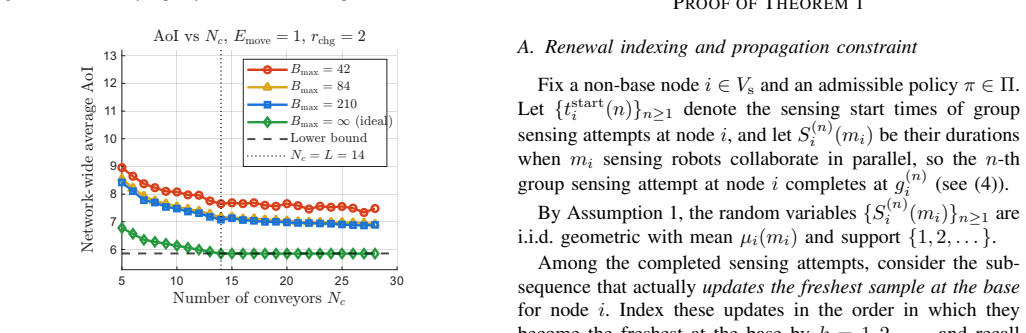

Figure 8. Figure 8: AoI vs. number of conveyors Nc with limited power budget. Emove = 2 energy units per edge, the higher battery capacity helps conveyors to deliver more samples before heading for re-charge, and accordingly enhances AoI performance. At Emove = 1, view at source ↗
read the original abstract

A team of mobile robots monitors spatially distributed processes and delivers measurements to a base, where AoI is measured from sensing start, capturing both stochastic parallel sensing delays and hop-based propagation. At each non-base node, multiple robots may collaborate, yielding node-dependent geometric group sensing times, while other robots act as mobile conveyors that transport samples along unit-time edges. The paper first derives a per-node and network-wide AoI lower bound that decomposes into a sensing term, determined by mean group sensing times, and a propagation term, given by shortest-path distances. It then shows that minimizing the sensing component yields a separable discretely convex resource allocation problem, solved optimally by a greedy water-filling algorithm. A shortest-path-tree conveyor architecture with an Euler-walk deployment is constructed and proven to attain the lower bound in a full-conveyor regime. Numerical simulations illustrate the impact of sensing allocation and conveyor deployment on AoI performance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper addresses Age of Information (AoI) minimization for a team of mobile robots that sense spatially distributed processes on a connected graph and transport measurements to a base station. It derives a network-wide AoI lower bound that decomposes into a sensing term (from mean group sensing times at non-base nodes) and a propagation term (from shortest-path distances). Sensing resource allocation is reduced to a separable discretely convex problem solved by a greedy water-filling algorithm. A shortest-path-tree conveyor architecture with Euler-walk deployment is constructed and proven to attain the lower bound in the full-conveyor regime. Numerical simulations illustrate the effects of sensing allocation and conveyor deployment.

Significance. If the derivations and attainment proof hold, the work offers a theoretically grounded, constructive solution for AoI-optimal multi-robot sensing and transport. The decomposition into sensing and propagation terms, the reduction to a discretely convex allocation problem, and the explicit architecture that meets the bound are notable strengths. These elements provide both analytical insight and a practical design template for robotic networks operating under stochastic sensing delays and hop-based forwarding.

minor comments (2)
  1. [Abstract and proof section] The abstract states that the architecture 'is proven to attain the lower bound in a full-conveyor regime,' but the precise mathematical definition of this regime (e.g., conditions on robot counts, waiting times, or conveyor occupancy) should be stated explicitly in the main text to allow independent verification of the attainment claim.
  2. [Sensing allocation formulation] The geometric group sensing time model at non-base nodes is described as node-dependent; a brief remark on how this model interacts with the separability of the convex allocation problem would strengthen the exposition.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive and constructive review of our manuscript. The recommendation for minor revision is noted, and we appreciate the recognition of the theoretical contributions, including the AoI lower bound decomposition, the discretely convex allocation solution, and the conveyor architecture attainment proof. As the report does not enumerate any specific major comments, we have no individual points to address in detail. We will incorporate any minor suggestions during the revision process.

Circularity Check

0 steps flagged

No significant circularity; derivation grounded in graph distances and stochastic assumptions

full rationale

The paper derives the AoI lower bound by decomposing it into a sensing term from mean group sensing times and a propagation term from shortest-path distances, both treated as external inputs rather than fitted or self-defined quantities. The sensing allocation reduces to a standard discretely convex optimization solved by greedy water-filling, and the shortest-path-tree with Euler-walk is explicitly constructed and proven to attain the bound in the full-conveyor regime. No steps reduce by construction to the paper's own equations, no self-citations are load-bearing, and the central claims remain independent of any renaming or ansatz smuggling. This matches the default expectation of a self-contained derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Claims rest on domain assumptions about geometric sensing times and graph connectivity; no free parameters are explicitly fitted in the abstract, and no new physical entities are postulated.

axioms (2)
  • domain assumption Sensing times at each node follow geometric distributions whose parameters depend on the number of collaborating robots
    Invoked to define node-dependent group sensing times that determine the sensing component of the AoI bound.
  • domain assumption The underlying graph is connected with unit-time edges
    Used to define hop-based propagation delays and shortest-path distances in the lower bound.

pith-pipeline@v0.9.0 · 5447 in / 1362 out tokens · 72215 ms · 2026-05-08T18:32:31.554002+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

27 extracted references · 27 canonical work pages

  1. [1]

    Real-time status: How often should one update?

    S. Kaul, R. Yates, and M. Gruteser, “Real-time status: How often should one update?”Proc. IEEE INFOCOM, pp. 2731–2735, 2012

    work page 2012

  2. [2]

    Status updates through queues,

    ——, “Status updates through queues,”Proc. IEEE CISS, pp. 1–6, 2012

    work page 2012

  3. [3]

    On the age of information in status update systems,

    J. P. Champati, E. Altman, and A. K. T ¨onjes, “On the age of information in status update systems,”Proc. Allerton, pp. 1002–1009, 2019

    work page 2019

  4. [4]

    Age of information: An introduction and survey,

    Y . Sun, E. Uysal, S. K. Kaul, R. D. Yates, C. E. Koksal, N. Pappas, and S. Ulukus, “Age of information: An introduction and survey,”IEEE Journal on Selected Areas in Communications, vol. 38, no. 1, pp. 1–18, 2020

    work page 2020

  5. [5]

    Age of information: An introduction and survey,

    R. D. Yates, Y . Sun, D. R. B. III, S. K. Kaul, E. Modiano, and S. Ulukus, “Age of information: An introduction and survey,”IEEE Journal on Selected Areas in Communications, vol. 39, no. 5, pp. 1183–1210, 2021

    work page 2021

  6. [6]

    Age of information in g/g/1/1 systems: Age expressions, bounds, special cases, and optimization,

    A. Soysal and S. Ulukus, “Age of information in g/g/1/1 systems: Age expressions, bounds, special cases, and optimization,”IEEE Transac- tions on Information Theory, vol. 67, no. 11, pp. 7477–7495, 2021

    work page 2021

  7. [7]

    Fundamental bounds on the age of information in general multi-hop networks,

    S. Farazi, A. G. Klein, and D. R. Brown, “Fundamental bounds on the age of information in general multi-hop networks,” inProc. IEEE INFOCOM, 2019, pp. 1–9

    work page 2019

  8. [8]

    Probability analysis of age of information in multi-hop networks,

    Z. Jiang, S. Kaul, and N. B. Mandayam, “Probability analysis of age of information in multi-hop networks,”IEEE Transactions on Information Theory, vol. 66, no. 9, pp. 5772–5793, 2020

    work page 2020

  9. [9]

    Age of infor- mation in random access networks,

    K. Avrachenkov, J. Goseling, and B. S. Radosavljevic, “Age of infor- mation in random access networks,”IEEE Transactions on Information Theory, vol. 65, no. 5, pp. 3243–3258, 2019

    work page 2019

  10. [10]

    Age-optimal information gathering and dissemination on graphs,

    Y . Sun, E. Uysal, and S. Ulukus, “Age-optimal information gathering and dissemination on graphs,”IEEE Transactions on Information Theory, vol. 65, no. 9, pp. 5575–5593, 2019

    work page 2019

  11. [11]

    Tackling age of information in access policies for sensing ecosystems,

    B. T. Bacinoglu, J. Tostado, and G. Durisi, “Tackling age of information in access policies for sensing ecosystems,”Sensors, vol. 23, no. 7, p. 3511, 2023

    work page 2023

  12. [12]

    Optimizing age of information with correlated sources,

    R. Zhong, Y . Chen, E. Uysal-Biyikoglu, and E. Modiano, “Optimizing age of information with correlated sources,”IEEE Transactions on Information Theory, vol. 68, no. 7, pp. 4462–4482, 2022

    work page 2022

  13. [13]

    Unifying aoi minimization and remote estimation: Optimal sensor and controller design,

    J. P. Champati, K. Kaswan, M. Fidler, and R. D. Yates, “Unifying aoi minimization and remote estimation: Optimal sensor and controller design,” Purdue University, Tech. Rep. ECE-TR-21-04, 2021, tech. Rep

    work page 2021

  14. [14]

    Age of information optimization and state error in networked control systems,

    D. Han and Y . Sun, “Age of information optimization and state error in networked control systems,”IEEE Communications Letters, vol. 26, no. 10, pp. 2372–2376, 2022

    work page 2022

  15. [15]

    A formal analysis and taxonomy of task allocation in multi-robot systems,

    B. P. Gerkey and M. J. Matari ´c, “A formal analysis and taxonomy of task allocation in multi-robot systems,”The International Journal of Robotics Research, vol. 23, no. 9, pp. 939–954, 2004

    work page 2004

  16. [16]

    Auction-based multi- robot routing,

    M. G. Lagoudakis, E. Markakis, D. Kempe, P. Keskinocak, A. Kleywegt, S. Koenig, C. Tovey, A. Meyerson, and S. Jain, “Auction-based multi- robot routing,”Proc. Robotics: Science and Systems, pp. 343–350, 2004

    work page 2004

  17. [17]

    Multi-robot task allocation: A review of the state of the art,

    M. Duarte, J. Gomes, V . Costa, A. L. Christensen, and L. Correia, “Multi-robot task allocation: A review of the state of the art,”Robotics and Autonomous Systems, vol. 94, pp. 128–138, 2016

    work page 2016

  18. [18]

    Average age of information with hybrid arq under a resource constraint,

    E. T. Ceran, D. G ¨und¨uz, and A. Gy ¨orgy, “Average age of information with hybrid arq under a resource constraint,” inProc. IEEE ISIT, 2020, pp. 2519–2524

    work page 2020

  19. [19]

    Age of information in uav-assisted wire- less networks: A survey,

    Y . Li, P. Ren, and Q. Du, “Age of information in uav-assisted wire- less networks: A survey,”IEEE Communications Surveys & Tutorials, vol. 23, no. 4, pp. 2190–2221, 2021

    work page 2021

  20. [20]

    Sensing and communication tradeoff design for aoi optimization in uav-assisted wireless networks,

    H. Yang, J. Chen, and T. Q. S. Quek, “Sensing and communication tradeoff design for aoi optimization in uav-assisted wireless networks,” IEEE Transactions on Wireless Communications, vol. 19, no. 9, pp. 5951–5965, 2020

    work page 2020

  21. [21]

    Joint optimization of aoi and energy for auv-assisted data collection in underwater sensor networks,

    L. Wang, W. Zhang, and J. Li, “Joint optimization of aoi and energy for auv-assisted data collection in underwater sensor networks,”Frontiers in Marine Science, vol. 9, p. 932145, 2022

    work page 2022

  22. [22]

    Multi-robot system for real-time sensing and monitoring,

    A. M. Derbas, K. M. Al-Aubidy, M. M. Ali, and A. W. Al-Mutairi, “Multi-robot system for real-time sensing and monitoring,” inProceed- ings of the 15th International Workshop on Research and Education in Mechatronics (REM), El Gouna, Egypt, 2014, pp. 1–6

    work page 2014

  23. [23]

    Mobile robot networks for environmental monitor- ing: A cooperative receding horizon temporal logic control approach,

    Q. Lu and Q. Han, “Mobile robot networks for environmental monitor- ing: A cooperative receding horizon temporal logic control approach,” IEEE Transactions on Cybernetics, vol. 49, no. 2, pp. 698–710, 2019

    work page 2019

  24. [24]

    Iot- enabled mobile robot for environmental monitoring with multi-modal communication,

    S. M. Khan, M. T. Mahi, T. Ferdoush, and M. Rasheduzzaman, “Iot- enabled mobile robot for environmental monitoring with multi-modal communication,” inProceedings of the 2nd IEEE International Con- ference on Computing, Applications and Systems (COMPAS), Kushtia, Bangladesh, 2025, pp. 1–6

    work page 2025

  25. [25]

    A tutorial on decomposition methods for network utility maximization,

    D. P. Palomar and M. Chiang, “A tutorial on decomposition methods for network utility maximization,”IEEE Journal on Selected Areas in Communications, vol. 24, no. 8, pp. 1439–1451, 2006

    work page 2006

  26. [26]

    A. W. Marshall, I. Olkin, and B. C. Arnold,Inequalities: Theory of Majorization and Its Applications, 2nd ed., ser. Springer Series in Statistics. New York: Springer, 2011

    work page 2011

  27. [27]

    Majorization theory and applications,

    Y . Wang and D. P. Palomar, “Majorization theory and applications,” in Convex Optimization in Signal Processing and Communications, D. P. Palomar and Y . C. Eldar, Eds. Cambridge University Press, 2010, pp. 271–322

    work page 2010
