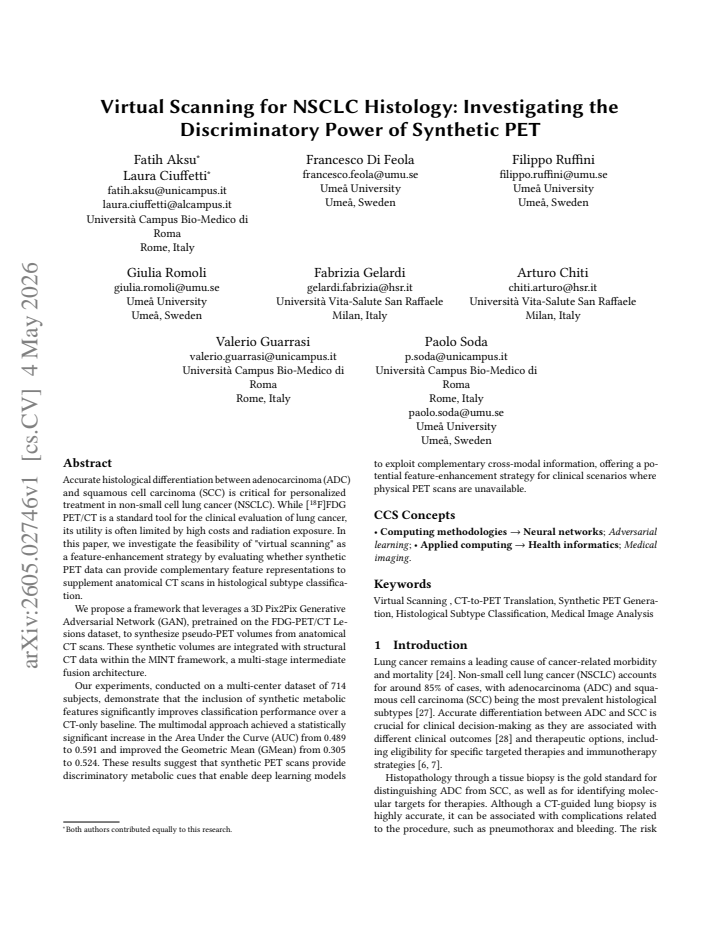

Virtual Scanning for NSCLC Histology: Investigating the Discriminatory Power of Synthetic PET

Fatih Aksu , Laura Ciuffetti , Francesco Di Feola , Filippo Ruffini , Giulia Romoli , Fabrizia Gelardi , Arturo Chiti , Valerio Guarrasi
show 1 more author
Paolo Soda
Authors on Pith no claims yet

Pith reviewed 2026-05-08 18:26 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords NSCLCsynthetic PETPix2Pix GANhistological subtypeadenocarcinomasquamous cell carcinomamultimodal fusionvirtual scanning
0
0 comments X

The pith

Synthetic PET volumes generated from CT scans raise AUC for NSCLC subtype classification from 0.489 to 0.591.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests whether a generative model can create useful metabolic images from routine CT scans to help distinguish adenocarcinoma from squamous cell carcinoma in non-small cell lung cancer. It trains a 3D Pix2Pix GAN on existing PET/CT data to produce pseudo-PET volumes, then fuses those volumes with the original CT inside a multi-stage intermediate fusion network. On a 714-patient multi-center set the combined model outperforms CT alone with a statistically significant AUC gain and better geometric mean, indicating that the synthetic metabolic cues add discriminatory power when real PET is unavailable.

Core claim

Synthetic PET data produced by a pretrained 3D Pix2Pix GAN supplies complementary metabolic features that, when fused with CT via the MINT architecture, raise AUC from 0.489 to 0.591 and GMean from 0.305 to 0.524 for histological subtype classification on 714 subjects.

What carries the argument

The 3D Pix2Pix GAN that maps anatomical CT to pseudo-PET volumes, integrated through the MINT multi-stage intermediate fusion architecture.

If this is right

  • Synthetic metabolic volumes can function as a low-cost feature enhancer in settings where physical PET scans are not performed.
  • Multimodal models can exploit cross-modal metabolic information even when one modality is synthesized rather than measured.
  • The approach offers a route to reduce radiation exposure and imaging costs while preserving subtype discrimination accuracy.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same virtual-scanning step could be applied to other PET-dependent tasks such as tumor staging or treatment response monitoring once the metabolic fidelity is verified.
  • Direct comparison of synthetic versus real PET on a held-out paired cohort would quantify how much metabolic signal is preserved versus hallucinated.
  • If the improvement holds, protocols could default to CT-only acquisition and synthesize PET on demand specifically for histology classification.

Load-bearing premise

The synthetic PET volumes reflect genuine metabolic differences between histological subtypes instead of GAN artifacts or patterns learned only from the pretraining set.

What would settle it

Performance on real PET/CT test cases falls back to the CT-only baseline when the model is forced to use only the synthetic volumes or when the synthetic volumes are replaced by noise matched in intensity distribution.

Figures

Figures reproduced from arXiv: 2605.02746 by Arturo Chiti, Fabrizia Gelardi, Fatih Aksu, Filippo Ruffini, Francesco Di Feola, Giulia Romoli, Laura Ciuffetti, Paolo Soda, Valerio Guarrasi.

Figure 1

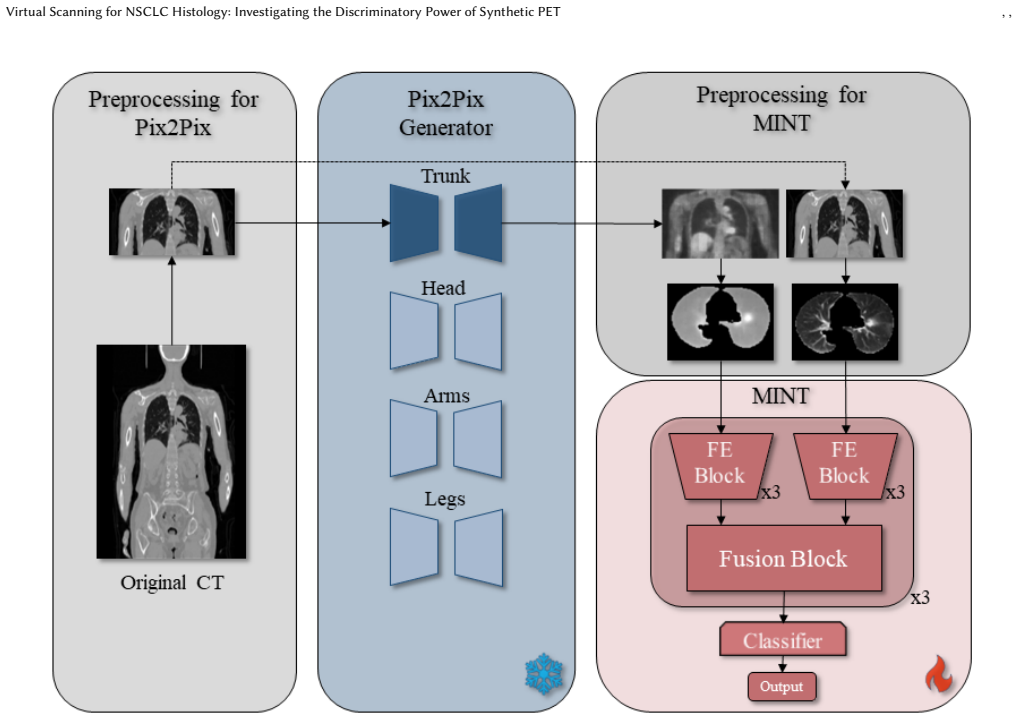

Figure 1. Figure 1: Overview of the proposed framework. The pipeline consists of two primary stages: Synthetic PET generation and view at source ↗
Figure 2

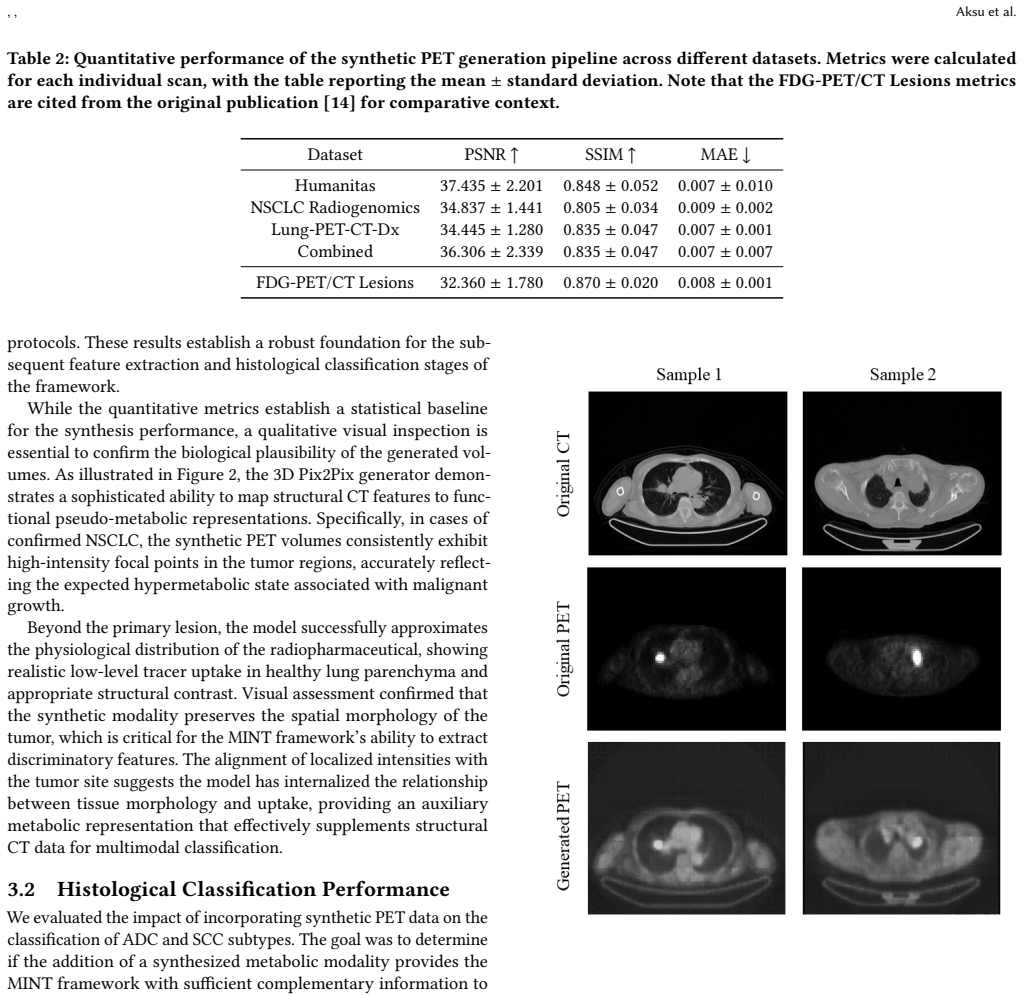

Figure 2. Figure 2: Representative axial slices from two distinct cases view at source ↗
Figure 3

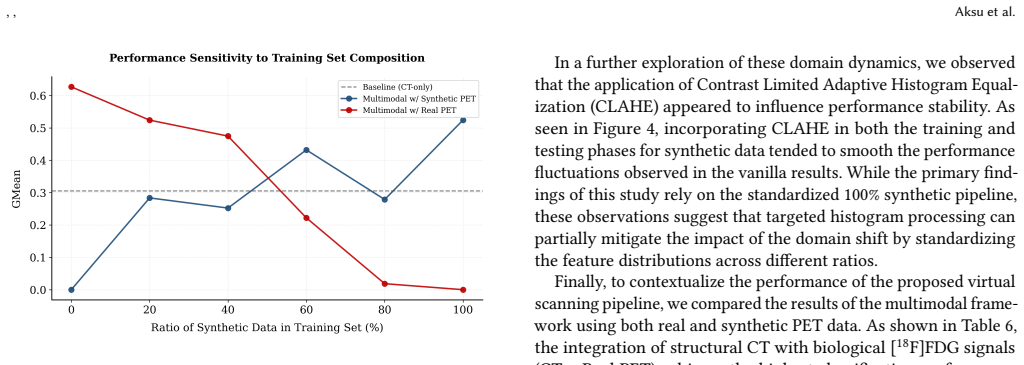

Figure 3. Figure 3: Impact of training set composition on GMean per view at source ↗
Figure 4

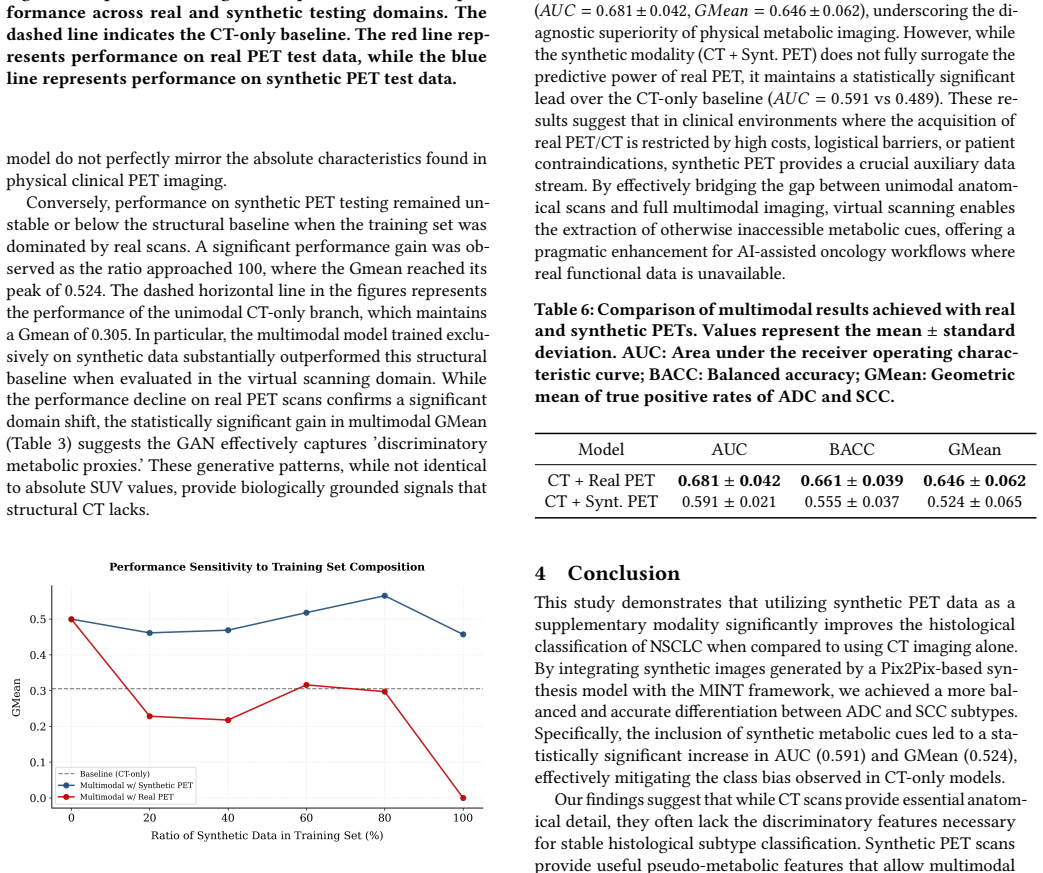

Figure 4. Figure 4: Sensitivity analysis of GMean performance utilizing view at source ↗
read the original abstract

Accurate histological differentiation between adenocarcinoma (ADC) and squamous cell carcinoma (SCC) is critical for personalized treatment in non-small cell lung cancer (NSCLC). While [$^{18}$F]FDG PET/CT is a standard tool for the clinical evaluation of lung cancer, its utility is often limited by high costs and radiation exposure. In this paper, we investigate the feasibility of "virtual scanning" as a feature-enhancement strategy by evaluating whether synthetic PET data can provide complementary feature representations to supplement anatomical CT scans in histological subtype classification. We propose a framework that leverages a 3D Pix2Pix Generative Adversarial Network (GAN), pretrained on the FDG-PET/CT Lesions dataset, to synthesize pseudo-PET volumes from anatomical CT scans. These synthetic volumes are integrated with structural CT data within the MINT framework, a multi-stage intermediate fusion architecture. Our experiments, conducted on a multi-center dataset of 714 subjects, demonstrate that the inclusion of synthetic metabolic features significantly improves classification performance over a CT-only baseline. The multimodal approach achieved a statistically significant increase in the Area Under the Curve (AUC) from 0.489 to 0.591 and improved the Geometric Mean (GMean) from 0.305 to 0.524. These results suggest that synthetic PET scans provide discriminatory metabolic cues that enable deep learning models to exploit complementary cross-modal information, offering a potential feature-enhancement strategy for clinical scenarios where physical PET scans are unavailable.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper proposes synthesizing pseudo-PET volumes from CT scans via a 3D Pix2Pix GAN pretrained on the FDG-PET/CT Lesions dataset, then fusing them with structural CT using the MINT multi-stage intermediate fusion architecture to improve binary classification of NSCLC histological subtypes (adenocarcinoma vs. squamous cell carcinoma). Experiments on a 714-subject multi-center cohort report that the multimodal model yields a statistically significant AUC increase from 0.489 (CT-only) to 0.591 and GMean increase from 0.305 to 0.524, suggesting that synthetic metabolic features supply complementary discriminatory information.

Significance. If the performance gains are shown to derive from genuine metabolic subtype cues rather than fusion artifacts or GAN-induced correlations, the work could provide a practical feature-enhancement strategy for histology classification when physical PET is unavailable. The multi-center scale of the cohort is a strength that supports potential clinical translation, though the absence of isolating controls limits current interpretability of the claimed metabolic benefit.

major comments (3)
  1. [Abstract] Abstract: The assertion of a 'statistically significant' AUC rise (0.489 to 0.591) and GMean rise (0.305 to 0.524) is presented without any description of the train/test partitioning, cross-validation scheme, exact hypothesis test, or class-imbalance handling. These omissions directly undermine evaluation of whether the multimodal lift is robust or reproducible.
  2. [Abstract] Abstract and Methods: No ablation or control experiments are reported to test whether the observed gains originate from metabolic content in the synthetic PET volumes or from the MINT fusion architecture itself. Controls such as noise-augmented CT inputs, permuted synthetic volumes, or direct comparison against a duplicated-CT channel would be required to support the claim that synthetic PET supplies genuine complementary metabolic signal.
  3. [Abstract] Abstract: The 3D Pix2Pix GAN is pretrained unsupervised on a separate FDG-PET/CT dataset without histology labels. Consequently, any apparent metabolic appearance in the outputs could reflect learned anatomical correlates of subtype that happen to co-vary in the pretraining distribution rather than true FDG uptake differences relevant to ADC/SCC. Additional analyses (e.g., correlation of synthetic SUV with known metabolic markers or external-cohort testing) are needed to substantiate the interpretation.
minor comments (1)
  1. [Abstract] The abstract would benefit from explicitly reporting the class distribution (number of ADC vs. SCC cases) to allow readers to contextualize the GMean values and the degree of imbalance addressed.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We agree that greater methodological transparency, control experiments, and careful discussion of limitations are needed to strengthen the claims regarding the value of synthetic PET. We will revise the manuscript accordingly, expanding the abstract, methods, results, and discussion sections while maintaining the core contribution on multi-center evaluation.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The assertion of a 'statistically significant' AUC rise (0.489 to 0.591) and GMean rise (0.305 to 0.524) is presented without any description of the train/test partitioning, cross-validation scheme, exact hypothesis test, or class-imbalance handling. These omissions directly undermine evaluation of whether the multimodal lift is robust or reproducible.

    Authors: We agree that these details are critical for reproducibility and statistical evaluation. In the revised manuscript we will expand both the abstract and methods to explicitly describe the stratified 70/30 train/test partitioning, the 5-fold cross-validation scheme, the use of DeLong's test for AUC significance, and the class-weighted loss employed to address imbalance. These additions will directly address the concern and allow readers to assess robustness. revision: yes

  2. Referee: [Abstract] Abstract and Methods: No ablation or control experiments are reported to test whether the observed gains originate from metabolic content in the synthetic PET volumes or from the MINT fusion architecture itself. Controls such as noise-augmented CT inputs, permuted synthetic volumes, or direct comparison against a duplicated-CT channel would be required to support the claim that synthetic PET supplies genuine complementary metabolic signal.

    Authors: We acknowledge the absence of isolating controls in the current version. We will add ablation experiments to the revised results section, including a noise-augmented CT baseline and a duplicated-CT-channel control to test whether gains arise from the fusion architecture alone. These controls will be reported alongside the main results to better substantiate the contribution of the synthetic PET. revision: yes

  3. Referee: [Abstract] Abstract: The 3D Pix2Pix GAN is pretrained unsupervised on a separate FDG-PET/CT dataset without histology labels. Consequently, any apparent metabolic appearance in the outputs could reflect learned anatomical correlates of subtype that happen to co-vary in the pretraining distribution rather than true FDG uptake differences relevant to ADC/SCC. Additional analyses (e.g., correlation of synthetic SUV with known metabolic markers or external-cohort testing) are needed to substantiate the interpretation.

    Authors: This is a substantive limitation of the current study. The pretraining was performed unsupervised on an independent dataset without subtype labels, so the synthetic volumes may indeed encode anatomical patterns that co-vary with histology rather than pure metabolic signal. In the revision we will add an explicit limitations paragraph in the discussion that states this caveat, clarifies the scope of our claims, and outlines future work (supervised pretraining or post-hoc SUV correlation studies). We cannot perform the suggested new analyses within the current revision timeline but will strengthen the interpretive framing. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical performance on held-out test set

full rationale

The paper reports an empirical machine-learning study: a 3D Pix2Pix GAN is pretrained on an external FDG-PET/CT Lesions dataset to synthesize PET volumes from CT, these volumes are fused with CT inside the MINT architecture, and classification performance (AUC, GMean) is measured on a held-out multi-center test set of 714 subjects. The central claim is the observed lift from 0.489 to 0.591 AUC when synthetic PET is added. This lift is a direct experimental measurement, not a quantity obtained by solving the paper's own equations or by renaming a fitted parameter. No derivation chain, uniqueness theorem, or self-citation load-bearing step is present; the result is falsifiable by re-running the pipeline on the same splits. The absence of additional ablation controls is a validity concern, not a circularity issue.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claim depends on standard assumptions that the pretraining dataset distribution matches the target NSCLC cohort and that the GAN output distribution is sufficiently realistic for downstream classification; no explicit free parameters or invented physical entities are introduced in the abstract.

axioms (1)
  • domain assumption The FDG-PET/CT Lesions dataset used for GAN pretraining is representative of the metabolic patterns in the 714-subject NSCLC test cohort.
    Invoked implicitly when claiming the synthetic PET supplies useful metabolic cues.
