arxiv: 2605.04109 · v1 · submitted 2026-05-04 · 💻 cs.AR · cs.AI

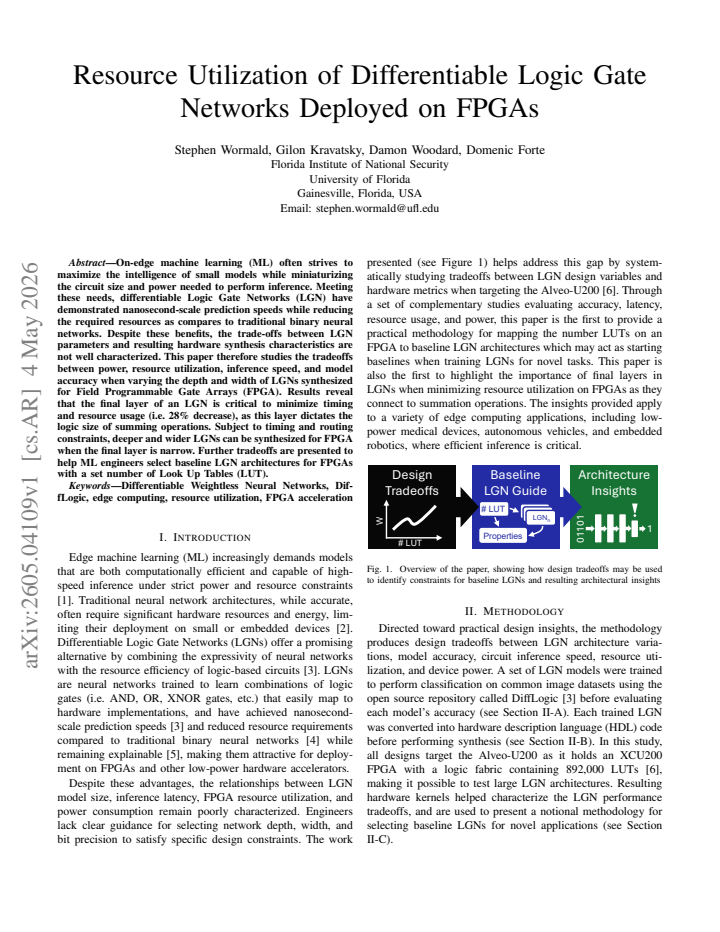

Resource Utilization of Differentiable Logic Gate Networks Deployed on FPGAs

Stephen Wormald , Gilon Kravatsky , Damon Woodard , Domenic Forte This is my paper

Pith reviewed 2026-05-08 16:55 UTC · model grok-4.3

classification 💻 cs.AR cs.AI
keywords differentiable logic gate networksFPGAresource utilizationedge machine learningtiming analysisLUTnetwork depth and width
0
0 comments X

The pith

Narrowing an LGN's final layer reduces FPGA resource use by 28% by shrinking summing logic.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates trade-offs in deploying differentiable Logic Gate Networks on FPGAs for edge ML applications. It identifies that the final layer's size is the main driver of hardware resources and timing because it determines the scale of summing operations. Narrowing this layer allows a 28% drop in resource utilization and enables synthesis of deeper and wider networks under timing constraints. The results include guidance on selecting LGN depths and widths for FPGAs with fixed numbers of look-up tables to balance accuracy against power and speed.

Core claim

Results reveal that the final layer of an LGN is critical to minimize timing and resource usage (i.e. 28% decrease), as this layer dictates the logic size of summing operations. Subject to timing and routing constraints, deeper and wider LGNs can be synthesized for FPGA when the final layer is narrow.

What carries the argument

The width of the final layer in LGNs, which sets the size of the logic for summing the network outputs during FPGA implementation.

If this is right

  • Engineers gain a way to deploy more capable LGN models on resource-limited FPGAs by constraining only the last layer.
  • Power consumption and inference latency decrease when the final layer is narrowed, supporting nanosecond-scale predictions.
  • Model accuracy can be maintained or improved by increasing earlier layers' width while keeping the final layer small.
  • Baseline architectures can be chosen based on available LUTs using the presented trade-off curves.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • These design rules may extend to other reconfigurable hardware or even ASIC implementations of logic gate networks.
  • Validating the 28% reduction on additional FPGA platforms would strengthen the generalizability of the findings.
  • Combining final-layer narrowing with other techniques like pruning could yield further efficiency gains in edge devices.

Load-bearing premise

The observed benefits from narrowing the final layer hold across various FPGA families, synthesis tools, and LGN training setups rather than being tied to the specific experimental conditions.

What would settle it

Re-running the synthesis experiments with the same LGN configurations but on a different FPGA board or tool and finding no 28% resource savings or inability to fit deeper networks.

Figures

Figures reproduced from arXiv: 2605.04109 by Damon Woodard, Domenic Forte, Gilon Kravatsky, Stephen Wormald.

Figure 1
Figure 1. Figure 1: Overview of the paper, showing how design tradeoffs may be used view at source ↗
Figure 2
Figure 2. Figure 2: Summary of the model types trained using the DiffLogic library [3] view at source ↗
Figure 4
Figure 4. Figure 4: Synthesis design tradeoffs which may used to identify constraints when view at source ↗
Figure 5
Figure 5. Figure 5: Accuracy change with respect to the model size, reported in the #LUTs for synthesis. Here, and when b=1, MNIST and FashionMNIST have 784 view at source ↗
Figure 4
Figure 4. Figure 4: a and Figure 4.b seek to leverage this design view at source ↗
Figure 3
Figure 3. Figure 3: d (FPGA  # LUT) # Gatesend = fn (# Input Bits) LUTTotal= LUTsum + LUTinput + δ START: LGN Use Case Architecture Constraint # Input Bits Device Constraints # Gatesend Baseline LGN Architectures for Initial Testing # Compute Cycles view at source ↗
Figure 6
Figure 6. Figure 6: Flowchart showing how key results from Figure 4 may be used in a view at source ↗
read the original abstract

On-edge machine learning (ML) often strives to maximize the intelligence of small models while miniaturizing the circuit size and power needed to perform inference. Meeting these needs, differentiable Logic Gate Networks (LGN) have demonstrated nanosecond-scale prediction speeds while reducing the required resources as compares to traditional binary neural networks. Despite these benefits, the trade-offs between LGN parameters and resulting hardware synthesis characteristics are not well characterized. This paper therefore studies the tradeoffs between power, resource utilization, inference speed, and model accuracy when varying the depth and width of LGNs synthesized for Field Programmable Gate Arrays (FPGA). Results reveal that the final layer of an LGN is critical to minimize timing and resource usage (i.e. 28\% decrease), as this layer dictates the logic size of summing operations. Subject to timing and routing constraints, deeper and wider LGNs can be synthesized for FPGA when the final layer is narrow. Further tradeoffs are presented to help ML engineers select baseline LGN architectures for FPGAs with a set number of Look Up Tables (LUT).

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript studies the hardware synthesis trade-offs (power, LUT/FF utilization, timing, accuracy) of Differentiable Logic Gate Networks (LGNs) on FPGAs when depth and width are varied. It reports that narrowing the final layer produces a 28% reduction in resources and improved timing because that layer controls the logic complexity of the final summing operations; this in turn allows deeper or wider networks to meet routing and timing constraints. The work supplies qualitative guidelines for choosing LGN architectures given a fixed LUT budget.

Significance. If the reported 28% reduction and the final-layer effect prove reproducible, the paper supplies concrete, practitioner-oriented guidance for mapping LGNs to FPGA fabrics. This could reduce the iteration needed to deploy nanosecond-scale on-edge inference models while respecting LUT and timing limits, complementing existing BNN-to-FPGA flows.

major comments (2)
  1. [Abstract] Abstract and results section: the headline claim of a 28% resource/timing reduction is presented without any accompanying synthesis report excerpts, device part number (e.g., XC7A35T or 5CEBA4), tool version, placement seed count, or variance statistics. This absence makes the quantitative result impossible to verify or to assess for sensitivity to the authors' particular gate-distribution statistics after training.
  2. [Experimental Setup] No dedicated experimental-setup subsection is referenced: the manuscript does not describe the training hyper-parameters, the distribution of learned gate types, the exact topologies (depth/width pairs) evaluated, or the post-synthesis metric extraction procedure. Without these details the central assertion that the final layer 'dictates the logic size of summing operations' cannot be evaluated for generality across FPGA families or synthesis heuristics.
minor comments (1)
  1. [Abstract] The abstract refers to 'qualitative rules' and 'further tradeoffs'; these should be enumerated explicitly in a table or bulleted list in the conclusions so that readers can directly apply them when selecting an LGN architecture for a given LUT count.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which highlight opportunities to improve reproducibility and clarity. We address each major point below and will revise the manuscript accordingly to include the requested details on synthesis parameters and experimental procedures.

read point-by-point responses

  1. Referee: [Abstract] Abstract and results section: the headline claim of a 28% resource/timing reduction is presented without any accompanying synthesis report excerpts, device part number (e.g., XC7A35T or 5CEBA4), tool version, placement seed count, or variance statistics. This absence makes the quantitative result impossible to verify or to assess for sensitivity to the authors' particular gate-distribution statistics after training.

    Authors: We agree that the abstract and results would benefit from explicit synthesis details to support verifiability of the 28% reduction. In the revision we will add the FPGA device (Artix-7 XC7A35T), Vivado version (2022.2), and representative excerpts from post-synthesis utilization and timing reports. Our experiments used default placement settings with a single run per configuration; we will state this explicitly and note that the 28% resource reduction was observed consistently across the tested depth/width pairs. We will also report the post-training distribution of learned gate types to allow assessment of sensitivity. revision: yes

  2. Referee: [Experimental Setup] No dedicated experimental-setup subsection is referenced: the manuscript does not describe the training hyper-parameters, the distribution of learned gate types, the exact topologies (depth/width pairs) evaluated, or the post-synthesis metric extraction procedure. Without these details the central assertion that the final layer 'dictates the logic size of summing operations' cannot be evaluated for generality across FPGA families or synthesis heuristics.

    Authors: We accept this criticism and will insert a dedicated Experimental Setup subsection. It will specify the training hyperparameters (learning rate schedule, batch size, number of epochs, and optimizer), the observed distribution of learned gate types after training, the precise topologies evaluated (depths 4–8 and widths 64–512), and the metric extraction workflow (parsing Vivado post-synthesis reports for LUT/FF counts, power, and critical-path delay). These additions will enable readers to judge the generality of the final-layer effect on summing-logic complexity. We continue to hold that the final layer controls the size of the output summation because it sets the number of parallel inputs that must be accumulated, directly determining adder-tree depth and width in the synthesized netlist. revision: yes

Circularity Check

0 steps flagged

No significant circularity; purely empirical FPGA synthesis measurements with no derivation chain or fitted predictions.

full rationale

The paper reports direct measurements of power, LUT usage, timing, and accuracy obtained from synthesizing LGNs of varying depth and width on FPGAs. The headline result (final layer controls summing logic size, yielding ~28% resource/timing reduction) is stated as an observation from Vivado/Quartus tool output rather than any equation, ansatz, or parameter fit. No self-definitional steps, no predictions that reduce to inputs by construction, and no load-bearing self-citations appear in the presented claims. The work is a characterization study whose conclusions rest on external hardware benchmarks, not on any internal derivation that could be circular.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No theoretical content; the paper is an empirical hardware study. No free parameters, axioms, or invented entities are introduced.
