pith. sign in

arxiv: 2605.04262 · v1 · submitted 2026-05-05 · 💻 cs.CV · cs.LG

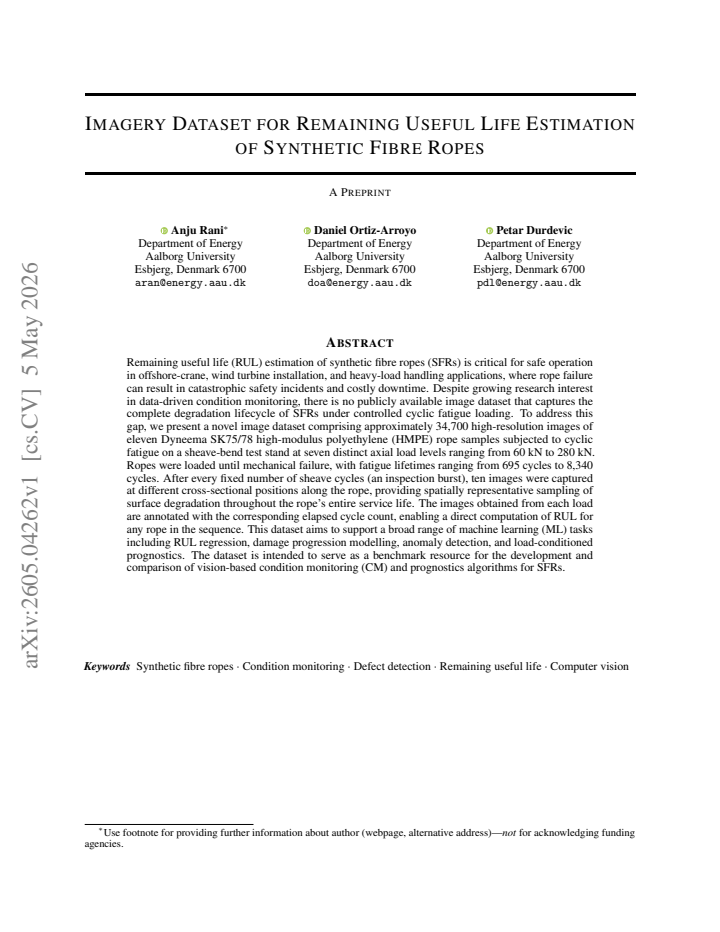

Imagery Dataset for Remaining Useful Life Estimation of Synthetic Fibre Ropes

Anju Rani , Daniel Ortiz-Arroyo , Petar Durdevic This is my paper

Pith reviewed 2026-05-08 17:14 UTC · model grok-4.3

classification 💻 cs.CV cs.LG
keywords synthetic fibre ropesremaining useful lifeimage datasetfatigue degradationDyneemamachine learningcondition monitoringprognostics
0
0 comments X

The pith

A new public dataset supplies 34,700 images of Dyneema ropes fatigued to failure, annotated for direct remaining-life calculation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper fills a gap in data-driven monitoring by releasing the first image collection that follows synthetic fibre ropes through their entire fatigue life under controlled laboratory loading. Eleven HMPE rope samples were cycled on a sheave-bend stand at seven load levels until they broke, with ten surface photographs taken at regular inspection intervals and labeled by elapsed cycle count. This setup produces a ready-made training resource for regression models that predict how many cycles remain before failure. Readers care because accurate remaining-life estimates can reduce sudden failures in offshore cranes, wind-turbine installation, and other heavy-load systems where rope breakage creates safety and cost risks.

Core claim

The authors present a dataset of approximately 34,700 high-resolution images documenting the surface degradation of eleven Dyneema SK75/78 ropes subjected to cyclic fatigue loading at axial forces from 60 kN to 280 kN. Each rope was imaged at ten cross-sectional positions after fixed numbers of sheave cycles, and every image carries the corresponding elapsed cycle count so that remaining useful life can be computed directly for any point in the sequence. The collection spans complete fatigue lifetimes from 695 to 8,340 cycles and is intended as a benchmark for machine-learning tasks including RUL regression, damage-progression modeling, and load-conditioned prognostics.

What carries the argument

Periodic surface imaging protocol on a sheave-bend fatigue test stand that records ten high-resolution photographs at different rope positions after every inspection burst, annotated with the exact cycle count elapsed since the start of loading.

If this is right

  • Developers can train and compare RUL regression models on a single standardized collection of rope images.
  • The annotations enable direct supervised learning of damage progression as a function of cycle count and load level.
  • The dataset supports anomaly-detection and load-conditioned prognostics algorithms that operate from visual input alone.
  • Researchers obtain a public benchmark for evaluating new computer-vision condition-monitoring methods for synthetic fibre ropes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If models trained on these lab images generalize, operators could inspect ropes with ordinary cameras instead of specialized sensors.
  • The collection may expose visual precursors to failure that human inspectors currently miss.
  • Future work could test whether adding depth or multi-spectral channels to the same imaging setup improves prediction accuracy.

Load-bearing premise

The degradation patterns seen on the rope surface under laboratory sheave-bend cycling are representative of real-world offshore and heavy-load use, and those surface changes contain enough information to predict remaining useful life accurately.

What would settle it

A vision model trained on the dataset produces large errors when tested on ropes that have actually failed in field service, or the visible surface changes recorded in the lab do not appear in ropes that break under comparable real-world loads.

Figures

Figures reproduced from arXiv: 2605.04262 by Anju Rani, Daniel Ortiz-Arroyo, Petar Durdevic.

Figure 1
Figure 1. Figure 1: Lifecycle images for rope specimens from healthy condition (a) to failure (f), illustrating the accelerating rate view at source ↗
Figure 2
Figure 2. Figure 2: Sheave-bend fatigue test stand (lif [2026], dyn [2026]) used for cyclic loading of Dyneema SK75/78 HMPE view at source ↗
read the original abstract

Remaining useful life (RUL) estimation of synthetic fibre ropes (SFRs) is critical for safe operation in offshore-crane, wind turbine installation, and heavy-load handling applications, where rope failure can result in catastrophic safety incidents and costly downtime. Despite growing research interest in data-driven condition monitoring, there is no publicly available image dataset that captures the complete degradation lifecycle of SFRs under controlled cyclic fatigue loading. To address this gap, we present a novel image dataset comprising approximately 34,700 high-resolution images of eleven Dyneema SK75/78 high-modulus polyethylene (HMPE) rope samples subjected to cyclic fatigue on a sheave-bend test stand at seven distinct axial load levels ranging from 60 kN to 280 kN. Ropes were loaded until mechanical failure, with fatigue lifetimes ranging from 695 cycles to 8,340 cycles. After every fixed number of sheave cycles (an inspection burst), ten images were captured at different cross-sectional positions along the rope, providing spatially representative sampling of surface degradation throughout the rope's entire service life. The images obtained from each load are annotated with the corresponding elapsed cycle count, enabling a direct computation of RUL for any rope in the sequence. This dataset aims to support a broad range of machine learning (ML) tasks including RUL regression, damage progression modelling, anomaly detection, and load-conditioned prognostics. The dataset is intended to serve as a benchmark resource for the development and comparison of vision-based condition monitoring (CM) and prognostics algorithms for SFRs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 3 minor

Summary. The manuscript claims to introduce the first publicly available image dataset for remaining useful life estimation of synthetic fibre ropes. It includes approximately 34,700 high-resolution images of 11 Dyneema SK75/78 HMPE rope samples subjected to cyclic fatigue on a sheave-bend test stand at seven axial load levels (60-280 kN). Ropes were tested to failure (lifetimes 695-8340 cycles), with ten images captured at different positions after fixed cycle intervals and annotated by elapsed cycle count to support direct RUL computation and ML tasks including regression, damage modeling, anomaly detection, and load-conditioned prognostics.

Significance. If the dataset matches the described protocol, the release is significant because it supplies the first public benchmark resource for vision-based condition monitoring of SFRs in safety-critical applications. The controlled multi-load design, full degradation lifecycle coverage, and cycle-count annotations enable reproducible development and comparison of RUL models without requiring new physical testing. This directly addresses the stated gap and supports a range of CV and prognostics research.

major comments (1)
  1. [Data collection protocol] Data collection and imaging protocol: the description supplies only a high-level account of capture after inspection bursts and annotation by elapsed cycle count; no specifics are given on camera calibration, lighting consistency, spatial sampling uniformity, quality control (e.g., blur or exposure rejection), or handling of rope slippage on the sheave. These details are load-bearing for reproducibility and for users to judge whether the surface images contain sufficient signal for accurate RUL regression.
minor comments (3)
  1. [Abstract and Dataset summary] The abstract and main text use 'approximately 34,700'; an exact total count, broken down by load level and rope sample, would improve precision.
  2. [Dataset description] A summary table listing per-rope image counts, cycles-to-failure, and load levels would allow readers to assess balance and coverage at a glance.
  3. [Introduction] The novelty claim would be strengthened by an explicit statement of the search strategy used to confirm no prior public image datasets exist for SFR fatigue under controlled cyclic loading.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive assessment of the dataset's significance and for the recommendation of minor revision. We address the single major comment on the data collection protocol below.

read point-by-point responses

  1. Referee: [Data collection protocol] Data collection and imaging protocol: the description supplies only a high-level account of capture after inspection bursts and annotation by elapsed cycle count; no specifics are given on camera calibration, lighting consistency, spatial sampling uniformity, quality control (e.g., blur or exposure rejection), or handling of rope slippage on the sheave. These details are load-bearing for reproducibility and for users to judge whether the surface images contain sufficient signal for accurate RUL regression.

    Authors: We agree that the manuscript currently provides only a high-level description of the imaging steps. In the revised version we will expand the relevant methods section with concrete details on camera model and calibration, fixed lighting configuration and intensity monitoring, the mechanical positioning rig used to achieve uniform cross-sectional sampling, explicit quality-control criteria (including automated and manual rejection thresholds for blur, exposure, and focus), and the protocol for detecting and correcting rope slippage on the sheave between inspection bursts. These additions will directly support reproducibility and allow future users to evaluate the signal quality for RUL regression. revision: yes

Circularity Check

0 steps flagged

Dataset release paper contains no derivation chain or fitted predictions

full rationale

The paper is a data-release contribution that documents the collection of ~34,700 images from 11 Dyneema ropes under controlled sheave-bend fatigue at seven load levels, with images annotated by elapsed cycle count. No equations, models, parameter fits, predictions, or load-bearing self-citations appear in the abstract or described content. The central claim is simply the existence and public availability of the dataset; it does not derive any result from prior fitted quantities or reduce any claim to its own inputs by construction. The work is therefore self-contained with no circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper contributes empirical data rather than a derivation; the primary untested premise is that the chosen laboratory fatigue protocol and surface imaging capture the degradation modes relevant to field use.

axioms (1)
  • domain assumption The sheave-bend test stand at the stated load levels produces degradation representative of real offshore and industrial rope service.
    Invoked when the authors state the dataset supports condition monitoring for offshore-crane and wind-turbine applications.

pith-pipeline@v0.9.0 · 5585 in / 1283 out tokens · 125115 ms · 2026-05-08T17:14:20.381962+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

7 extracted references · 7 canonical work pages

  1. [1]

    Rani and D

    A. Rani and D. Ortiz-Arroyo and P. Durdevic , title =. Applied Ocean Research , volume =. 2024 , pages =

    work page 2024

  2. [2]

    A. H. McKenna and WS J.Hearle and N. O'Hear , title=. 2004 , publisher=

    work page 2004

  3. [3]

    Dynamica-Ropes ApS, Denmark

    work page

  4. [4]

    Fibre ropes – General specifications

    ISO 9554(2019). Fibre ropes – General specifications

    work page 2019

  5. [5]

    I. M. L. Ridge and C. R. Chaplin and J. Zheng , title=. Engineering Failure Analysis , volume=. 2001 , pages=

    work page 2001

  6. [6]

    Rani and D

    A. Rani and D. Ortiz-Arroyo and P. Durdevic , title=. 2023 , eprint=

    work page 2023

  7. [7]

    Debeleac and S

    C. Debeleac and S. Nastac and G. D. Musca , title=. Materials , volume=. 2020 , pages=

    work page 2020
