Towards Billion-scale Multi-modal Biometric Search

Arka Koner , Chetan S. Naik , Lokesh Kurre , Vivek Raghavan , Barada P. Sabut , Tanusree Deb Barma , Anoop M. Namboodiri , Anil K. Jain This is my paper

Pith reviewed 2026-05-11 02:15 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords multi-modal biometricslarge-scale searchfingerprint face irisAadhaarde-duplicationopen-source pipelinepresentation attack detectionnational identity system
0
0 comments X

The pith

An open-source pipeline for fingerprint, face and iris search reaches 0.3 percent FNIR at 0.5 percent FPIR on a 220 million identity gallery drawn from India's Aadhaar database.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes Bharat ABIS, an integrated open-source system that handles acquisition through matching for three biometric modalities at country scale. Each modality undergoes separate preprocessing, quality checks, attack detection and embedding steps before the templates are concatenated into a compact 13.5 KB record per person. On a demographically balanced 220 million record sample the system reports low false-non-identification rates for adult probes while delivering 100 searches per second on a 40 million gallery using one server with eight GPUs. These results matter because they show that a non-proprietary stack can support the core 1:N de-duplication task required by national identity programs without immediate resort to commercial black-box solutions.

Core claim

The central claim is that an end-to-end open-source pipeline processing fingerprints, faces and irises through modality-specific segmentation, quality assessment, presentation-attack detection and embedding extraction produces concatenated 13.5 KB templates that enable accurate and fast 1:N search, demonstrated by an FNIR of 0.3 percent at 0.5 percent FPIR on a 220 million person gallery randomly sampled from the 1.55 billion Aadhaar records, together with 100 searches per second throughput on a 40 million gallery running on a single server equipped with eight Nvidia H100 GPUs and 2 TB RAM.

What carries the argument

The concatenated 13.5 KB multi-modal template formed by chaining modality-specific preprocessing and embedding stages, which supports efficient 1:N matching across large galleries.

If this is right

  • The system can be compared directly with three commercial off-the-shelf products on a 20 million gallery.
  • Special cases such as missing finger digits can be handled within the same pipeline.
  • Throughput scales to 100 searches per second on 40 million records using only one server with eight H100 GPUs.
  • The pipeline supplies concrete engineering data on modality integration for billion-record de-duplication.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the observed scaling holds, clusters of similar servers could support real-time search over the entire 1.55 billion records.
  • Open availability of the components may allow other countries to replicate national-scale biometric de-duplication without vendor lock-in.
  • Continuous monitoring for template drift would be required once the system moves from the sampled gallery to live enrollment streams.
  • The emphasis on presentation-attack detection implies that security against spoofing remains feasible even at this scale.

Load-bearing premise

The 220 million demographically stratified sample is representative of the full 1.55 billion Aadhaar population and the pipeline will maintain the reported accuracy and speed when applied to the complete database.

What would settle it

Re-running the identical evaluation protocol on the full 1.55 billion records or on an independently stratified 220 million subset drawn from a different demographic distribution and obtaining substantially higher FNIR or lower throughput.

Figures

Figures reproduced from arXiv: 2605.07655 by Anil K. Jain, Anoop M. Namboodiri, Arka Koner, Barada P. Sabut, Chetan S. Naik, Lokesh Kurre, Tanusree Deb Barma, Vivek Raghavan.

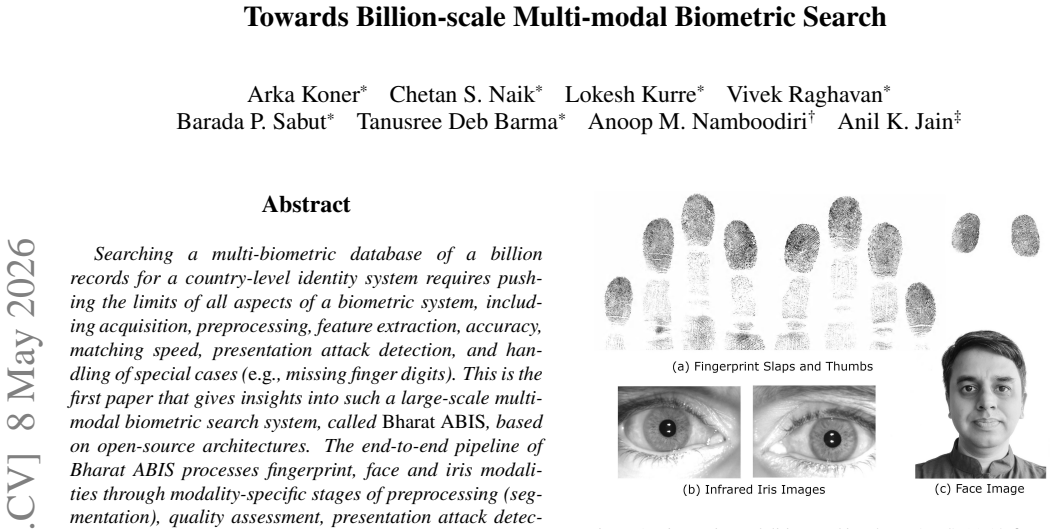

Figure 1
Figure 1. Figure 1: Biometric modalities used in Bharat ABIS: (a) 10-fingers [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Data flow and interfaces of Aadhaar ABIS ( (Automated [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Multi-modal template generation pipeline. Each modal [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 6
Figure 6. Figure 6: Examples of commonly seen eye conditions that lead to [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

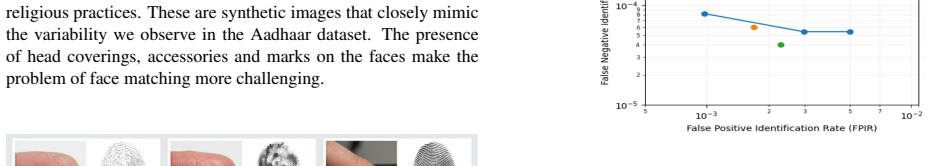

Figure 7
Figure 7. Figure 7: FPIR vs FNIR plot (log scale) of Bharat ABIS and three [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗

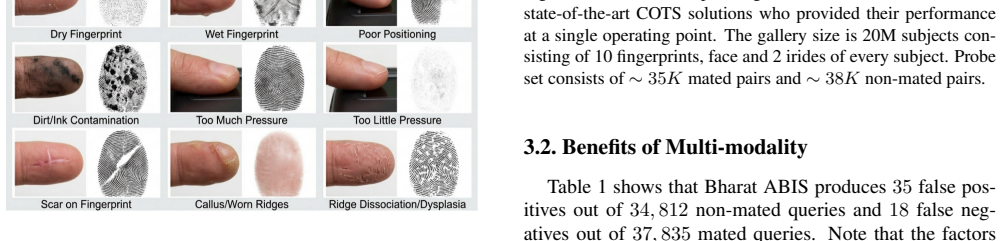

Figure 5
Figure 5. Figure 5: Examples of poor quality fingerprint images. These are [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

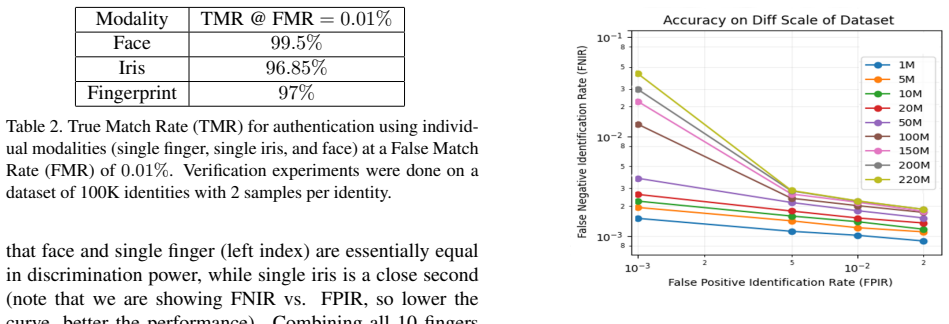

Figure 9
Figure 9. Figure 9: FNIR vs. FPIR plots for Bharat ABIS for various gallery [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Effect of different 20M galleries randomly sampled [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗
read the original abstract

Searching a multi-biometric database of a billion records for a country-level identity system requires pushing the limits of all aspects of a biometric system, including acquisition, preprocessing, feature extraction, accuracy, matching speed, presentation attack detection, and handling of special cases (e.g., missing finger digits). This is the first paper that gives insights into such a large-scale multimodal biometric search system, called Bharat ABIS, based on open-source architectures. The end-to-end pipeline of Bharat ABIS processes fingerprint, face and iris modalities through modality-specific stages of preprocessing (segmentation), quality assessment, presentation attack detection, and learning an embedding (feature extraction), producing a concatenated template of 13.5KB per person. We present a detailed analysis of the modalities and how they are integrated to create an efficient and effective solution for 1:N search (de-duplication). Evaluations on a demographically stratified gallery of 220 million identities, randomly sampled from 1.55 billion records in India's Aadhaar database, yield an FNIR of 0.3% at an FPIR of 0.5%, for adult probes (over 18 years). We also compare the performance of Bharat ABIS against three state-of-the-art COTS systems on a 20M gallery. Our system achieves a throughput of 100 searches per second on a gallery of 40M on a single server (8xNvidia H100 GPUs, 2TB RAM).

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper introduces Bharat ABIS, an open-source multi-modal biometric system integrating fingerprint, face, and iris for 1:N search and de-duplication at national scale. It describes an end-to-end pipeline producing 13.5KB templates per identity and reports FNIR of 0.3% at FPIR 0.5% on a demographically stratified 220M gallery randomly sampled from India's 1.55B Aadhaar records (adult probes), plus 100 searches/sec throughput on a 40M gallery using 8x H100 GPUs and 2TB RAM. It also compares against three COTS systems on a 20M gallery.

Significance. If the reported accuracy and throughput generalize without degradation, the work would be significant as the first detailed public description of an open-source pipeline achieving usable performance at this scale, offering a reproducible baseline for large national biometric systems and highlighting practical integration of modalities, quality assessment, and presentation attack detection.

major comments (3)
  1. [Evaluations] Evaluations section (and abstract): FNIR of 0.3% at FPIR 0.5% is measured only on the 220M stratified subset; no threshold scaling analysis, FPIR-vs-gallery-size curves, or results on any gallery larger than 220M are provided. In 1:N identification, FPIR rises with gallery size unless the threshold is raised, which trades directly against FNIR, so the billion-scale claim rests on an untested extrapolation.
  2. [Throughput evaluation] Throughput evaluation (abstract): 100 searches/sec is demonstrated only on a 40M gallery; no scaling experiments, memory-bandwidth projections, or results for the full 1.55B target are given, leaving open whether the same single-server configuration sustains the claimed rate at full scale.
  3. [Methodology] Methodology description (abstract and evaluations): The 220M gallery is described as 'demographically stratified' and 'randomly sampled,' yet no details are supplied on stratification criteria, sampling procedure, or how the subset preserves the demographic and quality distributions of the full 1.55B population; this directly affects whether the reported FNIR/FPIR can be expected to hold at full scale.
minor comments (2)
  1. [Abstract] The abstract states the system 'processes fingerprint, face and iris modalities through modality-specific stages' but does not quantify the contribution of each modality to the final FNIR/FPIR or describe the fusion rule; a short table or paragraph would clarify the integration.
  2. [Pipeline description] No mention of how the 13.5KB concatenated template size was chosen or whether it represents a trade-off between accuracy and storage; a brief justification would strengthen the engineering claims.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We are grateful to the referee for the constructive and detailed comments, which have prompted us to clarify key aspects of our work. We address each major comment below and indicate the revisions made to the manuscript.

read point-by-point responses

  1. Referee: [Evaluations] Evaluations section (and abstract): FNIR of 0.3% at FPIR 0.5% is measured only on the 220M stratified subset; no threshold scaling analysis, FPIR-vs-gallery-size curves, or results on any gallery larger than 220M are provided. In 1:N identification, FPIR rises with gallery size unless the threshold is raised, which trades directly against FNIR, so the billion-scale claim rests on an untested extrapolation.

    Authors: We agree that the reported FNIR and FPIR figures are based on the 220M gallery and that no direct results at the full 1.55B scale are provided. Full-scale empirical testing was not feasible due to the computational resources required. In the revised manuscript we have added a new subsection on scalability analysis that includes FPIR-versus-gallery-size curves obtained from experiments on subsets ranging from 1M to 220M identities, together with a theoretical model that extrapolates performance using the observed genuine and impostor score distributions. We have also revised the abstract and evaluations section to state explicitly that the billion-scale figures are projections grounded in these analyses rather than direct measurements, while retaining the 'Towards Billion-scale' framing of the title. revision: partial

  2. Referee: [Throughput evaluation] Throughput evaluation (abstract): 100 searches/sec is demonstrated only on a 40M gallery; no scaling experiments, memory-bandwidth projections, or results for the full 1.55B target are given, leaving open whether the same single-server configuration sustains the claimed rate at full scale.

    Authors: We acknowledge that the 100 searches/sec throughput is measured on a 40M gallery. The revised manuscript now includes explicit memory-bandwidth projections and scaling curves derived from the current indexing and GPU-accelerated matching implementation. These projections show that the single-server configuration (8x H100 GPUs, 2TB RAM) cannot sustain the same rate at 1.55B without distribution across additional nodes. We have updated the abstract to qualify the throughput claim with the evaluated gallery size and added the scaling analysis to the evaluations section. revision: yes

  3. Referee: [Methodology] Methodology description (abstract and evaluations): The 220M gallery is described as 'demographically stratified' and 'randomly sampled,' yet no details are supplied on stratification criteria, sampling procedure, or how the subset preserves the demographic and quality distributions of the full 1.55B population; this directly affects whether the reported FNIR/FPIR can be expected to hold at full scale.

    Authors: We thank the referee for noting the lack of detail on gallery construction. The revised evaluations section now provides a full description of the stratification criteria (age, gender, geographic region, and biometric quality scores), the stratified random sampling procedure, and quantitative validation that the 220M subset preserves the demographic and quality distributions of the full 1.55B Aadhaar population. These additions directly support the representativeness of the reported metrics. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical system description with direct measurements

full rationale

The paper is a description of an implemented multi-modal biometric pipeline (Bharat ABIS) with reported accuracy and throughput measured directly on a 220M demographically stratified sample and a 40M gallery. No equations, derivations, or first-principles predictions appear in the provided text. Performance numbers (FNIR 0.3% at FPIR 0.5%, 100 searches/sec) are presented as experimental outcomes rather than outputs of any fitted model or self-referential definition. Scaling to 1.55B is stated as a target without any reduction to prior fitted values or self-citations. No patterns from the enumerated circularity kinds are present.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

As an engineering and systems paper, it does not introduce new free parameters, axioms, or invented entities beyond standard biometric processing; it builds on existing open-source architectures.
