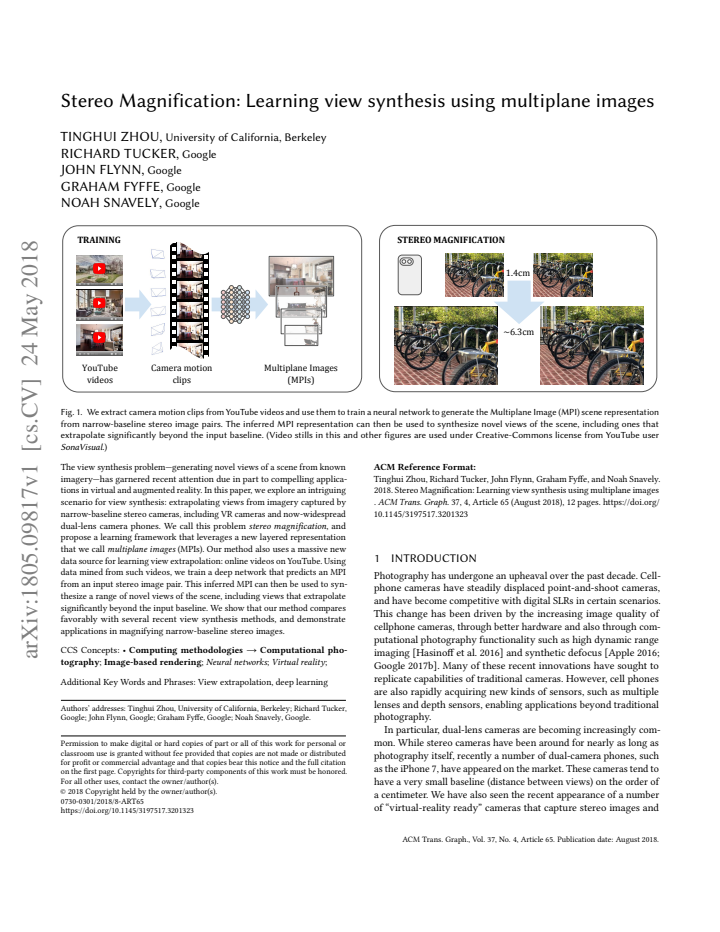

Stereo Magnification: Learning View Synthesis using Multiplane Images

Tinghui Zhou , Richard Tucker , John Flynn , Graham Fyffe , Noah Snavely
Authors on Pith no claims yet

Pith reviewed 2026-05-12 23:58 UTC · model grok-4.3

classification 💻 cs.CV cs.GR
keywords view synthesismultiplane imagesstereo magnificationnovel view synthesisimage-based renderinglayered representationsdeep learning
0
0 comments X

The pith

A deep network predicts a multiplane image from a stereo pair to synthesize novel views that extrapolate far beyond the input baseline.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to solve stereo magnification: generating views that extend well past the narrow separation of a stereo camera pair, such as those on phones or VR headsets. It does so by training a network to output a multiplane image, a stack of semi-transparent colored layers at fixed depths. Once predicted, the MPI can be rendered from any desired camera position using standard compositing. The training data comes from mining stereo pairs and wider frames out of ordinary YouTube videos. If the approach works, it removes the need for explicit 3D geometry or wide-baseline capture when creating free-viewpoint video.

Core claim

The central claim is that a multiplane image inferred from a narrow-baseline stereo pair is sufficient to synthesize a continuous range of novel views, including those that extrapolate significantly beyond the input baseline, and that a network trained on mined YouTube video data can produce such MPIs accurately enough to outperform prior view-synthesis baselines on this task.

What carries the argument

Multiplane images (MPIs): a fixed set of parallel RGB-alpha planes at discrete depths that together represent the scene and support differentiable rendering from new viewpoints.

If this is right

  • Stereo pairs from everyday dual-lens phones become usable for wide-baseline view synthesis without additional hardware.
  • View extrapolation becomes possible without building an explicit 3D mesh or point cloud.
  • A single forward pass through the network yields a representation that supports rendering at arbitrary novel positions and distances.
  • Large-scale training on unlabeled online video replaces the need for calibrated multi-view datasets.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same MPI output could be used as an intermediate representation for other tasks such as depth estimation or light-field rendering.
  • Because the planes are fixed in depth, the method may degrade for scenes with very large depth ranges or thin structures.
  • Extending the approach to video input sequences could enable temporally coherent view synthesis.

Load-bearing premise

An MPI predicted from narrow-baseline stereo input is sufficient to accurately synthesize significantly extrapolated novel views.

What would settle it

Capture real ground-truth images from a camera baseline several times wider than the input stereo pair and compare them pixel-for-pixel or perceptually to the views rendered from the predicted MPI.

read the original abstract

The view synthesis problem--generating novel views of a scene from known imagery--has garnered recent attention due in part to compelling applications in virtual and augmented reality. In this paper, we explore an intriguing scenario for view synthesis: extrapolating views from imagery captured by narrow-baseline stereo cameras, including VR cameras and now-widespread dual-lens camera phones. We call this problem stereo magnification, and propose a learning framework that leverages a new layered representation that we call multiplane images (MPIs). Our method also uses a massive new data source for learning view extrapolation: online videos on YouTube. Using data mined from such videos, we train a deep network that predicts an MPI from an input stereo image pair. This inferred MPI can then be used to synthesize a range of novel views of the scene, including views that extrapolate significantly beyond the input baseline. We show that our method compares favorably with several recent view synthesis methods, and demonstrate applications in magnifying narrow-baseline stereo images.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces multiplane images (MPIs) as a layered scene representation for the stereo magnification task: synthesizing novel views that extrapolate significantly beyond the narrow baseline of an input stereo pair. A deep network is trained to predict an MPI (per-plane RGB and alpha) from the stereo input, using supervision mined from adjacent frames in YouTube videos; the MPI is then rendered via homography warping to produce the extrapolated views. The abstract states that the approach compares favorably with prior view-synthesis methods and demonstrates applications to magnifying narrow-baseline stereo imagery.

Significance. If the quantitative claims hold, the work is significant for VR/AR pipelines that rely on consumer dual-lens cameras. The MPI representation offers a compact, differentiable alternative to explicit depth or mesh reconstruction, and the use of large-scale mined video data provides a scalable training regime that avoids the need for calibrated wide-baseline captures or ground-truth depth.

major comments (2)
  1. [Abstract and §4] Abstract and §4 (Experiments): the claim that the method 'compares favorably with several recent view synthesis methods' is not supported by any quantitative numbers, error metrics, or baseline details in the abstract; without these, the central empirical claim cannot be evaluated and the soundness assessment remains low.
  2. [§3.2 and §5] §3.2 (MPI Rendering) and §5 (Discussion): the homography-based warping of predicted MPIs accumulates errors linearly with baseline distance; because training supervision is drawn only from adjacent YouTube frames (modest parallax), it is unclear whether the learned per-plane RGB/alpha values remain accurate for the 'significantly beyond the input baseline' regime asserted in the abstract.
minor comments (1)
  1. [§3.1] Notation: the number and spacing of MPI planes are treated as fixed hyperparameters; their sensitivity should be reported in an ablation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and constructive comments. We address each major point below and indicate where revisions will be made to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract and §4] Abstract and §4 (Experiments): the claim that the method 'compares favorably with several recent view synthesis methods' is not supported by any quantitative numbers, error metrics, or baseline details in the abstract; without these, the central empirical claim cannot be evaluated and the soundness assessment remains low.

    Authors: We agree that the abstract would be strengthened by including specific quantitative support for the comparison claim. Section 4 already contains the full set of error metrics (PSNR, SSIM, and others), baseline details, and comparisons against recent view-synthesis methods. In the revised manuscript we will update the abstract to concisely reference these key results, allowing the empirical claim to be evaluated directly from the abstract without lengthening it beyond standard limits. revision: yes

  2. Referee: [§3.2 and §5] §3.2 (MPI Rendering) and §5 (Discussion): the homography-based warping of predicted MPIs accumulates errors linearly with baseline distance; because training supervision is drawn only from adjacent YouTube frames (modest parallax), it is unclear whether the learned per-plane RGB/alpha values remain accurate for the 'significantly beyond the input baseline' regime asserted in the abstract.

    Authors: This is a legitimate concern about generalization. Although supervision comes from modest-parallax adjacent frames, the network is trained on a large and diverse set of YouTube videos; the resulting per-plane RGB and alpha values are shown in Section 4 to support plausible synthesis at baselines larger than those seen during training. We will expand the discussion in the revised Section 5 to explicitly address error accumulation under homography warping and to clarify how the learned MPI representation enables the reported extrapolation results. revision: partial

Circularity Check

0 steps flagged

No significant circularity in the MPI prediction and rendering pipeline

full rationale

The paper describes a supervised learning pipeline: a deep network is trained on external YouTube video frames (treated as stereo pairs) to regress an MPI representation, which is then rendered via homography warping to novel views. The central claim—that the learned MPI enables significant extrapolation—rests on empirical training and held-out evaluation rather than any self-referential definition, fitted parameter renamed as prediction, or load-bearing self-citation chain. No equations or steps reduce the output to the input by construction; the network parameters are optimized against independent video data, and the MPI rendering equations are standard homography compositions independent of the training regime.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 1 invented entities

The central claim rests on the MPI being an adequate scene approximation and on the network successfully inferring it from limited baseline input.

free parameters (2)
  • number and depths of MPI planes
    Design choice for discretizing scene depth; may be tuned or learned.
  • neural network parameters
    Learned from training data on YouTube video frames.
axioms (1)
  • domain assumption A scene can be approximated by a stack of fronto-parallel planes each carrying color and alpha.
    This is the foundational assumption of the multiplane image representation.
invented entities (1)
  • Multiplane Image (MPI) no independent evidence
    purpose: Layered representation enabling efficient novel view synthesis from stereo input.
    New representation introduced by the paper.
