Pith's one-line read The paper claims that a core-shell model with shell thickness set by the interatomic cutoff radius and shell moduli from ultra-fine-grain simulations reproduces atomistic grain-size trends in eight cubic metals, with the trend direction…

desk verdict A useful Zener-factor rule built on an extensive atomistic dataset, but the core-shell validation is partly circular because the shell moduli are fitted to the two finest-grained samples per metal. read the letter →

arxiv 1908.01644 v1 pith:KOETCBLX submitted 2019-08-05 physics.comp-ph cond-mat.mtrl-sci

Katarzyna Kowalczyk-Gajewska , Marcin Maździarz This is my paper · ORCID
classification physics.comp-phcond-mat.mtrl-sci
keywords nanocrystallinemetalscore-shellmodeleffectiveelasticstiffnessZeneranisotropyfactorgrain-boundaryzoneatomisticsimulationmolecularstaticscubicsymmetry
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that a closed-form mean-field model can replace atomistic simulation when predicting how the elastic stiffness of nanocrystalline cubic metals changes with grain size. The model wraps each anisotropic cubic grain in an isotropic shell whose thickness is taken to be the cutoff radius of the embedded-atom potential and whose elastic constants are read off from atomistic simulations of the two finest-grained samples. Against molecular-statics results for eight metals — FCC and BCC, with Zener factors from 0.59 to 8.16 — the core-shell model shows satisfactory qualitative and quantitative agreement. The paper's specific new claim is that the sign of the grain-size effect is set by the Zener factor $\zeta_1 = G_1/G_2$: both moduli rise with grain size when $\zeta_1>1$ and fall when $\zeta_1<1$. If true, this reduces the estimation of nanograin elasticity to single-crystal constants, one length (the cutoff radius), and one small-grain calibration per material.

What carries the argument

The load-bearing object is the coated-grain inclusion: a sphere with an anisotropic cubic core, whose Kelvin moduli are $3K$, $2G_1$, $2G_2$, surrounded by a uniform isotropic shell with moduli $K_s$, $G_s$. The shell's volume fraction is $f_0 = 1 - (1-2\Delta/d)^3$, where $\Delta$ is the cutoff radius of the embedded-atom potential and $d$ is the average grain diameter; this is the only size-dependent input. The effective stiffness comes from embedding the coated grain in an infinite reference medium and applying the double-inclusion scheme (Mori-Tanaka and self-consistent variants), with a spherical Hill tensor for the inclusion. The shell moduli are not free: they are pinned by atomistic simulations at $f_0 \to 1$, after which the same closed-form expressions predict all coarser grain sizes. The Zener factor $\zeta_1 = G_1/G_2$ is the classification parameter that organizes the results.

What would settle it

Measure the elastic moduli of nanocrystalline niobium or vanadium (both with Zener factor below one) across grain sizes from roughly 5 nm to 100 nm: the paper's rule predicts decreasing moduli with increasing grain size, so the opposite trend would disprove the qualitative claim. A cheaper computational test is to repeat the whole identification for one metal with a different embedded-atom potential and check whether the sign of the grain-size trend survives the change.

Watch

Extended reading notes

Core claim

The paper reports that the grain-boundary zone in cubic nanocrystalline metals can be captured, for effective elasticity, by a uniform isotropic shell whose thickness is the potential cutoff radius and whose moduli $K_s$, $G_s$ are identified from samples with almost all atoms in the boundary zone. With this identification, the Mori-Tanaka and self-consistent variants of the core-shell model track the isotropized bulk and shear moduli from atomistic simulations across all eight metals, with the self-consistent variant in closer agreement. The accompanying qualitative rule is that the size dependence changes sign at $\zeta_1=1$: for $\zeta_1>1$ both $K$ and $G$ increase with grain size, for $\zeta_1<1$ they decrease, and FCC versus BCC lattice geometry does not change the pattern. Tungsten, with $\zeta_1\approx 1$, sits on the borderline, showing decreasing bulk modulus but increasing shear modulus with grain size.

Load-bearing premise

The load-bearing premise is that a grain-boundary zone of uniform thickness equal to the interatomic potential's cutoff radius, with elastic constants taken from the two smallest-grained simulations, faithfully represents the real boundary structure; if that identification fails, the predicted size scaling loses quantitative meaning.

Editorial extensions

If this is right

  • If the core-shell identification is correct, the grain-size scaling of elastic moduli in a cubic nanocrystalline metal can be predicted from single-crystal constants, the potential cutoff radius, and one small-grain calibration — no atomistic sweep over grain sizes is required.
  • The model predicts that decreasing grain size softens metals with $\zeta_1>1$ but stiffens metals with $\zeta_1<1$, so the Zener factor becomes a practical selector for whether nanocrystalline refinement should raise or lower elastic stiffness.
  • The copper-specific assumption that the shell has the crystal's bulk modulus and the smaller single-crystal shear modulus is not transferable; other cubic metals need their own shell moduli identified from ultra-fine-grained samples.
  • The self-consistent variant of the core-shell model should be preferred over the Mori-Tanaka variant when quantitative accuracy against atomistic data matters, since the paper finds it in better agreement.
  • For very small grains the two variants converge to the shell properties, so the calibration step itself is robust to the choice of homogenization scheme at the finest grain sizes.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial extension: if the sign rule is generic, experiments on nanocrystalline niobium or vanadium — metals with $\zeta_1<1$ — should show elastic moduli that decrease as grain size increases; published experiments on such compacts are scarce, making this a direct testable prediction.
  • Editorial extension: the model's quantitative predictions are tied to the chosen embedded-atom potential because both $\Delta$ and the identified shell moduli change with the potential; a systematic comparison across multiple potentials for one metal would reveal how much of the claimed agreement is potential-specific.
  • Editorial extension: near $\zeta_1=1$ the clean dichotomy fails, so a practical engineering rule would need a secondary criterion — for example the full anisotropy tensor — to handle near-isotropic metals such as tungsten.
  • Editorial extension: the coated-grain construction invites the same cutoff-radius calibration to be tested for inelastic properties, such as yield strength or strain-rate sensitivity, where grain-boundary zones are known to matter.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The manuscript extends a two-phase core-shell mean-field model, previously proposed for nanocrystalline copper, to eight cubic metals (FCC and BCC) with a range of Zener anisotropy factors. The authors perform molecular statics simulations with EAM potentials, isotropize the resulting stiffness tensors using the Log-Euclidean metric, and identify isotropic shell elastic moduli (Ks, Gs) as averages over the two finest-grained samples (f0 ≈ 1) of each metal. The shell thickness is set to the EAM cutoff radius, and both Mori-Tanaka and self-consistent variants of the core-shell model are compared against the atomistic data for bulk and shear moduli as functions of average grain diameter. The paper reports satisfactory qualitative and quantitative agreement, and observes that the size dependence of the moduli reverses sign depending on whether the Zener factor is above or below one.

Significance. If the central claim holds, the paper offers a potentially practical closed-form mean-field tool for estimating grain-size-dependent elasticity of nanocrystalline cubic metals, with the shell thickness given by the interatomic potential cutoff and shell properties obtained from atomistic simulations of very fine-grained samples. The dataset in the appendices (Tables A.5–A.20) is extensive and internally consistent, and the authors are transparent about the model's assumptions. However, the validation strategy is weakened by the fact that the shell properties are calibrated on the same simulation method and, in part, on the very data points used for the subsequent comparison, and by the absence of multiple realizations or error bars. The significance of the paper would be substantially higher if the predictive (out-of-calibration) content were isolated and quantified.

major comments (3)
  1. [Section 4.1, Table 3, and Figures 5–6] The shell moduli Ks and Gs are identified by averaging the isotropized moduli of the two samples with f0 ≈ 1 for each metal (Table 3). These same two data points are then included in the comparisons shown in Figures 5 and 6 and claimed as part of the overall agreement. Because the core-shell model reduces to Cs in the limit f0 → 1 (as stated in Section 2), the two calibration points are reproduced by construction. The genuinely predictive comparison consists of the remaining five or six grain sizes per metal. The paper should report the agreement for the held-out points separately, or preferably identify the shell properties from an independent source (e.g., bicrystal simulations or local structural metrics) and perform a leave-one-out analysis to demonstrate that the model predicts the uncalibrated data.
  2. [Section 3 and Appendix A] Each configuration at a given grain size is a single Voronoi realization, with no repeated samples and consequently no error bars on the atomistic moduli reported in Tables 1 and 2. Since the grain-size trends are monotonic and the model has two fitted parameters per metal (Ks and Gs), the reported 'satisfactory quantitative agreement' could be substantially absorbed by the calibration even if the underlying shell-thickness assumption were incorrect. The authors should generate at least three to five independent realizations for a subset of grain sizes per metal and report mean ± standard deviation, enabling a statistical assessment of the claimed agreement.
  3. [Section 4.2, Eq. (11)] The volume fraction f0 is computed from Eq. (11) under the assumption that the shell thickness Δ equals the EAM cutoff radius. This same assumption is then used to assert that the finest-grained samples consist 'approximately all atoms belonging to the grain boundary zone' and to justify the identification of Ks and Gs from those samples. The identification of the shell phase is therefore not independent of the model being tested; it is a modeling assumption rather than a measured microstructural property. The authors should either justify the Δ = cutoff identification for each potential using local structural analysis (e.g., atomic order parameters, centrosymmetry, or local elastic constants) or provide a sensitivity study varying Δ over a physically plausible range to show that the qualitative Zener-factor conclusion is robust.
minor comments (5)
  1. [Abstract and Section 3] The abstract and Section 3 state 'eight metals with nine grain sizes each,' but each metal appears to have eight polycrystalline samples plus a monocrystal; please clarify whether the monocrystal is counted as one of the nine grain sizes.
  2. [Figure captions, Figures 5 and 7] The caption of Figure 5 lists panels '(a) Na, (b) Cu (c) Fe (d) Ni (f) Al,' which appears to be a typo; the panel labels and the list of metals should be cross-checked. The same issue appears in Figure 7.
  3. [Table 2] Several entries in Table 2 appear with misplaced spaces or line breaks (e.g., '1 80.8', '82.85 327.7 0.84', '1 66.1', '1 65.6', '1 62.6', '1 59.0'); these are likely formatting artifacts, but they should be corrected in the final version.
  4. [Section 5] The phrase 'the present observations strongly relays on validity' should read 'strongly rely on the validity'.
  5. [References [42] and [43]] The author names in references [42] and [43] contain the stray text '/suppress', likely from document conversion; these should be cleaned up.

Circularity Check

1 steps flagged · score 4.0 of 10

Shell moduli are calibrated on the two smallest-grain samples, making the smallest-grain 'agreement' by construction; the other six grain sizes remain genuine predictions.

  1. fitted input called prediction [Section 3 (identification of shell moduli), Section 4.1/Table 3, Section 4.2 (Eq. 8 and Figs. 5-6)]
    "For each metal the shell elastic parameters: Ks and Gs, were identified as an average value for two samples with f0 approaching unity. ... For very small grains (f0 → 1) the estimates C̄CS/MT and C̄CS/SC approach each other and coincide with Cs."

    The two calibration samples per metal (smallest d, f0≈1 by Eq. 11) are averaged to define Ks and Gs (Table 3). Since Eq. (8) reduces to C̄=Cs when f0→1, the model output at those two grain sizes equals the measured shell moduli by construction. The paper then includes these two points in the claimed 'satisfactory qualitative and quantitative agreement' (Figs. 5-6), so they are not independent predictions; they are the endpoint of the fit. The remaining six grain sizes per metal are predicted with Ks and Gs held fixed, so the size-dependence claim retains genuinely independent support, but the statements 'predictions ... agreement' are partially anchored by fitted input values.

full rationale

The central model is the authors' earlier core-shell model ([4]), but the present paper is an external application to seven new metals plus Cu, with the model's equations independently evaluated against atomistic data. The shell thickness Δ is taken as the EAM cutoff radius, a parameter-free input not fitted to the target elastic moduli, and the Zener-factor trend is primarily an observation from the atomistic data itself. The only substantive circularity is the calibration of Ks and Gs from the two smallest-grain samples per metal: because the model collapses to Cs at f0→1, those two data points are forced onto the model curve by construction. However, the model's predictions for all larger grain sizes are genuinely determined after this calibration, giving the central claim meaningful independent content. No load-bearing self-citation chain or renaming of known results is present, so the circularity is partial rather than structural.

Assumptions & free parameters 16 free parameters · 7 assumptions · 0 invented entities

The central prediction relies on eight pairs of shell moduli fitted from atomistic data, plus the assumptions that the shell thickness equals the potential cutoff radius and that the shell is uniform and isotropic. No new microscopic entities are introduced.

free parameters (16)
  • Ks (Na) = 6.723 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell bulk modulus in core-shell model.
  • Gs (Na) = 1.701 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell shear modulus in core-shell model.
  • Ks (Cu) = 135.0 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell bulk modulus in core-shell model.
  • Gs (Cu) = 22.06 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell shear modulus in core-shell model.
  • Ks (Fe) = 134.1 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell bulk modulus in core-shell model.
  • Gs (Fe) = 41.86 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell shear modulus in core-shell model.
  • Ks (Ni) = 91.98 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell bulk modulus in core-shell model.
  • Gs (Ni) = 31.74 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell shear modulus in core-shell model.
  • Ks (Al) = 73.77 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell bulk modulus in core-shell model.
  • Gs (Al) = 15.35 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell shear modulus in core-shell model.
  • Ks (W) = 326.8 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell bulk modulus in core-shell model.
  • Gs (W) = 83.75 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell shear modulus in core-shell model.
  • Ks (V) = 183.1 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell bulk modulus in core-shell model.
  • Gs (V) = 65.39 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell shear modulus in core-shell model.
  • Ks (Nb) = 177.5 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell bulk modulus in core-shell model.
  • Gs (Nb) = 45.18 GPa
    Average of two atomistic samples with f0 approaching 1; used as shell shear modulus in core-shell model.
assumptions (7)
  • standard math The elasticity tensor of a cubic crystal admits the spectral decomposition C = 3K I_P + 2G1 (K - I_P) + 2G2 (I - K) (Eq. 2).
    Standard result from [24,25]; used throughout the model section.
  • domain assumption The polycrystalline RVE contains an infinite set of randomly oriented grains, so orientation averaging yields an isotropic effective tensor (Eq. 7).
    This is the perfectly random orientation assumption under which the core-shell estimates become isotropic; real finite samples show anisotropy up to Zeta2 approximately 10 percent.
  • domain assumption The double-inclusion model with a spherical coated grain in an infinite matrix (Eqs. 8-11) describes the coated-grain interaction.
    Adopted from Hori and Nemat-Nasser [35] and the authors' previous paper [4]; not re-derived here.
  • ad hoc to paper The shell thickness Delta equals the cutoff radius of the corresponding EAM potential.
    Stated in Section 4.2 and used to compute f0 via Eq. 11; this identification is a modeling choice without independent verification.
  • ad hoc to paper Elastic constants Ks and Gs identified from the two smallest-grain samples (f0 approximately 1) are representative of the grain boundary shell at all grain sizes.
    Section 4.1; the shell is assumed uniform and isotropic, though actual boundary zones are disordered and orientation-dependent.
  • domain assumption The EAM potentials used reproduce the elastic properties of the eight metals.
    Section 3 lists the monocrystal constants reproduced by each potential; results depend on the potential choice, as the authors note in the conclusions.
  • standard math The Log-Euclidean projection (Eq. 13) is the appropriate way to isotropize the computed anisotropic stiffness tensors for comparison.
    From Moakher and Norris [57]; used to define K_iso^L and G_iso^L for the atomistic data.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Atomistic and mean-field estimates of effective stiffness tensor of nanocrystalline materials of cubic symmetry." pith.science (2026). https://pith.science/paper/KOETCBLX

@misc{pith2026190801644,
  author       = {Pith},
  title        = {Pith review of: Atomistic and mean-field estimates of effective stiffness tensor of nanocrystalline materials of cubic symmetry},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/KOETCBLX}},
  note         = {Machine review of arXiv:1908.01644}
}
read the original abstract

Anisotropic core-shell model of a nano-grained polycrystal, proposed recently for nanocrystalline copper, is applied to estimate elastic effective properties for a set of crystals of cubic symmetry. Materials selected for analysis differ in the lattice geometry (face-centered cubic vs. body-centered cubic) as well as the value of a Zener factor: a ratio of two shear moduli defining elastic anisotropy of a cubic crystal. The predictions are verified by means of the atomistic simulations. The dependence of the overall bulk and shear moduli on the average grain diameter is analysed. In the mean-field approach the thickness of the shell is specified by the \emph{cutoff radius} of a corresponding atomistic potential, while the grain shell is isotropic and its properties are identified by molecular simulations performed for very small grains with approximately all atoms belonging to the grain boundary zone. It is shown that the core-shell model provides predictions of satisfactory qualitative and quantitative agreement with atomistic simulations. Performed study indicates that the variation of the bulk and shear moduli with the grain size changes qualitatively when the Zener anisotropy factor is smaller or greater than one.

Figures

Figures reproduced from arXiv: 1908.01644 by the authors.

Figure 1
Figure 1. Illustration of eigen-subspaces of the elasticit [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

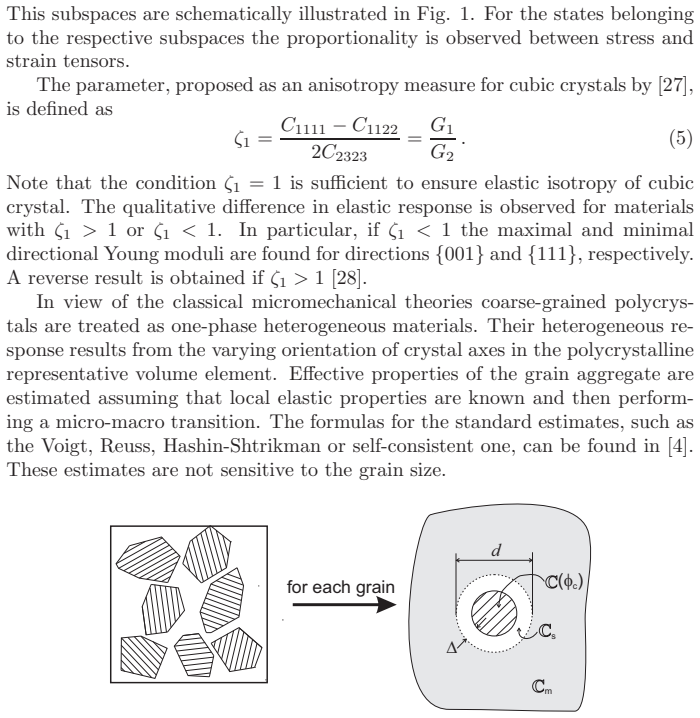

Figure 2. Schematic of the core-shell model of the nanograin [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Zener parameter and the lattice geometry for the an [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: Visualization of selected atomistic computation [PITH_FULL_IMAGE:figures/full_fig_p010_4.png]
Figure 5
Figure 5. Figure 5: The isotropic bulk and shear moduli K¯ L iso and G¯L iso as a function of the average grain diameter d by the two variants of the core-shell model - comparison with results of atomistic simulations reported in Tables A.16, A.6, A.14, A.10, A.8 for cubic metals with a Z…

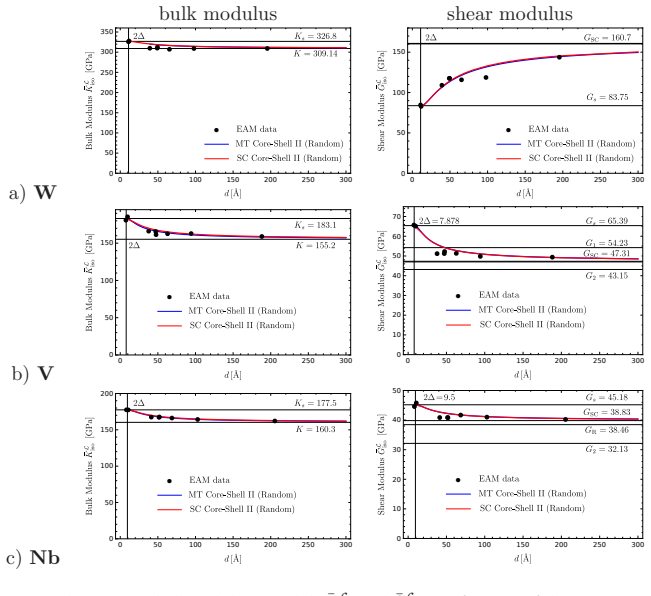

Figure 6
Figure 6. Figure 6: The isotropic bulk and shear moduli K¯ L iso and G¯L iso as a function of the average grain diameter d by the two variants of the core-shell model - comparison with results of atomistic simulations reported in Tables A.12, A.20, A.18 for cubic metals with a Zener param…

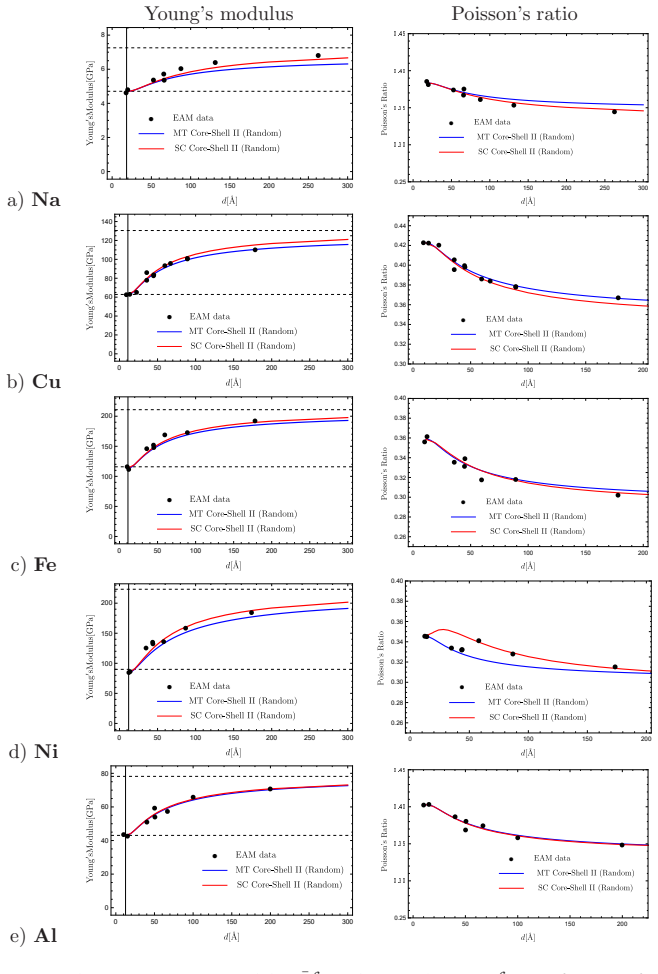

Figure 7
Figure 7. Figure 7: The isotropic Young modulus E¯L iso and Poisson’s ratio ¯ν L iso as a function of the average grain diameter d by the two variants of the core-shell model - comparison with results ofatomistic simulations, calculated using Eq. 15, cubic metals with a Zener parameter ζ1…
Figure 8
Figure 8. Figure 8: The isotropic Young modulus E¯L iso and Poisson’s ratio ¯ν L iso as a function of the average grain diameter d by the two variants of the core-shell model - comparison with results of atomistic simulations, calculated by Eq. 15, cubic metals with a Zener parameter: ζ1 …
