Semi-Supervised Adversarial Monocular Depth Estimation

Feiyue Huang; Feng Guo; Jiebo Luo; Ke Li; Rongrong Ji; Xiaoshuai Sun; Xiaowei Guo; Yan Wang; Yongjian Wu

REVIEW 4 major objections 4 minor 54 references

Semi-Supervised Adversarial Monocular Depth Estimation

T0 review · 4 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper claims that monocular depth estimation can be made semi-supervised: with a few hundred labeled pairs, adversarial feedback from two discriminators lets unlabeled RGB images drive depth accuracy to state-of-the-art levels.

desk verdict Useful two-discriminator recipe for semi-supervised depth, but the central gain is small and not yet backed by variance estimates or consistent baselines. read the letter →

arxiv 1908.02126 v1 pith:CNW7XUDU submitted 2019-08-06 cs.CV

Rongrong Ji , Ke Li , Yan Wang , Xiaoshuai Sun , Feng Guo , Xiaowei Guo , Yongjian Wu , Feiyue Huang

show 1 more author

Jiebo Luo

This is my paper · ORCID

classification cs.CV

keywords monoculardepthestimationsemi-supervisedlearninggenerativeadversarialnetworksregressionunlabeledRGBimagesdomainadaptationlimitedlabeleddata

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tackles the cost of collecting aligned image-depth pairs for monocular depth estimation. It proposes a semi-supervised adversarial setup in which one generator regresses depth and two discriminators grade the result: one checks the image-depth pair, the other checks the depth map alone. The discriminators' feedback enters the generator's loss, so a large pool of easily available unlabeled RGB images can shape the predicted depth distribution without ground-truth depth. The paper reports that this approach lowers relative error by 28–43% on NYU v2 under limited labels, reaches state-of-the-art accuracy on the small Make3D dataset, and improves KITTI-to-Make3D domain adaptation.

What carries the argument

The load-bearing object is a three-player adversarial game among one generator and two discriminators. The pair discriminator is a PatchGAN, a convolutional classifier that scores overlapping $70\times70$ patches of the concatenated image and predicted depth; the depth discriminator is structurally similar but receives only depth maps. Their feedback reaches the generator through the weighted loss above, and the paper interprets the arrangement as a Bayesian decomposition $p(d|I)\propto p(I|d)p(d)$, with the depth discriminator providing the prior $p(d)$ and the pair discriminator providing the joint $p(d,I)$.

What would settle it

On NYU v2 with 500 labeled pairs, train the full model but freeze the depth discriminator at initialization so it supplies no learned feedback; if accuracy stays at the combined-model level (rel 0.183) instead of falling toward the pair-discriminator-only level (rel 0.198), the depth discriminator is not carrying the claimed benefit.

Watch

Extended reading notes

Core claim

The central claim of the paper is that realism is a usable training signal for monocular depth regression when labeled image-depth pairs are scarce. The generator loss is $L_G = \lambda \mathbb{E}_{i'\sim p_{data}(i')}[\log(1-P_D(i',G(i')))] + (1-\lambda) \mathbb{E}_{i'\sim p_{data}(i')}[\log(1-D_D(G(i')))]$, with $\lambda = 0.7$, and supervised iterations add an $\ell^1$ regression term. The pair discriminator $P_D$ judges whether an image and its predicted depth form a real image-depth pair, while the depth discriminator $D_D$ judges whether a predicted depth map alone resembles real depth. With only hundreds of labeled pairs, the two discriminators let the generator exploit unlabeled RGB images; the paper reports rel 0.183 on NYU v2 with 500 labeled pairs versus 0.195 for supervised L2, and rel 0.153/0.158 on Make3D.

Load-bearing premise

The depth discriminator can learn a useful distribution of real depth maps from only the labeled depth maps available, and its feedback improves rather than distorts the regressed depth scale and structure.

Editorial extensions

If this is right

With limited labeled pairs, adding unlabeled RGB images improves depth accuracy, and the benefit grows up to roughly ten unlabeled images per labeled pair before saturating.
When labeled pairs are abundant (beyond about 3.5K on NYU v2), the semi-supervised gain disappears, so the method targets the scarce-label regime rather than replacing large-scale supervision.
The same loss improves three different generator architectures, so the dual-discriminator feedback transfers across backbone designs.
The framework supports domain adaptation: a model trained on KITTI pairs plus Make3D RGB images cuts the KITTI-trained Make3D relative error from 0.555 to 0.447.
Adversarial feedback yields qualitatively sharper object boundaries in predicted depth maps than L1, L2, or Huber losses under limited labels.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The depth discriminator is trained only on the labeled depth maps, so its contribution plausibly depends on how representative those maps are; ablating its capacity at fixed labeled count would test this, and the paper does not report such a study.
The same pair-plus-depth discriminator split could apply to other dense regression tasks with scarce labels, such as surface-normal estimation or image restoration, wherever a 'real output' distribution is well defined.
Since the unlabeled images contribute only realism feedback, combining this loss with geometric self-supervision, such as left-right or photometric consistency, might extract additional signal from the same unlabeled pool.
The saturation pattern suggests a practical rule: collect about ten unlabeled images per labeled pair before spending more on annotation, a rule other datasets could test directly.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Two things to know. First, this is a real empirical contribution: a two-discriminator adversarial loss, one on image-depth pairs and one on depth maps alone, helps monocular depth regression under small labeled sets and transfers across datasets. Second, the size of the claimed semi-supervised gain is not established by the numbers as reported, because there are no error bars and the paper's own baseline numbers shift between tables.

What's new: D2GAN had two discriminators but unconditioned; here the pair discriminator conditions on RGB and the depth discriminator enforces the marginal depth prior. The Bayesian framing (p(d), p(I|d)) is informal but useful. The paper does good things: it ablates loss functions, backbones (Unet, FCRN, Hu), label counts (100/500/1000), and the number of unlabeled images; it tests domain adaptation from KITTI to Make3D; and it includes a limitations section that openly says the method stops helping when labels are abundant. That honesty is worth noting.

Soft spots, in order. No variance estimates anywhere. On Make3D the semi-supervised gain is rel 0.158 to 0.153; on KITTI it is 0.107 to 0.093. Without repeated seeds, those differences are within the range of run-to-run noise for this kind of training. The stress-test note is right that Table 2 and Table 4 disagree on the same supervised 500-image baseline (rel 0.201 vs 0.197, rms 0.750 vs 0.837), which makes the gain hard to size. The KITTI row is also odd: rel 0.107 beats Kuznietsov's 0.108, but rms 4.405 is far worse than their 3.518; an unexplained protocol difference is plausible, but the paper needs to say what it is. There are obvious typos in Eqs. (5) and (9), where the depth discriminator is written with PD terms. Minor, but they should be fixed. The comparison set lacks the closest semi-supervised and unsupervised GAN baselines in the same small-label regime; Kuznietsov is discussed but never directly compared. And the depth discriminator trained on 400-500 real depth maps could be memorizing; no experiment varies its capacity or measures the quality of its signal. That concern is real, though the ablations give indirect evidence that the two discriminators together beat either alone.

Bottom line: the core idea is plausible and the paper is honest, but the evidence for the central semi-supervised claim is currently too weak to take at face value. A serious referee should ask for repeated-seed statistics, a consistent evaluation protocol, fixed equations, and direct baselines. I would send it to review, not desk reject it, but it needs major revision before the gains can be believed.

Referee Report

4 major / 4 minor

Summary. The paper proposes a semi-supervised adversarial framework for monocular depth estimation that uses a small number of labeled image-depth pairs together with many unlabeled RGB images. A generator (backbone can be U-Net, FCRN, or the Hu et al. network) regresses a depth map; two discriminators then evaluate the output: a pair discriminator (PatchGAN) on the image-depth pair and a depth discriminator on the depth channel alone. The generator loss combines the feedback from both discriminators, plus an L1 regression term on labeled pairs. Experiments on NYU Depth, Make3D, and KITTI, including a KITTI-to-Make3D domain adaptation setting, report improvements over supervised baselines and state-of-the-art results on Make3D with limited labels.

Significance. If the reported results hold, the contribution is practically useful: a relatively simple way to exploit unlabeled RGB images in depth regression when labeled depth is scarce, with an architecture that can wrap several existing depth networks. The paper includes useful ablations over loss functions, backbones, labeled-data counts, and the number of additional unlabeled images, and it explicitly discusses the regime where semi-supervised learning stops helping. However, the absence of error bars or repeated-seed statistics, the small size of several key gains, and some internal inconsistencies in the core equations prevent the central claim from being fully established as written.

major comments (4)

[Sec. 4.3-4.5, Tables 2, 4, 6, 7] The paper reports no error bars, no results over multiple random seeds, and no significance tests anywhere in the experimental section. The key semi-supervised improvements are small in absolute terms (Make3D rel 0.158 to 0.153 in Table 6; KITTI rel 0.107 to 0.093 in Table 7), and GAN training is known to be sensitive to initialization. Moreover, Table 4 shows the opposite direction for one configuration (Unet at 1000 labels: supervised rel 0.365 vs semi-supervised 0.369). Without a variance estimate, the reader cannot tell whether the reported gains reflect the method or run-to-run noise. This is load-bearing for the central claim that unlabeled images improve depth accuracy; please provide mean and standard deviation over at least three runs for the main comparisons, and ideally paired differences.
[Sec. 3.2 Eqs. (5); Sec. 3.3 Eqs. (8)-(9)] The formal definition of the proposed loss is internally inconsistent. In Eq. (5), the terms intended for the depth discriminator are written with PD: the third term is E[log PD(d)] and the fourth is E[log(1 - PD(G(i')))], whereas Eq. (3) defines the depth discriminator objective with DD. In Sec. 3.3, Eq. (9) labels the DD loss but uses PD in both expectations, and Eq. (8) mixes the labeled index i with the unlabeled index i'. Since the method is defined by these equations, the manuscript does not currently specify the algorithm unambiguously. Please correct all three equations and make the index conventions consistent throughout.
[Sec. 3.2-3.3, Sec. 4.3-4.4] The hyperparameter selection protocol is not described for the NYU and Make3D experiments. The text in Sec. 3.2 reports that lambda = 0.7 was found to give 'a reasonable result', and Sec. 3.3 mentions a larger beta at initial training, but no validation split or tuning procedure is given for these datasets. Only the KITTI section (Sec. 4.5) mentions a 160-sample validation set. If lambda, beta, or early stopping were chosen by inspecting test-set numbers, the reported results are optimistically biased. Please specify the validation protocol for each dataset, or fix the hyperparameters and the beta schedule a priori.
[Sec. 3.1.2, Eq. (3), Table 2] The depth discriminator is trained on only 400-500 real depth maps (NYU, Make3D), but no experiment checks whether it learns a useful, non-degenerate distribution. The DD-only ablation in Table 2 reaches rel 0.191, close to the L2 baseline, and there is no analysis of the discriminator's separability on held-out depth statistics or of its capacity. Because the depth discriminator supplies the prior p(d) in the claimed Bayesian interpretation, the authors should add an experiment varying the discriminator capacity or measuring its generalization, to show that the semi-supervised gain is not an artifact of memorizing the few labeled depth maps.

minor comments (4)

[Sec. 1, Sec. 3.2] The phrase 'Different traditional GANs' loss' should read 'Different from traditional GANs' loss' for clarity.
[Sec. 4.3, Tables 2 and 4] Table 2 and Table 4 report different supervised numbers for the same 500-label backbone (Edge Aware [3] rel 0.201 vs Hu et al. [3] rel 0.197); please clarify which loss (edge-aware vs L1) was used for each row, since the current text in Sec. 4.3 could be read as inconsistent.
[Sec. 4.5] The Cityscape images are described as 'drawn' from the dataset; please state explicitly that they are used without depth labels, and describe how they are sampled.
[General] The paper would benefit from releasing code and trained models; at present no reproducibility artifacts are provided, which makes it harder to verify the small semi-supervised gains.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity found: the adversarial loss is not defined in terms of the reported depth metrics, and no load-bearing self-citation appears.

full rationale

The paper's derivation chain is self-contained against external benchmarks: the generator loss in Eq. (6) combines two discriminator feedback terms, and the discriminators in Eqs. (1) and (3) are trained on real labeled depth maps and image-depth pairs, while the generator is evaluated on held-out test splits (NYU 654-image test set, Make3D 134-pair test set, and the KITTI Eigen split). The reported rel/RMSE/log10 numbers are computed directly on these held-out ground truths and are not equal by construction to any fitted parameter or discriminator output. The hyperparameters lambda and beta are tuned on a validation set (KITTI 160-sample subset), which is a standard fitting procedure rather than a disguised prediction. No self-citations are present in the reference list, and no uniqueness theorem or prior-work result is invoked to forbid alternative explanations. The paper's limitation section and ablation study (PD-only, DD-only in Table 2) provide independent checks of the contribution of each component, and the claim that unlabeled RGB images help is an empirical comparison (e.g., Table 6: Ours-GAN 0.158 vs Ours-GAN semi 0.153) whose magnitude could be debated on statistical grounds, but that is a correctness risk, not circularity. The Bayesian interpretation of the two discriminators as p(d) and p(d,I) is a post-hoc conceptual framing, not an input to the optimization that forces the outcome. Accordingly, no step reduces to its inputs by definition, and the circularity score is 0.

Assumptions & free parameters 2 free parameters · 3 assumptions · 0 invented entities

The paper introduces no new physical or mathematical entity. Its assumptions are the two-discriminator architectural heuristic and the unstated dependence on exactly how lambda/beta are scheduled. No formal proof is given; all claims rest on empirical validation, and the free parameters are reasonable GAN loss components but they must be tuned for each dataset.

free parameters (2)

lambda (adversarial trade-off between pair and depth discriminators) = 0.7
Sec. 3.2 states lambda=0.7 was found to give reasonable results. This is tuned on validation data and affects the balance of the two GAN losses.
beta (regression loss weight in supervised phase) = not reported quantitatively
Sec. 3.3 says a larger beta at initial training gives better results; the exact schedule is not reported, making reproduction dependent on this unspecified choice.

assumptions (3)

ad hoc to paper The depth discriminator can learn a meaningful depth distribution from only n labeled depth maps (e.g., 400-500 maps).
Sec. 3.1.2, Eq. (3): the DD is trained only on labeled depth maps; its discriminative power, and hence the usefulness of its feedback, is assumed to be adequate at these small sample sizes. No analysis of DD capacity or failure modes is provided.
domain assumption Adversarial realism feedback from discriminators improves regression accuracy, not just perceptual quality or sharpness.
Sec. 3.1.2 argues GAN loss 'encourages more high frequencies' and acts like higher-order CRF potentials. The experiments in Tab. 2 show both GAN losses reduce rel/RMSE/log10, which supports the assumption empirically but it remains a heuristic assumption made by the paper.
domain assumption Standard train/test splits and evaluation protocols of Eigen et al. and of the Make3D literature are used consistently.
Secs. 4.2-4.5 rely on the published splits (Eigen split for KITTI, 654 images for NYUD v2, 134 for Make3D) and masking conventions (e.g., >70m masked for Make3D, >80m for KITTI). Differences in these conventions can change metrics.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Semi-Supervised Adversarial Monocular Depth Estimation." pith.science (2026). https://pith.science/paper/CNW7XUDU

@misc{pith2026190802126,
  author       = {Pith},
  title        = {Pith review of: Semi-Supervised Adversarial Monocular Depth Estimation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/CNW7XUDU}},
  note         = {Machine review of arXiv:1908.02126}
}

read the original abstract

In this paper, we address the problem of monocular depth estimation when only a limited number of training image-depth pairs are available. To achieve a high regression accuracy, the state-of-the-art estimation methods rely on CNNs trained with a large number of image-depth pairs, which are prohibitively costly or even infeasible to acquire. Aiming to break the curse of such expensive data collections, we propose a semi-supervised adversarial learning framework that only utilizes a small number of image-depth pairs in conjunction with a large number of easily-available monocular images to achieve high performance. In particular, we use one generator to regress the depth and two discriminators to evaluate the predicted depth , i.e., one inspects the image-depth pair while the other inspects the depth channel alone. These two discriminators provide their feedbacks to the generator as the loss to generate more realistic and accurate depth predictions. Experiments show that the proposed approach can (1) improve most state-of-the-art models on the NYUD v2 dataset by effectively leveraging additional unlabeled data sources; (2) reach state-of-the-art accuracy when the training set is small, e.g., on the Make3D dataset; (3) adapt well to an unseen new dataset (Make3D in our case) after training on an annotated dataset (KITTI in our case).

Figures

Figures reproduced from arXiv: 1908.02126 by the authors.

**Figure 2.** A basic encoder-decoder generator architecture. Encoder ex [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** The architecture of the pair discriminator (PatchGAN [39]), which [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

Figures from the paper (9 more)

**Figure 4.** Figure 4: Qualitative results on NYU Depth test set. All losses are applied to the same model architecture with the same learning strategy using 500 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]

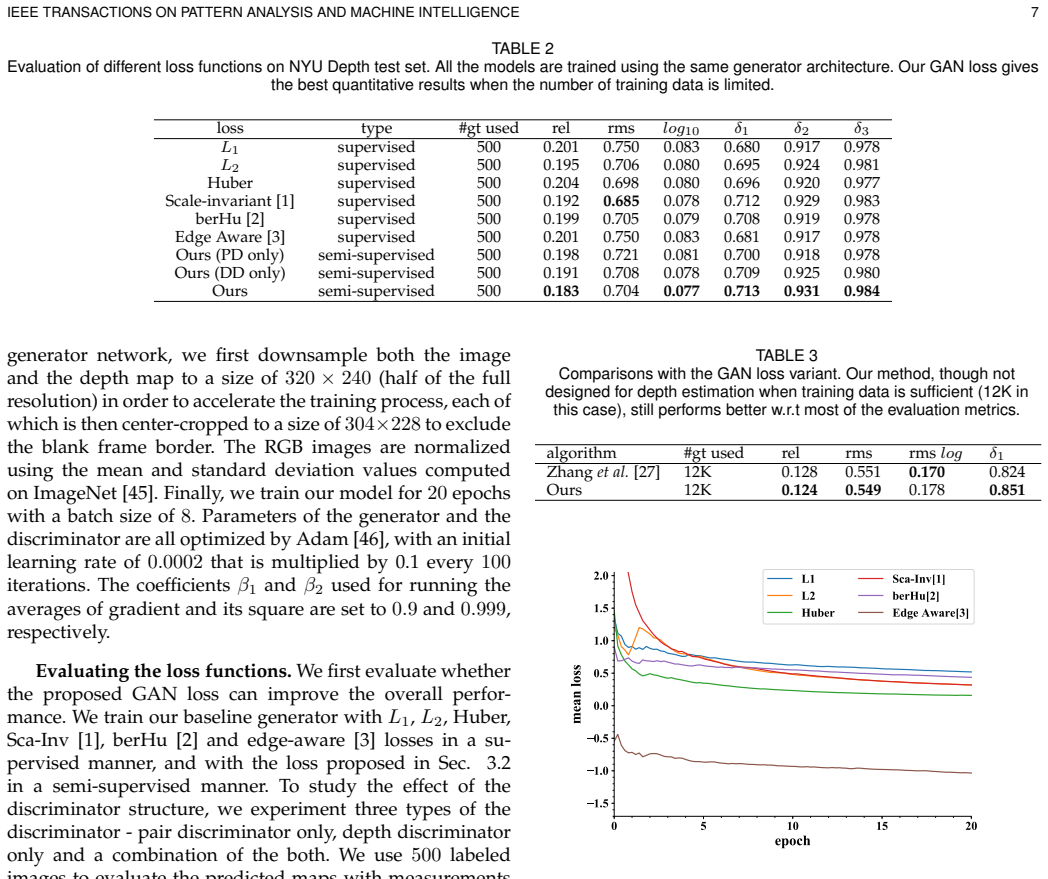

**Figure 5.** Figure 5: The convergence curves of different loss functions during model [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]

**Figure 6.** Figure 6: Performance curves with respect to different numbers of ad [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]

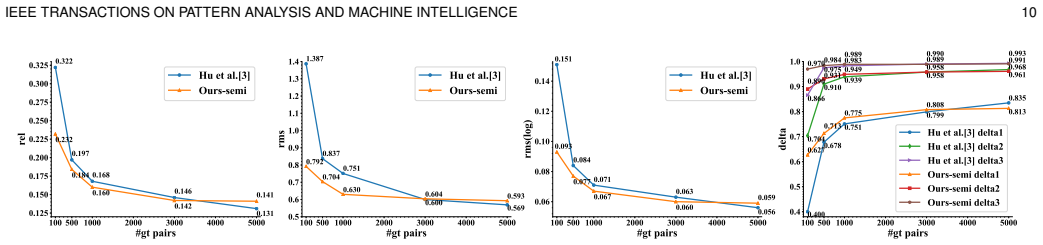

**Figure 9.** Figure 9: It can be seen that when the training data is practically [PITH_FULL_IMAGE:figures/full_fig_p008_9.png]

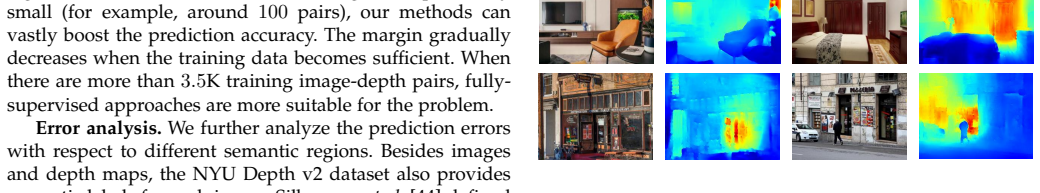

**Figure 7.** Figure 7: Some qualitative results tested on wild images using the model [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]

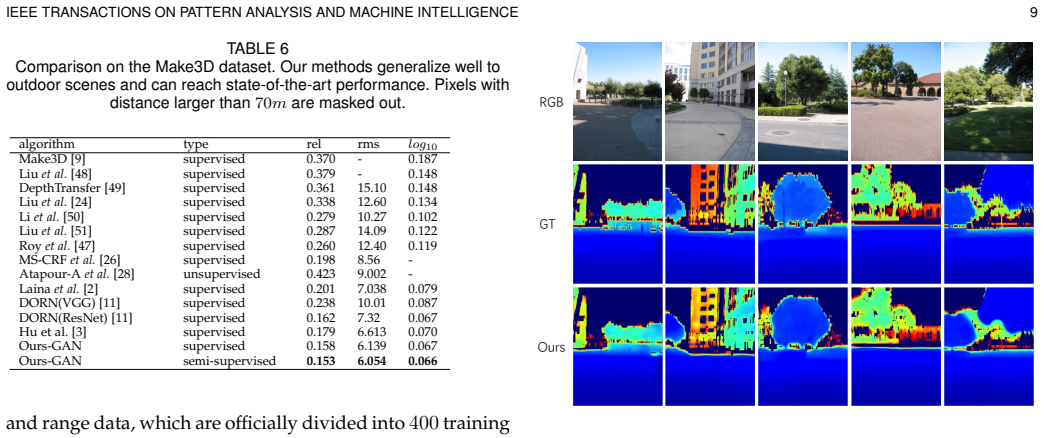

**Figure 8.** Figure 8: Qualitative results on Make3D dataset. The rows (from up to [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]

**Figure 9.** Figure 9: Performance curves with respect to different numbers of training image-depth pairs. We can see that our semi-supervised framework can [PITH_FULL_IMAGE:figures/full_fig_p010_9.png]

**Figure 10.** Figure 10: Qualitative results on KITTI dataset. The columns(from left to [PITH_FULL_IMAGE:figures/full_fig_p010_10.png]

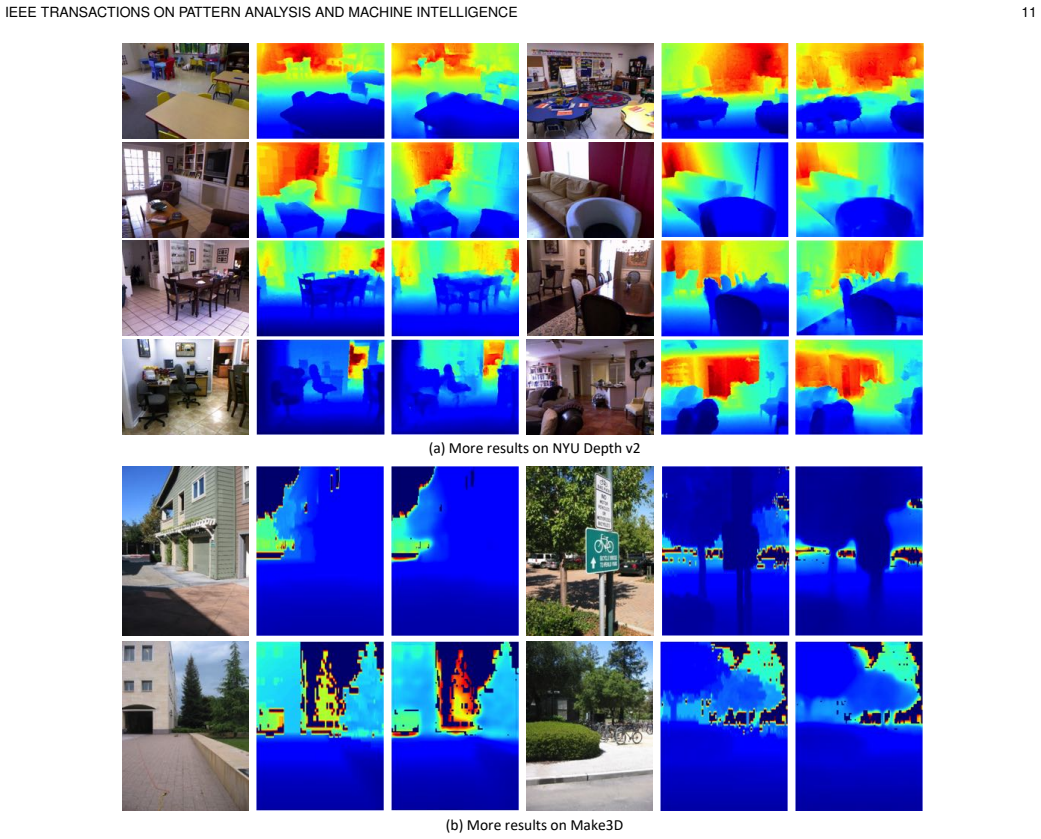

**Figure 12.** Figure 12: More qualitative results on NYUD dataset and Make3D dataset. The columns from left to right are RGB images, ground truth depth map [PITH_FULL_IMAGE:figures/full_fig_p011_12.png]
