Multiple Superconducting Transitions in {\alpha}-Sn Films Grown by Molecular Beam Epitaxy

Hong Lu; Hongtao Yuan; Huanhuan Song; Jinshan Yao; Junwei Huang; Lian Wei; Yuanfeng Ding

REVIEW 2 major objections 5 minor 31 references

Multiple Superconducting Transitions in {\alpha}-Sn Films Grown by Molecular Beam Epitaxy

T0 review · 2 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read MBE-grown alpha-tin films show multiple superconducting transitions, including phases above 4.5 K that are not caused by contacts or oxide.

desk verdict A clean transport report of superconducting transitions in thick α-Sn films, but the higher-Tc phases look more like In-Sn alloy than intrinsic α-Sn; the authors leave that door open. read the letter →

arxiv 1908.03362 v1 pith:3XZYRFDP submitted 2019-08-09 cond-mat.supr-con cond-mat.mtrl-sci

Yuanfeng Ding , Huanhuan Song , Jinshan Yao , Lian Wei , Junwei Huang , Hongtao Yuan , Hong Lu This is my paper · ORCID

classification cond-mat.supr-concond-mat.mtrl-sci

keywords graytinalpha-Snthinfilmsmolecularbeamepitaxymultiplesuperconductingtransitionsstraineffectsagingtopologicalsuperconductivitycriticalfieldanisotropy

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper reports that molecular-beam-epitaxy-grown alpha-tin (gray tin) films, 20 to 400 nanometers thick, can host several distinct superconducting transitions, including ones above 4.5 K and up to about 6 K, well above the familiar 3.7 K transition of beta-tin. The authors argue that these higher-temperature transitions are not produced by indium contacts, surface oxide, or the InSb substrate, and they show the transitions survive when indium is replaced by silver paste and the surface is capped with silicon. If the claim holds, strained alpha-tin is superconducting well beyond the few-layer stanene regime, with critical fields larger than bulk beta-tin and with a two-dimensional character. The result matters because strained alpha-tin is predicted to be topologically nontrivial, so these phases may be candidates for topological superconductivity.

What carries the argument

The central object is the fully strained alpha-Sn film grown by MBE on InSb(001)-based templates, with the strain set by the relative thickness of the alpha-Sn layer and the InSb stabilizer layer. The argument is carried by transport measurements that resolve multiple resistance drops: distinct superconducting transitions are identified as separate features in resistance-versus-temperature curves and by matching the number of critical-field branches in resistance-versus-magnetic-field sweeps at several temperatures. Control comparisons do the load-bearing work: the same sample measured with pressed-indium versus Ag-paste contacts, with and without a silicon cap, and templates without alpha-Sn.

What would settle it

Cut a fresh, silicon-capped 100 nm type B film contacted with silver paste and map the composition of the region where the higher-Tc transitions appear using transmission electron microscopy with element-sensitive spectroscopy; finding indium-tin alloy or indium-rich precipitates there would settle that the transitions are extrinsic, while a clean map with no such phase would support intrinsic strained alpha-Sn superconductivity.

Watch

Extended reading notes

Core claim

The central claim is that MBE-grown alpha-Sn films in the 20-400 nm thickness range, not just monolayer stanene, show multiple superconducting transitions. Besides a transition near 3.7 K attributed to beta-Sn inclusions, the films show sharp transitions at 4.96 K and near 6 K, with smaller volume fractions (below about 20 percent), higher critical fields, and stronger aging sensitivity. Control experiments rule out indium contacts, surface oxide, and the InSb template as the source, since Ag-paste contacts on the same sample reproduce all three transitions, silicon capping preserves them, bare templates show no superconductivity, and the transitions persist over days at low temperature. The authors interpret the higher-temperature transitions as superconductivity from phases of the strained alpha-Sn film itself, possibly connected to its topological band structure, while leaving indium-tin alloy formed during growth as an acknowledged alternative they have not yet ruled out.

Load-bearing premise

The new claim stands on the premise that the 4.5-6 K transitions are not caused by indium-tin alloy or another secondary phase formed during growth, which the authors state they have not yet observed or ruled out.

Editorial extensions

If this is right

Superconductivity in alpha-Sn is not limited to few-layer stanene; films tens to hundreds of nanometers thick show transitions above the beta-Sn critical temperature.
The higher-Tc transitions carry larger critical fields than the beta-Sn transition and show two-dimensional anisotropic field behavior, giving a clear transport signature to identify them.
Strain from the InSb template stabilizes the alpha-Sn structure and suppresses the beta-Sn fraction, while the transition near 5 K persists, pointing to strain as a controlling parameter.
Freshness matters: room-temperature aging affects the higher-Tc transitions far more than the beta-Sn transition, so time-controlled measurements are needed to characterize these phases.
The possibility that strained alpha-Sn is a topological superconductor remains open, since the observed phases occur in the predicted topological regime.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

If the In-Sn alloy alternative is excluded by nanoscale composition mapping, the remaining explanation is an intrinsic superconducting phase of strained alpha-Sn, which would make the film a promising platform for searching for topological superconductivity.
The incomplete transitions and the small 6.48 K feature interpreted as granular fluctuations suggest these phases may be filamentary; whether zero resistance is achieved may depend on percolation, so patterned or thinner samples might reveal different transition completeness.
Because the high-Tc transitions age faster than the beta-Sn transition, a direct time-resolved correlation between lattice strain and superconducting critical temperature on the same sample would test whether strain relaxation is what kills the new phase.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

The one genuinely new thing here is that α-Sn films tens to hundreds of nanometers thick show resistive transitions above 4.5 K, up to about 6 K. Earlier stanene work stops at 10 nm, and β-Sn proximity studies don't explain transitions above the bulk β-Sn Tc. That observation, if real, would be a useful entry point for topological superconductor candidates. The paper deserves credit for clean transport data, sensible controls (Ag paste vs In contacts, template samples, Si capping), and honest reporting of aging effects. The authors also explicitly list the most obvious alternative source—In segregation from the InSb substrate forming an In-Sn alloy—which is more than many experimental papers do.

The soft spot is exactly that alternative source, and it is not minor. In-Sn alloys can superconduct up to 7.3 K, which brackets the observed 4.5–6 K transitions. The Ag paste control rules out the pressed indium contacts, but it does not rule out indium that diffused into the film during growth or over time from the InSb layer. The template samples in Figure 5 do not address this, because they lack the α-Sn/InSb interface where such an alloy would form. The authors say TEM has not shown signs of In-Sn, but no TEM data are presented. The aging sensitivity of the higher-Tc transitions is qualitatively consistent with slow indium diffusion or interfacial phase evolution. The transitions are also incomplete, involve small volume fractions, and the critical field data have no error bars. The strain-effect claim rests on two samples with different InSb thicknesses, which is suggestive but hardly conclusive.

I would not call this a fatal flaw—the paper is an honest experimental report, and the authors do not overclaim. But the central claim of superconducting phases in thick α-Sn is conditional at best. Right now the most economical reading is that the higher-Tc transitions come from an interfacial In-Sn alloy, not from intrinsic α-Sn.

This paper is for specialists in tin films and topological superconductivity. It deserves a serious referee, because the observation is concrete and the artifact discussion is instructive. A referee should ask for direct compositional and structural evidence—EDX, TEM, or a control with a different buffer—to rule out In-Sn alloy. Without that, the paper can still be published as a cautionary study, but the title should not imply intrinsic α-Sn superconductivity. I'd engage with it, but I would not cite it as evidence for intrinsic superconductivity until the alloy question is settled.

Referee Report

2 major / 5 minor

Summary. The manuscript reports transport measurements on MBE-grown α-Sn films on InSb-based templates (type A and type B) with thicknesses from 20 to 400 nm. The authors observe multiple superconducting transitions: a β-Sn-like transition near 3.7 K and additional transitions at 4.5–6.5 K. They rule out pressed In contacts as the source by comparing with Ag paste contacts, rule out surface oxides by capping with Si, and show that bare InSb/GaSb/GaAs templates are not superconducting. They also characterize aging effects and magnetic field dependence, extracting critical fields and fitting the angular dependence to the Tinkham model, noting 2D character and a high in-plane critical field of about 0.82 T for the higher-Tc transition in a 50 nm sample. The authors propose that the higher-Tc transitions may come from α-Sn-related phases, but they explicitly acknowledge in the Discussion that In-Sn alloy formation at the α-Sn/InSb interface remains a possible source.

Significance. If the higher-Tc transitions are intrinsic to strained α-Sn films, the result would be significant for topological superconductivity and would extend previous stanene work to much larger thicknesses. The paper includes useful controls for contacts and oxidation, and the aging measurements provide a careful characterization of sample evolution. However, the central attribution is not yet established because In-Sn alloy formation at the α-Sn/InSb interface has not been excluded. The observations are interesting and meritorious, but the strength of the title and the claim that 'superconductivity in α-Sn thin films up to this thickness range has never been reported' exceed what the current evidence supports.

major comments (2)

[Discussion, 'Another possible source...' and Figure 5] The In-Sn alloy scenario is not excluded and is load-bearing for the central claim. The Ag-paste control in Figure 3(a) rules out In contacts but not In that segregates from the InSb layer during growth or over time. The template measurements in Figure 5 lack the α-Sn/InSb interface and therefore do not address this possibility. Since In-Sn alloys have Tc values from 3.4 to 7.3 K (Refs. 29, 30) that bracket the observed higher-Tc transitions (4.5–6.5 K), and since the aging sensitivity of the higher-Tc transitions is qualitatively consistent with In diffusion, the statement in the Discussion that 'The superconductivity in α-Sn thin films up to this thickness range has never been reported' is not supported. The authors should provide direct evidence excluding interface In-Sn alloy formation—for example, EDX or electron energy-loss spectroscopy mapping across the interface, SIMS depth profiling, or a control film grown on an In-free substrate such as CdTe—or explicitly reframe the claim as 'superconducting transitions observed in α-Sn films whose origin remains to be identified.'
[Figure 4 and equations (1)–(2)] The extracted critical fields lack uncertainty estimates and the fitting procedure is incompletely described. The paper states in the caption of Figure 4 that the critical field is decided at the field where the resistance reaches 90% of its value at 4 T, but the fits to Eq. (1) and the Tinkham model Eq. (2) are not reported with the fitted parameters (Bc⊥, Bc∥, Tc) and their errors. The in-plane critical field of 0.82 T for the higher-Tc transition is a key quantitative claim, and it should be accompanied by the full fit parameters and an uncertainty estimate so that it can be meaningfully compared with the critical fields of candidate secondary phases such as In-Sn alloys.

minor comments (5)

[Method] The text contains placeholder question marks in 'out-of-plane residual strain(?)' and 'plastic flow model (?)' in the Method section; these should be replaced with proper terms and references.
[Figure 2(b) caption] The caption says 'two type B samples grown on GaAs and GaSb substrates,' but the type B structure in Figure 1(a) uses GaAs substrates with GaSb and InSb buffer layers; the caption should be clarified to specify the actual difference between the two samples.
[Results, Figure 4] The sentence 'The critical field increases with the angle of the magnetic field relative to the normal of the sample surface as shown in the inset of Figure 4(b)' is slightly ambiguous; explicitly stating that 0° is normal and 90° is parallel to the surface would improve readability.
[Summary] The Summary states that 'Multiple transitions above 4 K with larger critical fields should come from other possible sources such as In contacts, In-Sn alloys or oxides,' which is inconsistent with the earlier Discussion statement that 'more than one superconducting phases exist in our α-Sn samples besides β-Sn'; the authors should make their attribution consistent throughout.
[Method, growth details] The statement that 'The details about the growth and structural characterization are presented elsewhere' should include a citation or be expanded, since the growth quality and interface structure are important to the claims in the paper.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the superconducting transitions are directly measured, and the acknowledged In-Sn alloy possibility is an alternative explanation, not a self-referential construction.

full rationale

The paper is an experimental transport report rather than a derivation chain, so there is no claimed prediction that reduces by construction to its own inputs. The only quantitative quantity extracted from a formula is Bc(0) = 1360 Oe, obtained by fitting the measured temperature-dependent critical fields to the standard relation Bc(T) = Bc(0)[1 - (T/Tc)^2]. This is a post-hoc fit to the data, not a parameter that was fitted to one part of the data and then used to predict another closely related quantity. The central claims — multiple superconducting transitions above 4.5 K and their aging and strain behavior — are directly observed resistance anomalies with supporting controls: Ag-paste contacts reproduce the In-contact transitions, Si-capped samples show the same higher-Tc features, and template samples without α-Sn show no superconductivity. These are empirical checks, not circular definitions. The acknowledged possibility of In-Sn alloy formation from In segregation out of the InSb layer is a stated limitation and alternative explanation, not a circular step: the paper does not define the observed superconductivity in terms of the alloy, and no alloy-specific parameter is fitted and then renamed as a prediction. There is no load-bearing self-citation: the prior works cited are external experimental and theoretical results used for context or comparison (e.g., Didschuns on proximity effect, Liao/Xue on stanene). Therefore, whatever the correctness risk of the central claim, it is not a circularity risk.

Assumptions & free parameters 3 free parameters · 4 assumptions · 0 invented entities

The paper introduces no new free parameters beyond fitted critical field values and relies on standard domain assumptions about strain stabilization and non-superconducting substrates. No new entities are postulated; the possible topological superconductivity is only mentioned speculatively.

free parameters (3)

Bc(0) for lowest-Tc transition (100 nm type B) = 1360 Oe
Extracted from fitting Bc(T) = Bc(0)[1 - (T/Tc)^2] to magnetoresistance data in Figure 4(a). Not central to the observation but used to characterize the 3.8 K transition.
Tc fit for lowest transition = 3.8 K
From the same fit; consistent with the observed transition near 3.94 K in Figure 3(a).
In-plane critical field for highest-Tc transition at 2 K = 0.82 T
Read from the Tinkham fit to angular dependence in Figure 4(b) inset. Used to compare with stanene values.

assumptions (4)

domain assumption The α-Sn films are fully strained and stabilized by the InSb substrate.
Invoked in Method and Discussion to explain the stability of α-Sn and the strain effect. The strain is not directly measured; it is inferred from the lattice-match design and XRD.
domain assumption The InSb template layers and GaAs substrates are not superconducting in the temperature range of interest.
Used to attribute all observed superconductivity to the tin films. Figure 5(a) shows high resistance and no transitions in templates, so this is partially supported.
domain assumption Indium and Ag paste contacts do not contribute to the higher-Tc transitions despite In-Sn alloy formation potential.
Supported by the Ag paste comparison in Figure 3(a), but the authors note In-Sn alloy can have Tc up to 7.3 K and they have not ruled out interfacial alloy formation.
standard math Standard Bc(T) and Tinkham angular dependence formulas apply to these thin film superconductors.
Used to fit critical fields. These are standard phenomenological models from the literature [25].

how reviews work

0 comments

Cite this review

Pith. "Pith review of Multiple Superconducting Transitions in {\alpha}-Sn Films Grown by Molecular Beam Epitaxy." pith.science (2026). https://pith.science/paper/3XZYRFDP

@misc{pith2026190803362,
  author       = {Pith},
  title        = {Pith review of: Multiple Superconducting Transitions in \alpha-Sn Films Grown by Molecular Beam Epitaxy},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/3XZYRFDP}},
  note         = {Machine review of arXiv:1908.03362}
}

read the original abstract

Gray tin, also known as {\alpha}-Sn, has been attracting research interest recent years due to its topological nontrivial properties predicted theoretically. The Dirac linear band dispersion has been proved experimentally by angle resolved photoemission spectroscopy. We have grown a series of {\alpha}-Sn thin film samples in two types with different substrates and thicknesses by molecular beam epitaxy. To explore the possible exotic physical properties related to the topological band structures, we have measured the electrical transport properties of our {\alpha}-Sn thin film samples and observed multiple superconducting transitions. We have identified the transitions above 4.5 K, besides the transition maybe related to the \b{eta} phase around 3.7 K. The changes of the superconducting properties over time reflect the aging effects in our samples. We have also confirmed the strain effects on the superconducting transitions through altering the relative thickness of our samples.

Figures

Figures reproduced from arXiv: 1908.03362 by the authors.

**Figure 1.** Schematic layer structures and XRD patterns for two type α-Sn samples. (a) Sample structures for two type samples. Type A: α-Sn thin films grown on InSb substrates with InSb buffer. Type B: α-Sn thin films grown on semi-insulating GaAs substrates. The GaSb and InSb layers were grown to give acceptable lattice match with α-Sn. The thickness of the InSb layer was on the order of hundreds nanometers. Some samples were … view at source ↗

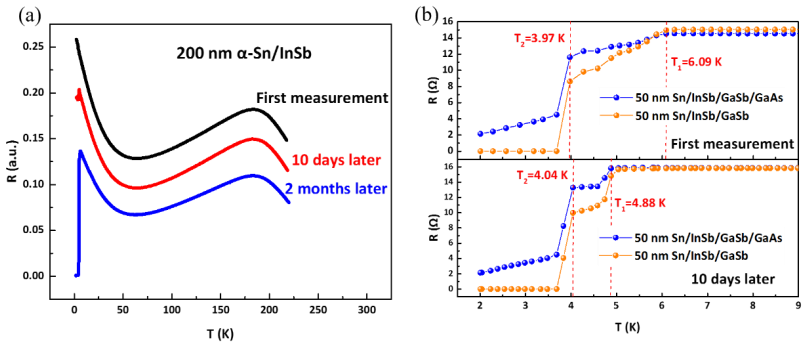

**Figure 2.** Aging effects on the superconducting properties for the two type [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗

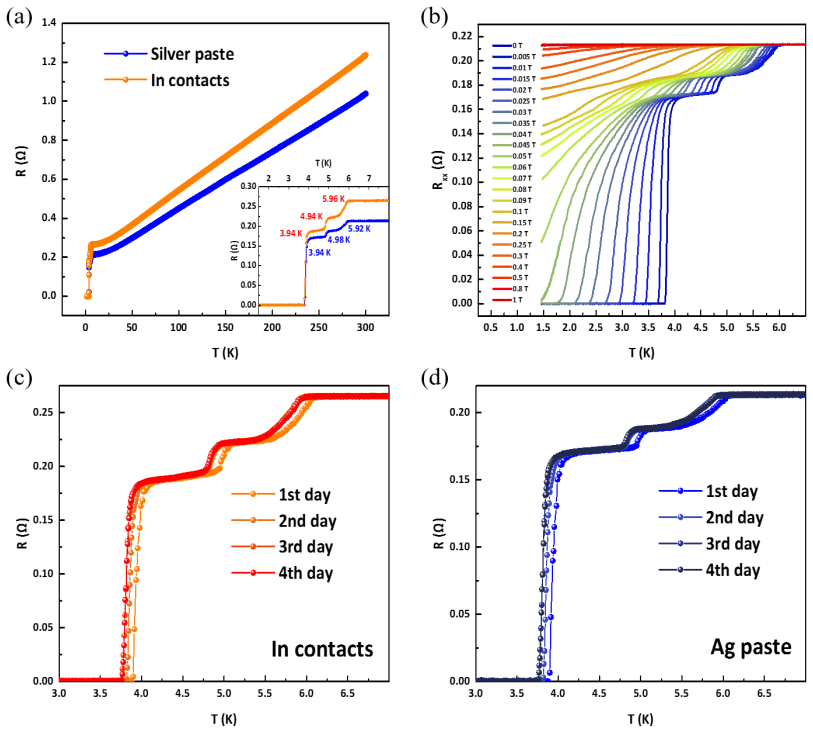

**Figure 3.** Superconducting properties of the Si capped 100 nm type B α-Sn sample with pressed In and Ag paste on the opposite edges as contacts, respectively. (a) Resistancetemperature curves for pressed In and Ag paste contacts. The inset is the close-up at low temperature showing three superconducting transitions. The corresponding transition temperatures are marked in the inset. (b) Resistance-temperature curves under diff… view at source ↗

Figures from the paper (2 more)

**Figure 4.** Figure 4: Magnetic field dependence of the resistance for (a) 100 nm type B sample at [PITH_FULL_IMAGE:figures/full_fig_p011_4.png]

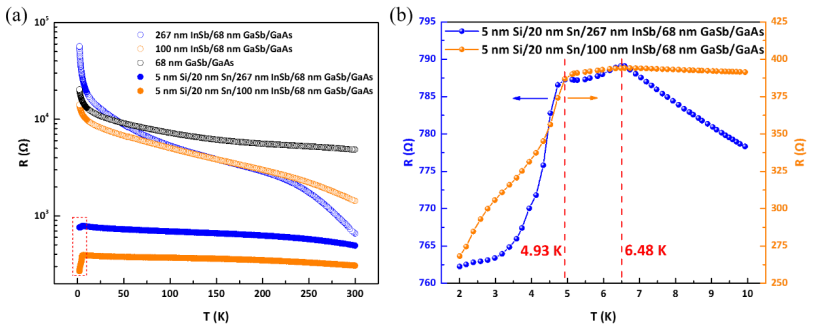

**Figure 5.** Figure 5: Temperature dependence of the resistance of Si capped 20 nm type B α-Sn samples with different InSb layer thicknesses. Three template samples are shown as reference. (a) Resistance-temperature curves of the gray tin samples and reference templates. (b) The close-up of …
