Understanding Optical Music Recognition

T0 review · 1 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read This paper defines Optical Music Recognition as a research field that computationally reads music notation in documents, and organizes its applications into four levels of comprehension.

desk verdict A very good state-of-the-field paper whose four-part application taxonomy is genuinely useful, even though it is not entailed by the paper's own definition. read the letter →

arxiv 1908.03608 v3 pith:ZJQKFCHJ submitted 2019-08-07 cs.CV cs.AIcs.IRcs.SDeess.AS

Jorge Calvo-Zaragoza , Jan Hajič Jr. , Alexander Pacha This is my paper · ORCID
classification cs.CVcs.AIcs.IRcs.SDeess.AS
keywords opticalmusicrecognitionnotationdocumentanalysistaxonomyofapplicationsinformationretrievaldeeplearningevaluation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

After five decades of scattered contributions, Optical Music Recognition (OMR) still lacked a shared definition and a way to compare results. This tutorial supplies both: it defines OMR as a research field that investigates how to computationally read music notation in documents, and it derives a taxonomy of applications from the process of inverting music encoding. The four application classes—document metadata extraction, search, replayability, and structured encoding—demand increasing levels of comprehension and each comes with its own natural evaluation strategy. If the taxonomy is adopted, the vague question 'Does OMR work?' becomes answerable only in the form 'Does OMR work for application X?', which is exactly what the authors argue the field needs. The payoff is that otherwise incomparable systems can finally be measured against one another within each class.

What carries the argument

The load-bearing mechanism is the inverse-encoding model: music is conceptualized as notes in time, engraved with a notation system, and embodied in a document, and OMR runs this process backwards. The inversion splits into two prongs—recovering the notation itself and recovering the musical semantics—and the paper's four application categories are generated by how far back along this chain a system must go and how much comprehension is required. The level-of-comprehension ladder, from partial understanding for metadata extraction to complete understanding for structured encoding, is the organizing device that ties output representations to evaluation strategies.

What would settle it

Survey OMR papers from the past five years in the field's main venues and try to assign each paper's stated goal to exactly one of the four application categories; if a substantial share cannot be assigned uniquely, or if papers inside a single category report no common evaluation metric, then the taxonomy's promised shared evaluation protocols fail in practice.

Watch

Extended reading notes

Core claim

The central claim is that OMR is not a single task or process but a research field, defined as investigating how to computationally read music notation in documents. Reading itself has two distinct targets: recovering the music notation as laid out on the page, and recovering the musical semantics—pitches, velocities, onsets, and durations—encoded by that notation. Because these targets require different outputs and tolerate different errors, the paper argues OMR has at least four natural application classes: metadata extraction, search, replayability, and structured encoding, arranged by increasing comprehension. The taxonomy's practical point is that evaluation can be shared within each class: classification metrics for metadata, information-retrieval metrics for search, sequence comparison for replayability, and, once a formal model of notation exists, an intrinsic metric for structured encoding.

Load-bearing premise

The taxonomy rests on the assumption that reading a music document splits cleanly into recovering the notation and recovering the semantics, and that every real OMR application falls into exactly one of the four categories with a shared evaluation protocol.

Editorial extensions

If this is right

  • The question 'Does OMR work?' becomes well-posed only when followed by a target application: metadata extraction, search, replayability, or structured encoding.
  • Search applications can adopt standard information-retrieval metrics such as precision, recall, and mean average precision, since they output ranked matches to a musical query.
  • Replayability systems can be evaluated by comparing pitch-onset-duration sequences, reusing symbolic melodic-similarity metrics from music information retrieval.
  • Metadata extraction reduces to classification or regression and can be scored with accuracy or mean squared error.
  • Structured encoding remains the hard case: without a formal model of music notation and an intrinsic edit distance between scores, no meaningful evaluation metric exists.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The taxonomy implies that a single OMR system cannot be judged by one number; a system can be excellent for replayability yet useless for structured encoding, so the field should report results per application class.
  • If search is defined by semantic queries rather than full transcription, then OMR systems for search can be trained to ignore notation details that do not affect retrieval, which may make them more error-tolerant than transcription-first pipelines.
  • A natural next step would be a benchmark suite with one shared dataset and metric per application class; its absence would itself be evidence of the fragmentation the paper describes.
  • Adopting the notation-versus-semantics distinction would let digital-musicology studies that only need musical semantics proceed without waiting for full structured encoding, since MIDI-level output suffices for many corpus-wide questions.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

1 major / 4 minor

Summary. This manuscript is a tutorial and survey of Optical Music Recognition (OMR). It proposes a formal definition: OMR is a field of research that investigates how to computationally read music notation in documents (Definition 1). The paper then analyzes OMR as the process of inverting music encoding, distinguishing between recovering the music notation itself (stage A) and recovering musical semantics (stage B). On this basis, it proposes a taxonomy of OMR inputs, system architectures, and, most centrally, four application categories with increasing levels of comprehension: document metadata extraction, search, replayability, and structured encoding. The paper also reviews traditional pipeline-based approaches and deep learning alternatives, and it concludes with a list of open issues. The contributions are definitional and organizational rather than experimental, with a substantial curated bibliography provided as supplementary material.

Significance. If the definition and taxonomy are adopted by the community, this paper would materially improve the clarity, comparability, and accessibility of OMR research. The definition is carefully argued to capture the field's breadth while excluding non-OMR tasks, and the taxonomy provides a practical vocabulary for researchers and stakeholders. The paper's strength lies in its systematic organization, its concrete examples, and the extensible curated bibliography. The taxonomy is proposed pragmatically rather than proven from first principles, which is appropriate for a tutorial; this does not undermine the core definitional contribution but does leave room for clarification in the presentation.

major comments (1)
  1. [Section VI-B / Fig. 13] The four application categories are not derived from Definition 1 or from the A/B distinction presented in Section IV. The paper itself states that it "needed to broaden the scope" beyond the two prongs of Replayability and Structured Encoding to also include Search and Document Metadata Extraction. Moreover, the "level of comprehension" ordering in Fig. 13 is asserted rather than operationalized. Because the taxonomy is one of the paper's three headline contributions, the authors should make explicit that this is a practical systematization rather than a logical consequence of the definition, and they should discuss boundary cases such as query-by-example search, which may not require comprehension strictly between metadata extraction and replayability. A short paragraph acknowledging the heuristic nature of the ordering and pointing to possible alternative groupings would address this concern.
minor comments (4)
  1. [Abstract / Section I] The abstract refers to the paper as a "tutorial," while the opening of the full text says "In this work"; the wording should be aligned.
  2. [Fig. 13] The labels in Fig. 13 are difficult to parse in the current rendering; please ensure the figure is typeset clearly so that the four category names and the "Level of Comprehension" axis are legible.
  3. [Section VI-B2] Definition 3 says a musical query "must convey musical semantics," but the same section mentions image queries (query-by-example); please clarify whether image queries are interpreted semantically or are treated as raw visual patterns.
  4. [Section VI-B4] The paper frequently cites the authors' own prior work as illustrations; this is acceptable, but adding an explicit sentence that these works are used as examples of existing research rather than as evidence for the taxonomy would help the reader.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the definitions and taxonomy are argued proposals, not derivations that reduce to their own inputs.

full rationale

Walking the claimed derivation chain: Definition 1 is explicitly stipulative ('we would rather prefer to put an umbrella over OMR and name its essence by proposing the following definition'), and the later claims are structural analyses of that definition plus proposed classifications. Section IV derives two readings of 'read' (recover notation vs. recover semantics) from the writing/reading process, and Section VI-B maps Replayability and Structured Encoding onto those prongs; crucially, the paper itself states that it 'need[s] to broaden the scope of OMR' before adding Document Metadata Extraction and Search, which is an admission that the four-category taxonomy is not entailed by the two-prong analysis alone. The ordering by 'level of comprehension' is an argued proposal rather than a fitted or constructed consequence of Definition 1, so any weakness in that ordering is a support or evidence gap, not circularity. The paper's self-citations ([30], [81], [83], [119]) serve as pointers to prior workshops, baseline benchmarks, and one author's evaluation argument; none functions as an unverified uniqueness theorem or smuggled ansatz, and the intrinsic-evaluation recommendation is accompanied by fresh reasoning in the same section. No parameter is fitted and then relabeled as a prediction, and no equation or output representation is equivalent by construction to an input. Verdict: no significant circularity.

Assumptions & free parameters 0 free parameters · 5 assumptions · 0 invented entities

The paper introduces no free parameters or physical entities. It relies on domain assumptions about how music is conceptualized and how reading can be decomposed, plus its own proposed taxonomy.

assumptions (5)
  • domain assumption Music is conceptualized as a structure of notes in time, defined by pitch, duration, loudness, timbre, and onset.
    Section III introduces this as the basis for OMR; it excludes other conceptualizations like spectralism or plainchant, which are noted but set aside.
  • domain assumption OMR ends where performers start to disagree over the same piece of music; music notation under-specifies interpretation.
    Section III states this as a natural boundary for OMR, excluding interpretive steps (performer's step 3) from the field.
  • domain assumption Reading music notation can be decomposed into recovering notation (A) versus recovering musical semantics (B).
    Section IV defines these two prongs as fundamental, and Section VI-B builds the application taxonomy directly on them.
  • ad hoc to paper The four proposed application categories (metadata extraction, search, replayability, structured encoding) are natural groups with increasing comprehension and shared evaluation protocols.
    Section VI-B proposes this taxonomy as the paper's central novel contribution; it is not derived from prior work.
  • domain assumption Recent deep learning advances have moved some OMR subtasks from 'hard' to 'clearly solvable', making broader applications practical.
    Section VII motivates the taxonomy's relevance; the paper cites [70], [118] for this claim without reproducing them.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Understanding Optical Music Recognition." pith.science (2026). https://pith.science/paper/ZJQKFCHJ

@misc{pith2026190803608,
  author       = {Pith},
  title        = {Pith review of: Understanding Optical Music Recognition},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/ZJQKFCHJ}},
  note         = {Machine review of arXiv:1908.03608}
}
read the original abstract

For over 50 years, researchers have been trying to teach computers to read music notation, referred to as Optical Music Recognition (OMR). However, this field is still difficult to access for new researchers, especially those without a significant musical background: few introductory materials are available, and furthermore the field has struggled with defining itself and building a shared terminology. In this tutorial, we address these shortcomings by (1) providing a robust definition of OMR and its relationship to related fields, (2) analyzing how OMR inverts the music encoding process to recover the musical notation and the musical semantics from documents, (3) proposing a taxonomy of OMR, with most notably a novel taxonomy of applications. Additionally, we discuss how deep learning affects modern OMR research, as opposed to the traditional pipeline. Based on this work, the reader should be able to attain a basic understanding of OMR: its objectives, its inherent structure, its relationship to other fields, the state of the art, and the research opportunities it affords.

Figures

Figures reproduced from arXiv: 1908.03608 by the authors.

Figure 1

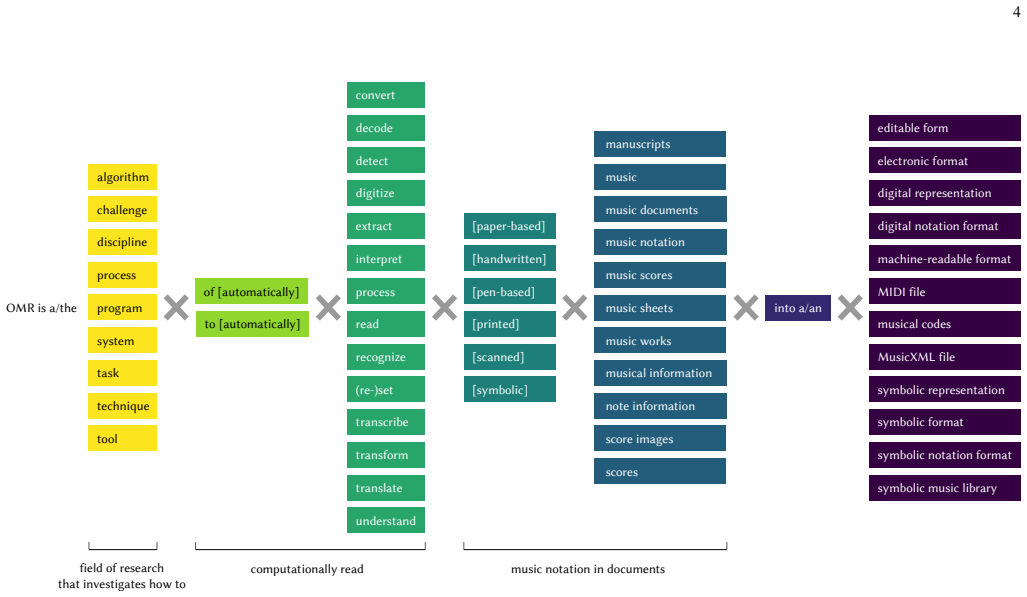

Figure 1. How OMR tends to be defined or described and how our proposed definition relates to it. [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

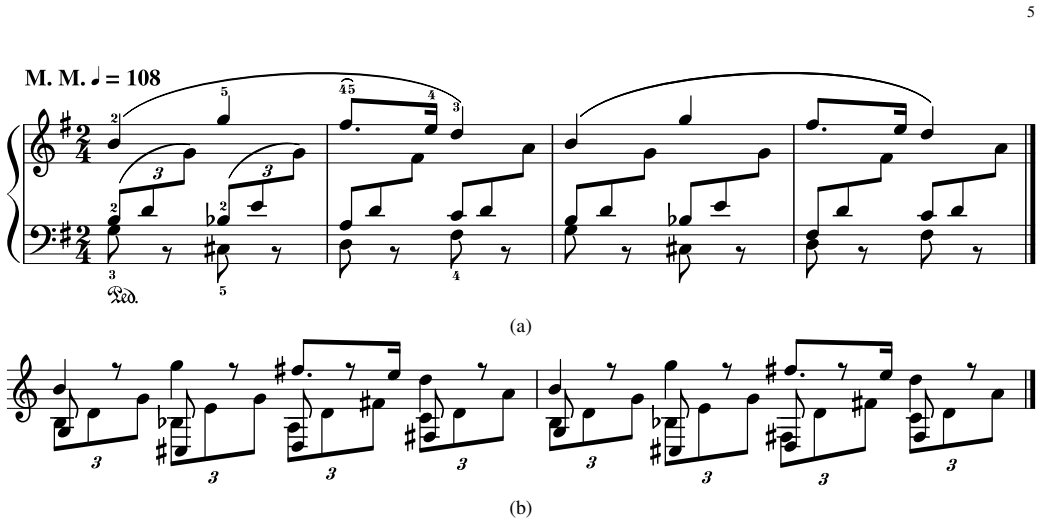

Figure 2. Excerpt of Robert Schumann’s “Kinderszenen”, Op. 15 for piano. Properly engraved (a), it has [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

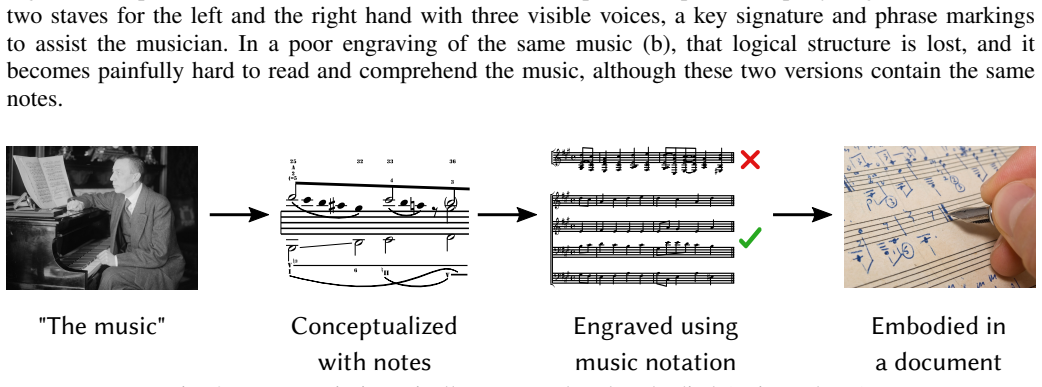

Figure 3. How music is typically expressed and embodied (written down). [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (12 more)
Figure 4

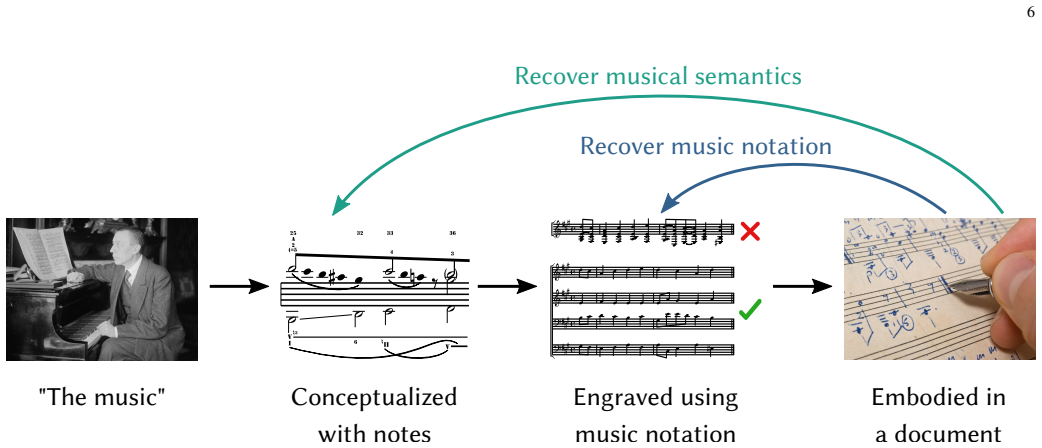

Figure 4. Figure 4: How “reading” music can be interpreted as the operations of inverting the encoding process. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5

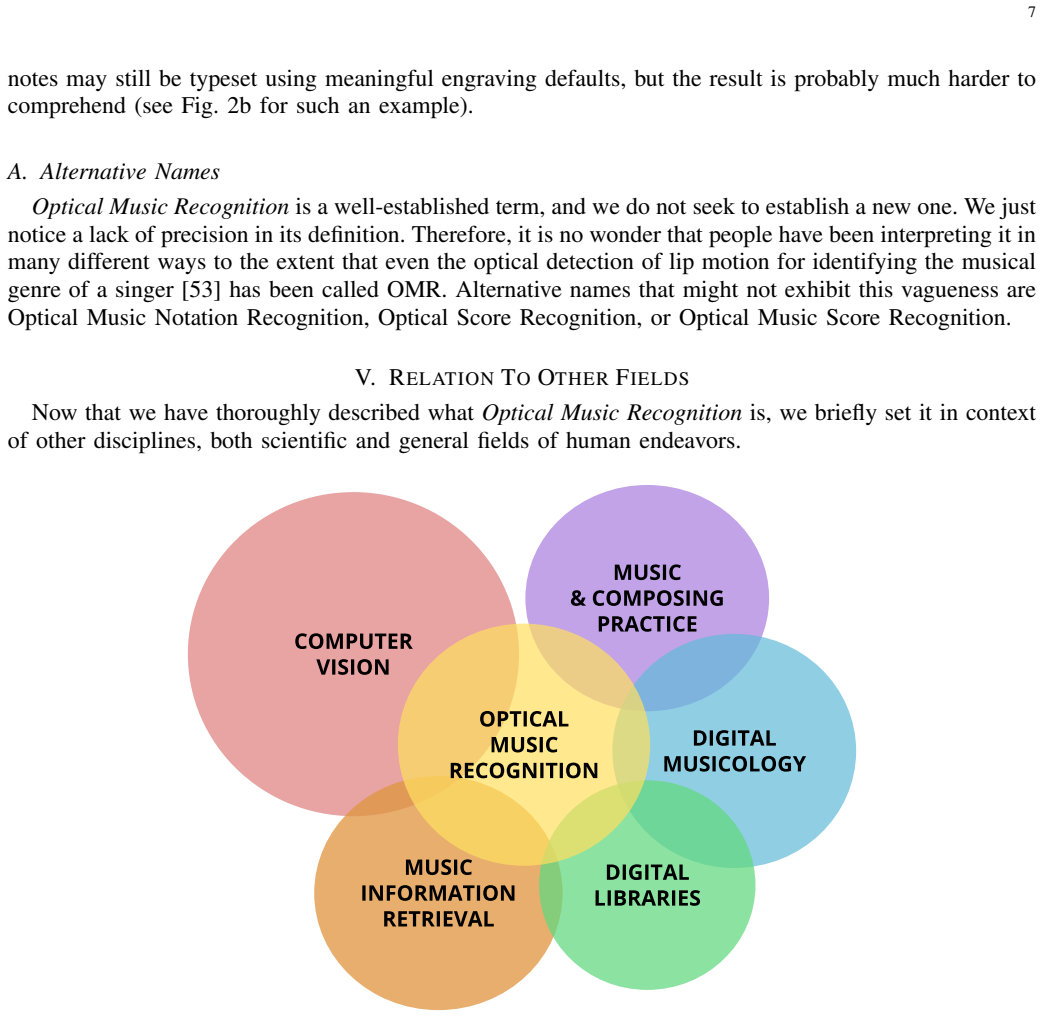

Figure 5. Figure 5: Optical Music Recognition with its most important related fields, methods, and applications. [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6

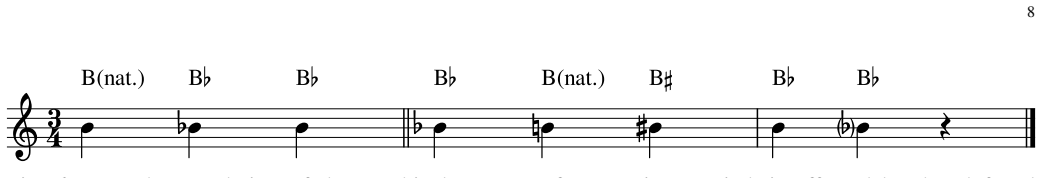

Figure 6. Figure 6: How the translation of the graphical concept of a note into a pitch is affected by the clef and [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7
Figure 7. Figure 7: This excerpt by Ludwig van Beethoven, Piano Sonata op. 2 no. 2, Largo appassionato, m. 31 [PITH_FULL_IMAGE:figures/full_fig_p009_7.png]
Figure 8
Figure 8. Figure 8: Brahms Intermezzo, Op. 117 no. 1. Adjacent notes of the chords in the first bar in the top staff [PITH_FULL_IMAGE:figures/full_fig_p010_8.png]
Figure 9

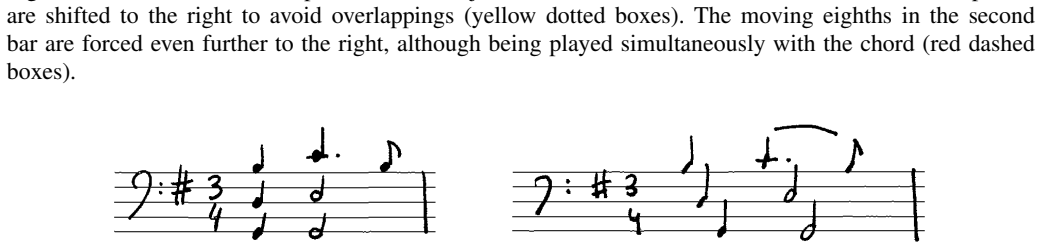

Figure 9. Figure 9: Sample from the CVC-MUSCIMA dataset [60] with the same bar transcribed by two different [PITH_FULL_IMAGE:figures/full_fig_p010_9.png]
Figure 10
Figure 10. Figure 10: Sample from the Songbook of Romeo & Julia by Gerard Presgurvic [125] with uneven spacing [PITH_FULL_IMAGE:figures/full_fig_p011_10.png]
Figure 11
Figure 11. Figure 11: Examples of scores written in various notations: (a) Common Western Music Notation (Dvorak [PITH_FULL_IMAGE:figures/full_fig_p012_11.png]
Figure 12

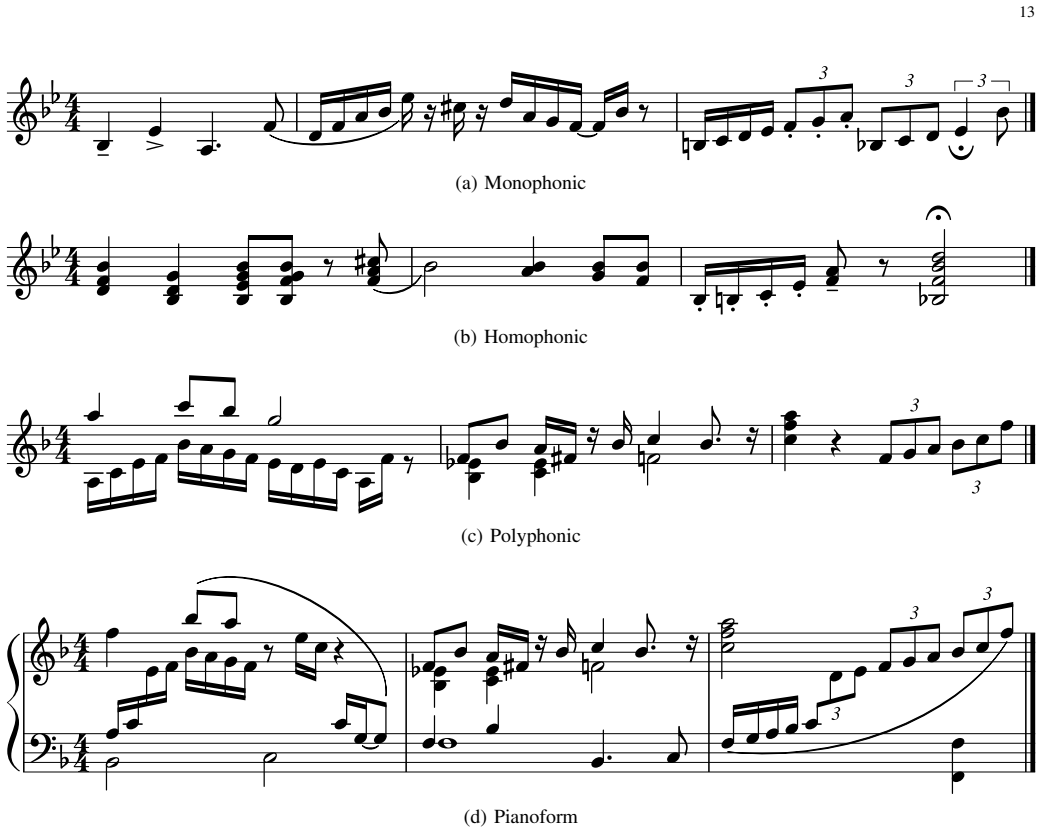

Figure 12. Figure 12: Examples of the four categories of structural complexity. [PITH_FULL_IMAGE:figures/full_fig_p013_12.png]
Figure 13

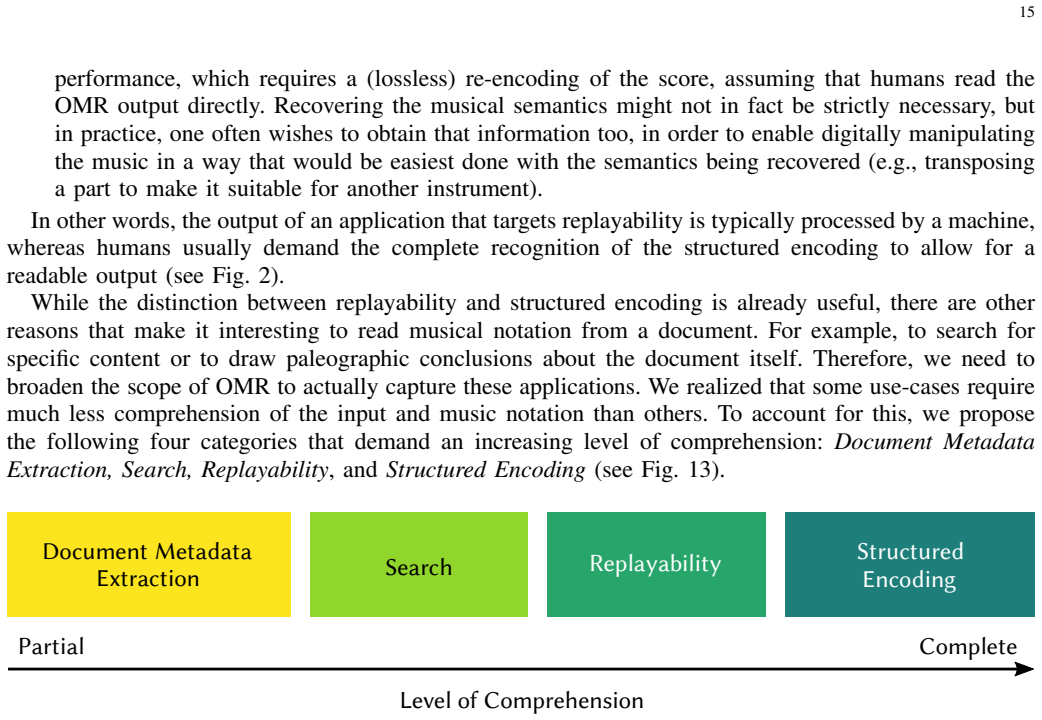

Figure 13. Figure 13: Taxonomy of four categories of OMR applications that require an increasing level of comprehen [PITH_FULL_IMAGE:figures/full_fig_p015_13.png]
Figure 14
Figure 14. Figure 14: Beginning of Franz Schubert, Impromptu D.899 No. 2. The triplet marks starting in the second [PITH_FULL_IMAGE:figures/full_fig_p019_14.png]
Figure 15

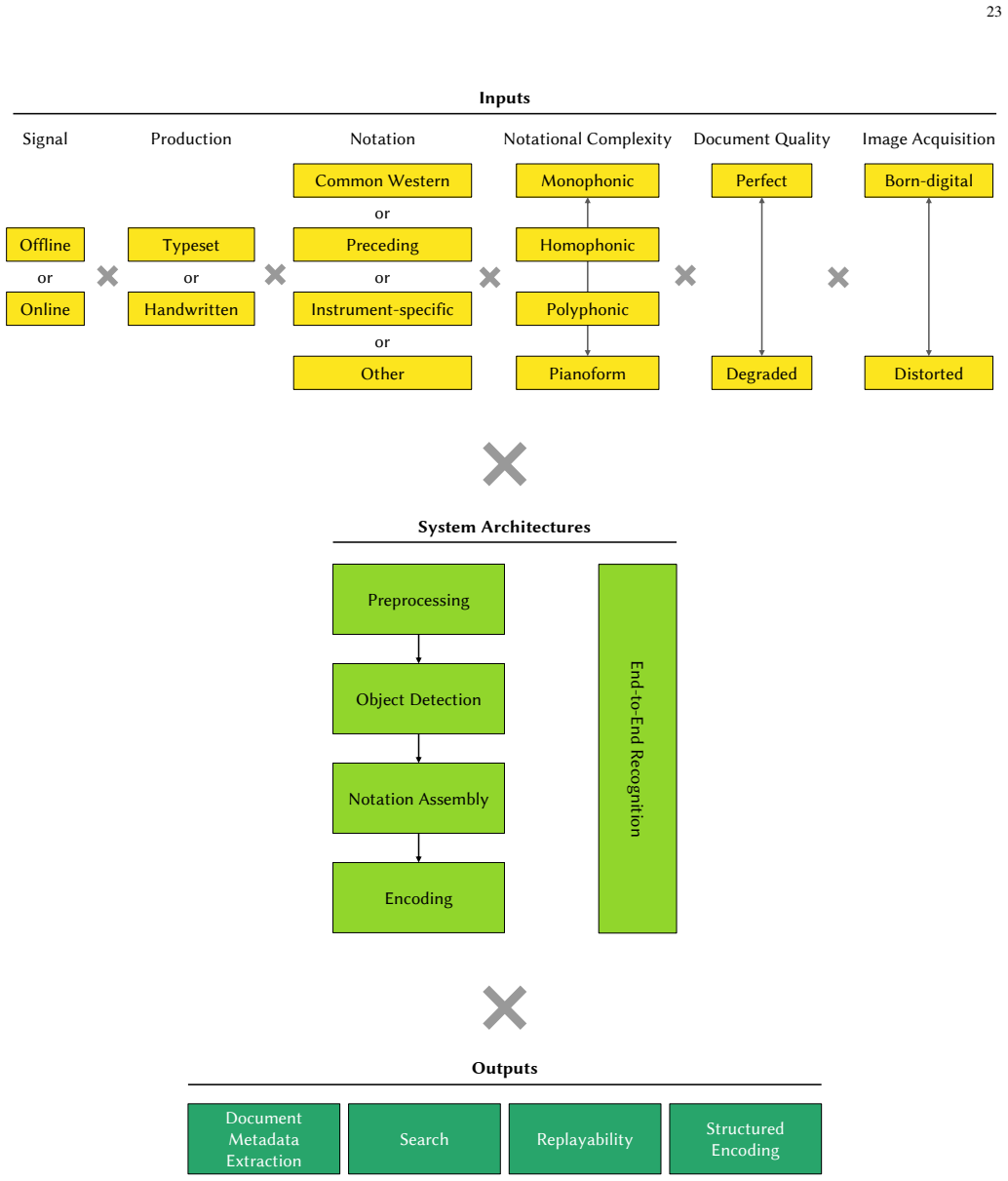

Figure 15. Figure 15: An overview of the taxonomy of OMR inputs, architectures, and outputs. A fairly simple OMR [PITH_FULL_IMAGE:figures/full_fig_p023_15.png]
