Understanding Spatial Language in Radiology: Representation Framework, Annotation, and Spatial Relation Extraction from Chest X-ray Reports using Deep Learning

T0 review · 3 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper defines Rad-SpRL, a spatial-role framework for chest X-ray reports, and shows that a Bi-LSTM-CRF model extracts findings, locations, probable diagnoses, and hedging terms at average $F_1$ scores of 90.28, 94.61, 71.47, and 73.27…

desk verdict A useful Rad-SpRL annotation resource for radiology NLP, but the evaluation likely leaks across instances from the same sentence and the gold standard is noisy; worth peer review with major revision. read the letter →

arxiv 1908.04485 v1 pith:U4BDV34E submitted 2019-08-13 cs.CL

Surabhi Datta , Yuqi Si , Laritza Rodriguez , Sonya E Shooshan , Dina Demner-Fushman , Kirk Roberts This is my paper · ORCID
classification cs.CL
keywords spatialrolelabelingradiologyreportschestX-rayinformationextractionBi-LSTM-CRFhedgedetectiondiagnosisclinicalNLP
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that the spatial language in chest X-ray reports can be captured by four roles anchored to one trigger: what is seen (Trajector), where it is seen (Landmark), what it might mean (Diagnosis), and how uncertain the radiologist is (Hedge). To test this, the authors annotated 2000 reports with this scheme and trained a bidirectional long short-term memory network with a conditional random field layer to extract the roles, evaluating with gold Spatial Indicators. The model reaches average $F_1$ scores of 90.28 for Trajector and 94.61 for Landmark, while Diagnosis and Hedge are harder at 71.47 and 73.27. If the framework is right, radiology reports can be turned into structured spatial relations that tie findings to locations and probable diagnoses, which would make reports easier to review, search, and use in predictive modeling. The idea matters because most actionable findings in radiology are spatially grounded, so a scheme that works on chest X-rays may transfer to other report types.

What carries the argument

The load-bearing mechanism is Rad-SpRL, a representation framework that extends the standard spatial role labeling scheme by adding Diagnosis and Hedge as first-class roles tied to a Spatial Indicator. The extraction engine is a Bi-LSTM-CRF sequence tagger whose per-word input concatenates a pre-trained word embedding, a character-level embedding from a second Bi-LSTM, and a small indicator embedding that marks whether the word is the Spatial Indicator. The indicator embedding is what lets the model assign roles relative to one trigger, and the preprocessing step of creating a separate sentence instance for each Spatial Indicator resolves cases where the same phrase is a Trajector for one indicator and a Landmark or Diagnosis for another.

What would settle it

Re-annotate a random sample of about 200 of the 2000 reports with a fresh pair of annotators who use only the Rad-SpRL guidelines and do not see the original labels; if their agreement on Diagnosis and Trajector stays below roughly 0.6 $F_1$, then the reported model scores are substantially measuring consistency with one reconciliation process, and the claim that the corpus carries reliable spatial semantics is weakened.

Watch

Extended reading notes

Core claim

The central claim is that a single sequence-labeling model, given the location of the Spatial Indicator in a sentence, can recover all four Rad-SpRL roles, with strong performance on the two spatial roles and moderate performance on the interpretive roles. The authors show that the same phrase can legitimately play different roles in different spatial relations, so the framework does not impose a fixed finding-versus-diagnosis ontology; it records the role a phrase plays relative to a specific spatial trigger. The annotated corpus itself is part of the discovery: 2000 reports contain 1972 spatial relations, with 2293 Trajectors, 2167 Landmarks, 455 Diagnoses, and 388 Hedges, and only 304 relations include all four roles. The authors claim this shows the representation is usable and the baseline is a credible first step, while deferring joint extraction of Spatial Indicators and roles to future work.

Load-bearing premise

The load-bearing premise is that the reconciled annotations are a dependable reference for all four spatial roles; every reported $F_1$ is measured against these labels, yet raw inter-annotator agreement is low, with overall $F_1$ agreement of 0.59 for Trajector, 0.64 for Landmark, 0.49 for Diagnosis, and 0.55 for Hedge, so the model scores partly measure agreement with one reconciliation rather than stable spatial semantics.

Editorial extensions

If this is right

  • Radiologists' free-text descriptions can be converted into role tuples of the form (Trajector, Spatial Indicator, Landmark) with optional (Diagnosis, Hedge), giving referring clinicians structured summaries of what was seen, where, and what it might be.
  • Because the framework defines roles relative to a spatial trigger rather than as absolute categories, annotation effort stays close to the language actually used, and downstream systems can apply their own finding-versus-diagnosis rules.
  • Diagnosis and Hedge extraction are the weak links at about 71 and 73 $F_1$, so a practical deployment should treat these roles as needing more data, longer context, or specialized modeling rather than as solved by the baseline.
  • The framework is explicitly proposed to generalize beyond chest X-rays, since the same roles fit other modalities such as head CT reports where a lesion sits in a named anatomical structure and is consistent with a diagnosis.
  • Spatial Indicator detection shows high recall but low precision (99.25 versus 78.86), so an end-to-end system would need to filter false prepositions before role extraction can run reliably on predicted indicators.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the corpus is released, the decisive follow-up experiment is to run the same model end-to-end with predicted Spatial Indicators; the paper's own precision gap predicts a measurable $F_1$ drop, and that gap is the practical bottleneck.
  • A fresh annotation study using only the published guidelines, without the original reconciliation, could settle whether the low inter-annotator agreement comes from guideline ambiguity or from inherent ambiguity between findings and diagnoses.
  • The framework's next natural extension is non-prepositional spatial triggers such as verbs like 'demonstrates' or 'shows', and medical devices as Trajectors; both are named in the paper and both would make the representation more useful for procedural reports.
  • The role tuples could serve as weak supervision for image-text alignment, grounding each finding mention at its Landmark location on the X-ray; the paper does not propose this, but the structured roles make it a natural test.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper introduces Rad-SpRL, an extension of the SpRL framework for radiology reports, defining four spatial roles (Trajector, Landmark, Diagnosis, Hedge) anchored to a Spatial Indicator. The authors annotate 2000 chest X-ray reports from the OpenI dataset, report inter-annotator agreement, and train a Bi-LSTM-CRF sequence tagger with word, character, and indicator embeddings. Using 10-fold cross-validation and exact-match evaluation conditional on gold Spatial Indicators, they report average F1 of 90.28 for Trajector, 94.61 for Landmark, 71.47 for Diagnosis, and 73.27 for Hedge, as well as Spatial Indicator extraction precision/recall/F1 of 78.86/99.25/87.82. The paper also discusses error patterns and acknowledges several limitations, including the absence of inter-sentence relations.

Significance. If the corpus and evaluation are valid, Rad-SpRL is a useful resource: it is a radiology-specific spatial role framework that explicitly captures probable diagnoses and hedging terms, and the 2000-report annotation effort is substantial. The evaluation has notable strengths: exact-match scoring is strict, role extraction is evaluated conditional on gold Spatial Indicators, and the authors transparently report low annotator agreement and the ambiguous finding/diagnosis boundary. However, the corpus is not yet publicly available, and the quantitative claims currently lack per-fold variability and comparison to a baseline, so the reported numbers should be viewed as preliminary until these issues are addressed.

major comments (3)
  1. [Section 4.2-4.3] The evaluation may suffer from instance-level data leakage. Section 4.2 creates one training instance per Spatial Indicator, yielding 1867 instances derived from 1780 source sentences, with 221 source sentences containing more than one Spatial Indicator. Section 4.3 reports an 80/10/10 split (1495/186/186) without stating that all instances generated from the same source sentence are kept in the same fold. If the split is instance-level, the same source sentence can appear in both training and test sets in different forms, allowing the Bi-LSTM-CRF to memorize the shared lexical context and inflate the reported F1 scores. Please clarify the fold construction and, if instances are not grouped by source sentence, re-run the experiments with sentence-level grouping and report the resulting F1 scores.
  2. [Section 3.3.1 / Table 4] The gold standard underlying every reported F1 score has low inter-annotator agreement: Table 4 reports complete-corpus F1 agreement of 0.59 for Trajector, 0.64 for Landmark, 0.49 for Diagnosis, and 0.55 for Hedge, with Diagnosis agreement of only 0.25 in the first 500 reports. Because the system is trained and evaluated against the reconciled labels, the model may be fitting one reconciliation process rather than stable spatial semantics, especially given the authors' own observation that the same phrase can be annotated as Trajector or Diagnosis in different contexts. To support the validity of the corpus, please report system performance against each annotator's labels separately, provide a detailed analysis of disagreement patterns, and make the annotation guidelines and adjudication procedure available.
  3. [Section 5 / Table 6] Table 6 reports only average Precision, Recall, and F1 across 10 folds, with no standard deviations, confidence intervals, or significance tests. The reader cannot judge whether the differences between role F1 scores (e.g., 90.28 vs 94.61) are stable across folds. In addition, no baseline is evaluated, so the claim that the Bi-LSTM-CRF produces 'promising results' is not contextualized against simpler alternatives. Please report per-fold variance or confidence intervals and include at least one simple baseline, such as a CRF with lexical features or a rule-based system.
minor comments (4)
  1. [Section 1] In the radiology example, the sentence 'Mild streaky opacities are present in the left lung base' contains the preposition 'in', but the text says the spatial preposition is 'on'; please correct this typo.
  2. [Section 4.3] Please clarify the relationship between '10-fold cross-validation' and the single 80/10/10 split described as 1495/186/186 instances; in standard 10-fold cross-validation the role of the validation set should be explained more precisely.
  3. [Abstract] The abstract states that the corpus 'will soon be made available upon request'; in the final version, please provide a stable URL, DOI, or repository and a clear data-use license, since the reproducibility of the evaluation depends on access to the corpus.
  4. [Abstract and Section 5] The abstract does not state that the spatial role F1 scores are conditional on gold Spatial Indicators; this condition is explicit only in Section 5 and should appear in the abstract to avoid overstating end-to-end performance.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity; the paper's central results rest on a held-out supervised evaluation, not on an input-to-output reduction.

full rationale

This is an empirical annotation and supervised extraction paper rather than a derivation. The central claims are (1) the Rad-SpRL framework and corpus, and (2) the Bi-LSTM-CRF F1 scores. The F1 scores are computed by 10-fold cross-validation with exact-match scoring (Section 4.3, Table 6), so the reported numbers are not forced by construction from the training data. The model is trained on one subset and evaluated on held-out folds; no fitted parameter is later renamed as a prediction. Self-citations to Roberts et al. and Demner-Fushman et al. are used for background and data provenance, not as a load-bearing uniqueness theorem or as the source of the spatial role definitions, which the paper presents with its own annotation guidelines and examples. The low inter-annotator F1 agreement (Table 4) is a gold-standard reliability concern, and the one-instance-per-Spatial-Indicator preprocessing could create a sentence-level leakage risk in evaluation, but neither makes the derivation circular. No claim in the paper reduces to its inputs by definition, and no prediction is equivalent to a fitted quantity.

Assumptions & free parameters 7 free parameters · 5 assumptions · 1 invented entities

The paper has no physical invented entities. The Rad-SpRL roles are an annotation ontology introduced by the authors; their usefulness is the central claim and remains to be confirmed by external use. The listed hyperparameters were chosen on the validation set and affect the reported F1 values. The main axioms are that the annotation scheme is meaningful and that the reconciled labels are reliable enough to serve as gold standard.

free parameters (7)
  • LSTM hidden size = 500
    Chosen based on validation set performance (Section 4.3).
  • Dropout rate = 0.5
    Chosen based on validation set performance (Section 4.3).
  • Learning rate = 0.01
    Chosen based on validation set performance (Section 4.3).
  • Learning rate decay = 0.99
    Chosen based on validation set performance (Section 4.3).
  • Character embedding dimension = 100
    Set in Section 4.3 with random initialization.
  • Indicator embedding dimension = 5
    Set in Section 4.3 with random initialization.
  • Maximum training epochs = 20
    Set in Section 4.3; early stopping details are not reported.
assumptions (5)
  • domain assumption SpRL roles (Trajector, Landmark, Spatial Indicator) apply to radiology reports and capture clinically meaningful spatial relations.
    Section 3.2 defines Rad-SpRL by extending SpRL; the paper does not independently validate that the scheme matches radiologists' spatial interpretations.
  • domain assumption Reconciled annotations are an acceptable gold standard despite low inter-annotator agreement.
    Section 3.3.1 reports overall F1 agreement of 0.59, 0.64, 0.49, and 0.55 for Trajector, Landmark, Diagnosis, and Hedge; all model scores are computed against these reconciled labels.
  • domain assumption Spatial role extraction performance is evaluated conditional on gold Spatial Indicators.
    Section 5 states that spatial role labeling used the gold Spatial Indicator in each sentence, so the reported F1 scores do not reflect end-to-end performance where indicators are predicted first.
  • domain assumption Pre-trained MIMIC-III word embeddings are appropriate for chest X-ray reports.
    Section 4.3 uses 100-dimensional MIMIC-III embeddings; the paper does not analyze the domain shift from ICU clinical notes to radiology reports.
  • standard math Bi-LSTM-CRF is a competent baseline sequence labeling architecture.
    Section 4.1 adopts the standard architecture from Lample et al.; it is treated as established and is not proven optimal for this task, which is acceptable for a baseline.
invented entities (1)
  • Rad-SpRL role set (Trajector, Landmark, Hedge, Diagnosis, Spatial Indicator)
    purpose: Representation framework for extracting spatial relations from radiology reports.
    The framework is proposed by this paper; its utility is supported only by the in-paper annotation effort and baseline results, not by external adoption or independent validation.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Understanding Spatial Language in Radiology: Representation Framework, Annotation, and Spatial Relation Extraction from Chest X-ray Reports using Deep Learning." pith.science (2026). https://pith.science/paper/U4BDV34E

@misc{pith2026190804485,
  author       = {Pith},
  title        = {Pith review of: Understanding Spatial Language in Radiology: Representation Framework, Annotation, and Spatial Relation Extraction from Chest X-ray Reports using Deep Learning},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/U4BDV34E}},
  note         = {Machine review of arXiv:1908.04485}
}
read the original abstract

We define a representation framework for extracting spatial information from radiology reports (Rad-SpRL). We annotated a total of 2000 chest X-ray reports with 4 spatial roles corresponding to the common radiology entities. Our focus is on extracting detailed information of a radiologist's interpretation containing a radiographic finding, its anatomical location, corresponding probable diagnoses, as well as associated hedging terms. For this, we propose a deep learning-based natural language processing (NLP) method involving both word and character-level encodings. Specifically, we utilize a bidirectional long short-term memory (Bi-LSTM) conditional random field (CRF) model for extracting the spatial roles. The model achieved average F1 measures of 90.28 and 94.61 for extracting the Trajector and Landmark roles respectively whereas the performance was moderate for Diagnosis and Hedge roles with average F1 of 71.47 and 73.27 respectively. The corpus will soon be made available upon request.

Figures

Figures reproduced from arXiv: 1908.04485 by the authors.

Figure 1

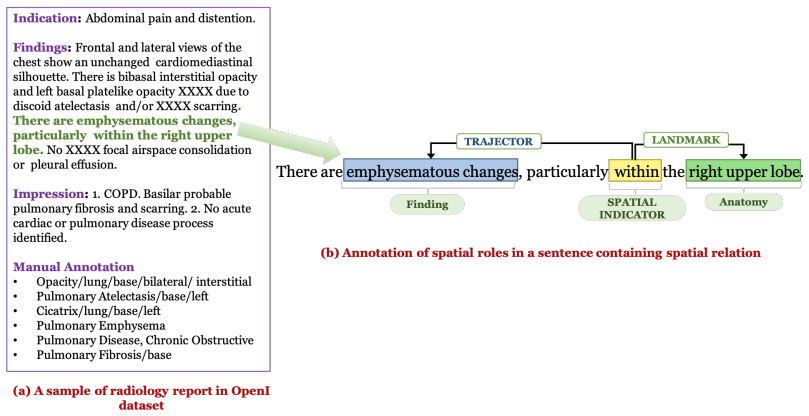

Figure 1. Examples of manual annotations: (a) OpenI annotations, (b) Our spatial relation annotations. [PITH_FULL_IMAGE:figures/full_fig_p008_1.png] view at source ↗
Figure 2

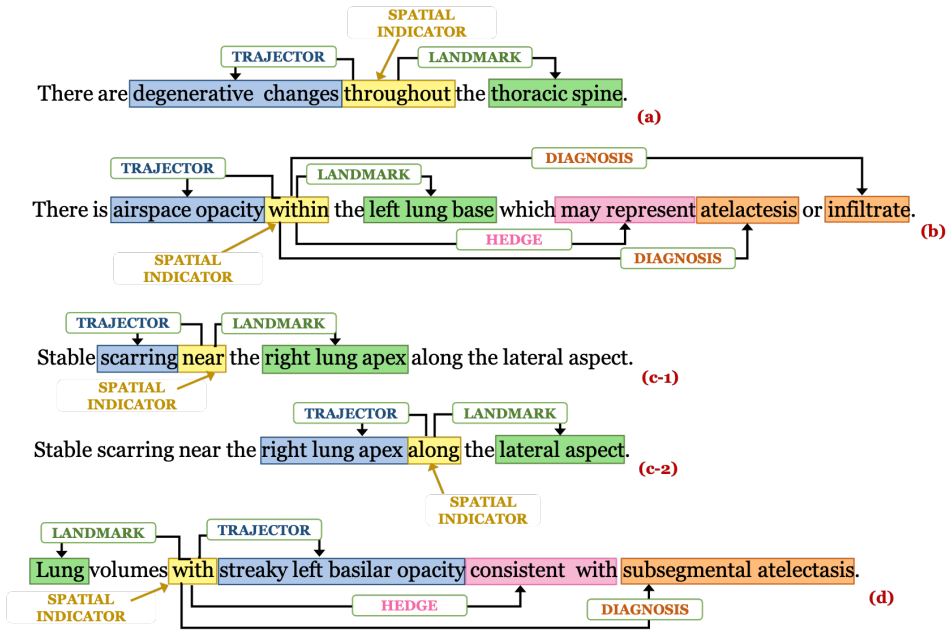

Figure 2. Examples of spatial role annotations: (a)Sentence having [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3

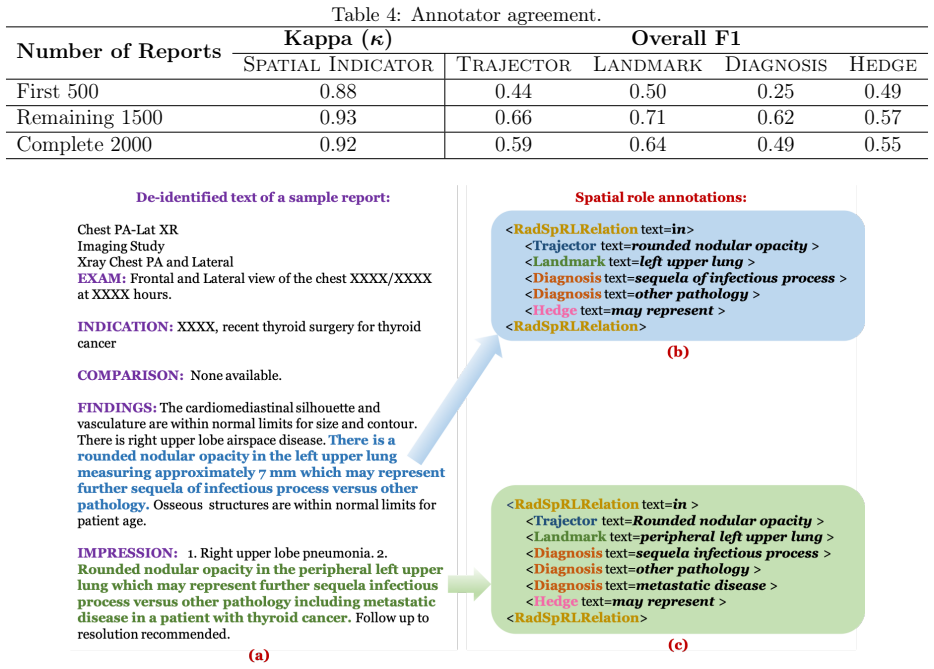

Figure 3. (a) Example of a de-identified report in our corpus, (b) Spatial role label annotations for the [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figures from the paper (1 more)
Figure 4

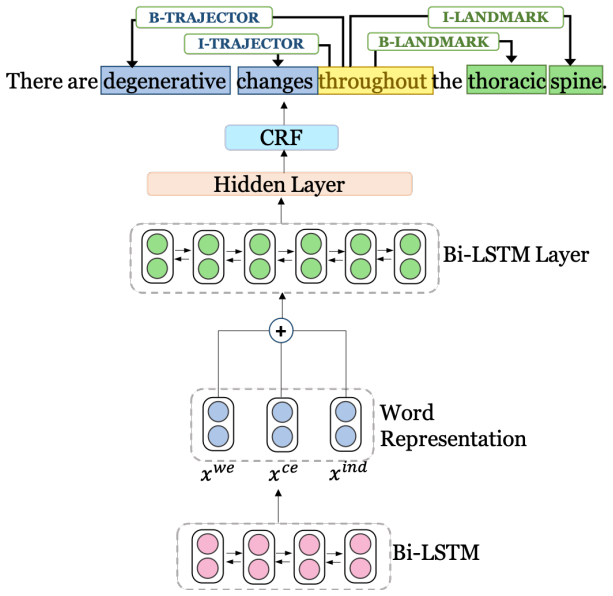

Figure 4. Figure 4: Model architecture. For each word, a character representation is fed into the input layer of the [PITH_FULL_IMAGE:figures/full_fig_p013_4.png]
