REVIEW 3 major objections 5 minor 33 references
Channel Decomposition into Painting Actions
T0 review · 3 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash
Pith's one-line read A pretrained image generator's intermediate layer can be decomposed into painting actions that produce new artistic styles without any additional training.
desk verdict A training-free channel-stroke renderer with a precise algorithm and a plausible but unquantified central claim about spatial preservation; referee-worthy if that gap is addressed. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing object is Algorithm 1, the channel stroke procedure. It maintains a binary mask $M\in\{0,1\}^{C\times H\times W}$ and a cost tensor $G$ over the operation layer's feature tensor; on each iteration it selects the unpainted pixel with the largest masked response $(1-G)\odot Y$, subject to the per-location channel limit $\tau$, extends the stroke over the neighborhood $N(c,h,w;m)$ of pixels whose response is at least $m\cdot Y_{c,h,w}$, and updates $G$ as the Hadamard product of the channel-change cost $J$ and the movement cost $K$. The neighborhood governs stroke shape, the sensitivity $m$ governs how far a stroke spreads, the penetration parameter $p$ lets a stroke turn on several similarly responsive channels at once, and the stopping rule $S$ decides when a region is finished. This machinery converts a single forward pass through a generator into a sequential, cost-driven painting process over feature channels, and channel flush appears as the limiting case without neighborhood extension.
What would settle it
Take a pretrained generator, pick a middle layer, run the channel flush with decreasing $\tau$, and measure the pixel-level or perceptual distance between the original output image and the flushed output across many inputs. If the distance does not grow as $\tau$ shrinks, or if randomly chosen channels preserve the layout as well as the top-response channels do, the paper's key claim about high-response channels carrying spatial information would be refuted.
Extended reading notes
Core claim
On the paper's own terms, the central discovery is that the spatial layout of a generator's final image survives even when an intermediate feature map is reduced to only the highest-responding channels at each location. The paper uses this finding to justify two layer operations: channel flush, which keeps the top $\tau$ channels per location and zeroes the rest, and channel stroke, which grows connected strokes through neighboring pixels whose response is at least a fraction $m$ of the current pixel's response, starting each stroke at the most responsive unpainted location. A cost tensor guides the next stroke position, combining a channel-change cost $g_c$ with a Gaussian movement cost, so the painter continues a stroke while that is cheaper than switching channels. Because the pretrained layers already encode object and style knowledge, the stroked features re-render as a painted image, and stroke masks applied at the generator output wipe away bleed from non-stroked regions. Object-region masks from a pretrained detection and segmentation network set the painting order and per-region focus.
Load-bearing premise
The load-bearing premise is that the later layers of a pretrained generator can rebuild the original image's spatial layout from an intermediate feature map in which most channels have been zeroed or stroked; the paper demonstrates this only with example images, not with a quantitative reconstruction test.
Editorial extensions
If this is right
- If the key finding holds, any pretrained generator's intermediate layer can serve as a stroke space, so stroke-order planning requires no paired stroke data and no retraining.
- Because the operation layer and the parameters $l$, $\tau$, $m$, $\sigma$, $g_c$, $p$, and $S$ are user-chosen, a single pretrained network yields a continuous family of painted styles.
- On a style-transfer transformer, the painted output keeps the original neural style and adds a controllable stroke texture on top, so the method extends style transfer rather than replacing it.
- When $\tau$ approaches the full channel count, the output approaches the original generator output, so the procedure degrades gracefully instead of failing abruptly.
Reading between the lines
- Inference: the same channel-stroke procedure could be applied at several layers at once, since the paper only operates on a single layer and lists multi-layer coordination as future work.
- Inference: if the spatial-layout claim is robust, channel flush could double as a diagnostic for which channels a generator truly needs for a given scene, because zeroing low-response channels at a middle layer should leave the scene's layout intact.
- Inference: adding directional or handwriting costs to the movement term, which the paper mentions but does not implement, would likely produce contour-following strokes and a more explicit drawing order.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes channel painting in action (CPIA), an unsupervised method that decomposes a chosen convolutional layer of a pretrained generator network into stroke-like painting actions. The core operations are a channel flush, which keeps only the top-τ channels at each spatial location of an intermediate layer, and a channel stroke, which greedily extends strokes within that masked representation using hand-movement and channel-change costs; Mask R-CNN provides a painting plan by defining regions of interest. The method is demonstrated on BigGAN-generated images and on the MSG style-transfer transformer, with qualitative figures and histograms of channel coverage for parameters such as layer index l, channel limit τ, stroke sensitivity m, and stroke penetration p. The central claim is that masking intermediate features to high-response channels preserves the spatial layout of the generator output, so that later layers render a plausible painted version without retraining.
Significance. If the spatial-preservation claim were quantitatively established, CPIA would be a lightweight, training-free method for turning pretrained generators into stroke-based painters with user-controllable stroke parameters. Strengths include a precisely specified Algorithm 1, parameter sweeps over m and p in the appendix, and a public code/demo link. The main weakness is that the load-bearing empirical claim of Section 3.1 is supported only by selected qualitative panels and channel-coverage histograms; no quantitative reconstruction or layout-preservation metric is reported. The significance of the contribution therefore remains contingent on additional evaluation.
major comments (3)

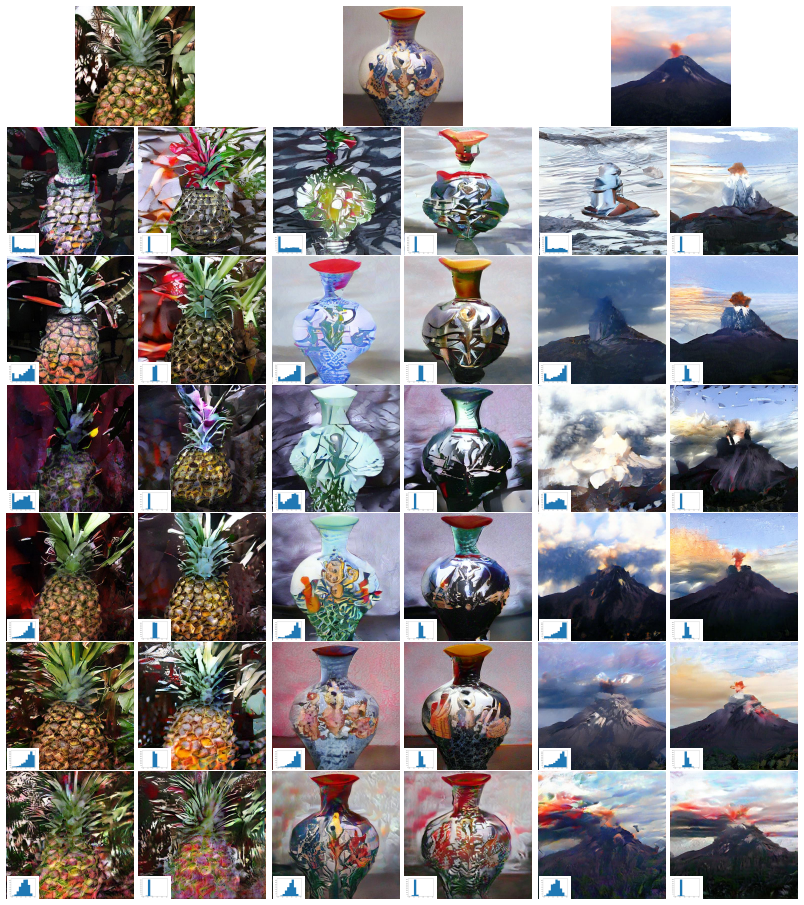

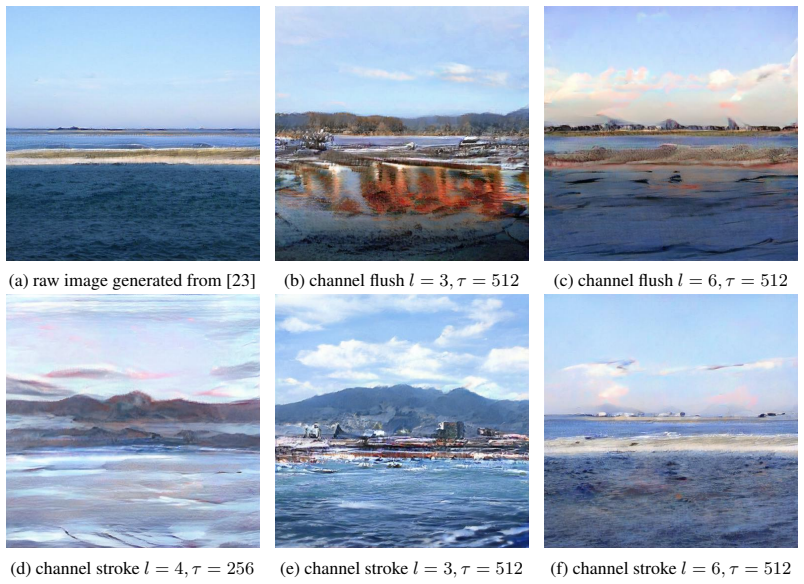

- [Section 3.1, Eq. (3), Figs. 2 and 3] The central claim that the decomposed representation 'preserves the spatial information of the output image Y(L)' is asserted as a key finding but is never quantified. The paper reports no reconstruction error, no layout or object-preservation metric (e.g., mask IoU or detection consistency between Y(L) and the final output), and no systematic sweep across seeds, classes, and operation layers. Because the whole pipeline rests on the ability of later layers to tolerate hard zeroing of low-response channels, please add such measurements; without them the main claim is supported only by anecdotal figures.
- [Section 3.4] The post-generator stroke-map mask can only hide regions that were not stroked; it cannot restore spatial layout that the generator failed to produce. Therefore, if the later layers do not preserve the layout after the feature-space intervention, the final masking step in Section 3.4 cannot fix the problem. This makes the quantitative check requested above irreplaceable as evidence for the pipeline's central premise.
- [Algorithm 1, Steps 5 and 8] The τ-channel constraint is checked only when choosing the seed pixel in Step 5, but the neighborhood extension in Step 8 sets mask entries to 1 without verifying that the location has fewer than τ active channels. Over many strokes, a location can therefore receive more than τ active channels, which conflicts with the description in Section 3.4 that 'there can be as many as τ channels being stroked' at each location. Please enforce the cap during extension or clarify that τ is only a seed-selection threshold rather than a hard bound on the final mask.
minor comments (5)
- [Abstract and Appendix] The abstract says 'convolution layer' where 'convolutional layer' is standard, and the Appendix contains the typo 'futher' instead of 'further'.
- [Section 3.2, Eq. (3) and Algorithm 1] The notation N(c,h,w;m)∈N^3 should be 'a subset of N^3' rather than an element, and the top-τ condition in Eq. (3) would be clearer if the ranking was defined explicitly; the cardinality-based condition is easy to misread.
- [Algorithm 1, Step 9] The update of the cost tensor G is described only verbally as 'update G according to the chosen pixel'; a concrete update equation using J and K from Eqs. (4)-(5) is needed for reproducibility, especially since G is used in the argmax of Step 5.

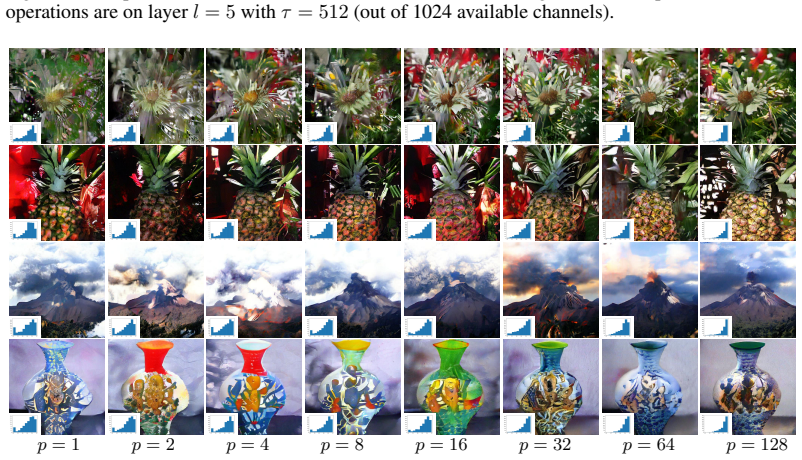

- [Figures 6 and 7] The parameter sweeps for stroke sensitivity m and penetration p do not report the fixed values of z, σ, gc, the stopping criterion S, or the number of ROIs used; specifying these settings would make the comparisons reproducible.

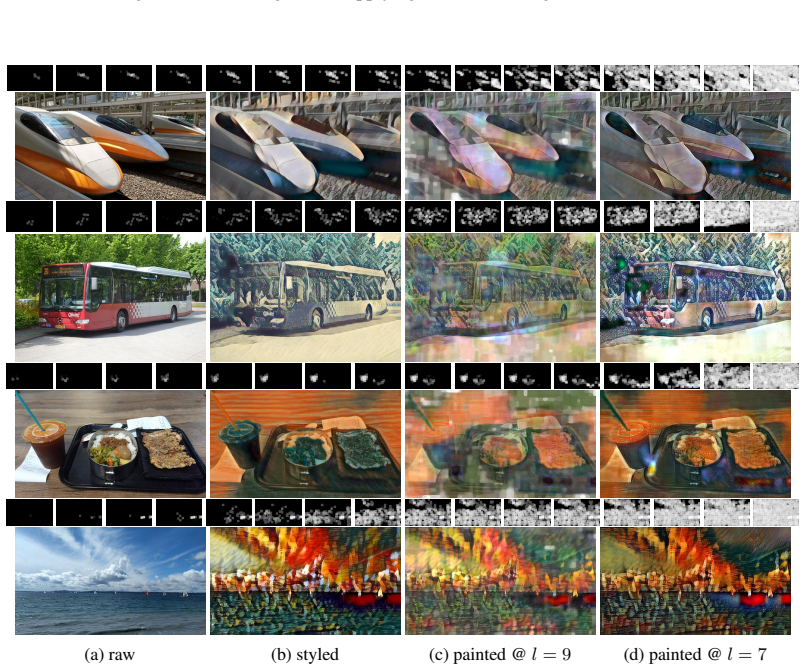

- [Figure 5 caption] The caption states 'Images are painted with τ = 20 in (b) and with τ = 128 in (c)', but the subfigures are labeled (a)-(d); please align the caption labels with the panel labels to avoid confusion.
Circularity Check
No significant circularity: the painting pipeline is an empirical intervention on pretrained networks, and the load-bearing spatial-preservation claim is tested rather than encoded by construction.
full rationale
The central derivation is not circular. Equation (3) and Algorithm 1 define hard interventions (top-tau masking and neighborhood strokes) on a fixed pretrained generator; whether the later layers turn the masked or stroked feature maps into an image with the same spatial layout as Y(L) is an empirical property of the BigGAN and MSG networks, not a consequence of the equations. The paper fits no parameters to a target and makes no statistical prediction that is forced by construction. The cited pretrained systems (BigGAN, MSG, Mask R-CNN) are external, and there is no load-bearing self-citation, no imported uniqueness theorem, and no ansatz smuggled in via citation. Statements such as 'smaller m yields wider strokes' merely unpack the definition of the neighborhood threshold m and do not carry the main painting claim as a derived prediction. Lack of quantitative validation of the Section 3.1 'key finding' is an evidence concern, not circularity.
Assumptions & free parameters
free parameters (7)
- channel limit tau =
128-512 (BigGAN), 20-128 (MSG)
- stroke sensitivity m =
0.5-0.95 in Fig. 6
- stroke size z =
not fixed (square box 2z+1)
- Gaussian width sigma =
not specified
- channel-change cost gc =
not specified
- stroke penetration p =
1-128 in Fig. 7
- stopping criterion S =
global response-ratio threshold
assumptions (4)
- domain assumption Pre-trained generator networks (BigGAN, MSG) encode useful hierarchical image structures in their intermediate layers.
- ad hoc to paper Masking intermediate feature maps to top-tau channels preserves enough spatial information for the later layers to form a coherent image.
- domain assumption Later convolutional layers can propagate stroked (highly sparse or masked) activations to valid image pixels without normalization issues.
- domain assumption Mask R-CNN object regions provide useful painting order and region focus.
Cite this review
Pith. "Pith review of Channel Decomposition into Painting Actions." pith.science (2026). https://pith.science/paper/OK64CQUW
@misc{pith2026190804694,
author = {Pith},
title = {Pith review of: Channel Decomposition into Painting Actions},
year = {2026},
howpublished = {\url{https://pith.science/paper/OK64CQUW}},
note = {Machine review of arXiv:1908.04694}
}
read the original abstract
This work presents a method to decompose a convolutional layer of the deep neural network into painting actions. To behave like the human painter, these actions are driven by the cost simulating the hand movement, the paint color change, the stroke shape and the stroking style. To help planning, the Mask R-CNN is applied to detect the object areas and decide the painting order. The proposed painting system introduces a variety of extensions in artistic styles, based on the chosen parameters. Further experiments are performed to evaluate the channel penetration and the channel sensitivity on the strokes.
