Accelerated CNN Training Through Gradient Approximation

T0 review · 3 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Pith's one-line read Selectively approximating filter gradients—keeping one scaled entry per output channel—can speed up CNN training in wall-clock time while keeping validation accuracy nearly unchanged.

desk verdict A real GPU-kernel contribution with a small, plausible speedup, but the reporting is sloppy: no error bars, an abstract/body speedup inconsistency, and an unbiasedness claim that is mathematically wrong but blessedly not load-bearing. read the letter →

arxiv 1908.05460 v1 pith:MKNUG7SU submitted 2019-08-15 cs.CV cs.LG

classification cs.CVcs.LG
keywords gradientapproximationCNNtrainingaccelerationsparsebackpropagationCUDAkernelsschedulesResNet-20VGG-19CIFAR-10
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to show that deep convolutional networks can be trained faster in real wall-clock time by computing only a very sparse approximation of the gradients on a subset of layers and batches, rather than using the exact dense gradient. It proposes three approximation methods—zeroing the gradient, replacing it with fresh random noise, and keeping only the largest-magnitude value per output channel scaled by the channel sum—and shows that they all let ResNet-20, VGG-19, and a small 2-layer CNN converge on CIFAR-10 with little validation-accuracy loss. The main payoff is the approximated-gradient method, whose custom CUDA kernel turns the sparse gradient computation into fast patch extractions and reports wall-clock training speedups over full cuDNN-based training, with the modest speedup being a practical consequence of approximating only a quarter of the gradient computations.

What carries the argument

The load-bearing object is the max-gradient approximation: for each output channel and each batch element, keep only the largest-magnitude entry of the $H\times W$ output-gradient map, scale it by the sum of all entries in that map, and zero everything else, so the filter gradient becomes a sum of $K\times K$ input patches weighted by those scaled scalars. The argument wraps this in an 'approximation schedule'—a per-layer, per-batch choice of which approximation to apply—which lets the method touch only a quarter of filter-gradient computations. The CUDA kernel that interprets the sparse convolution as patch extraction is what converts the algorithmic saving into actual wall-clock speed.

What would settle it

Compare, over many random input/backprop pairs at an untrained layer, the average approximated filter gradient with the average full filter gradient; a persistent nonzero difference would show the estimate is biased and that convergence is driven by something other than unbiased gradient estimation.

Watch

Extended reading notes

Core claim

The central claim, stated as the authors would state it: training deep CNNs does not require exact dense filter gradients at every layer and every batch. On a schedule that approximates a quarter of the filter-gradient computations (on every fourth convolutional layer, every batch, starting from the second layer), keeping only the single largest-magnitude value in each output channel's gradient map—scaled by that map's total sum and all other values zeroed—is enough to train ResNet-20 and VGG-19 to validation accuracy within a small margin of full-gradient training. Implemented as a CUDA patch-extraction kernel, this approximation is faster than cuDNN's dense gradient convolution in the tested cases, and the measured wall-clock speedups range from 3.5% for ResNet-20 up to over 7% for the two networks, with accuracy loss as low as 0.1 percentage point under some schedules.

Load-bearing premise

The load-bearing premise is that the scaled top-1 approximation produces an unbiased estimate of the true filter gradient; if that premise fails—and deterministic retention of the largest element does not by itself make each position unbiased—the theoretical justification collapses even though the training curves may still converge.

Editorial extensions

If this is right

  • Approximating one quarter of the filter-gradient computations gives a theoretical speedup ceiling of roughly 8 percent, and measured wall-clock speedups on CIFAR-10 range from 3.5 percent on ResNet-20 to over 7 percent across the two networks.
  • The approximated-gradient method keeps validation accuracy within about 0.1 percentage point of full-gradient training under at least one schedule, making the accuracy loss smaller than the loss from substituting a smaller ResNet-14 baseline.
  • The approximation methods require no network structure changes or explicit sparsity inputs, so they can be dropped into standard VGG and ResNet training pipelines.
  • Using approximations early in training and switching to full gradients later is a promising schedule direction for VGG-like networks, since full-gradient training overtakes the approximations only at the end.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial inference: The deterministic top-1 selection scaled by channel sum is not unbiased per-position, so if the method trains well, the explanation likely lies in SGD optimization dynamics rather than in unbiasedness; averaging over many layers and batches may hide systematic bias.
  • Editorial inference: The success of freshly regenerated random gradients on some architectures, with no fixed alignment, suggests a testable hypothesis that stochastic gradient noise itself, not directional alignment, keeps the network trainable.
  • Editorial inference: Fusing the input transposes into the CUDA kernel could remove more than half the reported overhead, indicating that larger speedups are available without changing the approximation itself.
  • Editorial inference: The same approximation could be applied to activation gradients in deeper layers, but error propagation to shallower layers would need to be controlled; the paper's own reason for avoiding that direction sets a boundary for future work.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes three gradient approximation methods for CNN training — zero gradient, random gradient, and a top-1 approximated gradient — and introduces the notion of approximation schedules that specify when each approximation is applied per layer and per training batch. A custom CUDA kernel implements the approximated gradient, and the paper reports wall-clock training speedups on CIFAR-10 for ResNet-20 and VGG-19, claiming speedups 'upwards of 7%' with minimal validation accuracy loss. The evaluation includes kernel timing comparisons against cuDNN, convergence curves for three network architectures, and robustness checks across three approximation schedules for ResNet-20.

Significance. If the reported speedups and accuracy results are reproducible, the paper makes a modest but useful systems contribution: a GPU-friendly sparse gradient approximation that can reduce training time for standard deep CNNs without significant accuracy loss. The paper's strengths include a nontrivial CUDA kernel implementation, explicit accounting for overheads such as data transposes, and transparent reporting of negative results (e.g., the slowdown on a small 2-layer CNN). The approximation-schedule abstraction is also a useful conceptual contribution. However, the central empirical claim is not yet convincing because the reported speedups are small, the experiments appear to be single runs without error bars, and the abstract's headline speedup is not reconciled with the body.

major comments (3)
  1. [Section 2.3, Algorithm 1] The claim that the approximated gradient estimate is unbiased is mathematically incorrect. The retained element is selected deterministically as the largest-magnitude gradient, and scaling by the channel sum preserves only the total sum, not the per-coordinate expectations. For an unbiased estimator, the selection would need to be randomized with an appropriate inverse-probability rescaling, as in standard gradient sparsification methods. This error undermines the theoretical justification for the approximated gradient method, even though the empirical convergence curves might still be valid; the authors should either provide a correct unbiasedness argument, characterize the bias, or remove the claim.
  2. [Abstract and Section 3.3] The abstract's headline claim of wall-clock speedup 'upwards of 7%' is not supported by the body: the only explicitly reported speedup in the text is 3.5% for ResNet-20 with the approximated gradient, and no VGG-19 speedup is stated in prose or referenced to a table. Moreover, Tables 1–5 are referenced but their contents are not present in the manuscript, so the underlying timing and accuracy numbers cannot be checked. The authors must include the actual table data and reconcile the abstract with the reported results.
  3. [Section 3 (Evaluation)] All experiments appear to be single runs with no error bars, standard deviations, or confidence intervals. Since the reported speedups are only a few percent, they are within the typical run-to-run variation of GPU training time. In addition, validation accuracy is recorded only every ten epochs, so the 'best validation accuracy' is a coarse sample. The authors should run multiple seeds for each configuration and report the mean and variance (or at least the observed range) for both wall-clock time and validation accuracy. Without this, the central empirical claim is not established.
minor comments (5)
  1. [Section 2.2] 'tf.py func' should be written as 'tf.py_func'.
  2. [Section 3.4] The phrase 'in now line with its poor loss curve' appears to be a typo; it should likely be 'in line with' or 'no longer in line with'.
  3. [Section 4] 'its performance serious lags other methods' should be 'its performance seriously lags other methods'.
  4. [Section 3] The training setup does not specify key hyperparameters such as batch size, initial learning rate, learning rate decay schedule, weight decay, or the exact number of training steps; providing these details would improve reproducibility.
  5. [Section 2.4] The notation for the filter tensor dimension 'KKC iCo' is unclear without explicit multiplication signs or subscripts; please define the dimensions unambiguously.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the speedup and convergence claims are benchmarked against external baselines, and no prediction reduces to a fitted input or self-citation.

full rationale

The paper's derivation chain is self-contained and does not reduce to its inputs by construction. The central speedup claim is measured against NVIDIA cuDNN v7.4.2, an external baseline, using wall-clock timing on a Titan-Xp GPU, so the headline result is not equivalent to a fitted parameter or a self-citation. The gradient approximation methods (zero, random, and top-k approximated gradients) are defined algorithmically, and the scale factor 1/128 and the 25% approximation schedules are hand-chosen and openly stated rather than fitted to the final validation accuracy or speedup. The paper contains no load-bearing self-citation: the cited works on sparsified backpropagation and meProp are prior external work, not the authors' own uniqueness claim. The Section 2.3 assertion that channel-sum scaling makes the top-k gradient estimate unbiased is a mathematical claim that may be incorrect, but incorrectness is a correctness risk, not circularity, because the claim is not derived from the target result and the experiments do not depend on it for their empirical comparison. The discrepancy between the abstract's 'upwards of 7%' and the body's 3.5% ResNet-20 speedup, and the absence of multiple seeds or error bars, are evidence-quality concerns, not circular construction. Therefore the appropriate circularity score is 0.

Assumptions & free parameters 3 free parameters · 3 assumptions · 0 invented entities

The paper's central claim rests on a small number of hand-chosen hyperparameters (scaling, schedule) and on two assumptions that are not proven: the locality of approximation error and the unbiasedness of the top-1 scaled estimate. The unbiasedness assumption is questionable.

free parameters (3)
  • Gradient scaling factor = 1/128
    Used to scale both the random and approximated gradients (Sections 2.2, 2.3). The paper states it is proportional to batch size, but no derivation is given; with Adam it may be absorbed, but it is still a hand-chosen constant.
  • Approximation schedule = every fourth conv layer starting from second, all batches (schedule 1); other schedules in Section 3.4
    The fraction of approximated computation (25%) and the layer/batch selection are chosen by hand, and the paper notes that determining the optimal schedule is future work.
  • Training epochs = 500/250/200 for the three networks
    Training length is chosen as the point where validation accuracy stabilizes; this is standard but adds flexibility in the results.
assumptions (3)
  • domain assumption Approximating weight gradients is safe because errors remain local and do not propagate to other layers.
    Stated in Section 5 (Future Work): 'if we approximate the hidden activations at a deeper layer of the network, the approximation error will be propagated to the shallower layers. Due to this concern, we start with approximating filter weight gradients, where the effect of errors are local.' This assumption underlies why the method can be applied selectively.
  • ad hoc to paper The top-1 selection with channel-sum scaling yields an unbiased gradient estimate.
    Claimed in Section 2.3 without proof. Deterministic selection of the largest magnitude element and scaling by the channel sum preserves the sum but not the individual coordinates, so the resulting filter gradient is generally biased.
  • domain assumption cuDNN v7.4.2 is a representative baseline for full gradient computation.
    Used in Section 3.1 for all timing benchmarks; the speedup claims are relative to this single library.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Accelerated CNN Training Through Gradient Approximation." pith.science (2026). https://pith.science/paper/MKNUG7SU

@misc{pith2026190805460,
  author       = {Pith},
  title        = {Pith review of: Accelerated CNN Training Through Gradient Approximation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/MKNUG7SU}},
  note         = {Machine review of arXiv:1908.05460}
}
read the original abstract

Training deep convolutional neural networks such as VGG and ResNet by gradient descent is an expensive exercise requiring specialized hardware such as GPUs. Recent works have examined the possibility of approximating the gradient computation while maintaining the same convergence properties. While promising, the approximations only work on relatively small datasets such as MNIST. They also fail to achieve real wall-clock speedups due to lack of efficient GPU implementations of the proposed approximation methods. In this work, we explore three alternative methods to approximate gradients, with an efficient GPU kernel implementation for one of them. We achieve wall-clock speedup with ResNet-20 and VGG-19 on the CIFAR-10 dataset upwards of 7%, with a minimal loss in validation accuracy.

Figures

Figures reproduced from arXiv: 1908.05460 by the authors.

Figure 1
Figure 1. Forward and backward propagation through a convolu [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3
Figure 3. Example approximation schedule for a 5-layer network [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

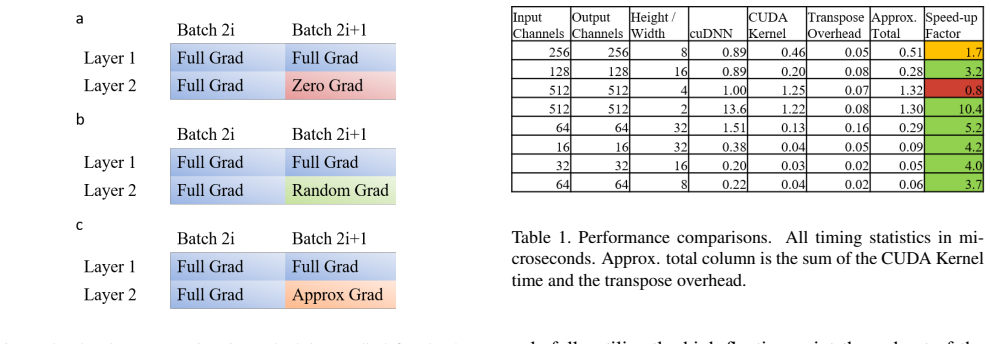

Figure 4
Figure 4. The three approximation schedules studied for the 2- [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figures from the paper (3 more)
Figure 6

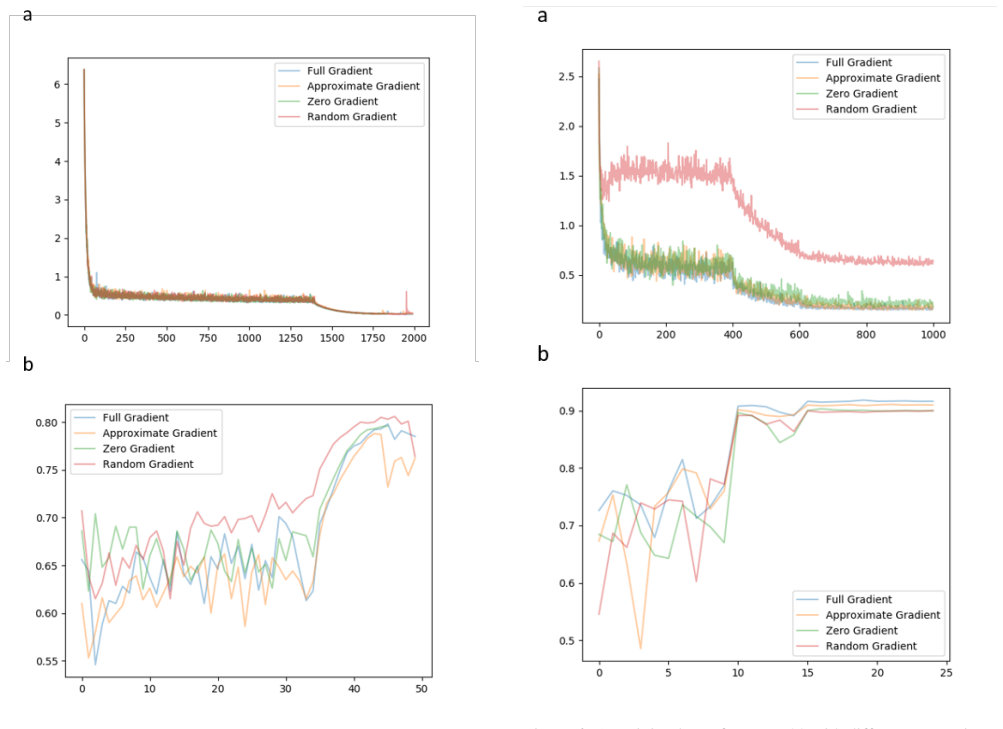

Figure 6. Figure 6: a) Training loss of ResNet-20 with different approxima [PITH_FULL_IMAGE:figures/full_fig_p005_6.png]
Figure 7
Figure 7. Figure 7: a) Training loss of VGG-19 model with different approx [PITH_FULL_IMAGE:figures/full_fig_p006_7.png]
Figure 8
Figure 8. Figure 8: a) Training loss of ResNet-20 with different approxima [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
