RIO: 3D Object Instance Re-Localization in Changing Indoor Environments

T0 review · 5 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Re-localizing moved objects in changing rooms hits 30.58% recall with a new benchmark

desk verdict 3RScan is the real prize and it is solid; the RIO benchmark numbers need metric reconciliation and annotation-quality evidence before the method claims can be fully trusted. read the letter →

arxiv 1908.06109 v1 pith:E5SDBGL3 submitted 2019-08-16 cs.CV

Johanna Wald , Armen Avetisyan , Nassir Navab , Federico Tombari , Matthias Nie{ss}ner This is my paper · ORCID
classification cs.CV
keywords 3Dobjectinstancere-localization6DoFposeestimationRGB-Dbenchmarkdataset3RScanchangingindoorenvironmentsmulti-scaleTSDFfeaturescorrespondencematchingtripletloss
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper claims that the field can now study a question it has mostly ignored: where do everyday objects end up when a room is scanned again weeks or months later? To make this concrete it introduces RIO, 3D object instance re-localization, and 3RScan, a dataset of 1,482 real RGB-D scans of 478 environments, each environment re-scanned over time with instance-consistent semantic labels and ground-truth 6DoF poses for 3,289 object transformations. It then argues that re-localization reduces to correspondence matching with change-invariant features, learned by a fully-convolutional multi-scale network over TSDF patches and fine-tuned on patches from moved objects. On the new benchmark the method reports 30.58% class-averaged recall at $0.2\,\text{m}$ and $20^\circ$ tolerances, above FPFH, SHOT, and 3DMatch. A sympathetic reader would care because reliable re-localization is a step toward robots and assistants that track objects as the world actually changes, not in a frozen scan.

What carries the argument

The central object is the multi-scale, fully-convolutional 3D correspondence network. Its input is a $32\times32\times32$ TSDF patch extracted at two spatial scales, $(0.6\,\text{m})^3$ for fine detail and $(1.2\,\text{m})^3$ for surrounding context, and it inverts the TSDF as $\widehat{\text{TSDF}} = 1 - |\text{TSDF}|$ so gradients are strong near surfaces. Two single-scale encoders feed a multi-scale encoder that outputs the descriptor, and a triplet loss pulls matching patches together while pushing negatives apart. The other load-bearing mechanism is the dataset's annotation pipeline: object poses are computed by Procrustes on manually placed keypoint correspondences, the global scan alignment comes from 2D/3D ICP, and symmetry classes (C2, C4, C∞) are recorded so evaluation tolerates ambiguous rotations.

What would settle it

Re-derive a random subset of the 3,289 annotated object transformations with an independent protocol, such as per-object ICP against the raw RGB-D frames or a second team of annotators, and recompute the recall table: if the margin between RIO-multiscale and SHOT narrows or the 30.58% figure shifts by more than a few points, the reported accuracies are partly artifacts of the keypoint-annotation protocol. As a complementary check, run the same pipeline restricted to the non-rigid instances the paper sets aside; near-zero recall there is the expected, testable boundary of the method.

Watch

Extended reading notes

Core claim

On its own terms, the paper establishes two coupled results. First, 3RScan is claimed to be the first large-scale real-world RGB-D dataset with multiple time steps of the same environments, dense instance-level semantic labels whose IDs stay consistent across re-scans, and explicit ground-truth transformations for moved, added, and removed objects, together with symmetry annotations (C2, C4, C∞) so ambiguous poses can be scored fairly. Second, object re-localization is cast as correspondence matching between multi-scale TSDF patches: a network with two single-scale encoders, one at $(0.6\,\text{m})^3$ and one at $(1.2\,\text{m})^3$ resolution, feeding a multi-scale encoder that outputs a 512-dimensional descriptor, trained with a triplet loss first on self-supervised static patches and then fine-tuned (with early layers frozen) on dynamic patches sampled from the moved-object alignments. Combined with RANSAC and an SVD-based 6DoF pose optimization, the method reaches 30.58% class-averaged recall at $<0.2\,\text{m}$ and $<20^\circ$, with overall instance-level recall of 23.76%, and lifts matching F1 from 85.58 (static-only) to 94.37 (fine-tuned).

Load-bearing premise

The benchmark's ground-truth poses are computed from a few manually clicked keypoint correspondences fit with Procrustes, layered on a global 2D/3D ICP scan alignment with no reported uncertainty, and the method only models rigid changes, so noisy alignments or any non-rigid move would silently corrupt the training labels and every reported accuracy.

Editorial extensions

If this is right

  • 3RScan supplies a public benchmark with a hidden test set and automatic server-side evaluation, so future re-localization methods can be compared on identical ground rather than on each lab's own scans.
  • Multi-scale context is the decisive design choice: the multi-scale network trained on static data alone already beats every single-scale variant by a wide margin, pointing future descriptors toward encoding neighborhood context.
  • Fine-tuning on dynamic patches nearly doubles re-localization recall (from 17.75 to 23.76 at the loose threshold) and lifts matching F1 to 94.37, showing that change-specific training data, not architecture alone, carries much of the gain.
  • Hand-crafted descriptors remain competitive on richly structured objects such as beds and sofas, so the learned approach's edge is concentrated on less distinctive, portable objects.
  • Because 22% of annotated instances are symmetric and are scored against all valid poses, the reported recall is neither inflated nor deflated by ambiguity.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The large jump from static-only to fine-tuned features, with recall saturating near 30%, suggests context scale and dynamic training data are the two main levers; a natural next experiment is fusing RGB texture with geometry or adding a third mid-range scale, which the released data and benchmark make straightforward to test.
  • The benchmark is built on the rigid-motion assumption, and the paper names non-rigid changes (curtains, blankets) without evaluating them; isolating those instances in the released annotations would quantify how much of the remaining 70% error is deformation rather than matching failure.
  • The manual-keypoint/Procrustes ground truth has no reported uncertainty; perturbing ground-truth poses by a few centimeters and degrees and re-running evaluation would reveal how much of the margin over SHOT is real versus inherited from the annotation protocol.
  • Held against prior real data with change annotations (only 23 scans of 3 rooms), the dataset's 1,482 scans and 3,289 object transformations change what can be trained and benchmarked for long-term scene understanding even independently of the network results.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. The paper introduces a new task, 3D object instance re-localization (RIO), together with a large-scale dataset, 3RScan, containing 1482 RGB-D scans of 478 environments captured at multiple time steps with instance-consistent semantic labels and 6DoF annotations for moved objects. The authors propose a multi-scale fully-convolutional 3D correspondence network operating on TSDF patches, trained with a triplet loss and fine-tuned on dynamic patches, and they evaluate it on a new benchmark against hand-crafted baselines (FPFH, SHOT) and a learned baseline (3DMatch). The paper reports that the proposed method outperforms the baselines, with a class-averaged recall of 30.58% at the 0.2 m / 20 degree threshold.

Significance. If the results hold, 3RScan is a valuable community resource for long-term scene understanding, being the first large-scale real-world RGB-D dataset with repeated scans of the same environments, instance-consistent labels, and ground-truth 6DoF annotations for changed objects. The hidden test set and server-side evaluation are commendable. The multi-scale TSDF descriptor also appears to be an effective and transferable approach for matching geometry under change. However, the trustworthiness of the headline numbers rests on the accuracy of the ground-truth pose annotations, which are not quantified in the paper, and the reported metric in the abstract is not the same as the instance-level recall in Table 4. These issues need to be addressed before the quantitative claims can be fully accepted.

major comments (5)
  1. [Abstract; Table 4; Table 5] The abstract reports an 'accuracy of 30.58%', but Table 4 reports 23.76% instance-level recall at the <0.2 m, 20 degree threshold; the 30.58% figure is the macro-averaged per-class accuracy from Table 5. The paper should state which metric is the headline, report both numbers consistently, and explain why the class-averaged number is preferred. As written, the abstract overstates the performance relative to the instance-level results.
  2. [Sec. 3.3.2; Supplemental 'Scene Matching and Alignment'] The ground-truth 6DoF poses are obtained by manual keypoint correspondences and Procrustes alignment, and the global scan-to-scan transformation T is computed by 2D/3D ICP. The paper reports no quantitative quality measure for these annotations, such as residual keypoint errors, ICP fitness scores, or inter-annotator agreement. Since these annotations are used both for the dynamic fine-tuning (Sec. 4.4) and for evaluation at tight thresholds (t<=10 cm/20 cm, r<=10 deg/20 deg), annotation noise propagates into all reported recalls and into the learned method itself. The paper should provide a quality analysis of the ground-truth poses and a sensitivity analysis of the benchmark scores to plausible annotation noise.
  3. [Sec. 4.4; Abstract/Introduction] The paper describes the dynamic fine-tuning as 'self-supervised' while stating that 'correspondence pairs are generated in a self-supervised fashion while using the ground truth pose annotations of our training set.' This is contradictory: using ground-truth object poses to generate positive training pairs is supervised training. The static pre-training is self-supervised, but the dynamic stage is supervised by the dataset's 6DoF annotations. The claims in the abstract and introduction should be corrected to distinguish these two stages and avoid overstating the method's self-supervision.
  4. [Sec. 5.2; Table 4] The text states that 3DMatch was trained on static 30x30x30 patches from 3RScan, but Table 4 labels the method '3DMatch (dynamic)'. This inconsistency makes it unclear whether the learned baseline was fine-tuned on dynamic patches or not. The paper should clarify the exact training protocol for 3DMatch and, if it was not given dynamic fine-tuning, either perform that fine-tuning or relabel the row and temper the comparison accordingly.
  5. [Tables 3-5] All reported numbers are single-run point estimates without error bars or confidence intervals. For example, Table 5 shows 0.00 vs 10.34 for the 'cushion' class, which is unlikely to be statistically meaningful with small sample sizes. Reporting standard deviations over multiple runs, or at least per-instance counts and confidence intervals, would make the claimed improvements more credible.
minor comments (5)
  1. [Eq. (2)] The triplet loss equation appears to have a stray 'N' inside the summation; it should be sum_{i=1}^{N} [ ||f_a^i - f_p^i||_2^2 - ||f_a^i - f_n^i||_2^2 + alpha ].
  2. [Sec. 4.1] The phrase 'their corresponding voxel sizes are 1.875 cm and 3.75 cm' should specify which scale corresponds to which voxel size (0.6 m => 1.875 cm, 1.2 m => 3.75 cm).
  3. [Sec. 5.1] The metrics in Table 3 (F1, accuracy, precision, FPR, ER) are said to be computed 'at 95% recall', but the paper does not explain how the operating threshold is selected; please define the protocol.
  4. [Sec. 4.2] The network takes fixed-size 32x32x32 patches and outputs a single 512-dimensional vector; calling it 'fully-convolutional' may be misleading to readers, since there is no dense prediction.
  5. [Sec. 3.2] The paper states that 'changes are mostly rigid' but the method only solves rigid transformations; it should explicitly state whether non-rigid changed objects (e.g., curtains) are excluded from the benchmark or handled separately.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: dataset construction, supervised training, and benchmark evaluation are distinct stages, and the reported results are empirical rather than derived from the inputs by construction.

full rationale

The paper's central claims are (1) the introduction of the 3RScan dataset and RIO benchmark, and (2) a learned multi-scale correspondence network that outperforms FPFH, SHOT, and 3DMatch on that benchmark. Neither claim reduces to its own inputs by construction. The benchmark ground truth is an independently produced annotation layer: global scan alignment is computed via 2D/3D ICP, per-object 6DoF poses come from manual keypoint correspondences plus Procrustes, and symmetry labels follow an established annotation scheme. The network is trained on the train split and evaluated on a held-out test split with fixed thresholds (`t <= 10 cm, r <= 10 deg` and `t <= 20 cm, r <= 20 deg`), so the reported recall numbers are standard supervised evaluation, not a tautology. Section 4.4 says correspondence pairs are 'generated in a self-supervised fashion while using the ground truth pose annotations,' which is a misnomer for supervised training, but it does not make the evaluation circular: the GT annotations define the learning signal, not the predicted output at test time. The citations to Scan2CAD and ScanNet are annotation-tool and preprocessing provenance or baseline references, not load-bearing derivations; no uniqueness theorem or pre-baked ansatz is imported from those works to force the result. Possible concerns about unquantified annotation noise and the Table 4 label '3DMatch (dynamic)' conflicting with the static training description in Sec. 5.2 are evidence-quality and reporting-fairness issues, not circularity. The descriptor network is a new learned component, and its advantage over the baselines is an empirical outcome, not a built-in consequence of the dataset definition.

Assumptions & free parameters 4 free parameters · 5 assumptions · 0 invented entities

The central contribution is a dataset and an empirical method, so the ledger contains no new physical entities. The claims rest on annotation quality, rigid-object modeling, hand-set scales and thresholds, and unspecified network details. The main uncharged cost is the assumption that ground-truth alignments and global scan registration are accurate; no independent verification is provided.

free parameters (4)
  • TSDF patch spatial scales = 1.2 m and 0.6 m patch widths; 3.75 cm and 1.875 cm voxels
    Hand-selected dual resolutions for the single-scale encoders; the claimed multi-scale advantage depends on this choice (Section 4.1).
  • Triplet loss margin alpha = 1
    Set by hand; the embedding's positive/negative separation threshold depends on it (Section 4.3).
  • Success thresholds for the benchmark = t<=10 cm/r<=10 deg and t<=20 cm/r<=20 deg
    Define successful re-localization; all reported recall numbers are sensitive to these thresholds (Section 3.4).
  • Network architecture hyperparameters = not specified
    Layer counts, channel sizes, pooling configuration, and RANSAC parameters are not reported in the paper, preventing exact reproduction (Sections 4.2 and 4.5).
assumptions (5)
  • domain assumption Moved objects can be treated as rigid bodies
    The method solves only rigid transformations; non-rigid changes such as curtains are acknowledged but not handled (Section 3.2).
  • domain assumption Ground-truth pose annotations are accurate
    Transforms come from manually placed keypoints and Procrustes; no error bars are provided (Section 3.3.2).
  • domain assumption Global scan-to-scan alignments are correct
    All labels and propagations rely on global transformation T from 2D/3D ICP; errors propagate into all annotations (supplemental 'Scene Matching and Alignment').
  • domain assumption Instance IDs are consistent across re-scans
    Evaluation assumes the same object instance keeps one ID across re-scans, maintained by the annotation interface (Section 3.1).
  • domain assumption Symmetry classes assigned by annotators are correct
    Symmetry labels (C2, C4, C_infinity) are assigned by annotators and used when computing pose error; wrong labels change recall (Section 3.4 and supplemental Table 6).

how reviews work

0 comments
Cite this review

Pith. "Pith review of RIO: 3D Object Instance Re-Localization in Changing Indoor Environments." pith.science (2026). https://pith.science/paper/E5SDBGL3

@misc{pith2026190806109,
  author       = {Pith},
  title        = {Pith review of: RIO: 3D Object Instance Re-Localization in Changing Indoor Environments},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/E5SDBGL3}},
  note         = {Machine review of arXiv:1908.06109}
}
read the original abstract

In this work, we introduce the task of 3D object instance re-localization (RIO): given one or multiple objects in an RGB-D scan, we want to estimate their corresponding 6DoF poses in another 3D scan of the same environment taken at a later point in time. We consider RIO a particularly important task in 3D vision since it enables a wide range of practical applications, including AI-assistants or robots that are asked to find a specific object in a 3D scene. To address this problem, we first introduce 3RScan, a novel dataset and benchmark, which features 1482 RGB-D scans of 478 environments across multiple time steps. Each scene includes several objects whose positions change over time, together with ground truth annotations of object instances and their respective 6DoF mappings among re-scans. Automatically finding 6DoF object poses leads to a particular challenging feature matching task due to varying partial observations and changes in the surrounding context. To this end, we introduce a new data-driven approach that efficiently finds matching features using a fully-convolutional 3D correspondence network operating on multiple spatial scales. Combined with a 6DoF pose optimization, our method outperforms state-of-the-art baselines on our newly-established benchmark, achieving an accuracy of 30.58%.

Figures

Figures reproduced from arXiv: 1908.06109 by the authors.

Figure 1
Figure 1. 3D object instance re-localization benchmark: we want to robustly estimate the 6DoF pose (T1, T2, ...Tn) of changed rigid object instances from a segmented source to a target scan taken at a later point in time. Abstract In this work, we introduce the task of 3D object instance re-localization (RIO): given one or multiple objects in an RGB-D scan, we want to estimate their corresponding 6DoF poses in another 3D scan… view at source ↗
Figure 2
Figure 2. Example of a 3D scene pair of the 3RScan dataset. It provides: e) calibrated RGB-D sequences, a), b) aligned textured 3D reconstructions, c) dense instance-level semantic segmentation as well as d) symmetry-aware local alignment of changes. terns and changing geometric context. These make the use of hand-crafted geometric descriptors, such as FPFH [22] or SHOT [27], less effective. Similarly, learned 3D feature matc… view at source ↗
Figure 3
Figure 3. Instance ambiguities in presence of scene changes: since the instance mapping is unknown, multiple solutions are plausible, which we provide in our dataset from user annotations indicating all possibilities. input volumes are reduced to a 512-dimensional feature vector. It consists of two separate single scale encoders (SSE) and a subsequent multi-scale encoder (MSE). The two different input resolutions capture diff… view at source ↗
Figures from the paper (15 more)
Figure 4
Figure 4. Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: Example of the correspondences-based 3D instance alignment (right). 3D transformations are computed by manual annotation of corresponding keypoints on the objects (left, green) and the scene (center, red) respectively. cess the geometry of different context. To achieve…
Figure 6
Figure 6. Figure 6: Our multi-scale triplet network architecture: during training, each anchor (blue) is paired with a positive (green) and a negative sample (red). The network minimizes the distance between the positive samples and maximizes negative sample distances by processing two sc…
Figure 7
Figure 7. Figure 7: Qualitative results of 3D rigid object instance re-localization (RIO) of our learned multi-scale method in different changing environments. Different instances, taken from the reference scan, are visualized with different colors on top of the re-scan [PITH_FULL_IMAGE:…
Figure 8
Figure 8. Figure 8: Precision-Recall Curves (PRC) of the dynamic keypoint matching task, corresponding to the different methods evaluated and listed in [PITH_FULL_IMAGE:figures/full_fig_p008_8.png]
Figure 10
Figure 10. Figure 10: Number of scans with corresponding instance annota￾tion coverage. RGB-D sequences Our dataset consists of around 363k calibrated RGB-D and depth images. Since raw RGB and depth sequences from Tango are of varying frame rates and spatial resolution, a spatial and tempo…
Figure 9
Figure 9. Figure 9: Annotation Interface used for data acquisition. Scene Matching and Alignment For each uploaded scan, scene candidates are computed. Since a 3D scene matching is expensive scan pairs are found in 2D instead by conducing a similarity search in the texture uv-map of the m…
Figure 11
Figure 11. Figure 11 [PITH_FULL_IMAGE:figures/full_fig_p012_11.png]
Figure 12
Figure 12. Figure 12: Object statistics [PITH_FULL_IMAGE:figures/full_fig_p012_12.png]
Figure 13

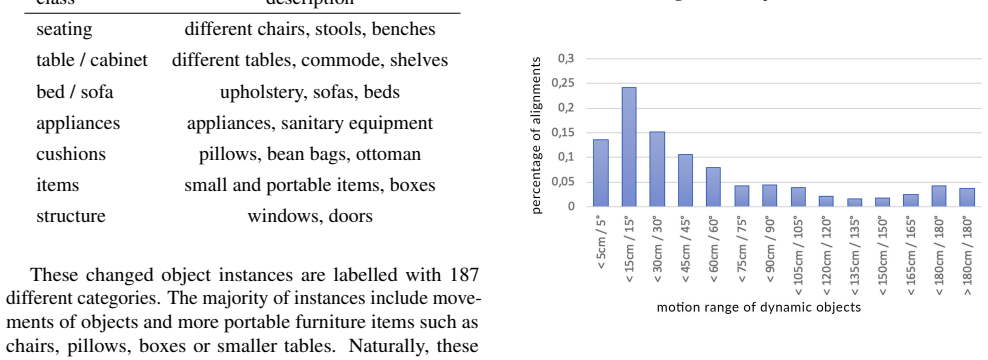

Figure 13. Figure 13: Histogram of object instance alignment binned using respective transformation or rotation change [PITH_FULL_IMAGE:figures/full_fig_p012_13.png]
Figure 14
Figure 14. Figure 14: Example 2D projections of the color and depth of two corresponding reconstructions with natural scene changes [PITH_FULL_IMAGE:figures/full_fig_p013_14.png]
Figure 15
Figure 15. Figure 15: List of mutually inclusive scene functionalities with corresponding visual examples, from top left to bottom right: (a) working, (b) sleeping, (c) eating, (d) entertainment, (e) seating, (f) storage, (g) reading, (h) food preparation, (i) cleaning and (j) personal hyg…
Figure 16
Figure 16. Figure 16: Instance Change Annotation Tool: Overview and selection view of the instance alignment annotation [PITH_FULL_IMAGE:figures/full_fig_p013_16.png]
Figure 17
Figure 17. Figure 17: Visualization of different annotated instances in scans of 3RScan [PITH_FULL_IMAGE:figures/full_fig_p014_17.png]
Figure 18
Figure 18. Figure 18: SLAM: Different 3D Scenes with Camera Trajectories in green used for training and generation of the static TSDF samples [PITH_FULL_IMAGE:figures/full_fig_p015_18.png]
