ShellNet: Efficient Point Cloud Convolutional Neural Networks using Concentric Shells Statistics

T0 review · 4 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Point-cloud convolution can be reduced to concentric shell statistics plus a shared one-dimensional kernel, and the paper reports that this simple recipe reaches state-of-the-art accuracy with much faster training than prior methods.

desk verdict ShellNet's shell-conv operator is a genuine, simple contribution, but the paper's state-of-the-art claims are contradicted by its own tables and need fixing before acceptance. read the letter →

arxiv 1908.06295 v1 pith:3NAX3NQS submitted 2019-08-17 cs.CV

Zhiyuan Zhang , Binh-Son Hua , Sai-Kit Yeung This is my paper · ORCID
classification cs.CV
keywords pointcloudconvolutionalneuralnetworksShellConvpermutationinvariancesphericalshellsmaxpooling3Dclassificationsemanticsegmentation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

ShellNet's central claim is that a point cloud can be learned with an unusually simple convolution: group each local neighborhood into concentric spherical shells, summarize each shell by max-pooling, and convolve the ordered shell summaries with an ordinary one-dimensional kernel. The paper argues that this removes point-order ambiguity without learned permutations or elaborate grouping, and that the resulting three-layer network is accurate yet far faster to train than prior point-cloud networks. If the claim is right, much of the complexity introduced by recent point-cloud convolutions is unnecessary for object classification and segmentation, and training speed can be treated as a first-class design goal rather than a cost paid for accuracy.

What carries the argument

The central object is ShellConv, a convolution operator that partitions a local point set into concentric spherical shells and reduces each shell to a fixed-size feature vector by max-pooling. Shells are constructed by sorting neighbor distances and assigning a fixed number of points per shell from inner to outer; convolution then runs over the naturally ordered shell vectors. This machinery resolves point-order ambiguity twice: the radial shell order is fixed by geometry, and max-pooling makes the content of each shell order-invariant. It also controls receptive field directly through the shell count and shell size, so a single ShellConv layer can observe a larger context without stacking more layers.

What would settle it

Construct two local neighborhoods that have identical shell-wise max-pooled features but different point arrangements within a shell, and check whether a downstream task can distinguish them: if ShellNet assigns the same output while a histogram-based or attention-based shell descriptor does not, the max-pooled shell statistics are discarding information the paper's accuracy claims depend on. Concretely, train ShellNet on ModelNet40 with shell size 1 so each shell is a single point and compare with shell size 16; a large gap would confirm that pooling over fixed-size shells, not just the radial order, is carrying the reported accuracy.

Watch

Extended reading notes

Core claim

ShellConv defines convolution on an unordered point set by giving it a radial order. Around each representative point, the nearest neighbors are sorted by distance and divided into a fixed number of spherical shells, each holding a fixed number of points; each shell is reduced to its per-channel maximum; and the sequence of shell vectors is passed through a 1D convolution whose weights are shared over all positions. The paper reports that ShellNet, a three-layer encoder built from ShellConv, reaches 93.1% overall accuracy on ModelNet40, 82.8% mean part IoU on ShapeNet, 85.2% mIoU on ScanNet, and 66.8% mIoU on S3DIS, with 69.4% on Semantic3D, while using about 0.48M parameters and reaching 90% classification accuracy after roughly 15 minutes of training. The paper presents these results as evidence that a simple, statistically aggregated radial partition can match or exceed the accuracy of more complex point-cloud operators at a fraction of the training cost.

Load-bearing premise

The load-bearing premise is that sorting a fixed number of nearest neighbors by distance and pooling each resulting shell with a per-channel maximum preserves enough local shape information for classification and segmentation; if point density varies too sharply, or a shell's few points fail to represent the local surface, the fixed-size representation misses geometry that a more flexible operator would capture.

Editorial extensions

If this is right

  • The learned X-transformation used by PointCNN is not needed: a fixed radial ordering plus max-pooling provides the ordering that convolution requires, eliminating a significant source of training cost.
  • Receptive field size becomes a tunable property of a single layer through shell size and number of shells, so a three-layer network can match or exceed the context of deeper networks on the tested benchmarks.
  • ShellConv works in both encoder and decoder roles inside a U-net-style architecture, so the same operator transfers from classification to dense part and scene segmentation.
  • On the reported comparisons, ShellNet is lightweight, using 0.48M parameters and lower FLOPs than compared networks, so the accuracy results are not bought with model capacity.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The radial ordering is independent of the choice of max-pooling: replacing max with mean, variance, or a learned attention over points in each shell would remain permutation-invariant and could recover distributional structure that max-pooling discards; this is a natural extension the paper does not test.
  • The fixed-points-per-shell construction is a form of adaptive radial binning; on datasets with strongly varying density, making shell boundaries depend on local density or on a fixed radius could change robustness, which the paper's sparse-data experiment leaves open.
  • Because the shell representation is a fixed-length sequence, ShellConv could be combined with sequence or attention models over shells, connecting this architecture to point-cloud transformers without changing the shell construction.
  • The paper's own robustness test shows partial point clouds lose accuracy mainly at boundaries; adding shell count or density as extra features is a concrete way to test whether the loss comes from the fixed-size shell assumption.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper proposes ShellConv, a permutation-invariant convolution operator for point clouds that partitions each local neighborhood into concentric spherical shells, assigns a fixed number of points per shell by sorted distance, max-pools point features within each shell, and applies a 1D convolution over the shell features. The authors build a lightweight network, ShellNet, with three encoding ShellConv layers and a U-net-like decoder for segmentation, and report experiments on ModelNet40 classification, ShapeNet part segmentation, ScanNet/S3DIS/Semantic3D semantic segmentation, and efficiency comparisons. The central claims are that ShellConv resolves point-order ambiguity, enlarges receptive fields without extra layers, and that ShellNet achieves state-of-the-art accuracy and speed across all experiments.

Significance. The core operator is simple and well-defined: fixed-cardinality distance-sorted shells with max-pooling are a clean way to obtain a permutation-invariant local representation, and the resulting network is very lightweight (0.48M parameters). The paper provides a public code release and evaluates on four standard benchmarks, which is a useful contribution if the numbers are reproducible. However, the claimed 'state-of-the-art for both accuracy and speed' is not supported by the paper's own tables, and the experimental protocol is under-specified. These issues are localizable and fixable, so a careful revision could make the contribution acceptable.

major comments (4)
  1. [Abstract, Section 5 (opening), Conclusion] The claim that ShellNet achieves 'state-of-the-art performance for both accuracy and speed in all the experiments' is contradicted by the paper's own data. In Table 2, ShellNet's ShapeNet part-segmentation mpIoU is 82.8, below PointCNN's 84.6, and its Semantic3D mIoU is 69.4, below SPG's 73.2. In Table 3, PointCNN has lower training/inference time (0.031s/0.012s) than ShellNet (0.066s/0.023s). The authors must either revise these statements to a defensible form (e.g., 'competitive accuracy with fast convergence') or provide additional evidence that justifies a specific, qualified sense of state-of-the-art.
  2. [Section 5.4, Table 3] The sentence 'For all three metrics, ShellNet is better than existing methods' is false for the time metric, as PointCNN is faster in both training and inference per iteration. The comparison is also not apples-to-apples without specifying the exact implementation, GPU model, batch size, and whether the reported times include neighbor search and data loading. The 'small RF' row uses a non-default configuration that is not the network used in the accuracy tables. Please report the measurement protocol and, if possible, time PointCNN and ShellNet under identical conditions.
  3. [Section 5.1, 5.2, 5.3] The dataset preparation is under-specified: Section 5.3 states only 'We follow PointCNN' for ScanNet, S3DIS, and Semantic3D, without describing the exact train/validation/test splits, point sampling density, feature normalization, or evaluation protocol. Because representative points are randomly sampled in ShellConv, the reported single-run numbers (e.g., 85.2 vs 85.1 on ScanNet; 66.8 vs 65.4 on S3DIS) may be within run-to-run variation. Provide the number of runs, standard deviations, or a fixed random seed so the claimed margins can be assessed.
  4. [Section 5.3, Table 2] Even the more modest statement in the part-segmentation paragraph, 'our method outperforms most of the state-of-the-art techniques,' is difficult to reconcile with Table 2, where ShellNet's ShapeNet mpIoU (82.8) is lower than SplatNet (83.7), PointCNN (84.6), and the original table entry for SyncCNN (82.0). If the authors intend to claim competitiveness rather than superiority, the text and abstract should be revised accordingly.
minor comments (5)
  1. [Section 5.5] The sentence 'Our method is without limitation' is immediately followed by 'more investigations into its robustness is required,' which is internally contradictory. Please rewrite this passage to state plainly that robustness to sparse and partial data is a limitation that needs further study.
  2. [Algorithm 1, line 4] The line '{F (q)}←{ [Fprev(q), Flocal(q)}' has a mismatched bracket; it should be '[Fprev(q), Flocal(q)]'.
  3. [Section 4] In the classification description, 'Finally, we obtain a128× kcls matrix' is unclear: after the MLP module, a matrix of size N2 x kcls would be expected, and the reduction from N2 representative points to a single class prediction is not described. Please clarify the global pooling or aggregation step.
  4. [Table 2] The row 'SyncCNN' appears to refer to reference [45], which is titled 'SyncSpecCNN'; please use a consistent name. Also, several methods have missing entries (e.g., PointNet++ on S3DIS); consider adding a note explaining why those entries are absent.
  5. [Figure 1] The equal-time and equal-epoch comparisons in Figure 1 would be easier to interpret if the authors specified which methods are plotted, the exact hardware, and whether all timings were measured on the same GPU with the same batch size.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity found; ShellConv is a proposed architecture evaluated against external benchmarks, with no fitted parameter renamed as a prediction.

full rationale

The paper contains no claimed derivation that reduces to its own inputs. ShellConv is defined directly as a convolution over concentric spherical shells with maxpooled per-shell statistics (Eq. 2, Eq. 3, Algorithm 1), and the accuracy and speed claims are empirical comparisons on ModelNet40, ShapeNet, ScanNet, S3DIS, and Semantic3D. There are no parameters fitted to a subset of data and then reported as predictions of a related quantity; the shell size, number of shells, and channel counts are architecture choices, not fitted values. The only self-citation by the present authors is reference [12], cited in the introduction and related work as prior pointwise convolution that is "simple to implement but inaccurate," and it is not load-bearing for the proposed method. No uniqueness theorem is imported from the authors' prior work, and no ansatz is smuggled in via citation; the shell construction is explicitly described as "a simple heuristics approach" in Section 3. Whether the state-of-the-art claims are fully supported by Tables 2 and 3 is a correctness concern, not a circularity concern, and external benchmark protocols make the evaluation independently checkable. Accordingly, no circular step is present and the score is 0.

Assumptions & free parameters 3 free parameters · 3 assumptions · 0 invented entities

The central claim rests on architectural choices (shell size, shell counts, point sampling rates) and on a heuristic shell construction, not on derived constants or new entities. No free parameters are fitted to data in the physics sense, but the hyperparameters above are hand-tuned and affect all reported results.

free parameters (3)
  • shell size ss (points per shell) = 16 for classification, 8 for segmentation
    Hand-selected in Section 5.1; tested values 8, 16, 32, 64. The 93.1% ModelNet40 result uses ss=16, and ss=32 also gives 93.1%. This choice directly controls receptive field and runtime.
  • per-layer shell counts S0, S1, S2 = 4, 2, 1
    Set in Section 5.1 to define the receptive field of the three encoding layers; the network's accuracy and speed depend on these values.
  • representative point counts N0, N1, N2 = 512, 128, 32
    Set in Section 5.1; these downsampling choices control the spatial resolution and computational cost of each layer.
assumptions (3)
  • standard math Max pooling over points in a shell is a symmetric function, so the shell feature is invariant to point order.
    Section 3, Eq. (3). This is a well-known property of max pooling.
  • domain assumption Euclidean nearest-neighbor search in 3D coordinates defines meaningful local neighborhoods for point clouds.
    Section 3 'Spherical Shells Construction' and Algorithm 1 line 2. The method assumes spatial proximity is the right notion of locality.
  • ad hoc to paper A fixed number of points per shell provides useful stratification of local point distributions.
    Section 3: 'we assign a fixed number of points to each shell... this approach of shells construction provides a good stratification.' No theoretical guarantee is given.

how reviews work

0 comments
Cite this review

Pith. "Pith review of ShellNet: Efficient Point Cloud Convolutional Neural Networks using Concentric Shells Statistics." pith.science (2026). https://pith.science/paper/3NAX3NQS

@misc{pith2026190806295,
  author       = {Pith},
  title        = {Pith review of: ShellNet: Efficient Point Cloud Convolutional Neural Networks using Concentric Shells Statistics},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/3NAX3NQS}},
  note         = {Machine review of arXiv:1908.06295}
}
read the original abstract

Deep learning with 3D data has progressed significantly since the introduction of convolutional neural networks that can handle point order ambiguity in point cloud data. While being able to achieve good accuracies in various scene understanding tasks, previous methods often have low training speed and complex network architecture. In this paper, we address these problems by proposing an efficient end-to-end permutation invariant convolution for point cloud deep learning. Our simple yet effective convolution operator named ShellConv uses statistics from concentric spherical shells to define representative features and resolve the point order ambiguity, allowing traditional convolution to perform on such features. Based on ShellConv we further build an efficient neural network named ShellNet to directly consume the point clouds with larger receptive fields while maintaining less layers. We demonstrate the efficacy of ShellNet by producing state-of-the-art results on object classification, object part segmentation, and semantic scene segmentation while keeping the network very fast to train.

Figures

Figures reproduced from arXiv: 1908.06295 by the authors.

Figure 1
Figure 1. The accuracy of point cloud classification of different [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

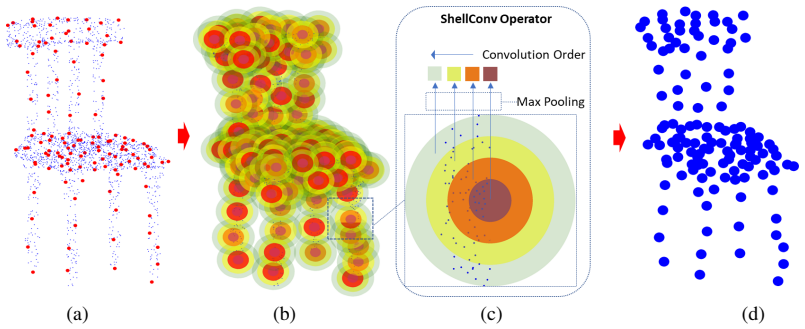

Figure 2. ShellConv operator. (a) For an input point cloud with/without associated features, representative points (red dots) are randomly [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. ShellNet architecture. For classification, we apply three layers of ShellConv before the fully connected classifier. For semantic [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (4 more)
Figure 4

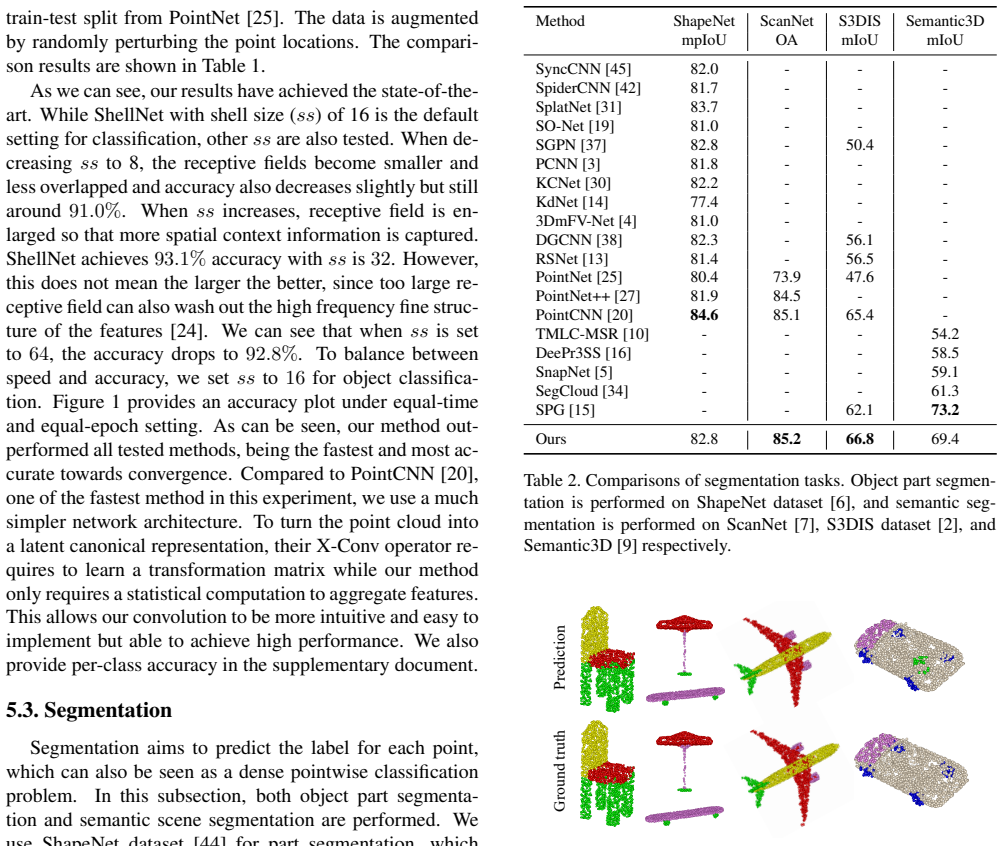

Figure 4. Figure 4: Object part segmentation with the ShapeNet dataset. The [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: Semantic segmentation for indoor scenes in the S3DIS dataset [2]. [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6
Figure 6. Figure 6: Semantic segmentation for outdoor scenes in the Semantic3D dataset [9]. Left: colored point clouds (for visualization only). [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 8
Figure 8. Figure 8: Part segmentation on sparse and partial point clouds. For [PITH_FULL_IMAGE:figures/full_fig_p008_8.png]
