Mono-SF: Multi-View Geometry Meets Single-View Depth for Monocular Scene Flow Estimation of Dynamic Traffic Scenes

T0 review · 3 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A monocular camera plus probabilistic depth can estimate 3D scene flow in traffic scenes, reaching a combined scene flow error of 21.60 on KITTI.

desk verdict Solid monocular scene flow paper with a fixable sign error in the core homography that needs correcting before acceptance. read the letter →

arxiv 1908.06316 v1 pith:E4GQEWHW submitted 2019-08-17 cs.CV

Fabian Brickwedde , Steffen Abraham , Rudolf Mester This is my paper · ORCID
classification cs.CV
keywords monocularsceneflowprobabilisticdepthestimationmixtureofGaussiansrecalibrationrigid-bodymotion3DplanesegmentationKITTIbenchmarkautonomousdriving
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Monocular scene flow — recovering each pixel's 3D position and 3D motion from two consecutive images of one camera — is ill-posed because scale is ambiguous. Mono-SF resolves this by fusing two sources: multi-view geometry, which warps the first image into the second via plane homographies, and single-view depth, supplied as per-pixel probability distributions by a network called ProbDepthNet. The paper claims that this joint probabilistic optimization, over 3D planes attached to rigid bodies, gives the best monocular scene flow result on the KITTI scene flow training set, with a combined scene flow error of 21.60. A second claim is that well-calibrated depth distributions matter: the ablation replacing probabilistic depth with point estimates raises the error, and removing recalibration raises it from 21.60 to 26.91. The reader should care because monocular cameras are cheaper and simpler than stereo rigs, so a working monocular scene flow pipeline is directly relevant to autonomous driving.

What carries the argument

The central object is the energy function over scaled plane normals $n_i$ and rigid-body motions $T_j \in SE(3)$. A pixel's 3D position is fixed by the scaled normal through $n_i^T X = 1$, and its motion is a homography $p_1 = K(R_j - t_j n_i^T) K^{-1} p_0$. This homography lets the same variables explain image warping and depth: the photometric term compares Census descriptors at the warped location, and the depth term evaluates the implied inverse depth $d_t$ under the ProbDepthNet density at both times. The optimization runs particle belief propagation over the normals and motions, with rigid-body poses initialized by jointly fitting sparse flow correspondences and ProbDepthNet depth.

What would settle it

Run Mono-SF on a KITTI sequence where a moving vehicle is deliberately not detected by the segmentation (for example, by withholding one object's ground-truth mask during evaluation); the optimization will assign that object's pixels to the background rigid body and output zero 3D motion, and the foreground scene flow error will jump by roughly the object's image-area fraction.

Watch

Extended reading notes

Core claim

Mono-SF models a traffic scene as piecewise 3D planes, each associated with a rigid body (the background or an instance detected by segmentation), and minimizes an energy with three terms: a Census-based photometric distance from warping the reference image into the next frame using the plane normal and the rigid motion; a negative log-likelihood term that scores the plane's implied inverse depth against ProbDepthNet's mixture-of-Gaussians depth densities at both timestamps; and pairwise smoothness priors on depth and orientation. ProbDepthNet is trained to output per-pixel inverse-depth distributions; its CalibNet subnetwork, trained on a separate split, rescales the variance and mixture weights to counter overconfident estimates. The paper reports a scene flow error of 21.60 on the KITTI scene flow training set, the best among the monocular methods compared, with ablations showing that each energy term and the recalibration step contributes to the final result.

Load-bearing premise

The method assumes every moving object is detected by an instance segmentation network and moves as one rigid body; a missed object is treated as static, so the optimization cannot recover its motion.

Editorial extensions

If this is right

  • A monocular camera can produce 3D scene flow competitive with stereo-based methods, provided the single-view depth uncertainty is well calibrated.
  • The warp-consistency energy could serve as a training signal for a network that predicts depth and motion, potentially replacing the iterative optimization at test time.
  • The reported ablation shows that probabilistic depth distributions are not a minor refinement: using the distribution instead of the mean lowers the combined scene flow error by several points.
  • The plane-plus-rigid-body representation yields per-object 6D motions and planar surfaces that downstream planning modules can consume directly.
  • The CalibNet recalibration approach applies to other probabilistic regression networks, including multi-hypothesis and probabilistic-layer alternatives, improving their calibration on the same data.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The recalibration step is generic: any regression network that outputs a distribution and overfits its training split could adopt a separately trained rescaling subnetwork, not just depth networks.
  • Running at about 41 seconds per image on a single CPU, Mono-SF is a proof of concept rather than a real-time system; a natural next step is distilling the optimized scene flow into a feed-forward network to remove the iterative loop.
  • Because a missed segmentation is structurally fatal, a testable extension is to add a fallback that re-estimates pixels with high photometric residual as new rigid bodies rather than letting them remain in the background.
  • The same formulation could transfer to stereo inputs by replacing the monocular depth term with a stereo disparity consistency term, although the paper does not test this variant.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper presents Mono-SF, a monocular scene flow method for dynamic street scenes. The scene is modeled as superpixel-based 3D planes, each assigned to a rigid body (the background or a Mask R-CNN instance). Mono-SF minimizes an energy with (i) a Census-based photometric term that warps the reference image into the next frame via a plane-induced homography, (ii) a term penalizing inconsistency with pixel-wise depth distributions from a proposed ProbDepthNet, and (iii) pairwise smoothness priors. ProbDepthNet outputs a mixture of Gaussians over inverse depth and includes CalibNet, a small network trained on a hold-out split to recalibrate variances and weights. Experiments on the KITTI scene flow training set report the best SF-all score (21.60) among the monocular baselines compared, and ablations support the benefit of probabilistic, recalibrated depth and of each energy term. The paper also reports the first monocular submission to the KITTI scene flow benchmark.

Significance. If the results withstand scrutiny, the contribution is solid and useful: a first monocular entry on the KITTI scene flow benchmark, a clean probabilistic integration of single-view depth into a plane-and-rigid-body scene flow framework, and a simple recalibration idea (CalibNet) that is shown to help across several probabilistic depth formulations on KITTI. The ablation studies in Tables 3 and 4 are a strength because they isolate the contributions of the proposed components. Nevertheless, the published derivation of the central homography is inconsistent with the stated plane convention, and the comparative evaluation lacks error bars and sensitivity analysis, so I cannot regard the claims as fully established in the present form.

major comments (3)
  1. [Sec. 3.2, Eq. (5)] The homography is printed as K(R_j - t_j n_i^T)K^{-1}, but the model states that each plane satisfies n_i^T X = 1. For a point X_0 on that plane, X_1 = R_j X_0 + t_j = (R_j + t_j n_i^T)X_0, so the induced homography is K(R_j + t_j n_i^T)K^{-1}. The minus sign is inconsistent with the stated convention and would change the warp for any nontrivial translation, including the fronto-parallel translation case. Because Eq. (5) defines the correspondences used in both Phi_pho and the t=1 part of Phi_svd, this is a load-bearing error in the published derivation. Please correct the equation or explicitly introduce a different plane convention, and confirm that the experiments were run with the corrected form.
  2. [Sec. 4.2, Table 1] The central empirical claim that Mono-SF outperforms state-of-the-art monocular baselines on scene flow is supported only by single point estimates on one dataset split. No error bars, per-sequence variance, or significance tests are reported. Given that the energy in Eq. (3) depends on hand-set weights Theta_0..Theta_4 and truncation thresholds tau_0..tau_2 (Sec. 3.2), the authors should provide a sensitivity analysis or scene-wise statistics to demonstrate that the reported margins are not an artifact of parameter tuning.
  3. [Sec. 3.2, Initialization and Table 1] The method assumes that every moving object is detected by Mask R-CNN and successfully paired across frames by sparse-flow voting; any missed instance is treated as static and its motion is not estimated. The paper does not report how often this occurs on the KITTI scene flow set or how the foreground (fg) and scene-flow (SF) metrics depend on segmentation and pairing quality. Please add such an analysis, or qualify the claims to make this dependency explicit.
minor comments (5)
  1. [Eq. (9)] Please use an explicit dot product notation, e.g., n_k · n_l, instead of |n_k n_l|, which is ambiguous.
  2. [Sec. 4.2, Table 2] Table 2 lists stereo-based methods without a clear statement that the comparison is not like-for-like because the sensor input differs; the text should state this explicitly.
  3. [General] The paper refers to supplementary material at several points, but no supplementary material is included in the submission; either include it or remove these references.
  4. [General] A statement on code availability would materially help reproducibility, especially in light of the Eq. (5) sign issue.
  5. [Sec. 4.2, Table 1] In Table 1, DMDE, S. Soup, and MFA are only evaluated on MRE; the statement that Mono-SF shows the best rating on most metrics should be narrowed to the metrics actually reported for all compared methods.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity; the central scene flow claim is benchmarked against independent KITTI ground truth and the depth network is trained on LiDAR/SGM data, not on the scene flow output.

full rationale

The paper's central claim, that Mono-SF outperforms monocular baselines on KITTI scene flow, is supported by comparisons to independent ground-truth data (Table 1) and to external published baselines. The single-view depth network, ProbDepthNet, is trained with a negative log-likelihood loss against SGM-completed LiDAR depth (Eq. 2), not against the scene flow result, so the scene flow accuracy is not an input recycled as an output. The ablations in Tables 3 and 4 compare variants of the same pipeline against the same external ground truth, which is a standard ablation and not a self-definitional prediction. The self-citations to prior Mono-Stixels work are used as a baseline and as methodological inspiration, not as an unverified load-bearing premise. No fitted parameter is renamed as a prediction; the CalibNet recalibration is trained on a hold-out split and evaluated by calibration curves and NLL. The apparent sign inconsistency in Eq. (5) noted by the skeptic is a mathematical correctness or reproducibility concern, not a circularity: it does not reduce the derived scene flow to the method's own inputs by construction. Overall, the derivation chain is self-contained against external benchmarks, and no circular step can be exhibited.

Assumptions & free parameters 5 free parameters · 5 assumptions · 0 invented entities

The Mono-SF result depends on a number of hand-set hyperparameters (energy weights, thresholds, particle counts) for which no sensitivity analysis is provided. The domain assumptions are the piecewise-planar scene model and the reliance on instance segmentation and single-view depth generalization. No new physical entities are introduced, so the invented_entities list is empty; CalibNet is a learned module, not a new entity with independent falsifiable evidence.

free parameters (5)
  • Number of Gaussian components K = 8
    Chosen architecture hyperparameter; not justified by an experiment.
  • Energy weights Theta_0..Theta_4 = not reported
    Hand-tuned weights for photometric, depth, and smoothness terms; no sensitivity analysis.
  • Truncation thresholds tau_0, tau_1, tau_2 = not reported
    Hand-tuned clipping values in the energy terms.
  • Belief propagation particles/iterations = 5 motion particles, 10 plane particles, 10 iterations
    Selected to balance runtime and accuracy; no ablation.
  • Training schedule for ProbDepthNet = 15 epochs, LR 1e-4 halved every 5, batch 4, image 512x256
    Standard training choices; not the central claim.
assumptions (5)
  • domain assumption Traffic scenes are approximated by piecewise planar surface elements and rigid bodies.
    Sec. 3.2 model description.
  • domain assumption Each detected object instance moves with a single 6D rigid body motion.
    Sec. 3.2 and Intro; pedestrians are assumed to be approximated by their dominant rigid motion.
  • domain assumption Mask R-CNN instance segmentation and sparse flow correspondences correctly identify and pair moving objects.
    Sec. 3.2 Initialization; if segmentation fails, object motion is not estimated.
  • domain assumption The depth distribution estimated by ProbDepthNet generalizes from its training split (KITTI raw) to the evaluation set.
    Sec. 4.1; training and evaluation are both KITTI-derived.
  • standard math Standard pinhole camera and SE(3) motion models apply.
    Used in homography warping Eq. 5.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Mono-SF: Multi-View Geometry Meets Single-View Depth for Monocular Scene Flow Estimation of Dynamic Traffic Scenes." pith.science (2026). https://pith.science/paper/E4GQEWHW

@misc{pith2026190806316,
  author       = {Pith},
  title        = {Pith review of: Mono-SF: Multi-View Geometry Meets Single-View Depth for Monocular Scene Flow Estimation of Dynamic Traffic Scenes},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/E4GQEWHW}},
  note         = {Machine review of arXiv:1908.06316}
}
read the original abstract

Existing 3D scene flow estimation methods provide the 3D geometry and 3D motion of a scene and gain a lot of interest, for example in the context of autonomous driving. These methods are traditionally based on a temporal series of stereo images. In this paper, we propose a novel monocular 3D scene flow estimation method, called Mono-SF. Mono-SF jointly estimates the 3D structure and motion of the scene by combining multi-view geometry and single-view depth information. Mono-SF considers that the scene flow should be consistent in terms of warping the reference image in the consecutive image based on the principles of multi-view geometry. For integrating single-view depth in a statistical manner, a convolutional neural network, called ProbDepthNet, is proposed. ProbDepthNet estimates pixel-wise depth distributions from a single image rather than single depth values. Additionally, as part of ProbDepthNet, a novel recalibration technique for regression problems is proposed to ensure well-calibrated distributions. Our experiments show that Mono-SF outperforms state-of-the-art monocular baselines and ablation studies support the Mono-SF approach and ProbDepthNet design.

Figures

Figures reproduced from arXiv: 1908.06316 by the authors.

Figure 1

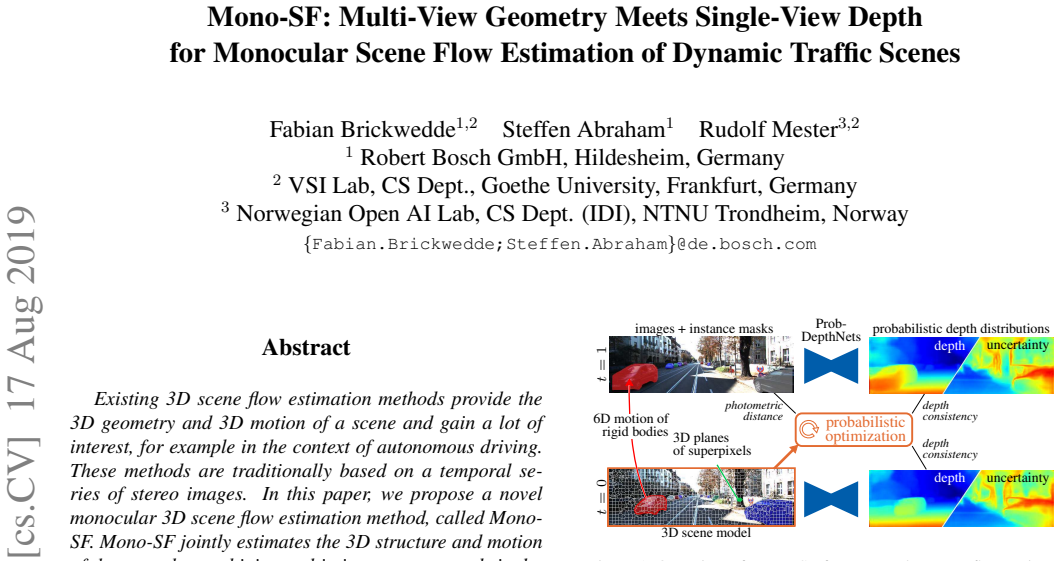

Figure 1. Overview of Mono-SF for monocular scene flow estima [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Overview of ProbDepthNet for probabilistic single-view [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Variables of Mono-SF model and energy minimization [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: Exemplary estimates of ProbDepthNet on KITTI scene flow set [ [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: Generalization of ProbDepthNet (trained on KITTI) on [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6
Figure 6. Figure 6: Top: Mean negative log-likelihood (NLL) of ProbDepth [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 7

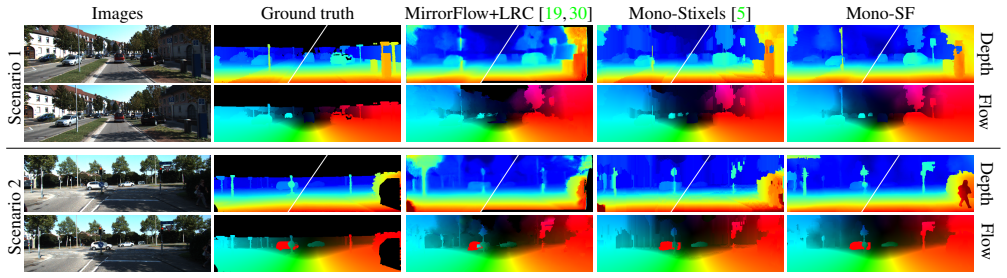

Figure 7. Figure 7: Exemplary qualitative results of monocular scene flow estimation methods on the KITTI scene flow training set [ [PITH_FULL_IMAGE:figures/full_fig_p007_7.png]
Figure 8
Figure 8. Figure 8: Exemplary qualitative result of Mono-SF on a crop of [PITH_FULL_IMAGE:figures/full_fig_p007_8.png]
