Fifteen-vertex models with non-symmetric $R$ matrices
T0 review · 3 major / 3 minor · reviewed 2026-08-14 · deepseek-v4-flash
Pith's one-line read The paper claims a full classification of regular fifteen-vertex ice-rule R matrices into four families, with three reflection K families valid for all of them.
desk verdict A plausible and useful extension of the author's differential method to non-symmetric fifteen-vertex R and K matrices, but the classification claim leans on an unproved reduction and the final matrices are never directly checked against the Yang-Baxter equation. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central mechanism is the algebraic-differential method. Instead of solving the functional Yang-Baxter equation directly, the paper differentiates (1.1) with respect to $u$ and with respect to $v$, evaluates at zero, and treats the derivatives $d_{ij}$ as independent algebraic variables; the resulting systems (A.1) and (A.2) are polynomial in the unknowns and can be solved algebraically. The still-undetermined elements are fixed by imposing consistency $d_{ij}=r'_{ij}$, which leaves a small system of ordinary differential equations whose solution gives the exponentials and hyperbolic functions in (1.3)-(1.8). Regularity $R(0)=P$ and $K(0)=I$ supplies initial conditions, and the same two-step scheme is applied to the boundary Yang-Baxter equation in Appendix B, with $B=K'(0)$ supplying the parameters $\beta_{ij}$.
What would settle it
Evaluate the reported R matrices (1.3)-(1.8) directly in the full Yang-Baxter equation (1.1) at generic numerical values of the free parameters and check whether every one of the $9^3$ component equations vanishes identically. The paper does not report such a substitution. Any nonzero component, or a numerical counterexample satisfying the differentiated systems but not (1.1), would invalidate the classification.
Extended reading notes
Core claim
The paper's central claim is that every regular $9\times 9$ R matrix of the fifteen-vertex ice-rule shape (1.2) satisfying the Yang-Baxter equation (1.1) falls into one of four families, and that every regular K matrix satisfying the boundary Yang-Baxter equation (2.1) falls into one of three families. The four R families share a common skeleton: the off-diagonal weights are exponentials $r_{24}=e^{\alpha_{24}u}$, $r_{42}=e^{\alpha_{42}u}$, $r_{37}=e^{\alpha_{37}u}$, $r_{73}=e^{(\alpha_{24}-\alpha_{37}+\alpha_{42})u}$, $r_{68}=e^{\alpha_{68}u}$, $r_{86}=e^{(\alpha_{24}+\alpha_{42}-\alpha_{68})u}$, while $r_{22},r_{44},r_{33},r_{77},r_{66},r_{88}$ are given by $e^{\frac12(\alpha_{24}+\alpha_{42})u}\sinh(\omega u)$ times constants. The four families differ only in the three remaining diagonal entries $r_{11},r_{55},r_{99}$, each of which is either $e^{\frac12(\alpha_{24}+\alpha_{42})u}\sinh[\omega(\eta+u)]/\sinh(\omega\eta)$ or the same with $(\eta-u)$, giving the assignments (1.5)-(1.8). The companion K classification states that any regular solution has one of the forms K1, K2 or K3 in (2.2), with coefficients displayed in (2.3)-(2.11), and that only three diagonal K matrices survive after normalization. The paper presents this as the first step toward a full classification of non-symmetric spin-1 vertex models and notes that the same method already produces non-symmetric nineteen-vertex solutions.
Load-bearing premise
The load-bearing premise is that solving the two differentiated algebraic systems (A.1)-(A.2) and then imposing $d_{ij}=r'_{ij}$ is exactly equivalent to solving the full functional Yang-Baxter equation (1.1); this equivalence is asserted from an earlier paper and is not proved here, and the final R matrices are not separately verified against (1.1).
Editorial extensions
If this is right
- Each of the four R families yields an explicit local Hamiltonian $H=R'(0)P$ with eight free parameters, so they translate directly into integrable spin-1 quantum chains.
- The four families contain previously known fifteen-vertex R matrices as special cases, and rational solutions appear through parameter limits; the novelty is that no symmetry of the weights is assumed.
- The same three K families solve the boundary Yang-Baxter equation for every one of the four R families, so every bulk solution admits integrable open-chain boundaries.
- The diagonal K limits reproduce the previously known diagonal reflection matrices, and the three surviving diagonal forms are independent of which of the four R families is chosen.
- Because the R matrices are non-symmetric, applying the usual nested-coordinate construction for exact eigenstates will require a generalization, as the paper notes.
Reading between the lines
- A direct componentwise check of (1.1) on the four families at random generic parameter values would settle the foundational equivalence claimed from the earlier method paper; the present text does not report such a substitution.
- If the same pipeline is applied to the nineteen-vertex shape, the announced non-symmetric solutions would probably contain the four fifteen-vertex families as special limits, giving a single hierarchy of spin-1 integrable models.
- A complete classification implies that within this vertex class the integrable ice-rule landscape is finite, allowing future work to enumerate all local Hamiltonians and search for phase transitions among them.
- The fact that the K matrices are independent of the chosen R family suggests that reflection equations may be classifiable separately from bulk Yang-Baxter equations for other vertex structures as well.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper claims to solve and classify all regular R matrices of fifteen-vertex ice-rule models with the sparsity shape (1.2), and to classify the associated reflection K matrices solving the boundary Yang-Baxter equation (2.1). Four families of R matrices are presented in Eqs. (1.3)–(1.8), parametrized by derivatives αij of the R-matrix elements at zero, and three families of K matrices are given in Eqs. (2.3)–(2.11) with constraints (2.5), (2.8), and (2.11). The derivation uses the algebraic-differential method from the author's earlier work [3], replacing the functional Yang-Baxter equation by differentiated algebraic systems. Special cases are reported to reproduce known fifteen-vertex R matrices.
Significance. If the classification is correct, the paper provides a complete family of regular fifteen-vertex R matrices with several free parameters, a useful contribution to integrable spin-1 models. It also gives explicit reflection K matrices, which are often harder to obtain. The formulas are explicit and reduce to known solutions in special limits. The main value lies in the completeness claim, but that claim rests on an unproved equivalence between the differentiated systems and the full Yang-Baxter equation; the paper never directly verifies the presented matrices against (1.1). The K-matrix classification is subject to the same caveat.
major comments (3)
- [Appendix A, Eqs. (A.1)–(A.2) and Section 3] The central reduction of the paper is the assertion that systems (A.1) and (A.2), obtained by differentiating the Yang-Baxter equation (1.1) with respect to one spectral parameter and setting the other to zero, are equivalent to the full equation. These are only necessary conditions: vanishing of ∂_v F(u,0) and ∂_u F(0,v) does not in general imply F(u,v)=0 for F(u,v)=R12(u)R23(u+v)R13(v)−R13(v)R23(u+v)R12(u). The equivalence is cited from ref. [3] and is not proved for the fifteen-vertex case, and the final families (1.3)–(1.8) are never substituted back into (1.1). Thus the four families may contain matrices that do not satisfy the Yang-Baxter equation, and the completeness claim in Section 3 is unsupported. The same caveat applies to the K-matrix classification in Appendix B, where only the necessary differentiated conditions (B.1)–(B.2) are solved.
- [Appendix A, Eqs. (A.18)–(A.19)] The reduction sets r37 = e^{α37 u} with the statement that r37 can be chosen as any function f(u) satisfying f(0)=1 and f'(0)=α37. The paper does not prove that this is a gauge choice: the differential system (A.18) for (r22, r24, r68) depends explicitly on r37 and d37/r37, so different choices of f lead to different solutions. Without an argument that any regular solution is gauge-equivalent to one with an exponential r37, this restriction may exclude valid solutions and invalidate the claimed classification.
- [Appendix A, first paragraph] The classification assumes that the non-null elements of the R matrix (1.2) are always different from zero. No justification or separate treatment is given for degenerate fifteen-vertex cases in which some of these entries vanish. Since the paper claims to classify all regular solutions of shape (1.2), this assumption must either be justified or the degenerate cases must be handled explicitly.
minor comments (3)
- [Eqs. (2.6) and (2.8)] The subscripts are written with commas in several places (e.g., "α 2, 4" instead of α24, "α 3, 7" instead of α37), which is inconsistent with the rest of the paper and should be corrected.
- [Appendix A, Eq. (A.3)] The definition of D(v) appears with a missing equals sign: it reads "D (v) ∂R(u+v)/∂u |_{u=0}" rather than "D(v) = ∂R(u+v)/∂u |_{u=0}".
- [Appendix A, last paragraph] The expression "H = HP" is confusing because H is used both for the Hamiltonian and for the derivative matrix D(0); the relation should read H = R'(0)P or should be rephrased to avoid ambiguity.
Circularity Check
The completeness of the R-matrix classification is carried by a self-cited equivalence between the Yang-Baxter equation and its differentiated form, while the explicit R and K families themselves are not circularly fitted.
-
self citation load bearing
[Appendix A, Eqs. (A.1)-(A.3) and the paragraph defining the method; used in Section 1 for the R classification.]
"Equations (A.1) and (A.2) are obtained by differentiating (1.1) with respect to the variables u and v, respectively, and then evaluating these derivatives at zero. ... we can say that the original system of functional equations (1.1) is actually replaced by two systems of algebraic equations for the unknowns rij and dij. ... See [3] for more details."
The central derivation replaces target equation (1.1) by differentiated systems (A.1)-(A.2), which are only necessary conditions: vanishing of derivatives at zero does not imply the full Yang-Baxter combination vanishes for all u and v. The assertion that this replacement is equivalent, and hence that the four families exhaust all regular solutions, is supported only by a citation to the author's earlier paper [3], which treated two-state models; no proof for the fifteen-vertex case and no direct substitution of (1.3)-(1.8) into (1.1) is supplied here. Thus the existence-and-completeness step of the derivation is carried by self-citation rather than by an independent proof or external verification.
full rationale
The explicit R and K families are not obtained by fitting parameters to the target equations; they are constructed from a solvable algebraic-differential system with free parameters αij and βij, so their content is not equivalent to the input by construction. The formulas (1.3)-(1.8) are genuine candidate solutions, and the K families in (2.3)-(2.11) are derived from the same method rather than renamed from known results. The circularity concern is limited to the load-bearing equivalence between (1.1) and the differentiated systems (A.1)-(A.2), which the paper imports from the author's previous work [3] without proving it for fifteen-vertex models. This is a substantive self-citation gap affecting the classification claim, but it does not make the derived matrices equal to the inputs, so a moderate score is appropriate.
Assumptions & free parameters
free parameters (8)
- alpha_11
- alpha_22
- alpha_24
- alpha_33
- alpha_37
- alpha_42
- alpha_66
- alpha_68
assumptions (4)
- ad hoc to paper The algebraic-differential method: the original Yang-Baxter equation (1.1) is equivalent to the two differentiated systems (A.1) and (A.2) together with consistency conditions d_ij = r'_ij.
- domain assumption All non-null elements of the R matrix (1.2) are assumed different from zero (generic case).
- domain assumption The ice-rule shape (1.2) with the given zero pattern is the only form considered.
- ad hoc to paper Gauge choice r37 = e^{alpha_37 u} is made without loss of generality.
Cite this review
Pith. "Pith review of Fifteen-vertex models with non-symmetric $R$ matrices." pith.science (2026). https://pith.science/paper/XZ75XSE6
@misc{pith2026190806932,
author = {Pith},
title = {Pith review of: Fifteen-vertex models with non-symmetric $R$ matrices},
year = {2026},
howpublished = {\url{https://pith.science/paper/XZ75XSE6}},
note = {Machine review of arXiv:1908.06932}
}

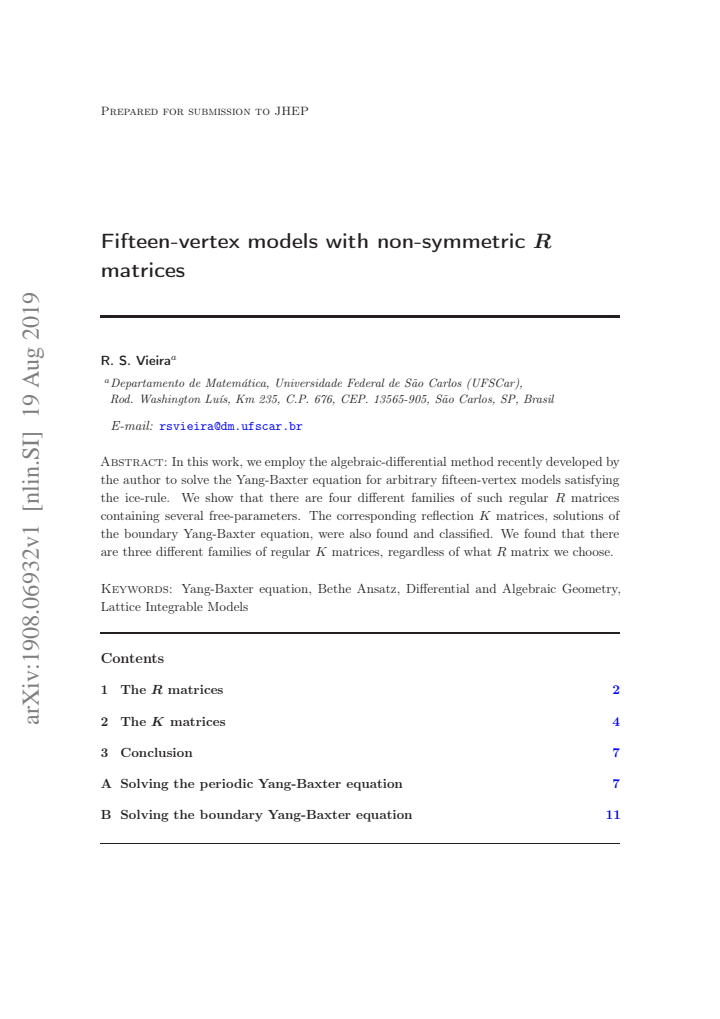

abstract
In this work, we employ the algebraic-differential method recently developed by the author to solve the Yang-Baxter equation for arbitrary fifteen-vertex models satisfying the ice-rule. We show that there are four different families of such regular $R$ matrices containing several free-parameters. The corresponding reflection $K$ matrices, solutions of the boundary Yang-Baxter equation, were also found and classified. We found that there are three different families of regular $K$ matrices, regardless of what $R$ matrix we choose.
Reference graph
Works this paper leans on
-
[3]
R. S. Vieira, Solving and classifying the solutions of the Yang-Baxter eq uation through a differential approach. Two-state systems , Journal of High Energy Physics 2018 (2018) 110
work page 2018
-
[1]
C.-N. Yang, Some exact results for the many-body problem in one dimensio n with repulsive delta-function interaction, Physical Review Letters 19 (1967) 1312
work page 1967
-
[2]
R. J. Baxter, Partition function of the eight-vertex lattice model , Annals of Physics 70 (1972) 193 . – 12 –
work page 1972
-
[4]
I. V. Cherednik, On a method of constructing factorized S matrices in elementary functions , Theoretical and Mathematical Physics 43 (1980) 356
work page 1980
-
[5]
O. Babelon, H. De Vega and C. Viallet, Solutions of the factorization equations from Toda field theory , Nuclear Physics B 190 (1981) 542
work page 1981
-
[6]
J. H. Perk and C. L. Schultz, New families of commuting transfer matrices in q-state vertex models, Physics Letters A 84 (1981) 407
work page 1981
-
[7]
P. Schlottmann, Integrable narrow-band model with possible relevance to heav y-fermion systems, Physical Review B 36 (1987) 5177
work page 1987
-
[8]
A. B. Zamolodchikov and V. Fateev, Model factorized S-matrix and an integrable spin-1 Heisenberg chain, Yadernaya Fizika 32 (1980) 581
work page 1980
Show all 21 references
-
[9]
Izergin and V
A. Izergin and V. Korepin, The inverse scattering method approach to the quantum Shabat-Mikhailov model, Communications in Mathematical Physics 79 (1981) 303
1981
-
[10]
Idzumi, T
M. Idzumi, T. Tokihiro and M. Arai, Solvable nineteen-vertex models and quantum spin chains of spin one , Journal de Physique I 4 (1994) 1151
1994
-
[11]
I. V. Cherednik, Factorizing particles on a half-line and root systems , Theoretical and Mathematical Physics 61 (1984) 977
1984
-
[12]
E. K. Sklyanin, Boundary conditions for integrable quantum systems , Journal of Physics A: Mathematical and General 21 (1988) 2375
1988
-
[13]
Mezincescu and R
L. Mezincescu and R. I. Nepomechie, Integrable open spin chains with nonsymmetric R-matrices, Journal of Physics A: Mathematical and General 24 (1991) L17
1991
-
[14]
De Vega and A
H. De Vega and A. G. Ruiz, Boundary K-matrices for the six vertex and the n(2n − 1) An− 1 vertex models , Journal of Physics A: Mathematical and General 26 (1993) L519
1993
-
[15]
Lima-Santos, A(1) n− 1 reflection K-matrices, Nuclear physics B 644 (2002) 568
A. Lima-Santos, A(1) n− 1 reflection K-matrices, Nuclear physics B 644 (2002) 568
2002
-
[16]
K. Sogo, M. Uchinami, Y. Akutsu and M. Wadati, Classification of exactly solvable two-component models, Progress of Theoretical Physics 68 (1982) 508
1982
-
[17]
Khachatryan and A
S. Khachatryan and A. Sedrakyan, On the solutions of the Yang-Baxter equations with general inhomogeneous eight-vertex R-matrix: Relations with Zamolodchikov’s tetrahedral algebra, Journal of Statistical Physics 150 (2013) 130
2013
-
[18]
de Leeuw, A
M. de Leeuw, A. Pribytok and P. Ryan, Classifying two-dimensional integrable spin chains , arXiv preprint arXiv:1904.12005 (2019) [ arXiv:1904.12005]
2019 arXiv
-
[19]
N. H. Abel, Méthode générale pour trouver des fonctions d’une seule qua ntité variable, lorsqu’une propriété de ces fonctions est exprimée par une équa tion entre deux variables , Magazin for Naturvidenskaberne 1 (1823) 1
-
[20]
Aczél, Lectures on functional equations and their applications , vol
J. Aczél, Lectures on functional equations and their applications , vol. 19. Academic Press, 1966
1966
-
[21]
Kulish and E
P. Kulish and E. Sklyanin, Solutions of the Yang-Baxter equation , Journal of Mathematical Sciences 19 (1982) 1596 . – 13 –
1982
