Assessing Knee OA Severity with CNN attention-based end-to-end architectures

T0 review · 3 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A trainable attention CNN can grade knee osteoarthritis without the separate joint-localization stage that earlier pipelines require.

desk verdict A modest, clearly reported knee-OA grading paper whose headline claim is under-tested: without a no-attention VGG-16 baseline on the same split, the reported gain cannot be attributed to the attention masks. read the letter →

arxiv 1908.08856 v1 pith:7Z4HNI24 submitted 2019-08-23 eess.IV cs.CVcs.LG

Marc Górriz , Joseph Antony , Kevin McGuinness , Xavier Giró-i-Nieto , Noel E. O'Connor This is my paper · ORCID
classification eess.IVcs.CVcs.LG
keywords kneeosteoarthritisKellgren-Lawrencegradingconvolutionalneuralnetworkattentionmechanismend-to-endlearningmulti-losstrainingX-rayimagingregionofinterestlocalization
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that a convolutional neural network can grade knee osteoarthritis severity from X-rays without a separate knee-joint localization stage, by adding trainable attention branches that learn, from class labels alone, which image regions matter. On the public OAI and MOST datasets, the best variant, VGG-16's first attention branch trained with multi-loss weights $w_0=1$ and $w_1=0.8$, reaches 64.3% test accuracy and a Cohen's kappa of 0.63, which the authors characterize as substantial agreement at the margins of human accuracy. That is competitive with earlier two-stage pipelines that required a fully convolutional network to detect knee joints first, while removing the need for manual joint annotations. The authors state explicitly that this is not a new accuracy record; the contribution is an end-to-end pipeline with lower training complexity.

What carries the argument

The load-bearing mechanism is the trainable attention branch. Given a convolutional volume $D_l$ with $N$ feature maps, stacked $1\times1$ convolutions extract spatial features, and a $1\times1$ locally connected layer with sigmoid activation produces an attention mask $A_l$. The original feature maps are element-wise multiplied by the mask, global-average-pooled, and normalized by the average value of the mask to form a feature vector, with a softmax on top yielding class probabilities. Placing such branches after different pooling blocks gives attention at different resolutions, and multi-loss training, a weighted sum of per-branch cross-entropies with best weights $w_0=1$ and $w_1=0.8$, balances branches that converge at different speeds. At test time the single best branch (att0) is used as the classifier.

What would settle it

Take the same VGG-16 backbone, the same multi-loss schedule, and the same data split, and replace every attention mask with an all-ones map (or remove the attention branch entirely); if test accuracy and kappa stay near 64.3% and 0.63, the attention masks are not carrying the result, whereas a clear drop would show the masks are doing the localization work.

Watch

Extended reading notes

Core claim

The central claim is that attaching trainable attention modules to a standard CNN at several depths lets the network learn, from image-level class labels alone, where the knee joint is and how severe its osteoarthritis is. On the OAI and MOST public datasets, the best configuration, the att0 branch of VGG-16 trained with multi-loss weighting $w_0=1$, $w_1=0.8$, achieves 64.3% test accuracy and a Cohen's kappa of 0.63, described as substantial agreement reaching the margins of human accuracy. This matches or improves on earlier pipelines that required a separate FCN-based knee-joint localization stage, while avoiding the need for manual joint annotations. The authors also state that the method does not surpass the state of the art; its value is reducing training complexity through an end-to-end design.

Load-bearing premise

The approach stands on the assumption that the attention masks reliably point at the knee-joint region and add signal rather than noise; the paper itself concedes that unsupervised localization can inject noise into the masks, and it never compares the same base network trained without attention.

Editorial extensions

If this is right

  • Knee OA severity can be graded from raw X-ray halves with no separate knee-joint detector and no manual joint annotations, because the attention branches learn to localize while classifying.
  • Multi-loss training lets shallower and deeper attention branches converge together; weighting the deeper branch lower ($w_1=0.8$) reduces its overfitting and improves the shallower branch's masks.
  • The attention mechanism transfers across base architectures, but the best branch location shifts with network depth: shallower branches (att0, att1) work best in deeper models like VGG-16 and ResNet-50.
  • The resulting agreement ($\kappa=0.63$) sits within the moderate-to-substantial range reported for human readers, so the approach is clinically relevant even though it does not beat state-of-the-art accuracy.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the attention masks are as reliable as the accuracy figures suggest, the same masks could be exported as interpretable heatmaps for clinicians, turning localization into a free byproduct of grading; the paper does not explore this visualization use.
  • The reported comparison does not include a VGG-16 baseline trained with the same multi-loss recipe but without attention, so the contribution of the masks themselves is not fully isolated; part of the gain may come from multi-loss regularization rather than the attention mechanism.
  • A natural testable extension is to run the same architecture on full, unsplit X-rays and let attention find both knees simultaneously, checking whether bilateral context improves grading over the split-half approach.
  • Because the authors observe that unsupervised localization can add noise, a sparsity or smoothness penalty on the attention masks could reduce that noise and potentially push accuracy above the reported 64.3%.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper proposes an end-to-end CNN architecture for knee osteoarthritis severity grading that inserts trainable attention modules at multiple convolutional blocks, acting as unsupervised ROI detectors. The modules generate attention masks multiplied with feature maps, followed by global average pooling and softmax classification branches; branches are combined by early fusion or multi-loss training. On OAI+MOST images (split into left/right knees, 70/30 train-test split), a VGG-16 attention branch att0 trained with multi-loss (w0=1, w1=0.8) achieves 64.3% accuracy and Cohen's kappa 0.63, compared to retrained Antony et al. baselines of 59% and 62.29%. The authors conclude that the end-to-end attention design avoids a separate localization step while reaching the margins of human accuracy.

Significance. If the central result holds, the contribution is practically useful: a single network trained only on KL grade labels can localize and grade the knee joint, removing the FCN localization stage and its manual annotation requirement. The paper is clearly written, reports hyperparameters in detail, and promises public code. However, the significance is currently limited by the absence of a no-attention control on the same split, the use of a non-matching human-kappa reference, and the lack of uncertainty estimates, which means the quantitative superiority of the attention mechanism is not yet established.

major comments (3)
  1. [Section 4, Table 1] The claim that attention branches act as unsupervised fine-grained ROI detectors and yield the reported 64.3% accuracy requires a control: train the same base architectures (at least VGG-16) on the full images with the attention modules removed, under the identical 70/30 split, preprocessing, optimizer, batch size, and multi-loss weight selection. A uniformly-ones attention mask reduces the proposed module to a GAP+FC classifier on conv features, so the no-attention model is a special case of the proposed architecture and is exactly the comparison needed to support the central claim. Section 5 concedes that unsupervised localization 'can reduce performance by adding noise in the attention masks,' so the authors themselves anticipate a regime where the mask hurts. Without this control, the reported gain over Antony et al. could be due to the deeper VGG-16 backbone or other training details rather than to the attention module. Please add the no-attention baseline and, ideally, repeat it across multiple seeds.
  2. [Section 4, Table 2] The comparison with human performance uses the radiologic reliability readings of Klara et al., which, as the paper states, 'does not match our test set.' The human kappa range of 0.5-0.8 is computed on different images and readers, so the statement that the model 'reaches the margins of human accuracy' is not directly supported. To support this claim, compute Cohen's kappa between the model and human grades on the same test images, or soften the claim to note that the kappa value lies within the range reported for human readers in the literature on a different dataset.
  3. [Section 4, Table 1] The paper reports results from a single 70/30 train-test split with no confidence intervals or repeated runs. Differences such as VGG-16 att0 multi-loss (64.3%) versus att1 multi-loss (63.2%) and early fusion (63%) may be within run-to-run noise, especially given the class imbalance in KL grades. Please provide bootstrap confidence intervals for accuracy and kappa, or report results over multiple random splits, to assess the stability of the headline numbers.
minor comments (4)
  1. [Section 3.3] There is a typo in the sentence 'Each attention branch makes separate predictions via a softmax to to generate their class probabilities': the word 'to' is duplicated.
  2. [Section 3.4] The preprocessing step says 'all the X-ray images are manually split in the middle, generating two vertical sections'; please clarify whether this manual split is considered a fixed preprocessing step rather than a localization step, to avoid confusion about the meaning of 'end-to-end'.
  3. [Table 2] The test loss values are reported for different loss formulations (e.g., joint classification+regression for Antony Joint Clsf & Reg versus pure classification for the proposed model); a brief note on the comparability of these loss values would help.
  4. [Figure 3 and Section 4] The text states that multi-loss training improves the shallower attention masks, but no quantitative mask-quality metric is provided; consider reporting a localization proxy or mask-overlap measure if available.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the paper reports an empirical architecture comparison with externally sourced baselines; the missing no-attention control is an experimental gap, not a circular reduction.

full rationale

The paper is an empirical evaluation of supervised CNN architectures; there is no derivation chain in which an output is constructed from its own inputs. The only fitted quantities are multi-loss branch weights and branch locations, selected by a 2D grid search on the validation loss ('validating the att0 and att1 loss weights between a range of 0.5 to 1 with a step size of 0.1, and using the validation loss as monitor'), which is standard hyperparameter selection rather than a prediction forced by the data that defines the target. The headline 64.3% test accuracy and kappa 0.63 are measured on a held-out portion of the 70/30 split, with Table 2 comparing against retrained external baselines (Antony et al.) and human reliability values explicitly qualified as not from the same test set. The attention module itself is taken from an external source (Mader, 2018), and no uniqueness or first-principles claim is imported from the authors' own prior work. The absence of a no-attention VGG-16 control on the same split is a real experimental limitation that weakens the attribution of the gain to attention, but this is a missing-control issue rather than a circular reduction: no equation, fitted parameter, or self-citation makes the reported prediction equivalent to its input by construction. Therefore no significant circularity is present.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

The central claim rests on standard deep learning assumptions, on the reliability of KL grade labels, and on the efficacy of attention-masked global pooling. The only hand-tuned numerical choices that directly affect the headline number are the multi-loss weights and branch locations, both selected by search; no new physical entities are introduced.

free parameters (2)
  • Multi-loss branch weights (w0, w1) = w0 = 1, w1 = 0.8
    Chosen by 2D grid search on validation loss (Section 3.3) and used for the best VGG-16 result in Table 1.
  • Attention branch locations = att0/att1 for VGG-16 and ResNet-50; att1/att2 for Antony models
    Branch depths were selected per base architecture after testing combinations; 'best performing locations presented in Table 1' (Sections 3.3 and 4).
assumptions (4)
  • standard math Backpropagation and Adam optimization train all models as assumed.
    Invoked in Section 3.5 without proof; standard machine learning assumption.
  • domain assumption OAI BU and MOST KL grades are reliable ground truth.
    Used as labels in Section 3.4; label noise bounds achievable accuracy.
  • domain assumption Global average pooling over attention-masked features preserves discriminative information.
    Core design choice in Section 3.1; not independently validated.
  • domain assumption Attention masks learned from class labels alone will focus on informative knee regions without explicit localization.
    Central design premise in Sections 3.1 and 5; the paper itself notes unsupervised localization can add noise.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Assessing Knee OA Severity with CNN attention-based end-to-end architectures." pith.science (2026). https://pith.science/paper/7Z4HNI24

@misc{pith2026190808856,
  author       = {Pith},
  title        = {Pith review of: Assessing Knee OA Severity with CNN attention-based end-to-end architectures},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/7Z4HNI24}},
  note         = {Machine review of arXiv:1908.08856}
}
read the original abstract

This work proposes a novel end-to-end convolutional neural network (CNN) architecture to automatically quantify the severity of knee osteoarthritis (OA) using X-Ray images, which incorporates trainable attention modules acting as unsupervised fine-grained detectors of the region of interest (ROI). The proposed attention modules can be applied at different levels and scales across any CNN pipeline helping the network to learn relevant attention patterns over the most informative parts of the image at different resolutions. We test the proposed attention mechanism on existing state-of-the-art CNN architectures as our base models, achieving promising results on the benchmark knee OA datasets from the osteoarthritis initiative (OAI) and multicenter osteoarthritis study (MOST). All code from our experiments will be publicly available on the github repository: https://github.com/marc-gorriz/KneeOA-CNNAttention

Figures

Figures reproduced from arXiv: 1908.08856 by the authors.

Figure 1

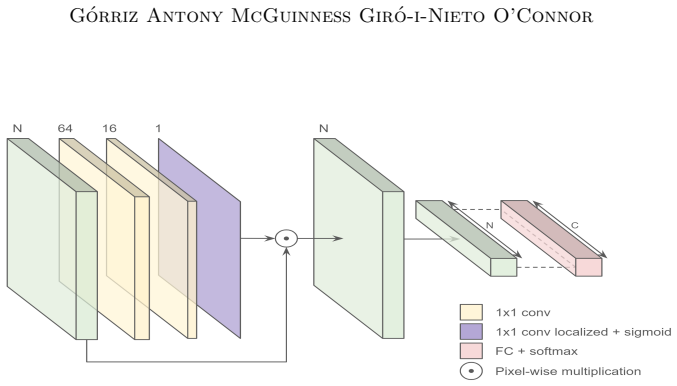

Figure 1. Attention module scheme. D˜l accentuating informative areas. A spatial dimensionality reduction is performed by applying global average pooling (GAP) on the masked volume, generating a N-dimensional feature vector F l , which is then normalized by the average value of the attention mask. Additionally, a softmax layer can be applied to yield a C-dimensional vector with the output class probabilities {p1, p2, ..., pC}… view at source ↗
Figure 2

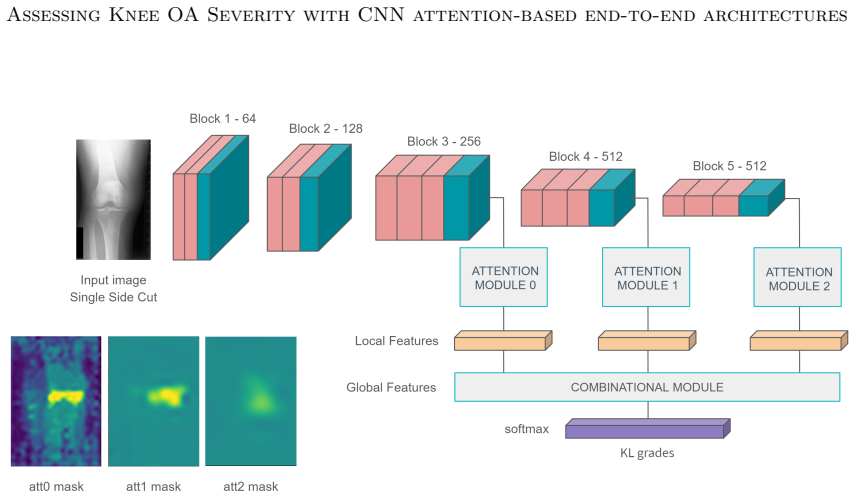

Figure 2. Sample architecture integrating the attention modules in the VGG-16 pipeline. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

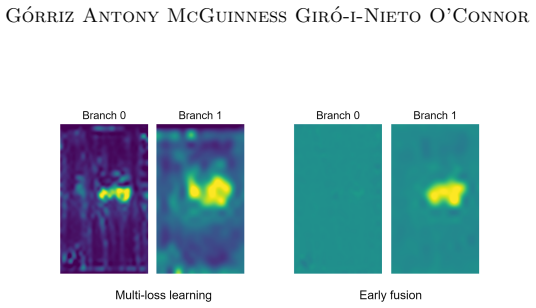

Figure 3. Comparison between merging solutions in the VGG-16 pipeline, visualizing the [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4

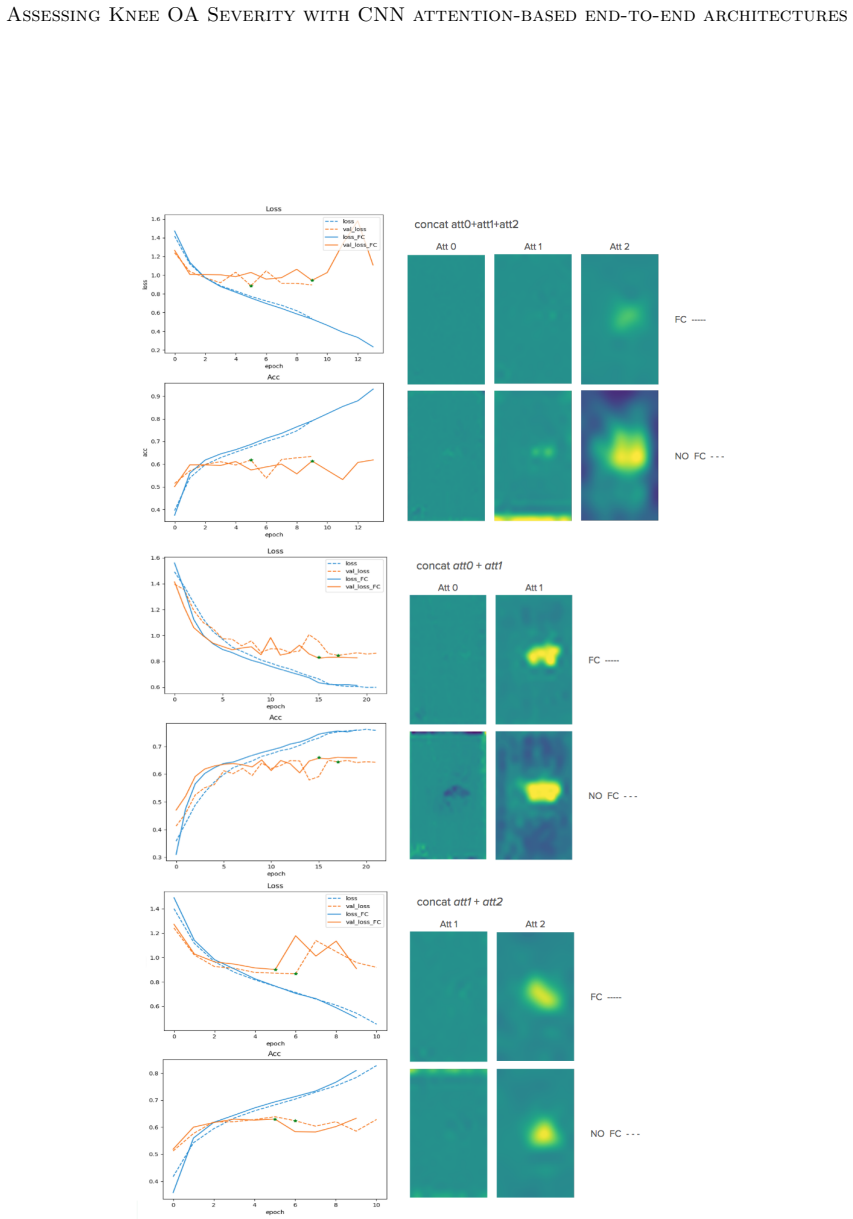

Figure 4. Figure 4: Learning curves and visualization for early fusion experiment in VGG-16. [PITH_FULL_IMAGE:figures/full_fig_p015_4.png]
Figure 5

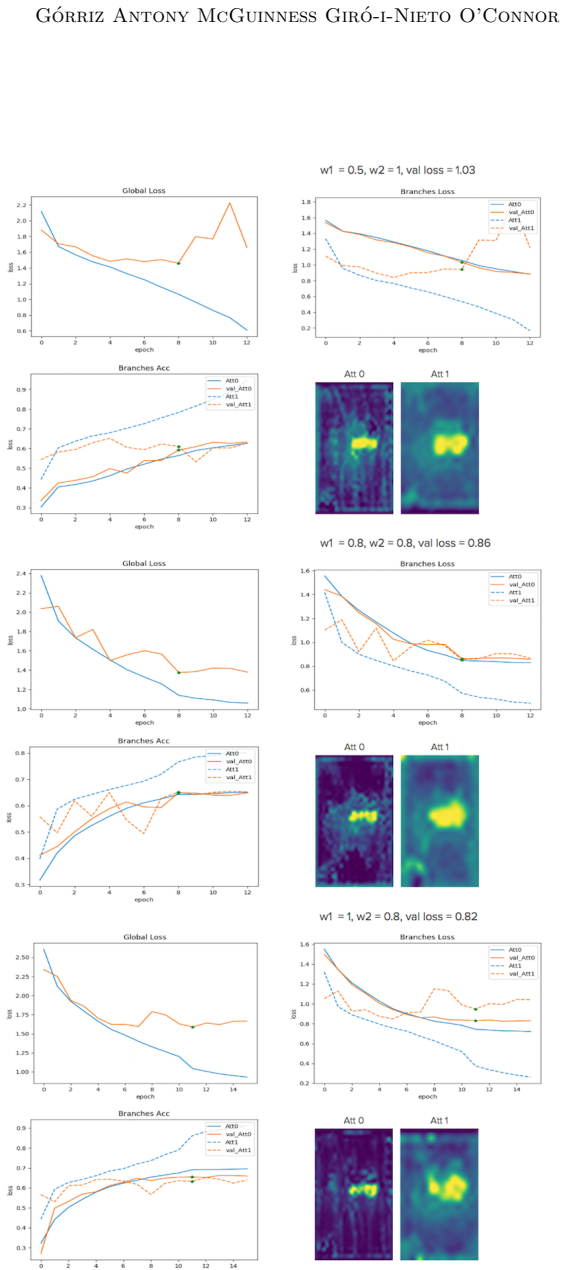

Figure 5. Figure 5: Learning curves and visualization for multi-loss experiment in VGG-16. [PITH_FULL_IMAGE:figures/full_fig_p016_5.png]
Figure 6

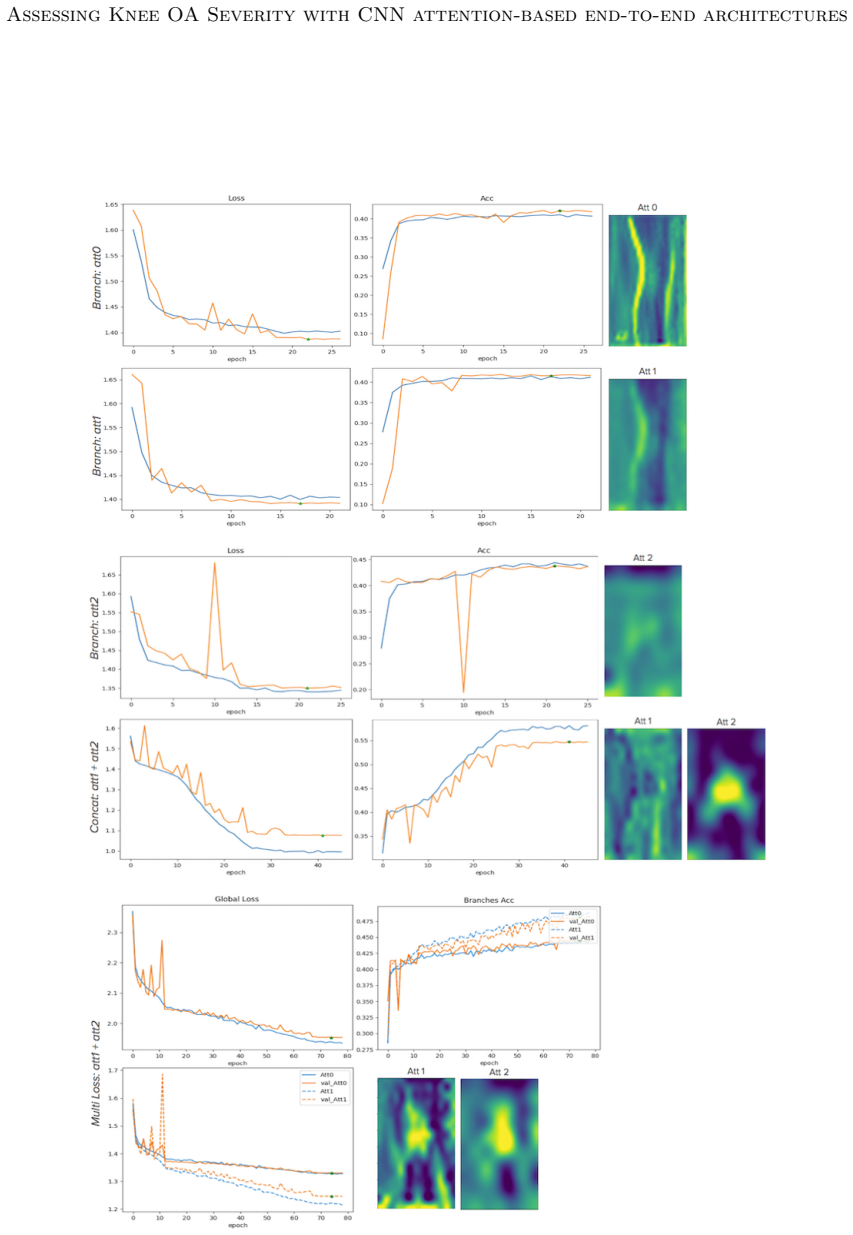

Figure 6. Figure 6: Learning curves and visualization for Antony et al. pipeline for classification. [PITH_FULL_IMAGE:figures/full_fig_p017_6.png]
Figure 7

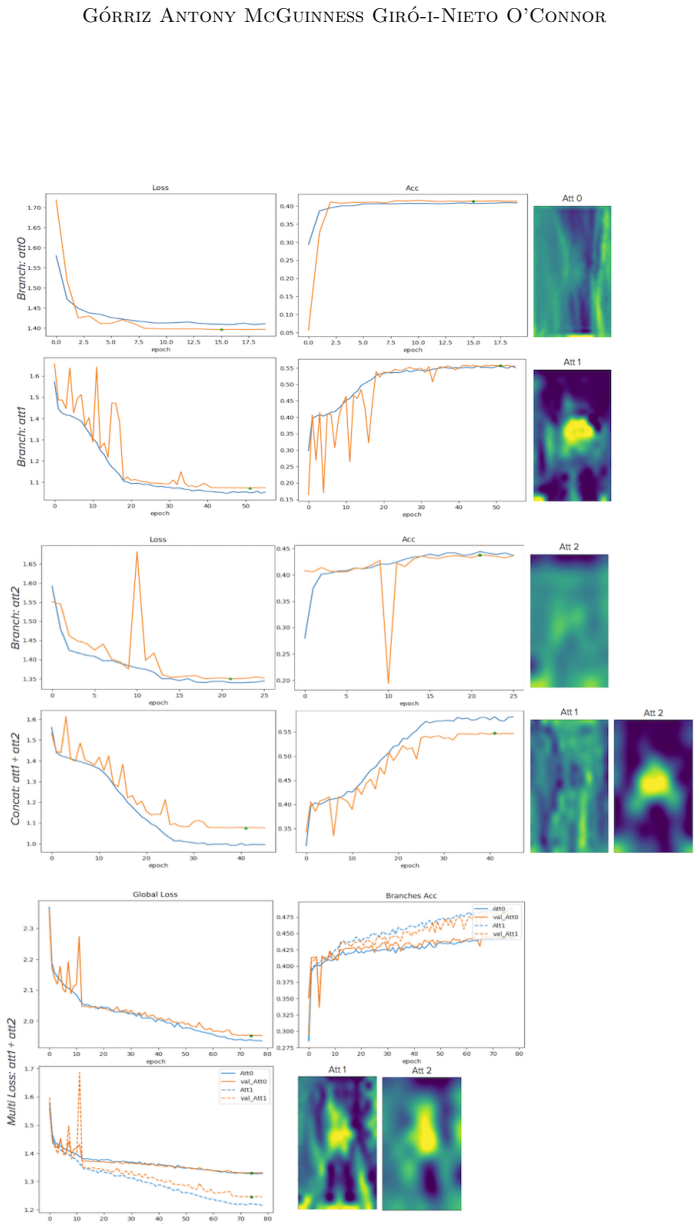

Figure 7. Figure 7: Learning curves and visualization for Antony et al. pipeline for jointly classification [PITH_FULL_IMAGE:figures/full_fig_p018_7.png]
Figure 8

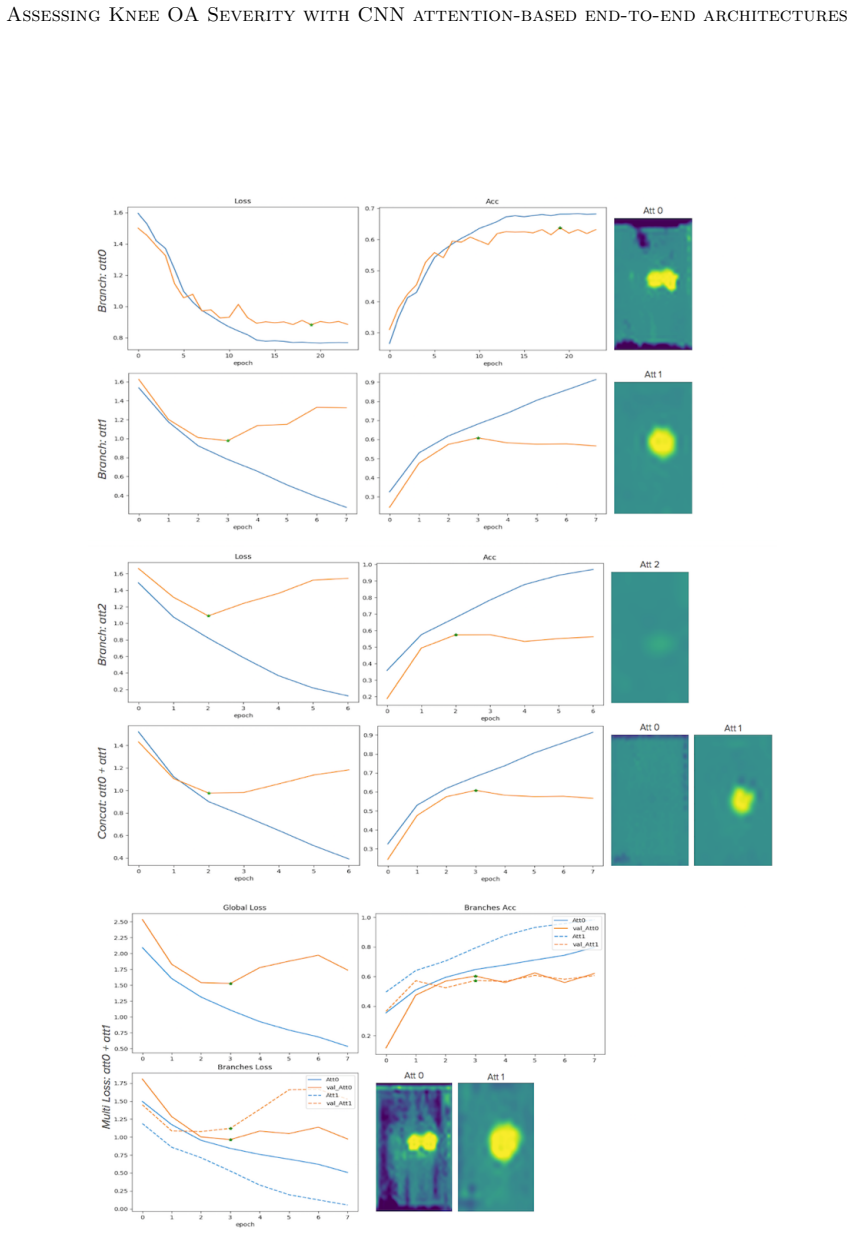

Figure 8. Figure 8: Learning curves and visualization for ResNet-50 pipeline. [PITH_FULL_IMAGE:figures/full_fig_p019_8.png]
