Locally Linear Image Structural Embedding for Image Structure Manifold Learning

Benyamin Ghojogh; Fakhri Karray; Mark Crowley

REVIEW 4 major objections 5 minor 15 references

Locally Linear Image Structural Embedding for Image Structure Manifold Learning

T0 review · 4 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A variant of LLE that swaps the squared Euclidean distance for an SSIM-based distance learns an image structure manifold on which distortion types separate better than LLE, except for impulse noise.

desk verdict A plausible but incremental LLE+SSIM variant whose main empirical claim is not supported by the current, uncontrolled block-wise versus whole-image comparison. read the letter →

arxiv 1908.09288 v1 pith:GBZ7TBDH submitted 2019-08-25 stat.ML cs.CVcs.LGeess.IV

Benyamin Ghojogh , Fakhri Karray , Mark Crowley This is my paper · ORCID

classification stat.MLcs.CVcs.LGeess.IV

keywords locallylinearembeddingimagestructuralsimilaritySSIMstructuremanifoldlearningqualityassessmentout-of-sample

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper is trying to establish that a manifold-learning method built on perceptual structural similarity, rather than pixel-wise squared error, can organize images by distortion type. It introduces LLISE, a version of Locally Linear Embedding (LLE) in which the distance between image blocks is the SSIM-based distance of Eq. (2), and a kernel version operating in a feature space. In experiments on distorted versions of a single test image, a 1-nearest-neighbour classifier recognizes distortion types more accurately in the LLISE embedding than in LLE or kernel LLE for every distortion tested except impulse noise. If the claim holds, image structure manifolds of this kind give a low-dimensional representation that separates what is wrong with an image from how wrong it is.

What carries the argument

The load-bearing object is the SSIM distance of Eq. (2), $\|\check{x}_1-\check{x}_2\|_S := 1 - SSIM(\check{x}_1,\check{x}_2) = \|\check{x}_1-\check{x}_2\|_2^2 / (\|\check{x}_1\|_2^2 + \|\check{x}_2\|_2^2 + c)$, which is exact only for zero-mean blocks. LLISE replaces the squared Euclidean distance in both stages of LLE with this expression: first, reconstruct each image block from its $k$ neighbours by minimizing the SSIM distance of the residual; second, embed the blocks so that the same reconstruction weights are respected, again using the SSIM distance, under zero-mean and unit-covariance constraints. Because the resulting problems are nonconvex, the paper solves them with ADMM, using one gradient-descent step for the inner update and projections (normalization of the weights; centering and singular-value scaling for the embedded matrix) for the constraint. Kernel LLISE runs the same routine on double-centered kernel matrices, computing distances and gradients through the kernel trick.

What would settle it

Take the trained LLISE embeddings for a fixed block, compute the true SSIM of Eq. (1) between every pair of embedded points, and compare those values with the distance $1-\theta_j(Y_i)$ used in Eq. (14); for any pair whose embedded coordinates are not zero-mean the two orderings will differ, showing the objective being optimized is a normalized squared distance rather than SSIM.

Watch

Extended reading notes

Core claim

The paper's central claim is that replacing the $\ell_2$ norm with the SSIM distance in both stages of Locally Linear Embedding produces a low-dimensional image structure manifold whose geometry reflects the type of structural degradation rather than the raw intensity error. For each image block, LLISE finds $k$ nearest neighbours, solves for reconstruction weights using the SSIM distance as the error, and then embeds the blocks with those weights fixed, again under the SSIM distance, subject to zero-mean and unit-covariance constraints. The kernel variant carries out the same procedure in a feature space defined by a kernel and centers the kernel matrix instead of the raw blocks. The paper reports confusion-matrix experiments in which the resulting embeddings recognize distortion types better than LLE and kernel LLE for every tested distortion except impulse noise, and out-of-sample tests in which the true distortion is usually among the top two block votes.

Load-bearing premise

In Eq. (2) the SSIM distance is derived under a zero-mean assumption, but the embedding stage applies it to embedded points that are not centered over their coordinates, so the objective being optimized is a normalized squared distance rather than the claimed SSIM distance.

Editorial extensions

If this is right

Images at equal MSE but different distortion types land in different regions of the LLISE manifold, making distortion type a recognizable dimension.
The kernel version extends the same separation to feature-space manifolds, so the approach is not limited to linear structure in pixel space.
Out-of-sample images, including images with mixed distortions, can be embedded by nearest-neighbour reconstruction, and the true distortion is usually among the top two block votes.
In the reported comparison, LLISE and kernel LLISE outperform LLE and kernel LLE for every tested distortion except impulse noise.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

Because Eq. (2) presupposes zero-mean vectors while the embedded points are not centered, a useful control experiment would replace the objective with plain normalized Euclidean distance and check whether the gains persist; this would show whether the mechanism is perceptual or geometric.
The blockwise construction is not tied to single-scale SSIM; substituting multi-scale SSIM or a learned perceptual distance into the same pipeline is a natural extension that the paper leaves unexplored.
The evaluation uses one source image with distortions matched in MSE, so whether the structure manifold transfers to diverse natural images remains an open empirical question.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Quick take: the paper does a reasonably clean job of deriving an LLE variant that swaps Euclidean distance for an SSIM-based distance, and the supplementary material gives the gradients in detail. The kernel and out-of-sample extensions are natural and the block-wise treatment is sensible. But the central experiment does not isolate the contribution. LLISE and kernel LLISE are evaluated block-wise with majority voting, while LLE and kernel LLE appear to be run on whole 512x512 images. That means the reported advantage could come from block-level patch statistics and voting, not from SSIM distance. That is load-bearing because the paper's main selling point is that SSIM distance works better than l2 for distortion discrimination.

The derivation itself is mostly sound. The reconstruction step correctly centers the blocks so the zero-mean form of SSIM applies, and the ADMM treatment is reasonable. The embedding step is shakier: Eq. (2) expects zero-mean vectors, and the embedded y_j,i are not centered over their p coordinates; the constraint only centers the set of embedded points across images. So the objective there is a normalized squared distance rather than a true perceptual distance. The SVD projection in Eq. (20) sets singular values to n, but the constraint (1/n)Y^T Y = I implies singular values should be sqrt(n). Minor typo, but it is in the algorithm. The kernel version applies SSIM to feature-space vectors, which is conceptually odd because SSIM's constants are designed for image intensities and zero-mean in feature space is asserted via double-centering without much justification.

Empirically, the paper is thin: one Lena image, no error bars, no code, no statistical test. The out-of-sample table reports top-two vote percentages rather than full confusion information, and the mixed-distortion cases are hard to interpret. The citation pattern is fine; it cites the relevant SSIM and LLE literature without self-citation inflation.

Who is this for? Researchers in image quality assessment or manifold learning who want a concrete baseline that combines structural similarity with local embedding. The idea is worth engaging with, but the current evidence does not support the headline. I would send it to peer review with a clear instruction: rerun the comparison with LLE and kernel LLE applied block-wise with the same voting protocol, ideally on multiple images and with error bars. The method is plausible, the math is mostly reproducible, and the flaw is fixable. Desk rejection would be too harsh; acceptance without a fair comparison would be too lenient.

Referee Report

4 major / 5 minor

Summary. The paper proposes Locally Linear Image Structural Embedding (LLISE) and its kernel variant as alternatives to Locally Linear Embedding (LLE) for learning what the authors call an 'image structure manifold.' The method replaces the squared Euclidean distance in LLE with an SSIM-based distance for both the reconstruction of each image block from its k nearest neighbors and the embedding step, with the weights computed by ADMM and the embedding constrained to have zero mean and unit covariance. The authors also provide an out-of-sample embedding procedure and a kernelized version. The experiments use 121 distorted versions of a single Lena image (six distortion types plus the original) and 12 out-of-sample images; distortion type is recognized by a 1NN classifier in the learned embedding, with majority voting over blocks for LLISE and one label per whole image for LLE and kernel LLE.

Significance. If the method worked as claimed, replacing the l2 norm with a perceptually motivated SSIM distance in a manifold learning pipeline would be a useful contribution and would provide a concrete bridge between image quality assessment and manifold learning. The paper is clearly written and includes full derivations of the gradients and update rules plus supplementary material, which is valuable for reproducibility. However, the significance is currently limited by three issues: the embedding objective does not actually use an SSIM distance because the embedded vectors are not zero-mean over their coordinates; the projection step for the unit-covariance constraint contains a mathematical error (singular values should be sqrt(n), not n); and the central empirical claim rests on a single image and on a confounded comparison between block-wise LLISE and whole-image LLE. These problems are load-bearing because the paper's novelty and promised application depend on both the SSIM interpretation and the reported empirical advantage.

major comments (4)

[§2.1, Eqs. (2) and (14)] The SSIM distance in Eq. (2) is derived under the assumption that both vectors have zero mean over their coordinates, as stated in Section 1.1. In the embedding problem (12), however, the arguments Y_i^T 1_j and Y_i^T w_j,i are p-dimensional embedded vectors, and the zero-mean constraint in Eq. (12) is across the n images (sum_j y_j,i = 0), not across the p coordinates. Thus the objective in Eq. (14) is not an SSIM distance but a normalized squared distance with a constant c inherited from the block size q; it does not have the perceptual interpretation claimed. The authors need to either center each embedded vector across its p coordinates before applying Eq. (2), or define and justify a different distance for the embedding space.
[§2.1, projection step following Eq. (18)] The constraint (1/n) Y_i^T Y_i = I implies that the singular values of Y_i are sqrt(n), not n. The text derives this from the SVD of Y_i but then incorrectly concludes 'Sigma = nI'; with singular values set to n, one obtains (1/n)Y_i^T Y_i = nI, violating the stated constraint. The projection in Eq. (20) should set the singular values to sqrt(n). While this scaling error may not change 1NN classification if applied consistently, it is a concrete algebraic error in a central algorithmic step and should be corrected.
[§4, Fig. 2 and Table 1] The headline comparison is confounded. LLISE and kernel LLISE are evaluated block-wise with majority voting over all blocks, while Section 4 explicitly states that LLE and kernel LLE do not perform block-wise and provide one label for the whole image. The reported advantage over LLE therefore conflates the proposed SSIM-based distance with the information advantage of patch-level statistics and ensemble voting. A controlled comparison would apply both methods under the same block-wise or whole-image protocol, or at least include a block-wise LLE baseline. Without this control, the sentence 'Except for impulse noise, LLISE and kernel LLISE had better performance compared to LLE and kernel LLE' is not supported.
[§4, training dataset] The experimental evidence is based on a single Lena image and 121 distorted versions of it, with no multiple source images, no random seeds or confidence intervals, and no statistical testing. The claim that the method is useful for discriminating image distortion types in general is therefore not established. The authors should evaluate on multiple natural images, report variability across images, and ideally compare against a block-wise LLE and other baselines under matched conditions.

minor comments (5)

[§3.1, Eq. (24)] In Eq. (24), the notation r~wij appears to be a typo for r~wj,i; please make the subscript consistent with the rest of the paper.
[§2.1, Eq. (3)] The replacement of the standard LLE constraint sum_r r~w = 1 with sum_r (r~w)^2 = 1 is motivated by numerical stability, but it changes the meaning of 'linear reconstruction' and removes translation invariance; a brief discussion of the effect of this change on the learned weights and on the out-of-sample reconstruction (22) would help the reader.
[Abstract and Section 2] The term 'image structure manifold' is introduced as a new concept but is never formally defined; it would be clearer to state exactly what geometric or topological property is claimed for the learned embedding.
[§4, Table 1] For LLE and kernel LLE, the table gives only a single label without percentages, while LLISE rows give percentages; providing comparable quantitative information for the baselines would strengthen the comparison.
[§2.2, out-of-sample embedding] The out-of-sample embedding in Eq. (22) uses only the nearest-neighbor reconstruction weights from the training data; it would be helpful to state whether the embedding coordinates ry(t) are taken from the LLISE or kernel LLISE training embedding and how this choice affects kernel variants.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: LLISE's derivation is self-contained, with external SSIM/ADMM machinery; the block-wise vs whole-image comparison is a validity concern, not a circularity concern.

full rationale

LLISE replaces the l2 reconstruction and embedding objectives of LLE with the SSIM-based distance of Eq. (2), which is imported directly from prior external work [2,3,4,6] and is not defined in terms of the paper's own output. The out-of-sample extension follows the standard linear-reconstruction rule [13], and the kernel version uses the conventional kernel trick. No parameter is fitted to the distortion labels: k, q, p, rho, and eta are fixed constants, and the 1NN classifier merely measures separation after unsupervised embedding. The central comparison against LLE/kernel LLE is empirical and is not forced by construction; the paper's equations do not reduce to the reported distortion-recognition results. There are no load-bearing self-citations: the cited SSIM distance and ADMM machinery are from external sources, and no uniqueness theorem is invoked. The clearest weakness is an experimental confound (block-wise evaluation with majority voting for LLISE vs whole-image evaluation for LLE), but that affects the validity of the empirical claim rather than indicating circular reasoning. The zero-mean assumption in Eq. (2) also raises a correctness question for the embedding objective, but again this is not a circularity issue. Thus no load-bearing step is equivalent to its inputs, and the paper is not circular in the sense defined.

Assumptions & free parameters 5 free parameters · 5 assumptions · 1 invented entities

The method depends on several hand-set hyperparameters and on assumptions about the validity of the SSIM distance beyond its original zero-mean setting. The projection step contains a numerical error. The concept of an image structure manifold is asserted rather than formally characterized.

free parameters (5)

k (number of nearest neighbors) = 10
Chosen manually for the Lena experiment, controls local reconstruction graph.
q (block size) = 64 (8x8)
Block size for reshaping images; set to 64 following prior work.
p (embedding dimension) = 4
Dimensionality of the embedded manifold; chosen by hand, p <= q.
rho (ADMM penalty) and eta (learning rate) = 0.1 for reconstruction, 0.01 for embedding; kernel uses rho=0.01, eta=0.1
Hand-selected, no sensitivity analysis reported.
kernel gamma = 1/q
Set to 1/q for polynomial, RBF, and sigmoid kernels.

assumptions (5)

ad hoc to paper The SSIM distance in Eq. (2), ||a-b||_S = ||a-b||_2^2/(||a||_2^2+||b||_2^2+c), is applied to embedded vectors y_j,i even though Eq. (2) was derived under the zero-mean condition on both vectors.
Section 2.1, Eqs. (12)-(14): no centering of y_j,i over their coordinates is imposed, so the objective labeled SSIM is a normalized squared distance, not SSIM.
ad hoc to paper The LLE constraint sum_r r~w = 1 is replaced by sum_r r~w^2 = 1 to avoid weight explosion.
Eq. (3) and the paragraph after it: this changes the reconstruction problem relative to LLE and is justified only by an empirical observation about iterative optimization.
ad hoc to paper The projection onto the unit covariance constraint (1/n)Y_i^T Y_i = I is implemented by setting all singular values of the matrix to n.
Section 2.1, projection after Eq. (18): the derivation requires singular values sqrt(n) for the constraint to hold; setting them to n is an error.
domain assumption A single gradient descent step per ADMM iteration is sufficient to solve the w and Y subproblems.
Section 2.1, Eqs. (11) and (20): 'our experiments showed' but no evidence or convergence analysis is given.
domain assumption The learned embedding is called an image structure manifold that captures structure and discriminates distortions.
Section 1 and 5: conceptual claim not formally defined or independently validated.

invented entities (1)

image structure manifold
purpose: Conceptual name for the embedding learned by LLISE, claimed to capture image structure and separate distortion types.
No formal definition, metric properties, or independent validation; it is the output of the proposed algorithm.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Locally Linear Image Structural Embedding for Image Structure Manifold Learning." pith.science (2026). https://pith.science/paper/GBZ7TBDH

@misc{pith2026190809288,
  author       = {Pith},
  title        = {Pith review of: Locally Linear Image Structural Embedding for Image Structure Manifold Learning},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/GBZ7TBDH}},
  note         = {Machine review of arXiv:1908.09288}
}

abstract

Most of existing manifold learning methods rely on Mean Squared Error (MSE) or $\ell_2$ norm. However, for the problem of image quality assessment, these are not promising measure. In this paper, we introduce the concept of an image structure manifold which captures image structure features and discriminates image distortions. We propose a new manifold learning method, Locally Linear Image Structural Embedding (LLISE), and kernel LLISE for learning this manifold. The LLISE is inspired by Locally Linear Embedding (LLE) but uses SSIM rather than MSE. This paper builds a bridge between manifold learning and image fidelity assessment and it can open a new area for future investigations.

Figures

Figures reproduced from arXiv: 1908.09288 by the authors.

**Figure 1.** Samples from the training dataset: (a) original image, (b) contrast stretched, (c) Gaussian noise, (d) luminance enhanced, (e) Gaussian blurring, (f) salt & pepper impulse noise, and (g) JPEG distortion [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗

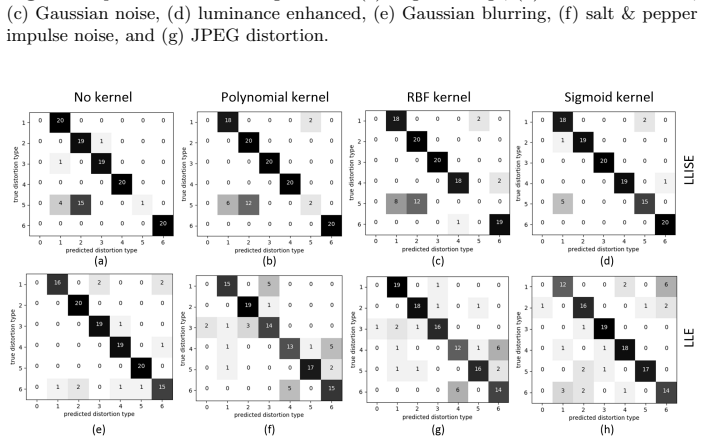

**Figure 2.** Confusion matrices for recognition of distortion types with a 1NN classifier used in the embedded space. Matrices (a) and (e) correspond to LLISE and LLE, respectively. Matrices (b) to (d) are for kernel LLISE and (f) and (g) are for kernel LLE with polynomial, RBF, and sigmoid kernels, respectively. The 0 label corresponds to the original image and the labels 1 to 6 are the distortion types with the same order as i… view at source ↗

**Figure 3.** Out-of-sample images with different types of distortions having MSE = 500: (1) stretching contrast, (2) Gaussian noise, (3) luminance enhancement, (4) Gaussian blurring, (5) impulse noise, (6) JPEG distortion, (7) Gaussian blurring + Gaussian noise, (8) Gaussian blurring + luminance enhancement, (9) impulse noise + luminance enhancement, (10) JPEG distortion + Gaussian noise, (11) JPEG distortion + luminance enhanc… view at source ↗
