Gravitons and Pions

T0 review · 1 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Quantum general relativity, treated as an effective field theory, makes parameter-free quantum corrections to Newton's potential and light bending.

desk verdict A clear, honest review essay that adds no new results but reliably states the EFT case for quantum gravity and chiral nuclear physics; accept with a minor caveat about fixed light degrees of freedom. read the letter →

arxiv 1908.11003 v1 pith:MNLGHJ7U submitted 2019-08-29 nucl-th hep-th

John F. Donoghue This is my paper · ORCID
classification nucl-thhep-th PACS 04.60.-m21.30.-x
keywords effectivefieldtheoryquantumgravitygeneralrelativityNewtonianpotentiallightbendingchiralperturbationpionphysicsnon-analyticterms
topics Quantum Gravity
open problems Quantum Gravity
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This essay argues that quantum general relativity, long considered non-renormalizable and therefore not a proper quantum field theory, is actually a predictive effective field theory at ordinary energies. The central point is that the non-analytic, long-distance parts of loop diagrams, such as the quantum correction to the Newtonian potential and the one-loop bending of light, cannot be changed by any high-energy physics, because high-energy effects are local and can only adjust local counterterms. The same logic applies to pions: in a world with massless pions, the long-range internucleon potential is fixed by known constants and a few couplings, making nuclear physics a clean effective-field-theory problem. If the argument is right, general relativity joins the Standard Model in the Core Theory, and quantum gravity is not an incompatibility but simply an open theory awaiting a ultraviolet completion.

What carries the argument

The load-bearing object is the effective field theory, specifically the distinction between local and non-local effects. In momentum space, local terms in the Lagrangian are analytic in momenta, powers of $q^2$ or derivatives, while real quantum propagation of massless particles produces non-analytic terms, $\sqrt{q^2}$ and $\log q^2$, that cannot be produced by any local counterterm. The paper's mechanism is that unknown high-energy physics is by definition short-distance and therefore local, so populating the action with all possible local terms accounts for all of it; the non-analytic low-energy parts of loops are then protected predictions. In the gravitational case this turns quantum corrections to the Newtonian potential and to light bending into parameter-free low-energy theorems.

What would settle it

A concrete way to test the claim is to find a single ultraviolet-complete theory of quantum gravity whose low-energy limit gives a graviton scattering amplitude with a non-analytic term, say a coefficient of $\log q^2$ or $\sqrt{q^2}$, that differs from the ones leading to Eqs. (10) and (11) after all local counterterms are adjusted. If such a matching calculation exists, the claim that non-analytic terms cannot be modified by high-energy physics collapses. In the absence of a ultraviolet completion, an experiment that measured a $1/r^2$ quantum correction with a coefficient other than $41/(10\pi)G\hbar/r^2$ would also falsify it.

Watch

Extended reading notes

Core claim

The paper's central claim is that the real content of a quantum field theory lies in the low-energy propagation of its light degrees of freedom, and that in gravity this content is computable and unique. Concretely, the quantum correction to the Newtonian potential (Eq. 10) contains a term proportional to $\hbar/r^2$ whose coefficient $41/(10\pi)$ is finite and independent of every parameter in the local effective Lagrangian; local terms could only add a $\delta^3(x)$ contribution. Likewise, the one-loop bending angle of light (Eq. 11) is independent of local counterterms, although its coefficient depends on the spin of the massless particle, so quantum gravity abandons a universal light cone and universal geodesics in the presence of matter. Because the non-analytic terms, powers of $\sqrt{q^2}$ and $\log q^2$, are structurally different from any analytic local term, they constitute low-energy theorems of quantum gravity. The author extends the same logic to pions, showing that in the chiral limit the two-pion-exchange potential has a determined long-range form whose central component resembles the phenomenological $\sigma$ exchange.

Load-bearing premise

The argument stands or falls on the assumption that every unknown high-energy effect is local at low energies; if some high-energy physics produced a non-local low-energy effect, the protected predictions like the $1/r^2$ quantum correction could change.

Editorial extensions

If this is right

  • The quantum correction to the Newtonian potential (Eq. 10) is a low-energy theorem: no local counterterm can change the coefficient $41/(10\pi)G\hbar/r^2$, so the prediction stands regardless of the ultimate high-energy theory.
  • The one-loop bending angle of light (Eq. 11) is likewise protected, but its spin-dependent coefficient means quantum gravity abolishes a universal light cone and universal geodesics in the presence of matter.
  • Because the quantum corrections are tiny relative to the classical terms, perturbative quantum gravity is, by the paper's framing, the best not the worst perturbative theory known, with claimed credibility over roughly sixty orders of magnitude in distance.
  • In the massless-pion analogue, the long-range internucleon potential is determined by known pion parameters and a few couplings, giving a rigorous handle on the two-pion-exchange component that resembles sigma exchange.
  • General relativity can be included in the present Core Theory along with the Standard Model as a quantum theory valid at ordinary energies.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the protection of non-analytic terms extends beyond the two worked examples, gravitational wave phase shifts and binary radiation observables could be promoted to low-energy theorems, since those processes are also dominated by long-distance graviton propagation.
  • The massless-pion idealization suggests a concrete program: use the chiral-limit two-pion-exchange potential as a controlled stand-in for phenomenological sigma exchange, then interpolate to the physical pion mass using lattice calculations of the pion-mass dependence of low-energy constants.
  • The graviton-pion parallel also yields a diagnostic for any effective field theory: identify the non-analytic part of an amplitude as the protected, predictive core, so that any observable whose leading correction is analytic in momenta is exactly the part that unknown high-energy physics can change.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

1 major / 4 minor

Summary. The paper is an essay-style overview arguing that effective field theory (EFT) provides a coherent and predictive quantum treatment of general relativity at low energies, and that this framework is conceptually parallel to chiral perturbation theory for pions. Section 2 presents the general EFT philosophy; Section 3 reviews the gravitational EFT, emphasizing that non-analytic low-energy effects such as the quantum correction to the Newtonian potential (Eq. (10)) and the one-loop light-bending term (Eq. (11)) are finite and independent of local counterterms; Section 4 outlines a hypothetical massless-pion world and quotes chiral-limit nucleon-nucleon potentials; Section 5 concludes. The paper relies on previously published results and does not contain new derivations.

Significance. If the central claims are correct, the essay is a valuable pedagogical and conceptual contribution: it clearly articulates why quantum general relativity is a perfectly good quantum field theory at ordinary energies, with parameter-free predictions for specific non-analytic low-energy effects, and it draws an instructive analogy with the chiral limit of nuclear forces. The author explicitly limits the analysis to experimentally known degrees of freedom and openly acknowledges the contamination of chiral-limit low-energy constants by the physical pion mass. These statements of limitation are strengths. The quoted low-energy theorems (Eqs. (10), (11)) are standard and independently verified in the cited literature, so the absence of derivations is appropriate for an overview. However, the essay's central wording would benefit from a precise caveat about the fixed light-particle content.

major comments (1)
  1. [Section 3, around Eq. (10)] The sentence 'The non-local/non-analytic terms can be reliable predictions of the low energy part of the theory because they cannot be modified by any change in the theory that is made at high energy' is too strong as stated. The results in Eqs. (10) and (11) are independent of local counterterms only for a fixed and known set of light propagating degrees of freedom. If the ultraviolet completion contained additional massless or very light fields coupled to gravity, those fields would also propagate over long distances and contribute non-analytic terms at one loop, shifting the coefficients in Eqs. (10) and (11). I recommend adding a parenthetical qualification, for example 'for the known light-particle content,' and a sentence noting that new light degrees of freedom would change the predictions.
minor comments (4)
  1. [Section 2] In the paragraph on the quantum physics of light degrees of freedom, the phrase 'is cannot be modified' contains a typo; it should read 'cannot be modified.'
  2. [Section 4, Eq. (16)] The definition of the combination denoted c2 is difficult to parse; please clarify the notation and confirm that the c_i conventions match those of Epelbaum et al. as cited.
  3. [Section 3, Eq. (11)] The spin-dependent coefficient denoted 'bu η' should be typeset unambiguously (for example, b_u^\eta) so that the listed values for scalar, photon, and graviton are clear.
  4. [Throughout] Several typographical errors appear, such as 'potiential' in Section 2 and 'feld' in the Bjorken quotation in Section 3; these should be corrected in the final version.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the paper's EFT predictions are parameter-free consequences of cited one-loop calculations, not re-statements of inputs.

full rationale

The core claim (Section 3) is that non-local/non-analytic terms such as the 1/r^2 quantum correction in Eq. (10) and the log term in Eq. (11) are independent of local counterterms and hence reliable low-energy predictions. The paper does not fit any parameter to those terms; they are finite predictions of one-loop graviton calculations originally published by Donoghue and others (Refs. [9]-[16]) and independently reproduced by other groups (e.g., Khriplovich-Kirilin, Bai-Huang, Chi). The EFT input is the standard locality-based assumption that unknown high-energy effects appear only as local terms; the output is non-local and therefore cannot equal the input by construction. The paper explicitly limits itself to experimentally known light degrees of freedom ('We could use only the degrees of freedom that we knew experimentally'), so the caveat about undiscovered light fields is an explicit assumption, not a hidden fit. The many self-citations are references to external, published, and partly independent calculations, not an unverified uniqueness theorem, and no equation in the paper reduces to its input by definition. The nuclear-potential examples (Eqs. 15-20) use measured low-energy constants F_pi, g_A, and c_i as inputs and predict the long-distance potential; those parameters are not extracted from the predicted quantity itself. Hence there is no circular step.

Assumptions & free parameters 3 free parameters · 4 assumptions · 0 invented entities

The essay introduces no new entities or parameters. It recapitulates existing EFT results, and the only novel-ish conjecture, the massless-pion world, borrows low-energy constants from physical data.

free parameters (3)
  • F_pi (pion decay constant) = ≈ 92 MeV
    Input from experiment; enters the chiral-limit potentials (15) and (17). The essay does not fit it.
  • g_A (axial-vector coupling) = ≈ 1.27
    Input from experiment; enters the chiral-limit potentials (15) and (17).
  • c2, c3, c4 (subleading chiral LECs) = Values from fits in refs. [20,21]
    Low-energy constants extracted from physical-pion-mass data; the essay uses them as proxies in the m_pi -> 0 limit despite acknowledging contamination from the pion mass.
assumptions (4)
  • domain assumption Locality of unknown high-energy physics: all UV effects reduce to local counterterms in the effective Lagrangian.
    Invoked in Section 2 after Eq. (5); underpins the claim that non-analytic low-energy effects are protected predictions.
  • domain assumption Quantum GR can be treated perturbatively as an EFT of a massless spin-2 graviton around flat spacetime.
    Assumed throughout Section 3, especially Eqs. (6)-(9); necessary for the quantum corrections (10) and (11).
  • domain assumption Pions are the Goldstone bosons of spontaneously broken chiral symmetry, described by the chiral Lagrangian (12)-(13).
    Assumed in Section 4; the basis for the chiral-limit nuclear potentials.
  • ad hoc to paper Physical-pion-mass values of F_pi, g_A and c_i remain approximately valid in the massless-pion chiral limit.
    Used to produce numerical potentials (18) and (20); the author notes these values 'have some contamination from the pion mass' but proceeds anyway.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Gravitons and Pions." pith.science (2026). https://pith.science/paper/MNLGHJ7U

@misc{pith2026190811003,
  author       = {Pith},
  title        = {Pith review of: Gravitons and Pions},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/MNLGHJ7U}},
  note         = {Machine review of arXiv:1908.11003}
}
read the original abstract

Both gravitons and pions are described by non-linear and non-renormalizable actions at low energies. These are most usefully treated by effective field theory, which is a full quantum field theoretic approach that relies only on the low energy degrees of freedom and their interactions. The gravitational case is particularly clean because of the masslessness of the graviton and the wide separation of scales. This essay provides an overview of this approach.

Figures

Figures reproduced from arXiv: 1908.11003 by the authors.

Figure 1
Figure 1. The Feynman diagrams of the nucleon potential due to two pion exchange. Despite the fact that this hypothetical world looks somewhat distant from the real world, this might be an interesting starting point for nuclear calculations. I have spent some time exploring the nuclear force in the limit of massless pions [24][25] and was struck by how much the central potential in the chiral limit resembles that of sigma exc… view at source ↗
Figure 2
Figure 2. This is important because sigma exchange is the [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

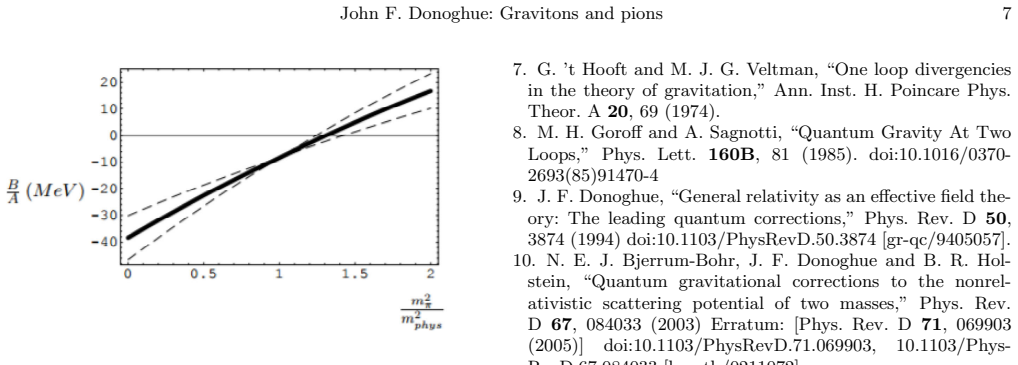

Figure 3. The binding energy as a function of the pion mass. cally this is very important. We do not have to resolve deep questions such as “what is the ultimate nature of reality”. We can just humbly do our job with the understanding that experiment has already taught us. This is useful in many areas, but in gravitational physics it is especially so. The experimental resolution of the ultimate nature of quantum gravity is li… view at source ↗

Discussion (0). Continue with ORCID to comment.

Reference graph

Works this paper leans on

28 extracted references · 8 canonical work pages

  1. [1]

    Dynamics of the standard model,

    J. F. Donoghue, E. Golowich and B. R. Holstein, “Dynamics of the standard model,” Camb. Monogr. Part. Phys. Nucl. Phys. Cosmol. 2, 1 (1992) [Camb. Monogr. Part. Phys. Nucl. Phys. Cosmol. 35 (2014)]. doi:10.1017/CBO9780511524370

    doi:10.1017/cbo9780511524370 1992

  2. [2]

    Standard Model Group: Survival of the Fittest,

    H. B. Nielsen and N. Brene, “Standard Model Group: Survival of the Fittest,” Nucl. Phys. B 224, 396 (1983). doi:10.1016/0550-3213(83)90382-6

    work page doi:10.1016/0550-3213(83)90382-6 1983

  3. [3]

    Quantum theory of gravitation,

    R. P. Feynman, “Quantum theory of gravitation,” Acta Phys. Polon. 24, 697 (1963)

    work page 1963

  4. [4]

    Quantum Theory of Gravity. 2. The Man- ifestly Covariant Theory,

    B. S. DeWitt, “Quantum Theory of Gravity. 2. The Man- ifestly Covariant Theory,” Phys. Rev. 162, 1195 (1967). doi:10.1103/PhysRev.162.1195

    doi:10.1103/physrev.162.1195 1967

  5. [5]

    EPFL Lec- tures on General Relativity as a Quantum Field Theory,

    J. F. Donoghue, M. M. Ivanov and A. Shkerin, “EPFL Lec- tures on General Relativity as a Quantum Field Theory,” arXiv:1702.00319 [hep-th]

    arXiv

  6. [6]

    Quantum Theory of Gravitation,

    M. J. G. Veltman, “Quantum Theory of Gravitation,” Conf. Proc. C 7507281, 265 (1975)

    work page 1975

  7. [7]

    One loop divergencies in the theory of gravitation,

    G. ’t Hooft and M. J. G. Veltman, “One loop divergencies in the theory of gravitation,” Ann. Inst. H. Poincare Phys. Theor. A 20, 69 (1974)

    work page 1974

  8. [8]

    Quantum Gravity At Two Loops,

    M. H. Goroff and A. Sagnotti, “Quantum Gravity At Two Loops,” Phys. Lett. 160B, 81 (1985). doi:10.1016/0370- 2693(85)91470-4

    doi:10.1016/0370- 1985

Show all 28 references
  1. [9]

    General relativity as an effective field the- ory: The leading quantum corrections,

    J. F. Donoghue, “General relativity as an effective field the- ory: The leading quantum corrections,” Phys. Rev. D 50, 3874 (1994) doi:10.1103/PhysRevD.50.3874 [gr-qc/9405057]

    1994 arXiv

  2. [10]

    Quantum gravitational corrections to the nonrel- ativistic scattering potential of two masses,

    N. E. J. Bjerrum-Bohr, J. F. Donoghue and B. R. Hol- stein, “Quantum gravitational corrections to the nonrel- ativistic scattering potential of two masses,” Phys. Rev. D 67, 084033 (2003) Erratum: [Phys. Rev. D 71, 069903 (2005)] doi:10.1103/PhysRevD.71.069903, 10.1103/Phys- R...

    2003 arXiv

  3. [11]

    Quantum power cor- rection to the Newton law,

    I. B. Khriplovich and G. G. Kirilin, “Quantum power cor- rection to the Newton law,” J. Exp. Theor. Phys. 95, no. 6, 981 (2002) [Zh. Eksp. Teor. Fiz. 122, no. 6, 1139 (2002)] doi:10.1134/1.1537290 [gr-qc/0207118]

    2002 arXiv

  4. [12]

    On-shell Techniques and Universal Re- sults in Quantum Gravity,

    N. E. J. Bjerrum-Bohr, J. F. Donoghue and P. Vanhove, “On-shell Techniques and Universal Re- sults in Quantum Gravity,” JHEP 1402, 111 (2014) doi:10.1007/JHEP02(2014)111 [arXiv:1309.0804 [hep-th]]

    2014 arXiv

  5. [13]

    Bending of Light in Quan- tum Gravity,

    N. E. J. Bjerrum-Bohr, J. F. Donoghue, B. R. Holstein, L. Plant and P. Vanhove, “Bending of Light in Quan- tum Gravity,” Phys. Rev. Lett. 114, no. 6, 061301 (2015) doi:10.1103/PhysRevLett.114.061301 [arXiv:1410.7590 [hep- th]]

    2015 arXiv

  6. [14]

    Light-like Scatter- ing in Quantum Gravity,

    N. E. J. Bjerrum-Bohr, J. F. Donoghue, B. R. Hol- stein, L. Plante and P. Vanhove, “Light-like Scatter- ing in Quantum Gravity,” JHEP 1611, 117 (2016) doi:10.1007/JHEP11(2016)117 [arXiv:1609.07477 [hep-th]]

    2016 arXiv

  7. [15]

    More on the Bending of Light in Quantum Gravity,

    D. Bai and Y. Huang, “More on the Bending of Light in Quantum Gravity,” Phys. Rev. D 95, no. 6, 064045 (2017) doi:10.1103/PhysRevD.95.064045 [arXiv:1612.07629 [hep-th]]

    2017 arXiv

  8. [16]

    Graviton Bending in Quantum Gravity from One-Loop Amplitudes,

    H. H. Chi, “Graviton Bending in Quantum Gravity from One-Loop Amplitudes,” Phys. Rev. D 99, no. 12, 126008 (2019) doi:10.1103/PhysRevD.99.126008 [arXiv:1903.07944 [hep-th]]

    2019 arXiv

  9. [17]

    The Future of particle physics,

    J. D. Bjorken, “The Future of particle physics,” Int. J. Mod. Phys. A 16, 483 (2001) doi:10.1142/S0217751X01003226 [hep-ph/0006180]

    2001 arXiv

  10. [18]

    Constraints on the variability of quark masses from nuclear binding,

    T. Damour and J. F. Donoghue, “Constraints on the variability of quark masses from nuclear binding,” Phys. Rev. D 78, 014014 (2008) doi:10.1103/PhysRevD.78.014014 [arXiv:0712.2968 [hep-ph]]

    2008 arXiv

  11. [19]

    The Multiverse and Particle Physics,

    J. F. Donoghue, “The Multiverse and Particle Physics,” Ann. Rev. Nucl. Part. Sci. 66, 1 (2016) doi:10.1146/annurev- nucl-102115-044644 [arXiv:1601.05136 [hep-ph]]

    2016 arXiv

  12. [20]

    Nuclear forces in the chiral limit,

    E. Epelbaum, U. G. Meissner and W. Gloeckle, “Nuclear forces in the chiral limit,” Nucl. Phys. A 714, 535 (2003) doi:10.1016/S0375-9474(02)01393-3 [nucl-th/0207089]

    2003 arXiv

  13. [21]

    Im- proving the convergence of the chiral expansion for nuclear forces. 1. Peripheral phases,

    E. Epelbaum, W. Gloeckle and U. G. Meissner, “Im- proving the convergence of the chiral expansion for nuclear forces. 1. Peripheral phases,” Eur. Phys. J. A 19, 125 (2004) doi:10.1140/epja/i2003-10096-0 [nucl-th/0304037]

    2004 arXiv

  14. [22]

    The Two nucleon potential from chiral Lagrangians,

    C. Ordonez, L. Ray and U. van Kolck, “The Two nucleon potential from chiral Lagrangians,” Phys. Rev. C 53, 2086 (1996) doi:10.1103/PhysRevC.53.2086 [hep-ph/9511380]

    1996 arXiv

  15. [23]

    The Quark mass depen- dence of two nucleon systems,

    S. R. Beane and M. J. Savage, “The Quark mass depen- dence of two nucleon systems,” Nucl. Phys. A 717, 91 (2003) doi:10.1016/S0375-9474(02)01586-5 [nucl-th/0208021]. 8 John F. Donoghue: Gravitons and pions

    2003 arXiv

  16. [24]

    The Nuclear central force in the chiral limit,

    J. F. Donoghue, “The Nuclear central force in the chiral limit,” Phys. Rev. C 74, 024002 (2006) doi:10.1103/PhysRevC.74.024002 [nucl-th/0603016]

    2006 arXiv

  17. [25]

    Sigma exchange in the nuclear force and effective field theory,

    J. F. Donoghue, “Sigma exchange in the nuclear force and effective field theory,” Phys. Lett. B 643, 165 (2006) doi:10.1016/j.physletb.2006.10.033 [nucl-th/0602074]

    2006 arXiv

  18. [26]

    Renormalization of Singu- lar Potentials and Power Counting,

    B. Long and U. van Kolck, “Renormalization of Singu- lar Potentials and Power Counting,” Annals Phys. 323, 1304 (2008) doi:10.1016/j.aop.2008.01.003 [arXiv:0707.4325 [quant-ph]]

    2008 arXiv

  19. [27]

    Model independent determination of the sigma pole,

    H. Leutwyler, “Model independent determination of the sigma pole,” AIP Conf. Proc. 1030, no. 1, 46 (2008) doi:10.1063/1.2973552 [arXiv:0804.3182 [hep-ph]]

    2008 arXiv

  20. [28]

    Parameter count- ing in relativistic mean field models,

    R. J. Furnstahl and B. D. Serot, “Parameter count- ing in relativistic mean field models,” Nucl. Phys. A 671, 447 (2000) doi:10.1016/S0375-9474(99)00839-8 [nucl- th/9911019]

    2000
